RipNgHeader - see RFC 2080 More...

#include "ripng-header.h"

Inheritance diagram for ns3::RipNgHeader:

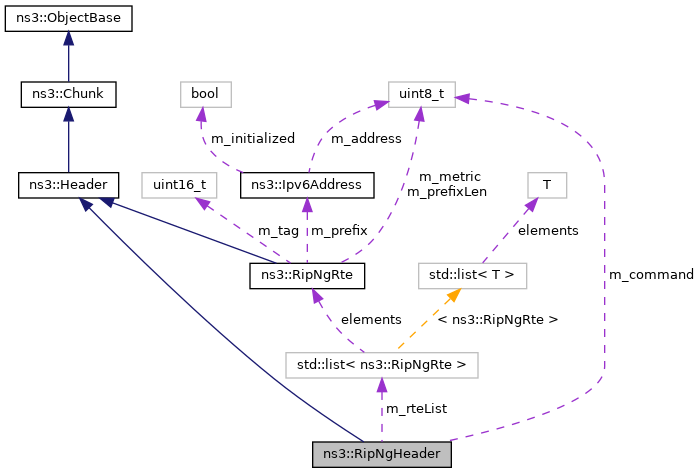

Collaboration diagram for ns3::RipNgHeader:

Public Types
enum	Command_e { REQUEST = 0x1 , RESPONSE = 0x2 }
	Commands to be used in RipNg headers. More...

Public Member Functions
	RipNgHeader ()

void	AddRte (RipNgRte rte)
	Add a RTE to the message. More...

void	ClearRtes ()
	Clear all the RTEs from the header. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

Command_e	GetCommand () const
	Get the command. More...

TypeId	GetInstanceTypeId () const override
	Return the instance type identifier. More...

std::list< RipNgRte >	GetRteList () const
	Get the list of the RTEs included in the message. More...

uint16_t	GetRteNumber () const
	Get the number of RTE included in the message. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetCommand (Command_e command)
	Set the command. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint8_t	m_command
	command type More...

std::list< RipNgRte >	m_rteList
	list of the RTEs in the message More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

RipNgHeader - see RFC 2080

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 145 of file ripng-header.h.

Member Enumeration Documentation

◆ Command_e

enum ns3::RipNgHeader::Command_e

Commands to be used in RipNg headers.

Enumerator
REQUEST
RESPONSE

Definition at line 186 of file ripng-header.h.

Constructor & Destructor Documentation

◆ RipNgHeader()

ns3::RipNgHeader::RipNgHeader ( )

Definition at line 157 of file ripng-header.cc.

Member Function Documentation

◆ AddRte()

void ns3::RipNgHeader::AddRte ( RipNgRte rte )

Add a RTE to the message.

Parameters

rte the RTE

Definition at line 266 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), ns3::RipNg::HandleRequests(), and ns3::RipNg::SendRouteRequest().

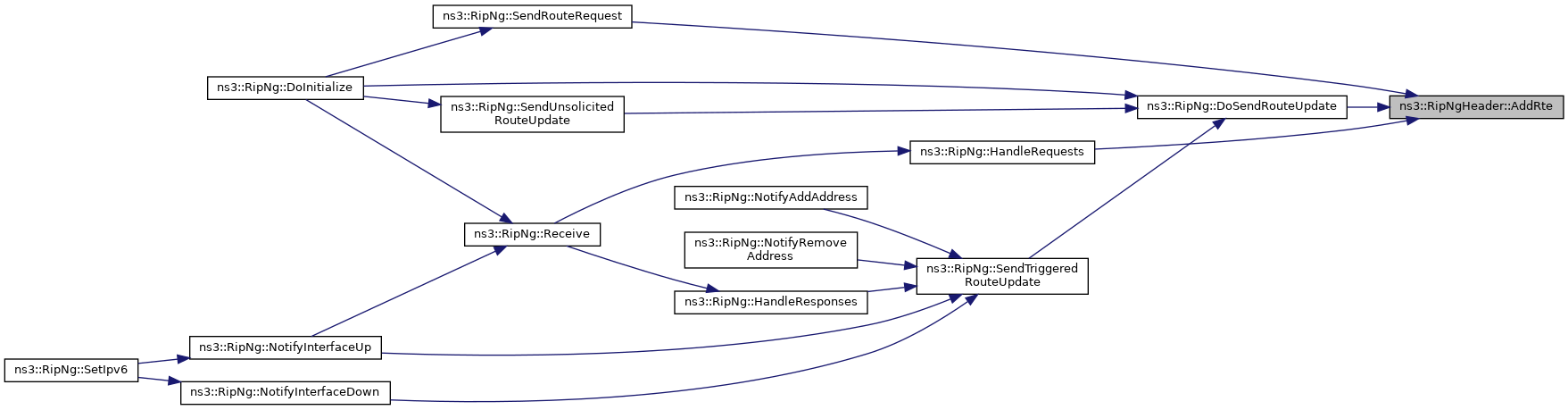

Here is the caller graph for this function:

◆ ClearRtes()

void ns3::RipNgHeader::ClearRtes ( )

Clear all the RTEs from the header.

Definition at line 272 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

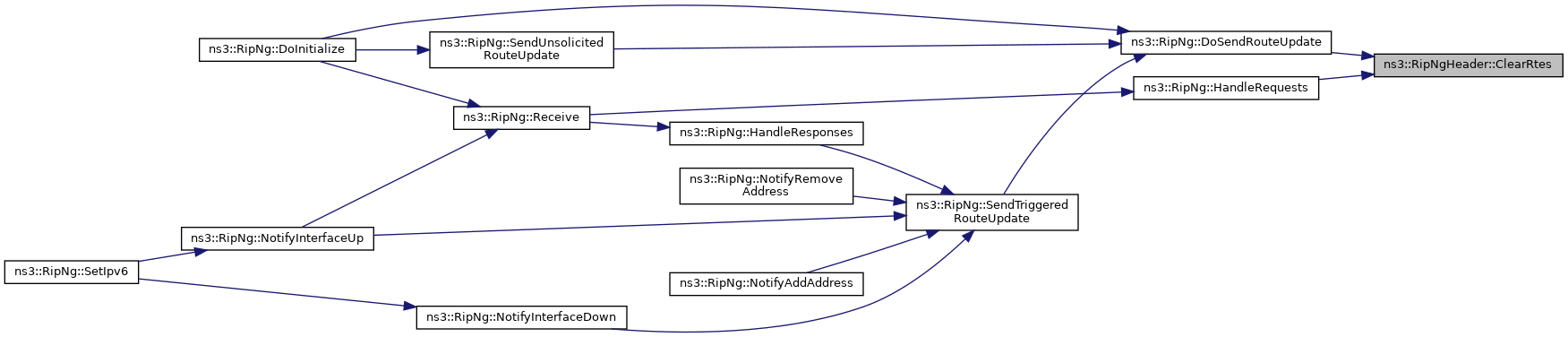

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::RipNgHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 215 of file ripng-header.cc.

References ns3::RipNgRte::Deserialize(), ns3::Buffer::Iterator::GetRemainingSize(), GetSerializedSize(), m_command, m_rteList, ns3::Buffer::Iterator::Next(), NS_LOG_LOGIC, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), REQUEST, RESPONSE, and two-ray-to-three-gpp-ch-calibration::start.

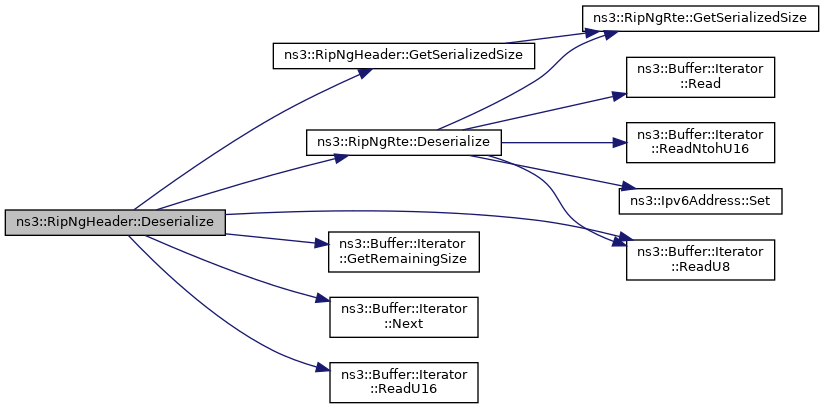

Here is the call graph for this function:

◆ GetCommand()

RipNgHeader::Command_e ns3::RipNgHeader::GetCommand ( ) const

Get the command.

Returns: the command

Definition at line 260 of file ripng-header.cc.

References m_command.

Referenced by ns3::RipNg::Receive().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::RipNgHeader::GetInstanceTypeId ( ) const

overridevirtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 173 of file ripng-header.cc.

References GetTypeId().

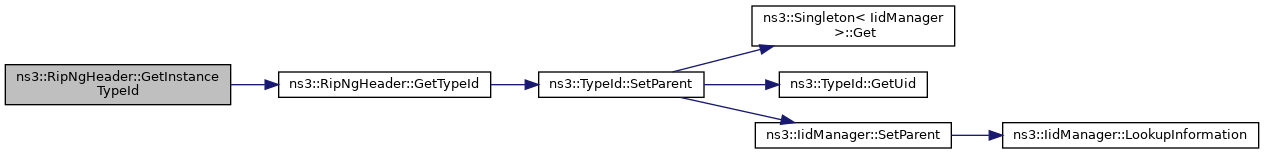

Here is the call graph for this function:

◆ GetRteList()

std::list< RipNgRte > ns3::RipNgHeader::GetRteList ( ) const

Get the list of the RTEs included in the message.

Returns: the list of the RTEs in the message

Definition at line 284 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::HandleRequests(), ns3::RipNg::HandleResponses(), and Ipv6RipngSplitHorizonStrategyTest::ReceivePktProbe().

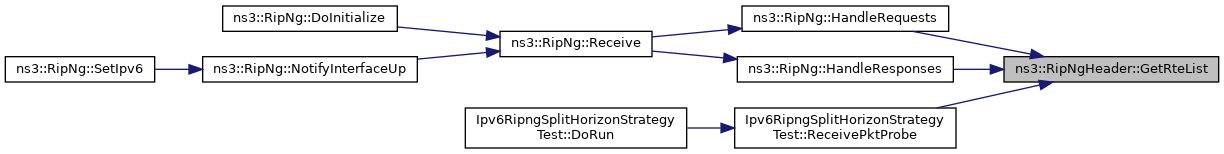

Here is the caller graph for this function:

◆ GetRteNumber()

uint16_t ns3::RipNgHeader::GetRteNumber ( ) const

Get the number of RTE included in the message.

Returns: the number of RTE in the message

Definition at line 278 of file ripng-header.cc.

References m_rteList.

Referenced by ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

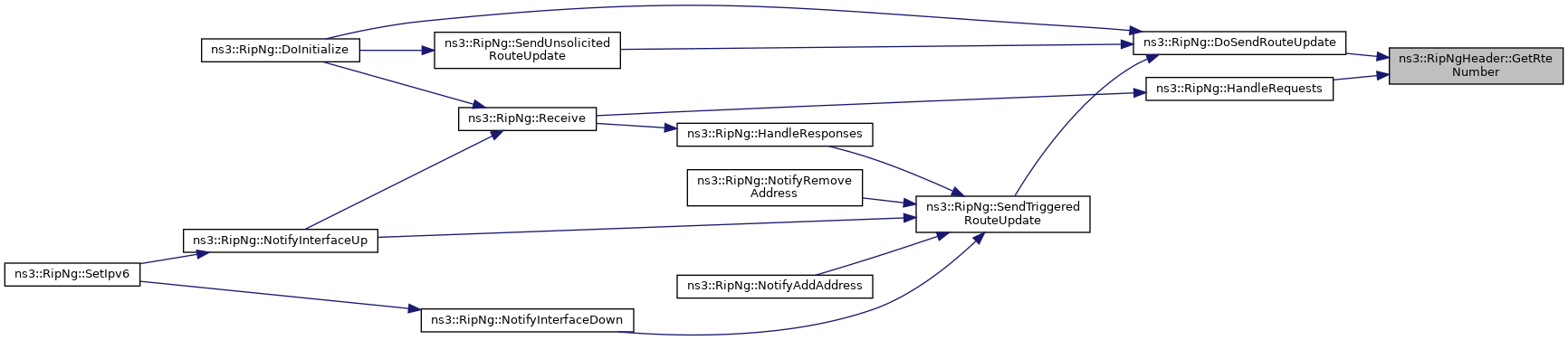

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::RipNgHeader::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 191 of file ripng-header.cc.

References ns3::RipNgRte::GetSerializedSize(), and m_rteList.

Referenced by Deserialize(), ns3::RipNg::DoSendRouteUpdate(), and ns3::RipNg::HandleRequests().

Here is the call graph for this function:

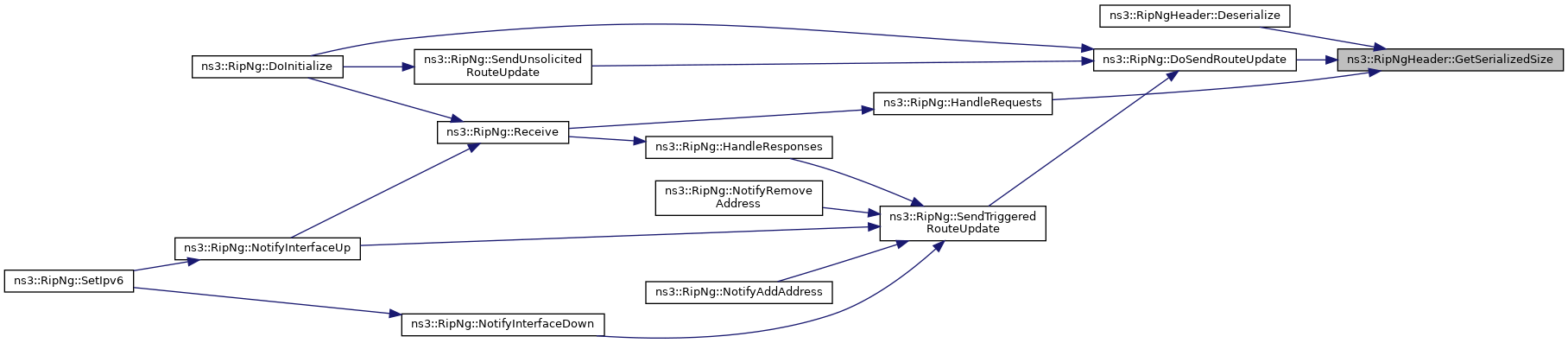

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RipNgHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 163 of file ripng-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

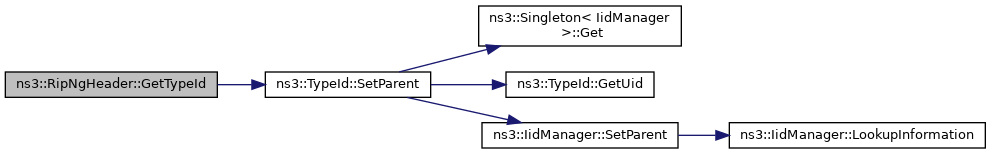

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::RipNgHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 179 of file ripng-header.cc.

References check-style-clang-format::int, m_command, and m_rteList.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ Serialize()

void ns3::RipNgHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Definition at line 198 of file ripng-header.cc.

References m_command, m_rteList, ns3::Buffer::Iterator::Next(), two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

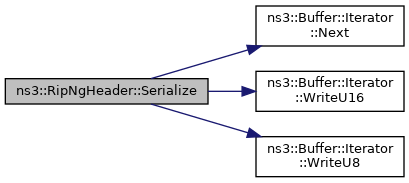

Here is the call graph for this function:

◆ SetCommand()

void ns3::RipNgHeader::SetCommand ( RipNgHeader::Command_e command )

Set the command.

Parameters

command the command

Definition at line 254 of file ripng-header.cc.

References m_command.

Referenced by ns3::RipNg::DoSendRouteUpdate(), ns3::RipNg::HandleRequests(), and ns3::RipNg::SendRouteRequest().

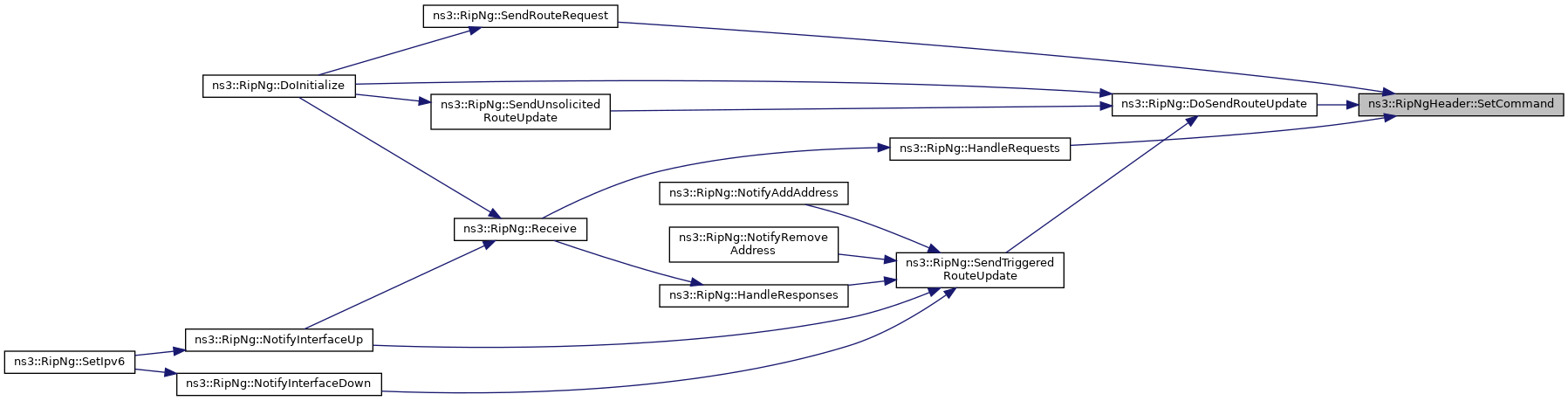

Here is the caller graph for this function:

Member Data Documentation

◆ m_command

uint8_t ns3::RipNgHeader::m_command

private

command type

Definition at line 228 of file ripng-header.h.

Referenced by Deserialize(), GetCommand(), Print(), Serialize(), and SetCommand().

◆ m_rteList

std::list<RipNgRte> ns3::RipNgHeader::m_rteList

private

list of the RTEs in the message

Definition at line 229 of file ripng-header.h.

Referenced by AddRte(), ClearRtes(), Deserialize(), GetRteList(), GetRteNumber(), GetSerializedSize(), Print(), and Serialize().

The documentation for this class was generated from the following files:

src/internet/model/ripng-header.h
src/internet/model/ripng-header.cc
