The Supported Rates Information Element. More...

#include "supported-rates.h"

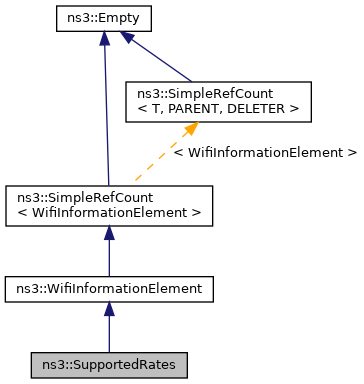

Inheritance diagram for ns3::SupportedRates:

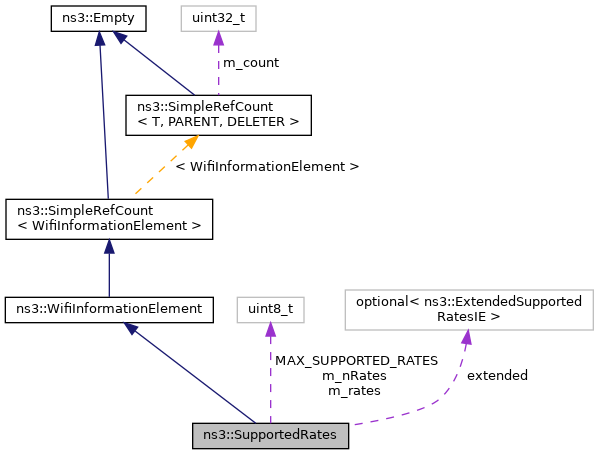

Collaboration diagram for ns3::SupportedRates:

Public Member Functions
	SupportedRates ()

	SupportedRates (const SupportedRates &rates)
	Type conversion operator. More...

void	AddBssMembershipSelectorRate (uint64_t bs)
	Add a special value to the supported rate set, corresponding to a BSS membership selector. More...

void	AddSupportedRate (uint64_t bs)
	Add the given rate to the supported rates. More...

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

uint8_t	GetNRates () const
	Return the number of supported rates. More...

uint32_t	GetRate (uint8_t i) const
	Return the rate at the given index. More...

bool	IsBasicRate (uint64_t bs) const
	Check if the given rate is a basic rate. More...

bool	IsBssMembershipSelectorRate (uint64_t bs) const
	Check if the given rate is a BSS membership selector value. More...

bool	IsSupportedRate (uint64_t bs) const
	Check if the given rate is supported. More...

SupportedRates &	operator= (const SupportedRates &rates)
	Assignment operator. More...

void	SetBasicRate (uint64_t bs)
	Set the given rate to basic rates. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Attributes
std::optional< ExtendedSupportedRatesIE >	extended
	extended supported rates info element More...

Static Public Attributes
static const uint8_t	MAX_SUPPORTED_RATES = 32
	This defines the maximum number of supported rates that a STA is allowed to have. More...

Private Member Functions
uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Private Attributes
uint8_t	m_nRates
	Number of supported rates. More...

uint8_t	m_rates [MAX_SUPPORTED_RATES]
	List of supported bit rates (divided by 500000) More...

Friends
class	ExtendedSupportedRatesIE
	We support the Extended Supported Rates Information Element through the ExtendedSupportedRatesIE object which is declared above. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::WifiInformationElement
template<typename IE , typename... Args>
static Buffer::Iterator	DeserializeIfPresent (std::optional< IE > &optElem, Buffer::Iterator i, Args &&... args)
	Deserialize an entire IE (which may possibly be fragmented into multiple elements) that is optionally present. More...

Detailed Description

The Supported Rates Information Element.

This class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates.

The ExtendedSupportedRatesIE class (of which an instance exists in objects of this class) deals with rates beyond the first 8.

Definition at line 87 of file supported-rates.h.

Constructor & Destructor Documentation

◆ SupportedRates() [1/2]

ns3::SupportedRates::SupportedRates ( )

Definition at line 34 of file supported-rates.cc.

References NS_LOG_FUNCTION.

◆ SupportedRates() [2/2]

ns3::SupportedRates::SupportedRates ( const SupportedRates & rates )

Type conversion operator.

Parameters

rates the reference const SupportedRates

Definition at line 41 of file supported-rates.cc.

References extended, ExtendedSupportedRatesIE, m_nRates, m_rates, MAX_SUPPORTED_RATES, and NS_LOG_FUNCTION.

Member Function Documentation

◆ AddBssMembershipSelectorRate()

void ns3::SupportedRates::AddBssMembershipSelectorRate ( uint64_t bs )

Add a special value to the supported rate set, corresponding to a BSS membership selector.

Parameters

bs	the special membership selector value (not a valid rate)

Definition at line 99 of file supported-rates.cc.

References BSS_MEMBERSHIP_SELECTOR_EHT_PHY, BSS_MEMBERSHIP_SELECTOR_HE_PHY, BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, m_nRates, m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::ApWifiMac::GetSupportedRates(), and ns3::StaWifiMac::GetSupportedRates().

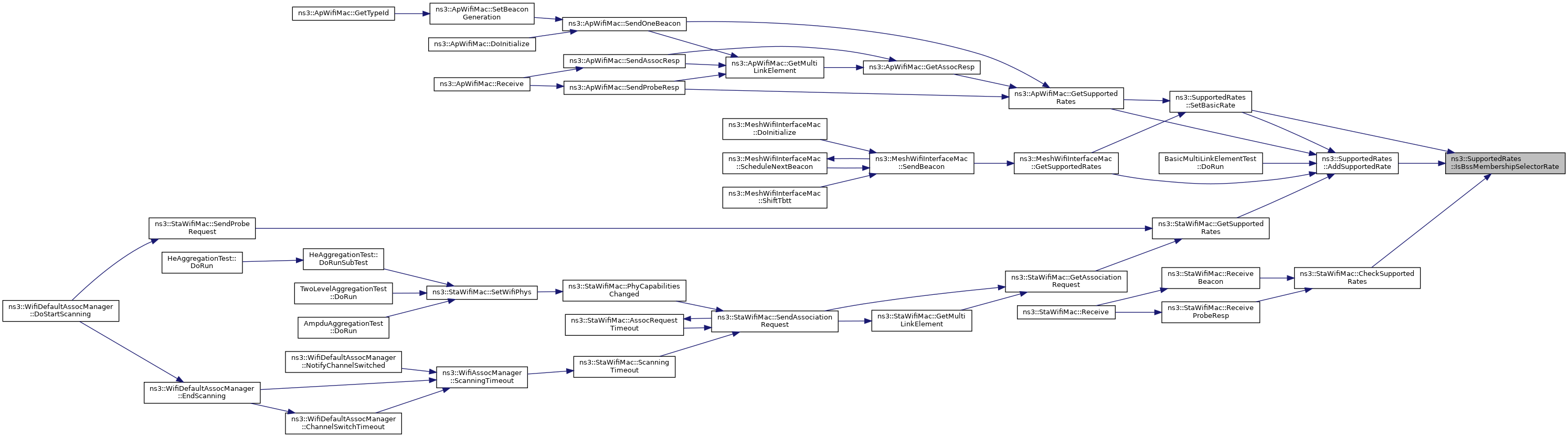

Here is the caller graph for this function:

◆ AddSupportedRate()

void ns3::SupportedRates::AddSupportedRate ( uint64_t bs )

Add the given rate to the supported rates.

Parameters

bs	the rate to be added in bps

Definition at line 61 of file supported-rates.cc.

References IsBssMembershipSelectorRate(), IsSupportedRate(), m_nRates, m_rates, MAX_SUPPORTED_RATES, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by BasicMultiLinkElementTest::DoRun(), ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), and SetBasicRate().

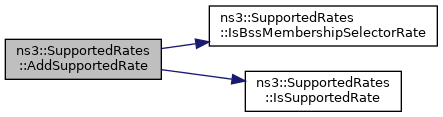

Here is the call graph for this function:

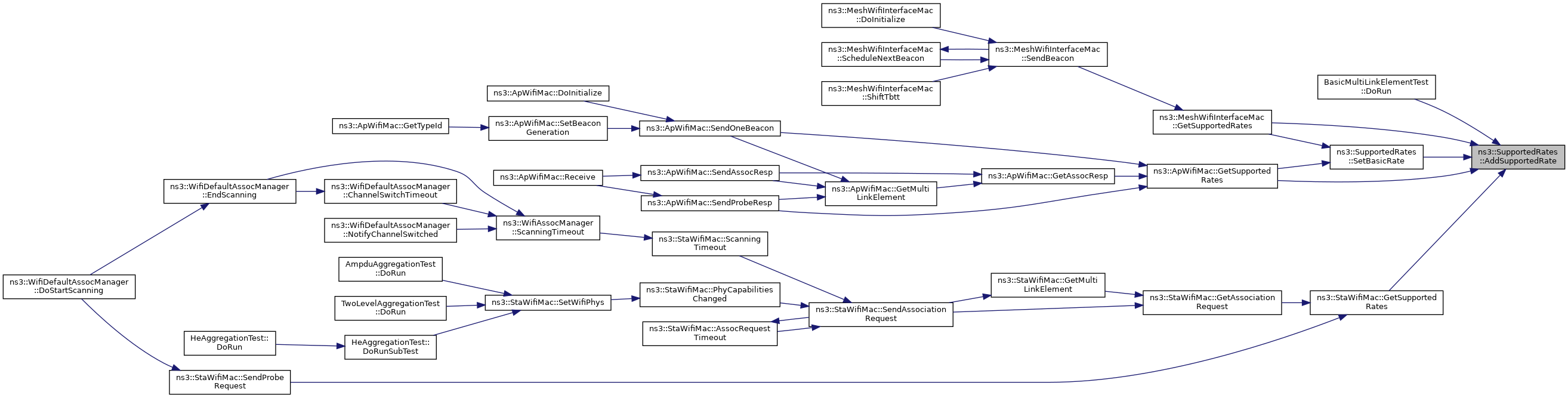

Here is the caller graph for this function:

◆ DeserializeInformationField()

uint16_t ns3::SupportedRates::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 199 of file supported-rates.cc.

References m_nRates, m_rates, NS_ASSERT, and two-ray-to-three-gpp-ch-calibration::start.

◆ ElementId()

WifiInformationElementId ns3::SupportedRates::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 175 of file supported-rates.cc.

References IE_SUPPORTED_RATES.

◆ GetInformationFieldSize()

uint16_t ns3::SupportedRates::GetInformationFieldSize ( ) const

overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 181 of file supported-rates.cc.

References m_nRates.

◆ GetNRates()

uint8_t ns3::SupportedRates::GetNRates ( ) const

Return the number of supported rates.

Returns: the number of supported rates

Definition at line 163 of file supported-rates.cc.

References m_nRates.

Referenced by ns3::dot11s::PeerLinkOpenStart::GetSerializedSize(), ns3::dot11s::PeerLinkConfirmStart::GetSerializedSize(), ns3::MgtAssocRequestHeader::GetSerializedSize(), ns3::MgtReassocRequestHeader::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), ns3::MgtProbeResponseHeader::GetSerializedSize(), ns3::operator<<(), ns3::ApWifiMac::ReceiveAssocRequest(), ns3::dot11s::PeerLinkOpenStart::Serialize(), ns3::dot11s::PeerLinkConfirmStart::Serialize(), ns3::MgtAssocRequestHeader::Serialize(), ns3::MgtReassocRequestHeader::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

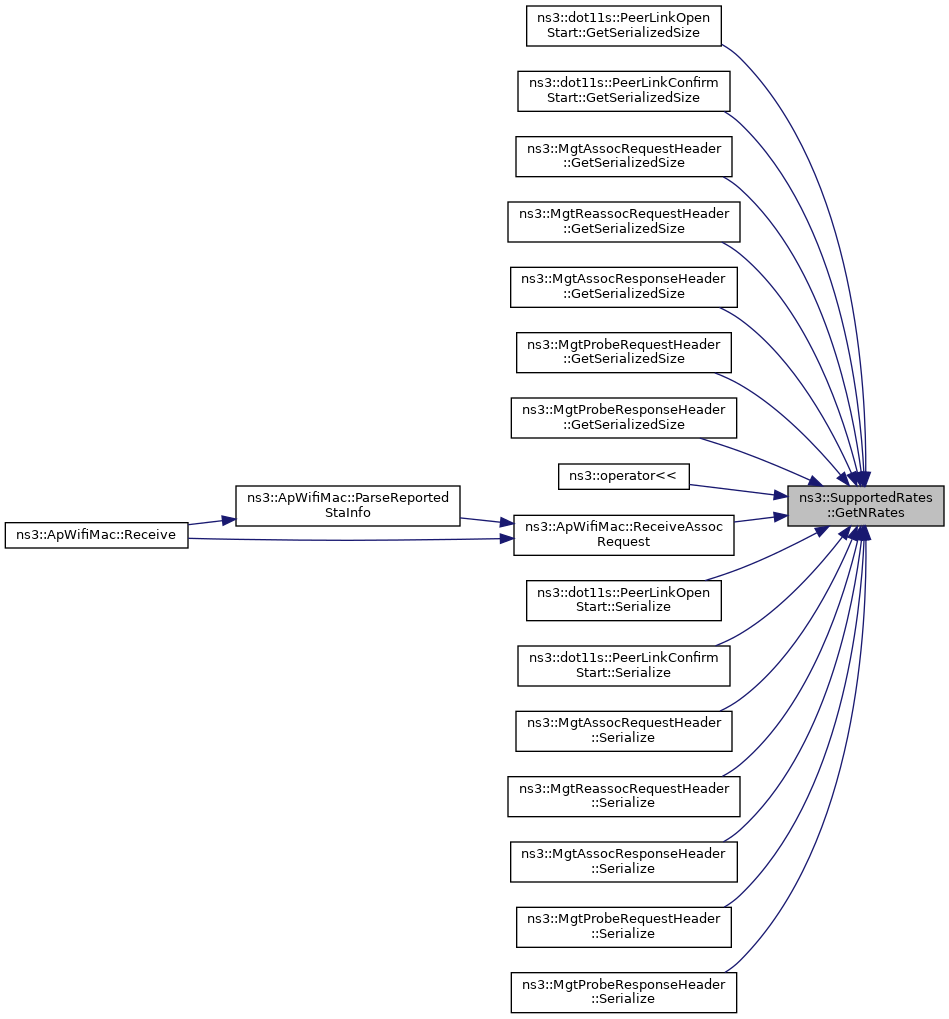

Here is the caller graph for this function:

◆ GetRate()

uint32_t ns3::SupportedRates::GetRate ( uint8_t i ) const

Return the rate at the given index.

Return the rate (converted back to raw value) at the given index.

Parameters

i	the given index

Returns: the rate in bps

Definition at line 169 of file supported-rates.cc.

References m_rates.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ IsBasicRate()

bool ns3::SupportedRates::IsBasicRate ( uint64_t bs ) const

Check if the given rate is a basic rate.

The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, with MSB set to 1).

Parameters

bs	the rate to be checked in bps

Returns: true if the rate is a basic rate, false otherwise

Definition at line 119 of file supported-rates.cc.

References m_nRates, m_rates, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<(), ns3::MeshWifiInterfaceMac::Receive(), and ns3::StaWifiMac::UpdateApInfo().

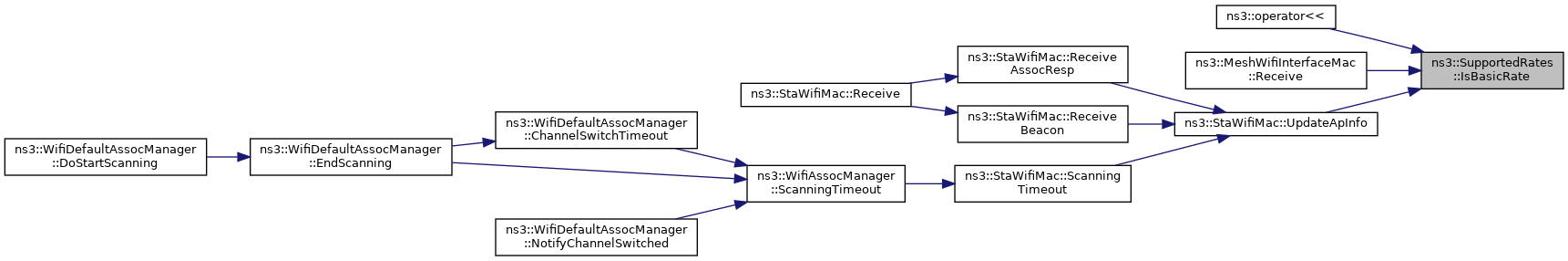

Here is the caller graph for this function:

◆ IsBssMembershipSelectorRate()

bool ns3::SupportedRates::IsBssMembershipSelectorRate ( uint64_t bs ) const

Check if the given rate is a BSS membership selector value.

The rate is encoded as it is serialized to the Supporting Rates Information Element (i.e. with the MSB set to 1).

Parameters

bs	the rate to be checked in bps

Returns: true if the rate is a BSS membership selector, false otherwise

Definition at line 149 of file supported-rates.cc.

References BSS_MEMBERSHIP_SELECTOR_EHT_PHY, BSS_MEMBERSHIP_SELECTOR_HE_PHY, BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, and NS_LOG_FUNCTION.

Referenced by AddSupportedRate(), ns3::StaWifiMac::CheckSupportedRates(), and SetBasicRate().

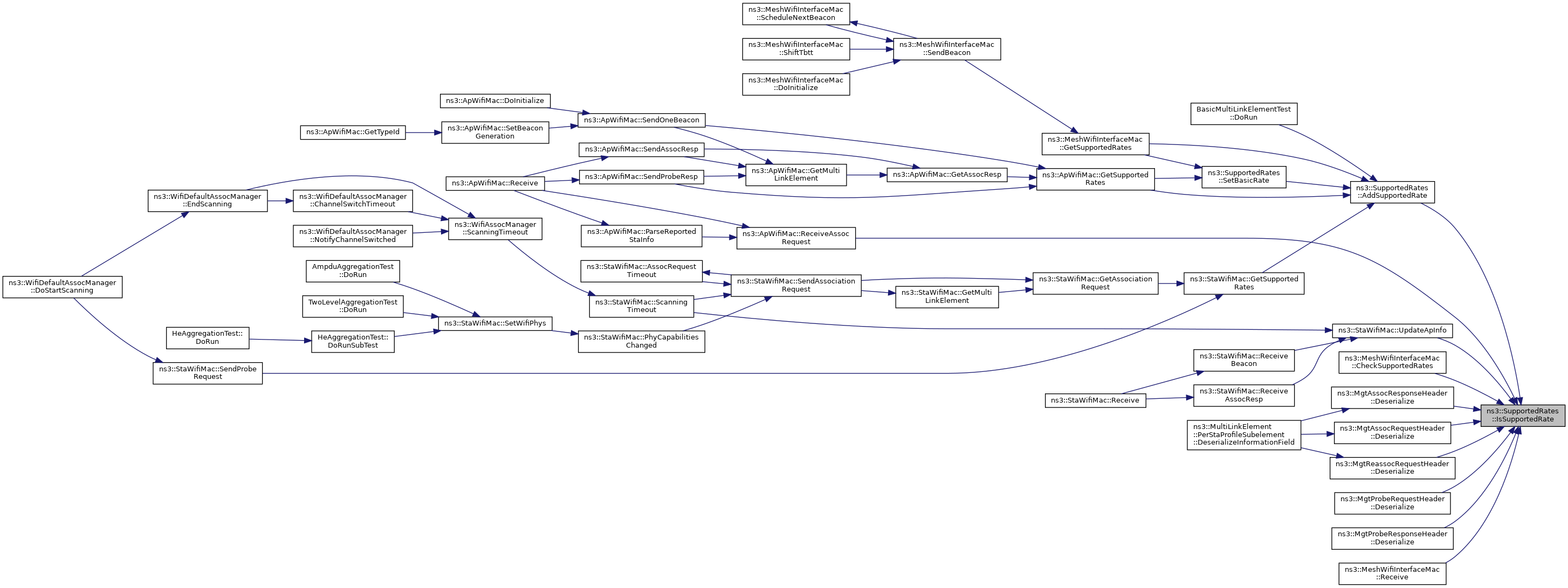

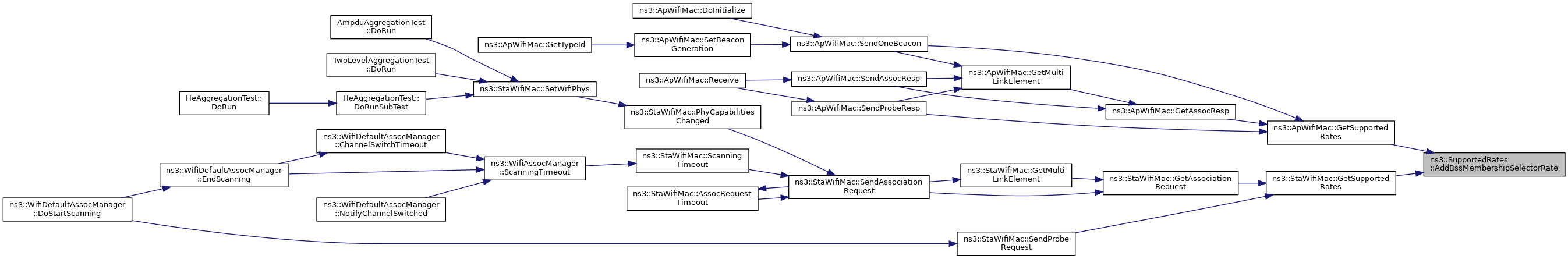

Here is the caller graph for this function:

◆ IsSupportedRate()

bool ns3::SupportedRates::IsSupportedRate ( uint64_t bs ) const

Check if the given rate is supported.

The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, possibly with MSB set to 1).

Parameters

bs	the rate to be checked in bps

Returns: true if the rate is supported, false otherwise

Definition at line 134 of file supported-rates.cc.

References m_nRates, m_rates, and NS_LOG_FUNCTION.

Referenced by AddSupportedRate(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::MgtAssocRequestHeader::Deserialize(), ns3::MgtReassocRequestHeader::Deserialize(), ns3::MgtAssocResponseHeader::Deserialize(), ns3::MgtProbeRequestHeader::Deserialize(), ns3::MgtProbeResponseHeader::Deserialize(), ns3::MeshWifiInterfaceMac::Receive(), ns3::ApWifiMac::ReceiveAssocRequest(), and ns3::StaWifiMac::UpdateApInfo().

Here is the caller graph for this function:

◆ operator=()

SupportedRates & ns3::SupportedRates::operator= ( const SupportedRates & rates )

Assignment operator.

Parameters

rates the rates to assign

Returns: the assigned value

Definition at line 51 of file supported-rates.cc.

References extended, ExtendedSupportedRatesIE, m_nRates, m_rates, and MAX_SUPPORTED_RATES.

◆ SerializeInformationField()

void ns3::SupportedRates::SerializeInformationField ( Buffer::Iterator start ) const

overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 190 of file supported-rates.cc.

References m_nRates, m_rates, and two-ray-to-three-gpp-ch-calibration::start.

◆ SetBasicRate()

void ns3::SupportedRates::SetBasicRate ( uint64_t bs )

Set the given rate to basic rates.

Parameters

bs	the rate to be set in bps

Definition at line 76 of file supported-rates.cc.

References AddSupportedRate(), IsBssMembershipSelectorRate(), m_nRates, m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

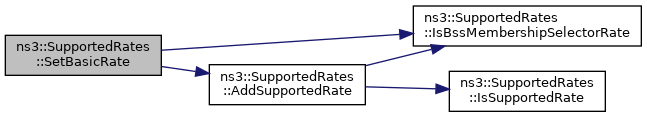

Here is the call graph for this function:

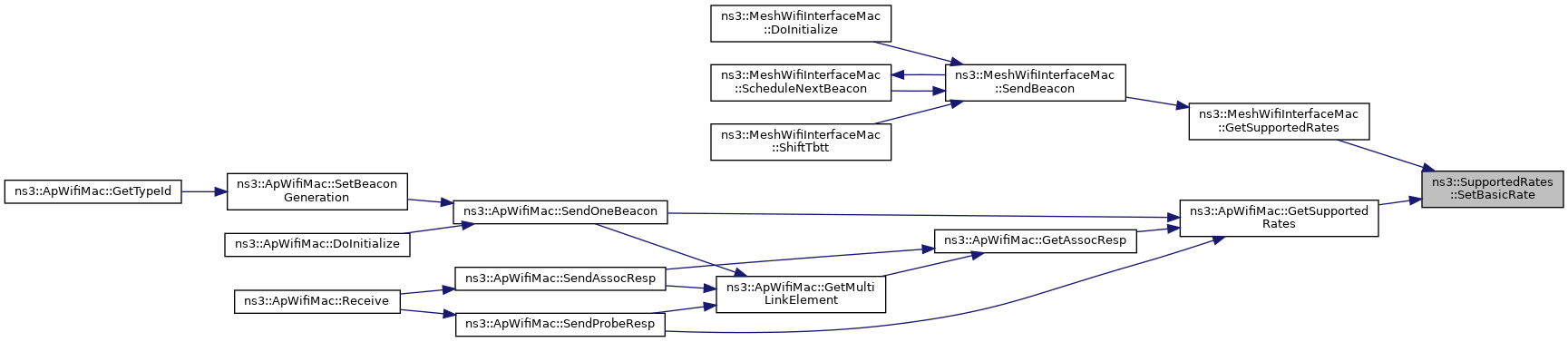

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ExtendedSupportedRatesIE

friend class ExtendedSupportedRatesIE

friend

We support the Extended Supported Rates Information Element through the ExtendedSupportedRatesIE object which is declared above.

We allow this class to be a friend so that it can access our private data detailing the rates, and create an instance as extended.

Definition at line 189 of file supported-rates.h.

Referenced by SupportedRates(), and operator=().

Member Data Documentation

◆ extended

std::optional<ExtendedSupportedRatesIE> ns3::SupportedRates::extended

extended supported rates info element

Definition at line 190 of file supported-rates.h.

Referenced by SupportedRates(), ns3::dot11s::PeerLinkOpenStart::Deserialize(), ns3::dot11s::PeerLinkConfirmStart::Deserialize(), ns3::MgtAssocRequestHeader::Deserialize(), ns3::MgtReassocRequestHeader::Deserialize(), ns3::MgtAssocResponseHeader::Deserialize(), ns3::MgtProbeRequestHeader::Deserialize(), ns3::MgtProbeResponseHeader::Deserialize(), ns3::dot11s::PeerLinkOpenStart::GetSerializedSize(), ns3::dot11s::PeerLinkConfirmStart::GetSerializedSize(), ns3::MgtAssocRequestHeader::GetSerializedSize(), ns3::MgtReassocRequestHeader::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), ns3::MgtProbeResponseHeader::GetSerializedSize(), operator=(), ns3::dot11s::PeerLinkOpenStart::Serialize(), ns3::dot11s::PeerLinkConfirmStart::Serialize(), ns3::MgtAssocRequestHeader::Serialize(), ns3::MgtReassocRequestHeader::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

◆ m_nRates

uint8_t ns3::SupportedRates::m_nRates

private

Number of supported rates.

Definition at line 197 of file supported-rates.h.

Referenced by SupportedRates(), AddBssMembershipSelectorRate(), AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), DeserializeInformationField(), ns3::ExtendedSupportedRatesIE::GetInformationFieldSize(), GetInformationFieldSize(), GetNRates(), IsBasicRate(), IsSupportedRate(), operator=(), ns3::ExtendedSupportedRatesIE::SerializeInformationField(), SerializeInformationField(), and SetBasicRate().

◆ m_rates

uint8_t ns3::SupportedRates::m_rates[MAX_SUPPORTED_RATES]

private

List of supported bit rates (divided by 500000)

Definition at line 198 of file supported-rates.h.

Referenced by SupportedRates(), AddBssMembershipSelectorRate(), AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), DeserializeInformationField(), GetRate(), IsBasicRate(), IsSupportedRate(), operator=(), ns3::ExtendedSupportedRatesIE::SerializeInformationField(), SerializeInformationField(), and SetBasicRate().

◆ MAX_SUPPORTED_RATES

const uint8_t ns3::SupportedRates::MAX_SUPPORTED_RATES = 32

static

This defines the maximum number of supported rates that a STA is allowed to have.

Currently this number is set for IEEE 802.11b/g and SISO IEEE 802.11n stations which need 2 rates each from Clauses 15 and 18, and then 8 from Clause 19.

Definition at line 116 of file supported-rates.h.

Referenced by SupportedRates(), AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), and operator=().

The documentation for this class was generated from the following files:

src/wifi/model/supported-rates.h
src/wifi/model/supported-rates.cc

Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SupportedRates() [1/2]

◆ SupportedRates() [2/2]

Member Function Documentation

◆ AddBssMembershipSelectorRate()

◆ AddSupportedRate()

◆ DeserializeInformationField()

◆ ElementId()

◆ GetInformationFieldSize()

◆ GetNRates()

◆ GetRate()

◆ IsBasicRate()

◆ IsBssMembershipSelectorRate()

◆ IsSupportedRate()

◆ operator=()

◆ SerializeInformationField()

◆ SetBasicRate()

Friends And Related Function Documentation

◆ ExtendedSupportedRatesIE

Member Data Documentation

◆ extended

◆ m_nRates

◆ m_rates

◆ MAX_SUPPORTED_RATES
