#include "csma-channel.h"

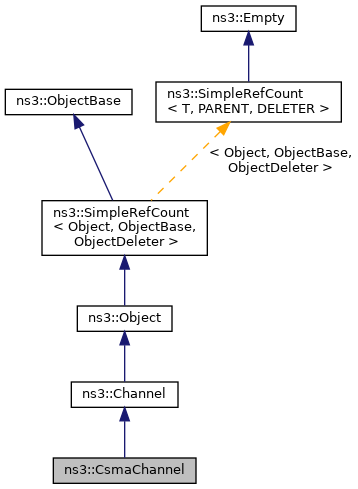

Inheritance diagram for ns3::CsmaChannel:

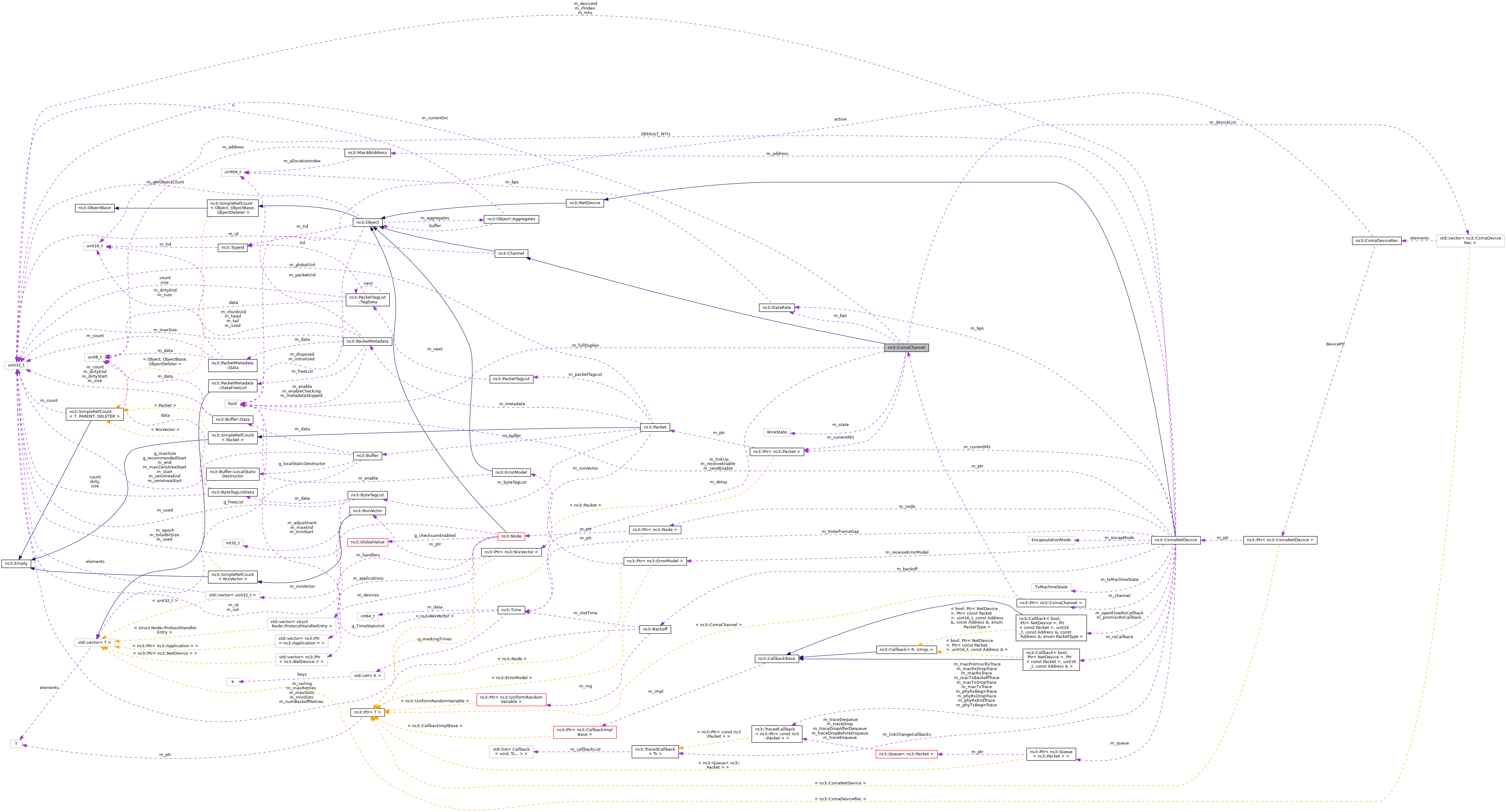

Collaboration diagram for ns3::CsmaChannel:

Public Types
enum	WireState { IDLE , TRANSMITTING , PROPAGATING }
	Current state of the channel. More...

Public Member Functions
	CsmaChannel ()
	Create a CsmaChannel. More...

	CsmaChannel (const CsmaChannel &)=delete

	~CsmaChannel () override
	Destroy a CsmaChannel. More...

int32_t	Attach (Ptr< CsmaNetDevice > device)
	Attach a given netdevice to this channel. More...

bool	Detach (Ptr< CsmaNetDevice > device)
	Detach a given netdevice from this channel. More...

bool	Detach (uint32_t deviceId)
	Detach a given netdevice from this channel. More...

Ptr< CsmaNetDevice >	GetCsmaDevice (std::size_t i) const

DataRate	GetDataRate ()
	Get the assigned data rate of the channel. More...

Time	GetDelay ()
	Get the assigned speed-of-light delay of the channel. More...

Ptr< NetDevice >	GetDevice (std::size_t i) const override

int32_t	GetDeviceNum (Ptr< CsmaNetDevice > device)

std::size_t	GetNDevices () const override

uint32_t	GetNumActDevices ()

WireState	GetState (uint32_t deviceId)
	Checks the state of the channel. More...

bool	IsActive (uint32_t deviceId)
	Indicates if a net device is currently attached or detached from the channel. More...

bool	IsBusy (uint32_t deviceId)
	Indicates if the channel is busy. More...

bool	IsFullDuplex () const
	Indicates if channel is operating in full-duplex mode. More...

CsmaChannel &	operator= (const CsmaChannel &)=delete

void	PropagationCompleteEvent (uint32_t deviceId)
	Indicates that the channel has finished propagating the current packet. More...

bool	Reattach (Ptr< CsmaNetDevice > device)
	Reattach a previously detached net device to the channel. More...

bool	Reattach (uint32_t deviceId)
	Reattach a previously detached net device to the channel. More...

bool	TransmitEnd (uint32_t deviceId)
	Indicates that the net device has finished transmitting the packet over the channel. More...

bool	TransmitStart (Ptr< const Packet > p, uint32_t srcId)
	Start transmitting a packet over the channel. More...

Public Member Functions inherited from ns3::Channel
	Channel ()

	~Channel () override

uint32_t	GetId () const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
Ptr< Packet >	GetCurrentPkt (uint32_t deviceId)
	Gets current packet. More...

uint32_t	GetCurrentSrc (uint32_t deviceId)
	Gets current transmitter. More...

void	SetCurrentPkt (uint32_t deviceId, Ptr< Packet > pkt)
	Sets the current packet. More...

void	SetCurrentSrc (uint32_t deviceId, uint32_t transmitterId)
	Sets the current transmitter. More...

void	SetState (uint32_t deviceId, WireState state)
	Sets the state of the channel. More...

Private Attributes
DataRate	m_bps
	The assigned data rate of the channel. More...

Ptr< Packet >	m_currentPkt [2]
	The Packet that is currently being transmitted on the subchannel (or the last packet to have been transmitted if the subchannel is free). More...

uint32_t	m_currentSrc [2]
	Device Id of the source that is currently transmitting on the subchannel, or the last source to have transmitted a packet on the subchannel, if it is not currently busy. More...

Time	m_delay
	The assigned speed-of-light delay of the channel. More...

std::vector< CsmaDeviceRec >	m_deviceList
	List of the net devices that have been or are currently connected to the channel. More...

bool	m_fullDuplex
	Whether the channel is in full-duplex mode. More...

WireState	m_state [2]
	Current state of each subchannel. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Csma Channel.

This class represents a simple Csma channel that can be used when many nodes are connected to one wire. It uses a single busy flag to indicate if the channel is currently in use. It does not take into account the distances between stations or the speed of light to determine collisions. Optionally, it allows for full- duplex operation when there are only two attached nodes. To implement full-duplex, we internally keep two TX "subchannels" (one for each attached node). When in half-duplex mode, only the first subchannel is used.

Config Paths

ns3::CsmaChannel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::CsmaChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/Channel/$ns3::CsmaChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phys/[i]/Channel/$ns3::CsmaChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::CsmaChannel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/Channel/$ns3::CsmaChannel"
"/ChannelList/[i]/$ns3::CsmaChannel"

Attributes

DataRate: The transmission data rate to be provided to devices connected to the channel
- Set with class: ns3::DataRateValue
- Underlying type: DataRate
- Initial value: 4294967295bps
- Flags: constructwriteread
Delay: Transmission delay through the channel
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
FullDuplex: Whether the channel is full-duplex mode.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 92 of file csma-channel.h.

Member Enumeration Documentation

◆ WireState

enum ns3::CsmaChannel::WireState

Current state of the channel.

Enumerator
IDLE	Channel is IDLE, no packet is being transmitted.
TRANSMITTING	Channel is BUSY, a packet is being written by a net device.
PROPAGATING	Channel is BUSY, packet is propagating to all attached net devices.

Definition at line 98 of file csma-channel.h.

Constructor & Destructor Documentation

◆ CsmaChannel() [1/2]

ns3::CsmaChannel::CsmaChannel ( )

Create a CsmaChannel.

Definition at line 69 of file csma-channel.cc.

References m_deviceList, and NS_LOG_FUNCTION_NOARGS.

◆ ~CsmaChannel()

ns3::CsmaChannel::~CsmaChannel ( )

override

Destroy a CsmaChannel.

Definition at line 76 of file csma-channel.cc.

References m_deviceList, and NS_LOG_FUNCTION.

◆ CsmaChannel() [2/2]

ns3::CsmaChannel::CsmaChannel ( const CsmaChannel & )

delete

Member Function Documentation

◆ Attach()

int32_t ns3::CsmaChannel::Attach ( Ptr< CsmaNetDevice > device )

Attach a given netdevice to this channel.

Parameters

device Device pointer to the netdevice to attach to the channel

Returns: The assigned device number

Definition at line 83 of file csma-channel.cc.

References IDLE, m_deviceList, m_fullDuplex, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, SetCurrentSrc(), and SetState().

Here is the call graph for this function:

◆ Detach() [1/2]

bool ns3::CsmaChannel::Detach ( Ptr< CsmaNetDevice > device )

Detach a given netdevice from this channel.

The net device is marked as inactive and it is not allowed to receive or transmit packets

Parameters

device Device pointer to the netdevice to detach from the channel

Returns: True if the device is found and attached to the channel, false if the device is not currently connected to the channel or can't be found.

Definition at line 182 of file csma-channel.cc.

References m_deviceList, NS_ASSERT, and NS_LOG_FUNCTION.

◆ Detach() [2/2]

bool ns3::CsmaChannel::Detach ( uint32_t deviceId )

Detach a given netdevice from this channel.

The net device is marked as inactive and it is not allowed to receive or transmit packets

Parameters

deviceId The deviceID assigned to the net device when it was connected to the channel

Returns: True if the device is found and attached to the channel, false if the device is not currently connected to the channel or can't be found.

Definition at line 153 of file csma-channel.cc.

References GetCurrentSrc(), GetState(), m_deviceList, NS_LOG_FUNCTION, NS_LOG_WARN, and TRANSMITTING.

Here is the call graph for this function:

◆ GetCsmaDevice()

Ptr< CsmaNetDevice > ns3::CsmaChannel::GetCsmaDevice ( std::size_t i ) const

Returns: Get a CsmaNetDevice pointer to a connected network device.

Parameters

i	The deviceId of the net device for which we want the pointer.

Returns: Returns the pointer to the net device that is associated with deviceId i.

Definition at line 327 of file csma-channel.cc.

References m_deviceList.

Referenced by GetDevice().

Here is the caller graph for this function:

◆ GetCurrentPkt()

Ptr< Packet > ns3::CsmaChannel::GetCurrentPkt ( uint32_t deviceId )

private

Gets current packet.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Device Id of the source that is currently transmitting on the subchannel or the last source to have transmitted a packet on the subchannel, if it is not currently busy.

Definition at line 393 of file csma-channel.cc.

References m_currentPkt, and m_fullDuplex.

Referenced by PropagationCompleteEvent(), and TransmitEnd().

Here is the caller graph for this function:

◆ GetCurrentSrc()

uint32_t ns3::CsmaChannel::GetCurrentSrc ( uint32_t deviceId )

private

Gets current transmitter.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Device Id of the source that is currently transmitting on the channel. Or last source to have transmitted a packet on the channel, if the channel is currently not busy.

Definition at line 405 of file csma-channel.cc.

References m_currentSrc, and m_fullDuplex.

Referenced by Detach(), and TransmitEnd().

Here is the caller graph for this function:

◆ GetDataRate()

DataRate ns3::CsmaChannel::GetDataRate ( )

Get the assigned data rate of the channel.

Returns: Returns the DataRate to be used by device transmitters. with deviceId i.

Definition at line 369 of file csma-channel.cc.

References m_bps.

◆ GetDelay()

Time ns3::CsmaChannel::GetDelay ( )

Get the assigned speed-of-light delay of the channel.

Returns: Returns the delay used by the channel.

Definition at line 375 of file csma-channel.cc.

References m_delay.

◆ GetDevice()

Ptr< NetDevice > ns3::CsmaChannel::GetDevice ( std::size_t i ) const

overridevirtual

Returns: Get a NetDevice pointer to a connected network device.

Parameters

i	The index of the net device.

Returns: Returns the pointer to the net device that is associated with deviceId i.

Implements ns3::Channel.

Definition at line 387 of file csma-channel.cc.

References GetCsmaDevice().

Here is the call graph for this function:

◆ GetDeviceNum()

int32_t ns3::CsmaChannel::GetDeviceNum ( Ptr< CsmaNetDevice > device )

Returns: Returns the device number assigned to a net device by the channel

Parameters

device Device pointer to the netdevice for which the device number is needed

Definition at line 333 of file csma-channel.cc.

References m_deviceList.

◆ GetNDevices()

std::size_t ns3::CsmaChannel::GetNDevices ( ) const

overridevirtual

Returns: Returns the total number of devices including devices that have been detached from the channel.

Implements ns3::Channel.

Definition at line 321 of file csma-channel.cc.

References m_deviceList.

◆ GetNumActDevices()

uint32_t ns3::CsmaChannel::GetNumActDevices ( )

Returns: Returns the number of net devices that are currently attached to the channel.

Definition at line 306 of file csma-channel.cc.

References m_deviceList.

◆ GetState()

CsmaChannel::WireState ns3::CsmaChannel::GetState ( uint32_t deviceId )

Checks the state of the channel.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Returns the state of the channel (IDLE – free, TRANSMITTING – busy, PROPAGATING - busy )

Definition at line 381 of file csma-channel.cc.

References m_fullDuplex, and m_state.

Referenced by Detach(), IsBusy(), PropagationCompleteEvent(), TransmitEnd(), and TransmitStart().

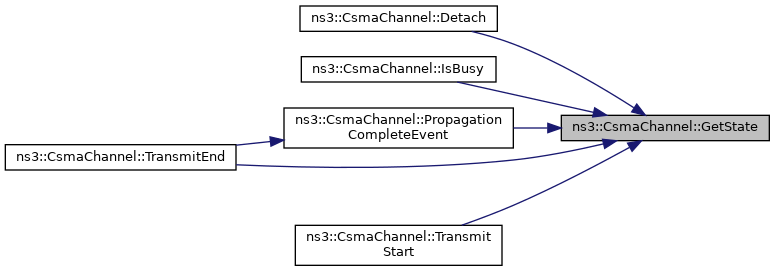

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::CsmaChannel::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file csma-channel.cc.

References ns3::TypeId::ATTR_CONSTRUCT, m_bps, m_delay, m_fullDuplex, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

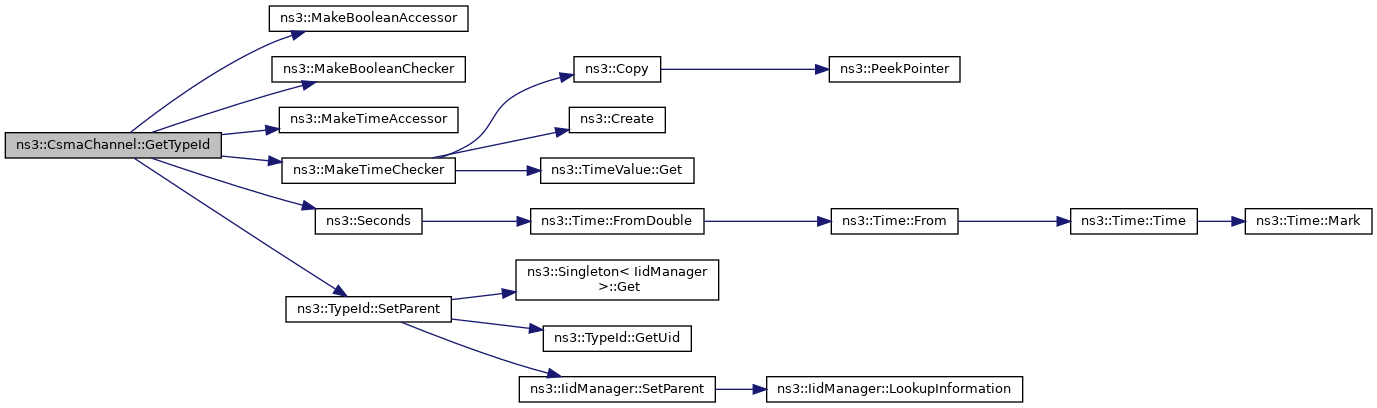

Here is the call graph for this function:

◆ IsActive()

bool ns3::CsmaChannel::IsActive ( uint32_t deviceId )

Indicates if a net device is currently attached or detached from the channel.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Returns true if the net device is attached to the channel, false otherwise.

Definition at line 226 of file csma-channel.cc.

References m_deviceList.

Referenced by TransmitEnd(), and TransmitStart().

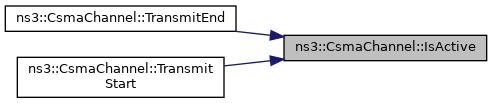

Here is the caller graph for this function:

◆ IsBusy()

bool ns3::CsmaChannel::IsBusy ( uint32_t deviceId )

Indicates if the channel is busy.

The channel will only accept new packets for transmission if it is not busy.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Returns true if the channel is busy and false if it is free.

Definition at line 356 of file csma-channel.cc.

References GetState(), and IDLE.

Here is the call graph for this function:

◆ IsFullDuplex()

bool ns3::CsmaChannel::IsFullDuplex ( ) const

Indicates if channel is operating in full-duplex mode.

Returns: Returns true if channel is in full-duplex mode, false if in half-duplex mode.

Definition at line 232 of file csma-channel.cc.

References m_fullDuplex.

Referenced by TransmitEnd().

Here is the caller graph for this function:

◆ operator=()

CsmaChannel& ns3::CsmaChannel::operator= ( const CsmaChannel & )

delete

◆ PropagationCompleteEvent()

void ns3::CsmaChannel::PropagationCompleteEvent ( uint32_t deviceId )

Indicates that the channel has finished propagating the current packet.

The channel is released and becomes free.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel. Calls the receive function of the other net device that is attached to the channel.

Definition at line 296 of file csma-channel.cc.

References GetCurrentPkt(), GetState(), IDLE, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, PROPAGATING, and SetState().

Referenced by TransmitEnd().

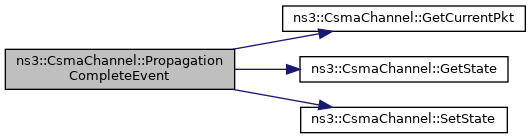

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reattach() [1/2]

bool ns3::CsmaChannel::Reattach ( Ptr< CsmaNetDevice > device )

Reattach a previously detached net device to the channel.

The net device is marked as active. It is now allowed to receive or transmit packets. The net device must have been previously attached to the channel using the attach function.

Parameters

device Device pointer to the netdevice to detach from the channel

Returns: True if the device is found and is not attached to the channel, false if the device is currently connected to the channel or can't be found.

Definition at line 107 of file csma-channel.cc.

References m_deviceList, NS_ASSERT, and NS_LOG_FUNCTION.

◆ Reattach() [2/2]

bool ns3::CsmaChannel::Reattach ( uint32_t deviceId )

Reattach a previously detached net device to the channel.

The net device is marked as active. It is now allowed to receive or transmit packets. The net device must have been previously attached to the channel using the attach function.

Parameters

deviceId The device ID assigned to the net device when it was connected to the channel

Returns: True if the device is found and is not attached to the channel, false if the device is currently connected to the channel or can't be found.

Definition at line 132 of file csma-channel.cc.

References m_deviceList, and NS_LOG_FUNCTION.

◆ SetCurrentPkt()

void ns3::CsmaChannel::SetCurrentPkt	(	uint32_t	deviceId,
		Ptr< Packet >	pkt
	)

private

Sets the current packet.

Parameters

deviceId	The ID that was assigned to the net device when it was attached to the channel.
The	Packet that is current being transmitted by deviceId (or last packet to have been transmitted on the channel if the channel is free.)

Definition at line 399 of file csma-channel.cc.

References m_currentPkt, and m_fullDuplex.

Referenced by TransmitStart().

Here is the caller graph for this function:

◆ SetCurrentSrc()

void ns3::CsmaChannel::SetCurrentSrc	(	uint32_t	deviceId,
		uint32_t	transmitterId
	)

private

Sets the current transmitter.

Parameters

deviceId	The ID that was assigned to the net device when it was attached to the channel.
transmitterId	The ID of the transmitting device.

Definition at line 411 of file csma-channel.cc.

References m_currentSrc, and m_fullDuplex.

Referenced by Attach(), and TransmitStart().

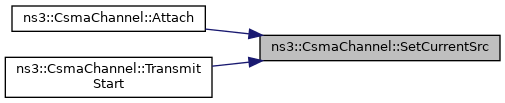

Here is the caller graph for this function:

◆ SetState()

void ns3::CsmaChannel::SetState	(	uint32_t	deviceId,
		CsmaChannel::WireState	state
	)

private

Sets the state of the channel.

Parameters

deviceId	The ID that was assigned to the net device when it was attached to the channel.
state	The new channel state.

Definition at line 417 of file csma-channel.cc.

References m_fullDuplex, and m_state.

Referenced by Attach(), PropagationCompleteEvent(), TransmitEnd(), and TransmitStart().

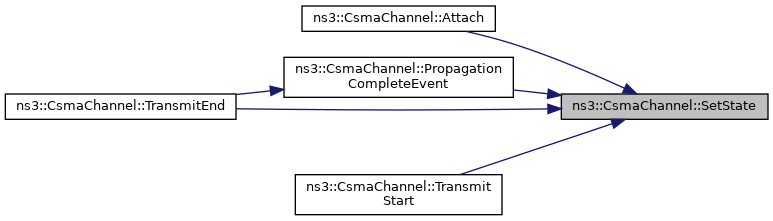

Here is the caller graph for this function:

◆ TransmitEnd()

bool ns3::CsmaChannel::TransmitEnd ( uint32_t deviceId )

Indicates that the net device has finished transmitting the packet over the channel.

The channel will stay busy until the packet has completely propagated to all net devices attached to the channel. The TransmitEnd function schedules the PropagationCompleteEvent which will free the channel for further transmissions. Stores the packet p as the m_currentPkt, the packet being currently transmitting.

Parameters

deviceId The ID that was assigned to the net device when it was attached to the channel.

Returns: Returns true unless the source was detached before it completed its transmission.

Definition at line 238 of file csma-channel.cc.

References ns3::Time::As(), ns3::Copy(), GetCurrentPkt(), GetCurrentSrc(), GetState(), IsActive(), IsFullDuplex(), m_delay, m_deviceList, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PROPAGATING, PropagationCompleteEvent(), ns3::CsmaNetDevice::Receive(), ns3::Time::S, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleWithContext(), SetState(), and TRANSMITTING.

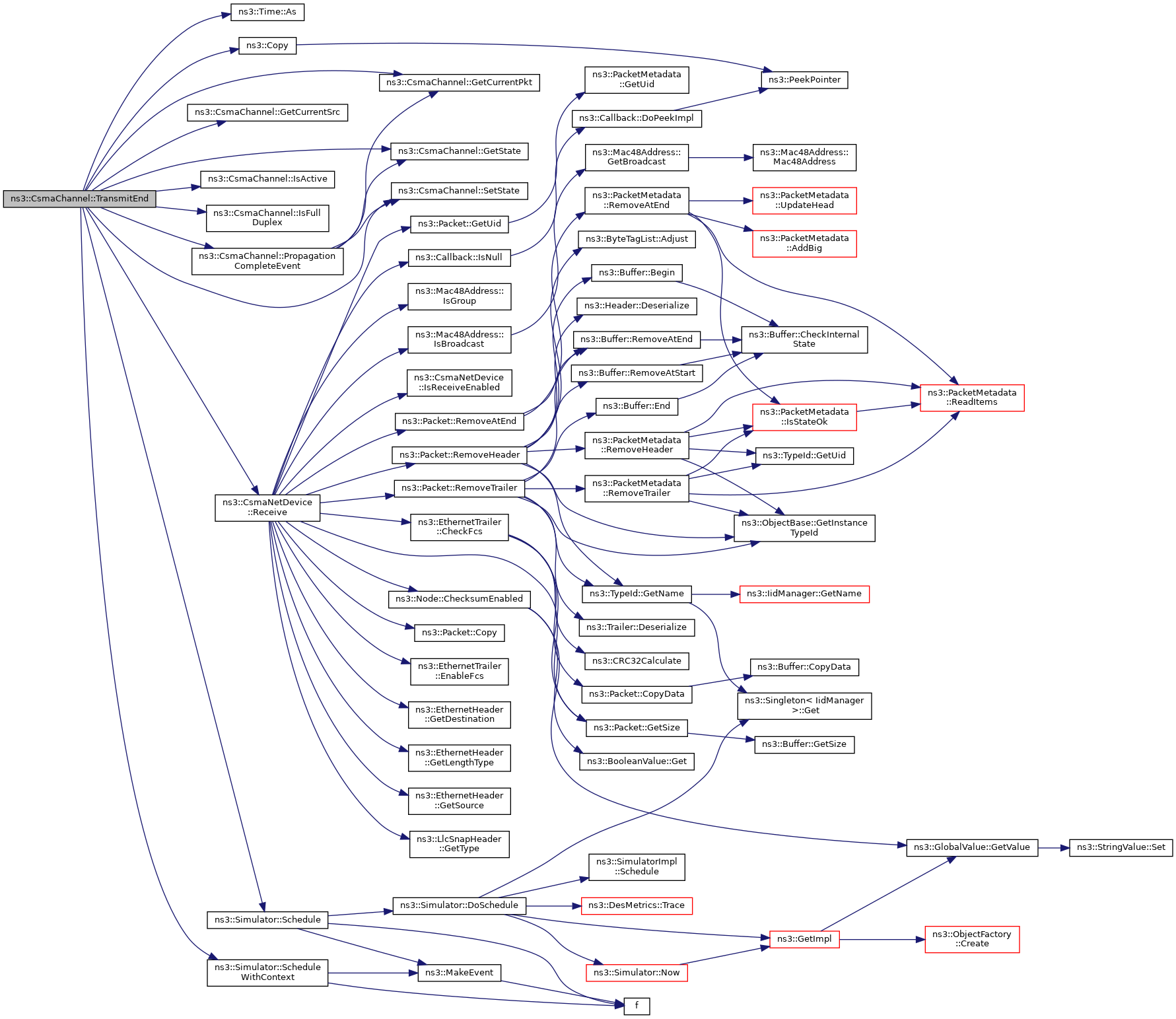

Here is the call graph for this function:

◆ TransmitStart()

bool ns3::CsmaChannel::TransmitStart	(	Ptr< const Packet >	p,
		uint32_t	srcId
	)

Start transmitting a packet over the channel.

If the srcId belongs to a net device that is connected to the channel, packet transmission begins, and the channel becomes busy until the packet has completely reached all destinations.

Parameters

p	A reference to the packet that will be transmitted over the channel
srcId	The device Id of the net device that wants to transmit on the channel.

Returns: True if the channel is not busy and the transmitting net device is currently active.

Definition at line 200 of file csma-channel.cc.

References ns3::Packet::Copy(), GetState(), ns3::Packet::GetUid(), IDLE, IsActive(), NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, SetCurrentPkt(), SetCurrentSrc(), SetState(), and TRANSMITTING.

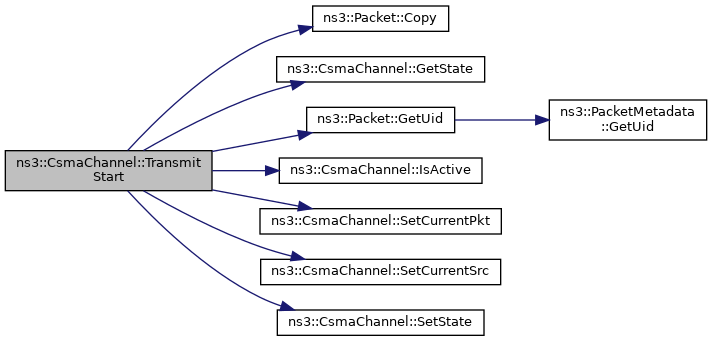

Here is the call graph for this function:

Member Data Documentation

◆ m_bps

DataRate ns3::CsmaChannel::m_bps

private

The assigned data rate of the channel.

Definition at line 332 of file csma-channel.h.

Referenced by GetDataRate(), and GetTypeId().

◆ m_currentPkt

Ptr<Packet> ns3::CsmaChannel::m_currentPkt[2]

private

The Packet that is currently being transmitted on the subchannel (or the last packet to have been transmitted if the subchannel is free).

In half-duplex mode, only the first subchannel is used.

Definition at line 362 of file csma-channel.h.

Referenced by GetCurrentPkt(), and SetCurrentPkt().

◆ m_currentSrc

uint32_t ns3::CsmaChannel::m_currentSrc[2]

private

Device Id of the source that is currently transmitting on the subchannel, or the last source to have transmitted a packet on the subchannel, if it is not currently busy.

In half-duplex mode, only the first subchannel is used.

Definition at line 370 of file csma-channel.h.

Referenced by GetCurrentSrc(), and SetCurrentSrc().

◆ m_delay

Time ns3::CsmaChannel::m_delay

private

The assigned speed-of-light delay of the channel.

Definition at line 337 of file csma-channel.h.

Referenced by GetDelay(), GetTypeId(), and TransmitEnd().

◆ m_deviceList

std::vector<CsmaDeviceRec> ns3::CsmaChannel::m_deviceList

private

List of the net devices that have been or are currently connected to the channel.

Devices are nor removed from this list, they are marked as inactive. Otherwise the assigned device IDs will not refer to the correct NetDevice. The DeviceIds are used so that it is possible to have a number to refer to an entry in the list so that the whole list does not have to be searched when making sure that a source is attached to a channel when it is transmitting data.

Definition at line 355 of file csma-channel.h.

Referenced by CsmaChannel(), ~CsmaChannel(), Attach(), Detach(), GetCsmaDevice(), GetDeviceNum(), GetNDevices(), GetNumActDevices(), IsActive(), Reattach(), and TransmitEnd().

◆ m_fullDuplex

bool ns3::CsmaChannel::m_fullDuplex

private

Whether the channel is in full-duplex mode.

Definition at line 342 of file csma-channel.h.

Referenced by Attach(), GetCurrentPkt(), GetCurrentSrc(), GetState(), GetTypeId(), IsFullDuplex(), SetCurrentPkt(), SetCurrentSrc(), and SetState().

◆ m_state

WireState ns3::CsmaChannel::m_state[2]

private

Current state of each subchannel.

In half-duplex mode, only the first subchannel is used.

Definition at line 376 of file csma-channel.h.

Referenced by GetState(), and SetState().

The documentation for this class was generated from the following files:

src/csma/model/csma-channel.h
src/csma/model/csma-channel.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Channel

Member Enumeration Documentation

◆ WireState

Constructor & Destructor Documentation

◆ CsmaChannel() [1/2]

◆ ~CsmaChannel()

◆ CsmaChannel() [2/2]

Member Function Documentation

◆ Attach()

◆ Detach() [1/2]

◆ Detach() [2/2]

◆ GetCsmaDevice()

◆ GetCurrentPkt()

◆ GetCurrentSrc()

◆ GetDataRate()

◆ GetDelay()

◆ GetDevice()

◆ GetDeviceNum()

◆ GetNDevices()

◆ GetNumActDevices()

◆ GetState()

◆ GetTypeId()

◆ IsActive()

◆ IsBusy()

◆ IsFullDuplex()

◆ operator=()

◆ PropagationCompleteEvent()

◆ Reattach() [1/2]

◆ Reattach() [2/2]

◆ SetCurrentPkt()

◆ SetCurrentSrc()

◆ SetState()

◆ TransmitEnd()

◆ TransmitStart()

Member Data Documentation

◆ m_bps

◆ m_currentPkt

◆ m_currentSrc

◆ m_delay

◆ m_deviceList

◆ m_fullDuplex

◆ m_state
