See IEEE 802.11 chapter 7.3.1.11 Header format: | category: 1 | action value: 1 |. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::WifiActionHeader:

Collaboration diagram for ns3::WifiActionHeader:

Classes
union	ActionValue
	typedef for union of different ActionValues More...

Public Types
enum	BlockAckActionValue { BLOCK_ACK_ADDBA_REQUEST = 0 , BLOCK_ACK_ADDBA_RESPONSE = 1 , BLOCK_ACK_DELBA = 2 }
	Block Ack Action field values See 802.11 Table 8-202. More...

enum	CategoryValue { QOS = 1 , BLOCK_ACK = 3 , PUBLIC = 4 , RADIO_MEASUREMENT = 5 , MESH = 13 , MULTIHOP = 14 , SELF_PROTECTED = 15 , DMG = 16 , FST = 18 , UNPROTECTED_DMG = 20 , VENDOR_SPECIFIC_ACTION = 127 }
	CategoryValue enumeration. More...

enum	DmgActionValue { DMG_POWER_SAVE_CONFIGURATION_REQUEST = 0 , DMG_POWER_SAVE_CONFIGURATION_RESPONSE = 1 , DMG_INFORMATION_REQUEST = 2 , DMG_INFORMATION_RESPONSE = 3 , DMG_HANDOVER_REQUEST = 4 , DMG_HANDOVER_RESPONSE = 5 , DMG_DTP_REQUEST = 6 , DMG_DTP_RESPONSE = 7 , DMG_RELAY_SEARCH_REQUEST = 8 , DMG_RELAY_SEARCH_RESPONSE = 9 , DMG_MULTI_RELAY_CHANNEL_MEASUREMENT_REQUEST = 10 , DMG_MULTI_RELAY_CHANNEL_MEASUREMENT_REPORT = 11 , DMG_RLS_REQUEST = 12 , DMG_RLS_RESPONSE = 13 , DMG_RLS_ANNOUNCEMENT = 14 , DMG_RLS_TEARDOWN = 15 , DMG_RELAY_ACK_REQUEST = 16 , DMG_RELAY_ACK_RESPONSE = 17 , DMG_TPA_REQUEST = 18 , DMG_TPA_RESPONSE = 19 , DMG_TPA_REPORT = 20 , DMG_ROC_REQUEST = 21 , DMG_ROC_RESPONSE = 22 }
	DMG Action field values See 802.11ad Table 8-281b. More...

enum	FstActionValue { FST_SETUP_REQUEST = 0 , FST_SETUP_RESPONSE = 1 , FST_TEAR_DOWN = 2 , FST_ACK_REQUEST = 3 , FST_ACK_RESPONSE = 4 , ON_CHANNEL_TUNNEL_REQUEST = 5 }
	FST Action field values See 802.11ad Table 8-281x. More...

enum	MeshActionValue { LINK_METRIC_REPORT = 0 , PATH_SELECTION = 1 , PORTAL_ANNOUNCEMENT = 2 , CONGESTION_CONTROL_NOTIFICATION = 3 , MDA_SETUP_REQUEST , MDA_SETUP_REPLY , MDAOP_ADVERTISMENT_REQUEST , MDAOP_ADVERTISMENTS = 7 , MDAOP_SET_TEARDOWN = 8 , TBTT_ADJUSTMENT_REQUEST = 9 , TBTT_ADJUSTMENT_RESPONSE = 10 }
	MeshActionValue enumeration. More...

enum	MultihopActionValue { PROXY_UPDATE = 0 , PROXY_UPDATE_CONFIRMATION = 1 }
	MultihopActionValue enumeration. More...

enum	PublicActionValue { QAB_REQUEST = 16 , QAB_RESPONSE = 17 }
	PublicActionValue enumeration. More...

enum	QosActionValue { ADDTS_REQUEST = 0 , ADDTS_RESPONSE = 1 , DELTS = 2 , SCHEDULE = 3 , QOS_MAP_CONFIGURE = 4 }
	QosActionValue enumeration. More...

enum	RadioMeasurementActionValue { RADIO_MEASUREMENT_REQUEST = 0 , RADIO_MEASUREMENT_REPORT = 1 , LINK_MEASUREMENT_REQUEST = 2 , LINK_MEASUREMENT_REPORT = 3 , NEIGHBOR_REPORT_REQUEST = 4 , NEIGHBOR_REPORT_RESPONSE = 5 }
	RadioMeasurementActionValue enumeration. More...

enum	SelfProtectedActionValue { PEER_LINK_OPEN = 1 , PEER_LINK_CONFIRM = 2 , PEER_LINK_CLOSE = 3 , GROUP_KEY_INFORM = 4 , GROUP_KEY_ACK = 5 }
	SelfProtectedActionValue enumeration. More...

enum	UnprotectedDmgActionValue { UNPROTECTED_DMG_ANNOUNCE = 0 , UNPROTECTED_DMG_BRP = 1 , UNPROTECTED_MIMO_BF_SETUP = 2 , UNPROTECTED_MIMO_BF_POLL = 3 , UNPROTECTED_MIMO_BF_FEEDBACK = 4 , UNPROTECTED_MIMO_BF_SELECTION = 5 }
	Unprotected DMG action field values See 802.11ad Table 8-281ae. More...

Public Member Functions
	WifiActionHeader ()

	~WifiActionHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

ActionValue	GetAction () const
	Return the action value. More...

CategoryValue	GetCategory () const
	Return the category value. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetAction (CategoryValue type, ActionValue action)
	Set action for this Action header. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
std::string	CategoryValueToString (CategoryValue value) const
	Category value to string function. More...

std::string	SelfProtectedActionValueToString (SelfProtectedActionValue value) const
	Self protected action value to string function. More...

Private Attributes
uint8_t	m_actionValue
	Action value. More...

uint8_t	m_category
	Category of the action. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

See IEEE 802.11 chapter 7.3.1.11 Header format: | category: 1 | action value: 1 |.

Definition at line 1278 of file mgt-headers.h.

Member Enumeration Documentation

◆ BlockAckActionValue

enum ns3::WifiActionHeader::BlockAckActionValue

Block Ack Action field values See 802.11 Table 8-202.

Enumerator
BLOCK_ACK_ADDBA_REQUEST
BLOCK_ACK_ADDBA_RESPONSE
BLOCK_ACK_DELBA

Definition at line 1321 of file mgt-headers.h.

◆ CategoryValue

enum ns3::WifiActionHeader::CategoryValue

CategoryValue enumeration.

Enumerator
QOS
BLOCK_ACK
PUBLIC
RADIO_MEASUREMENT
MESH
MULTIHOP
SELF_PROTECTED
DMG
FST
UNPROTECTED_DMG
VENDOR_SPECIFIC_ACTION

Definition at line 1290 of file mgt-headers.h.

◆ DmgActionValue

enum ns3::WifiActionHeader::DmgActionValue

DMG Action field values See 802.11ad Table 8-281b.

Enumerator
DMG_POWER_SAVE_CONFIGURATION_REQUEST
DMG_POWER_SAVE_CONFIGURATION_RESPONSE
DMG_INFORMATION_REQUEST
DMG_INFORMATION_RESPONSE
DMG_HANDOVER_REQUEST
DMG_HANDOVER_RESPONSE
DMG_DTP_REQUEST
DMG_DTP_RESPONSE
DMG_RELAY_SEARCH_REQUEST
DMG_RELAY_SEARCH_RESPONSE
DMG_MULTI_RELAY_CHANNEL_MEASUREMENT_REQUEST
DMG_MULTI_RELAY_CHANNEL_MEASUREMENT_REPORT
DMG_RLS_REQUEST
DMG_RLS_RESPONSE
DMG_RLS_ANNOUNCEMENT
DMG_RLS_TEARDOWN
DMG_RELAY_ACK_REQUEST
DMG_RELAY_ACK_RESPONSE
DMG_TPA_REQUEST
DMG_TPA_RESPONSE
DMG_TPA_REPORT
DMG_ROC_REQUEST
DMG_ROC_RESPONSE

Definition at line 1386 of file mgt-headers.h.

◆ FstActionValue

enum ns3::WifiActionHeader::FstActionValue

FST Action field values See 802.11ad Table 8-281x.

Enumerator
FST_SETUP_REQUEST
FST_SETUP_RESPONSE
FST_TEAR_DOWN
FST_ACK_REQUEST
FST_ACK_RESPONSE
ON_CHANNEL_TUNNEL_REQUEST

Definition at line 1417 of file mgt-headers.h.

◆ MeshActionValue

enum ns3::WifiActionHeader::MeshActionValue

MeshActionValue enumeration.

Enumerator
LINK_METRIC_REPORT
PATH_SELECTION
PORTAL_ANNOUNCEMENT
CONGESTION_CONTROL_NOTIFICATION
MDA_SETUP_REQUEST
MDA_SETUP_REPLY
MDAOP_ADVERTISMENT_REQUEST
MDAOP_ADVERTISMENTS
MDAOP_SET_TEARDOWN
TBTT_ADJUSTMENT_REQUEST
TBTT_ADJUSTMENT_RESPONSE

Definition at line 1347 of file mgt-headers.h.

◆ MultihopActionValue

enum ns3::WifiActionHeader::MultihopActionValue

MultihopActionValue enumeration.

Enumerator
PROXY_UPDATE
PROXY_UPDATE_CONFIRMATION

Definition at line 1366 of file mgt-headers.h.

◆ PublicActionValue

enum ns3::WifiActionHeader::PublicActionValue

PublicActionValue enumeration.

Enumerator
QAB_REQUEST
QAB_RESPONSE

Definition at line 1329 of file mgt-headers.h.

◆ QosActionValue

enum ns3::WifiActionHeader::QosActionValue

QosActionValue enumeration.

Enumerator
ADDTS_REQUEST
ADDTS_RESPONSE
DELTS
SCHEDULE
QOS_MAP_CONFIGURE

Definition at line 1308 of file mgt-headers.h.

◆ RadioMeasurementActionValue

enum ns3::WifiActionHeader::RadioMeasurementActionValue

RadioMeasurementActionValue enumeration.

Enumerator
RADIO_MEASUREMENT_REQUEST
RADIO_MEASUREMENT_REPORT
LINK_MEASUREMENT_REQUEST
LINK_MEASUREMENT_REPORT
NEIGHBOR_REPORT_REQUEST
NEIGHBOR_REPORT_RESPONSE

Definition at line 1336 of file mgt-headers.h.

◆ SelfProtectedActionValue

enum ns3::WifiActionHeader::SelfProtectedActionValue

SelfProtectedActionValue enumeration.

Enumerator
PEER_LINK_OPEN
PEER_LINK_CONFIRM
PEER_LINK_CLOSE
GROUP_KEY_INFORM
GROUP_KEY_ACK

Definition at line 1373 of file mgt-headers.h.

◆ UnprotectedDmgActionValue

enum ns3::WifiActionHeader::UnprotectedDmgActionValue

Unprotected DMG action field values See 802.11ad Table 8-281ae.

Enumerator
UNPROTECTED_DMG_ANNOUNCE
UNPROTECTED_DMG_BRP
UNPROTECTED_MIMO_BF_SETUP
UNPROTECTED_MIMO_BF_POLL
UNPROTECTED_MIMO_BF_FEEDBACK
UNPROTECTED_MIMO_BF_SELECTION

Definition at line 1431 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ WifiActionHeader()

ns3::WifiActionHeader::WifiActionHeader ( )

Definition at line 2129 of file mgt-headers.cc.

◆ ~WifiActionHeader()

ns3::WifiActionHeader::~WifiActionHeader ( )

override

Definition at line 2133 of file mgt-headers.cc.

Member Function Documentation

◆ CategoryValueToString()

std::string ns3::WifiActionHeader::CategoryValueToString ( CategoryValue value ) const

private

Category value to string function.

Parameters

value the category value

Returns: the category value string

Definition at line 2549 of file mgt-headers.cc.

References BLOCK_ACK, DMG, FST, MESH, MULTIHOP, PUBLIC, QOS, RADIO_MEASUREMENT, SELF_PROTECTED, UNPROTECTED_DMG, second::value, and VENDOR_SPECIFIC_ACTION.

Referenced by Print().

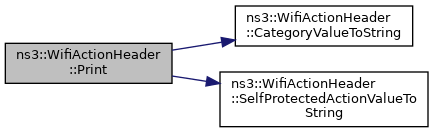

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::WifiActionHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 2634 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_actionValue, m_category, ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

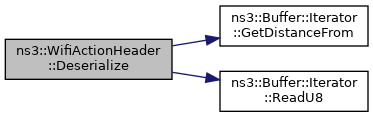

Here is the call graph for this function:

◆ GetAction()

WifiActionHeader::ActionValue ns3::WifiActionHeader::GetAction ( ) const

Return the action value.

Returns: ActionValue

Definition at line 2224 of file mgt-headers.cc.

Referenced by ns3::GetTid(), ns3::HtFrameExchangeManager::NotifyPacketDiscarded(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::WifiMac::Receive(), and ns3::dot11s::PeerManagementProtocolMac::Receive().

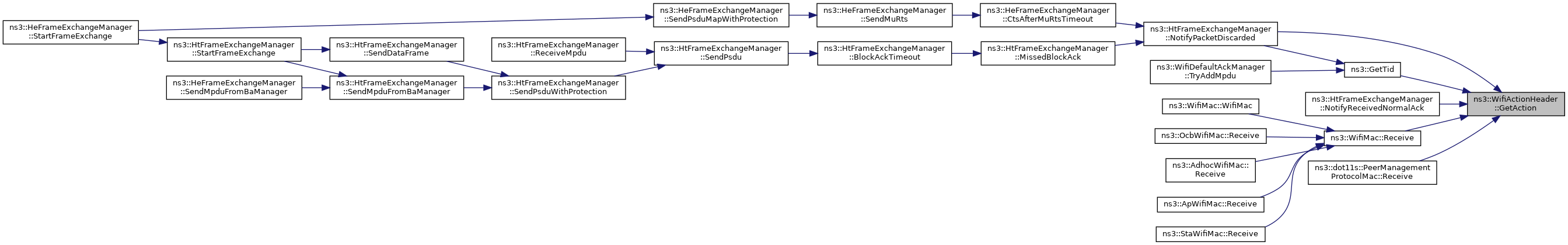

Here is the caller graph for this function:

◆ GetCategory()

WifiActionHeader::CategoryValue ns3::WifiActionHeader::GetCategory ( ) const

Return the category value.

Returns: CategoryValue

Definition at line 2191 of file mgt-headers.cc.

References BLOCK_ACK, DMG, FST, m_category, MESH, MULTIHOP, NS_FATAL_ERROR, PUBLIC, QOS, RADIO_MEASUREMENT, SELF_PROTECTED, UNPROTECTED_DMG, and VENDOR_SPECIFIC_ACTION.

Referenced by ns3::GetTid(), ns3::HtFrameExchangeManager::NotifyPacketDiscarded(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), ns3::WifiMac::Receive(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveAction(), and ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame().

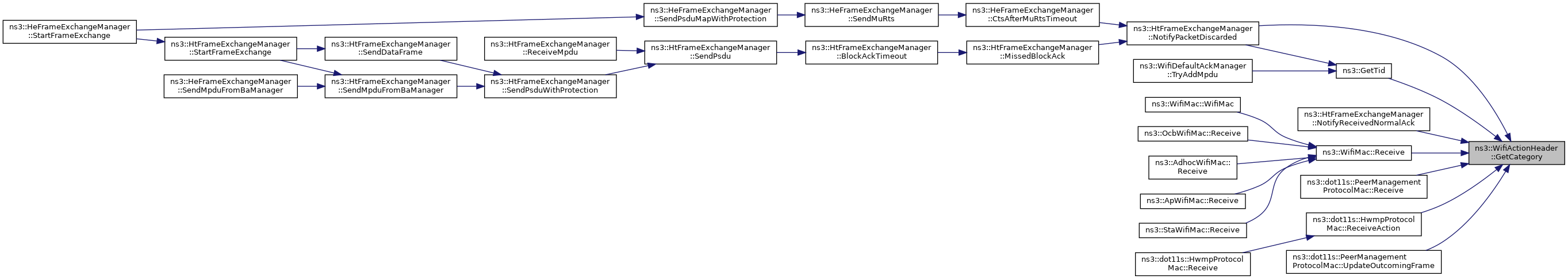

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::WifiActionHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 2543 of file mgt-headers.cc.

References GetTypeId().

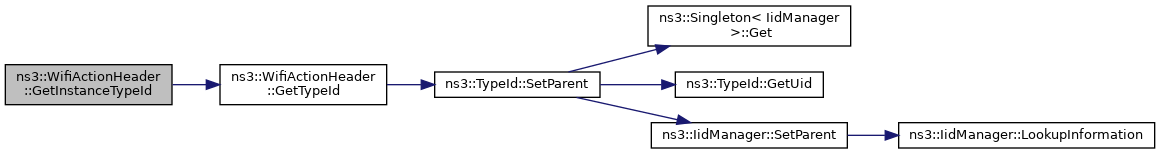

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::WifiActionHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 2621 of file mgt-headers.cc.

◆ GetTypeId()

TypeId ns3::WifiActionHeader::GetTypeId ( )

static

Register this type.

Returns: The TypeId.

Definition at line 2533 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

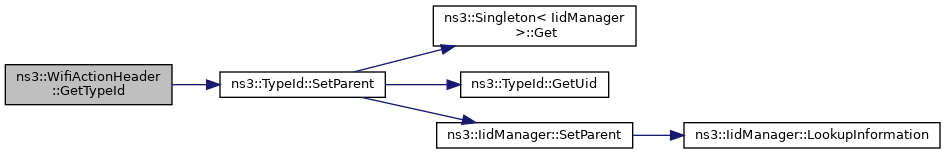

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::WifiActionHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 2614 of file mgt-headers.cc.

References CategoryValueToString(), m_actionValue, m_category, and SelfProtectedActionValueToString().

Here is the call graph for this function:

◆ SelfProtectedActionValueToString()

std::string ns3::WifiActionHeader::SelfProtectedActionValueToString ( SelfProtectedActionValue value ) const

private

Self protected action value to string function.

Parameters

value the protected action value

Returns: the self protected action value string

Definition at line 2583 of file mgt-headers.cc.

References GROUP_KEY_ACK, GROUP_KEY_INFORM, PEER_LINK_CLOSE, PEER_LINK_CONFIRM, PEER_LINK_OPEN, and second::value.

Referenced by Print().

Here is the caller graph for this function:

◆ Serialize()

void ns3::WifiActionHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 2627 of file mgt-headers.cc.

References m_actionValue, m_category, and two-ray-to-three-gpp-ch-calibration::start.

◆ SetAction()

void ns3::WifiActionHeader::SetAction	(	WifiActionHeader::CategoryValue	type,
		WifiActionHeader::ActionValue	action
	)

Set action for this Action header.

Parameters

type	category
action	action

Definition at line 2138 of file mgt-headers.cc.

References check-style-clang-format::action, BLOCK_ACK, DMG, FST, m_actionValue, m_category, MESH, MULTIHOP, PUBLIC, QOS, RADIO_MEASUREMENT, SELF_PROTECTED, check-style-clang-format::type, UNPROTECTED_DMG, and VENDOR_SPECIFIC_ACTION.

Referenced by ns3::dot11s::HwmpProtocolMac::GetWifiActionHeader(), ns3::HtFrameExchangeManager::SendAddBaRequest(), ns3::HtFrameExchangeManager::SendAddBaResponse(), ns3::HtFrameExchangeManager::SendDelbaFrame(), and ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

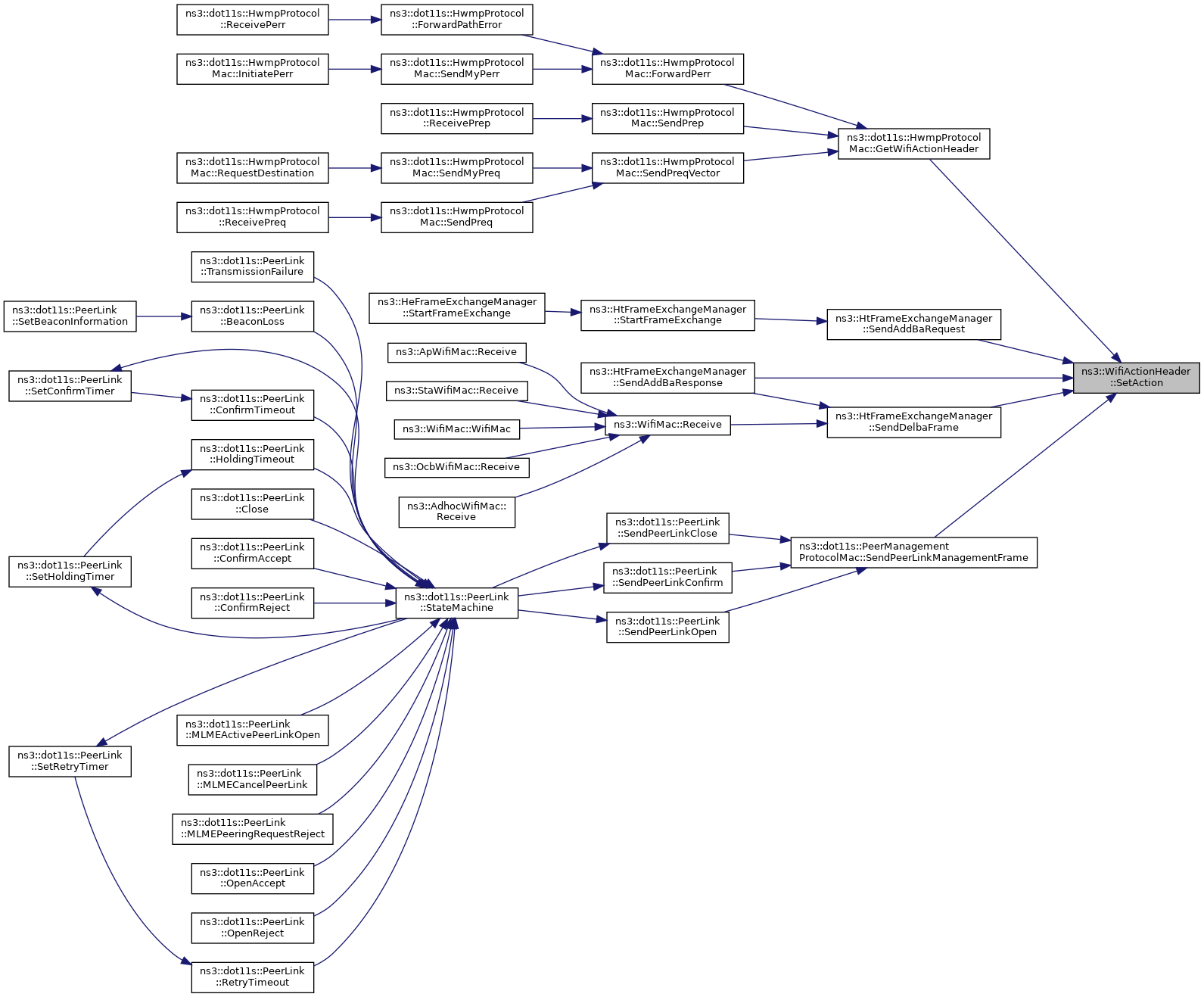

Here is the caller graph for this function:

Member Data Documentation

◆ m_actionValue

uint8_t ns3::WifiActionHeader::m_actionValue

private

Action value.

Definition at line 1503 of file mgt-headers.h.

Referenced by Deserialize(), GetAction(), Print(), Serialize(), and SetAction().

◆ m_category

uint8_t ns3::WifiActionHeader::m_category

private

Category of the action.

Definition at line 1502 of file mgt-headers.h.

Referenced by Deserialize(), GetAction(), GetCategory(), Print(), Serialize(), and SetAction().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ BlockAckActionValue

◆ CategoryValue

◆ DmgActionValue

◆ FstActionValue

◆ MeshActionValue

◆ MultihopActionValue

◆ PublicActionValue

◆ QosActionValue

◆ RadioMeasurementActionValue

◆ SelfProtectedActionValue

◆ UnprotectedDmgActionValue

Constructor & Destructor Documentation

◆ WifiActionHeader()

◆ ~WifiActionHeader()

Member Function Documentation

◆ CategoryValueToString()

◆ Deserialize()

◆ GetAction()

◆ GetCategory()

◆ GetInstanceTypeId()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ SelfProtectedActionValueToString()

◆ Serialize()

◆ SetAction()

Member Data Documentation

◆ m_actionValue

◆ m_category
