tid-to-link-mapping-element.h File Reference

#include <ns3/wifi-information-element.h>
#include <list>
#include <map>
#include <optional>
#include <vector>

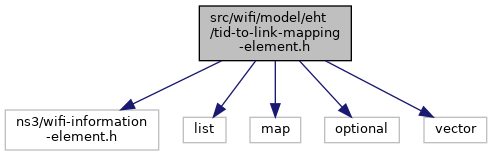

Include dependency graph for tid-to-link-mapping-element.h:

Go to the source code of this file.

Classes
struct	ns3::TidToLinkMapping::Control
	TID-to-Link Mapping Control subfield IEEE 802.11be D2.0 Figure 9-1002an. More...
class	ns3::TidToLinkMapping
	TID-to-Link Mapping Information Element. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Enumerations
enum class	ns3::TidLinkMapDir : uint8_t { ns3::DOWNLINK = 0 , ns3::UPLINK = 1 , ns3::BOTH_DIRECTIONS = 2 }
	TID-to-Link Mapping Control Direction IEEE 802.11be D2.0 Figure 9-1002an. More...

Variables
constexpr auto	ns3::DEFAULT_WIFI_TID_LINK_MAP_DIR {TidLinkMapDir::BOTH_DIRECTIONS}
	default value for the Direction subfield of the TID-To-Link Control field More...
constexpr auto	ns3::DEFAULT_WIFI_TID_LINK_MAPPING {true}
	whether to enforce the default link mapping More...
constexpr uint16_t	ns3::WIFI_LINK_MAPPING_PER_TID_SIZE_B = 2
	size in bytes of the Link Mapping Of TID n field (IEEE 802.11be D2.0 9.4.2.314) More...
constexpr uint16_t	ns3::WIFI_LINK_MAPPING_PRESENCE_IND_SIZE_B = 1
	size in bytes of the Link Mapping Presence Indicator field (IEEE 802.11be D2.0 9.4.2.314) More...
constexpr uint16_t	ns3::WIFI_TID_TO_LINK_MAPPING_CONTROL_BASIC_SIZE_B
	size in bytes of the TID-To-Link Control field with default link mapping More...
