an EUI-64 address More...

#include "mac64-address.h"

Collaboration diagram for ns3::Mac64Address:

Public Member Functions
	Mac64Address ()

	Mac64Address (const char *str)

Address	ConvertTo () const

void	CopyFrom (const uint8_t buffer[8])

void	CopyTo (uint8_t buffer[8]) const

	operator Address () const

Static Public Member Functions
static Mac64Address	Allocate ()
	Allocate a new Mac64Address. More...

static Mac64Address	ConvertFrom (const Address &address)

static bool	IsMatchingType (const Address &address)

static void	ResetAllocationIndex ()
	Reset the Mac64Address allocation index. More...

Static Private Member Functions
static uint8_t	GetType ()
	Return the Type of address. More...

Private Attributes
uint8_t	m_address [8]
	address value More...

Static Private Attributes
static uint64_t	m_allocationIndex = 0
	Address allocation index. More...

Friends
bool	operator!= (const Mac64Address &a, const Mac64Address &b)
	Not equal to operator. More...

bool	operator< (const Mac64Address &a, const Mac64Address &b)
	Less than operator. More...

std::ostream &	operator<< (std::ostream &os, const Mac64Address &address)
	Stream insertion operator. More...

bool	operator== (const Mac64Address &a, const Mac64Address &b)
	Equal to operator. More...

std::istream &	operator>> (std::istream &is, Mac64Address &address)
	Stream extraction operator. More...

Detailed Description

an EUI-64 address

This class can contain 64 bit IEEE addresses.

See also: Mac64Address Attribute

Definition at line 45 of file mac64-address.h.

Constructor & Destructor Documentation

◆ Mac64Address() [1/2]

ns3::Mac64Address::Mac64Address ( )

Definition at line 69 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

◆ Mac64Address() [2/2]

ns3::Mac64Address::Mac64Address ( const char * str )

Parameters

str	a string representing the new Mac64Address

The format of the string is "xx:xx:xx:xx:xx:xx"

Definition at line 75 of file mac64-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

◆ Allocate()

Mac64Address ns3::Mac64Address::Allocate ( )

static

Allocate a new Mac64Address.

Returns: newly allocated mac64Address

Definition at line 151 of file mac64-address.cc.

References first::address, m_allocationIndex, NS_LOG_FUNCTION_NOARGS, ResetAllocationIndex(), and ns3::Simulator::ScheduleDestroy().

Referenced by ns3::LrWpanMac::LrWpanMac(), and ns3::LteHelper::InstallSingleUeDevice().

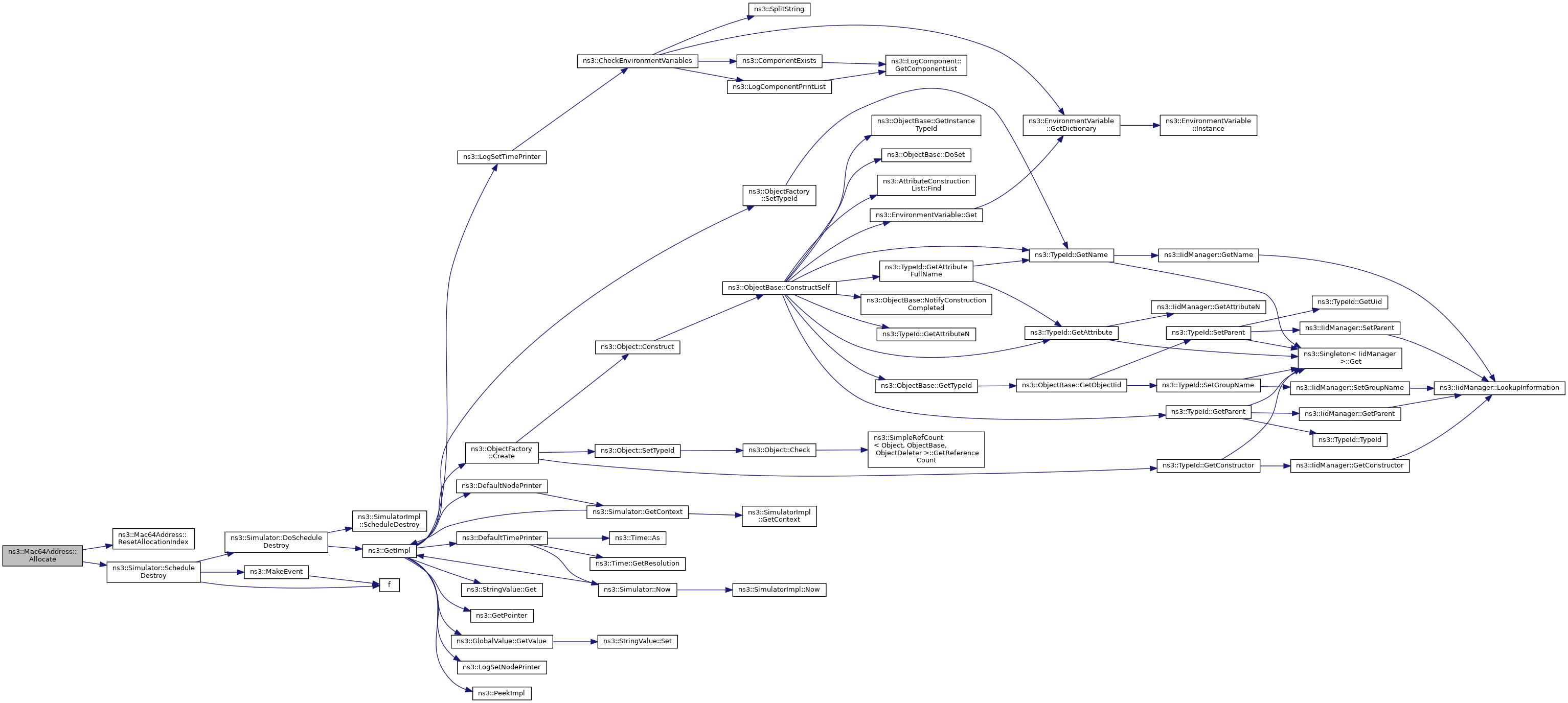

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertFrom()

Mac64Address ns3::Mac64Address::ConvertFrom ( const Address & address )

static

Parameters

address a polymorphic address

Returns: a new Mac64Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac64Address.

Definition at line 134 of file mac64-address.cc.

References first::address, GetType(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::SixLowPanMesh::Print(), ns3::LrWpanNetDevice::SetAddress(), and ns3::LteNetDevice::SetAddress().

Here is the call graph for this function:

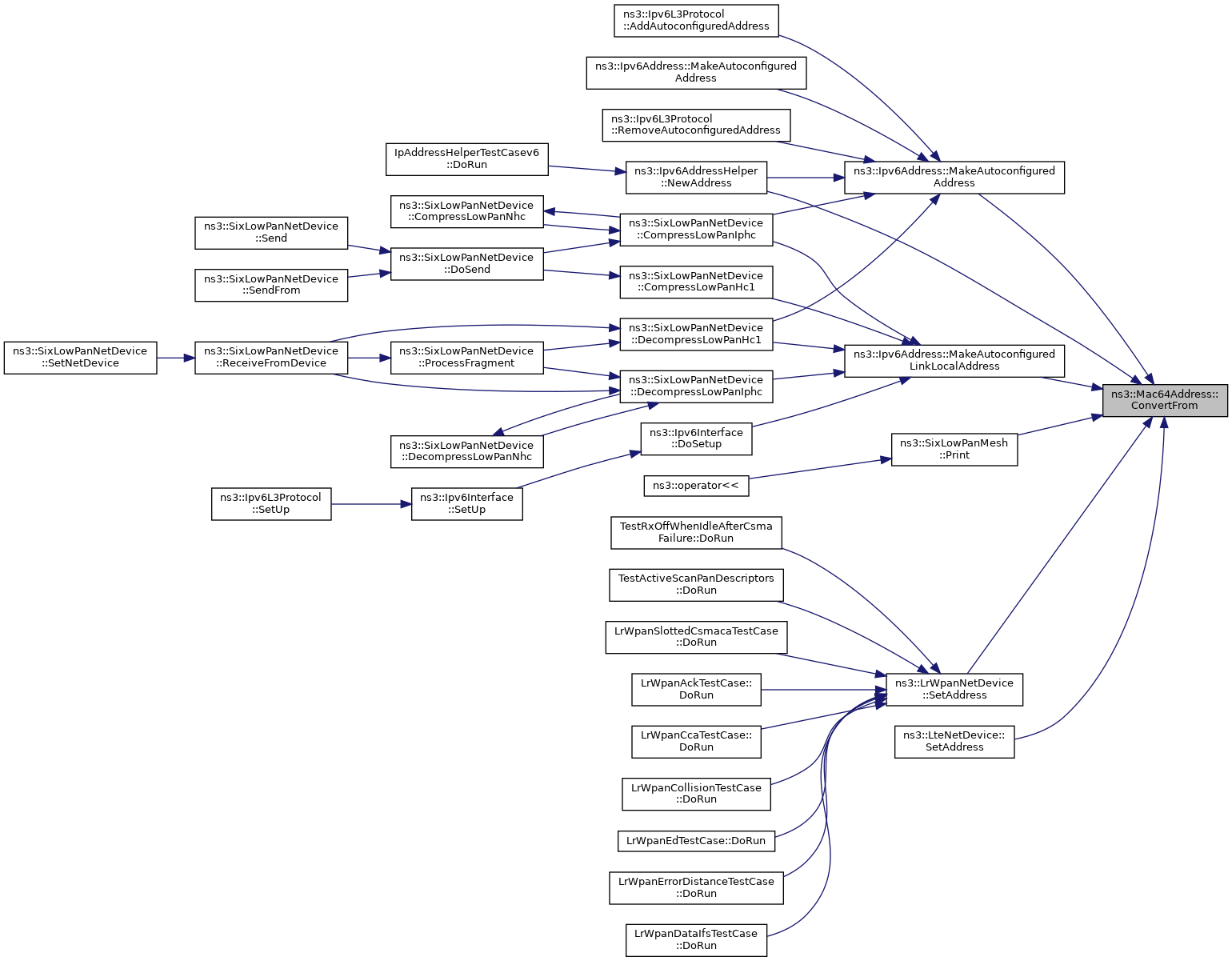

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::Mac64Address::ConvertTo ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 144 of file mac64-address.cc.

References GetType(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CopyFrom()

void ns3::Mac64Address::CopyFrom ( const uint8_t buffer[8] )

Parameters

buffer address in network order

Copy the input address to our internal buffer.

Definition at line 108 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::LrWpanHelper::CreateAssociatedPan(), ns3::ReadFrom(), and ns3::LrWpanHelper::SetExtendedAddresses().

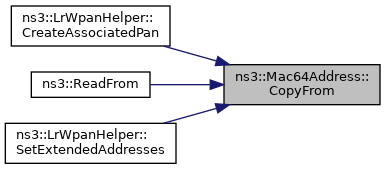

Here is the caller graph for this function:

◆ CopyTo()

void ns3::Mac64Address::CopyTo ( uint8_t buffer[8] ) const

Parameters

buffer address in network order

Copy the internal address to the input buffer.

Definition at line 115 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), and ns3::WriteTo().

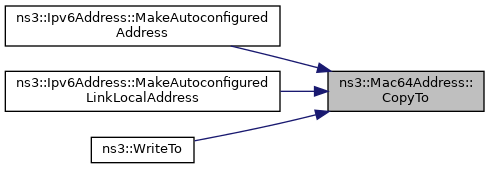

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::Mac64Address::GetType ( )

staticprivate

Return the Type of address.

Returns: type of address

Definition at line 181 of file mac64-address.cc.

References NS_LOG_FUNCTION_NOARGS, ns3::Address::Register(), and check-style-clang-format::type.

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

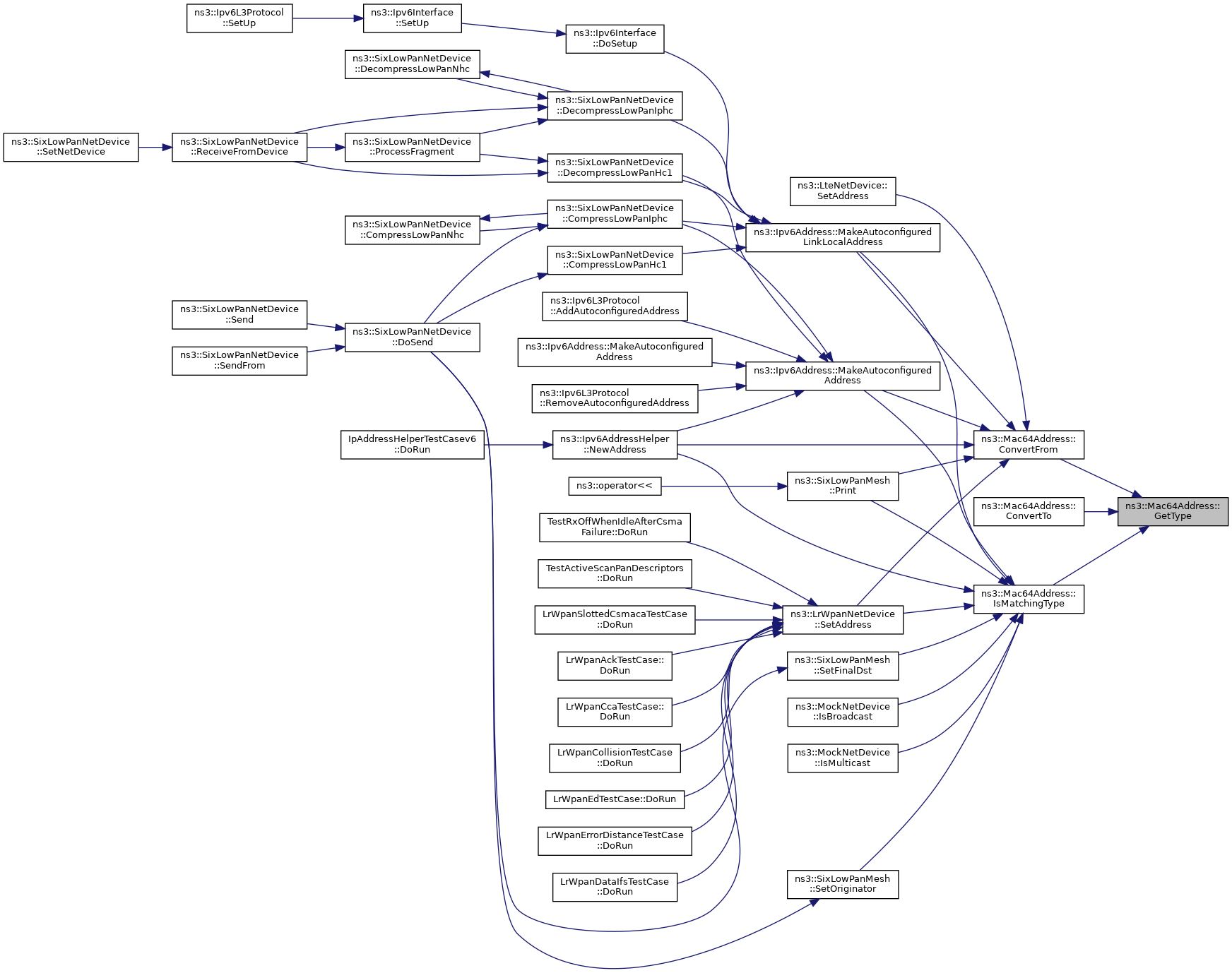

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::Mac64Address::IsMatchingType ( const Address & address )

static

Parameters

address address to test

Returns: true if the address matches, false otherwise.

Definition at line 122 of file mac64-address.cc.

References first::address, GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::MockNetDevice::IsBroadcast(), ns3::MockNetDevice::IsMulticast(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::SixLowPanMesh::Print(), ns3::LrWpanNetDevice::SetAddress(), ns3::SixLowPanMesh::SetFinalDst(), and ns3::SixLowPanMesh::SetOriginator().

Here is the call graph for this function:

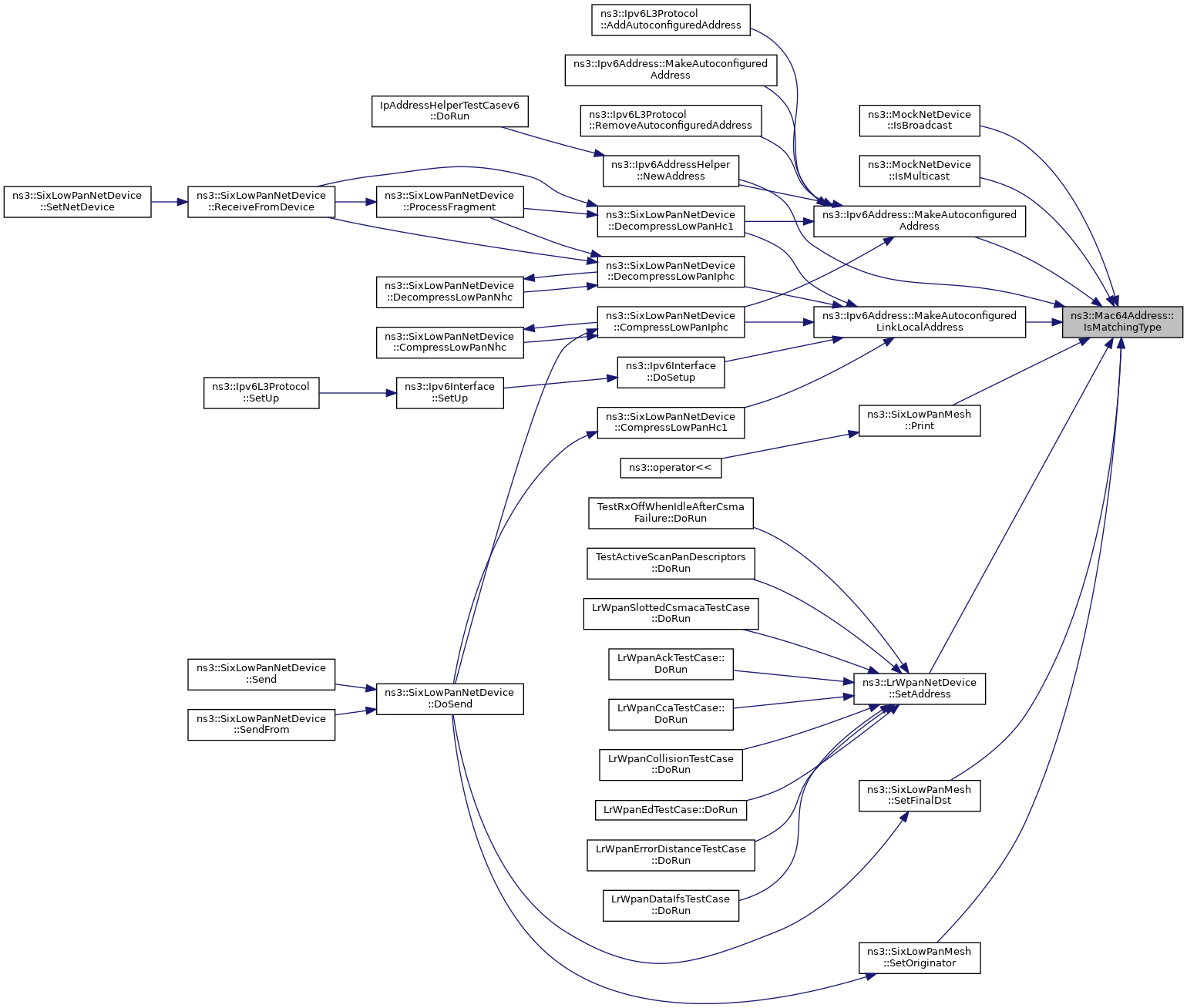

Here is the caller graph for this function:

◆ operator Address()

ns3::Mac64Address::operator Address ( ) const

Returns: a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 128 of file mac64-address.cc.

◆ ResetAllocationIndex()

void ns3::Mac64Address::ResetAllocationIndex ( )

static

Reset the Mac64Address allocation index.

This function resets (to zero) the global integer that is used for unique address allocation. It is automatically called whenever

SimulatorDestroy ();

is called. It may also be optionally called by user code if there is a need to force a reset of this allocation index.

Definition at line 174 of file mac64-address.cc.

References m_allocationIndex, and NS_LOG_FUNCTION_NOARGS.

Referenced by Allocate().

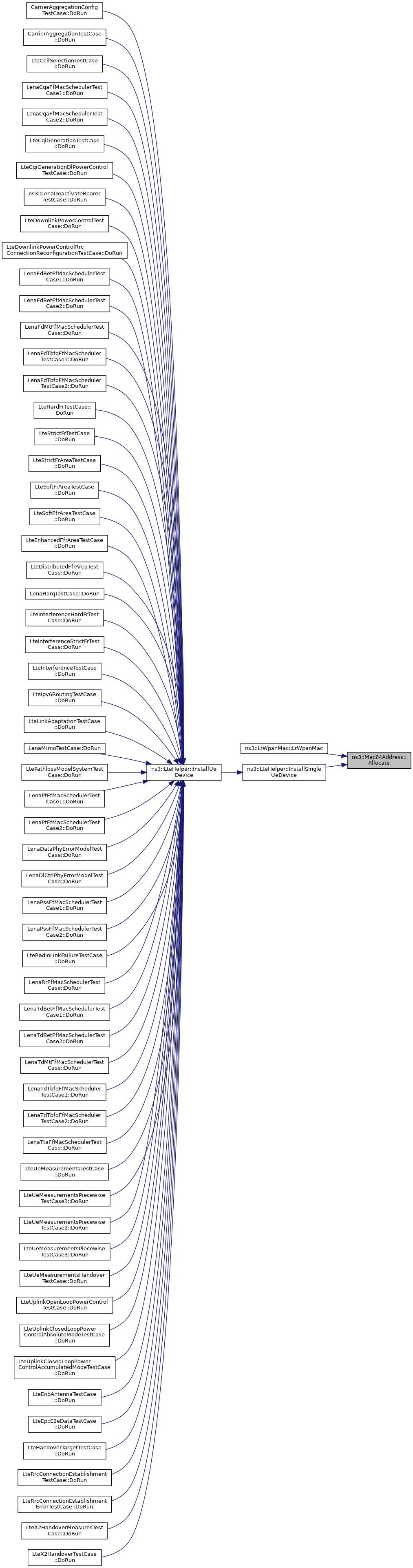

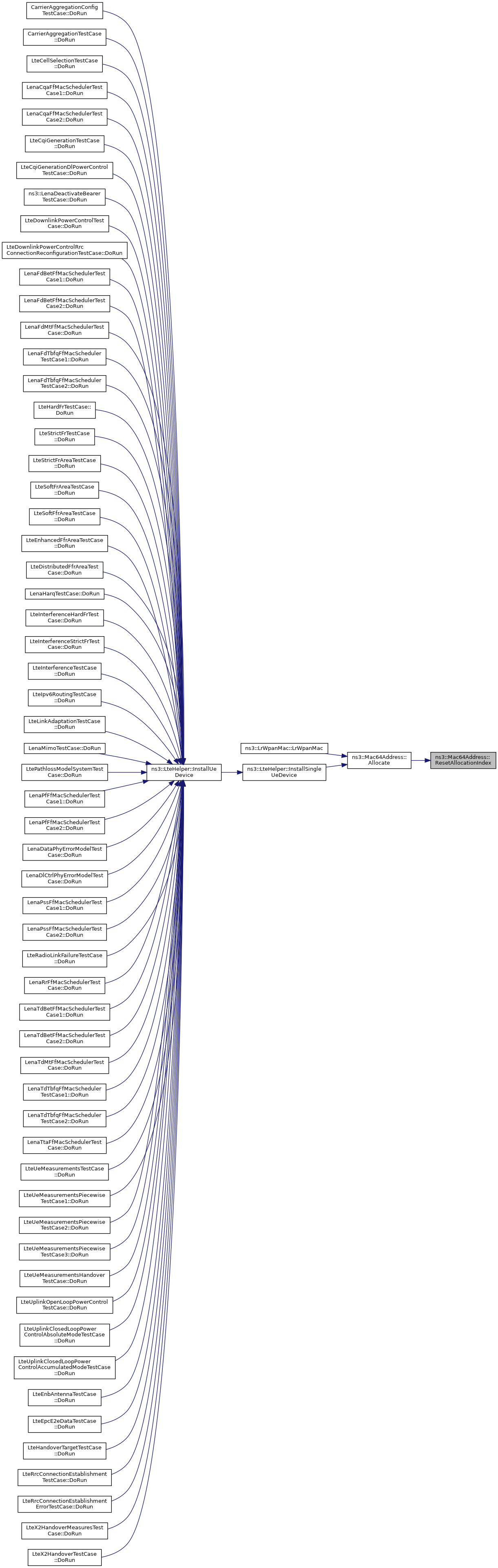

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	const Mac64Address &	a,
		const Mac64Address &	b
	)

friend

Not equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are not equal

Definition at line 186 of file mac64-address.h.

◆ operator<

bool operator<	(	const Mac64Address &	a,
		const Mac64Address &	b
	)

friend

Less than operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operand a is less than operand b

Definition at line 191 of file mac64-address.h.

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const Mac64Address &	address
	)

friend

Stream insertion operator.

Parameters

os	the stream
address	the address

Returns: a reference to the stream

Definition at line 188 of file mac64-address.cc.

◆ operator==

bool operator==	(	const Mac64Address &	a,
		const Mac64Address &	b
	)

friend

Equal to operator.

Parameters

a	the first operand
b	the first operand

Returns: true if the operands are equal

Definition at line 180 of file mac64-address.h.

◆ operator>>

std::istream& operator>>	(	std::istream &	is,
		Mac64Address &	address
	)

friend

Stream extraction operator.

Parameters

is	the stream
address	the address

Returns: a reference to the stream

Definition at line 208 of file mac64-address.cc.

Member Data Documentation

◆ m_address

uint8_t ns3::Mac64Address::m_address[8]

private

address value

Definition at line 169 of file mac64-address.h.

Referenced by Mac64Address(), ConvertFrom(), ConvertTo(), CopyFrom(), and CopyTo().

◆ m_allocationIndex

uint64_t ns3::Mac64Address::m_allocationIndex = 0

staticprivate

Address allocation index.

Definition at line 168 of file mac64-address.h.

Referenced by Allocate(), and ResetAllocationIndex().

The documentation for this class was generated from the following files:

src/network/utils/mac64-address.h
src/network/utils/mac64-address.cc
