Declaration of the following enums: More...

#include "wifi-standards.h"
#include "ns3/fatal-error.h"
#include "ns3/ptr.h"
#include <ostream>

Include dependency graph for wifi-phy-common.h:

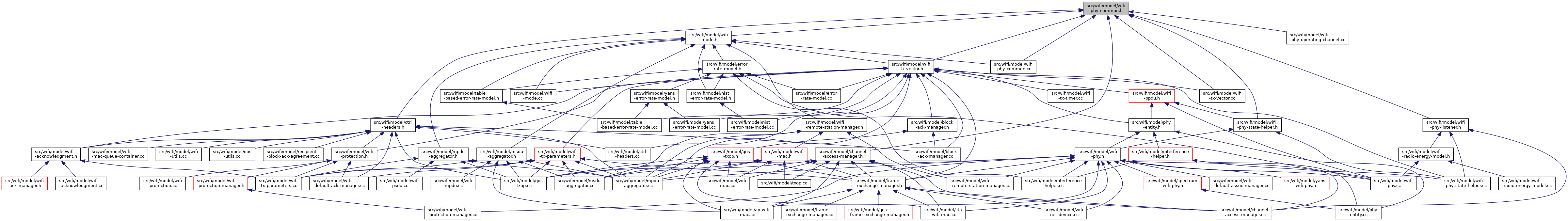

This graph shows which files directly or indirectly include this file:

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
typedef uint16_t	ns3::WifiCodeRate
	These constants define the various convolutional coding rates used for the OFDM transmission modes in the IEEE 802.11 standard. More...

Enumerations
enum	ns3::WifiChannelListType : uint8_t { ns3::WIFI_CHANLIST_PRIMARY = 0 , ns3::WIFI_CHANLIST_SECONDARY , ns3::WIFI_CHANLIST_SECONDARY40 , ns3::WIFI_CHANLIST_SECONDARY80 }
	Enumeration of the possible channel-list parameter elements defined in Table 8-5 of IEEE 802.11-2016. More...

enum	ns3::WifiModulationClass { ns3::WIFI_MOD_CLASS_UNKNOWN = 0 , ns3::WIFI_MOD_CLASS_DSSS , ns3::WIFI_MOD_CLASS_HR_DSSS , ns3::WIFI_MOD_CLASS_ERP_OFDM , ns3::WIFI_MOD_CLASS_OFDM , ns3::WIFI_MOD_CLASS_HT , ns3::WIFI_MOD_CLASS_VHT , ns3::WIFI_MOD_CLASS_DMG_CTRL , ns3::WIFI_MOD_CLASS_DMG_OFDM , ns3::WIFI_MOD_CLASS_DMG_SC , ns3::WIFI_MOD_CLASS_DMG_LP_SC , ns3::WIFI_MOD_CLASS_HE , ns3::WIFI_MOD_CLASS_EHT }
	This enumeration defines the modulation classes per (Table 10-6 "Modulation classes"; IEEE 802.11-2016, with updated in 802.11ax/D6.0 as Table 10-9). More...

enum	ns3::WifiPhyRxfailureReason { ns3::UNKNOWN = 0 , ns3::UNSUPPORTED_SETTINGS , ns3::CHANNEL_SWITCHING , ns3::RXING , ns3::TXING , ns3::SLEEPING , ns3::POWERED_OFF , ns3::TRUNCATED_TX , ns3::BUSY_DECODING_PREAMBLE , ns3::PREAMBLE_DETECT_FAILURE , ns3::RECEPTION_ABORTED_BY_TX , ns3::L_SIG_FAILURE , ns3::HT_SIG_FAILURE , ns3::SIG_A_FAILURE , ns3::SIG_B_FAILURE , ns3::U_SIG_FAILURE , ns3::EHT_SIG_FAILURE , ns3::PREAMBLE_DETECTION_PACKET_SWITCH , ns3::FRAME_CAPTURE_PACKET_SWITCH , ns3::OBSS_PD_CCA_RESET , ns3::HE_TB_PPDU_TOO_LATE , ns3::FILTERED , ns3::DMG_HEADER_FAILURE , ns3::DMG_ALLOCATION_ENDED }
	Enumeration of the possible reception failure reasons. More...

enum	ns3::WifiPpduField { ns3::WIFI_PPDU_FIELD_PREAMBLE = 0 , ns3::WIFI_PPDU_FIELD_NON_HT_HEADER , ns3::WIFI_PPDU_FIELD_HT_SIG , ns3::WIFI_PPDU_FIELD_TRAINING , ns3::WIFI_PPDU_FIELD_SIG_A , ns3::WIFI_PPDU_FIELD_SIG_B , ns3::WIFI_PPDU_FIELD_U_SIG , ns3::WIFI_PPDU_FIELD_EHT_SIG , ns3::WIFI_PPDU_FIELD_DATA }
	The type of PPDU field (grouped for convenience) More...

enum	ns3::WifiPpduType { ns3::WIFI_PPDU_TYPE_SU = 0 , ns3::WIFI_PPDU_TYPE_DL_MU , ns3::WIFI_PPDU_TYPE_UL_MU }
	The type of PPDU (SU, DL MU, or UL MU) More...

enum	ns3::WifiPreamble { ns3::WIFI_PREAMBLE_LONG , ns3::WIFI_PREAMBLE_SHORT , ns3::WIFI_PREAMBLE_HT_MF , ns3::WIFI_PREAMBLE_VHT_SU , ns3::WIFI_PREAMBLE_VHT_MU , ns3::WIFI_PREAMBLE_DMG_CTRL , ns3::WIFI_PREAMBLE_DMG_SC , ns3::WIFI_PREAMBLE_DMG_OFDM , ns3::WIFI_PREAMBLE_HE_SU , ns3::WIFI_PREAMBLE_HE_ER_SU , ns3::WIFI_PREAMBLE_HE_MU , ns3::WIFI_PREAMBLE_HE_TB , ns3::WIFI_PREAMBLE_EHT_MU , ns3::WIFI_PREAMBLE_EHT_TB }
	The type of preamble to be used by an IEEE 802.11 transmission. More...

Functions
uint16_t	ns3::ConvertGuardIntervalToNanoSeconds (WifiMode mode, bool htShortGuardInterval, Time heGuardInterval)
	Convert the guard interval to nanoseconds based on the WifiMode. More...

uint16_t	ns3::ConvertGuardIntervalToNanoSeconds (WifiMode mode, const Ptr< WifiNetDevice > device)
	Convert the guard interval to nanoseconds based on the WifiMode. More...

uint16_t	ns3::GetMaximumChannelWidth (WifiModulationClass modulation)
	Get the maximum channel width in MHz allowed for the given modulation class. More...

WifiModulationClass	ns3::GetModulationClassForPreamble (WifiPreamble preamble)
	Return the modulation class corresponding to the given preamble type. More...

WifiModulationClass	ns3::GetModulationClassForStandard (WifiStandard standard)
	Return the modulation class corresponding to a given standard. More...

Time	ns3::GetPpduMaxTime (WifiPreamble preamble)
	Get the maximum PPDU duration (see Section 10.14 of 802.11-2016) for the PHY layers defining the aPPDUMaxTime characteristic (HT, VHT and HE). More...

WifiPreamble	ns3::GetPreambleForTransmission (WifiModulationClass modulation, bool useShortPreamble)
	Return the preamble to be used for the transmission. More...

bool	ns3::IsAllowedControlAnswerModulationClass (WifiModulationClass modClassReq, WifiModulationClass modClassAnswer)
	Return whether the modulation class of the selected mode for the control answer frame is allowed. More...

bool	ns3::IsDlMu (WifiPreamble preamble)
	Return true if a preamble corresponds to a downlink multi-user transmission. More...

bool	ns3::IsEht (WifiPreamble preamble)
	Return true if a preamble corresponds to an EHT transmission. More...

bool	ns3::IsMu (WifiPreamble preamble)
	Return true if a preamble corresponds to a multi-user transmission. More...

bool	ns3::IsUlMu (WifiPreamble preamble)
	Return true if a preamble corresponds to a uplink multi-user transmission. More...

std::ostream &	ns3::operator<< (std::ostream &os, const WifiModulationClass &modulation)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, const WifiPhyRxfailureReason &reason)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, const WifiPpduField &field)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, const WifiPpduType &type)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, const WifiPreamble &preamble)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, WifiChannelListType type)
	Stream insertion operator. More...

Variables
const uint16_t	ns3::WIFI_CODE_RATE_13_14 = 11
	13/14 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_13_16 = 6
	13/16 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_13_21 = 9
	13/21 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_13_28 = 8
	13/28 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_1_2 = 1
	1/2 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_1_4 = 7
	1/4 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_2_3 = 2
	2/3 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_3_4 = 3
	3/4 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_52_63 = 10
	52/63 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_5_6 = 4
	5/6 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_5_8 = 5
	5/8 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_7_8 = 12
	7/8 coding rate More...

const uint16_t	ns3::WIFI_CODE_RATE_UNDEFINED = 0
	undefined coding rate More...

Detailed Description

Declaration of the following enums:

Definition in file wifi-phy-common.h.
