MultiLinkSetupTest Class Reference

Multi-Link Discovery & Setup test. More...

Inheritance diagram for MultiLinkSetupTest:

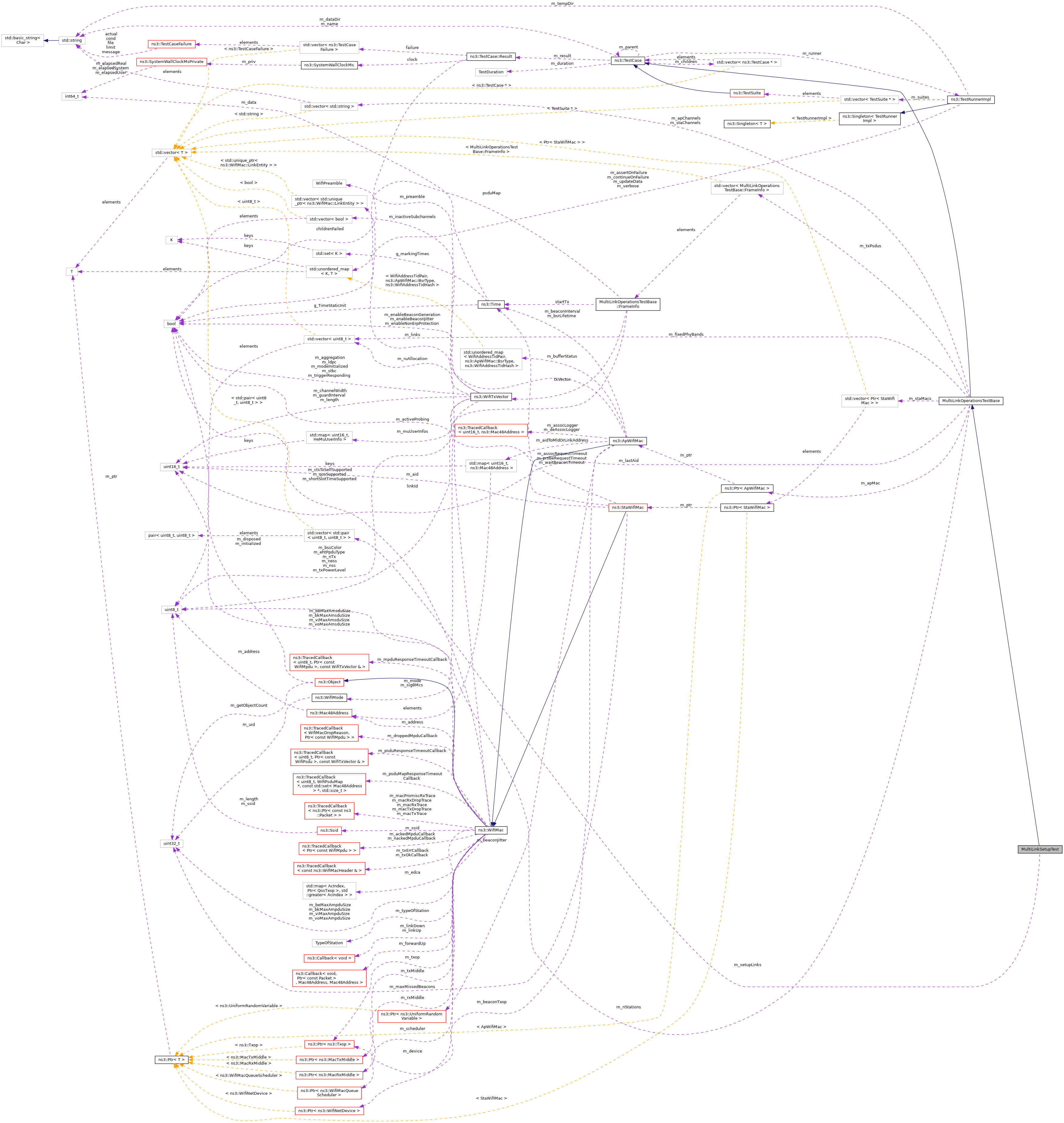

Collaboration diagram for MultiLinkSetupTest:

Public Member Functions
	MultiLinkSetupTest (std::vector< std::string > staChannels, std::vector< std::string > apChannels, std::vector< std::pair< uint8_t, uint8_t >> setupLinks, std::vector< uint8_t > fixedPhyBands={})
	Constructor. More...
	~MultiLinkSetupTest () override=default
Public Member Functions inherited from MultiLinkOperationsTestBase
	MultiLinkOperationsTestBase (const std::string &name, uint8_t nStations, std::vector< std::string > staChannels, std::vector< std::string > apChannels, std::vector< uint8_t > fixedPhyBands={})
	Constructor. More...
	~MultiLinkOperationsTestBase () override=default
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Protected Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
Protected Member Functions inherited from MultiLinkOperationsTestBase
void	CheckAddresses (Ptr< const WifiPsdu > psdu, std::optional< Direction > direction=std::nullopt)
	Check that the Address 1 and Address 2 fields of the given PSDU contain device MAC addresses. More...
void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...
virtual void	Transmit (uint8_t linkId, std::string context, WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	Callback invoked when a FEM passes PSDUs to the PHY. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Private Member Functions
void	CheckAssocRequest (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Association Request frame. More...
void	CheckAssocResponse (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Association Response frame. More...
void	CheckBeacon (Ptr< WifiMpdu > mpdu, uint8_t linkId)
	Check correctness of the given Beacon frame. More...
void	CheckDisabledLinks ()
	Check that links that are not setup on the non-AP MLD are disabled. More...
void	CheckMlSetup ()
	Check correctness of Multi-Link Setup procedure. More...

Private Attributes
const std::vector< std::pair< uint8_t, uint8_t > >	m_setupLinks
	expected links to setup (STA link ID, AP link ID) More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Types inherited from MultiLinkOperationsTestBase
enum	Direction { DL = 0 , UL }
	Uplink or Downlink direction. More...
Protected Attributes inherited from MultiLinkOperationsTestBase
const std::vector< std::string >	m_apChannels
	strings specifying channels for AP More...
Ptr< ApWifiMac >	m_apMac
	AP wifi MAC. More...
const std::vector< uint8_t >	m_fixedPhyBands
	links on non-AP MLD with fixed PHY band More...
uint16_t	m_lastAid
	AID of last associated station. More...
uint8_t	m_nStations
	number of stations to create More...
const std::vector< std::string >	m_staChannels
	strings specifying channels for STA More...
std::vector< Ptr< StaWifiMac > >	m_staMacs
	STA wifi MACs. More...
std::vector< FrameInfo >	m_txPsdus
	transmitted PSDUs More...

Detailed Description

Multi-Link Discovery & Setup test.

This test sets up an AP MLD and a non-AP MLD having a variable number of links. The RF channels to set each link to are provided as input parameters through the test case constructor, along with the identifiers (starting at 0) of the links that cannot switch PHY band (if any). The links that are expected to be setup are also provided as input parameters. This test verifies that the management frames exchanged during ML discovery and ML setup contain the expected values and that the two MLDs setup the expected links.

Definition at line 576 of file wifi-mlo-test.cc.

Constructor & Destructor Documentation

MultiLinkSetupTest()

MultiLinkSetupTest::MultiLinkSetupTest	(	std::vector< std::string >	staChannels,
		std::vector< std::string >	apChannels,
		std::vector< std::pair< uint8_t, uint8_t >>	setupLinks,
		std::vector< uint8_t >	fixedPhyBands = {}
	)

Constructor.

Parameters

staChannels	the strings specifying the operating channels for the STA
apChannels	the strings specifying the operating channels for the AP
setupLinks	a list of links (STA link ID, AP link ID) that are expected to be setup
fixedPhyBands	list of IDs of STA links that cannot switch PHY band

Definition at line 635 of file wifi-mlo-test.cc.

~MultiLinkSetupTest()

MultiLinkSetupTest::~MultiLinkSetupTest ( )

overridedefault

Member Function Documentation

CheckAssocRequest()

void MultiLinkSetupTest::CheckAssocRequest ( Ptr< WifiMpdu >  mpdu, uint8_t  linkId  )

private

Check correctness of the given Association Request frame.

Parameters

mpdu	the given Association Request frame
linkId	the ID of the link on which the Association Request frame was transmitted

Definition at line 747 of file wifi-mlo-test.cc.

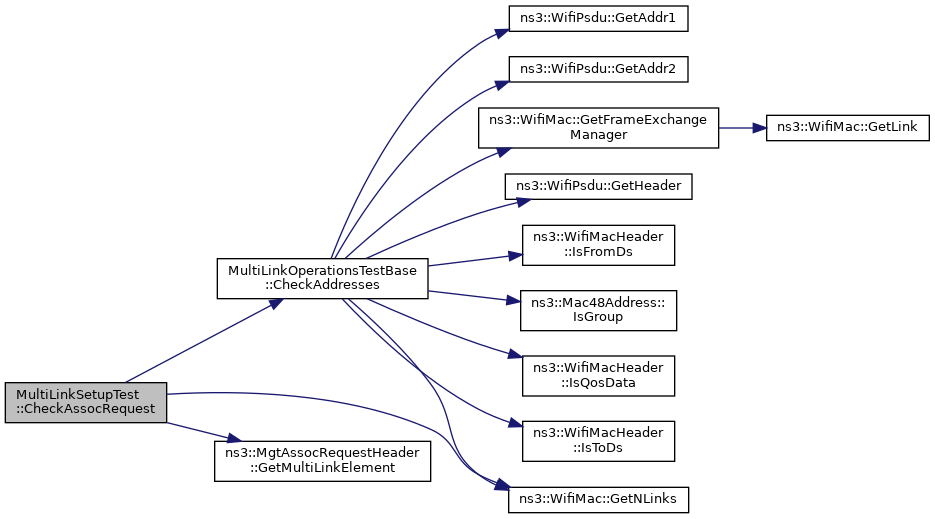

References MultiLinkOperationsTestBase::CheckAddresses(), ns3::MgtAssocRequestHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), MultiLinkOperationsTestBase::m_apMac, m_setupLinks, MultiLinkOperationsTestBase::m_staMacs, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, MultiLinkOperationsTestBase::UL, and ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

CheckAssocResponse()

void MultiLinkSetupTest::CheckAssocResponse ( Ptr< WifiMpdu >  mpdu, uint8_t  linkId  )

private

Check correctness of the given Association Response frame.

Parameters

mpdu	the given Association Response frame
linkId	the ID of the link on which the Association Response frame was transmitted

Definition at line 809 of file wifi-mlo-test.cc.

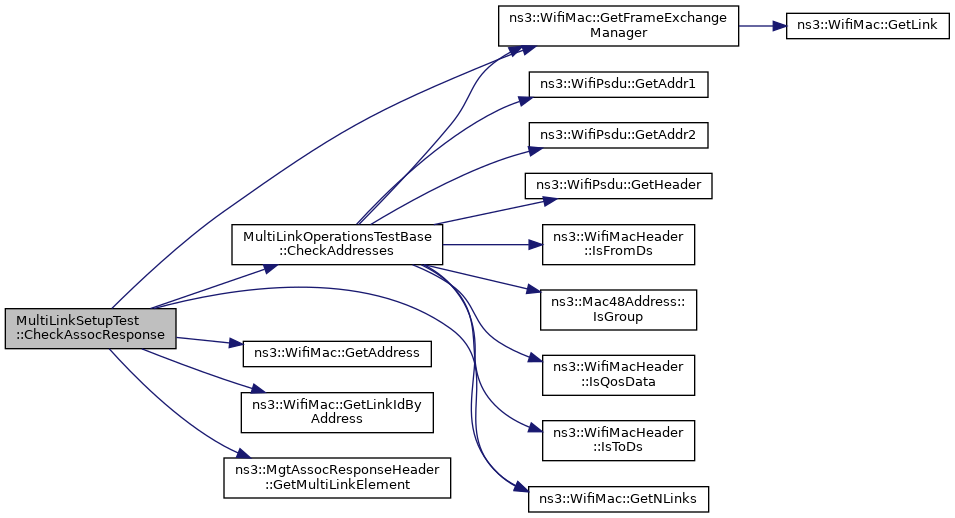

References MultiLinkOperationsTestBase::CheckAddresses(), MultiLinkOperationsTestBase::DL, ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetLinkIdByAddress(), ns3::MgtAssocResponseHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), MultiLinkOperationsTestBase::m_apMac, m_setupLinks, MultiLinkOperationsTestBase::m_staMacs, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

CheckBeacon()

void MultiLinkSetupTest::CheckBeacon ( Ptr< WifiMpdu >  mpdu, uint8_t  linkId  )

private

Check correctness of the given Beacon frame.

Parameters

mpdu	the given Beacon frame
linkId	the ID of the link on which the Beacon frame was transmitted

Definition at line 689 of file wifi-mlo-test.cc.

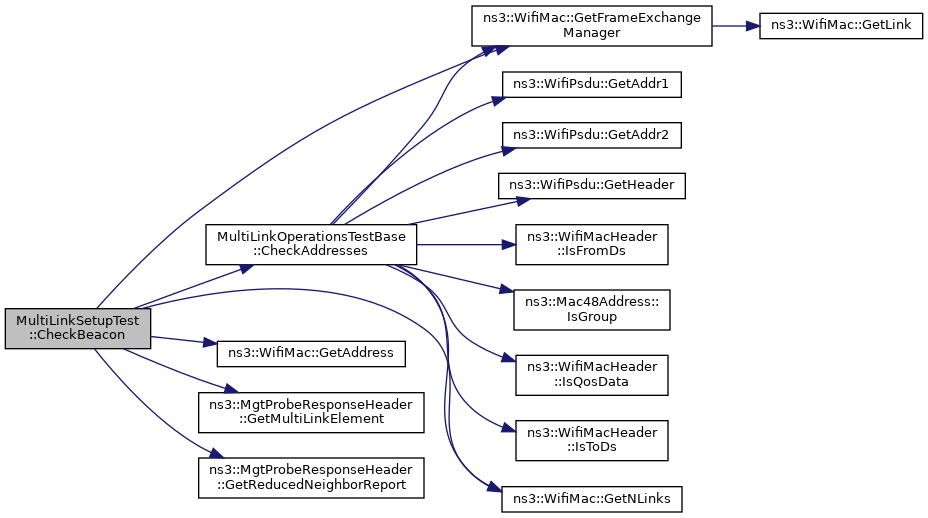

References MultiLinkOperationsTestBase::CheckAddresses(), MultiLinkOperationsTestBase::DL, ns3::WifiMac::GetAddress(), ns3::WifiMac::GetFrameExchangeManager(), ns3::MgtProbeResponseHeader::GetMultiLinkElement(), ns3::WifiMac::GetNLinks(), ns3::MgtProbeResponseHeader::GetReducedNeighborReport(), MultiLinkOperationsTestBase::m_apMac, NS_ABORT_IF, NS_TEST_EXPECT_MSG_EQ, and ns3::WIFI_MAC_MGT_BEACON.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

CheckDisabledLinks()

void MultiLinkSetupTest::CheckDisabledLinks ( )

private

Check that links that are not setup on the non-AP MLD are disabled.

Definition at line 947 of file wifi-mlo-test.cc.

References m_setupLinks, MultiLinkOperationsTestBase::m_staChannels, MultiLinkOperationsTestBase::m_staMacs, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the caller graph for this function:

CheckMlSetup()

void MultiLinkSetupTest::CheckMlSetup ( )

private

Check correctness of Multi-Link Setup procedure.

Check outcome of Multi-Link Setup

Definition at line 871 of file wifi-mlo-test.cc.

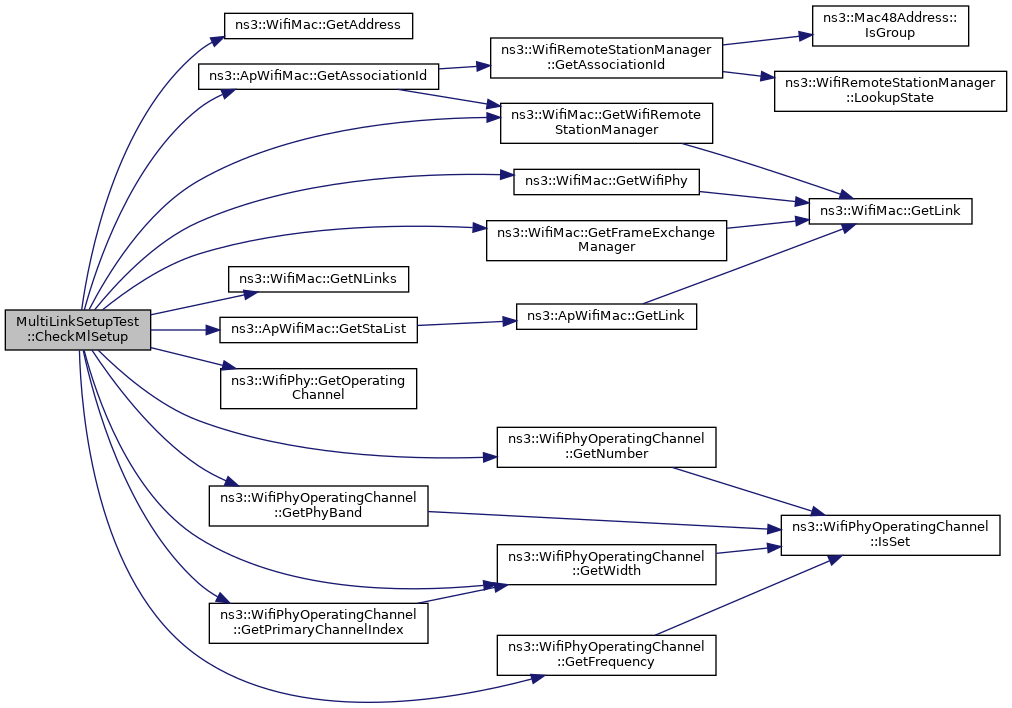

References ns3::WifiMac::GetAddress(), ns3::ApWifiMac::GetAssociationId(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiPhyOperatingChannel::GetFrequency(), ns3::WifiMac::GetNLinks(), ns3::WifiPhyOperatingChannel::GetNumber(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhyOperatingChannel::GetPhyBand(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::ApWifiMac::GetStaList(), ns3::WifiPhyOperatingChannel::GetWidth(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), MultiLinkOperationsTestBase::m_apMac, m_setupLinks, MultiLinkOperationsTestBase::m_staMacs, and NS_TEST_EXPECT_MSG_EQ.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void MultiLinkSetupTest::DoRun ( )

overrideprotectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Check content of management frames

Implements ns3::TestCase.

Definition at line 649 of file wifi-mlo-test.cc.

References CheckAssocRequest(), CheckAssocResponse(), CheckBeacon(), CheckDisabledLinks(), CheckMlSetup(), MultiLinkOperationsTestBase::m_txPsdus, ns3::MilliSeconds(), ns3::Seconds(), ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, and ns3::WIFI_MAC_MGT_BEACON.

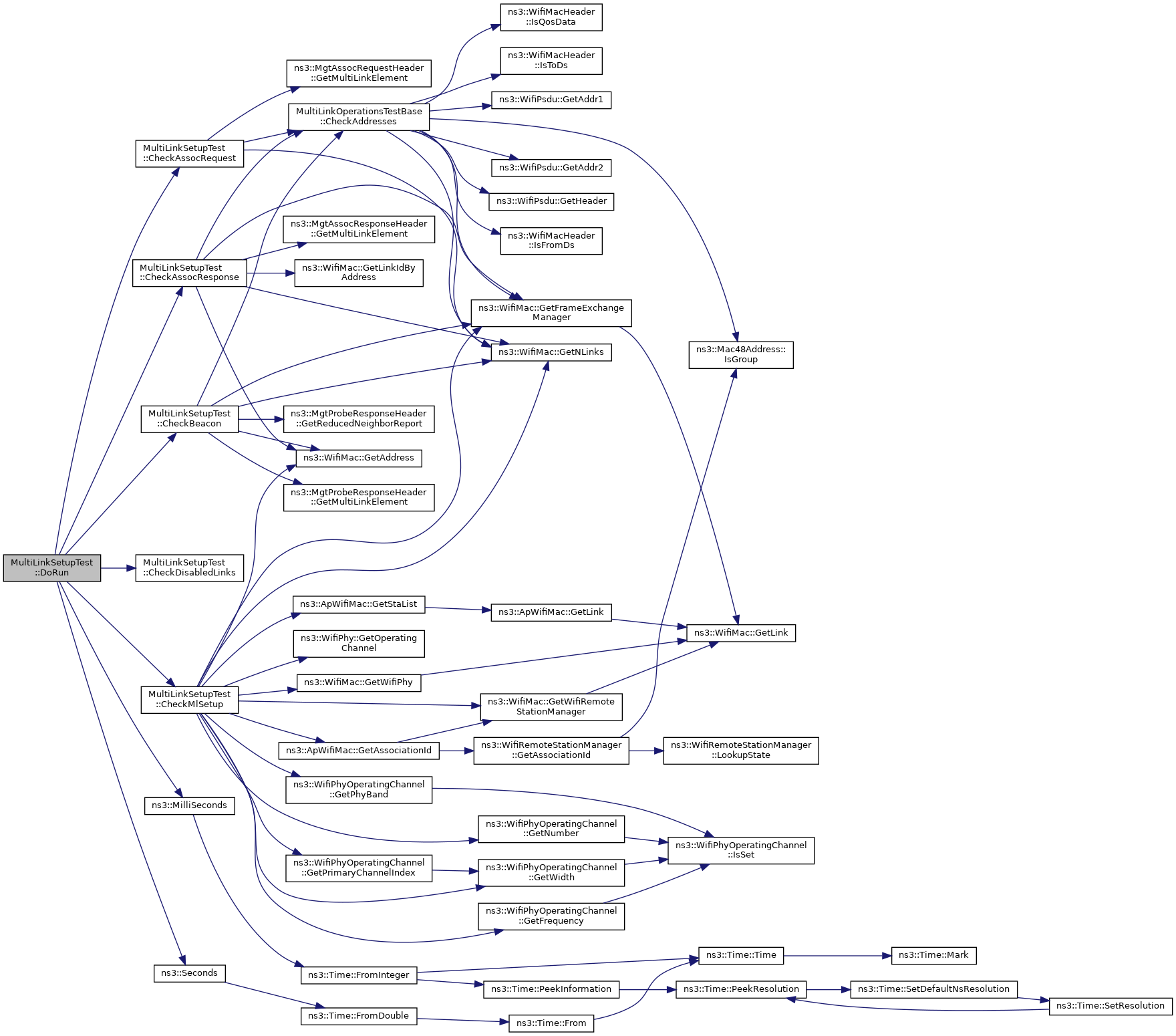

Here is the call graph for this function:

Member Data Documentation

m_setupLinks

const std::vector<std::pair<uint8_t, uint8_t> > MultiLinkSetupTest::m_setupLinks

private

expected links to setup (STA link ID, AP link ID)

Definition at line 632 of file wifi-mlo-test.cc.

Referenced by CheckAssocRequest(), CheckAssocResponse(), CheckDisabledLinks(), and CheckMlSetup().

---

The documentation for this class was generated from the following file:

• src/wifi/test/wifi-mlo-test.cc
