Inheritance diagram for TxopTest< TxopType >:

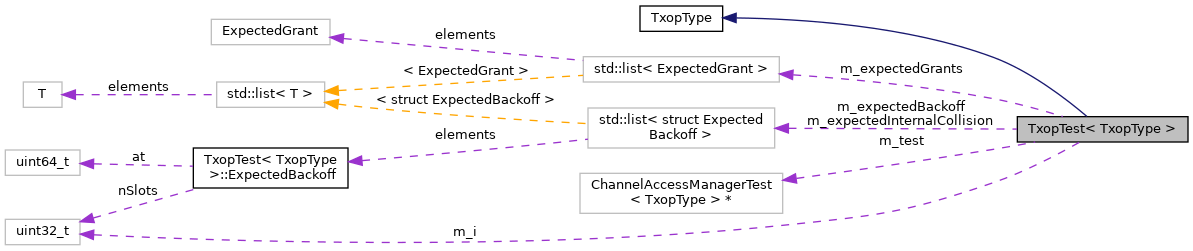

Collaboration diagram for TxopTest< TxopType >:

Classes
struct	ExpectedBackoff
	ExpectedBackoff structure. More...

Public Member Functions
	TxopTest (ChannelAccessManagerTest< TxopType > *test, uint32_t i)
	Constructor. More...

void	QueueTx (uint64_t txTime, uint64_t expectedGrantTime)
	Queue transmit function. More...

Private Types
typedef std::list< struct ExpectedBackoff >	ExpectedBackoffs
	expected backoffs typedef More...

typedef std::pair< uint64_t, uint64_t >	ExpectedGrant
	the expected grant typedef More...

typedef std::list< ExpectedGrant >	ExpectedGrants
	the collection of expected grants typedef More...

Private Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	GenerateBackoff (uint8_t linkId) override
	Generate a new backoff for the given link now. More...

bool	HasFramesToTransmit (uint8_t linkId) override
	Check if the Txop has frames to transmit over the given link. More...

void	NotifyChannelAccessed (uint8_t linkId, Time txopDuration=Seconds(0)) override
	Called by the FrameExchangeManager to notify that channel access has been granted on the given link for the given amount of time. More...

void	NotifySleep (uint8_t linkId) override
	Notify that the given link switched to sleep mode. More...

void	NotifyWakeUp (uint8_t linkId) override
	When wake up operation occurs on a link, channel access on that link will be restarted. More...

Private Attributes
ExpectedBackoffs	m_expectedBackoff
	expected backoff (not due to an internal collision) More...

ExpectedGrants	m_expectedGrants
	expected grants More...

ExpectedBackoffs	m_expectedInternalCollision
	expected backoff due to an internal collision More...

uint32_t	m_i
	the index of the Txop More...

ChannelAccessManagerTest< TxopType > *	m_test
	Check if the Txop has frames to transmit. More...

Friends
class	ChannelAccessManagerTest< TxopType >
	allow ChannelAccessManagerTest class access More...

Detailed Description

template<typename TxopType>
class TxopTest< TxopType >

TxopTest Txop Test.

Definition at line 43 of file channel-access-manager-test.cc.

Member Typedef Documentation

◆ ExpectedBackoffs

template<typename TxopType >

typedef std::list<struct ExpectedBackoff> TxopTest< TxopType >::ExpectedBackoffs

private

expected backoffs typedef

Definition at line 87 of file channel-access-manager-test.cc.

◆ ExpectedGrant

template<typename TxopType >

typedef std::pair<uint64_t, uint64_t> TxopTest< TxopType >::ExpectedGrant

private

the expected grant typedef

Definition at line 78 of file channel-access-manager-test.cc.

◆ ExpectedGrants

template<typename TxopType >

typedef std::list<ExpectedGrant> TxopTest< TxopType >::ExpectedGrants

private

the collection of expected grants typedef

Definition at line 79 of file channel-access-manager-test.cc.

Constructor & Destructor Documentation

◆ TxopTest()

template<typename TxopType >

TxopTest< TxopType >::TxopTest	(	ChannelAccessManagerTest< TxopType > *	test,
		uint32_t	i
	)

Constructor.

Parameters

test	the test channel access manager
i	the index of the Txop

Definition at line 425 of file channel-access-manager-test.cc.

Member Function Documentation

◆ DoDispose()

template<typename TxopType >

void TxopTest< TxopType >::DoDispose

overrideprivate

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Definition at line 433 of file channel-access-manager-test.cc.
