Base class for ***StatsCalculator classes. More...

#include "lte-stats-calculator.h"

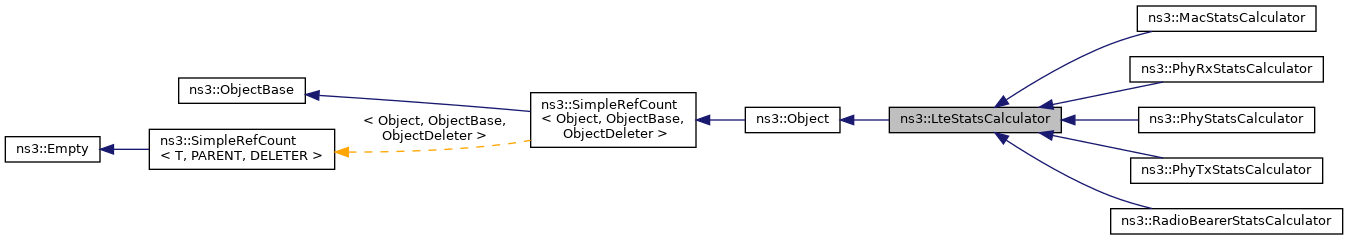

Inheritance diagram for ns3::LteStatsCalculator:

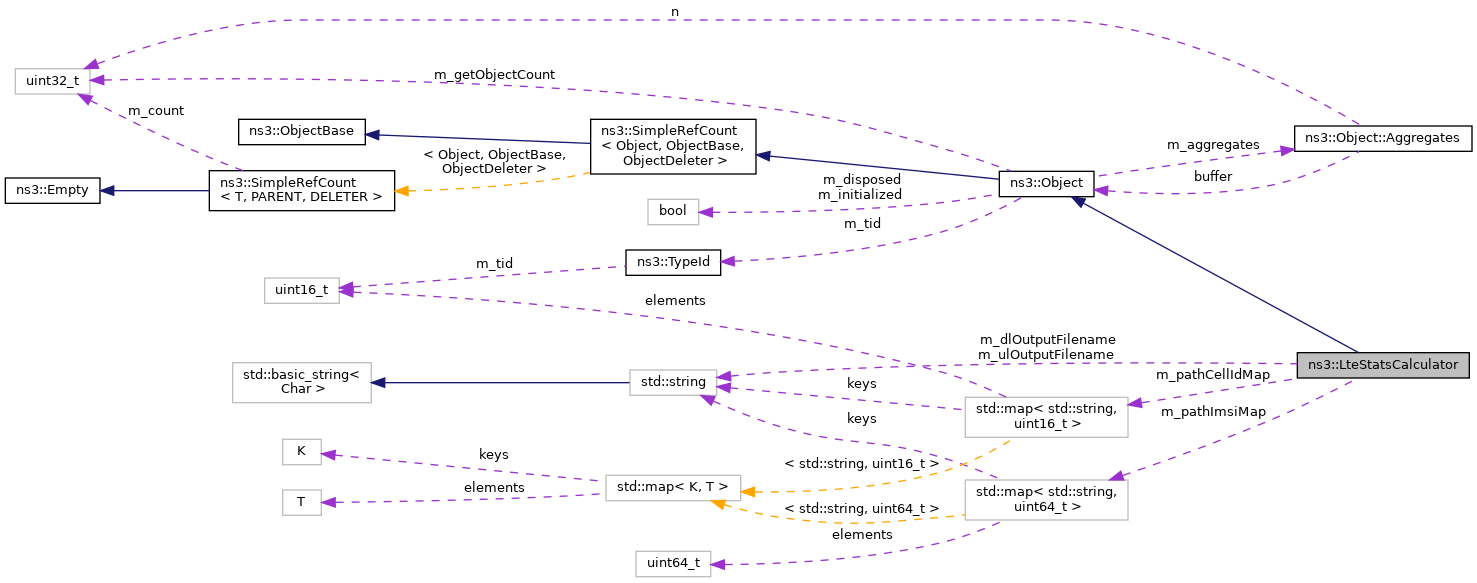

Collaboration diagram for ns3::LteStatsCalculator:

Public Member Functions
	LteStatsCalculator ()
	Constructor. More...

	~LteStatsCalculator () override
	Destructor. More...

bool	ExistsCellIdPath (std::string path)
	Checks if there is an already stored cell id for the given path. More...

bool	ExistsImsiPath (std::string path)
	Checks if there is an already stored IMSI for the given path. More...

uint16_t	GetCellIdPath (std::string path)
	Retrieves the cell id information for the given path. More...

std::string	GetDlOutputFilename ()
	Get the name of the file where the downlink statistics will be stored. More...

uint64_t	GetImsiPath (std::string path)
	Retrieves the imsi information for the given path. More...

std::string	GetUlOutputFilename ()
	Get the name of the file where the uplink statistics will be stored. More...

void	SetCellIdPath (std::string path, uint16_t cellId)
	Stores the (path, cellId) pairs in a map. More...

void	SetDlOutputFilename (std::string outputFilename)
	Set the name of the file where the downlink statistics will be stored. More...

void	SetImsiPath (std::string path, uint64_t imsi)
	Stores the (path, imsi) pairs in a map. More...

void	SetUlOutputFilename (std::string outputFilename)
	Set the name of the file where the uplink statistics will be stored. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Protected Member Functions
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)
	Retrieves CellId from Enb MAC path in the attribute system. More...

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)
	Retrieves CellId from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Enb in the attribute system. More...

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Ue in the attribute system. More...

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)
	Retrieves IMSI from Enb MAC path in the attribute system. More...

static uint64_t	FindImsiFromEnbRlcPath (std::string path)
	Retrieves IMSI from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiFromLteNetDevice (std::string path)
	Retrieves IMSI from LteNetDevice path in the attribute system. More...

static uint64_t	FindImsiFromUePhy (std::string path)
	Retrieves IMSI from Ue PHY path in the attribute system. More...

Private Attributes
std::string	m_dlOutputFilename
	Name of the file where the downlink results will be saved. More...

std::map< std::string, uint16_t >	m_pathCellIdMap
	List of CellId by path in the attribute system. More...

std::map< std::string, uint64_t >	m_pathImsiMap
	List of IMSI by path in the attribute system. More...

std::string	m_ulOutputFilename
	Name of the file where the uplink results will be saved. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base class for ***StatsCalculator classes.

Introspection did not find any typical Config paths.

Provides basic functionality to parse and store IMSI and CellId. Also stores names of output files.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 192 bytes (on a 64-bit architecture).

Definition at line 39 of file lte-stats-calculator.h.

Constructor & Destructor Documentation

◆ LteStatsCalculator()

ns3::LteStatsCalculator::LteStatsCalculator ( )

Constructor.

Definition at line 36 of file lte-stats-calculator.cc.

◆ ~LteStatsCalculator()

ns3::LteStatsCalculator::~LteStatsCalculator ( )

override

Destructor.

Definition at line 43 of file lte-stats-calculator.cc.

Member Function Documentation

◆ ExistsCellIdPath()

bool ns3::LteStatsCalculator::ExistsCellIdPath ( std::string path )

Checks if there is an already stored cell id for the given path.

Parameters

path	Path in the attribute system to check

Returns: true if the path exists, false otherwise

Definition at line 109 of file lte-stats-calculator.cc.

References m_pathCellIdMap, and check-style-clang-format::path.

◆ ExistsImsiPath()

bool ns3::LteStatsCalculator::ExistsImsiPath ( std::string path )

Checks if there is an already stored IMSI for the given path.

Parameters

path	Path in the attribute system to check

Returns: true if the path exists, false otherwise

Definition at line 83 of file lte-stats-calculator.cc.

References m_pathImsiMap, and check-style-clang-format::path.

◆ FindCellIdFromEnbMac()

uint16_t ns3::LteStatsCalculator::FindCellIdFromEnbMac	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Retrieves CellId from Enb MAC path in the attribute system.

Parameters

path	Path in the attribute system to get
rnti	RNTI of UE for which CellId is needed

Returns: the CellId associated with the given path and RNTI

Definition at line 247 of file lte-stats-calculator.cc.

References FindCellIdFromEnbRlcPath(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

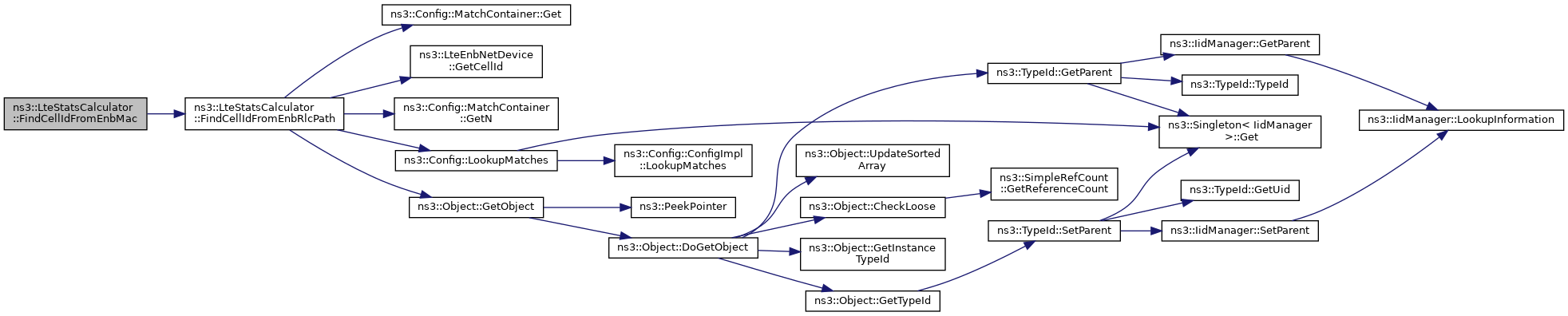

Here is the call graph for this function:

◆ FindCellIdFromEnbRlcPath()

uint16_t ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath ( std::string path )

staticprotected

Retrieves CellId from Enb RLC path in the attribute system.

Parameters

path	Path in the attribute system to get

Returns: the CellId associated with the given path

Definition at line 208 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::LteEnbNetDevice::GetCellId(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

Referenced by ns3::MacStatsCalculator::DlSchedulingCallback(), FindCellIdFromEnbMac(), and ns3::MacStatsCalculator::UlSchedulingCallback().

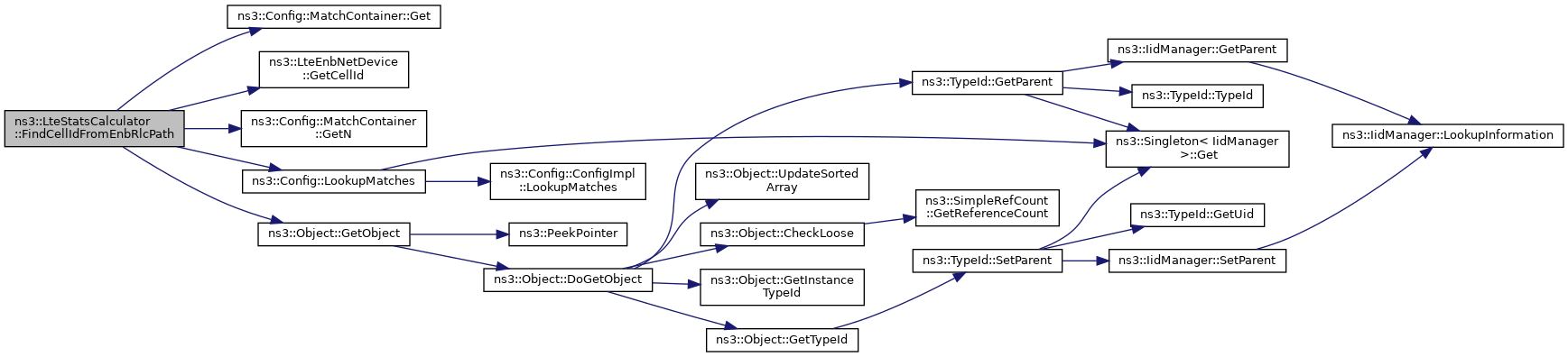

Here is the call graph for this function:

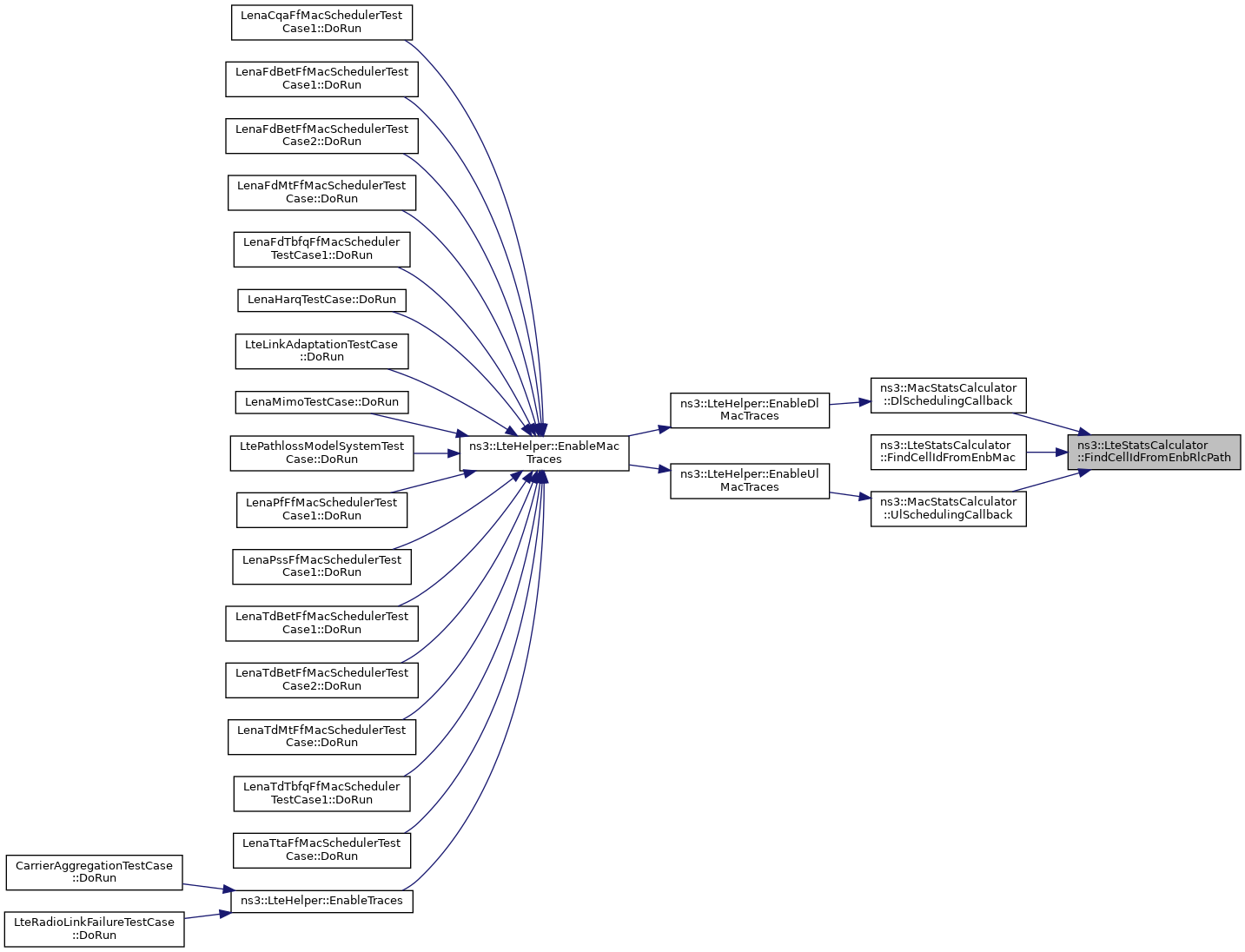

Here is the caller graph for this function:

◆ FindImsiForEnb()

uint64_t ns3::LteStatsCalculator::FindImsiForEnb	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Retrieves IMSI from path for Enb in the attribute system.

Parameters

path	Path in the attribute system to get
rnti	RNTI of UE for which IMSI is needed

Returns: the IMSI associated with the given path and RNTI

Definition at line 261 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), FindImsiFromLteNetDevice(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

Here is the call graph for this function:

◆ FindImsiForUe()

uint64_t ns3::LteStatsCalculator::FindImsiForUe	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Retrieves IMSI from path for Ue in the attribute system.

Parameters

path	Path in the attribute system to get
rnti	RNTI of UE for which IMSI is needed

Returns: the IMSI associated with the given path and RNTI

Definition at line 285 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), FindImsiFromLteNetDevice(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

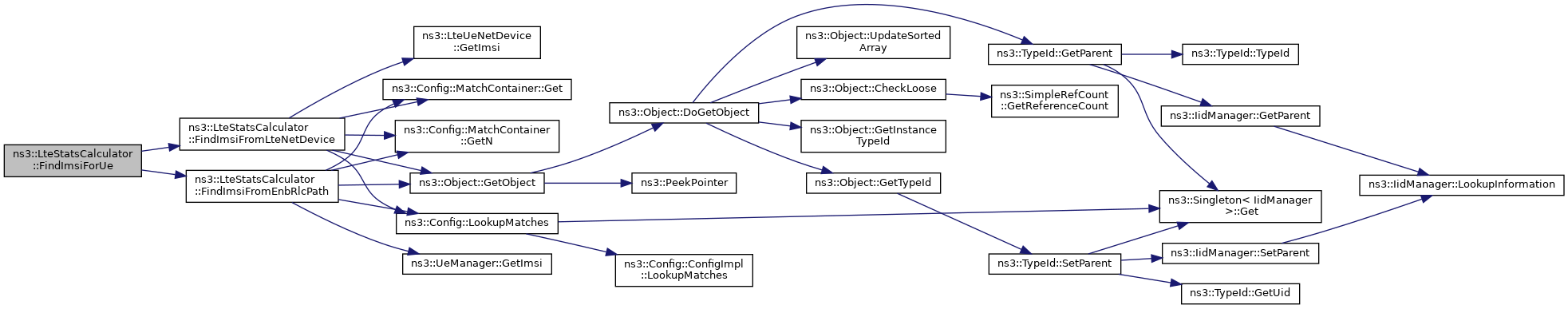

Here is the call graph for this function:

◆ FindImsiFromEnbMac()

uint64_t ns3::LteStatsCalculator::FindImsiFromEnbMac	(	std::string	path,
		uint16_t	rnti
	)

staticprotected

Retrieves IMSI from Enb MAC path in the attribute system.

Parameters

path	Path in the attribute system to get
rnti	RNTI of UE for which IMSI is needed

Returns: the IMSI associated with the given path and RNTI

Definition at line 232 of file lte-stats-calculator.cc.

References FindImsiFromEnbRlcPath(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

Referenced by ns3::PhyStatsCalculator::ReportUeSinr().

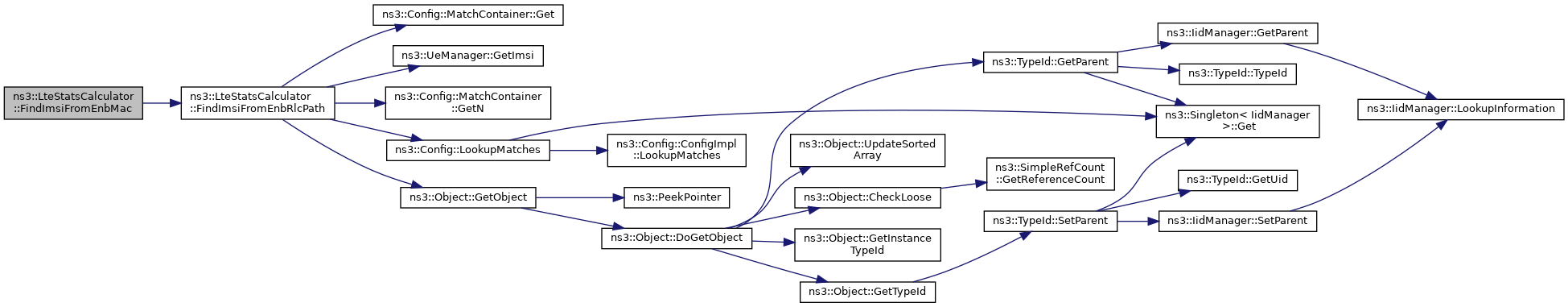

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FindImsiFromEnbRlcPath()

uint64_t ns3::LteStatsCalculator::FindImsiFromEnbRlcPath ( std::string path )

staticprotected

Retrieves IMSI from Enb RLC path in the attribute system.

Parameters

path	Path in the attribute system to get

Returns: the IMSI associated with the given path

Definition at line 135 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::UeManager::GetImsi(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

Referenced by ns3::PhyTxStatsCalculator::DlPhyTransmissionCallback(), ns3::MacStatsCalculator::DlSchedulingCallback(), FindImsiForEnb(), FindImsiForUe(), FindImsiFromEnbMac(), ns3::PhyRxStatsCalculator::UlPhyReceptionCallback(), and ns3::MacStatsCalculator::UlSchedulingCallback().

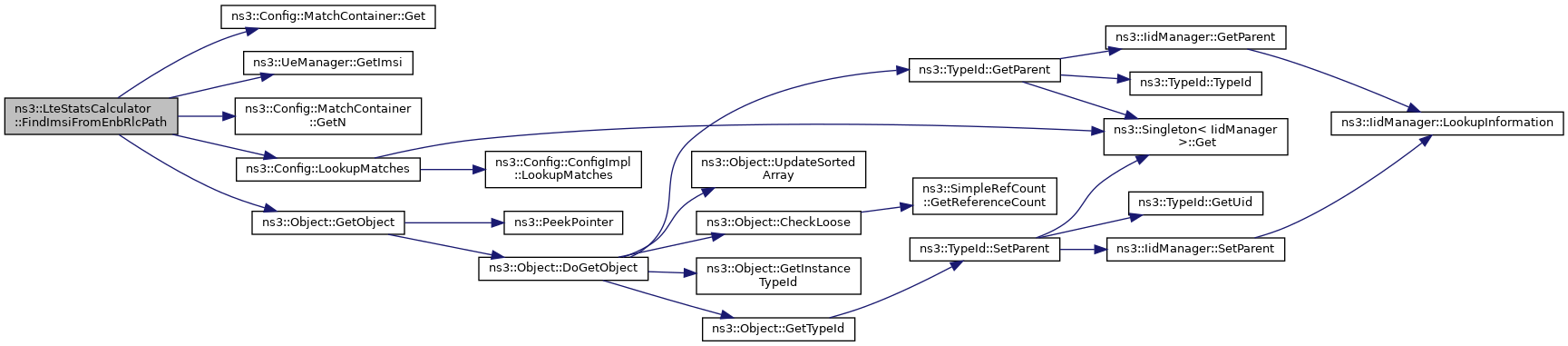

Here is the call graph for this function:

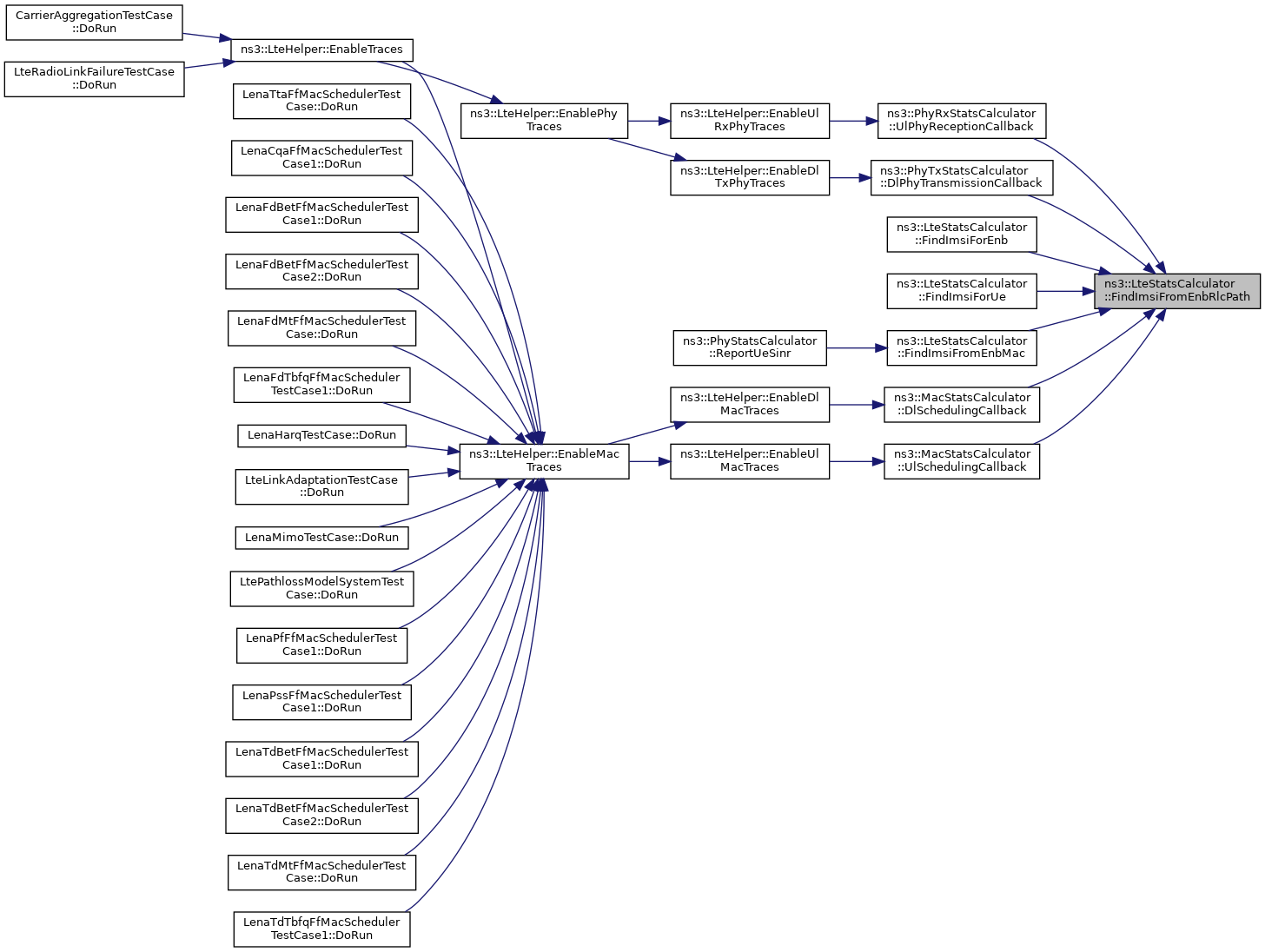

Here is the caller graph for this function:

◆ FindImsiFromLteNetDevice()

uint64_t ns3::LteStatsCalculator::FindImsiFromLteNetDevice ( std::string path )

staticprotected

Retrieves IMSI from LteNetDevice path in the attribute system.

Parameters

path	Path in the attribute system to get

Returns: the IMSI associated with the given path

Definition at line 184 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::LteUeNetDevice::GetImsi(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and check-style-clang-format::path.

Referenced by ns3::PhyRxStatsCalculator::DlPhyReceptionCallback(), FindImsiForEnb(), FindImsiForUe(), ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinrCallback(), and ns3::PhyTxStatsCalculator::UlPhyTransmissionCallback().

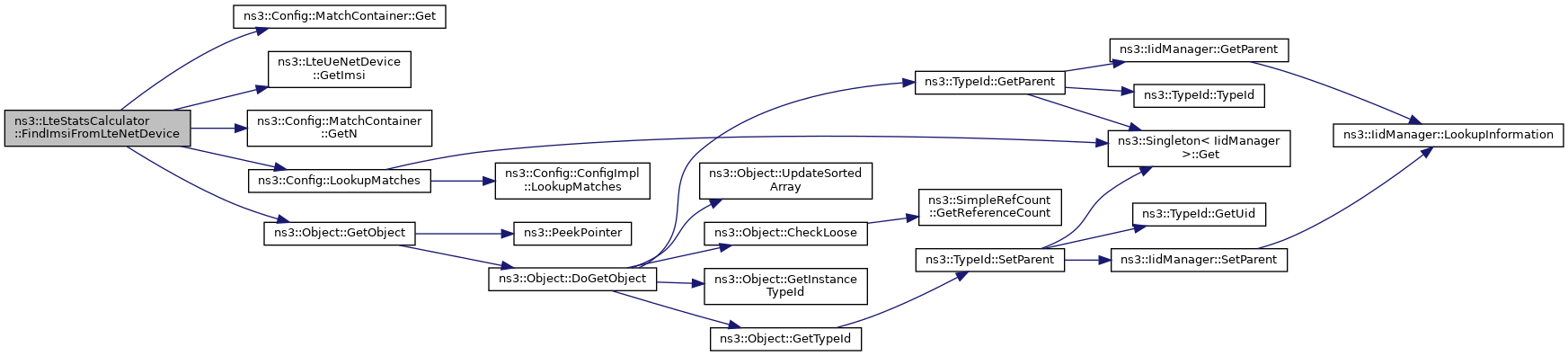

Here is the call graph for this function:

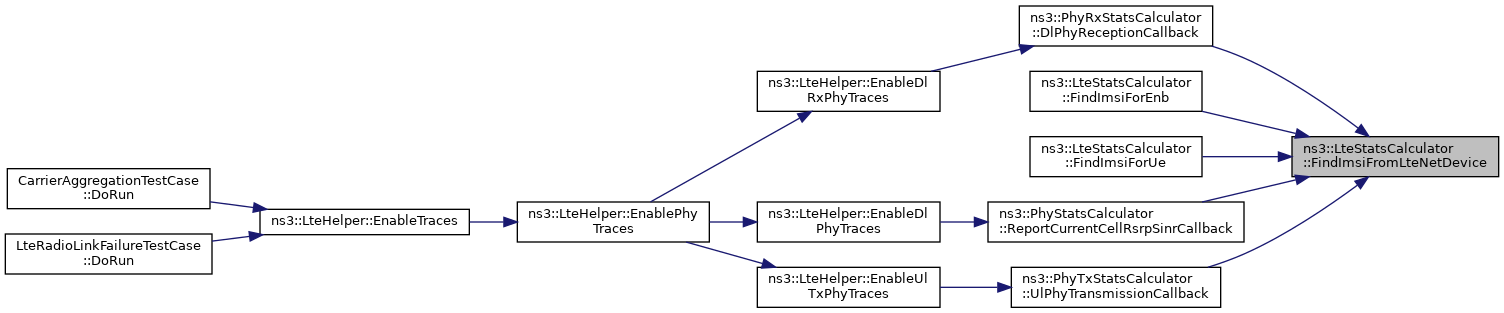

Here is the caller graph for this function:

◆ FindImsiFromUePhy()

uint64_t ns3::LteStatsCalculator::FindImsiFromUePhy ( std::string path )

staticprotected

Retrieves IMSI from Ue PHY path in the attribute system.

Parameters

path	Path in the attribute system to get

Returns: the IMSI associated with the given path

Definition at line 160 of file lte-stats-calculator.cc.

References ns3::Config::MatchContainer::Get(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and check-style-clang-format::path.

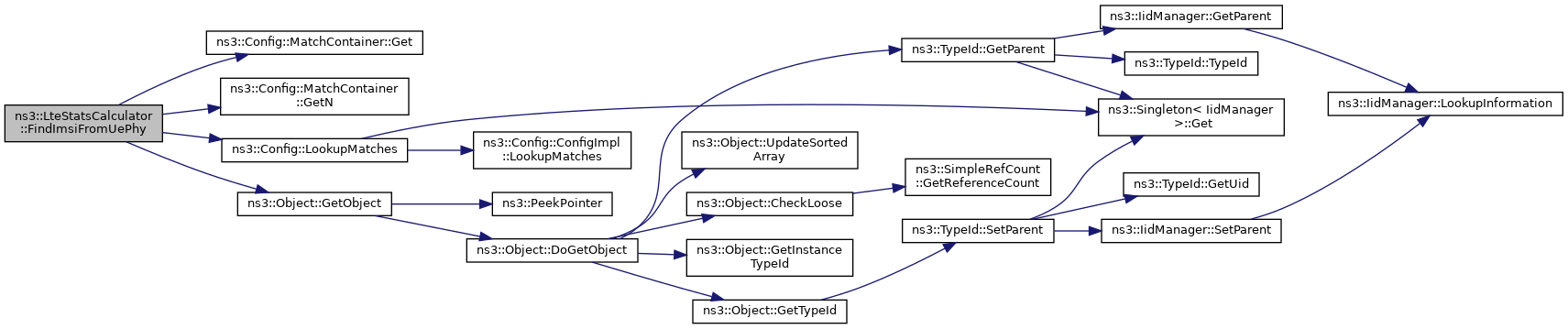

Here is the call graph for this function:

◆ GetCellIdPath()

uint16_t ns3::LteStatsCalculator::GetCellIdPath ( std::string path )

Retrieves the cell id information for the given path.

Parameters

path	Path in the attribute system to get

Returns: the cell ID associated with the given path

Definition at line 129 of file lte-stats-calculator.cc.

References m_pathCellIdMap, and check-style-clang-format::path.

◆ GetDlOutputFilename()

std::string ns3::LteStatsCalculator::GetDlOutputFilename ( )

Get the name of the file where the downlink statistics will be stored.

Returns: the name of the file where the downlink statistics will be stored

Definition at line 77 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::PhyTxStatsCalculator::DlPhyTransmission(), ns3::MacStatsCalculator::GetDlOutputFilename(), ns3::RadioBearerStatsCalculator::GetDlOutputFilename(), ns3::PhyRxStatsCalculator::GetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetDlTxOutputFilename().

Here is the caller graph for this function:

◆ GetImsiPath()

uint64_t ns3::LteStatsCalculator::GetImsiPath ( std::string path )

Retrieves the imsi information for the given path.

Parameters

path	Path in the attribute system to get

Returns: the IMSI associated with the given path

Definition at line 103 of file lte-stats-calculator.cc.

References m_pathImsiMap, and check-style-clang-format::path.

◆ GetTypeId()

TypeId ns3::LteStatsCalculator::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

Definition at line 49 of file lte-stats-calculator.cc.

References ns3::TypeId::SetParent().

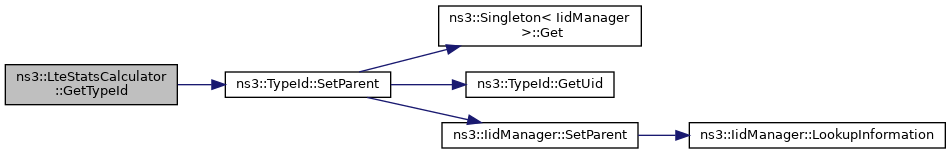

Here is the call graph for this function:

◆ GetUlOutputFilename()

std::string ns3::LteStatsCalculator::GetUlOutputFilename ( )

Get the name of the file where the uplink statistics will be stored.

Returns: the name of the file where the uplink statistics will be stored

Definition at line 65 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::MacStatsCalculator::GetUlOutputFilename(), ns3::RadioBearerStatsCalculator::GetUlOutputFilename(), ns3::PhyRxStatsCalculator::GetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetUlTxOutputFilename().

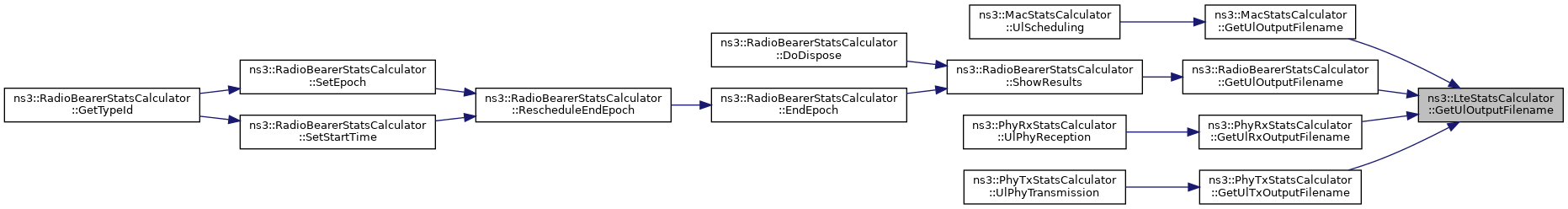

Here is the caller graph for this function:

◆ SetCellIdPath()

void ns3::LteStatsCalculator::SetCellIdPath	(	std::string	path,
		uint16_t	cellId
	)

Stores the (path, cellId) pairs in a map.

Parameters

path	Path in the attribute system to store
cellId	cell id value to store

Definition at line 122 of file lte-stats-calculator.cc.

References m_pathCellIdMap, NS_LOG_FUNCTION, and check-style-clang-format::path.

◆ SetDlOutputFilename()

void ns3::LteStatsCalculator::SetDlOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 71 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::MacStatsCalculator::SetDlOutputFilename(), ns3::PhyRxStatsCalculator::SetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetDlTxOutputFilename().

Here is the caller graph for this function:

◆ SetImsiPath()

void ns3::LteStatsCalculator::SetImsiPath	(	std::string	path,
		uint64_t	imsi
	)

Stores the (path, imsi) pairs in a map.

Parameters

path	Path in the attribute system to store
imsi	IMSI value to store

Definition at line 96 of file lte-stats-calculator.cc.

References m_pathImsiMap, NS_LOG_FUNCTION, and check-style-clang-format::path.

◆ SetUlOutputFilename()

void ns3::LteStatsCalculator::SetUlOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 59 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::MacStatsCalculator::SetUlOutputFilename(), ns3::PhyRxStatsCalculator::SetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetUlTxOutputFilename().

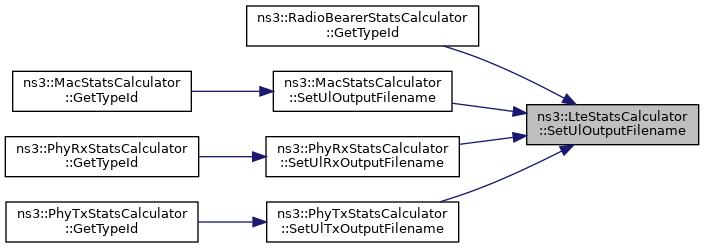

Here is the caller graph for this function:

Member Data Documentation

◆ m_dlOutputFilename

std::string ns3::LteStatsCalculator::m_dlOutputFilename

private

Name of the file where the downlink results will be saved.

Definition at line 201 of file lte-stats-calculator.h.

Referenced by GetDlOutputFilename(), and SetDlOutputFilename().

◆ m_pathCellIdMap

std::map<std::string, uint16_t> ns3::LteStatsCalculator::m_pathCellIdMap

private

List of CellId by path in the attribute system.

Definition at line 196 of file lte-stats-calculator.h.

Referenced by ExistsCellIdPath(), GetCellIdPath(), and SetCellIdPath().

◆ m_pathImsiMap

std::map<std::string, uint64_t> ns3::LteStatsCalculator::m_pathImsiMap

private

List of IMSI by path in the attribute system.

Definition at line 191 of file lte-stats-calculator.h.

Referenced by ExistsImsiPath(), GetImsiPath(), and SetImsiPath().

◆ m_ulOutputFilename

std::string ns3::LteStatsCalculator::m_ulOutputFilename

private

Name of the file where the uplink results will be saved.

Definition at line 206 of file lte-stats-calculator.h.

Referenced by GetUlOutputFilename(), and SetUlOutputFilename().

The documentation for this class was generated from the following files:

src/lte/helper/lte-stats-calculator.h
src/lte/helper/lte-stats-calculator.cc

Public Member Functions

Static Public Member Functions

Static Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteStatsCalculator()

◆ ~LteStatsCalculator()

Member Function Documentation

◆ ExistsCellIdPath()

◆ ExistsImsiPath()

◆ FindCellIdFromEnbMac()

◆ FindCellIdFromEnbRlcPath()

◆ FindImsiForEnb()

◆ FindImsiForUe()

◆ FindImsiFromEnbMac()

◆ FindImsiFromEnbRlcPath()

◆ FindImsiFromLteNetDevice()

◆ FindImsiFromUePhy()

◆ GetCellIdPath()

◆ GetDlOutputFilename()

◆ GetImsiPath()

◆ GetTypeId()

◆ GetUlOutputFilename()

◆ SetCellIdPath()

◆ SetDlOutputFilename()

◆ SetImsiPath()

◆ SetUlOutputFilename()

Member Data Documentation

◆ m_dlOutputFilename

◆ m_pathCellIdMap

◆ m_pathImsiMap

◆ m_ulOutputFilename
