Hold together all WiMAX-related objects in a NetDevice. More...

#include "wimax-net-device.h"

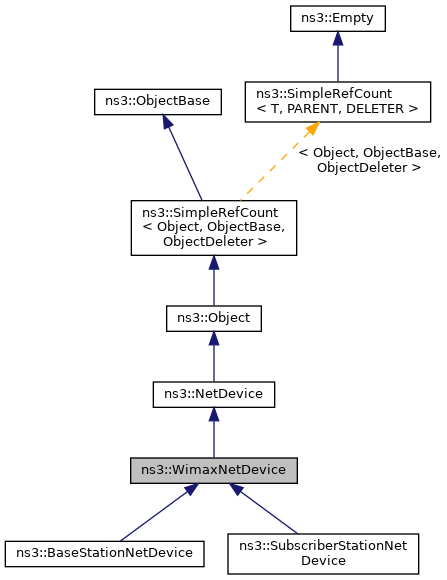

Inheritance diagram for ns3::WimaxNetDevice:

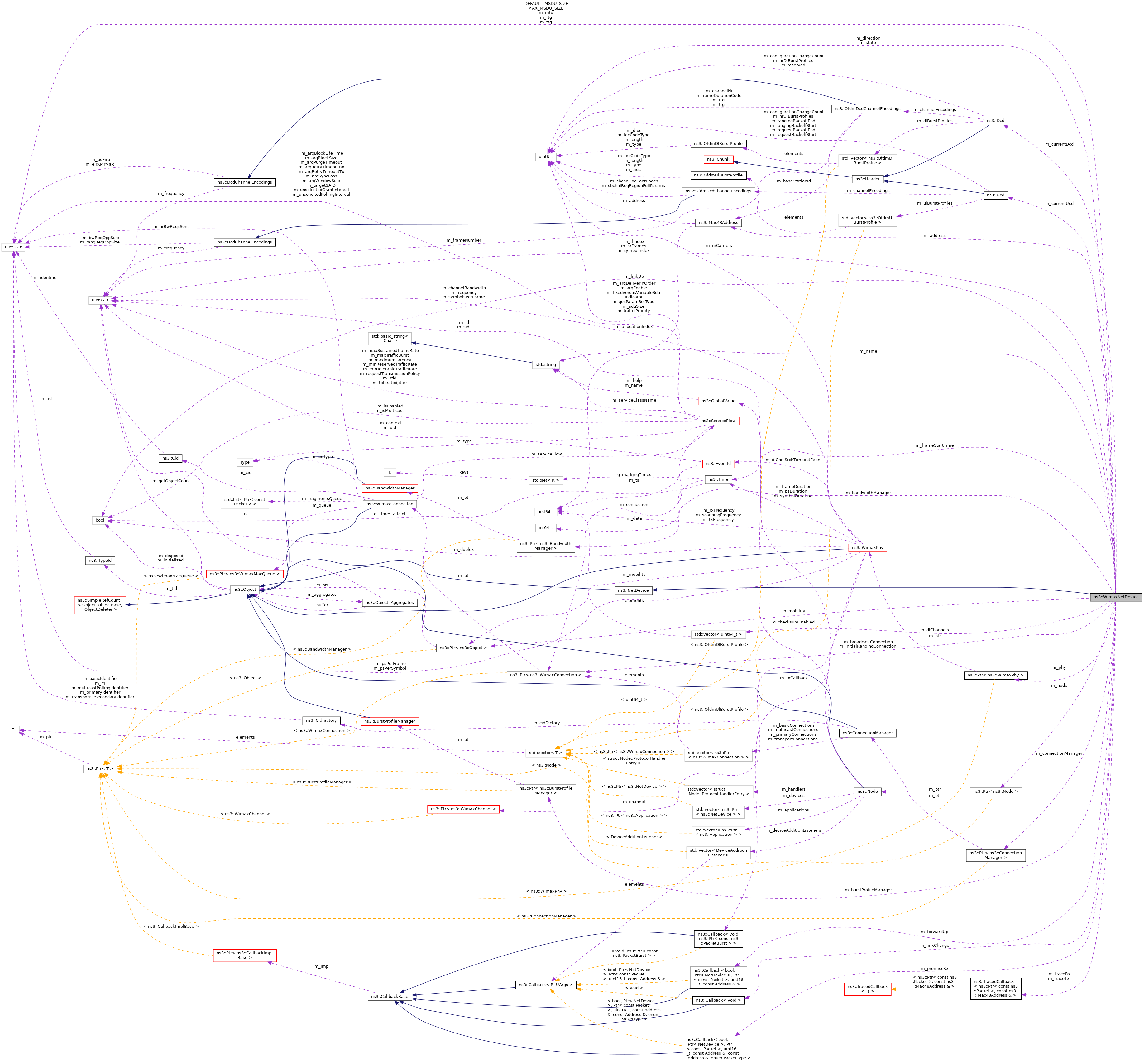

Collaboration diagram for ns3::WimaxNetDevice:

Public Types
enum	Direction { DIRECTION_DOWNLINK , DIRECTION_UPLINK }
	Direction enumeration. More...

enum	RangingStatus { RANGING_STATUS_EXPIRED , RANGING_STATUS_CONTINUE , RANGING_STATUS_ABORT , RANGING_STATUS_SUCCESS }
	RangingStatus enumeration. More...

typedef void(*	TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)
	TracedCallback signature for packet and Mac48Address. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) ()
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1 , NS3_PACKET_HOST = PACKET_HOST , PACKET_BROADCAST , NS3_PACKET_BROADCAST = PACKET_BROADCAST , PACKET_MULTICAST , NS3_PACKET_MULTICAST = PACKET_MULTICAST , PACKET_OTHERHOST , NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

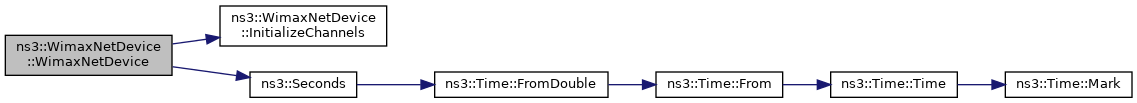

	WimaxNetDevice ()

	~WimaxNetDevice () override

void	AddLinkChangeCallback (Callback< void > callback) override
	Add link change callback function. More...

void	Attach (Ptr< WimaxChannel > channel)
	Attach device to channel. More...

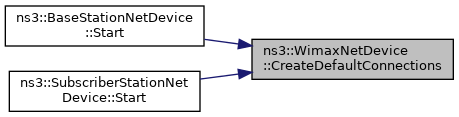

void	CreateDefaultConnections ()
	Creates the initial ranging and broadcast connections. More...

void	DoDispose () override
	Destructor implementation. More...

virtual bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)=0
	Enqueue a packet. More...

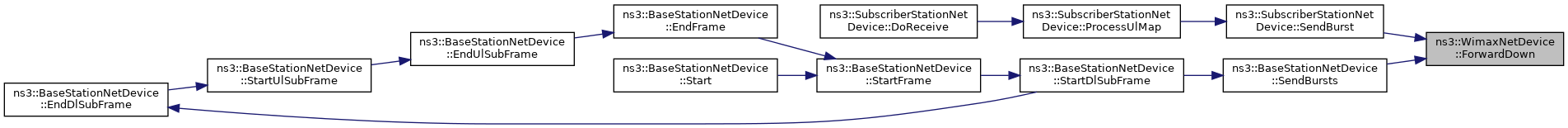

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)
	Forward a packet down the stack. More...

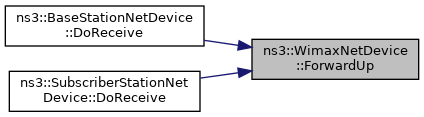

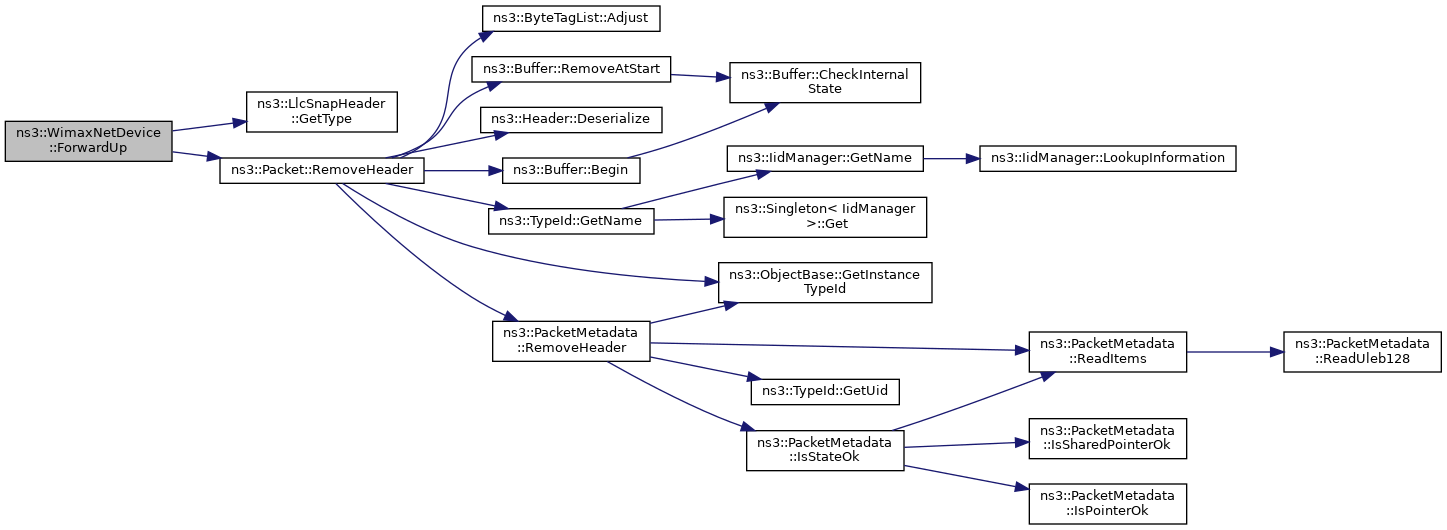

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)
	Forward a packet to the next layer above the device. More...

Address	GetAddress () const override
	Get address of the device. More...

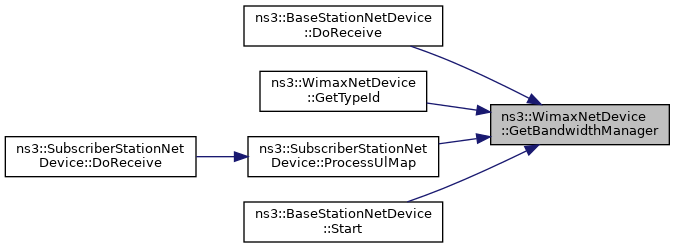

Ptr< BandwidthManager >	GetBandwidthManager () const
	Get the bandwidth manager on the device. More...

Address	GetBroadcast () const override
	Get broadcast address. More...

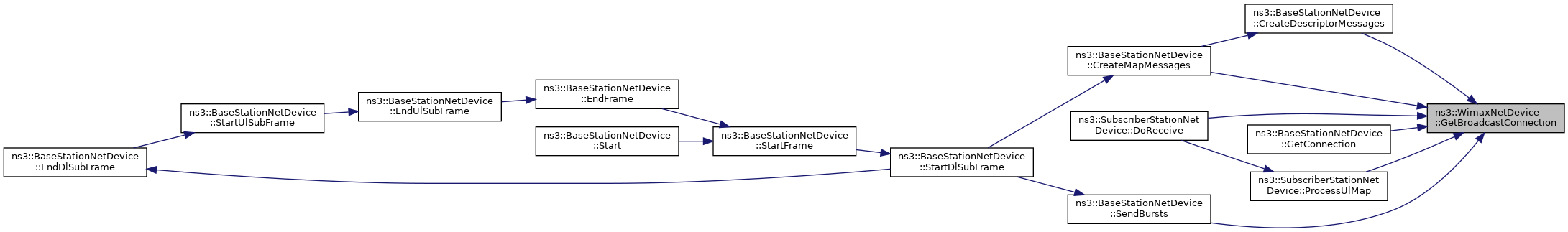

Ptr< WimaxConnection >	GetBroadcastConnection () const
	Get the broadcast connection. More...

Ptr< BurstProfileManager >	GetBurstProfileManager () const
	Get the burst profile manager. More...

Ptr< Channel >	GetChannel () const override
	Get the channel. More...

uint64_t	GetChannel (uint8_t index) const
	Get the channel object by index. More...

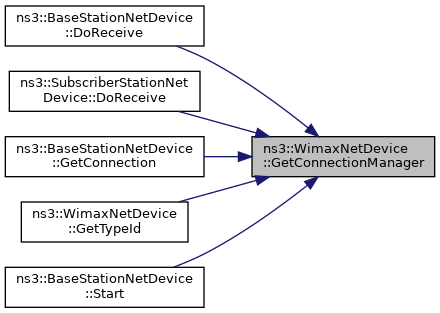

Ptr< ConnectionManager >	GetConnectionManager () const
	Get the connection manager of the device. More...

Dcd	GetCurrentDcd () const
	Get the current DCD. More...

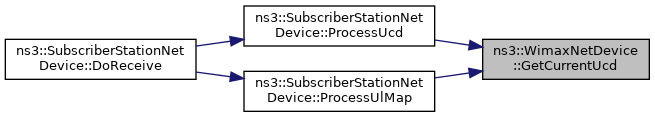

Ucd	GetCurrentUcd () const
	Get the current UCD. More...

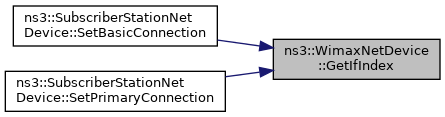

uint32_t	GetIfIndex () const override
	Get interface index. More...

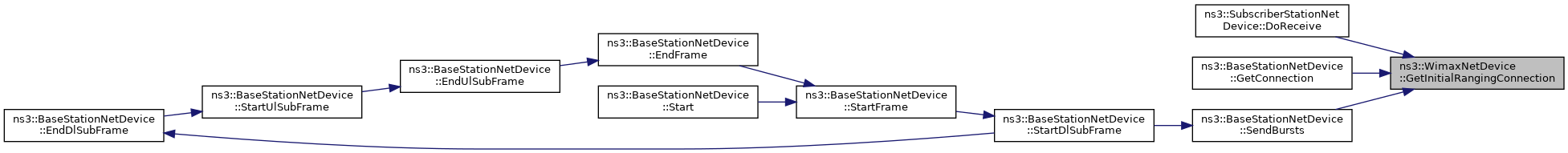

Ptr< WimaxConnection >	GetInitialRangingConnection () const
	Get the initial ranging connection. More...

Mac48Address	GetMacAddress () const
	Get the MAC address. More...

uint16_t	GetMtu () const override
	Get MTU of the device. More...

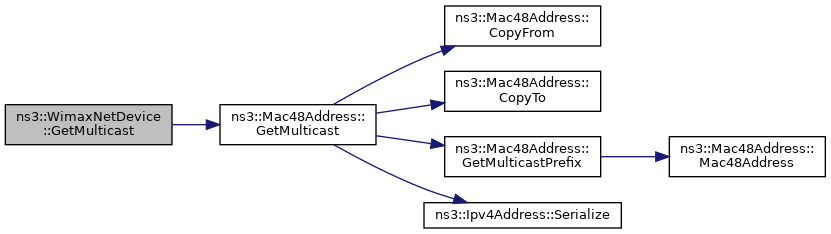

virtual Address	GetMulticast () const
	Get multicast address. More...

Address	GetMulticast (Ipv4Address multicastGroup) const override
	Make and return a MAC multicast address using the provided multicast group. More...

Address	GetMulticast (Ipv6Address addr) const override
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual std::string	GetName () const
	Get device name. More...

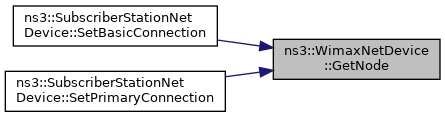

Ptr< Node >	GetNode () const override
	Get node pointer. More...

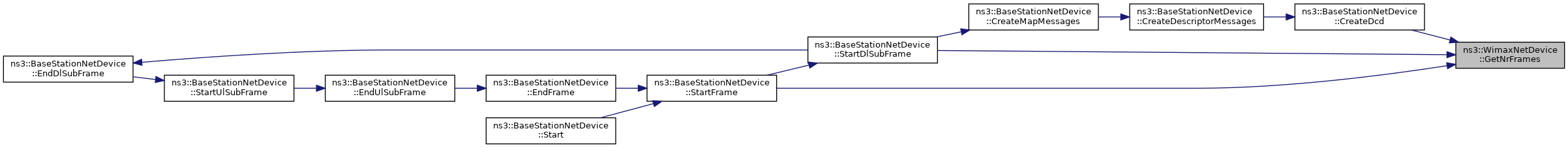

uint32_t	GetNrFrames () const
	Get the number of frames. More...

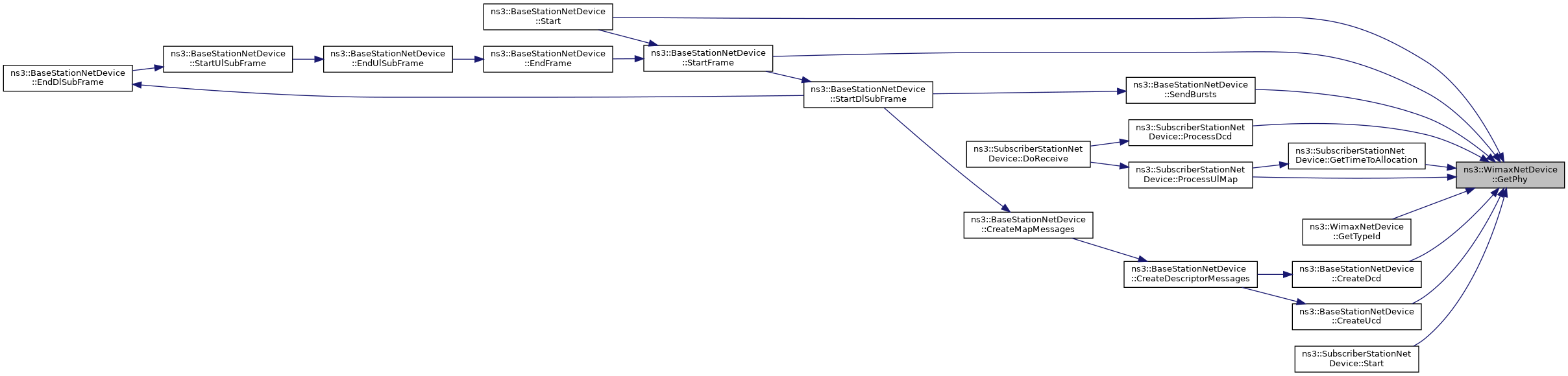

Ptr< WimaxPhy >	GetPhy () const
	Get the physical layer object. More...

virtual Ptr< Channel >	GetPhyChannel () const
	Get the channel (this method is redundant with GetChannel()) More...

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback ()
	Get promiscious receive callback function. More...

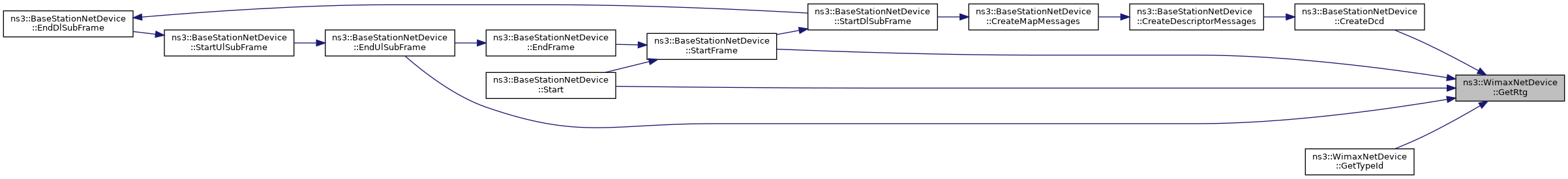

uint16_t	GetRtg () const
	Get receive/transmit transition gap. More...

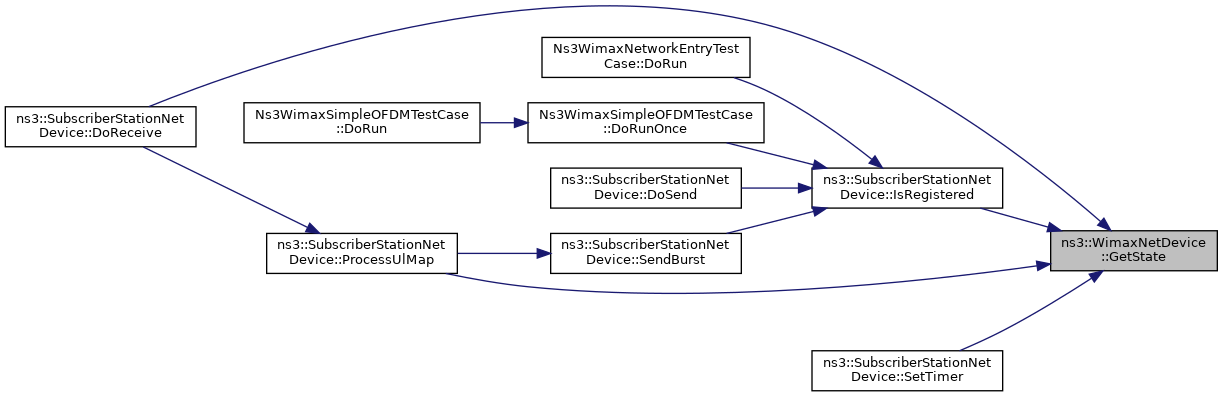

uint8_t	GetState () const
	Get the device state. More...

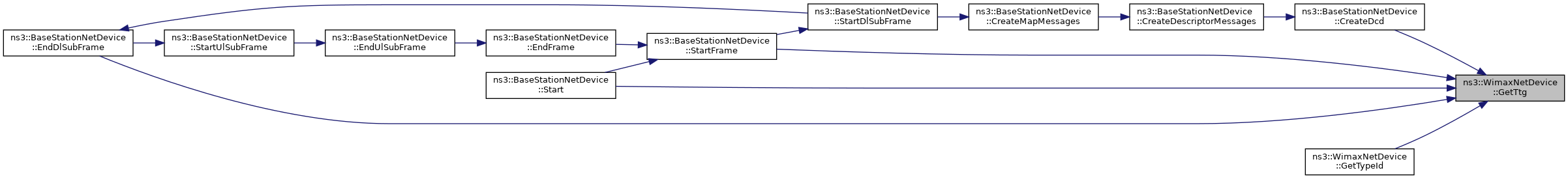

uint16_t	GetTtg () const
	Get transmission/receive transition gap. More...

bool	IsBridge () const override
	Return true if the net device is acting as a bridge. More...

bool	IsBroadcast () const override
	Check if broadcast enabled. More...

bool	IsLinkUp () const override
	Check if link is up. More...

bool	IsMulticast () const override
	Check if multicast enabled. More...

bool	IsPointToPoint () const override
	Check if device is a point-to-point device. More...

bool	IsPromisc ()
	Check if device is promiscious. More...

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const
	Make multicast address. More...

bool	NeedsArp () const override
	Check if device needs ARP. More...

void	NotifyPromiscTrace (Ptr< Packet > p)
	Notify promiscious trace of a packet arrival. More...

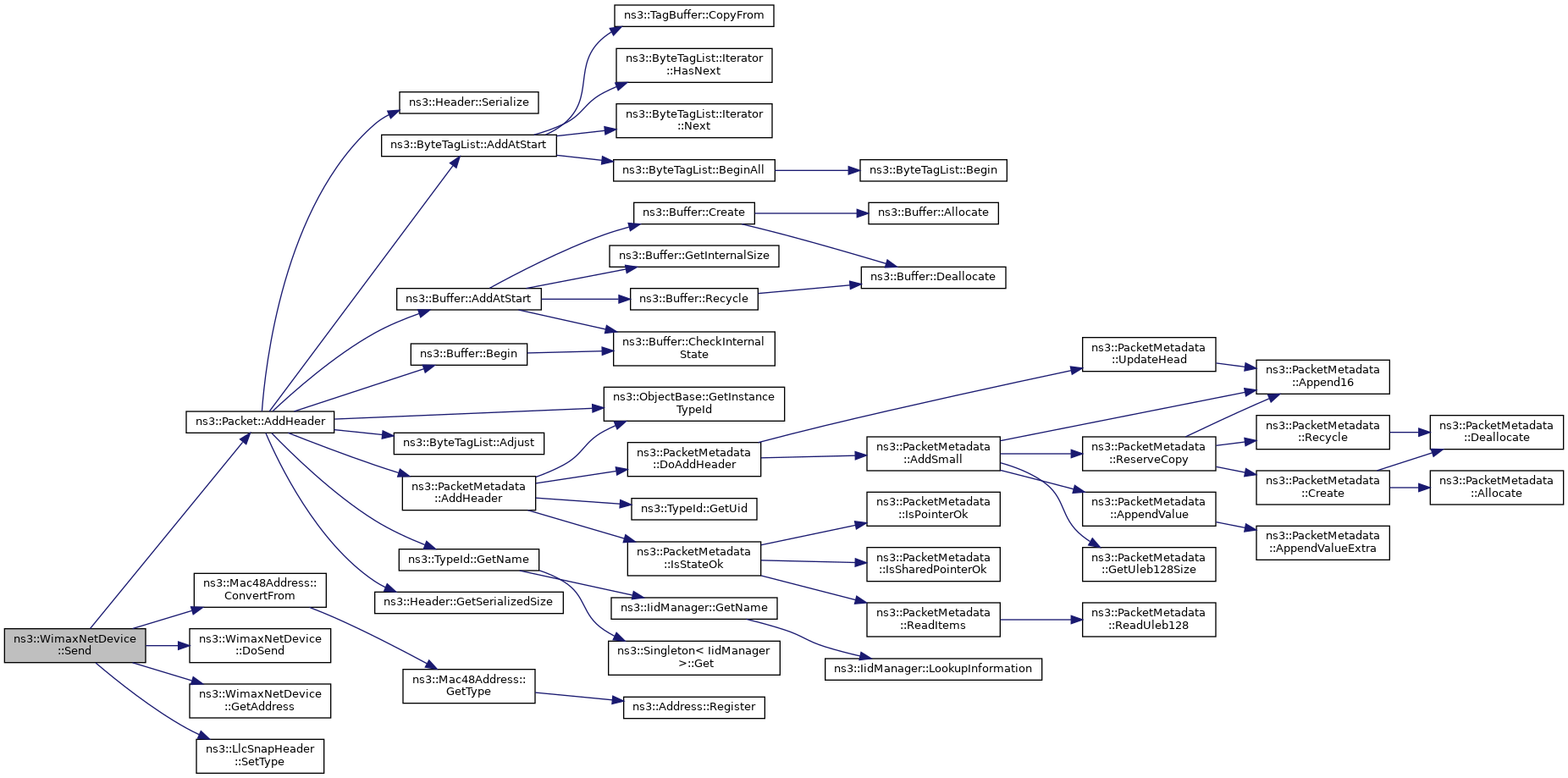

bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber) override
	Send function. More...

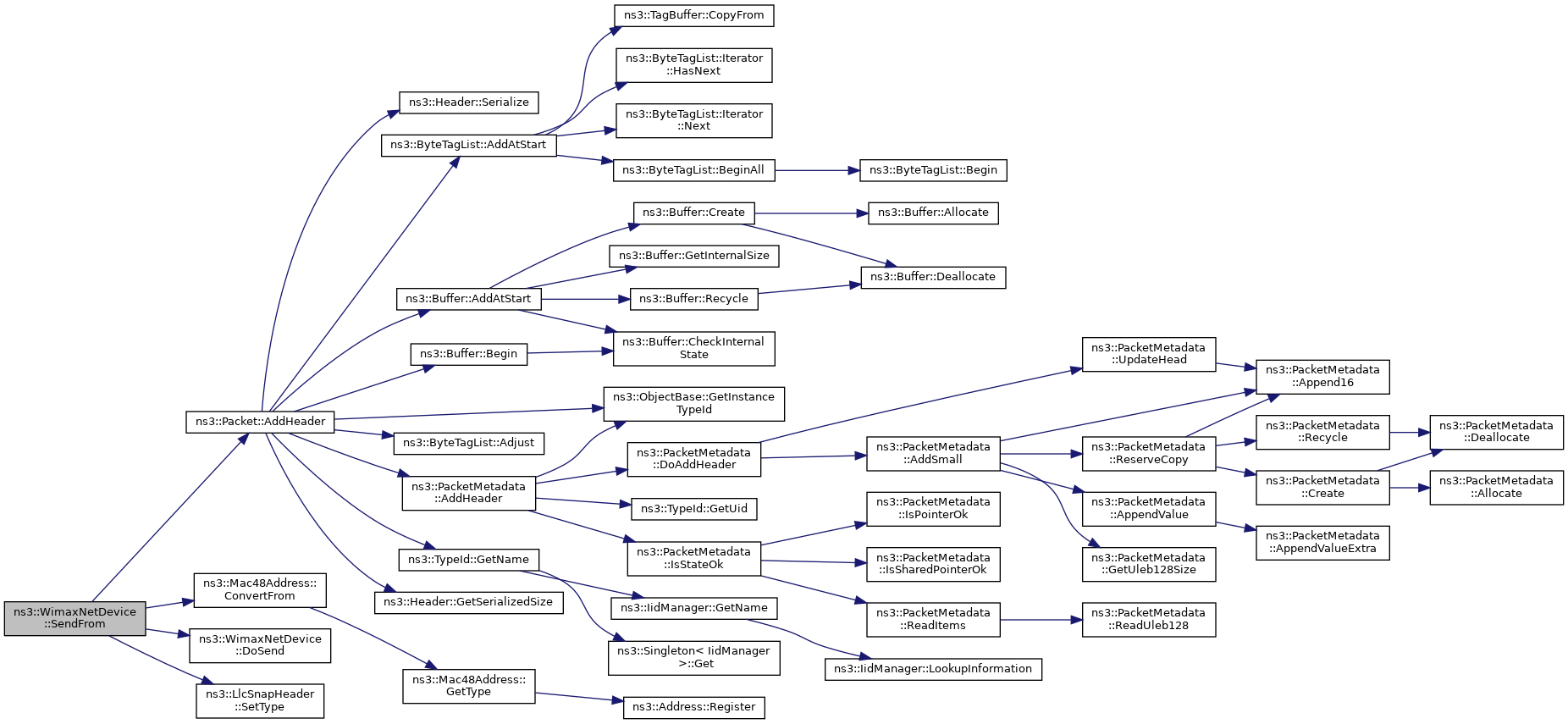

bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber) override
	Send a packet. More...

void	SetAddress (Address address) override
	Set address of the device. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)
	Set the bandwidth manager on the device. More...

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)
	Set the burst profile manager. More...

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)
	Set the channel object. More...

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)
	Set the connection manager of the device. More...

void	SetCurrentDcd (Dcd dcd)
	Set the current DCD. More...

void	SetCurrentUcd (Ucd ucd)
	Set the current UCD. More...

void	SetIfIndex (const uint32_t index) override
	Set interface index. More...

virtual void	SetLinkChangeCallback (Callback< void > callback)
	Set link change callback function. More...

void	SetMacAddress (Mac48Address address)
	Set the MAC address. More...

bool	SetMtu (const uint16_t mtu) override
	Set MTU value for the device. More...

virtual void	SetName (const std::string name)
	Set device name. More...

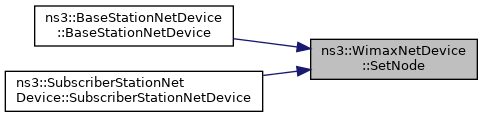

void	SetNode (Ptr< Node > node) override
	Set node pointer. More...

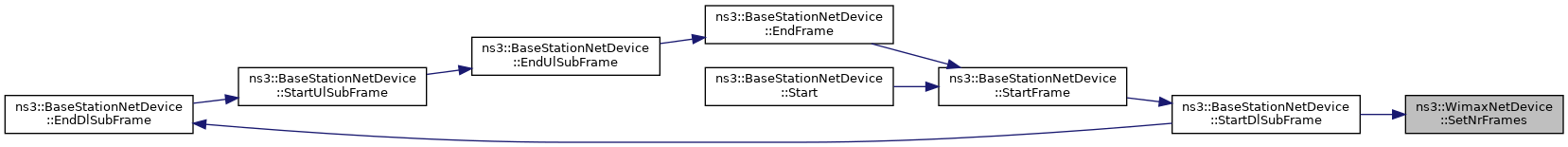

void	SetNrFrames (uint32_t nrFrames)
	Set the number of frames. More...

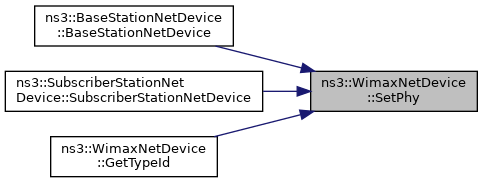

void	SetPhy (Ptr< WimaxPhy > phy)
	Set the physical layer object. More...

void	SetPromiscReceiveCallback (PromiscReceiveCallback cb) override
	Set promiscious receive callback function. More...

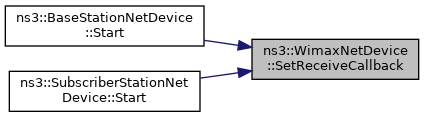

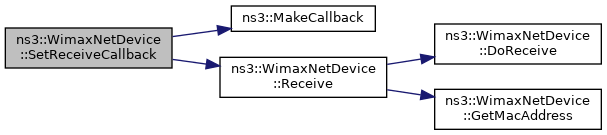

void	SetReceiveCallback ()
	Set receive callback function. More...

void	SetReceiveCallback (NetDevice::ReceiveCallback cb) override
	Set receive callback function. More...

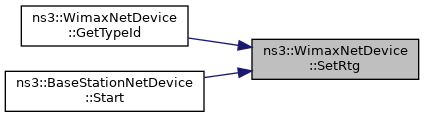

void	SetRtg (uint16_t rtg)
	Set receive/transmit transition gap. More...

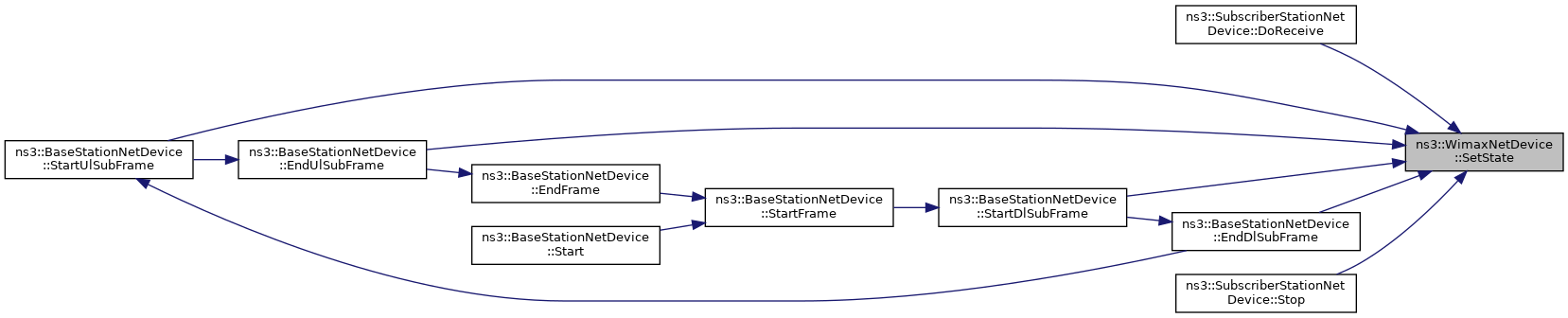

void	SetState (uint8_t state)
	Set the device state. More...

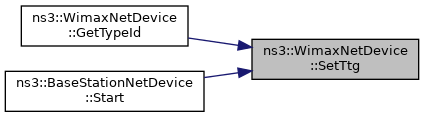

void	SetTtg (uint16_t ttg)
	Set transmission/receive transition gap. More...

virtual void	Start ()=0
	Start function. More...

virtual void	Stop ()=0
	Stop function. More...

bool	SupportsSendFrom () const override
	Check if device supports the SendFrom method. More...

Public Member Functions inherited from ns3::NetDevice
	~NetDevice () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

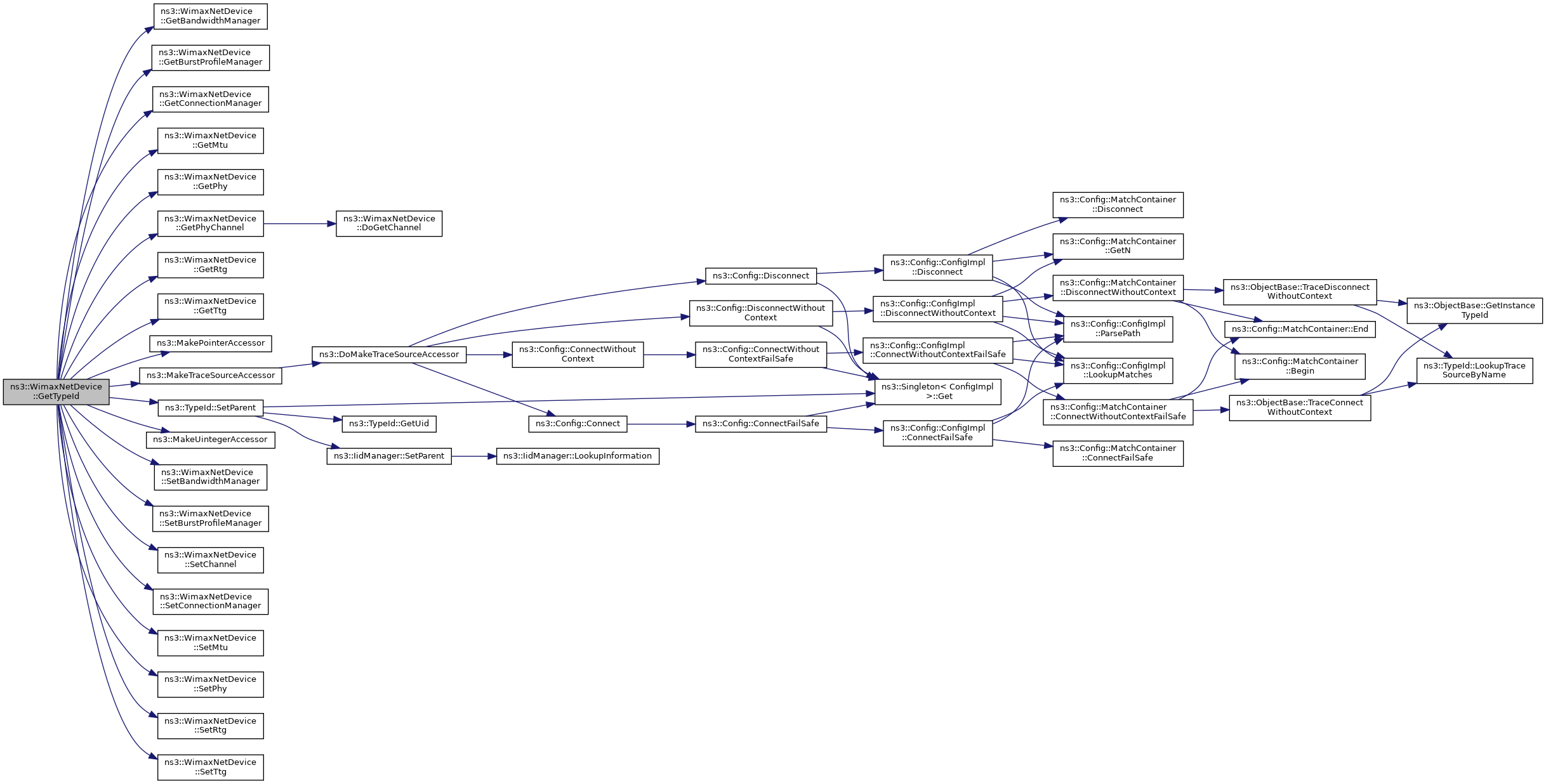

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Public Attributes
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Static Public Attributes
static uint8_t	m_direction = ~0
	downlink or uplink More...

static Time	m_frameStartTime = Seconds(0)
	temp, to determine the frame start time at SS side, shall actually be determined by frame start preamble More...

Private Member Functions
	WimaxNetDevice (const WimaxNetDevice &)
	copy constructor (disabled) More...

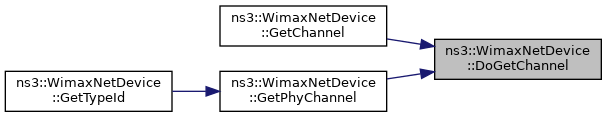

virtual Ptr< WimaxChannel >	DoGetChannel () const
	Get the channel. More...

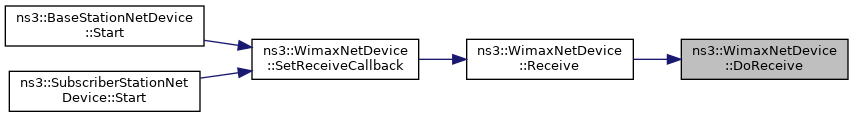

virtual void	DoReceive (Ptr< Packet > packet)=0
	Receive a packet. More...

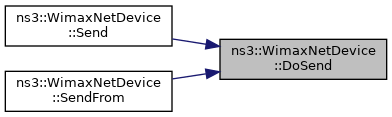

virtual bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)=0
	Send a packet. More...

void	InitializeChannels ()
	Initialize channels function. More...

WimaxNetDevice &	operator= (const WimaxNetDevice &)
	assignment operator (disabled) More...

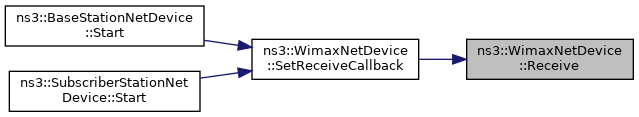

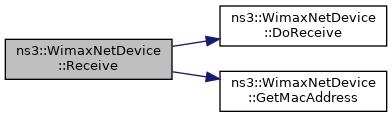

void	Receive (Ptr< const PacketBurst > burst)
	Receive a packet burst. More...

Private Attributes
Mac48Address	m_address
	MAC address. More...

Ptr< BandwidthManager >	m_bandwidthManager
	badnwidth manager More...

Ptr< WimaxConnection >	m_broadcastConnection
	broadcast connection More...

Ptr< BurstProfileManager >	m_burstProfileManager
	burst profile manager More...

Ptr< ConnectionManager >	m_connectionManager
	connection manager More...

Dcd	m_currentDcd
	DCD. More...

Ucd	m_currentUcd
	UCD. More...

std::vector< uint64_t >	m_dlChannels
	not sure if it shall be included here More...

NetDevice::ReceiveCallback	m_forwardUp
	forward up callback function More...

uint32_t	m_ifIndex
	IF index. More...

Ptr< WimaxConnection >	m_initialRangingConnection
	initial rnaging connection More...

Callback< void >	m_linkChange
	link change callback More...

bool	m_linkUp
	link up? More...

Ptr< Object >	m_mobility
	modility model More...

uint16_t	m_mtu
	MTU. More...

std::string	m_name
	service name More...

Ptr< Node >	m_node
	the node More...

Ptr< WimaxPhy >	m_phy
	the phy More...

NetDevice::PromiscReceiveCallback	m_promiscRx
	promiscious receive fcallback function More...

uint16_t	m_rtg
	length of RTG in units of PSs More...

uint8_t	m_state
	state More...

uint32_t	m_symbolIndex
	symbol index More...

uint16_t	m_ttg
	length of TTG in units of PSs More...

Static Private Attributes
static const uint16_t	DEFAULT_MSDU_SIZE = 1400
	recommended by wimax forum. More...

static uint32_t	m_nrFrames = 0
	temp, shall be in BS. More...

static const uint16_t	MAX_MSDU_SIZE = 1500
	Maximum MSDU size. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Hold together all WiMAX-related objects in a NetDevice.

This class holds together ns3::WimaxPhy, ns3::WimaxConnection, ns3::ConectionManager, ns3::BurstProfileManager, and ns3::BandwidthManager.

Config Paths

ns3::WimaxNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice"

Attributes

BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager>
- Initial value: 0
- Flags: constructwriteread
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: constructwriteread
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager>
- Initial value: 0
- Flags: constructwriteread
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel>
- Initial value: 0
- Flags: constructwriteread
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager>
- Initial value: 0
- Flags: constructwriteread
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: constructwriteread
Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: constructwriteread
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy>
- Initial value: 0
- Flags: constructwriteread
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: constructwriteread
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: constructwriteread

TraceSources

Rx: Receive trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback
Tx: Transmit trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback

Size of this type is 416 bytes (on a 64-bit architecture).

Definition at line 70 of file wimax-net-device.h.

Member Typedef Documentation

◆ TxRxTracedCallback

typedef void(* ns3::WimaxNetDevice::TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)

TracedCallback signature for packet and Mac48Address.

Parameters

[in]	packet	The packet.
[in]	mac	The Mac48Address.

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release. The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Definition at line 449 of file wimax-net-device.h.

Member Enumeration Documentation

◆ Direction

enum ns3::WimaxNetDevice::Direction

Direction enumeration.

Enumerator
DIRECTION_DOWNLINK
DIRECTION_UPLINK

Definition at line 74 of file wimax-net-device.h.

◆ RangingStatus

enum ns3::WimaxNetDevice::RangingStatus

RangingStatus enumeration.

Enumerator
RANGING_STATUS_EXPIRED
RANGING_STATUS_CONTINUE
RANGING_STATUS_ABORT
RANGING_STATUS_SUCCESS

Definition at line 81 of file wimax-net-device.h.

Constructor & Destructor Documentation

◆ WimaxNetDevice() [1/2]

ns3::WimaxNetDevice::WimaxNetDevice ( )

Definition at line 142 of file wimax-net-device.cc.

References InitializeChannels(), m_bandwidthManager, m_burstProfileManager, m_connectionManager, m_direction, m_frameStartTime, m_nrFrames, and ns3::Seconds().

Here is the call graph for this function:

◆ ~WimaxNetDevice()

ns3::WimaxNetDevice::~WimaxNetDevice ( )

override

Definition at line 157 of file wimax-net-device.cc.

◆ WimaxNetDevice() [2/2]

ns3::WimaxNetDevice::WimaxNetDevice ( const WimaxNetDevice & )

private

copy constructor (disabled)

Member Function Documentation

◆ AddLinkChangeCallback()

void ns3::WimaxNetDevice::AddLinkChangeCallback ( Callback< void > callback )

overridevirtual

Add link change callback function.

Parameters

callback the link change callback function

Implements ns3::NetDevice.

Definition at line 642 of file wimax-net-device.cc.

References NS_FATAL_ERROR.

◆ Attach()

void ns3::WimaxNetDevice::Attach ( Ptr< WimaxChannel > channel )

Attach device to channel.

Parameters

channel channel to attach

Definition at line 356 of file wimax-net-device.cc.

References third::channel, and m_phy.

◆ CreateDefaultConnections()

void ns3::WimaxNetDevice::CreateDefaultConnections ( )

Creates the initial ranging and broadcast connections.

Definition at line 509 of file wimax-net-device.cc.

References ns3::Cid::BROADCAST, ns3::Cid::Broadcast(), ns3::Cid::INITIAL_RANGING, ns3::Cid::InitialRanging(), m_broadcastConnection, and m_initialRangingConnection.

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WimaxNetDevice::DoDispose ( )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 162 of file wimax-net-device.cc.

References ns3::Object::DoDispose(), m_bandwidthManager, m_broadcastConnection, m_burstProfileManager, m_connectionManager, m_initialRangingConnection, m_node, and m_phy.

Referenced by ns3::BaseStationNetDevice::DoDispose(), and ns3::SubscriberStationNetDevice::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoGetChannel()

Ptr< WimaxChannel > ns3::WimaxNetDevice::DoGetChannel ( ) const

privatevirtual

Get the channel.

Returns: the wimax channel

Definition at line 530 of file wimax-net-device.cc.

References m_phy.

Referenced by GetChannel(), and GetPhyChannel().

Here is the caller graph for this function:

◆ DoReceive()

virtual void ns3::WimaxNetDevice::DoReceive ( Ptr< Packet > packet )

privatepure virtual

Receive a packet.

Parameters

packet the packet received

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Receive().

Here is the caller graph for this function:

◆ DoSend()

virtual bool ns3::WimaxNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

privatepure virtual

Send a packet.

Parameters

packet	the packet
source	the source MAC address
dest	the destination MAC address
protocolNumber	the protocol number

Returns: true if successful

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Send(), and SendFrom().

Here is the caller graph for this function:

◆ Enqueue()

virtual bool ns3::WimaxNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

pure virtual

Enqueue a packet.

Parameters

packet	the packet
hdrType	the header type
connection	the wimax connection

Returns: true if successful

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

◆ ForwardDown()

void ns3::WimaxNetDevice::ForwardDown	(	Ptr< PacketBurst >	burst,
		WimaxPhy::ModulationType	modulationType
	)

Forward a packet down the stack.

Parameters

burst	the packet burst
modulationType	the modulation type

Definition at line 583 of file wimax-net-device.cc.

References m_direction, m_phy, and two-ray-to-three-gpp-ch-calibration::params.

Referenced by ns3::SubscriberStationNetDevice::SendBurst(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

◆ ForwardUp()

void ns3::WimaxNetDevice::ForwardUp	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest
	)

Forward a packet to the next layer above the device.

Parameters

packet	the packet
source	the source MAC address
dest	the destination MAC address

Definition at line 347 of file wimax-net-device.cc.

References ns3::LlcSnapHeader::GetType(), m_forwardUp, m_traceRx, and ns3::Packet::RemoveHeader().

Referenced by ns3::BaseStationNetDevice::DoReceive(), and ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Address ns3::WimaxNetDevice::GetAddress ( ) const

overridevirtual

Get address of the device.

Returns: the address

Implements ns3::NetDevice.

Definition at line 413 of file wimax-net-device.cc.

References m_address.

Referenced by Send().

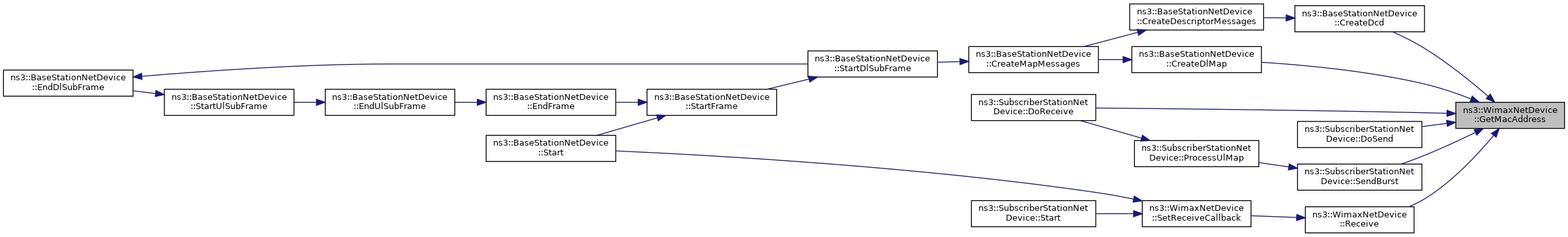

Here is the caller graph for this function:

◆ GetBandwidthManager()

Ptr< BandwidthManager > ns3::WimaxNetDevice::GetBandwidthManager ( ) const

Get the bandwidth manager on the device.

Returns: the bandwidth manager installed on the device

Definition at line 497 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::Start().

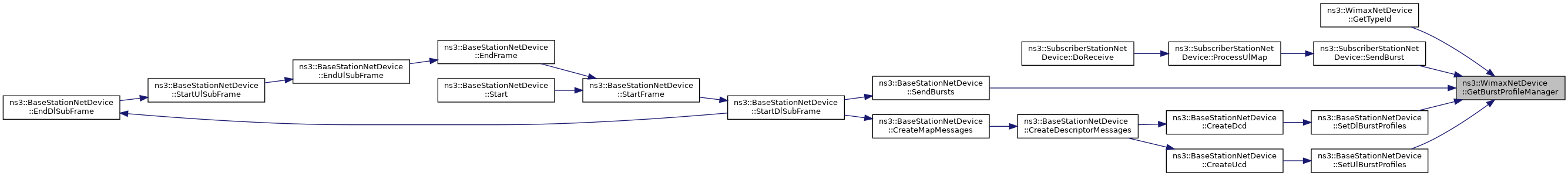

Here is the caller graph for this function:

◆ GetBroadcast()

Address ns3::WimaxNetDevice::GetBroadcast ( ) const

overridevirtual

Get broadcast address.

Returns: the address

Implements ns3::NetDevice.

Definition at line 274 of file wimax-net-device.cc.

References ns3::Mac48Address::GetBroadcast().

Here is the call graph for this function:

◆ GetBroadcastConnection()

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetBroadcastConnection ( ) const

Get the broadcast connection.

Returns: the broadcast connection

Definition at line 443 of file wimax-net-device.cc.

References m_broadcastConnection.

Referenced by ns3::BaseStationNetDevice::CreateDescriptorMessages(), ns3::BaseStationNetDevice::CreateMapMessages(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

◆ GetBurstProfileManager()

Ptr< BurstProfileManager > ns3::WimaxNetDevice::GetBurstProfileManager ( ) const

Get the burst profile manager.

Returns: the burst profile manager currently installed in the device

Definition at line 485 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId(), ns3::SubscriberStationNetDevice::SendBurst(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::SetDlBurstProfiles(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

Here is the caller graph for this function:

◆ GetChannel() [1/2]

Ptr< Channel > ns3::WimaxNetDevice::GetChannel ( ) const

overridevirtual

Get the channel.

Returns: the channel

Implements ns3::NetDevice.

Definition at line 227 of file wimax-net-device.cc.

References DoGetChannel().

Here is the call graph for this function:

◆ GetChannel() [2/2]

uint64_t ns3::WimaxNetDevice::GetChannel ( uint8_t index ) const

Get the channel object by index.

Parameters

index the channel index

Returns: the channel being used.

Definition at line 383 of file wimax-net-device.cc.

References m_dlChannels.

◆ GetConnectionManager()

Ptr< ConnectionManager > ns3::WimaxNetDevice::GetConnectionManager ( ) const

Get the connection manager of the device.

Returns: the connection manager of the device

Definition at line 473 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

◆ GetCurrentDcd()

Dcd ns3::WimaxNetDevice::GetCurrentDcd ( ) const

Get the current DCD.

Returns: the DCD

Definition at line 455 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

◆ GetCurrentUcd()

Ucd ns3::WimaxNetDevice::GetCurrentUcd ( ) const

Get the current UCD.

Returns: the UCD

Definition at line 467 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

◆ GetIfIndex()

uint32_t ns3::WimaxNetDevice::GetIfIndex ( ) const

overridevirtual

Get interface index.

Returns: the interface index

Implements ns3::NetDevice.

Definition at line 221 of file wimax-net-device.cc.

References m_ifIndex.

Referenced by ns3::SubscriberStationNetDevice::SetBasicConnection(), and ns3::SubscriberStationNetDevice::SetPrimaryConnection().

Here is the caller graph for this function:

◆ GetInitialRangingConnection()

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetInitialRangingConnection ( ) const

Get the initial ranging connection.

Returns: the initial ranging connection

Definition at line 437 of file wimax-net-device.cc.

References m_initialRangingConnection.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

◆ GetMacAddress()

Mac48Address ns3::WimaxNetDevice::GetMacAddress ( ) const

Get the MAC address.

Returns: the mac address of the net device

Definition at line 419 of file wimax-net-device.cc.

References m_address.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateDlMap(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoSend(), Receive(), and ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

◆ GetMtu()

uint16_t ns3::WimaxNetDevice::GetMtu ( ) const

overridevirtual

Get MTU of the device.

Returns: the MTU

Implements ns3::NetDevice.

Definition at line 250 of file wimax-net-device.cc.

References m_mtu.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetMulticast() [1/3]

Address ns3::WimaxNetDevice::GetMulticast ( ) const

virtual

Get multicast address.

Returns: the multicast address

Definition at line 286 of file wimax-net-device.cc.

Referenced by MakeMulticastAddress().

Here is the caller graph for this function:

◆ GetMulticast() [2/3]

Address ns3::WimaxNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

overridevirtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 616 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ GetMulticast() [3/3]

Address ns3::WimaxNetDevice::GetMulticast ( Ipv6Address addr ) const

overridevirtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 633 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ GetName()

std::string ns3::WimaxNetDevice::GetName ( ) const

virtual

Get device name.

Returns: the device name

Definition at line 209 of file wimax-net-device.cc.

References m_name.

◆ GetNode()

Ptr< Node > ns3::WimaxNetDevice::GetNode ( ) const

overridevirtual

Get node pointer.

Returns: the node pointer

Implements ns3::NetDevice.

Definition at line 323 of file wimax-net-device.cc.

References m_node.

Referenced by ns3::SubscriberStationNetDevice::SetBasicConnection(), and ns3::SubscriberStationNetDevice::SetPrimaryConnection().

Here is the caller graph for this function:

◆ GetNrFrames()

uint32_t ns3::WimaxNetDevice::GetNrFrames ( ) const

Get the number of frames.

Returns: the number of frames.

Definition at line 395 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::StartDlSubFrame(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

◆ GetPhy()

Ptr< WimaxPhy > ns3::WimaxNetDevice::GetPhy ( ) const

Get the physical layer object.

Returns: a pointer to the physical layer object

Definition at line 368 of file wimax-net-device.cc.

References m_phy.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateUcd(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessDcd(), ns3::SubscriberStationNetDevice::ProcessUlMap(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::Start(), ns3::SubscriberStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

◆ GetPhyChannel()

Ptr< Channel > ns3::WimaxNetDevice::GetPhyChannel ( ) const

virtual

Get the channel (this method is redundant with GetChannel())

Returns: the channel used by the phy layer

Definition at line 233 of file wimax-net-device.cc.

References DoGetChannel().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPromiscReceiveCallback()

NetDevice::PromiscReceiveCallback ns3::WimaxNetDevice::GetPromiscReceiveCallback ( )

Get promiscious receive callback function.

Returns: the promiscious mode callback

◆ GetRtg()

uint16_t ns3::WimaxNetDevice::GetRtg ( ) const

Get receive/transmit transition gap.

Returns: receive/transmit transition gap

Definition at line 197 of file wimax-net-device.cc.

References m_rtg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndUlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

◆ GetState()

uint8_t ns3::WimaxNetDevice::GetState ( ) const

Get the device state.

Returns: the state

Definition at line 431 of file wimax-net-device.cc.

References m_state.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::IsRegistered(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::SubscriberStationNetDevice::SetTimer().

Here is the caller graph for this function:

◆ GetTtg()

uint16_t ns3::WimaxNetDevice::GetTtg ( ) const

Get transmission/receive transition gap.

Returns: transmit/receive transition gap

Definition at line 185 of file wimax-net-device.cc.

References m_ttg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndDlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WimaxNetDevice::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 56 of file wimax-net-device.cc.

References DEFAULT_MSDU_SIZE, GetBandwidthManager(), GetBurstProfileManager(), GetConnectionManager(), GetMtu(), GetPhy(), GetPhyChannel(), GetRtg(), GetTtg(), m_broadcastConnection, m_initialRangingConnection, m_traceRx, m_traceTx, ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), MAX_MSDU_SIZE, SetBandwidthManager(), SetBurstProfileManager(), SetChannel(), SetConnectionManager(), SetMtu(), ns3::TypeId::SetParent(), SetPhy(), SetRtg(), and SetTtg().

Here is the call graph for this function:

◆ InitializeChannels()

void ns3::WimaxNetDevice::InitializeChannels ( )

private

Initialize channels function.

Definition at line 591 of file wimax-net-device.cc.

References m_dlChannels.

Referenced by WimaxNetDevice().

Here is the caller graph for this function:

◆ IsBridge()

bool ns3::WimaxNetDevice::IsBridge ( ) const

overridevirtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 609 of file wimax-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

◆ IsBroadcast()

bool ns3::WimaxNetDevice::IsBroadcast ( ) const

overridevirtual

Check if broadcast enabled.

Returns: true if broadcast

Implements ns3::NetDevice.

Definition at line 268 of file wimax-net-device.cc.

◆ IsLinkUp()

bool ns3::WimaxNetDevice::IsLinkUp ( ) const

overridevirtual

Check if link is up.

Returns: true if the link is up

Implements ns3::NetDevice.

Definition at line 256 of file wimax-net-device.cc.

References m_linkUp, and m_phy.

◆ IsMulticast()

bool ns3::WimaxNetDevice::IsMulticast ( ) const

overridevirtual

Check if multicast enabled.

Returns: true if multicast

Implements ns3::NetDevice.

Definition at line 280 of file wimax-net-device.cc.

◆ IsPointToPoint()

bool ns3::WimaxNetDevice::IsPointToPoint ( ) const

overridevirtual

Check if device is a point-to-point device.

Returns: true if point to point

Implements ns3::NetDevice.

Definition at line 298 of file wimax-net-device.cc.

◆ IsPromisc()

bool ns3::WimaxNetDevice::IsPromisc ( )

Check if device is promiscious.

Returns: true if promiscious

Definition at line 565 of file wimax-net-device.cc.

References ns3::Callback< R, UArgs >::IsNull(), and m_promiscRx.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MakeMulticastAddress()

Address ns3::WimaxNetDevice::MakeMulticastAddress ( Ipv4Address multicastGroup ) const

virtual

Make multicast address.

Parameters

multicastGroup the IPv4 address

Returns: the multicast address

Definition at line 292 of file wimax-net-device.cc.

References GetMulticast().

Here is the call graph for this function:

◆ NeedsArp()

bool ns3::WimaxNetDevice::NeedsArp ( ) const

overridevirtual

Check if device needs ARP.

Returns: true if ARP required

Implements ns3::NetDevice.

Definition at line 329 of file wimax-net-device.cc.

◆ NotifyPromiscTrace()

void ns3::WimaxNetDevice::NotifyPromiscTrace ( Ptr< Packet > p )

Notify promiscious trace of a packet arrival.

Parameters

p	the packet

Definition at line 571 of file wimax-net-device.cc.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

◆ operator=()

WimaxNetDevice& ns3::WimaxNetDevice::operator= ( const WimaxNetDevice & )

private

assignment operator (disabled)

Returns: the wimax net device

◆ Receive()

void ns3::WimaxNetDevice::Receive ( Ptr< const PacketBurst > burst )

private

Receive a packet burst.

Parameters

burst the packet burst

Definition at line 517 of file wimax-net-device.cc.

References DoReceive(), GetMacAddress(), list, and NS_LOG_DEBUG.

Referenced by SetReceiveCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

bool ns3::WimaxNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Send function.

Parameters

packet	the packet
dest	the destination address
protocolNumber	the protocol number

Returns: true if successful

Implements ns3::NetDevice.

Definition at line 304 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), GetAddress(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

◆ SendFrom()

bool ns3::WimaxNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

overridevirtual

Send a packet.

Parameters

packet	the packet
source	the source address
dest	the destination address
protocolNumber	the protocol number

Returns: true if successful

Implements ns3::NetDevice.

Definition at line 542 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

◆ SetAddress()

void ns3::WimaxNetDevice::SetAddress ( Address address )

overridevirtual

Set address of the device.

Parameters

address the address

Implements ns3::NetDevice.

Definition at line 401 of file wimax-net-device.cc.

References first::address, ns3::Mac48Address::ConvertFrom(), and m_address.

Here is the call graph for this function:

◆ SetBandwidthManager()

void ns3::WimaxNetDevice::SetBandwidthManager ( Ptr< BandwidthManager > bandwidthManager )

Set the bandwidth manager on the device.

Parameters

bandwidthManager the bandwidth manager to be installed on the device

Definition at line 503 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBurstProfileManager()

void ns3::WimaxNetDevice::SetBurstProfileManager ( Ptr< BurstProfileManager > burstProfileManager )

Set the burst profile manager.

Parameters

burstProfileManager the burst profile manager to be installed on the device

Definition at line 491 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetChannel()

void ns3::WimaxNetDevice::SetChannel ( Ptr< WimaxChannel > wimaxChannel )

Set the channel object.

Parameters

wimaxChannel the channel to be used

Definition at line 374 of file wimax-net-device.cc.

References third::channel, and m_phy.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetConnectionManager()

void ns3::WimaxNetDevice::SetConnectionManager ( Ptr< ConnectionManager > connectionManager )

virtual

Set the connection manager of the device.

Parameters

connectionManager the commection manager to be installed in the device

Definition at line 479 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetCurrentDcd()

void ns3::WimaxNetDevice::SetCurrentDcd ( Dcd dcd )

Set the current DCD.

Parameters

dcd the DCD

Definition at line 449 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), and ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

◆ SetCurrentUcd()

void ns3::WimaxNetDevice::SetCurrentUcd ( Ucd ucd )

Set the current UCD.

Parameters

ucd the UCD

Definition at line 461 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::BaseStationNetDevice::CreateUcd(), and ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

◆ SetIfIndex()

void ns3::WimaxNetDevice::SetIfIndex ( const uint32_t index )

overridevirtual

Set interface index.

Parameters

index the index

Implements ns3::NetDevice.

Definition at line 215 of file wimax-net-device.cc.

References m_ifIndex.

◆ SetLinkChangeCallback()

void ns3::WimaxNetDevice::SetLinkChangeCallback ( Callback< void > callback )

virtual

Set link change callback function.

Parameters

callback the callback function

Definition at line 262 of file wimax-net-device.cc.

References m_linkChange.

◆ SetMacAddress()

void ns3::WimaxNetDevice::SetMacAddress ( Mac48Address address )

Set the MAC address.

Parameters

address the mac address of the net device

Definition at line 407 of file wimax-net-device.cc.

References first::address, and m_address.

◆ SetMtu()

bool ns3::WimaxNetDevice::SetMtu ( const uint16_t mtu )

overridevirtual

Set MTU value for the device.

Parameters

mtu the MTU

Returns: true if successful

Implements ns3::NetDevice.

Definition at line 239 of file wimax-net-device.cc.

References m_mtu, and MAX_MSDU_SIZE.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetName()

void ns3::WimaxNetDevice::SetName ( const std::string name )

virtual

Set device name.

Parameters

name	the device name

Definition at line 203 of file wimax-net-device.cc.

References m_name.

◆ SetNode()

void ns3::WimaxNetDevice::SetNode ( Ptr< Node > node )

overridevirtual

Set node pointer.

Parameters

node	the node pointer

Implements ns3::NetDevice.

Definition at line 317 of file wimax-net-device.cc.

References m_node.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), and ns3::SubscriberStationNetDevice::SubscriberStationNetDevice().

Here is the caller graph for this function:

◆ SetNrFrames()

void ns3::WimaxNetDevice::SetNrFrames ( uint32_t nrFrames )

Set the number of frames.

Parameters

nrFrames the number of frames

Definition at line 389 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::StartDlSubFrame().

Here is the caller graph for this function:

◆ SetPhy()

void ns3::WimaxNetDevice::SetPhy ( Ptr< WimaxPhy > phy )

Set the physical layer object.

Parameters

phy	the phy layer object to use

Definition at line 362 of file wimax-net-device.cc.

References m_phy, and third::phy.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), ns3::SubscriberStationNetDevice::SubscriberStationNetDevice(), and GetTypeId().

Here is the caller graph for this function:

◆ SetPromiscReceiveCallback()

void ns3::WimaxNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

overridevirtual

Set promiscious receive callback function.

Parameters

cb	the promiscious mode callback

Implements ns3::NetDevice.

Definition at line 559 of file wimax-net-device.cc.

References m_promiscRx.

◆ SetReceiveCallback() [1/2]

void ns3::WimaxNetDevice::SetReceiveCallback ( )

Set receive callback function.

Definition at line 536 of file wimax-net-device.cc.

References m_phy, ns3::MakeCallback(), and Receive().

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetReceiveCallback() [2/2]

void ns3::WimaxNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

overridevirtual

Set receive callback function.

Parameters

cb	the receive callback function

Implements ns3::NetDevice.

Definition at line 341 of file wimax-net-device.cc.

References m_forwardUp.

◆ SetRtg()

void ns3::WimaxNetDevice::SetRtg ( uint16_t rtg )

Set receive/transmit transition gap.

Parameters

rtg	receive/transmit transition gap

Definition at line 191 of file wimax-net-device.cc.

References m_rtg.

Referenced by GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

◆ SetState()

void ns3::WimaxNetDevice::SetState ( uint8_t state )

Set the device state.

Parameters

state the state

Definition at line 425 of file wimax-net-device.cc.

References m_state.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::EndDlSubFrame(), ns3::BaseStationNetDevice::EndUlSubFrame(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::BaseStationNetDevice::StartUlSubFrame(), and ns3::SubscriberStationNetDevice::Stop().

Here is the caller graph for this function:

◆ SetTtg()

void ns3::WimaxNetDevice::SetTtg ( uint16_t ttg )

Set transmission/receive transition gap.

Parameters

ttg	transmit/receive transition gap

Definition at line 179 of file wimax-net-device.cc.

References m_ttg.

Referenced by GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

◆ Start()

virtual void ns3::WimaxNetDevice::Start ( )

pure virtual

Start function.

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

◆ Stop()

virtual void ns3::WimaxNetDevice::Stop ( )

pure virtual

Stop function.

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

◆ SupportsSendFrom()

bool ns3::WimaxNetDevice::SupportsSendFrom ( ) const

overridevirtual

Check if device supports the SendFrom method.

Returns: true if SendFrom is supported

Implements ns3::NetDevice.

Definition at line 577 of file wimax-net-device.cc.

Member Data Documentation

◆ DEFAULT_MSDU_SIZE

const uint16_t ns3::WimaxNetDevice::DEFAULT_MSDU_SIZE = 1400

staticprivate

recommended by wimax forum.

Definition at line 495 of file wimax-net-device.h.

Referenced by GetTypeId().

◆ m_address

Mac48Address ns3::WimaxNetDevice::m_address

private

MAC address.

Definition at line 545 of file wimax-net-device.h.

Referenced by GetAddress(), GetMacAddress(), SetAddress(), and SetMacAddress().

◆ m_bandwidthManager

Ptr<BandwidthManager> ns3::WimaxNetDevice::m_bandwidthManager

private

badnwidth manager

Definition at line 562 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), DoDispose(), GetBandwidthManager(), and SetBandwidthManager().

◆ m_broadcastConnection

Ptr<WimaxConnection> ns3::WimaxNetDevice::m_broadcastConnection

private

broadcast connection

Definition at line 558 of file wimax-net-device.h.

Referenced by CreateDefaultConnections(), DoDispose(), GetBroadcastConnection(), and GetTypeId().

◆ m_burstProfileManager

Ptr<BurstProfileManager> ns3::WimaxNetDevice::m_burstProfileManager

private

burst profile manager

Definition at line 561 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), DoDispose(), GetBurstProfileManager(), and SetBurstProfileManager().

◆ m_connectionManager

Ptr<ConnectionManager> ns3::WimaxNetDevice::m_connectionManager

private

connection manager

Definition at line 560 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), DoDispose(), GetConnectionManager(), and SetConnectionManager().

◆ m_currentDcd

Dcd ns3::WimaxNetDevice::m_currentDcd

private

DCD.

Definition at line 554 of file wimax-net-device.h.

Referenced by GetCurrentDcd(), and SetCurrentDcd().

◆ m_currentUcd

Ucd ns3::WimaxNetDevice::m_currentUcd

private

UCD.

Definition at line 555 of file wimax-net-device.h.

Referenced by GetCurrentUcd(), and SetCurrentUcd().

◆ m_direction

uint8_t ns3::WimaxNetDevice::m_direction = ~0

static

downlink or uplink

Definition at line 281 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), ForwardDown(), ns3::BaseStationNetDevice::StartDlSubFrame(), and ns3::BaseStationNetDevice::StartUlSubFrame().

◆ m_dlChannels

std::vector<uint64_t> ns3::WimaxNetDevice::m_dlChannels

private

not sure if it shall be included here

Definition at line 543 of file wimax-net-device.h.

Referenced by GetChannel(), and InitializeChannels().

◆ m_forwardUp

NetDevice::ReceiveCallback ns3::WimaxNetDevice::m_forwardUp

private

forward up callback function

Definition at line 529 of file wimax-net-device.h.

Referenced by ForwardUp(), and SetReceiveCallback().

◆ m_frameStartTime

Time ns3::WimaxNetDevice::m_frameStartTime = Seconds(0)

static

temp, to determine the frame start time at SS side, shall actually be determined by frame start preamble

Definition at line 283 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), ns3::BaseStationNetDevice::StartDlSubFrame(), and ns3::BaseStationNetDevice::StartFrame().

◆ m_ifIndex

uint32_t ns3::WimaxNetDevice::m_ifIndex

private

IF index.

Definition at line 532 of file wimax-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

◆ m_initialRangingConnection

Ptr<WimaxConnection> ns3::WimaxNetDevice::m_initialRangingConnection

private

initial rnaging connection

Definition at line 557 of file wimax-net-device.h.

Referenced by CreateDefaultConnections(), DoDispose(), GetInitialRangingConnection(), and GetTypeId().

◆ m_linkChange

Callback<void> ns3::WimaxNetDevice::m_linkChange

private

link change callback

Definition at line 535 of file wimax-net-device.h.

Referenced by SetLinkChangeCallback().

◆ m_linkUp

bool ns3::WimaxNetDevice::m_linkUp

private

link up?

Definition at line 534 of file wimax-net-device.h.

Referenced by IsLinkUp().

◆ m_mobility

Ptr<Object> ns3::WimaxNetDevice::m_mobility

private

modility model

Definition at line 564 of file wimax-net-device.h.

◆ m_mtu

uint16_t ns3::WimaxNetDevice::m_mtu

mutableprivate

MTU.

Definition at line 536 of file wimax-net-device.h.

Referenced by GetMtu(), and SetMtu().

◆ m_name

std::string ns3::WimaxNetDevice::m_name

private

service name

Definition at line 533 of file wimax-net-device.h.

Referenced by GetName(), and SetName().

◆ m_node

Ptr<Node> ns3::WimaxNetDevice::m_node

private

the node

Definition at line 527 of file wimax-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

◆ m_nrFrames

uint32_t ns3::WimaxNetDevice::m_nrFrames = 0

staticprivate

temp, shall be in BS.

defined here to allow SS to access. SS shall actually determine it from DLFP, shall be moved to BS after DLFP is implemented

Definition at line 540 of file wimax-net-device.h.

Referenced by WimaxNetDevice(), GetNrFrames(), and SetNrFrames().

◆ m_phy

Ptr<WimaxPhy> ns3::WimaxNetDevice::m_phy

private

the phy

Definition at line 528 of file wimax-net-device.h.

Referenced by Attach(), DoDispose(), DoGetChannel(), ForwardDown(), GetPhy(), IsLinkUp(), SetChannel(), SetPhy(), and SetReceiveCallback().

◆ m_promiscRx

NetDevice::PromiscReceiveCallback ns3::WimaxNetDevice::m_promiscRx

private

promiscious receive fcallback function

Definition at line 530 of file wimax-net-device.h.

Referenced by IsPromisc(), and SetPromiscReceiveCallback().

◆ m_rtg

uint16_t ns3::WimaxNetDevice::m_rtg

private

length of RTG in units of PSs

Definition at line 552 of file wimax-net-device.h.

Referenced by GetRtg(), and SetRtg().

◆ m_state

uint8_t ns3::WimaxNetDevice::m_state

private

state

Definition at line 546 of file wimax-net-device.h.

Referenced by GetState(), and SetState().

◆ m_symbolIndex

uint32_t ns3::WimaxNetDevice::m_symbolIndex

private

symbol index

Definition at line 547 of file wimax-net-device.h.

◆ m_traceRx

TracedCallback<Ptr<const Packet>, const Mac48Address&> ns3::WimaxNetDevice::m_traceRx

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release.

The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Todo:: This member variable should be private.

Definition at line 457 of file wimax-net-device.h.

Referenced by ForwardUp(), and GetTypeId().

◆ m_traceTx

TracedCallback<Ptr<const Packet>, const Mac48Address&> ns3::WimaxNetDevice::m_traceTx

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release.

The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Todo:: This member variable should be private.

Definition at line 465 of file wimax-net-device.h.

Referenced by GetTypeId(), Send(), and SendFrom().

◆ m_ttg

uint16_t ns3::WimaxNetDevice::m_ttg

private

length of TTG in units of PSs

Definition at line 550 of file wimax-net-device.h.

Referenced by GetTtg(), and SetTtg().

◆ MAX_MSDU_SIZE

const uint16_t ns3::WimaxNetDevice::MAX_MSDU_SIZE = 1500

staticprivate

Maximum MSDU size.

Definition at line 493 of file wimax-net-device.h.

Referenced by GetTypeId(), and SetMtu().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-net-device.h
src/wimax/model/wimax-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

◆ TxRxTracedCallback

Member Enumeration Documentation

◆ Direction

◆ RangingStatus

Constructor & Destructor Documentation

◆ WimaxNetDevice() [1/2]

◆ ~WimaxNetDevice()

◆ WimaxNetDevice() [2/2]

Member Function Documentation

◆ AddLinkChangeCallback()

◆ Attach()

◆ CreateDefaultConnections()

◆ DoDispose()

◆ DoGetChannel()

◆ DoReceive()

◆ DoSend()

◆ Enqueue()

◆ ForwardDown()

◆ ForwardUp()

◆ GetAddress()

◆ GetBandwidthManager()

◆ GetBroadcast()

◆ GetBroadcastConnection()

◆ GetBurstProfileManager()

◆ GetChannel() [1/2]

◆ GetChannel() [2/2]

◆ GetConnectionManager()

◆ GetCurrentDcd()

◆ GetCurrentUcd()

◆ GetIfIndex()

◆ GetInitialRangingConnection()

◆ GetMacAddress()

◆ GetMtu()

◆ GetMulticast() [1/3]

◆ GetMulticast() [2/3]

◆ GetMulticast() [3/3]

◆ GetName()

◆ GetNode()

◆ GetNrFrames()

◆ GetPhy()

◆ GetPhyChannel()

◆ GetPromiscReceiveCallback()

◆ GetRtg()

◆ GetState()

◆ GetTtg()

◆ GetTypeId()

◆ InitializeChannels()

◆ IsBridge()

◆ IsBroadcast()

◆ IsLinkUp()

◆ IsMulticast()

◆ IsPointToPoint()

◆ IsPromisc()

◆ MakeMulticastAddress()

◆ NeedsArp()

◆ NotifyPromiscTrace()

◆ operator=()

◆ Receive()

◆ Send()

◆ SendFrom()

◆ SetAddress()

◆ SetBandwidthManager()

◆ SetBurstProfileManager()

◆ SetChannel()

◆ SetConnectionManager()

◆ SetCurrentDcd()
