Header of IPv6 Option Router Alert. More...
#include "ipv6-option-header.h"

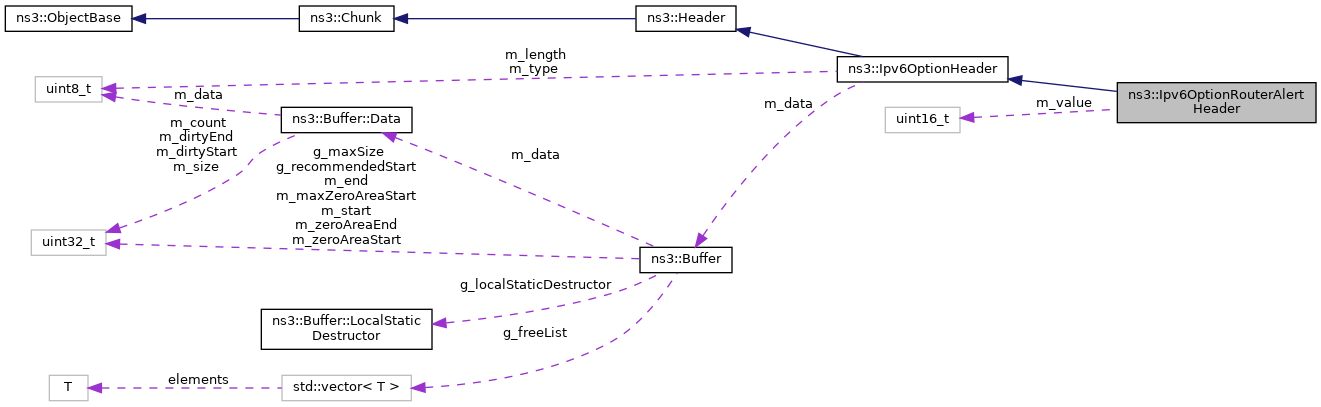

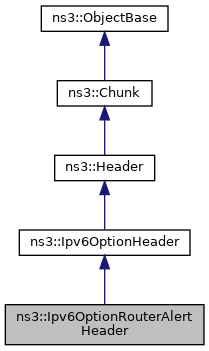

Inheritance diagram for ns3::Ipv6OptionRouterAlertHeader: Collaboration diagram for ns3::Ipv6OptionRouterAlertHeader:Public Member Functions | |
| Ipv6OptionRouterAlertHeader () | |
| Constructor. More... | |
| ~Ipv6OptionRouterAlertHeader () override | |
| Destructor. More... | |
| uint32_t | Deserialize (Buffer::Iterator start) override |
| Deserialize the packet. More... | |
| Alignment | GetAlignment () const override |
| Get the Alignment requirement of this option header. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the instance type ID. More... | |
| uint32_t | GetSerializedSize () const override |
| Get the serialized size of the packet. More... | |
| uint16_t | GetValue () const |
| Get the field "value". More... | |
| void | Print (std::ostream &os) const override |
| Print some information about the packet. More... | |
| void | Serialize (Buffer::Iterator start) const override |
| Serialize the packet. More... | |
| void | SetValue (uint16_t value) |
| Set the field "value". More... | |
| Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| Ipv6OptionHeader () | |
| Constructor. More... | |
| ~Ipv6OptionHeader () override | |
| Destructor. More... | |
| uint8_t | GetLength () const |
| Get the option length. More... | |
| uint8_t | GetType () const |
| Get the type of the option. More... | |
| void | SetLength (uint8_t length) |
| Set the option length. More... | |
| void | SetType (uint8_t type) |
| Set the type of the option. More... | |
| Public Member Functions inherited from ns3::Header | |
| ~Header () override | |
| virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
| Deserialize the object from a buffer iterator. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::Chunk | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Private Attributes | |
| uint16_t | m_value |
| The value. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Header of IPv6 Option Router Alert.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 346 of file ipv6-option-header.h.
| ns3::Ipv6OptionRouterAlertHeader::Ipv6OptionRouterAlertHeader | ( | ) |
Constructor.
Definition at line 353 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

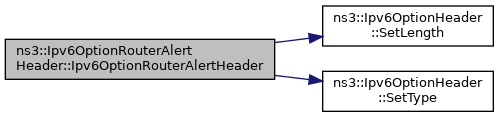

Here is the call graph for this function:
|
override |
Destructor.
Definition at line 360 of file ipv6-option-header.cc.
|
overridevirtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 400 of file ipv6-option-header.cc.
References GetSerializedSize(), m_value, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

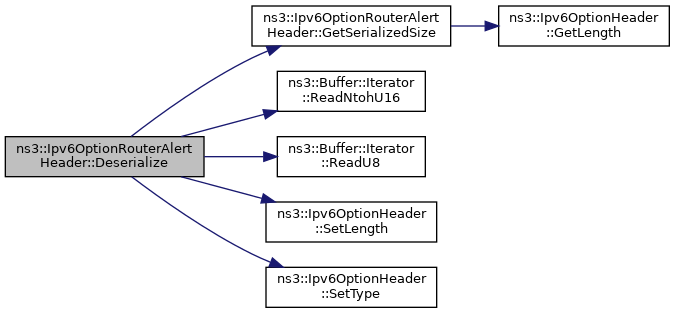

Here is the call graph for this function:
|
overridevirtual |
Get the Alignment requirement of this option header.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 412 of file ipv6-option-header.cc.
|
overridevirtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 348 of file ipv6-option-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
overridevirtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 384 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength().
Referenced by Deserialize(), and ns3::Ipv6OptionRouterAlert::Process().

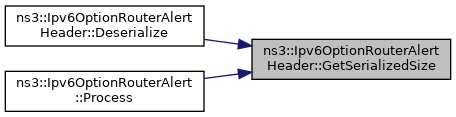

Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 338 of file ipv6-option-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:| uint16_t ns3::Ipv6OptionRouterAlertHeader::GetValue | ( | ) | const |
Get the field "value".
Definition at line 371 of file ipv6-option-header.cc.
References m_value.
|
overridevirtual |
Print some information about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 377 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), and m_value.

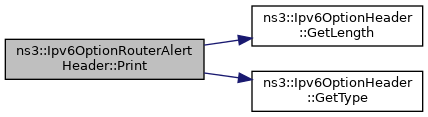

Here is the call graph for this function:
|
overridevirtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 390 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), m_value, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

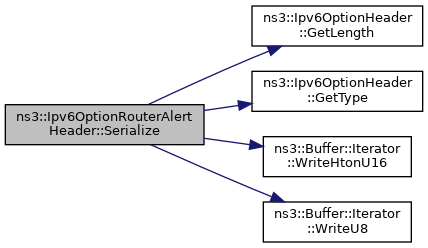

Here is the call graph for this function:| void ns3::Ipv6OptionRouterAlertHeader::SetValue | ( | uint16_t | value | ) |
Set the field "value".
| value | the value to be set. |
Definition at line 365 of file ipv6-option-header.cc.
References m_value, and second::value.
|
private |
The value.
Definition at line 418 of file ipv6-option-header.h.
Referenced by Deserialize(), GetValue(), Print(), Serialize(), and SetValue().
