the organization identifier is a public organizationally unique identifier assigned by the IEEE. More...

#include "vendor-specific-action.h"

Collaboration diagram for ns3::OrganizationIdentifier:

Public Types
enum	OrganizationIdentifierType { OUI24 = 3 , OUI36 = 5 , Unknown = 0 }
	OrganizationIdentifierType enumeration. More...

Public Member Functions
	OrganizationIdentifier ()

	OrganizationIdentifier (const uint8_t *str, uint32_t length)
	Constructor. More...

virtual	~OrganizationIdentifier ()

uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize from buffer. More...

uint8_t	GetManagementId () const

uint32_t	GetSerializedSize () const
	Get serialized size. More...

OrganizationIdentifierType	GetType () const

bool	IsNull () const

OrganizationIdentifier &	operator= (const OrganizationIdentifier &oi)
	Assignment operator. More...

void	Serialize (Buffer::Iterator start) const
	Serialize to buffer. More...

void	SetType (OrganizationIdentifierType type)

Private Attributes
uint8_t	m_oi [5]
	organization identifier More...

OrganizationIdentifierType	m_type
	OI type. More...

Friends
bool	operator!= (const OrganizationIdentifier &a, const OrganizationIdentifier &b)
	inequality operator More...

bool	operator< (const OrganizationIdentifier &a, const OrganizationIdentifier &b)
	less than operator More...

std::ostream &	operator<< (std::ostream &os, const OrganizationIdentifier &oi)
	output operator More...

bool	operator== (const OrganizationIdentifier &a, const OrganizationIdentifier &b)
	equality operator More...

std::istream &	operator>> (std::istream &is, const OrganizationIdentifier &oi)
	input operator More...

Detailed Description

the organization identifier is a public organizationally unique identifier assigned by the IEEE.

Similar to protocol field of data packets that indicates which entity of higher layer should handle received packets, Organization Identifier field is used in Vendor Specific Action frames to indicate which entity or higher layer should handle vendor specific content. Normally the value is assigned by IEEE and the length of field is either 24 bits or 36 bits. For more, see IEEE802.11p-2010 section 7.3.1.31 and 7.4.5

See also: OrganizationIdentifier Attribute

Definition at line 54 of file vendor-specific-action.h.

Member Enumeration Documentation

◆ OrganizationIdentifierType

enum ns3::OrganizationIdentifier::OrganizationIdentifierType

OrganizationIdentifierType enumeration.

Enumerator
OUI24
OUI36
Unknown

Definition at line 74 of file vendor-specific-action.h.

Constructor & Destructor Documentation

◆ OrganizationIdentifier() [1/2]

ns3::OrganizationIdentifier::OrganizationIdentifier ( )

Definition at line 36 of file vendor-specific-action.cc.

References m_oi, m_type, NS_LOG_FUNCTION, and Unknown.

◆ OrganizationIdentifier() [2/2]

ns3::OrganizationIdentifier::OrganizationIdentifier	(	const uint8_t *	str,
		uint32_t	length
	)

Constructor.

Parameters

str	identifier name
length	identifier length

Definition at line 44 of file vendor-specific-action.cc.

References m_oi, m_type, NS_FATAL_ERROR, NS_LOG_FUNCTION, OUI24, OUI36, and Unknown.

◆ ~OrganizationIdentifier()

ns3::OrganizationIdentifier::~OrganizationIdentifier ( )

virtual

Definition at line 72 of file vendor-specific-action.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::OrganizationIdentifier::Deserialize ( Buffer::Iterator start )

Deserialize from buffer.

Parameters

start the iterator

Returns: the deserialize size

Definition at line 135 of file vendor-specific-action.cc.

References m_oi, m_type, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::OrganizationIdentifiers, OUI24, OUI36, and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::VendorSpecificActionHeader::Deserialize().

Here is the caller graph for this function:

◆ GetManagementId()

uint8_t ns3::OrganizationIdentifier::GetManagementId ( ) const

Returns: last 4 bits when OrganizationIdentifier is OUI36

Definition at line 78 of file vendor-specific-action.cc.

References m_oi, m_type, NS_ASSERT, NS_LOG_FUNCTION, and OUI36.

Referenced by ns3::VsaManager::ReceiveVsc().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::OrganizationIdentifier::GetSerializedSize ( ) const

Get serialized size.

Returns: the serialized size

Definition at line 93 of file vendor-specific-action.cc.

References m_type, NS_FATAL_ERROR_NO_MSG, NS_LOG_FUNCTION, OUI24, OUI36, and Unknown.

Referenced by ns3::VendorSpecificActionHeader::GetSerializedSize(), and Serialize().

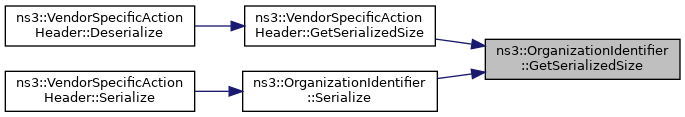

Here is the caller graph for this function:

◆ GetType()

enum OrganizationIdentifier::OrganizationIdentifierType ns3::OrganizationIdentifier::GetType ( ) const

Returns: whether this OrganizationIdentifier is OUI24 or OUI36.

Definition at line 110 of file vendor-specific-action.cc.

References m_type, NS_LOG_FUNCTION, and check-style-clang-format::type.

◆ IsNull()

bool ns3::OrganizationIdentifier::IsNull ( ) const

Returns: whether current OrganizationIdentifier is initial state

Definition at line 86 of file vendor-specific-action.cc.

References m_type, NS_LOG_FUNCTION, and Unknown.

Referenced by ns3::VsaManager::SendVsa(), and ns3::WaveNetDevice::StartVsa().

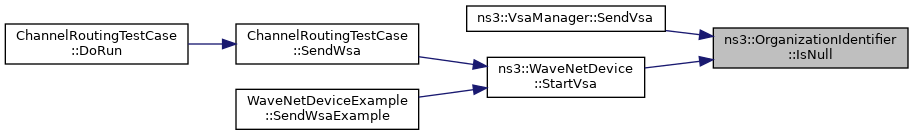

Here is the caller graph for this function:

◆ operator=()

OrganizationIdentifier & ns3::OrganizationIdentifier::operator= ( const OrganizationIdentifier & oi )

Assignment operator.

Parameters

oi	object to copy from

Returns: reference to the new object

Definition at line 65 of file vendor-specific-action.cc.

References m_oi, and m_type.

◆ Serialize()

void ns3::OrganizationIdentifier::Serialize ( Buffer::Iterator start ) const

Serialize to buffer.

Parameters

start the iterator

Definition at line 124 of file vendor-specific-action.cc.

References GetSerializedSize(), m_oi, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::VendorSpecificActionHeader::Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetType()

void ns3::OrganizationIdentifier::SetType ( OrganizationIdentifierType type )

Parameters

type	set the type of current OrganizationIdentifier

Definition at line 110 of file vendor-specific-action.cc.

Friends And Related Function Documentation

◆ operator!=

bool operator!=	(	const OrganizationIdentifier &	a,
		const OrganizationIdentifier &	b
	)

friend

inequality operator

Parameters

a	left side object
b	right side object

Returns: true if not equal

Definition at line 208 of file vendor-specific-action.cc.

◆ operator<

bool operator<	(	const OrganizationIdentifier &	a,
		const OrganizationIdentifier &	b
	)

friend

less than operator

Parameters

a	left side object
b	right side object

Returns: true if a < b

Definition at line 219 of file vendor-specific-action.cc.

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const OrganizationIdentifier &	oi
	)

friend

output operator

Parameters

os	output stream
oi	organization identifier

Returns: output stream

Definition at line 231 of file vendor-specific-action.cc.

◆ operator==

bool operator==	(	const OrganizationIdentifier &	a,
		const OrganizationIdentifier &	b
	)

friend

equality operator

Parameters

a	left side object
b	right side object

Returns: true if equal

Definition at line 181 of file vendor-specific-action.cc.

◆ operator>>

std::istream& operator>>	(	std::istream &	is,
		const OrganizationIdentifier &	oi
	)

friend

input operator

Parameters

is	input stream
oi	organization identifier

Returns: input stream

Definition at line 249 of file vendor-specific-action.cc.

Member Data Documentation

◆ m_oi

uint8_t ns3::OrganizationIdentifier::m_oi[5]

private

organization identifier

Definition at line 124 of file vendor-specific-action.h.

Referenced by OrganizationIdentifier(), Deserialize(), GetManagementId(), operator=(), and Serialize().

◆ m_type

OrganizationIdentifierType ns3::OrganizationIdentifier::m_type

private

OI type.

Definition at line 123 of file vendor-specific-action.h.

Referenced by OrganizationIdentifier(), Deserialize(), GetManagementId(), GetSerializedSize(), GetType(), IsNull(), and operator=().

The documentation for this class was generated from the following files:

src/wave/model/vendor-specific-action.h
src/wave/model/vendor-specific-action.cc
