ICMPv6 link-layer address option. More...

#include "icmpv6-header.h"

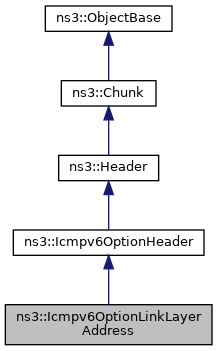

Inheritance diagram for ns3::Icmpv6OptionLinkLayerAddress:

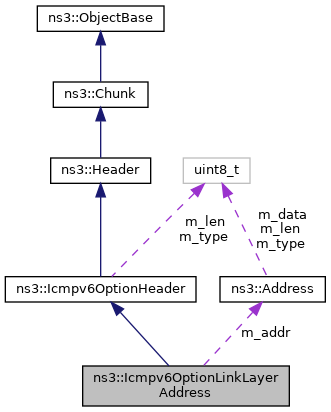

Collaboration diagram for ns3::Icmpv6OptionLinkLayerAddress:

Public Member Functions
	Icmpv6OptionLinkLayerAddress ()
	Constructor. More...

	Icmpv6OptionLinkLayerAddress (bool source)
	Constructor. More...

	Icmpv6OptionLinkLayerAddress (bool source, Address addr)
	Constructor. More...

	~Icmpv6OptionLinkLayerAddress () override
	Destructor. More...

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

Address	GetAddress () const
	Get the hardware address. More...

TypeId	GetInstanceTypeId () const override
	Get the instance type ID. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size. More...

void	Print (std::ostream &os) const override
	Print information. More...

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetAddress (Address addr)
	Set the hardware address. More...

Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor. More...

	~Icmpv6OptionHeader () override
	Destructor. More...

uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t len)
	Set the length of the option. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Address	m_addr
	The hardware address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

ICMPv6 link-layer address option.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 1605 of file icmpv6-header.h.

Constructor & Destructor Documentation

◆ Icmpv6OptionLinkLayerAddress() [1/3]

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress ( bool source )

Constructor.

Parameters

source source hardware address or target hardware address for the option

Definition at line 1963 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

◆ Icmpv6OptionLinkLayerAddress() [2/3]

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress	(	bool	source,
		Address	addr
	)

Constructor.

Parameters

source	source hardware address or target hardware address for the option
addr	hardware address

Definition at line 1976 of file icmpv6-header.cc.

References ns3::Address::GetLength(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, m_addr, NS_LOG_FUNCTION, SetAddress(), ns3::Icmpv6OptionHeader::SetLength(), and ns3::Icmpv6OptionHeader::SetType().

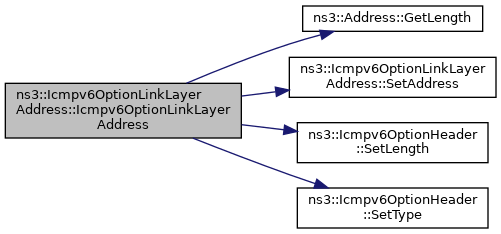

Here is the call graph for this function:

◆ Icmpv6OptionLinkLayerAddress() [3/3]

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress ( )

Constructor.

Definition at line 1970 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

◆ ~Icmpv6OptionLinkLayerAddress()

ns3::Icmpv6OptionLinkLayerAddress::~Icmpv6OptionLinkLayerAddress ( )

override

Destructor.

Definition at line 1991 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv6OptionLinkLayerAddress::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 2046 of file icmpv6-header.cc.

References ns3::Address::CopyFrom(), ns3::Icmpv6OptionHeader::GetLength(), GetSerializedSize(), m_addr, third::mac, NS_ASSERT, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), ns3::Icmpv6OptionHeader::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

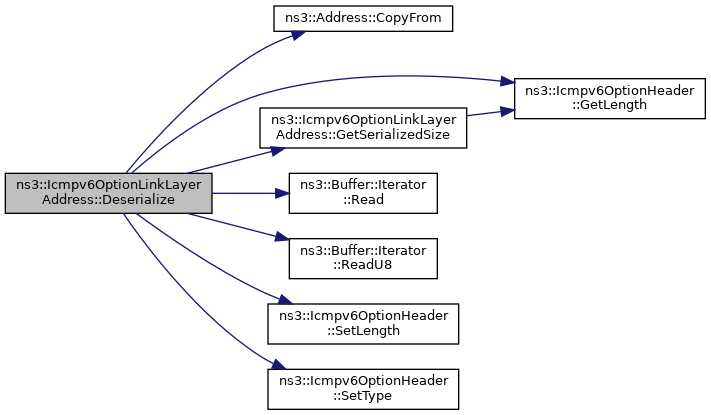

Here is the call graph for this function:

◆ GetAddress()

Address ns3::Icmpv6OptionLinkLayerAddress::GetAddress ( ) const

Get the hardware address.

Returns: the hardware address

Definition at line 1997 of file icmpv6-header.cc.

References m_addr, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

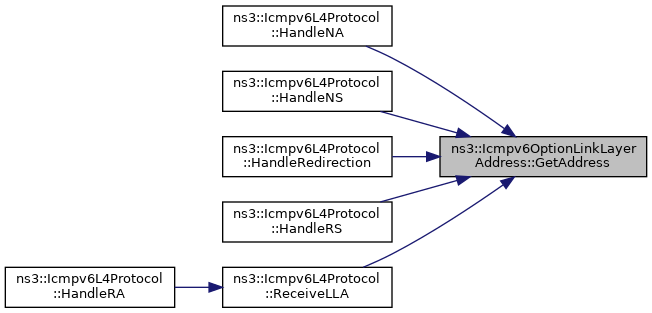

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetInstanceTypeId ( ) const

overridevirtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1957 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Icmpv6OptionLinkLayerAddress::GetSerializedSize ( ) const

overridevirtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 2019 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::SendRedirection().

Here is the call graph for this function:

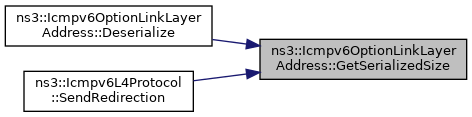

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetTypeId ( )

static

Get the UID of this class.

Returns: UID

Definition at line 1947 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

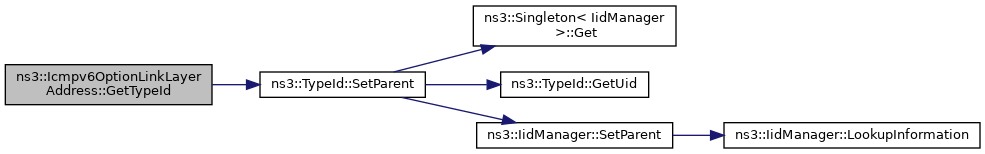

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::Icmpv6OptionLinkLayerAddress::Print ( std::ostream & os ) const

overridevirtual

Print information.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 2011 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_addr, and NS_LOG_FUNCTION.

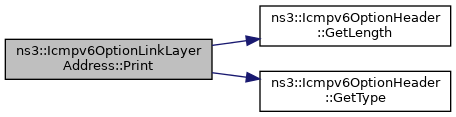

Here is the call graph for this function:

◆ Serialize()

void ns3::Icmpv6OptionLinkLayerAddress::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 2027 of file icmpv6-header.cc.

References ns3::Address::CopyTo(), ns3::Icmpv6OptionHeader::GetLength(), ns3::Address::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_addr, third::mac, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

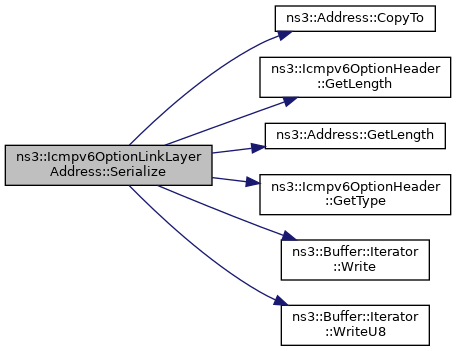

Here is the call graph for this function:

◆ SetAddress()

void ns3::Icmpv6OptionLinkLayerAddress::SetAddress ( Address addr )

Set the hardware address.

Parameters

addr	the address to set

Definition at line 2004 of file icmpv6-header.cc.

References m_addr, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionLinkLayerAddress(), and ns3::Icmpv6L4Protocol::SendRedirection().

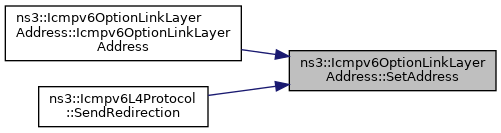

Here is the caller graph for this function:

Member Data Documentation

◆ m_addr

Address ns3::Icmpv6OptionLinkLayerAddress::m_addr

private

The hardware address.

Definition at line 1684 of file icmpv6-header.h.

Referenced by Icmpv6OptionLinkLayerAddress(), Deserialize(), GetAddress(), Print(), Serialize(), and SetAddress().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc
