FcfsWifiQueueScheduler is a wifi queue scheduler that serves data frames in a first come first serve fashion. More...

#include "fcfs-wifi-queue-scheduler.h"

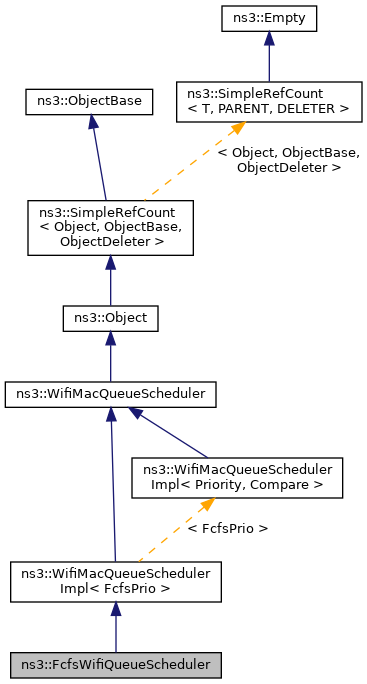

Inheritance diagram for ns3::FcfsWifiQueueScheduler:

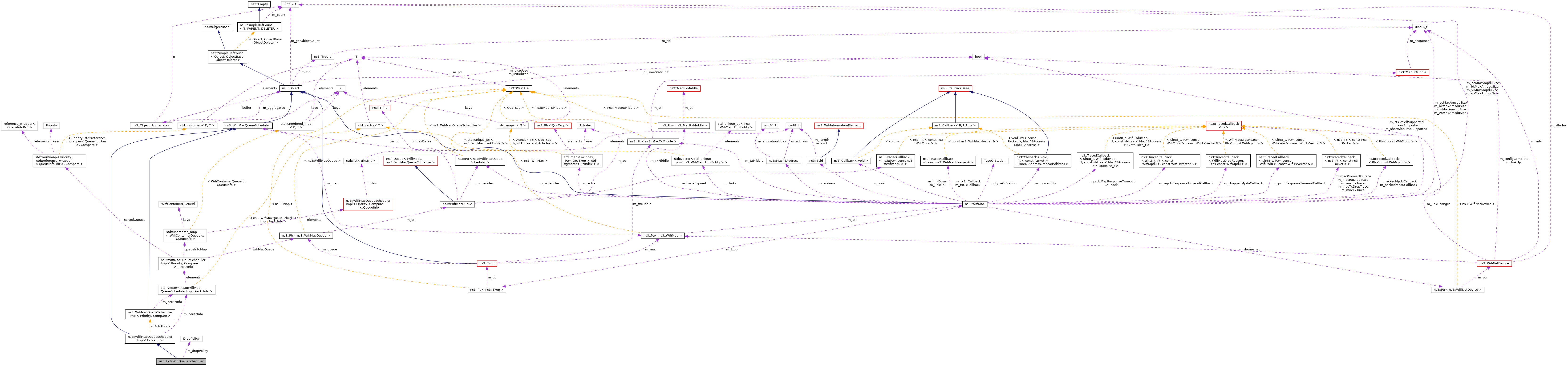

Collaboration diagram for ns3::FcfsWifiQueueScheduler:

Public Types
enum	DropPolicy { DROP_NEWEST , DROP_OLDEST }
	drop policy More...

Public Member Functions
	FcfsWifiQueueScheduler ()

Public Member Functions inherited from ns3::WifiMacQueueSchedulerImpl< FcfsPrio >
	WifiMacQueueSchedulerImpl ()
	Constructor. More...

std::list< uint8_t >	GetLinkIds (AcIndex ac, const WifiContainerQueueId &queueId) final
	Get the list of the IDs of the links the given container queue (belonging to the given Access Category) is associated with. More...

std::optional< WifiContainerQueueId >	GetNext (AcIndex ac, uint8_t linkId) final
	Get the next queue to serve, which is guaranteed to contain at least an MPDU whose lifetime has not expired. More...

std::optional< WifiContainerQueueId >	GetNext (AcIndex ac, uint8_t linkId, const WifiContainerQueueId &prevQueueId) final
	Get the next queue to serve after the given one. More...

Ptr< WifiMpdu >	HasToDropBeforeEnqueue (AcIndex ac, Ptr< WifiMpdu > mpdu) final
	Check whether an MPDU has to be dropped before enqueuing the given MPDU. More...

void	NotifyDequeue (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus) final
	Notify the scheduler that the given list of MPDUs have been dequeued by the given Access Category. More...

void	NotifyEnqueue (AcIndex ac, Ptr< WifiMpdu > mpdu) final
	Notify the scheduler that the given MPDU has been enqueued by the given Access Category. More...

void	NotifyRemove (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus) final
	Notify the scheduler that the given list of MPDUs have been removed by the given Access Category. More...

void	SetLinkIds (AcIndex ac, const WifiContainerQueueId &queueId, const std::list< uint8_t > &linkIds) final
	Set the list of the IDs of the links the given container queue (belonging to the given Access Category) is associated with. More...

void	SetWifiMac (Ptr< WifiMac > mac) final
	Set the wifi MAC. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMacQueueSchedulerImpl< FcfsPrio >
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMacQueueScheduler
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoNotifyDequeue (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus) override
	Notify the scheduler that the given list of MPDUs have been dequeued by the given Access Category. More...

void	DoNotifyEnqueue (AcIndex ac, Ptr< WifiMpdu > mpdu) override
	Notify the scheduler that the given MPDU has been enqueued by the given Access Category. More...

void	DoNotifyRemove (AcIndex ac, const std::list< Ptr< WifiMpdu >> &mpdus) override
	Notify the scheduler that the given list of MPDUs have been removed by the given Access Category. More...

Ptr< WifiMpdu >	HasToDropBeforeEnqueuePriv (AcIndex ac, Ptr< WifiMpdu > mpdu) override
	Check whether an MPDU has to be dropped before enqueuing the given MPDU. More...

Private Attributes
DropPolicy	m_dropPolicy
	Drop behavior of queue. More...

	NS_LOG_TEMPLATE_DECLARE
	redefinition of the log component More...

Additional Inherited Members
Protected Types inherited from ns3::WifiMacQueueSchedulerImpl< FcfsPrio >
using	QueueInfoMap = std::unordered_map< WifiContainerQueueId, QueueInfo >
	Map identifiers (QueueIds) to information associated with container queues. More...

using	QueueInfoPair = std::pair< const WifiContainerQueueId, QueueInfo >
	typedef for a QueueInfoMap element More...

using	SortedQueues = std::multimap< FcfsPrio, std::reference_wrapper< QueueInfoPair >, std::less< FcfsPrio > >
	List of container queues sorted in decreasing order of priority. More...

Protected Member Functions inherited from ns3::WifiMacQueueSchedulerImpl< FcfsPrio >
void	DoDispose () override
	Destructor implementation. More...

const SortedQueues &	GetSortedQueues (AcIndex ac) const
	Get a const reference to the sorted list of container queues for the given Access Category. More...

Ptr< WifiMacQueue >	GetWifiMacQueue (AcIndex ac) const
	Get the wifi MAC queue associated with the given Access Category. More...

void	SetPriority (AcIndex ac, const WifiContainerQueueId &queueId, const FcfsPrio &priority)
	Set the priority for the given container queue belonging to the given Access Category. More...

Protected Member Functions inherited from ns3::WifiMacQueueScheduler
Ptr< WifiMac >	GetMac () const
	Get the wifi MAC. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

FcfsWifiQueueScheduler is a wifi queue scheduler that serves data frames in a first come first serve fashion.

Introspection did not find any typical Config paths.

Control frames have the highest priority. Management frames have the second highest priority. Hence, data frames are served after control and management frames.

Attributes

DropPolicy: Upon enqueue with full queue, drop oldest (DropOldest) or newest (DropNewest) packet
- Set with class: ns3::EnumValue
- Underlying type: DropOldest|DropNewest
- Initial value: DropNewest
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 64 of file fcfs-wifi-queue-scheduler.h.

Member Enumeration Documentation

◆ DropPolicy

enum ns3::FcfsWifiQueueScheduler::DropPolicy

drop policy

Enumerator
DROP_NEWEST
DROP_OLDEST

Definition at line 76 of file fcfs-wifi-queue-scheduler.h.

Constructor & Destructor Documentation

◆ FcfsWifiQueueScheduler()

ns3::FcfsWifiQueueScheduler::FcfsWifiQueueScheduler ( )

Definition at line 85 of file fcfs-wifi-queue-scheduler.cc.

Member Function Documentation

◆ DoNotifyDequeue()

void ns3::FcfsWifiQueueScheduler::DoNotifyDequeue	(	AcIndex	ac,
		const std::list< Ptr< WifiMpdu >> &	mpdus
	)

overrideprivatevirtual

Notify the scheduler that the given list of MPDUs have been dequeued by the given Access Category.

The container queues which became empty after dequeuing the MPDUs are removed from the sorted list of queues.

Parameters

ac	the Access Category of the dequeued MPDUs
mpdus	the list of dequeued MPDUs

Implements ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 147 of file fcfs-wifi-queue-scheduler.cc.

References ns3::WifiMacQueueContainer::GetQueueId(), ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::GetWifiMacQueue(), NS_LOG_FUNCTION, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::SetPriority().

Here is the call graph for this function:

◆ DoNotifyEnqueue()

void ns3::FcfsWifiQueueScheduler::DoNotifyEnqueue	(	AcIndex	ac,
		Ptr< WifiMpdu >	mpdu
	)

overrideprivatevirtual

Notify the scheduler that the given MPDU has been enqueued by the given Access Category.

The container queue in which the MPDU has been enqueued must be assigned a priority value.

Parameters

ac	the Access Category of the enqueued MPDU
mpdu	the enqueued MPDU

Implements ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 129 of file fcfs-wifi-queue-scheduler.cc.

References ns3::WifiMacQueueContainer::GetQueueId(), ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::GetWifiMacQueue(), NS_LOG_FUNCTION, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::SetPriority().

Here is the call graph for this function:

◆ DoNotifyRemove()

void ns3::FcfsWifiQueueScheduler::DoNotifyRemove	(	AcIndex	ac,
		const std::list< Ptr< WifiMpdu >> &	mpdus
	)

overrideprivatevirtual

Notify the scheduler that the given list of MPDUs have been removed by the given Access Category.

The container queues which became empty after removing the MPDUs are removed from the sorted list of queues.

Parameters

ac	the Access Category of the removed MPDUs
mpdus	the list of removed MPDUs

Implements ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 170 of file fcfs-wifi-queue-scheduler.cc.

References ns3::WifiMacQueueContainer::GetQueueId(), ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::GetWifiMacQueue(), NS_LOG_FUNCTION, and ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::SetPriority().

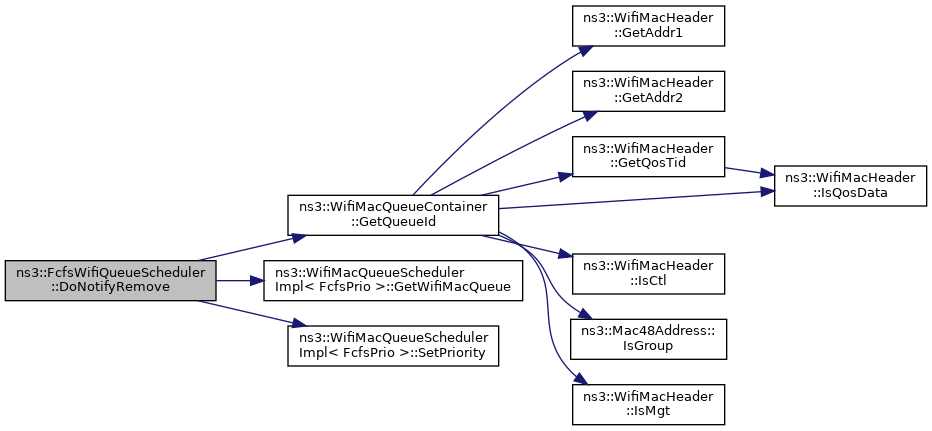

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::FcfsWifiQueueScheduler::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 67 of file fcfs-wifi-queue-scheduler.cc.

References DROP_NEWEST, DROP_OLDEST, m_dropPolicy, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), and ns3::TypeId::SetParent().

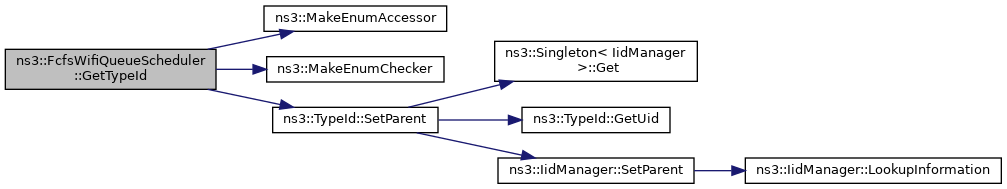

Here is the call graph for this function:

◆ HasToDropBeforeEnqueuePriv()

Ptr< WifiMpdu > ns3::FcfsWifiQueueScheduler::HasToDropBeforeEnqueuePriv	(	AcIndex	ac,
		Ptr< WifiMpdu >	mpdu
	)

overrideprivatevirtual

Check whether an MPDU has to be dropped before enqueuing the given MPDU.

Parameters

ac	the Access Category of the MPDU being enqueued
mpdu	the MPDU to enqueue

Returns: a pointer to the MPDU to drop, if any, or a null pointer, otherwise

Implements ns3::WifiMacQueueSchedulerImpl< FcfsPrio >.

Definition at line 91 of file fcfs-wifi-queue-scheduler.cc.

References DROP_OLDEST, ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::GetSortedQueues(), ns3::WifiMacQueueSchedulerImpl< FcfsPrio >::GetWifiMacQueue(), m_dropPolicy, NS_LOG_DEBUG, ns3::WIFI_CTL_QUEUE, and ns3::WIFI_MGT_QUEUE.

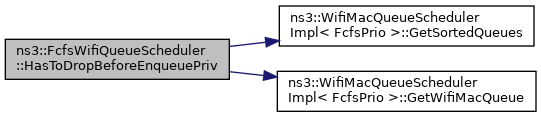

Here is the call graph for this function:

Member Data Documentation

◆ m_dropPolicy

DropPolicy ns3::FcfsWifiQueueScheduler::m_dropPolicy

private

Drop behavior of queue.

Definition at line 88 of file fcfs-wifi-queue-scheduler.h.

Referenced by GetTypeId(), and HasToDropBeforeEnqueuePriv().

◆ NS_LOG_TEMPLATE_DECLARE

ns3::FcfsWifiQueueScheduler::NS_LOG_TEMPLATE_DECLARE

private

redefinition of the log component

Definition at line 89 of file fcfs-wifi-queue-scheduler.h.

The documentation for this class was generated from the following files:

src/wifi/model/fcfs-wifi-queue-scheduler.h
src/wifi/model/fcfs-wifi-queue-scheduler.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Enumeration Documentation

◆ DropPolicy

Constructor & Destructor Documentation

◆ FcfsWifiQueueScheduler()

Member Function Documentation

◆ DoNotifyDequeue()

◆ DoNotifyEnqueue()

◆ DoNotifyRemove()

◆ GetTypeId()

◆ HasToDropBeforeEnqueuePriv()

Member Data Documentation

◆ m_dropPolicy

◆ NS_LOG_TEMPLATE_DECLARE
