Header of IPv6 Option Padn. More...
#include "ipv6-option-header.h"

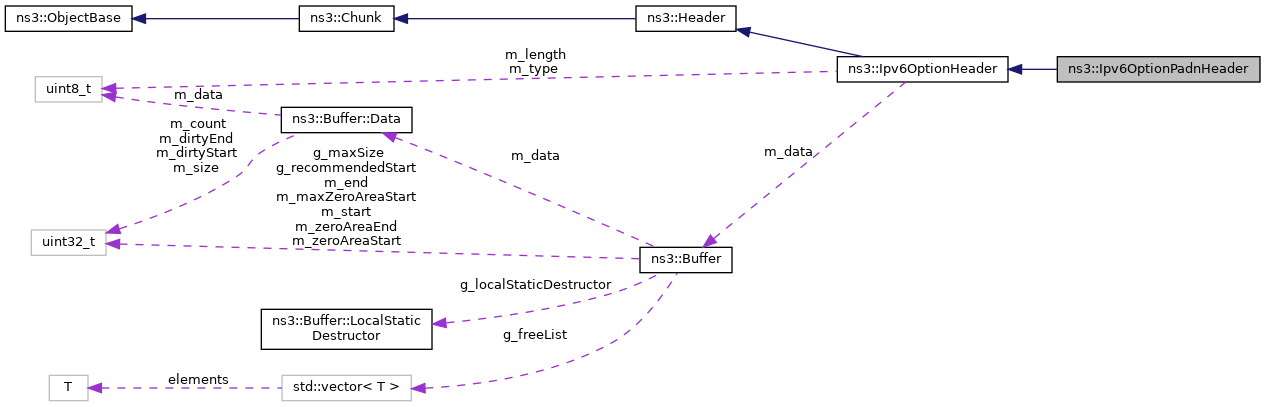

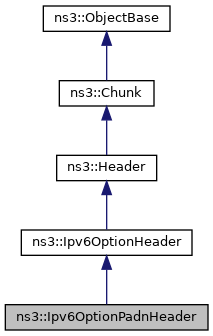

Inheritance diagram for ns3::Ipv6OptionPadnHeader: Collaboration diagram for ns3::Ipv6OptionPadnHeader:Public Member Functions | |
| Ipv6OptionPadnHeader (uint32_t pad=2) | |
| Constructor. More... | |
| ~Ipv6OptionPadnHeader () override | |
| Destructor. More... | |
| uint32_t | Deserialize (Buffer::Iterator start) override |
| Deserialize the packet. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the instance type ID. More... | |
| uint32_t | GetSerializedSize () const override |
| Get the serialized size of the packet. More... | |
| void | Print (std::ostream &os) const override |
| Print some information about the packet. More... | |
| void | Serialize (Buffer::Iterator start) const override |
| Serialize the packet. More... | |
| Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| Ipv6OptionHeader () | |
| Constructor. More... | |
| ~Ipv6OptionHeader () override | |
| Destructor. More... | |
| virtual Alignment | GetAlignment () const |
| Get the Alignment requirement of this option header. More... | |
| uint8_t | GetLength () const |
| Get the option length. More... | |
| uint8_t | GetType () const |
| Get the type of the option. More... | |
| void | SetLength (uint8_t length) |
| Set the option length. More... | |
| void | SetType (uint8_t type) |
| Set the type of the option. More... | |
| Public Member Functions inherited from ns3::Header | |
| ~Header () override | |
| virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
| Deserialize the object from a buffer iterator. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::Chunk | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Header of IPv6 Option Padn.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).
Definition at line 209 of file ipv6-option-header.h.
| ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader | ( | uint32_t | pad = 2 | ) |
Constructor.
| pad | Number of bytes to pad (>=2) |
Definition at line 205 of file ipv6-option-header.cc.
References NS_ASSERT_MSG, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

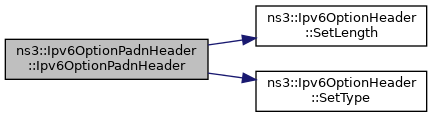

Here is the call graph for this function:
|
override |
Destructor.
Definition at line 212 of file ipv6-option-header.cc.
|
overridevirtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 243 of file ipv6-option-header.cc.
References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and two-ray-to-three-gpp-ch-calibration::start.

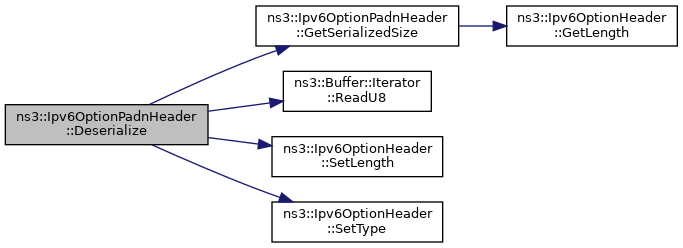

Here is the call graph for this function:
|
overridevirtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 200 of file ipv6-option-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
overridevirtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 223 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength().
Referenced by Deserialize(), and ns3::Ipv6OptionPadn::Process().

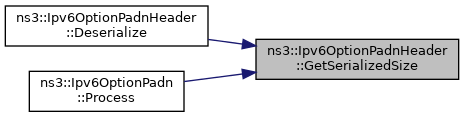

Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 190 of file ipv6-option-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Print some information about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 217 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), and ns3::Ipv6OptionHeader::GetType().

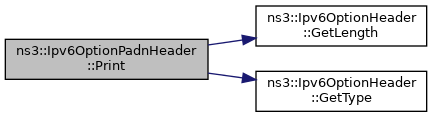

Here is the call graph for this function:
|
overridevirtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 229 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::OptionField::Serialize().

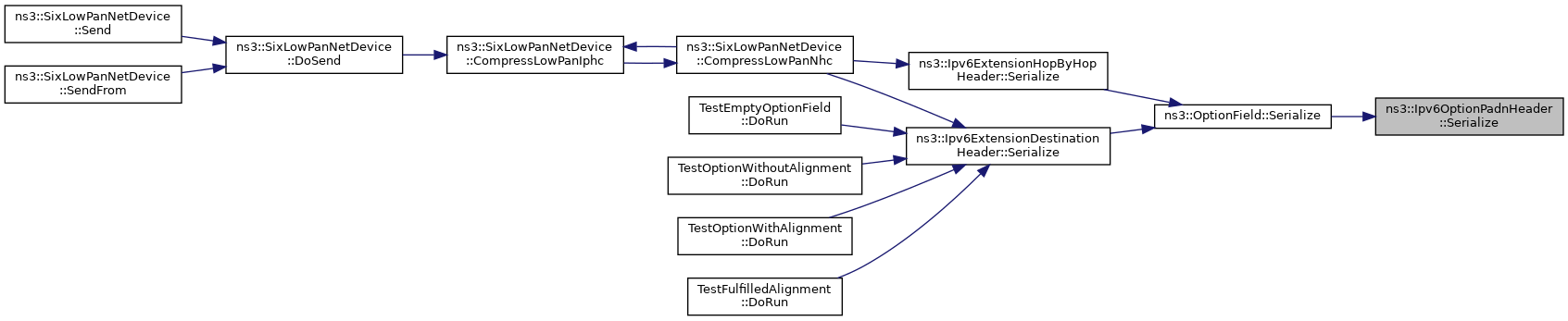

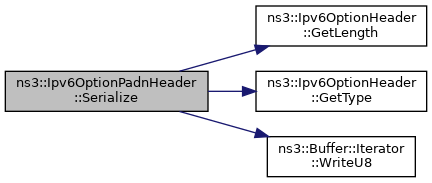

Here is the call graph for this function: Here is the caller graph for this function:
