ns3::MemberSchedSapProvider< C > Class Template Reference

MemberSchedSapProvider class. More...

#include "ff-mac-sched-sap.h"

Inheritance diagram for ns3::MemberSchedSapProvider< C >:

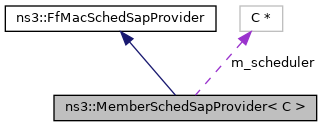

Collaboration diagram for ns3::MemberSchedSapProvider< C >:

Public Member Functions
	MemberSchedSapProvider ()=delete
	MemberSchedSapProvider (C *scheduler)
	Constructor. More...
void	SchedDlCqiInfoReq (const struct SchedDlCqiInfoReqParameters &params) override
	SCHED_DL_CQI_INFO_REQ. More...
void	SchedDlMacBufferReq (const struct SchedDlMacBufferReqParameters &params) override
	SCHED_DL_MAC_BUFFER_REQ. More...
void	SchedDlPagingBufferReq (const struct SchedDlPagingBufferReqParameters &params) override
	SCHED_DL_PAGING_BUFFER_REQ. More...
void	SchedDlRachInfoReq (const struct SchedDlRachInfoReqParameters &params) override
	SCHED_DL_RACH_INFO_REQ. More...
void	SchedDlRlcBufferReq (const struct SchedDlRlcBufferReqParameters &params) override
	SCHED_DL_RLC_BUFFER_REQ. More...
void	SchedDlTriggerReq (const struct SchedDlTriggerReqParameters &params) override
	SCHED_DL_TRIGGER_REQ. More...
void	SchedUlCqiInfoReq (const struct SchedUlCqiInfoReqParameters &params) override
	SCHED_UL_CQI_INFO_REQ. More...
void	SchedUlMacCtrlInfoReq (const struct SchedUlMacCtrlInfoReqParameters &params) override
	SCHED_UL_MAC_CTRL_INFO_REQ. More...
void	SchedUlNoiseInterferenceReq (const struct SchedUlNoiseInterferenceReqParameters &params) override
	SCHED_UL_NOISE_INTERFERENCE_REQ. More...
void	SchedUlSrInfoReq (const struct SchedUlSrInfoReqParameters &params) override
	SCHED_UL_SR_INFO_REQ. More...
void	SchedUlTriggerReq (const struct SchedUlTriggerReqParameters &params) override
	SCHED_UL_TRIGGER_REQ. More...
Public Member Functions inherited from ns3::FfMacSchedSapProvider
virtual	~FfMacSchedSapProvider ()

Private Attributes
C *	m_scheduler
	the scheduler class More...

Detailed Description

template<class C>
class ns3::MemberSchedSapProvider< C >

MemberSchedSapProvider class.

Definition at line 353 of file ff-mac-sched-sap.h.

Constructor & Destructor Documentation

MemberSchedSapProvider() [1/2]

template<class C >

ns3::MemberSchedSapProvider< C >::MemberSchedSapProvider

(

C *

scheduler

)

Constructor.

Parameters

scheduler

the scheduler class

Definition at line 385 of file ff-mac-sched-sap.h.

MemberSchedSapProvider() [2/2]

template<class C >

ns3::MemberSchedSapProvider< C >::MemberSchedSapProvider ( )

delete

Member Function Documentation

SchedDlCqiInfoReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlCqiInfoReq ( const struct SchedDlCqiInfoReqParameters &  params )

overridevirtual

SCHED_DL_CQI_INFO_REQ.

Parameters

params

SchedDlCqiInfoReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 428 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedDlMacBufferReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlMacBufferReq ( const struct SchedDlMacBufferReqParameters &  params )

overridevirtual

SCHED_DL_MAC_BUFFER_REQ.

Parameters

params

SchedDlMacBufferReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 407 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedDlPagingBufferReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlPagingBufferReq ( const struct SchedDlPagingBufferReqParameters &  params )

overridevirtual

SCHED_DL_PAGING_BUFFER_REQ.

Parameters

params

SchedDlPagingBufferReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 399 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedDlRachInfoReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlRachInfoReq ( const struct SchedDlRachInfoReqParameters &  params )

overridevirtual

SCHED_DL_RACH_INFO_REQ.

Parameters

params

SchedDlRachInfoReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 421 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedDlRlcBufferReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlRlcBufferReq ( const struct SchedDlRlcBufferReqParameters &  params )

overridevirtual

SCHED_DL_RLC_BUFFER_REQ.

Parameters

params

SchedDlRlcBufferReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 392 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedDlTriggerReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedDlTriggerReq ( const struct SchedDlTriggerReqParameters &  params )

overridevirtual

SCHED_DL_TRIGGER_REQ.

Parameters

params

SchedDlTriggerReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 414 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedUlCqiInfoReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedUlCqiInfoReq ( const struct SchedUlCqiInfoReqParameters &  params )

overridevirtual

SCHED_UL_CQI_INFO_REQ.

Parameters

params

SchedUlCqiInfoReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 465 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedUlMacCtrlInfoReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedUlMacCtrlInfoReq ( const struct SchedUlMacCtrlInfoReqParameters &  params )

overridevirtual

SCHED_UL_MAC_CTRL_INFO_REQ.

Parameters

params

SchedUlMacCtrlInfoReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 457 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedUlNoiseInterferenceReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedUlNoiseInterferenceReq ( const struct SchedUlNoiseInterferenceReqParameters &  params )

overridevirtual

SCHED_UL_NOISE_INTERFERENCE_REQ.

Parameters

params

SchedUlNoiseInterferenceReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 442 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedUlSrInfoReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedUlSrInfoReq ( const struct SchedUlSrInfoReqParameters &  params )

overridevirtual

SCHED_UL_SR_INFO_REQ.

Parameters

params

SchedUlSrInfoReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 450 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

SchedUlTriggerReq()

template<class C >

void ns3::MemberSchedSapProvider< C >::SchedUlTriggerReq ( const struct SchedUlTriggerReqParameters &  params )

overridevirtual

SCHED_UL_TRIGGER_REQ.

Parameters

params

SchedUlTriggerReqParameters

Implements ns3::FfMacSchedSapProvider.

Definition at line 435 of file ff-mac-sched-sap.h.

References two-ray-to-three-gpp-ch-calibration::params.

Member Data Documentation

m_scheduler

template<class C >

C* ns3::MemberSchedSapProvider< C >::m_scheduler

private

the scheduler class

Definition at line 381 of file ff-mac-sched-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/ff-mac-sched-sap.h
