TypeId information manager. More...

Inheritance diagram for ns3::IidManager:

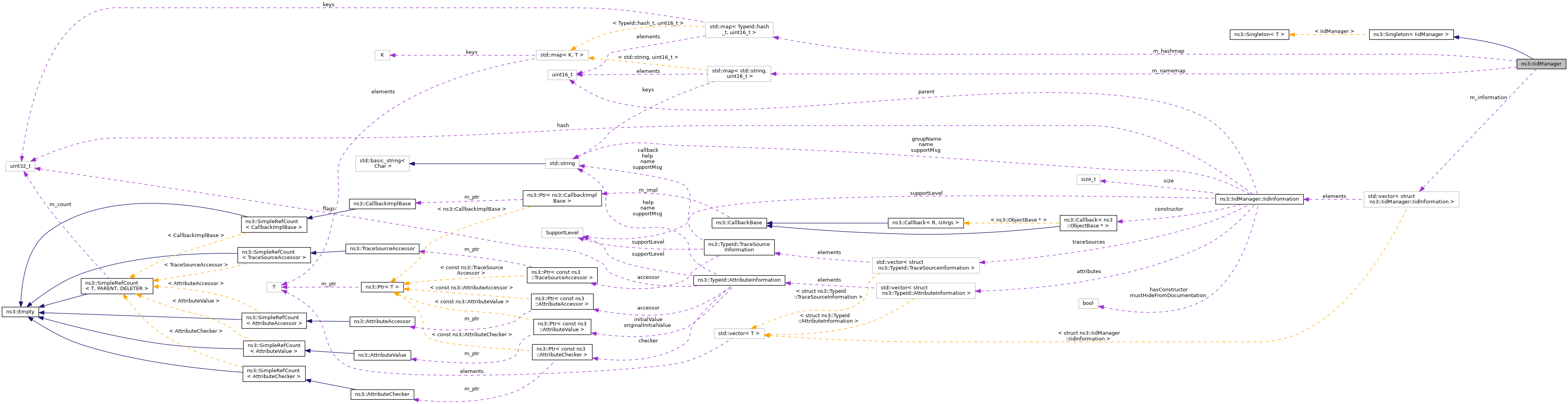

Collaboration diagram for ns3::IidManager:

Classes
struct	IidInformation
	The information record about a single type id. More...

Public Member Functions
void	AddAttribute (uint16_t uid, std::string name, std::string help, uint32_t flags, Ptr< const AttributeValue > initialValue, Ptr< const AttributeAccessor > accessor, Ptr< const AttributeChecker > checker, TypeId::SupportLevel supportLevel=TypeId::SUPPORTED, const std::string &supportMsg="")
	Record a new attribute in a type id. More...

void	AddConstructor (uint16_t uid, Callback< ObjectBase * > callback)
	Add a constructor Callback to this type id. More...

void	AddTraceSource (uint16_t uid, std::string name, std::string help, Ptr< const TraceSourceAccessor > accessor, std::string callback, TypeId::SupportLevel supportLevel=TypeId::SUPPORTED, const std::string &supportMsg="")
	Record a new TraceSource. More...

uint16_t	AllocateUid (std::string name)
	Create a new unique type id. More...

struct TypeId::AttributeInformation	GetAttribute (uint16_t uid, std::size_t i) const
	Get Attribute information by index. More...

std::size_t	GetAttributeN (uint16_t uid) const
	Get the number of attributes. More...

Callback< ObjectBase * >	GetConstructor (uint16_t uid) const
	Get the constructor Callback of a type id. More...

std::string	GetGroupName (uint16_t uid) const
	Get the group name of a type id. More...

TypeId::hash_t	GetHash (uint16_t uid) const
	Get the hash of a type id. More...

std::string	GetName (uint16_t uid) const
	Get the name of a type id. More...

uint16_t	GetParent (uint16_t uid) const
	Get the parent of a type id. More...

uint16_t	GetRegistered (uint16_t i) const
	Get a type id by index. More...

uint16_t	GetRegisteredN () const
	Get the total number of type ids. More...

std::size_t	GetSize (uint16_t uid) const
	Get the size of a type id. More...

struct TypeId::TraceSourceInformation	GetTraceSource (uint16_t uid, std::size_t i) const
	Get the trace source by index. More...

std::size_t	GetTraceSourceN (uint16_t uid) const
	Get the number of Trace sources. More...

uint16_t	GetUid (std::string name) const
	Get a type id by name. More...

uint16_t	GetUid (TypeId::hash_t hash) const
	Get a type id by hash value. More...

bool	HasConstructor (uint16_t uid) const
	Check if a type id has a constructor Callback. More...

void	HideFromDocumentation (uint16_t uid)
	Mark this type id to be excluded from documentation. More...

bool	MustHideFromDocumentation (uint16_t uid) const
	Check if this TypeId should not be listed in documentation. More...

void	SetAttributeInitialValue (uint16_t uid, std::size_t i, Ptr< const AttributeValue > initialValue)
	Set the initial value of an Attribute. More...

void	SetGroupName (uint16_t uid, std::string groupName)
	Set the group name of a type id. More...

void	SetParent (uint16_t uid, uint16_t parent)
	Set the parent of a type id. More...

void	SetSize (uint16_t uid, std::size_t size)
	Set the size of the object class referred to by this id. More...

Public Member Functions inherited from ns3::Singleton< IidManager >
	Singleton (const Singleton< IidManager > &)=delete

Singleton< IidManager > &	operator= (const Singleton< IidManager > &)=delete

Private Types
enum	{ HashChainFlag = 0x80000000 }
	IidManager constants. More...

typedef std::map< TypeId::hash_t, uint16_t >	hashmap_t
	Type of the by-hash index. More...

typedef std::vector< struct IidInformation >::const_iterator	Iterator
	Iterator type. More...

typedef std::map< std::string, uint16_t >	namemap_t
	Type of the by-name index. More...

Private Member Functions
bool	HasAttribute (uint16_t uid, std::string name)
	Check if a type id has a given Attribute. More...

bool	HasTraceSource (uint16_t uid, std::string name)
	Check if a type id has a given TraceSource. More...

struct IidManager::IidInformation *	LookupInformation (uint16_t uid) const
	Retrieve the information record for a type. More...

Static Private Member Functions
static TypeId::hash_t	Hasher (const std::string name)
	Hashing function. More...

Private Attributes
hashmap_t	m_hashmap
	The by-hash index. More...

std::vector< struct IidInformation >	m_information
	The container of all type id records. More...

namemap_t	m_namemap
	The by-name index. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Singleton< IidManager >
static IidManager *	Get ()
	Get a pointer to the singleton instance. More...

Protected Member Functions inherited from ns3::Singleton< IidManager >
	Singleton ()
	Constructor. More...

virtual	~Singleton ()
	Destructor. More...

Detailed Description

TypeId information manager.

Information records are stored in a vector. Name and hash lookup are performed by maps to the vector index.

Internal:: Hash Chaining

We require all types to produce distinct hashes. What if we encounter two types that produce the same hash value? As we move to a federated distribution model (the App store), it becomes increasingly likely that the core ns3 team won't discover this in test builds. Therefore, we need to handle this case explicitly.

Note, we expect this to be extremely rare. As of this writing we have ~400 < 2^9 types, so the probability of getting a collision when we introduce a new type is ~2^9/2^31 = 2^-22, assuming we reserve 31 bits for the hash, and one bit for chaining. Even with double the number of types the probability of having a collision is only 2 x 10^-4. The probability for a three-fold collision is 1 x 10^-10.

Therefore, we'll handle one collision explicitly by reserving the high order bit of the hash value, and assert on higher level collisions. The three-fold collision probability should be an acceptablly small error rate.

Definition at line 78 of file type-id.cc.

Member Typedef Documentation

◆ hashmap_t

typedef std::map<TypeId::hash_t, uint16_t> ns3::IidManager::hashmap_t

private

Type of the by-hash index.

Definition at line 342 of file type-id.cc.

◆ Iterator

typedef std::vector<struct IidInformation>::const_iterator ns3::IidManager::Iterator

private

Iterator type.

Definition at line 324 of file type-id.cc.

◆ namemap_t

typedef std::map<std::string, uint16_t> ns3::IidManager::namemap_t

private

Type of the by-name index.

Definition at line 337 of file type-id.cc.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

IidManager constants.

Enumerator

HashChainFlag

Hash chaining flag.

To handle the first collision, we reserve the high bit as a chain flag.

Definition at line 347 of file type-id.cc.

Member Function Documentation

◆ AddAttribute()

void ns3::IidManager::AddAttribute	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		uint32_t	flags,
		Ptr< const AttributeValue >	initialValue,
		Ptr< const AttributeAccessor >	accessor,
		Ptr< const AttributeChecker >	checker,
		TypeId::SupportLevel	supportLevel = `TypeId::SUPPORTED`,
		const std::string &	supportMsg = `""`
	)

Record a new attribute in a type id.

Parameters

[in]	uid	The id.
[in]	name	The name of the new attribute
[in]	help	Some help text which describes the purpose of this attribute.
[in]	flags	Flags which describe how this attribute can be read and/or written.
[in]	initialValue	The initial value for this attribute.
[in]	accessor	An instance of the associated AttributeAccessor subclass.
[in]	checker	An instance of the associated AttributeChecker subclass.
[in]	supportLevel	The support/deprecation status for this attribute.
[in]	supportMsg	Upgrade hint if this attribute is no longer supported.

Definition at line 655 of file type-id.cc.

Referenced by ns3::TypeId::AddAttribute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddConstructor()

void ns3::IidManager::AddConstructor	(	uint16_t	uid,
		Callback< ObjectBase * >	callback
	)

Add a constructor Callback to this type id.

Parameters

[in]	uid	The id.
[in]	callback	The Callback for the constructor.

Definition at line 497 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, IID, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::DoAddConstructor().

Here is the call graph for this function:

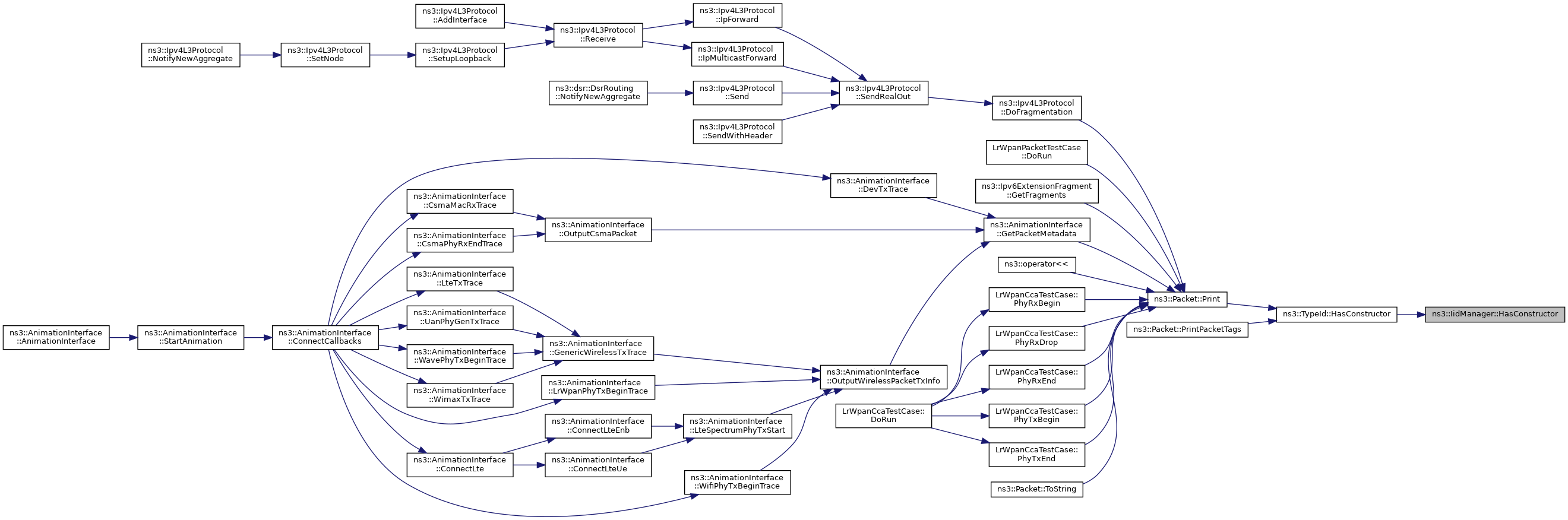

Here is the caller graph for this function:

◆ AddTraceSource()

void ns3::IidManager::AddTraceSource	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		Ptr< const TraceSourceAccessor >	accessor,
		std::string	callback,
		TypeId::SupportLevel	supportLevel = `TypeId::SUPPORTED`,
		const std::string &	supportMsg = `""`
	)

Record a new TraceSource.

Parameters

[in]	uid	The id.
[in]	name	The name of the new trace source
[in]	help	Some help text which describes the purpose of this trace source.
[in]	accessor	A pointer to a TraceSourceAccessor which can be used to connect/disconnect sinks to this trace source.
[in]	callback	Fully qualified typedef name for the callback signature. Generally this should begin with the "ns3::" namespace qualifier.
[in]	supportLevel	The support/deprecation status for this attribute.
[in]	supportMsg	Upgrade hint if this attribute is no longer supported.

Definition at line 757 of file type-id.cc.

References ns3::TypeId::TraceSourceInformation::accessor, ns3::TypeId::TraceSourceInformation::callback, HasTraceSource(), ns3::TypeId::TraceSourceInformation::help, check-style-clang-format::help, IID, IIDL, LookupInformation(), ns3::IidManager::IidInformation::name, ns3::TypeId::TraceSourceInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::TypeId::TraceSourceInformation::supportLevel, ns3::TypeId::TraceSourceInformation::supportMsg, and ns3::IidManager::IidInformation::traceSources.

Referenced by ns3::TypeId::AddTraceSource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AllocateUid()

uint16_t ns3::IidManager::AllocateUid ( std::string name )

Create a new unique type id.

Parameters

[in] name The name of this type id.

Returns: The id.

Definition at line 381 of file type-id.cc.

References GetUid(), ns3::IidManager::IidInformation::groupName, ns3::IidManager::IidInformation::hasConstructor, ns3::IidManager::IidInformation::hash, HashChainFlag, Hasher(), IID, IIDL, LookupInformation(), m_hashmap, m_information, m_namemap, ns3::IidManager::IidInformation::mustHideFromDocumentation, ns3::IidManager::IidInformation::name, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::IidManager::IidInformation::parent, ns3::IidManager::IidInformation::size, ns3::TypeId::SUPPORTED, and ns3::IidManager::IidInformation::supportLevel.

Referenced by ns3::TypeId::TypeId().

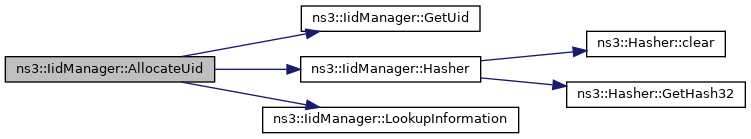

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAttribute()

struct TypeId::AttributeInformation ns3::IidManager::GetAttribute	(	uint16_t	uid,
		std::size_t	i
	)		const

Get Attribute information by index.

Parameters

[in]	uid	The id.
[in]	i	Index into attribute array

Returns: The information associated to attribute whose index is i.

Definition at line 705 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ GetAttributeN()

std::size_t ns3::IidManager::GetAttributeN ( uint16_t uid ) const

Get the number of attributes.

Parameters

[in] uid The id.

Returns: The number of attributes associated to this TypeId

Definition at line 705 of file type-id.cc.

Referenced by ns3::TypeId::GetAttribute().

Here is the caller graph for this function:

◆ GetConstructor()

Callback< ObjectBase * > ns3::IidManager::GetConstructor ( uint16_t uid ) const

Get the constructor Callback of a type id.

Parameters

[in] uid The id.

Returns: The constructor Callback of the type id.

Definition at line 586 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, IID, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::GetConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGroupName()

std::string ns3::IidManager::GetGroupName ( uint16_t uid ) const

Get the group name of a type id.

Parameters

[in] uid The id.

Returns: The group name of the type id.

Definition at line 567 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TypeId::GetGroupName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHash()

TypeId::hash_t ns3::IidManager::GetHash ( uint16_t uid ) const

Get the hash of a type id.

Parameters

[in] uid The id.

Returns: The hash of the type id.

Definition at line 547 of file type-id.cc.

References ns3::IidManager::IidInformation::hash, IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TypeId::GetHash().

Here is the call graph for this function:

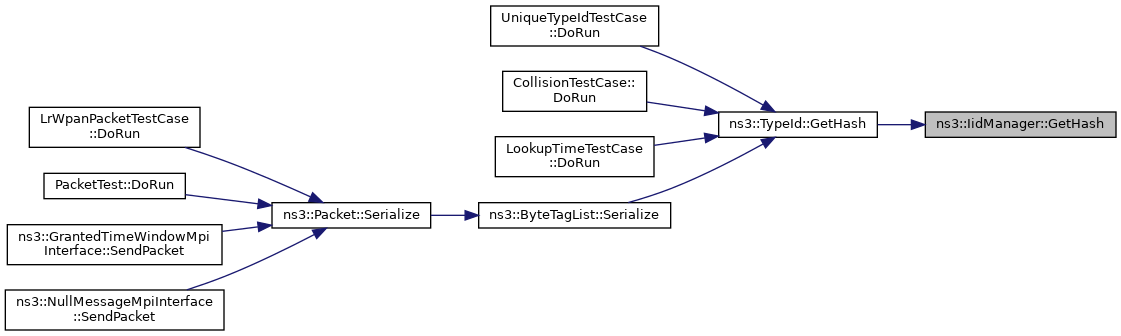

Here is the caller graph for this function:

◆ GetName()

std::string ns3::IidManager::GetName ( uint16_t uid ) const

Get the name of a type id.

Parameters

[in] uid The id.

Returns: The name of the type id.

Definition at line 538 of file type-id.cc.

References IID, IIDL, LookupInformation(), ns3::IidManager::IidInformation::name, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TypeId::GetName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetParent()

uint16_t ns3::IidManager::GetParent ( uint16_t uid ) const

Get the parent of a type id.

Parameters

[in] uid The id.

Returns: The parent type id of the type id.

Definition at line 557 of file type-id.cc.

References IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::parent.

Referenced by ns3::TypeId::GetParent(), and ns3::TypeId::HasParent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRegistered()

uint16_t ns3::IidManager::GetRegistered ( uint16_t i ) const

Get a type id by index.

The type id value 0 indicates not registered, so there is an offset of 1 between the index and the type id value. This function converts from an index to the type id value.

Parameters

[in] i The index.

Returns: The type id.

Definition at line 616 of file type-id.cc.

References IID, and NS_LOG_FUNCTION.

◆ GetRegisteredN()

uint16_t ns3::IidManager::GetRegisteredN ( ) const

Get the total number of type ids.

Returns: The total number.

Definition at line 609 of file type-id.cc.

References IID, m_information, and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::GetRegisteredN().

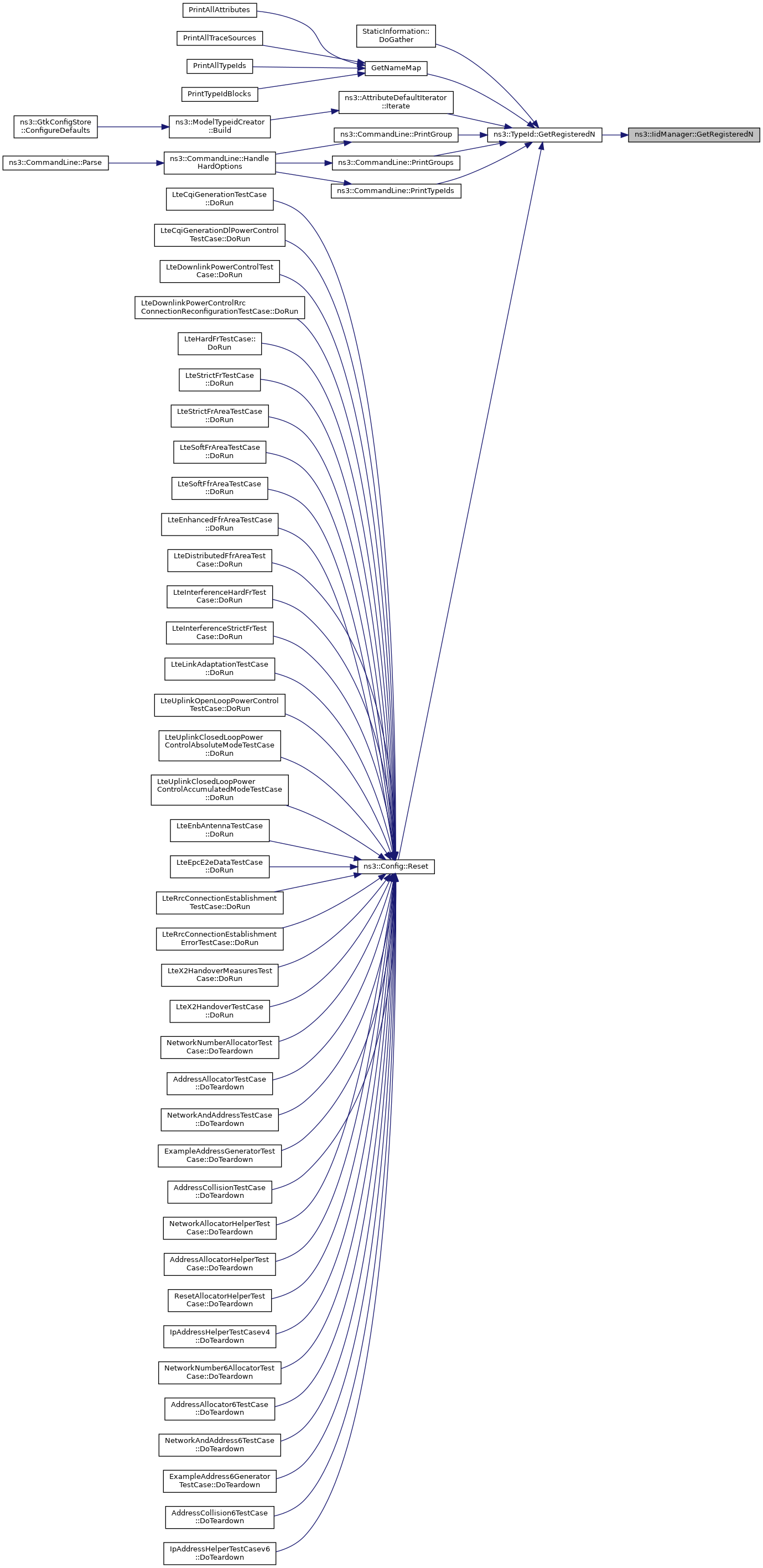

Here is the caller graph for this function:

◆ GetSize()

std::size_t ns3::IidManager::GetSize ( uint16_t uid ) const

Get the size of a type id.

Parameters

[in] uid The id.

Returns: The size of the type id.

Definition at line 576 of file type-id.cc.

References IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::size.

Referenced by ns3::TypeId::GetSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTraceSource()

struct TypeId::TraceSourceInformation ns3::IidManager::GetTraceSource	(	uint16_t	uid,
		std::size_t	i
	)		const

Get the trace source by index.

Parameters

[in]	uid	The id.
[in]	i	Index into trace source array.

Returns: Detailed information about the requested trace source.

Definition at line 785 of file type-id.cc.

References IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::traceSources.

Here is the call graph for this function:

◆ GetTraceSourceN()

std::size_t ns3::IidManager::GetTraceSourceN ( uint16_t uid ) const

Get the number of Trace sources.

Parameters

[in] uid The id.

Returns: The number of trace sources defined in this TypeId.

Definition at line 785 of file type-id.cc.

Referenced by ns3::TypeId::GetTraceSource().

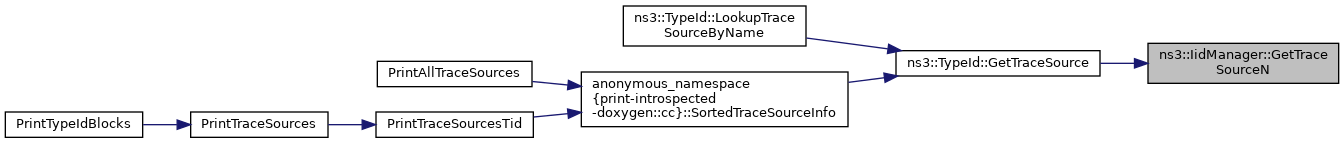

Here is the caller graph for this function:

◆ GetUid() [1/2]

uint16_t ns3::IidManager::GetUid ( std::string name ) const

Get a type id by name.

Parameters

[in] name The type id to find.

Returns: The type id. A type id of 0 means name wasn't found.

Definition at line 510 of file type-id.cc.

References IID, IIDL, m_namemap, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by AllocateUid(), ns3::TypeId::LookupByHash(), ns3::TypeId::LookupByHashFailSafe(), ns3::TypeId::LookupByName(), and ns3::TypeId::LookupByNameFailSafe().

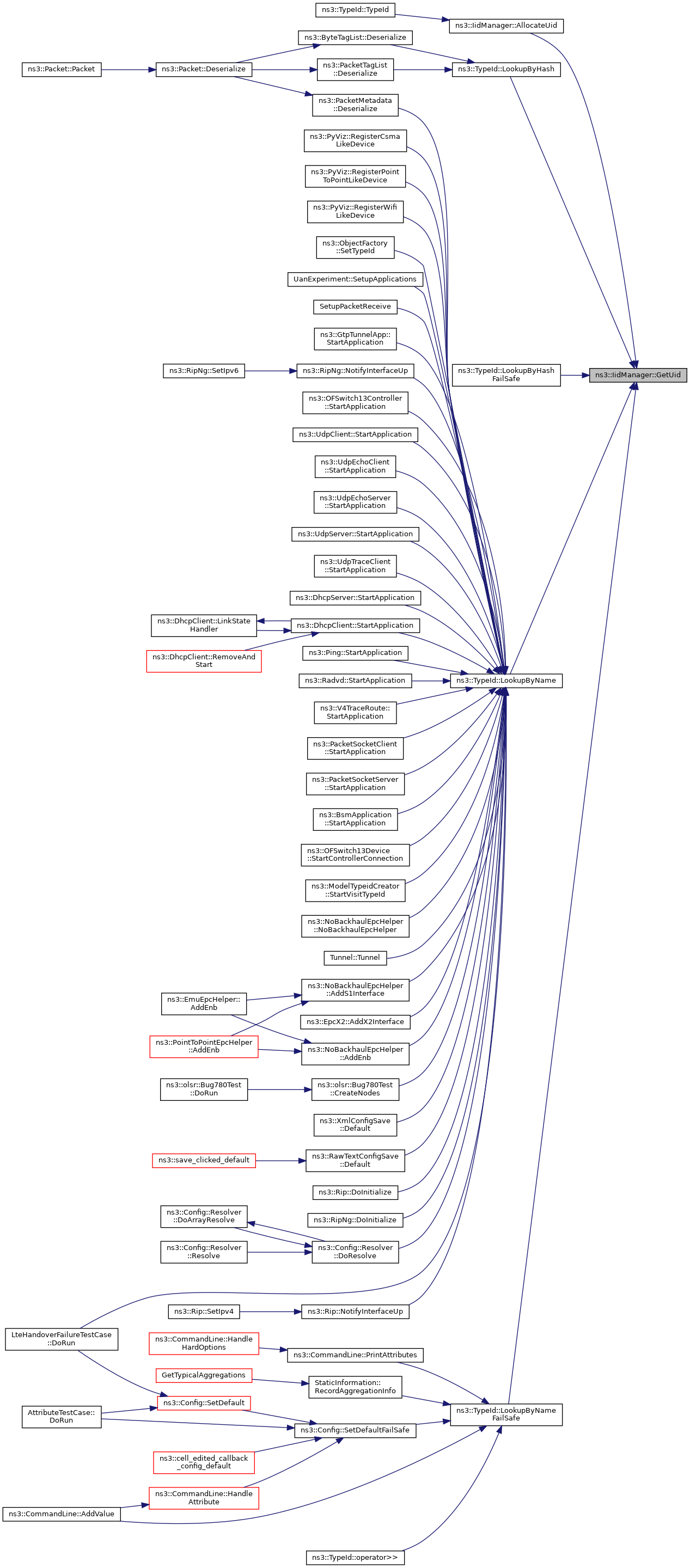

Here is the caller graph for this function:

◆ GetUid() [2/2]

uint16_t ns3::IidManager::GetUid ( TypeId::hash_t hash ) const

Get a type id by hash value.

Parameters

[in] hash The type id to find.

Returns: The type id. A type id of 0 means hash wasn't found.

Definition at line 524 of file type-id.cc.

References IID, IIDL, m_hashmap, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ HasAttribute()

bool ns3::IidManager::HasAttribute	(	uint16_t	uid,
		std::string	name
	)

private

Check if a type id has a given Attribute.

Parameters

[in]	uid	The id.
[in]	name	The Attribute name.

Returns: true if uid has the Attribute name.

Definition at line 623 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::parent.

Referenced by AddAttribute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasConstructor()

bool ns3::IidManager::HasConstructor ( uint16_t uid ) const

Check if a type id has a constructor Callback.

Parameters

[in] uid The id.

Returns: true if the type id has a constructor Callback.

Definition at line 599 of file type-id.cc.

References ns3::IidManager::IidInformation::hasConstructor, IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TypeId::HasConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Hasher()

TypeId::hash_t ns3::IidManager::Hasher ( const std::string name )

staticprivate

Hashing function.

Parameters

[in] name The type id name.

Returns: The hashed value of name.

Definition at line 361 of file type-id.cc.

References ns3::Hasher::clear(), and ns3::Hasher::GetHash32().

Referenced by AllocateUid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HasTraceSource()

bool ns3::IidManager::HasTraceSource	(	uint16_t	uid,
		std::string	name
	)

private

Check if a type id has a given TraceSource.

Parameters

[in]	uid	The id.
[in]	name	The TraceSource name.

Returns: true if uid has the TraceSource name.

Definition at line 725 of file type-id.cc.

References IID, IIDL, LookupInformation(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::IidManager::IidInformation::parent, and ns3::IidManager::IidInformation::traceSources.

Referenced by AddTraceSource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HideFromDocumentation()

void ns3::IidManager::HideFromDocumentation ( uint16_t uid )

Mark this type id to be excluded from documentation.

Parameters

[in] uid The id.

Definition at line 489 of file type-id.cc.

References IID, LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::HideFromDocumentation().

Here is the call graph for this function:

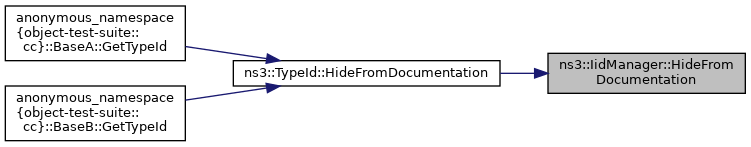

Here is the caller graph for this function:

◆ LookupInformation()

struct IidManager::IidInformation * ns3::IidManager::LookupInformation ( uint16_t uid ) const

private

Retrieve the information record for a type.

Parameters

[in] uid The id.

Returns: The information record.

Definition at line 455 of file type-id.cc.

References IID, IIDL, m_information, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by AddAttribute(), AddConstructor(), AddTraceSource(), AllocateUid(), GetAttribute(), GetConstructor(), GetGroupName(), GetHash(), GetName(), GetParent(), GetSize(), GetTraceSource(), HasAttribute(), HasConstructor(), HasTraceSource(), HideFromDocumentation(), MustHideFromDocumentation(), SetAttributeInitialValue(), SetGroupName(), SetParent(), and SetSize().

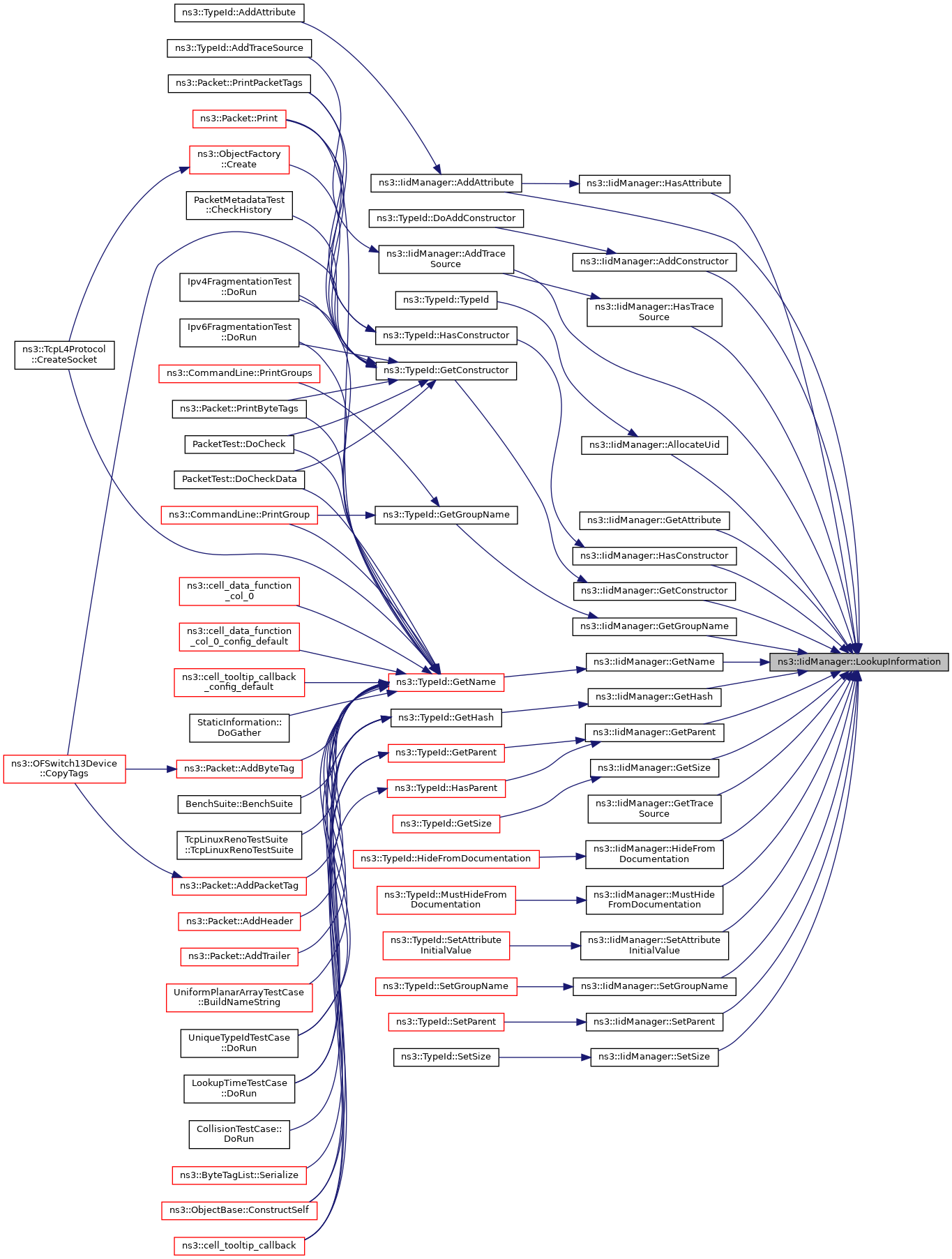

Here is the caller graph for this function:

◆ MustHideFromDocumentation()

bool ns3::IidManager::MustHideFromDocumentation ( uint16_t uid ) const

Check if this TypeId should not be listed in documentation.

Parameters

[in] uid The id.

Returns: true if this TypeId should be hidden from the user.

Definition at line 805 of file type-id.cc.

References IID, IIDL, LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TypeId::MustHideFromDocumentation().

Here is the call graph for this function:

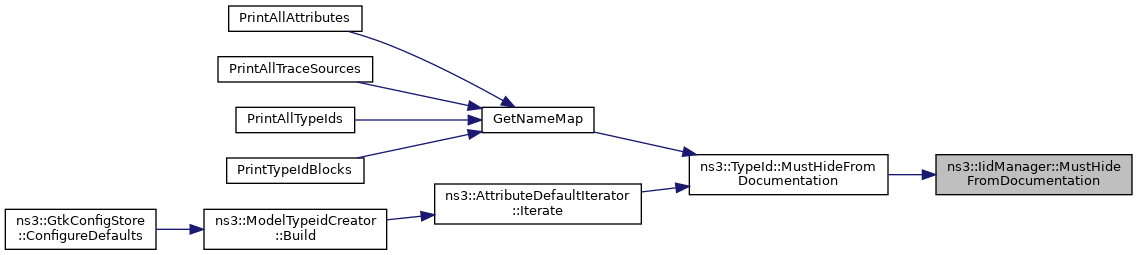

Here is the caller graph for this function:

◆ SetAttributeInitialValue()

void ns3::IidManager::SetAttributeInitialValue	(	uint16_t	uid,
		std::size_t	i,
		Ptr< const AttributeValue >	initialValue
	)

Set the initial value of an Attribute.

Parameters

[in]	uid	The id.
[in]	i	The attribute to manipulate
[in]	initialValue	The new initial value to use for this attribute.

Definition at line 694 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, IID, LookupInformation(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::SetAttributeInitialValue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetGroupName()

void ns3::IidManager::SetGroupName	(	uint16_t	uid,
		std::string	groupName
	)

Set the group name of a type id.

Parameters

[in]	uid	The id.
[in]	groupName	The group name.

Definition at line 473 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, IID, LookupInformation(), and NS_LOG_FUNCTION.

Referenced by ns3::TypeId::SetGroupName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetParent()

void ns3::IidManager::SetParent	(	uint16_t	uid,
		uint16_t	parent
	)

Set the parent of a type id.

Parameters

[in]	uid	The id.
[in]	parent	The id of the parent.

Definition at line 464 of file type-id.cc.

References IID, LookupInformation(), m_information, NS_ASSERT, NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Referenced by ns3::TypeId::SetParent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSize()

void ns3::IidManager::SetSize	(	uint16_t	uid,
		std::size_t	size
	)

Set the size of the object class referred to by this id.

Parameters

[in]	uid	The id.
[in]	size	The object size.

Definition at line 481 of file type-id.cc.

References IID, LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::size.

Referenced by ns3::TypeId::SetSize().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_hashmap

hashmap_t ns3::IidManager::m_hashmap

private

The by-hash index.

Definition at line 344 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

◆ m_information

std::vector<struct IidInformation> ns3::IidManager::m_information

private

The container of all type id records.

Definition at line 334 of file type-id.cc.

Referenced by AllocateUid(), GetRegisteredN(), LookupInformation(), and SetParent().

◆ m_namemap

namemap_t ns3::IidManager::m_namemap

private

The by-name index.

Definition at line 339 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

The documentation for this class was generated from the following file:

src/core/model/type-id.cc

Classes

Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ hashmap_t

◆ Iterator

◆ namemap_t

Member Enumeration Documentation

◆ anonymous enum

Member Function Documentation

◆ AddAttribute()

◆ AddConstructor()

◆ AddTraceSource()

◆ AllocateUid()

◆ GetAttribute()

◆ GetAttributeN()

◆ GetConstructor()

◆ GetGroupName()

◆ GetHash()

◆ GetName()

◆ GetParent()

◆ GetRegistered()

◆ GetRegisteredN()

◆ GetSize()

◆ GetTraceSource()

◆ GetTraceSourceN()

◆ GetUid() [1/2]

◆ GetUid() [2/2]

◆ HasAttribute()

◆ HasConstructor()

◆ Hasher()

◆ HasTraceSource()

◆ HideFromDocumentation()

◆ LookupInformation()

◆ MustHideFromDocumentation()

◆ SetAttributeInitialValue()

◆ SetGroupName()

◆ SetParent()

◆ SetSize()

Member Data Documentation

◆ m_hashmap

◆ m_information

◆ m_namemap
