Class to represent a 2D points plot. More...

#include "gnuplot.h"

Inheritance diagram for ns3::Gnuplot2dDataset:

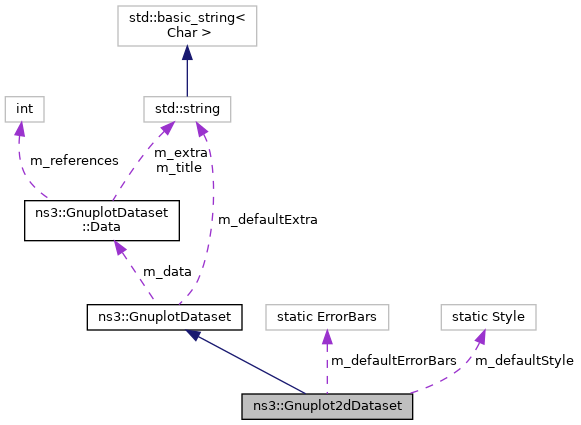

Collaboration diagram for ns3::Gnuplot2dDataset:

Classes
struct	Data2d
	Structure storing the data to for a 2D plot. More...

struct	Point
	A point in a 2D plot. More...

Public Types
enum	ErrorBars { NONE , X , Y , XY }
	Whether errorbars should be used for this dataset. More...

enum	Style { LINES , POINTS , LINES_POINTS , DOTS , IMPULSES , STEPS , FSTEPS , HISTEPS }
	The plotting style to use for this dataset. More...

Public Member Functions
	Gnuplot2dDataset (const std::string &title="Untitled")

void	Add (double x, double y)

void	Add (double x, double y, double errorDelta)

void	Add (double x, double y, double xErrorDelta, double yErrorDelta)

void	AddEmptyLine ()
	Add an empty line in the data output sequence. More...

void	SetErrorBars (ErrorBars errorBars)

void	SetStyle (Style style)

Public Member Functions inherited from ns3::GnuplotDataset
	GnuplotDataset (const GnuplotDataset &original)
	Reference-counting copy constructor. More...

	~GnuplotDataset ()
	Reference-counting destructor. More...

GnuplotDataset &	operator= (const GnuplotDataset &original)
	Reference-counting assignment operator. More...

void	SetExtra (const std::string &extra)
	Add extra formatting parameters to this dataset. More...

void	SetTitle (const std::string &title)
	Change line title. More...

Static Public Member Functions
static void	SetDefaultErrorBars (ErrorBars errorBars)
	Change default errorbars style for all newly created objects. More...

static void	SetDefaultStyle (Style style)
	Change default style for all newly created objects. More...

Static Public Member Functions inherited from ns3::GnuplotDataset
static void	SetDefaultExtra (const std::string &extra)
	Change extra formatting style parameters for newly created objects. More...

Private Types
typedef std::vector< struct Point >	PointSet
	The set of points in the dataset. More...

Static Private Attributes
static ErrorBars	m_defaultErrorBars
	default error bars type More...

static Style	m_defaultStyle
	default plot style More...

Additional Inherited Members
Protected Member Functions inherited from ns3::GnuplotDataset
	GnuplotDataset (struct Data *data)
	Called by constructors of derived classes. More...

Protected Attributes inherited from ns3::GnuplotDataset
struct Data *	m_data
	Reference counted data object. More...

Static Protected Attributes inherited from ns3::GnuplotDataset
static std::string	m_defaultExtra = ""
	Extra gnuplot parameters set on every newly created dataset. More...

Detailed Description

Class to represent a 2D points plot.

Set the line or points style using SetStyle() and set points using Add().

Definition at line 115 of file gnuplot.h.

Member Typedef Documentation

◆ PointSet

typedef std::vector<struct Point> ns3::Gnuplot2dDataset::PointSet

private

The set of points in the dataset.

Definition at line 226 of file gnuplot.h.

Member Enumeration Documentation

◆ ErrorBars

enum ns3::Gnuplot2dDataset::ErrorBars

Whether errorbars should be used for this dataset.

Enumerator
NONE
X
Y
XY

Definition at line 136 of file gnuplot.h.

◆ Style

enum ns3::Gnuplot2dDataset::Style

The plotting style to use for this dataset.

Enumerator
LINES
POINTS
LINES_POINTS
DOTS
IMPULSES
STEPS
FSTEPS
HISTEPS

Definition at line 121 of file gnuplot.h.

Constructor & Destructor Documentation

◆ Gnuplot2dDataset()

ns3::Gnuplot2dDataset::Gnuplot2dDataset ( const std::string & title = "Untitled" )

Parameters

title the title to be associated to this dataset (default "Untitled").

Create an empty dataset. Usually, the dataset's title is displayed in the legend box.

Definition at line 347 of file gnuplot.cc.

Member Function Documentation

◆ Add() [1/3]

void ns3::Gnuplot2dDataset::Add	(	double	x,
		double	y
	)

Parameters

x	x coord to new data point
y	y coord to new data point

Use this method with error bar style NONE.

Definition at line 377 of file gnuplot.cc.

References data, ns3::GnuplotDataset::m_data, NONE, NS_ASSERT, and two-ray-to-three-gpp-ch-calibration::x.

Referenced by Experiment::AdvancePosition(), ChangeSignalAndReportRate(), Experiment::CheckThroughput(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), Experiment::IncrementCw(), TestDeterministic(), and TestDeterministicByTime().

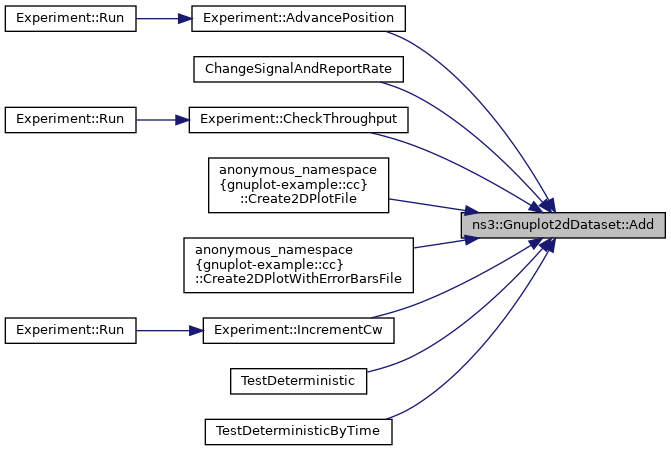

Here is the caller graph for this function:

◆ Add() [2/3]

void ns3::Gnuplot2dDataset::Add	(	double	x,
		double	y,
		double	errorDelta
	)

Parameters

x	x coord to new data point
y	y coord to new data point
errorDelta	x and y data point uncertainty

Use this method with error bar style X or Y.

Definition at line 391 of file gnuplot.cc.

References data, ns3::GnuplotDataset::m_data, NS_ASSERT, two-ray-to-three-gpp-ch-calibration::x, X, and Y.

◆ Add() [3/3]

void ns3::Gnuplot2dDataset::Add	(	double	x,
		double	y,
		double	xErrorDelta,
		double	yErrorDelta
	)

Parameters

x	x coord to new data point
y	y coord to new data point
xErrorDelta	x data point uncertainty
yErrorDelta	y data point uncertainty

Use this method with error bar style XY.

Definition at line 406 of file gnuplot.cc.

References data, ns3::GnuplotDataset::m_data, NS_ASSERT, two-ray-to-three-gpp-ch-calibration::x, and XY.

◆ AddEmptyLine()

void ns3::Gnuplot2dDataset::AddEmptyLine ( )

Add an empty line in the data output sequence.

Empty lines in the plot data break continuous lines and do other things in the output.

Definition at line 420 of file gnuplot.cc.

References data, and ns3::GnuplotDataset::m_data.

◆ SetDefaultErrorBars()

void ns3::Gnuplot2dDataset::SetDefaultErrorBars ( ErrorBars errorBars )

static

Change default errorbars style for all newly created objects.

Parameters

errorBars the style of errorbars to use for newly created datasets.

Definition at line 365 of file gnuplot.cc.

References m_defaultErrorBars.

Referenced by ns3::GnuplotAggregator::Set2dDatasetDefaultErrorBars().

Here is the caller graph for this function:

◆ SetDefaultStyle()

void ns3::Gnuplot2dDataset::SetDefaultStyle ( Style style )

static

Change default style for all newly created objects.

Parameters

style the style of plotting to use for newly created datasets.

Definition at line 353 of file gnuplot.cc.

References m_defaultStyle.

Referenced by ns3::GnuplotAggregator::Set2dDatasetDefaultStyle().

Here is the caller graph for this function:

◆ SetErrorBars()

void ns3::Gnuplot2dDataset::SetErrorBars ( ErrorBars errorBars )

Parameters

errorBars the style of errorbars to display.

If you use any style other than none, you need to make sure you store the delta information in this dataset with the right GnuplotDataset::Add method.

Definition at line 371 of file gnuplot.cc.

References ns3::GnuplotDataset::m_data.

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile().

Here is the caller graph for this function:

◆ SetStyle()

void ns3::Gnuplot2dDataset::SetStyle ( Style style )

Parameters

style the style of plotting to use for this dataset.

Definition at line 359 of file gnuplot.cc.

References ns3::GnuplotDataset::m_data.

Referenced by Experiment::Experiment(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), TestDeterministic(), and TestDeterministicByTime().

Here is the caller graph for this function:

Member Data Documentation

◆ m_defaultErrorBars

ErrorBars ns3::Gnuplot2dDataset::m_defaultErrorBars

staticprivate

default error bars type

Definition at line 229 of file gnuplot.h.

Referenced by SetDefaultErrorBars().

◆ m_defaultStyle

Style ns3::Gnuplot2dDataset::m_defaultStyle

staticprivate

default plot style

Definition at line 228 of file gnuplot.h.

Referenced by SetDefaultStyle().

The documentation for this class was generated from the following files:

src/stats/model/gnuplot.h
src/stats/model/gnuplot.cc
