Test header that can contain multiple test information elements. More...

Inheritance diagram for TestHeader:

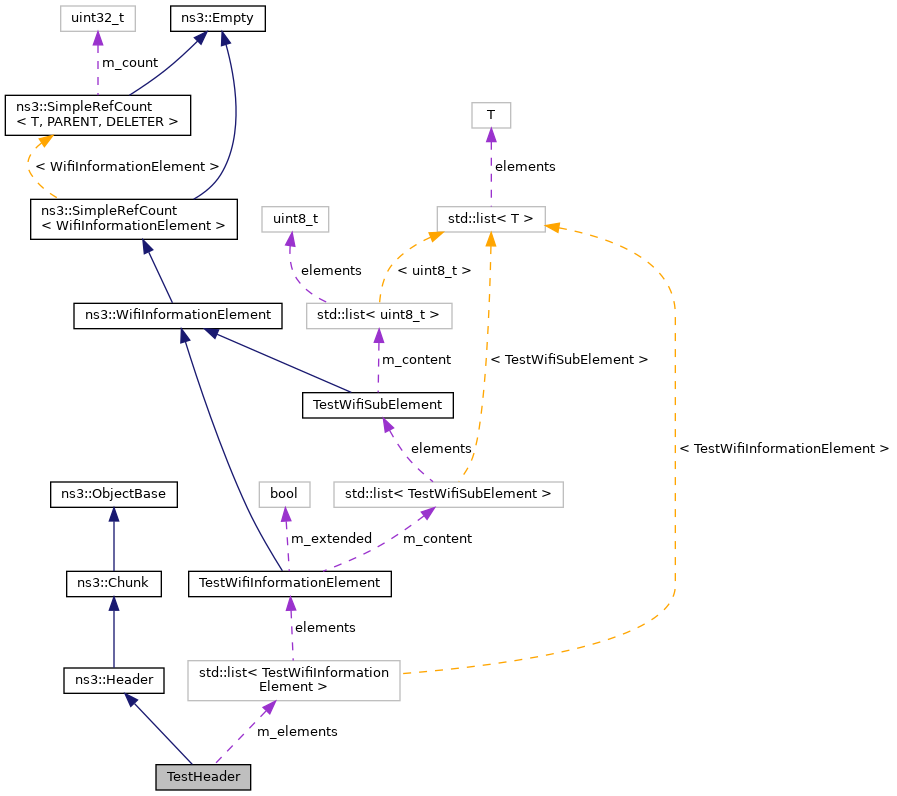

Collaboration diagram for TestHeader:

Public Member Functions
void	AddTestIe (TestWifiInformationElement &&element)
	Append the given wifi test information element. More...

uint32_t	Deserialize (Buffer::Iterator start) override

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
std::list< TestWifiInformationElement >	m_elements
	test information elements More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Test header that can contain multiple test information elements.

Definition at line 208 of file wifi-ie-fragment-test.cc.

Member Function Documentation

◆ AddTestIe()

void TestHeader::AddTestIe ( TestWifiInformationElement && element )

Append the given wifi test information element.

Parameters

element the given wifi test information element

Definition at line 303 of file wifi-ie-fragment-test.cc.

References m_elements, and NS_LOG_FUNCTION.

Referenced by WifiIeFragmentationTest::DoRun().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t TestHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 279 of file wifi-ie-fragment-test.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::IsEnd(), m_elements, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

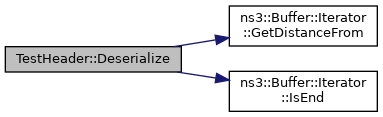

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId TestHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 247 of file wifi-ie-fragment-test.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t TestHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 258 of file wifi-ie-fragment-test.cc.

References m_elements.

Referenced by WifiIeFragmentationTest::DoRun().

Here is the caller graph for this function:

◆ GetTypeId()

ns3::TypeId TestHeader::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 237 of file wifi-ie-fragment-test.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

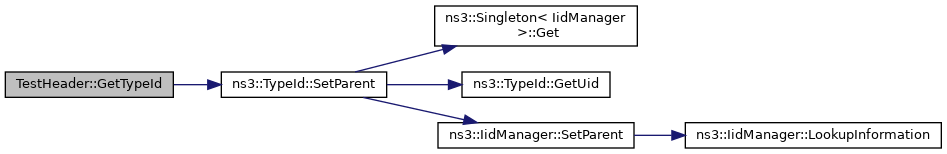

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void TestHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 253 of file wifi-ie-fragment-test.cc.

◆ Serialize()

void TestHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 269 of file wifi-ie-fragment-test.cc.

References m_elements, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::start.

Member Data Documentation

◆ m_elements

std::list<TestWifiInformationElement> TestHeader::m_elements

private

test information elements

Definition at line 231 of file wifi-ie-fragment-test.cc.

Referenced by AddTestIe(), Deserialize(), GetSerializedSize(), and Serialize().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-ie-fragment-test.cc
