wifi-backward-compatibility.cc File Reference

#include "ns3/boolean.h"
#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/enum.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/ipv4-global-routing-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/ssid.h"
#include "ns3/tuple.h"
#include "ns3/udp-client-server-helper.h"
#include "ns3/uinteger.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

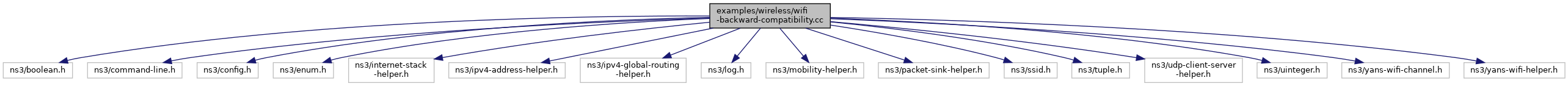

Include dependency graph for wifi-backward-compatibility.cc:

Go to the source code of this file.

Functions
std::pair< WifiStandard, WifiPhyBand >	ConvertStringToStandardAndBand (std::string version)
	Convert a string (e.g., "80211a") to a pair {WifiStandard, WifiPhyBand}. More...

Detailed Description

Usage

$ ./ns3 run "wifi-backward-compatibility [Program Options]"

Program Options

–simulationTime

Simulation time in seconds [10]

–apVersion

The standard version used by the AP: 80211a, 80211b, 80211g, 80211p, 80211n_2_4GHZ, 80211n_5GHZ, 80211ac, 80211ax_2_4GHZ or 80211ax_5GHZ [80211a]

–staVersion

The standard version used by the station: 80211a, 80211b, 80211g, 80211_10MHZ, 80211_5MHZ, 80211n_2_4GHZ, 80211n_5GHZ, 80211ac, 80211ax_2_4GHZ or 80211ax_5GHZ [80211n_5GHZ]

–apRaa

Rate adaptation algorithm used by the AP [Minstrel]

–staRaa

Rate adaptation algorithm used by the station [MinstrelHt]

–apHasTraffic

Enable/disable traffic on the AP [false]

–staHasTraffic

Enable/disable traffic on the station [true]

Definition in file wifi-backward-compatibility.cc.

Function Documentation

ConvertStringToStandardAndBand()

std::pair<WifiStandard, WifiPhyBand> ConvertStringToStandardAndBand

(

std::string

version

)

Convert a string (e.g., "80211a") to a pair {WifiStandard, WifiPhyBand}.

Parameters

version

The WiFi standard version.

Returns

a pair of WifiStandard, WifiPhyBand

Definition at line 60 of file wifi-backward-compatibility.cc.

References conf::version, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n, and ns3::WIFI_STANDARD_80211p.
