Header of IPv6 Extension Destination. More...
#include "ipv6-extension-header.h"

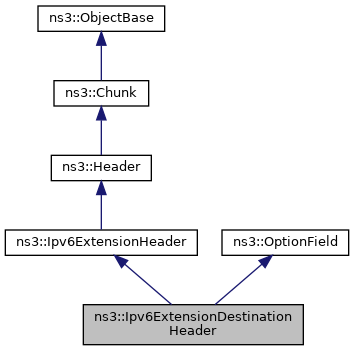

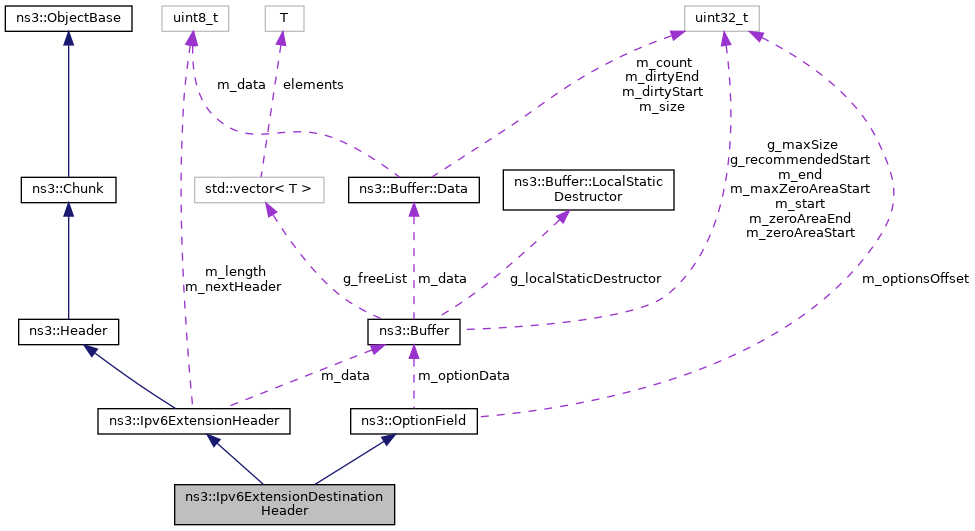

Inheritance diagram for ns3::Ipv6ExtensionDestinationHeader: Collaboration diagram for ns3::Ipv6ExtensionDestinationHeader:Public Member Functions | |
| Ipv6ExtensionDestinationHeader () | |
| Constructor. More... | |
| ~Ipv6ExtensionDestinationHeader () override | |
| Destructor. More... | |
| uint32_t | Deserialize (Buffer::Iterator start) override |
| Deserialize the packet. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the instance type ID. More... | |
| uint32_t | GetSerializedSize () const override |
| Get the serialized size of the packet. More... | |
| void | Print (std::ostream &os) const override |
| Print some information about the packet. More... | |
| void | Serialize (Buffer::Iterator start) const override |
| Serialize the packet. More... | |
| Public Member Functions inherited from ns3::Ipv6ExtensionHeader | |
| Ipv6ExtensionHeader () | |
| Constructor. More... | |
| ~Ipv6ExtensionHeader () override | |
| Destructor. More... | |
| uint16_t | GetLength () const |
| Get the length of the extension. More... | |
| uint8_t | GetNextHeader () const |
| Get the next header. More... | |
| void | SetLength (uint16_t length) |
| brief Set the length of the extension. More... | |
| void | SetNextHeader (uint8_t nextHeader) |
| Set the "Next header" field. More... | |
| Public Member Functions inherited from ns3::Header | |
| ~Header () override | |
| virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
| Deserialize the object from a buffer iterator. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::Chunk | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
| Public Member Functions inherited from ns3::OptionField | |
| OptionField (uint32_t optionsOffset) | |
| Constructor. More... | |
| ~OptionField () | |
| Destructor. More... | |
| void | AddOption (const Ipv6OptionHeader &option) |
| Serialize the option, prepending pad1 or padn option as necessary. More... | |
| uint32_t | Deserialize (Buffer::Iterator start, uint32_t length) |
| Deserialize the packet. More... | |
| Buffer | GetOptionBuffer () |
| Get the buffer. More... | |
| uint32_t | GetOptionsOffset () const |
| Get the offset where the options begin, measured from the start of the extension header. More... | |
| uint32_t | GetSerializedSize () const |
| Get the serialized size of the packet. More... | |
| void | Serialize (Buffer::Iterator start) const |
| Serialize all added options. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Protected Attributes inherited from ns3::Ipv6ExtensionHeader | |
| uint8_t | m_length |
| The "length" field. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Header of IPv6 Extension Destination.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).
Definition at line 277 of file ipv6-extension-header.h.
| ns3::Ipv6ExtensionDestinationHeader::Ipv6ExtensionDestinationHeader | ( | ) |
Constructor.
Definition at line 310 of file ipv6-extension-header.cc.
|
override |
Destructor.
Definition at line 315 of file ipv6-extension-header.cc.
|
overridevirtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 343 of file ipv6-extension-header.cc.
References ns3::OptionField::Deserialize(), ns3::Ipv6ExtensionHeader::GetLength(), GetSerializedSize(), ns3::Ipv6ExtensionHeader::m_length, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and two-ray-to-three-gpp-ch-calibration::start.
Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

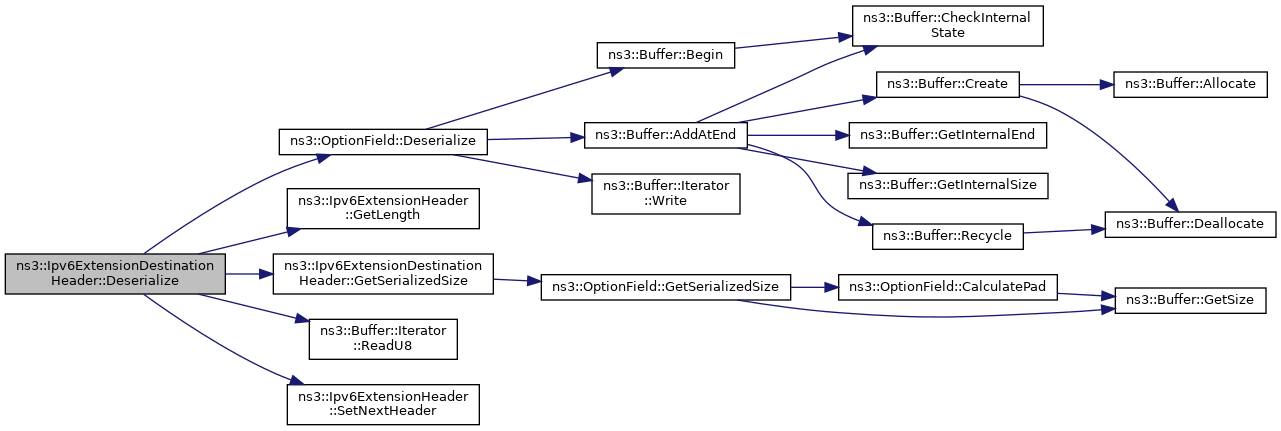

Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 305 of file ipv6-extension-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
overridevirtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 327 of file ipv6-extension-header.cc.
References ns3::OptionField::GetSerializedSize().
Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), TestFulfilledAlignment::DoRun(), and Serialize().

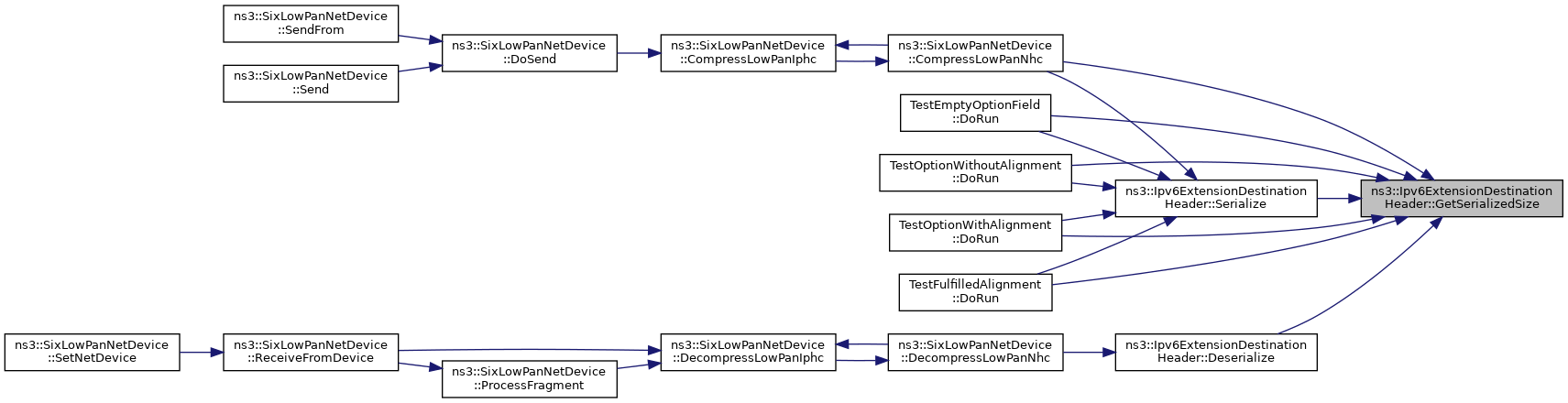

Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 295 of file ipv6-extension-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Print some information about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 320 of file ipv6-extension-header.cc.
References ns3::Ipv6ExtensionHeader::GetLength(), and ns3::Ipv6ExtensionHeader::GetNextHeader().

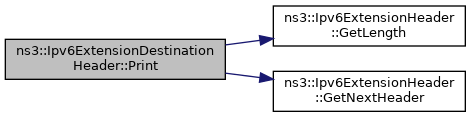

Here is the call graph for this function:
|
overridevirtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 333 of file ipv6-extension-header.cc.
References ns3::Ipv6ExtensionHeader::GetNextHeader(), GetSerializedSize(), ns3::OptionField::Serialize(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), and TestFulfilledAlignment::DoRun().

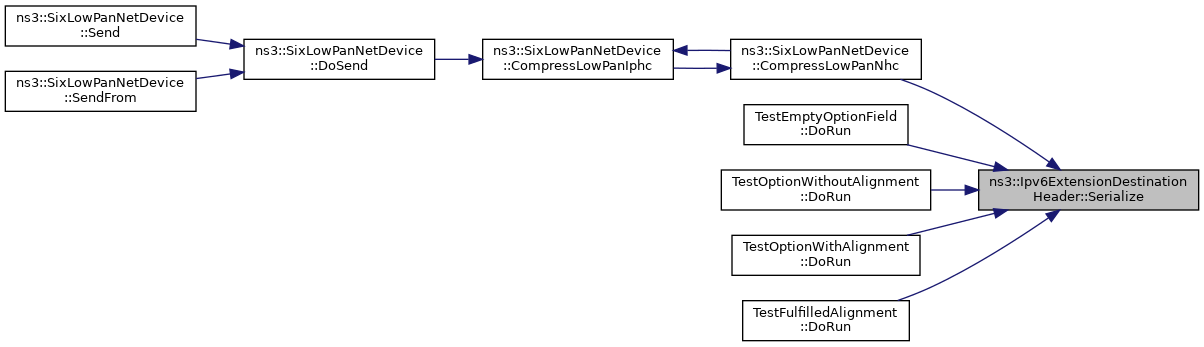

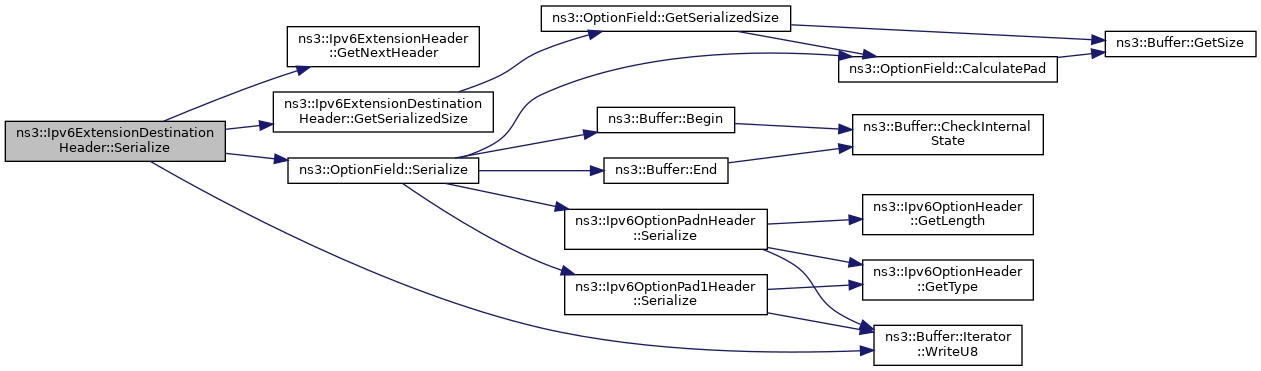

Here is the call graph for this function: Here is the caller graph for this function:
