HE PPDU (11ax) More...

#include "he-ppdu.h"

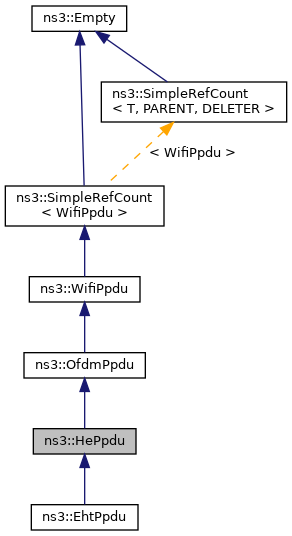

Inheritance diagram for ns3::HePpdu:

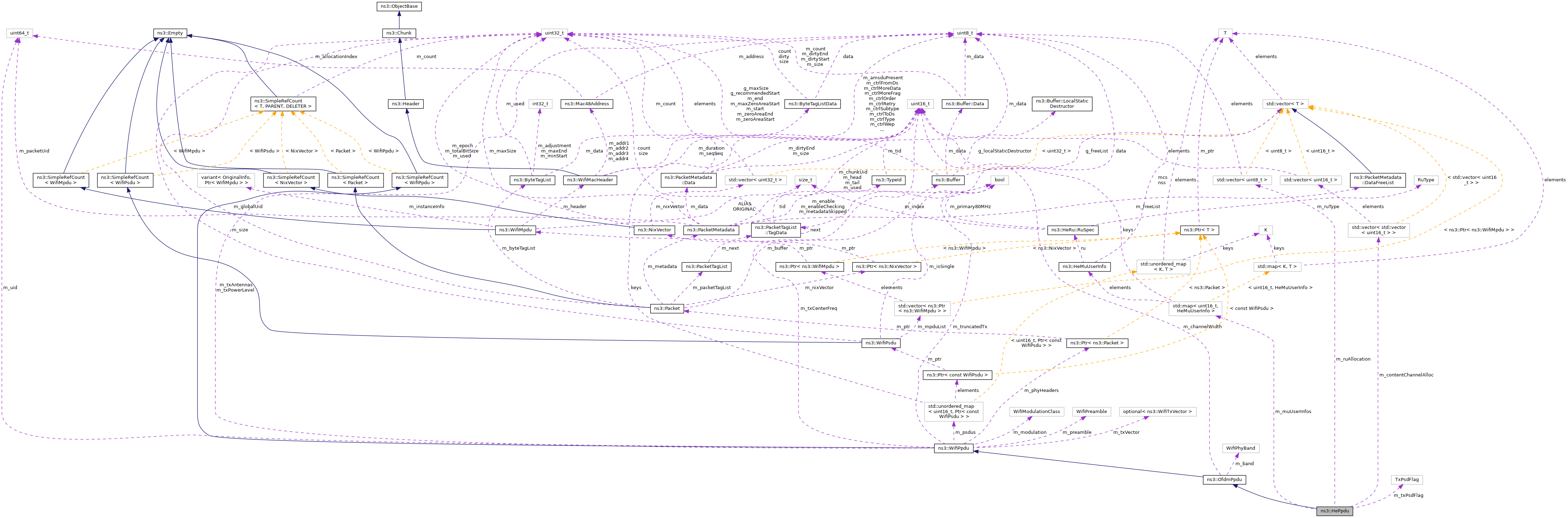

Collaboration diagram for ns3::HePpdu:

Classes
class	HeSigHeader
	HE-SIG PHY header (HE-SIG-A1/A2/B) More...

Public Types
enum	TxPsdFlag { PSD_NON_HE_PORTION , PSD_HE_PORTION }
	The transmit power spectral density flag, namely used to correctly build PSDs for pre-HE and HE portions. More...

Public Member Functions
	HePpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid, TxPsdFlag flag)
	Create an MU HE PPDU, storing a map of PSDUs. More...

	HePpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid)
	Create an SU HE PPDU, storing a PSDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Ptr< const WifiPsdu >	GetPsdu (uint8_t bssColor, uint16_t staId=SU_STA_ID) const
	Get the payload of the PPDU. More...

uint16_t	GetStaId () const override
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...

uint16_t	GetTransmissionChannelWidth () const override
	Get the channel width over which the PPDU will effectively be transmitted. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

TxPsdFlag	GetTxPsdFlag () const

WifiPpduType	GetType () const override
	Return the PPDU type (. More...

bool	IsAllocated (uint16_t staId) const
	Check if STA ID is allocated. More...

bool	IsStaInContentChannel (uint16_t staId, size_t channelId) const
	Check if STA ID is in HE SIG-B Content Channel ID. More...

void	SetTxPsdFlag (TxPsdFlag flag) const

void	UpdateTxVectorForUlMu (const std::optional< WifiTxVector > &trigVector) const
	Update the TXVECTOR for HE TB PPDUs, since the information to decode HE TB PPDUs is not available from the PHY headers but it requires information from the TRIGVECTOR of the AP expecting these HE TB PPDUs. More...

Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, WifiPhyBand band, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...

	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...

virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...

bool	DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
	Check whether the given PPDU overlaps a given channel. More...

WifiModulationClass	GetModulation () const
	Get the modulation used for the PPDU. More...

WifiPreamble	GetPreamble () const
	Get the preamble of the PPDU. More...

Ptr< const WifiPsdu >	GetPsdu () const
	Get the payload of the PPDU. More...

uint16_t	GetTxCenterFreq () const

const WifiTxVector &	GetTxVector () const
	Get the TXVECTOR used to send the PPDU. More...

uint64_t	GetUid () const
	Get the UID of the PPDU. More...

bool	IsTruncatedTx () const

void	Print (std::ostream &os) const
	Print the PPDU contents. More...

void	ResetTxVector () const
	Reset the TXVECTOR. More...

void	SetTruncatedTx ()
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...

void	UpdateTxVector (const WifiTxVector &updatedTxVector) const
	Update the TXVECTOR based on some information known at the receiver. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Protected Member Functions
virtual void	SetTxVectorFromPhyHeaders (WifiTxVector &txVector, const LSigHeader &lSig, const HeSigHeader &heSig) const
	Fill in the TXVECTOR from PHY headers. More...

Protected Attributes
ContentChannelAllocation	m_contentChannelAlloc
	HE SIG-B Content Channel allocation (to be removed once HE-SIG-B headers are implemented) More...

WifiTxVector::HeMuUserInfoMap	m_muUserInfos
	HE MU specific per-user information (to be removed once HE-SIG-B headers are implemented) More...

RuAllocation	m_ruAllocation
	RU_ALLOCATION in SIG-B common field (to be removed once HE-SIG-B headers are implemented) More...

TxPsdFlag	m_txPsdFlag
	the transmit power spectral density flag More...

Protected Attributes inherited from ns3::OfdmPpdu
WifiPhyBand	m_band
	the WifiPhyBand used to transmit that PPDU More...

Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...

Ptr< Packet >	m_phyHeaders
	the PHY headers contained in this PPDU More...

WifiPreamble	m_preamble
	the PHY preamble More...

WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...

uint16_t	m_txCenterFreq
	the center frequency (MHz) used for the transmission of this PPDU More...

std::optional< WifiTxVector >	m_txVector
	the TXVECTOR at TX PHY or the reconstructed TXVECTOR at RX PHY (or std::nullopt if TXVECTOR has not been reconstructed yet) More...

uint64_t	m_uid
	the unique ID of this PPDU More...

Private Member Functions
WifiTxVector	DoGetTxVector () const override
	Get the TXVECTOR used to send the PPDU. More...

virtual bool	IsDlMu () const
	Return true if the PPDU is a DL MU PPDU. More...

virtual bool	IsMu () const
	Return true if the PPDU is a MU PPDU. More...

virtual bool	IsUlMu () const
	Return true if the PPDU is an UL MU PPDU. More...

std::string	PrintPayload () const override
	Print the payload of the PPDU. More...

void	SetHeSigHeader (HeSigHeader &heSig, const WifiTxVector &txVector) const
	Fill in the HE-SIG header. More...

virtual void	SetLSigHeader (LSigHeader &lSig, Time ppduDuration) const
	Fill in the L-SIG header. More...

virtual void	SetPhyHeaders (const WifiTxVector &txVector, Time ppduDuration)
	Fill in the PHY headers. More...

Detailed Description

HE PPDU (11ax)

HePpdu stores a preamble, PHY headers and a map of PSDUs of a PPDU with HE header

Definition at line 44 of file he-ppdu.h.

Member Enumeration Documentation

◆ TxPsdFlag

enum ns3::HePpdu::TxPsdFlag

The transmit power spectral density flag, namely used to correctly build PSDs for pre-HE and HE portions.

Enumerator
PSD_NON_HE_PORTION	Non-HE portion of an HE PPDU.
PSD_HE_PORTION	HE portion of an HE PPDU.

Definition at line 155 of file he-ppdu.h.

Constructor & Destructor Documentation

◆ HePpdu() [1/2]

ns3::HePpdu::HePpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		uint16_t	txCenterFreq,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid
	)

Create an SU HE PPDU, storing a PSDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
txCenterFreq	the center frequency (MHz) that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU

Definition at line 86 of file he-ppdu.cc.

References IsMu(), NS_ASSERT, NS_LOG_FUNCTION, PSD_NON_HE_PORTION, SetPhyHeaders(), and SetTxPsdFlag().

Referenced by Copy().

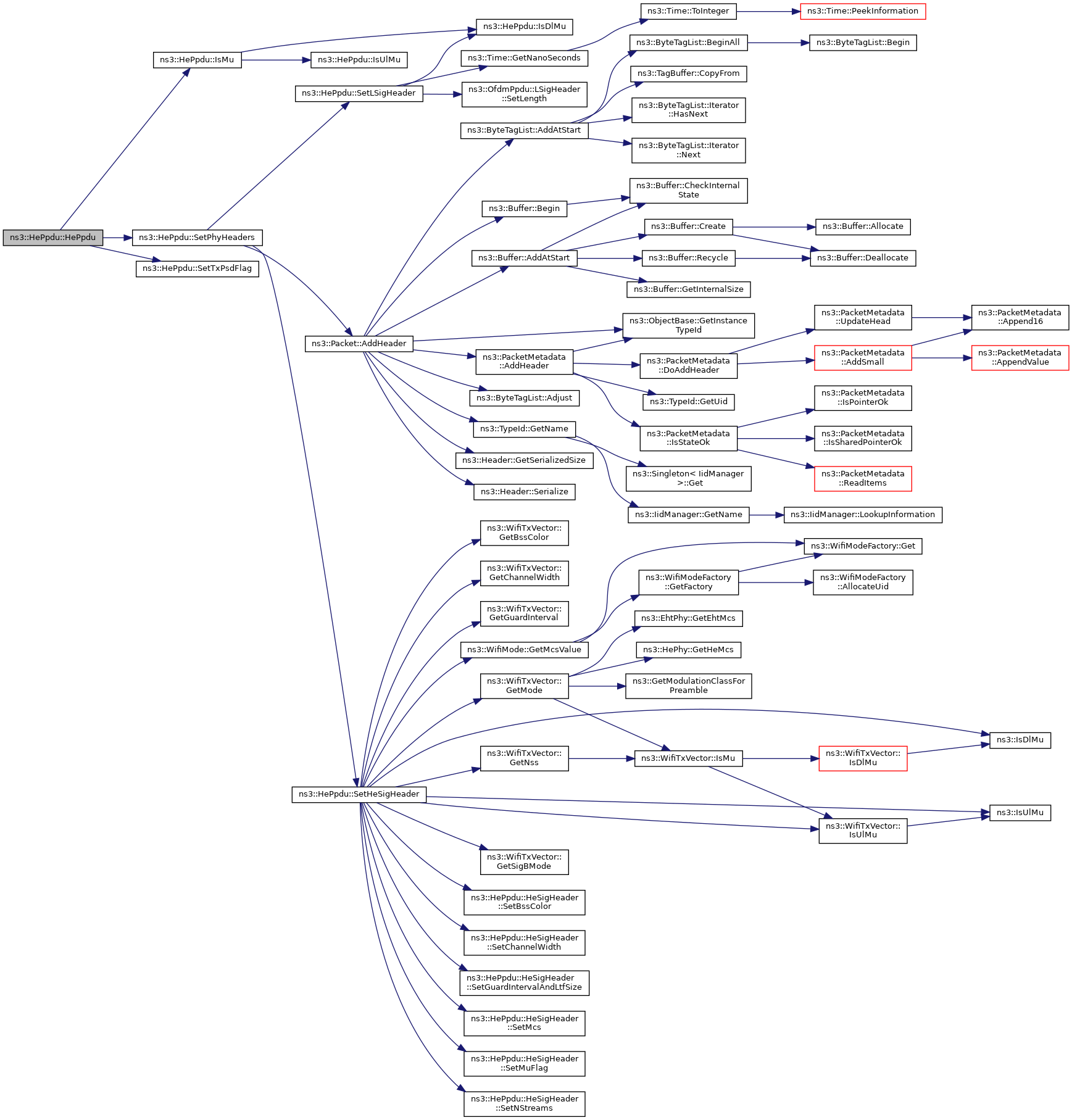

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HePpdu() [2/2]

ns3::HePpdu::HePpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		uint16_t	txCenterFreq,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid,
		TxPsdFlag	flag
	)

Create an MU HE PPDU, storing a map of PSDUs.

This PPDU can either be UL or DL.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for this PPDU
txCenterFreq	the center frequency (MHz) that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU or of the triggering PPDU if this is an HE TB PPDU
flag	the flag indicating the type of Tx PSD to build

Definition at line 51 of file he-ppdu.cc.

References ns3::WifiTxVector::GetContentChannelAllocation(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetRuAllocation(), ns3::WifiTxVector::IsMu(), m_contentChannelAlloc, m_muUserInfos, ns3::WifiPpdu::m_psdus, m_ruAllocation, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, SetPhyHeaders(), and SetTxPsdFlag().

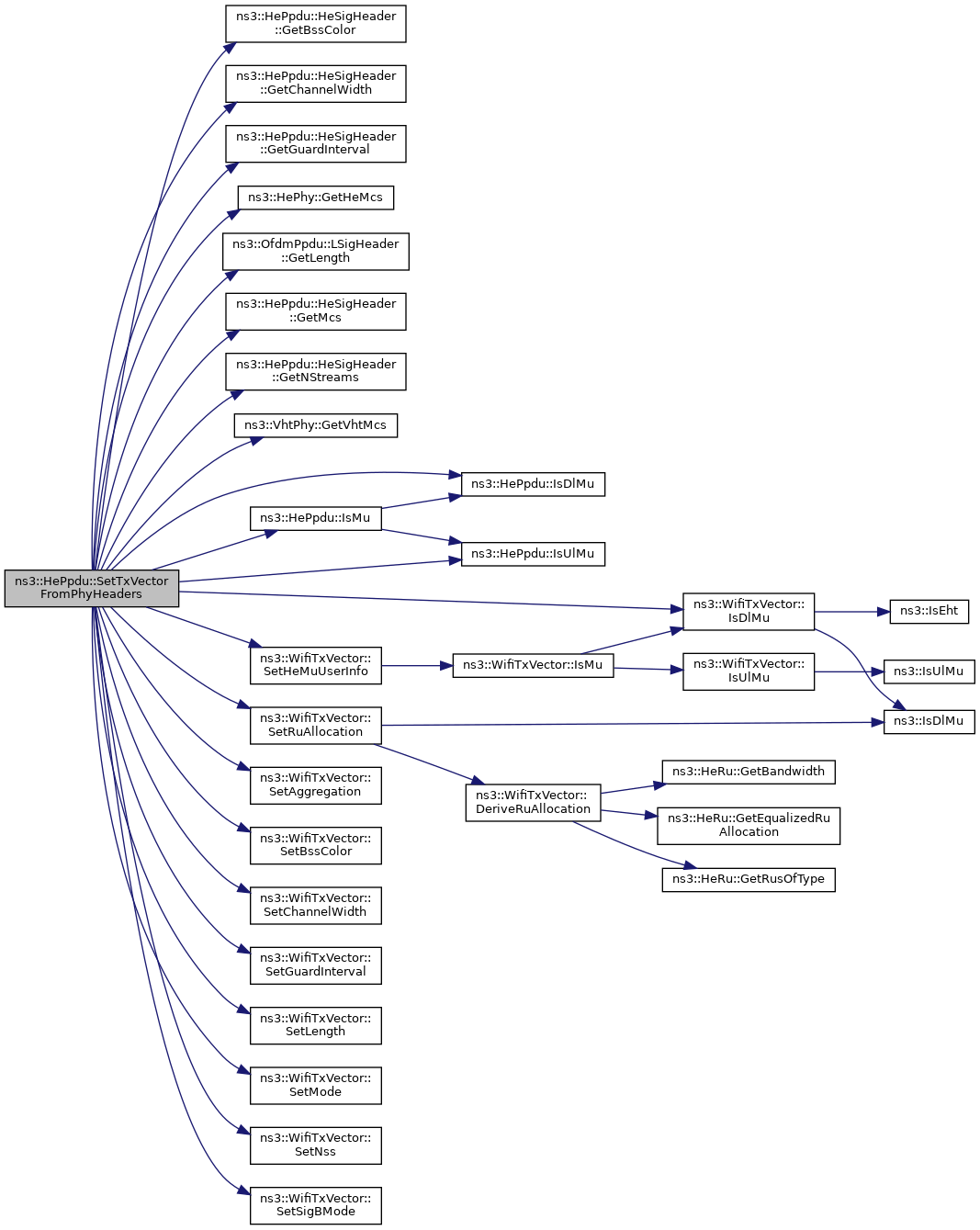

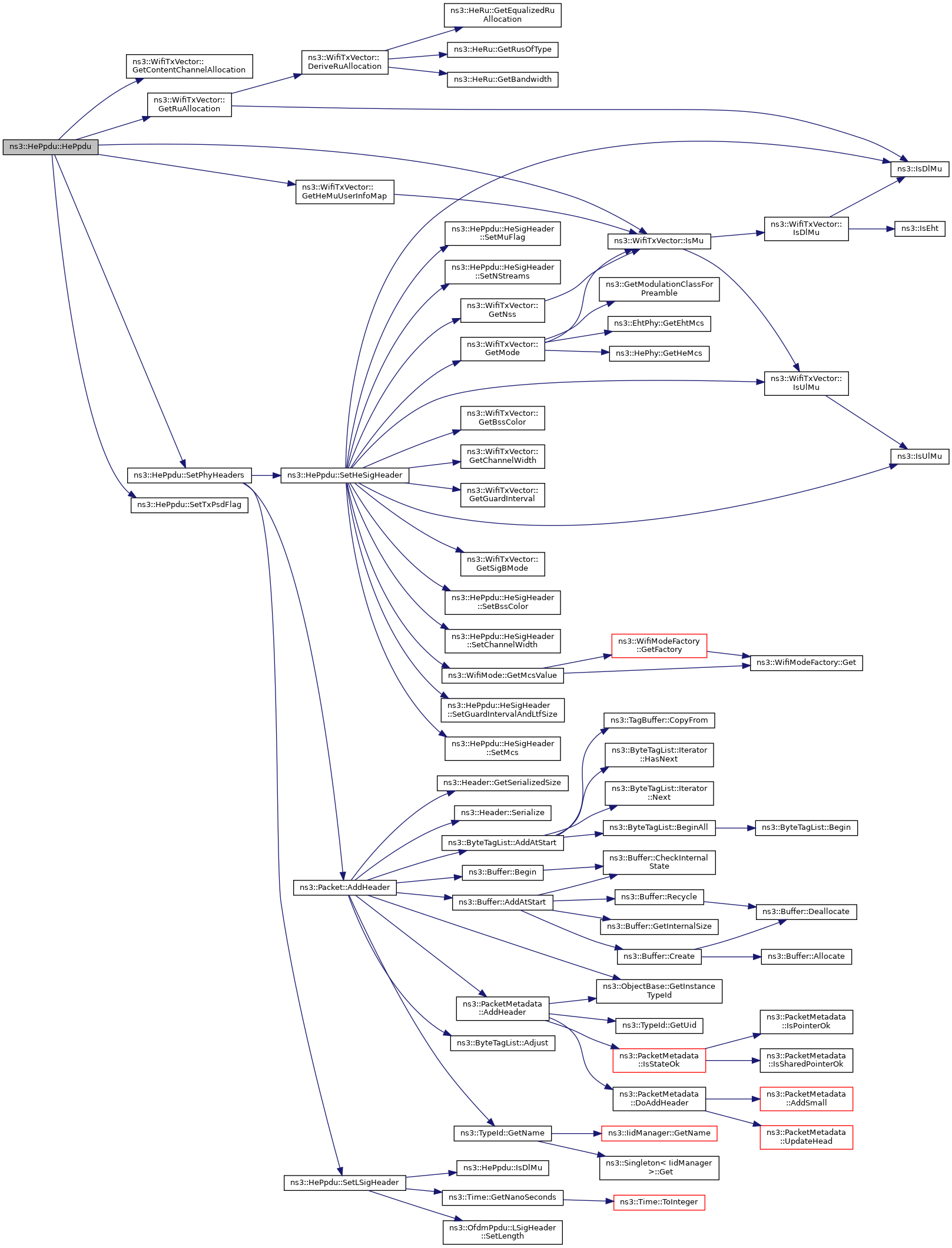

Here is the call graph for this function:

Member Function Documentation

◆ Copy()

Ptr< WifiPpdu > ns3::HePpdu::Copy ( ) const

overridevirtual

Copy this instance.

Returns: a Ptr to a copy of this instance.

Reimplemented from ns3::WifiPpdu.

Definition at line 261 of file he-ppdu.cc.

References HePpdu().

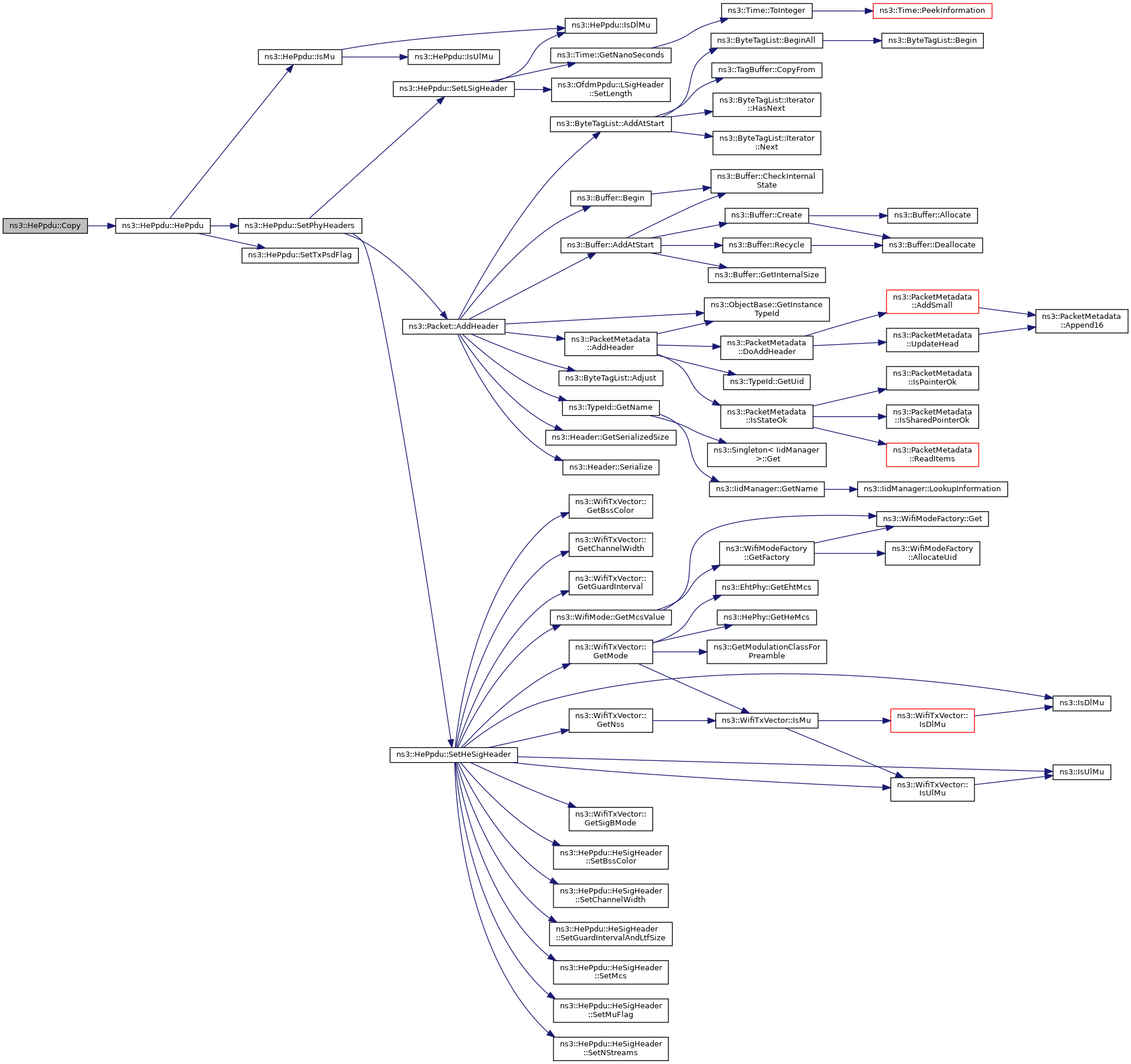

Here is the call graph for this function:

◆ DoGetTxVector()

WifiTxVector ns3::HePpdu::DoGetTxVector ( ) const

overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns: the TXVECTOR of the PPDU.

Reimplemented from ns3::WifiPpdu.

Definition at line 165 of file he-ppdu.cc.

References ns3::Packet::Copy(), ns3::WifiPpdu::m_phyHeaders, ns3::WifiPpdu::m_preamble, NS_FATAL_ERROR, ns3::WifiTxVector::SetPreambleType(), and SetTxVectorFromPhyHeaders().

Here is the call graph for this function:

◆ GetPsdu()

Ptr< const WifiPsdu > ns3::HePpdu::GetPsdu	(	uint8_t	bssColor,
		uint16_t	staId = `SU_STA_ID`
	)		const

Get the payload of the PPDU.

Parameters

bssColor	the BSS color of the PHY calling this function.
staId	the STA-ID of the PHY calling this function.

Returns: the PSDU

Definition at line 299 of file he-ppdu.cc.

References ns3::Packet::Copy(), ns3::HePpdu::HeSigHeader::GetBssColor(), IsMu(), IsUlMu(), ns3::WifiPpdu::m_phyHeaders, ns3::WifiPpdu::m_psdus, NS_ASSERT, and SU_STA_ID.

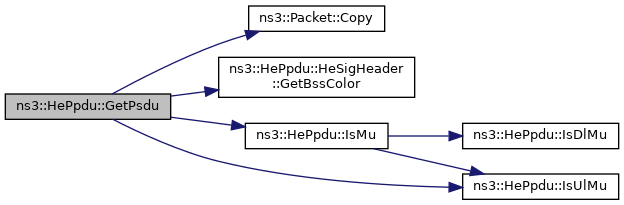

Here is the call graph for this function:

◆ GetStaId()

uint16_t ns3::HePpdu::GetStaId ( ) const

overridevirtual

Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise.

Returns: the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise

Reimplemented from ns3::WifiPpdu.

Definition at line 342 of file he-ppdu.cc.

References IsUlMu(), ns3::WifiPpdu::m_psdus, and NS_ASSERT.

Referenced by GetTransmissionChannelWidth(), and UpdateTxVectorForUlMu().

Here is the call graph for this function:

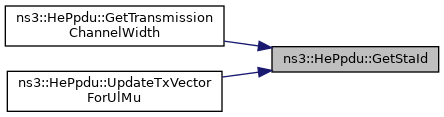

Here is the caller graph for this function:

◆ GetTransmissionChannelWidth()

uint16_t ns3::HePpdu::GetTransmissionChannelWidth ( ) const

overridevirtual

Get the channel width over which the PPDU will effectively be transmitted.

Returns: the effective channel width (in MHz) used for the tranmsission

Reimplemented from ns3::WifiPpdu.

Definition at line 349 of file he-ppdu.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetRu(), GetStaId(), ns3::WifiPpdu::GetTransmissionChannelWidth(), GetTxPsdFlag(), ns3::WifiPpdu::GetTxVector(), ns3::WifiTxVector::IsUlMu(), NS_LOG_INFO, PSD_NON_HE_PORTION, and SU_STA_ID.

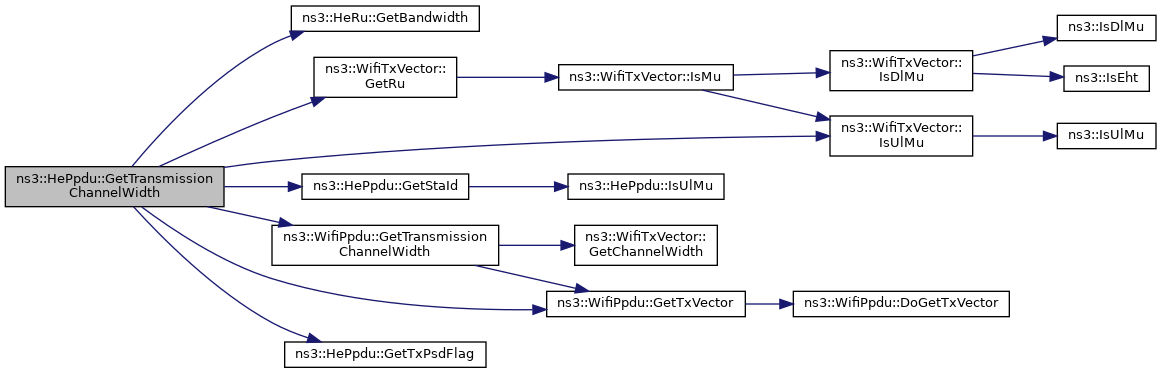

Here is the call graph for this function:

◆ GetTxDuration()

Time ns3::HePpdu::GetTxDuration ( ) const

overridevirtual

Get the total transmission duration of the PPDU.

Returns: the transmission duration of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 226 of file he-ppdu.cc.

References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetGuardInterval(), ns3::OfdmPpdu::LSigHeader::GetLength(), ns3::Time::GetNanoSeconds(), ns3::WifiPpdu::GetTxVector(), IsDlMu(), two-ray-to-three-gpp-ch-calibration::m, ns3::OfdmPpdu::m_band, ns3::WifiPpdu::m_phyHeaders, ns3::MicroSeconds(), ns3::NanoSeconds(), NS_ASSERT, ns3::Packet::PeekHeader(), ns3::Seconds(), and ns3::WIFI_PHY_BAND_2_4GHZ.

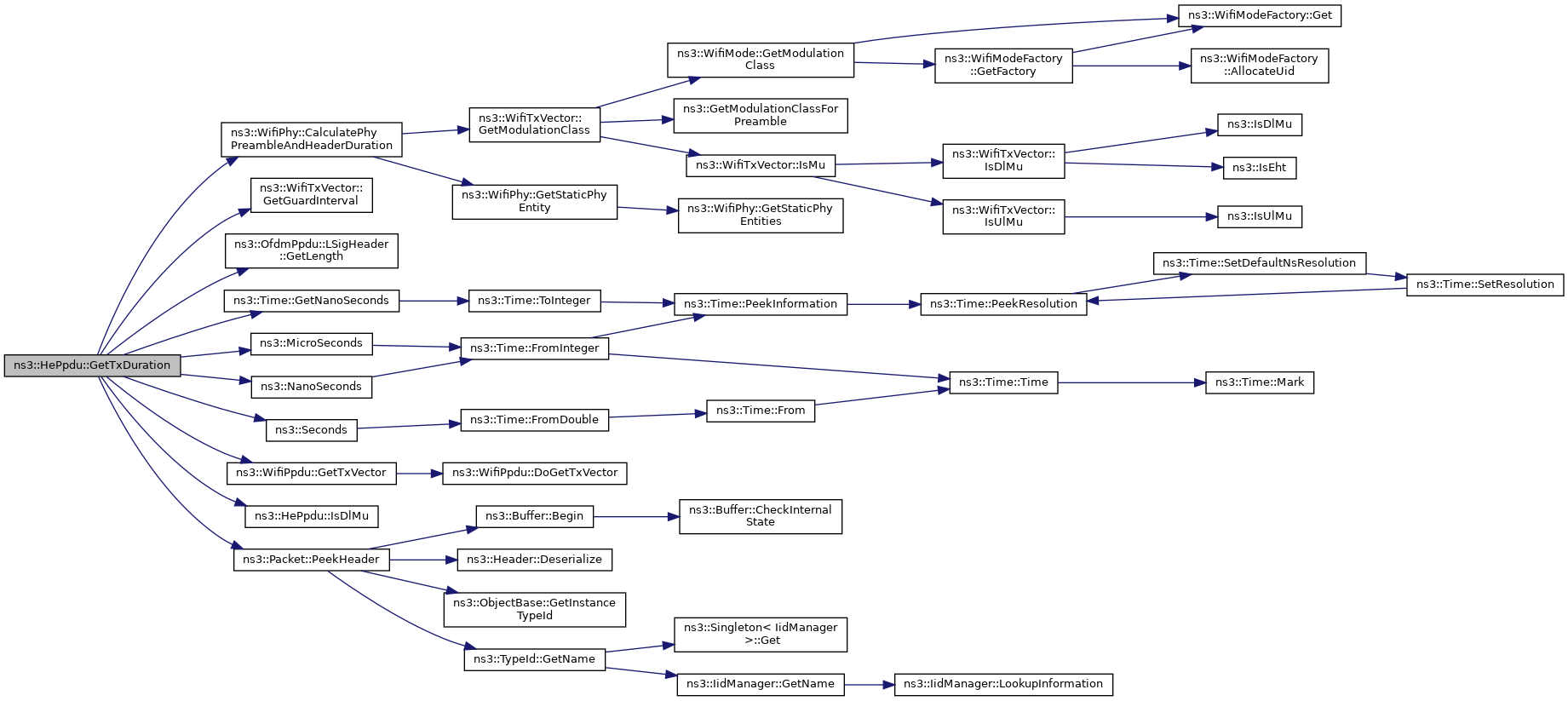

Here is the call graph for this function:

◆ GetTxPsdFlag()

HePpdu::TxPsdFlag ns3::HePpdu::GetTxPsdFlag ( ) const

Returns: the transmit PSD flag set for this PPDU

See also: TxPsdFlag

Definition at line 368 of file he-ppdu.cc.

References m_txPsdFlag.

Referenced by GetTransmissionChannelWidth().

Here is the caller graph for this function:

◆ GetType()

WifiPpduType ns3::HePpdu::GetType ( ) const

overridevirtual

Return the PPDU type (.

See also: WifiPpduType)

Returns: the PPDU type

Reimplemented from ns3::WifiPpdu.

Definition at line 267 of file he-ppdu.cc.

References ns3::WifiPpdu::m_preamble, ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, ns3::WIFI_PPDU_TYPE_UL_MU, ns3::WIFI_PREAMBLE_HE_MU, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by UpdateTxVectorForUlMu().

Here is the caller graph for this function:

◆ IsAllocated()

bool ns3::HePpdu::IsAllocated ( uint16_t staId ) const

Check if STA ID is allocated.

Parameters

staId STA ID

Returns: true if allocated, false otherwise

Definition at line 417 of file he-ppdu.cc.

References m_muUserInfos.

◆ IsDlMu()

bool ns3::HePpdu::IsDlMu ( ) const

privatevirtual

Return true if the PPDU is a DL MU PPDU.

Returns: true if the PPDU is a DL MU PPDU

Reimplemented in ns3::EhtPpdu.

Definition at line 287 of file he-ppdu.cc.

References ns3::WifiPpdu::m_preamble, and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by GetTxDuration(), IsMu(), SetLSigHeader(), and SetTxVectorFromPhyHeaders().

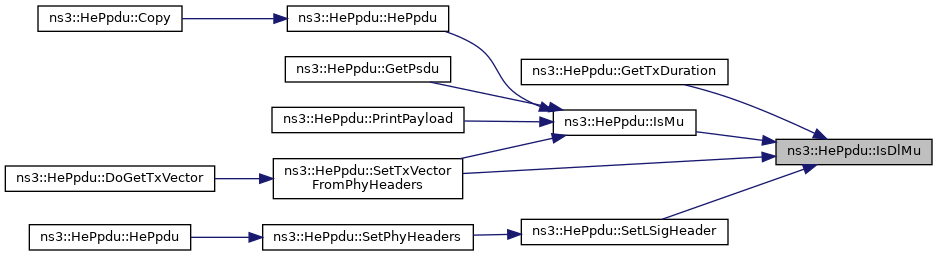

Here is the caller graph for this function:

◆ IsMu()

bool ns3::HePpdu::IsMu ( ) const

privatevirtual

Return true if the PPDU is a MU PPDU.

Returns: true if the PPDU is a MU PPDU

Definition at line 281 of file he-ppdu.cc.

References IsDlMu(), and IsUlMu().

Referenced by HePpdu(), GetPsdu(), PrintPayload(), and SetTxVectorFromPhyHeaders().

Here is the call graph for this function:

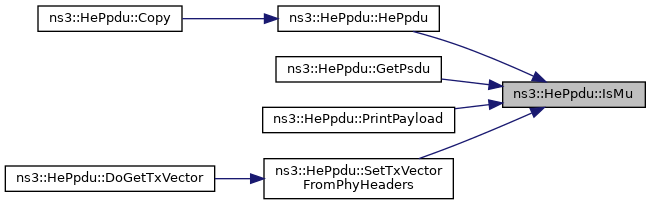

Here is the caller graph for this function:

◆ IsStaInContentChannel()

bool ns3::HePpdu::IsStaInContentChannel	(	uint16_t	staId,
		size_t	channelId
	)		const

Check if STA ID is in HE SIG-B Content Channel ID.

Parameters

staId	STA ID
channelId	Content Channel ID

Returns: true if STA ID in content channel ID, false otherwise

Definition at line 423 of file he-ppdu.cc.

References m_contentChannelAlloc, and NS_ASSERT_MSG.

◆ IsUlMu()

bool ns3::HePpdu::IsUlMu ( ) const

privatevirtual

Return true if the PPDU is an UL MU PPDU.

Returns: true if the PPDU is an UL MU PPDU

Reimplemented in ns3::EhtPpdu.

Definition at line 293 of file he-ppdu.cc.

References ns3::WifiPpdu::m_preamble, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by GetPsdu(), GetStaId(), IsMu(), and SetTxVectorFromPhyHeaders().

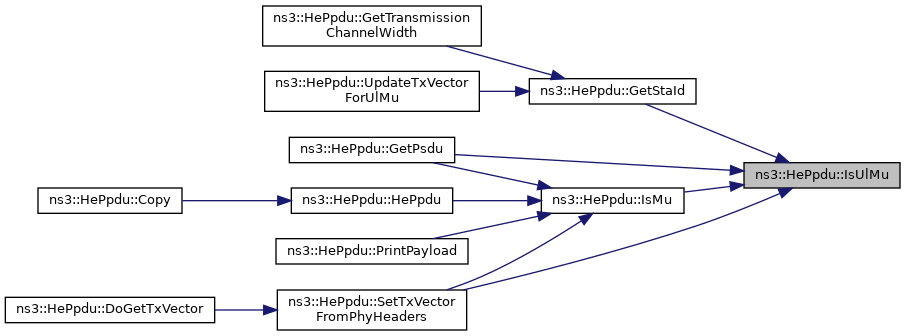

Here is the caller graph for this function:

◆ PrintPayload()

std::string ns3::HePpdu::PrintPayload ( ) const

overrideprivatevirtual

Print the payload of the PPDU.

Returns: information on the payload part of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 432 of file he-ppdu.cc.

References IsMu(), ns3::WifiPpdu::m_psdus, m_txPsdFlag, and SU_STA_ID.

Here is the call graph for this function:

◆ SetHeSigHeader()

void ns3::HePpdu::SetHeSigHeader	(	HeSigHeader &	heSig,
		const WifiTxVector &	txVector
	)		const

private

Fill in the HE-SIG header.

Parameters

heSig	the HE-SIG header to fill in
txVector	the TXVECTOR that was used for this PPDU

Definition at line 144 of file he-ppdu.cc.

References ns3::WifiTxVector::GetBssColor(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetSigBMode(), ns3::IsDlMu(), ns3::WifiTxVector::IsUlMu(), ns3::IsUlMu(), ns3::WifiPpdu::m_preamble, ns3::HePpdu::HeSigHeader::SetBssColor(), ns3::HePpdu::HeSigHeader::SetChannelWidth(), ns3::HePpdu::HeSigHeader::SetGuardIntervalAndLtfSize(), ns3::HePpdu::HeSigHeader::SetMcs(), ns3::HePpdu::HeSigHeader::SetMuFlag(), and ns3::HePpdu::HeSigHeader::SetNStreams().

Referenced by SetPhyHeaders().

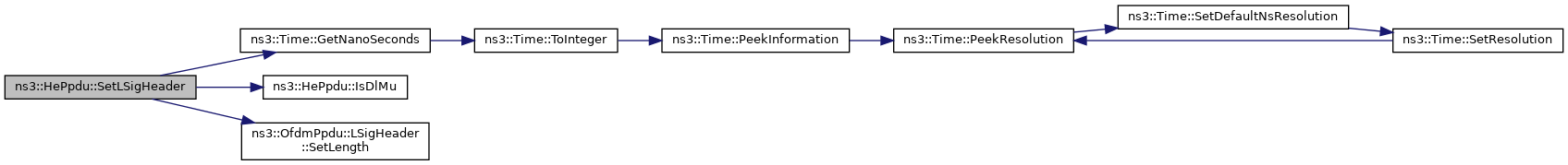

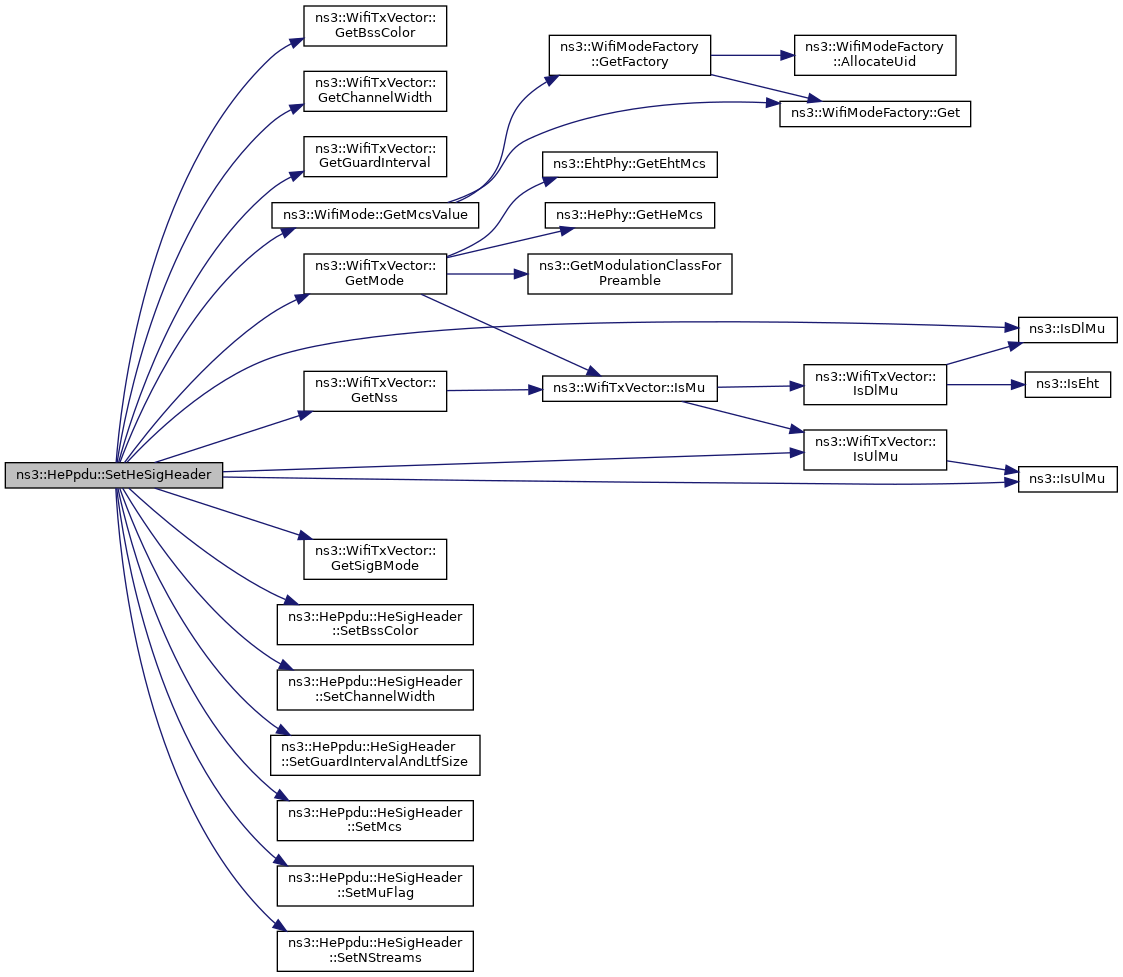

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLSigHeader()

void ns3::HePpdu::SetLSigHeader	(	LSigHeader &	lSig,
		Time	ppduDuration
	)		const

privatevirtual

Fill in the L-SIG header.

Parameters

lSig	the L-SIG header to fill in
ppduDuration	the transmission duration of this PPDU

Definition at line 126 of file he-ppdu.cc.

References ns3::Time::GetNanoSeconds(), IsDlMu(), two-ray-to-three-gpp-ch-calibration::m, ns3::OfdmPpdu::m_band, ns3::OfdmPpdu::LSigHeader::SetLength(), and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by SetPhyHeaders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPhyHeaders()

void ns3::HePpdu::SetPhyHeaders	(	const WifiTxVector &	txVector,
		Time	ppduDuration
	)

privatevirtual

Fill in the PHY headers.

Parameters

txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU

Definition at line 106 of file he-ppdu.cc.

References ns3::Packet::AddHeader(), ns3::WifiPpdu::m_phyHeaders, NS_LOG_FUNCTION, SetHeSigHeader(), and SetLSigHeader().

Referenced by HePpdu().

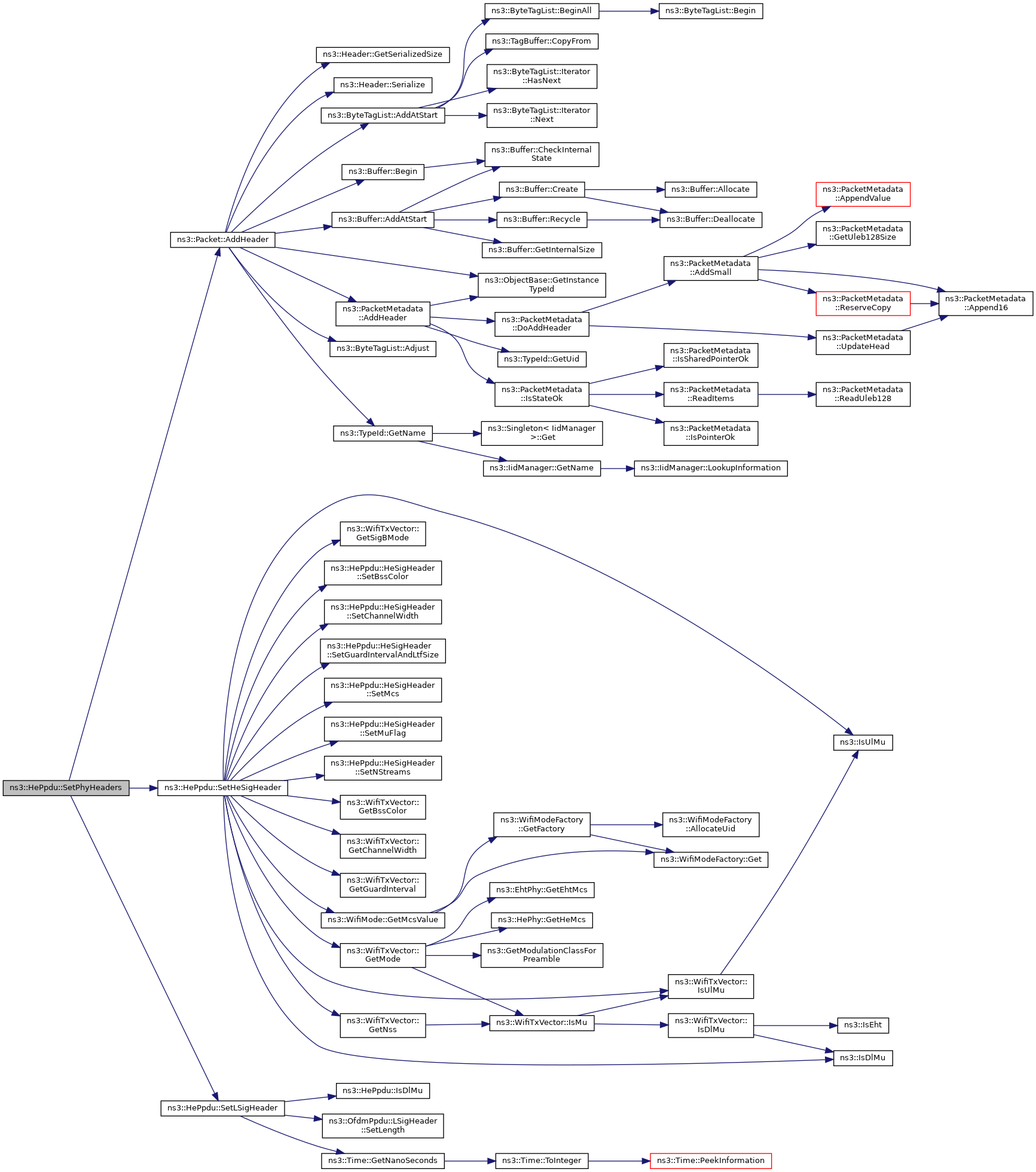

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxPsdFlag()

void ns3::HePpdu::SetTxPsdFlag ( TxPsdFlag flag ) const

Parameters

flag	the transmit PSD flag set for this PPDU

See also: TxPsdFlag

Definition at line 374 of file he-ppdu.cc.

References m_txPsdFlag, and NS_LOG_FUNCTION.

Referenced by HePpdu().

Here is the caller graph for this function:

◆ SetTxVectorFromPhyHeaders()

void ns3::HePpdu::SetTxVectorFromPhyHeaders	(	WifiTxVector &	txVector,
		const LSigHeader &	lSig,
		const HeSigHeader &	heSig
	)		const

protectedvirtual

Fill in the TXVECTOR from PHY headers.

Parameters

txVector	the TXVECTOR to fill in
lSig	the L-SIG header
heSig	the HE-SIG header

Reimplemented in ns3::EhtPpdu.

Definition at line 194 of file he-ppdu.cc.

References ns3::HePpdu::HeSigHeader::GetBssColor(), ns3::HePpdu::HeSigHeader::GetChannelWidth(), ns3::HePpdu::HeSigHeader::GetGuardInterval(), ns3::HePhy::GetHeMcs(), ns3::OfdmPpdu::LSigHeader::GetLength(), ns3::HePpdu::HeSigHeader::GetMcs(), ns3::HePpdu::HeSigHeader::GetNStreams(), ns3::VhtPhy::GetVhtMcs(), IsDlMu(), ns3::WifiTxVector::IsDlMu(), IsMu(), IsUlMu(), m_muUserInfos, ns3::WifiPpdu::m_psdus, m_ruAllocation, ns3::WifiTxVector::SetAggregation(), ns3::WifiTxVector::SetBssColor(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetLength(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetRuAllocation(), and ns3::WifiTxVector::SetSigBMode().

Referenced by DoGetTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateTxVectorForUlMu()

void ns3::HePpdu::UpdateTxVectorForUlMu ( const std::optional< WifiTxVector > & trigVector ) const

Update the TXVECTOR for HE TB PPDUs, since the information to decode HE TB PPDUs is not available from the PHY headers but it requires information from the TRIGVECTOR of the AP expecting these HE TB PPDUs.

Parameters

trigVector the TRIGVECTOR or std::nullopt if no TRIGVECTOR is available at the caller

Definition at line 381 of file he-ppdu.cc.

References ns3::WifiPpdu::GetModulation(), ns3::HeRu::GetRuType(), GetStaId(), ns3::WifiPpdu::GetTxVector(), GetType(), ns3::WifiPpdu::m_txVector, NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_TYPE_UL_MU.

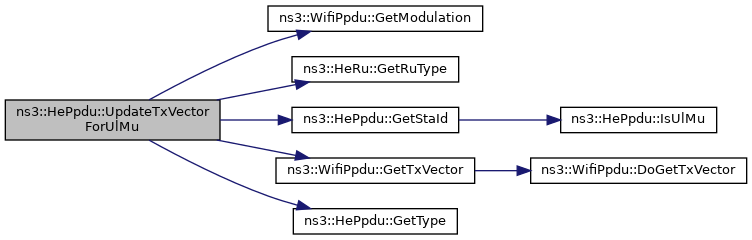

Here is the call graph for this function:

Member Data Documentation

◆ m_contentChannelAlloc

ContentChannelAllocation ns3::HePpdu::m_contentChannelAlloc

protected

HE SIG-B Content Channel allocation (to be removed once HE-SIG-B headers are implemented)

Definition at line 271 of file he-ppdu.h.

Referenced by ns3::EhtPpdu::EhtPpdu(), HePpdu(), and IsStaInContentChannel().

◆ m_muUserInfos

WifiTxVector::HeMuUserInfoMap ns3::HePpdu::m_muUserInfos

protected

HE MU specific per-user information (to be removed once HE-SIG-B headers are implemented)

Definition at line 268 of file he-ppdu.h.

Referenced by HePpdu(), ns3::EhtPpdu::GetType(), IsAllocated(), ns3::EhtPpdu::IsDlMu(), ns3::EhtPpdu::IsUlMu(), SetTxVectorFromPhyHeaders(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

◆ m_ruAllocation

RuAllocation ns3::HePpdu::m_ruAllocation

protected

RU_ALLOCATION in SIG-B common field (to be removed once HE-SIG-B headers are implemented)

Definition at line 273 of file he-ppdu.h.

Referenced by ns3::EhtPpdu::EhtPpdu(), HePpdu(), SetTxVectorFromPhyHeaders(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

◆ m_txPsdFlag

TxPsdFlag ns3::HePpdu::m_txPsdFlag

mutableprotected

the transmit power spectral density flag

Definition at line 266 of file he-ppdu.h.

Referenced by GetTxPsdFlag(), PrintPayload(), and SetTxPsdFlag().

The documentation for this class was generated from the following files:

src/wifi/model/he/he-ppdu.h
src/wifi/model/he/he-ppdu.cc

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Enumeration Documentation

◆ TxPsdFlag

Constructor & Destructor Documentation

◆ HePpdu() [1/2]

◆ HePpdu() [2/2]

Member Function Documentation

◆ Copy()

◆ DoGetTxVector()

◆ GetPsdu()

◆ GetStaId()

◆ GetTransmissionChannelWidth()

◆ GetTxDuration()

◆ GetTxPsdFlag()

◆ GetType()

◆ IsAllocated()

◆ IsDlMu()

◆ IsMu()

◆ IsStaInContentChannel()

◆ IsUlMu()

◆ PrintPayload()

◆ SetHeSigHeader()

◆ SetLSigHeader()

◆ SetPhyHeaders()

◆ SetTxPsdFlag()

◆ SetTxVectorFromPhyHeaders()

◆ UpdateTxVectorForUlMu()

Member Data Documentation

◆ m_contentChannelAlloc

◆ m_muUserInfos

◆ m_ruAllocation

◆ m_txPsdFlag
