EHT PPDU (11be) More...

#include "eht-ppdu.h"

Inheritance diagram for ns3::EhtPpdu:

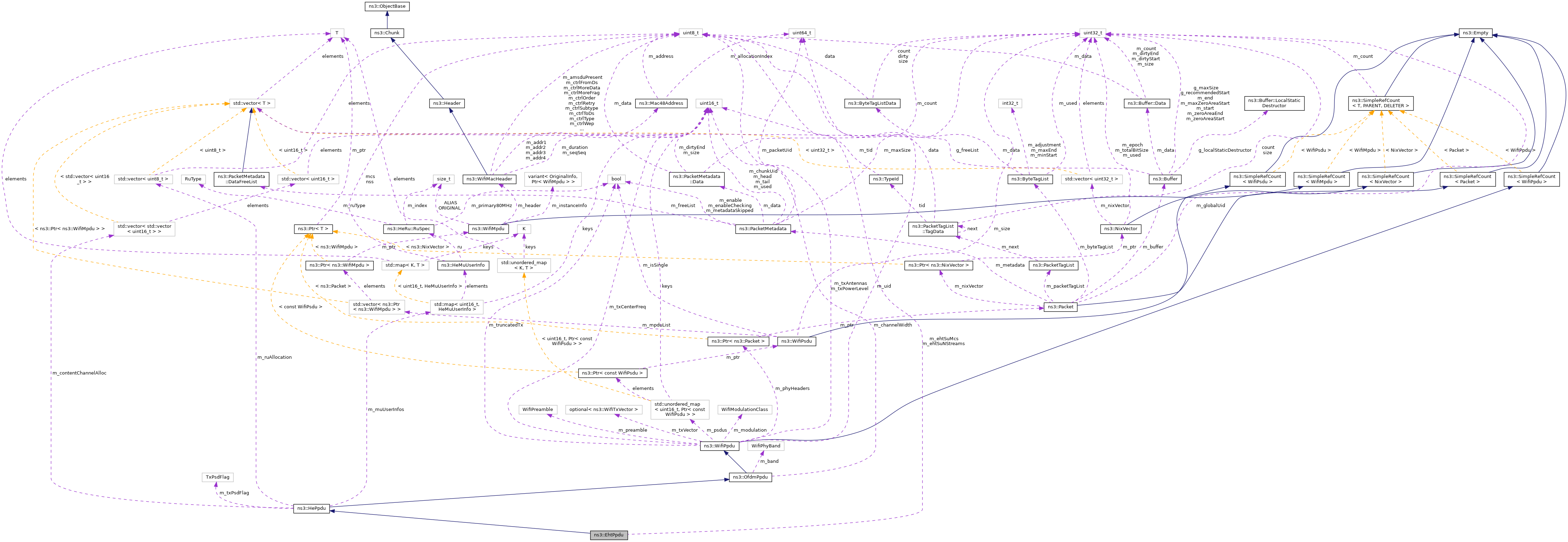

Collaboration diagram for ns3::EhtPpdu:

Public Member Functions
	EhtPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid, TxPsdFlag flag)
	Create an EHT PPDU, storing a map of PSDUs. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

WifiPpduType	GetType () const override
	Return the PPDU type (. More...

Public Member Functions inherited from ns3::HePpdu
	HePpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid, TxPsdFlag flag)
	Create an MU HE PPDU, storing a map of PSDUs. More...

	HePpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid)
	Create an SU HE PPDU, storing a PSDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Ptr< const WifiPsdu >	GetPsdu (uint8_t bssColor, uint16_t staId=SU_STA_ID) const
	Get the payload of the PPDU. More...

uint16_t	GetStaId () const override
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...

uint16_t	GetTransmissionChannelWidth () const override
	Get the channel width over which the PPDU will effectively be transmitted. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

TxPsdFlag	GetTxPsdFlag () const

WifiPpduType	GetType () const override
	Return the PPDU type (. More...

bool	IsAllocated (uint16_t staId) const
	Check if STA ID is allocated. More...

bool	IsStaInContentChannel (uint16_t staId, size_t channelId) const
	Check if STA ID is in HE SIG-B Content Channel ID. More...

void	SetTxPsdFlag (TxPsdFlag flag) const

void	UpdateTxVectorForUlMu (const std::optional< WifiTxVector > &trigVector) const
	Update the TXVECTOR for HE TB PPDUs, since the information to decode HE TB PPDUs is not available from the PHY headers but it requires information from the TRIGVECTOR of the AP expecting these HE TB PPDUs. More...

Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, WifiPhyBand band, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...

	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...

virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...

bool	DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
	Check whether the given PPDU overlaps a given channel. More...

WifiModulationClass	GetModulation () const
	Get the modulation used for the PPDU. More...

WifiPreamble	GetPreamble () const
	Get the preamble of the PPDU. More...

Ptr< const WifiPsdu >	GetPsdu () const
	Get the payload of the PPDU. More...

uint16_t	GetTxCenterFreq () const

const WifiTxVector &	GetTxVector () const
	Get the TXVECTOR used to send the PPDU. More...

uint64_t	GetUid () const
	Get the UID of the PPDU. More...

bool	IsTruncatedTx () const

void	Print (std::ostream &os) const
	Print the PPDU contents. More...

void	ResetTxVector () const
	Reset the TXVECTOR. More...

void	SetTruncatedTx ()
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...

void	UpdateTxVector (const WifiTxVector &updatedTxVector) const
	Update the TXVECTOR based on some information known at the receiver. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
bool	IsDlMu () const override
	Return true if the PPDU is a DL MU PPDU. More...

bool	IsUlMu () const override
	Return true if the PPDU is an UL MU PPDU. More...

void	SetTxVectorFromPhyHeaders (WifiTxVector &txVector, const LSigHeader &lSig, const HeSigHeader &heSig) const override
	Fill in the TXVECTOR from PHY headers. More...

Private Attributes
uint8_t	m_ehtSuMcs {0}
	EHT-MCS for EHT SU transmissions. More...

uint8_t	m_ehtSuNStreams {1}
	Number of streams for EHT SU transmissions. More...

Additional Inherited Members
Public Types inherited from ns3::HePpdu
enum	TxPsdFlag { PSD_NON_HE_PORTION , PSD_HE_PORTION }
	The transmit power spectral density flag, namely used to correctly build PSDs for pre-HE and HE portions. More...

Protected Attributes inherited from ns3::HePpdu
ContentChannelAllocation	m_contentChannelAlloc
	HE SIG-B Content Channel allocation (to be removed once HE-SIG-B headers are implemented) More...

WifiTxVector::HeMuUserInfoMap	m_muUserInfos
	HE MU specific per-user information (to be removed once HE-SIG-B headers are implemented) More...

RuAllocation	m_ruAllocation
	RU_ALLOCATION in SIG-B common field (to be removed once HE-SIG-B headers are implemented) More...

TxPsdFlag	m_txPsdFlag
	the transmit power spectral density flag More...

Protected Attributes inherited from ns3::OfdmPpdu
WifiPhyBand	m_band
	the WifiPhyBand used to transmit that PPDU More...

Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...

Ptr< Packet >	m_phyHeaders
	the PHY headers contained in this PPDU More...

WifiPreamble	m_preamble
	the PHY preamble More...

WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...

uint16_t	m_txCenterFreq
	the center frequency (MHz) used for the transmission of this PPDU More...

std::optional< WifiTxVector >	m_txVector
	the TXVECTOR at TX PHY or the reconstructed TXVECTOR at RX PHY (or std::nullopt if TXVECTOR has not been reconstructed yet) More...

uint64_t	m_uid
	the unique ID of this PPDU More...

Detailed Description

EHT PPDU (11be)

EhtPpdu is currently identical to HePpdu

Definition at line 40 of file eht-ppdu.h.

Constructor & Destructor Documentation

◆ EhtPpdu()

ns3::EhtPpdu::EhtPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		uint16_t	txCenterFreq,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid,
		TxPsdFlag	flag
	)

Create an EHT PPDU, storing a map of PSDUs.

This PPDU can either be UL or DL.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for this PPDU
txCenterFreq	the center frequency (MHz) that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU or of the triggering PPDU if this is an EHT TB PPDU
flag	the flag indicating the type of Tx PSD to build

Definition at line 32 of file eht-ppdu.cc.

References ns3::WifiTxVector::GetContentChannelAllocation(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetRuAllocation(), ns3::WifiTxVector::IsDlMu(), ns3::IsDlMu(), ns3::HePpdu::m_contentChannelAlloc, m_ehtSuMcs, m_ehtSuNStreams, ns3::WifiPpdu::m_preamble, ns3::HePpdu::m_ruAllocation, and NS_LOG_FUNCTION.

Referenced by Copy().

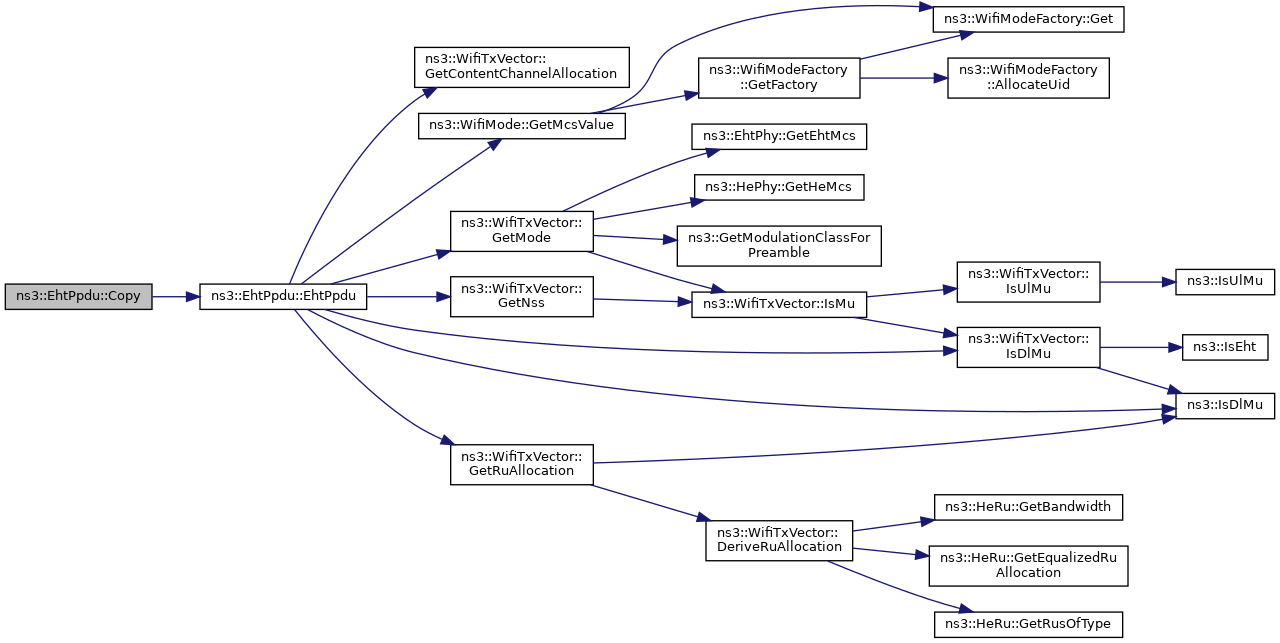

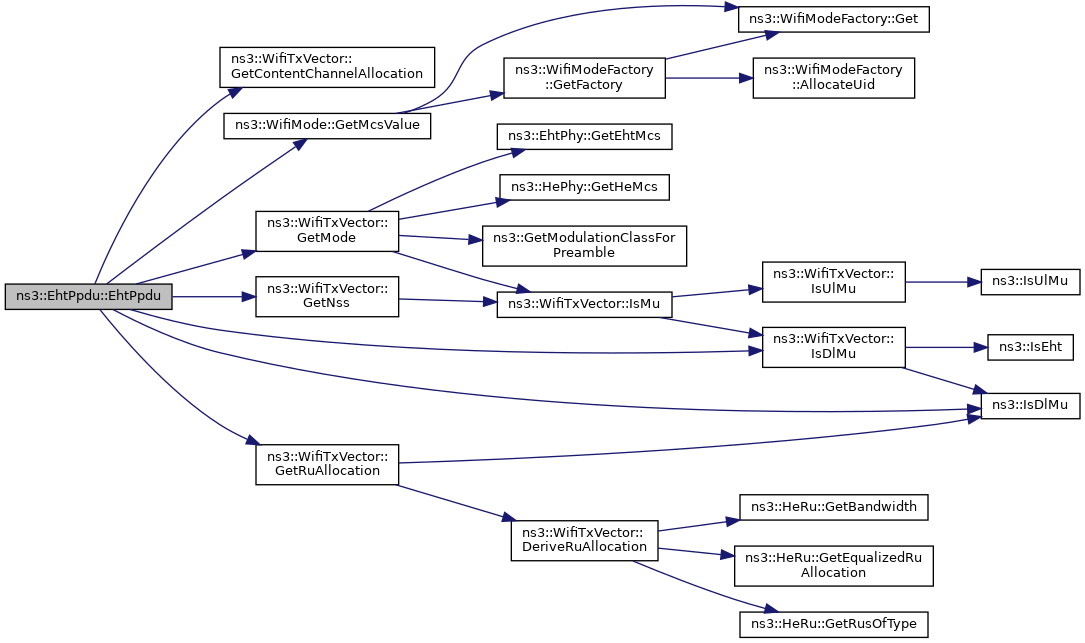

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

◆ Copy()

Ptr< WifiPpdu > ns3::EhtPpdu::Copy ( ) const

overridevirtual

Copy this instance.

Returns: a Ptr to a copy of this instance.

Reimplemented from ns3::WifiPpdu.

Definition at line 117 of file eht-ppdu.cc.

References EhtPpdu().

Here is the call graph for this function:

◆ GetType()

WifiPpduType ns3::EhtPpdu::GetType ( ) const

overridevirtual

Return the PPDU type (.

See also: WifiPpduType)

Returns: the PPDU type

Reimplemented from ns3::WifiPpdu.

Definition at line 59 of file eht-ppdu.cc.

References ns3::HePpdu::m_muUserInfos, ns3::WifiPpdu::m_preamble, NS_ASSERT_MSG, ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, ns3::WIFI_PPDU_TYPE_UL_MU, ns3::WIFI_PREAMBLE_EHT_MU, and ns3::WIFI_PREAMBLE_EHT_TB.

◆ IsDlMu()

bool ns3::EhtPpdu::IsDlMu ( ) const

overrideprivatevirtual

Return true if the PPDU is a DL MU PPDU.

Returns: true if the PPDU is a DL MU PPDU

Reimplemented from ns3::HePpdu.

Definition at line 78 of file eht-ppdu.cc.

References ns3::HePpdu::m_muUserInfos, ns3::WifiPpdu::m_preamble, and ns3::WIFI_PREAMBLE_EHT_MU.

◆ IsUlMu()

bool ns3::EhtPpdu::IsUlMu ( ) const

overrideprivatevirtual

Return true if the PPDU is an UL MU PPDU.

Returns: true if the PPDU is an UL MU PPDU

Reimplemented from ns3::HePpdu.

Definition at line 84 of file eht-ppdu.cc.

References ns3::HePpdu::m_muUserInfos, ns3::WifiPpdu::m_preamble, and ns3::WIFI_PREAMBLE_EHT_TB.

◆ SetTxVectorFromPhyHeaders()

void ns3::EhtPpdu::SetTxVectorFromPhyHeaders	(	WifiTxVector &	txVector,
		const LSigHeader &	lSig,
		const HeSigHeader &	heSig
	)		const

overrideprivatevirtual

Fill in the TXVECTOR from PHY headers.

Parameters

txVector	the TXVECTOR to fill in
lSig	the L-SIG header
heSig	the HE-SIG header

Reimplemented from ns3::HePpdu.

Definition at line 90 of file eht-ppdu.cc.

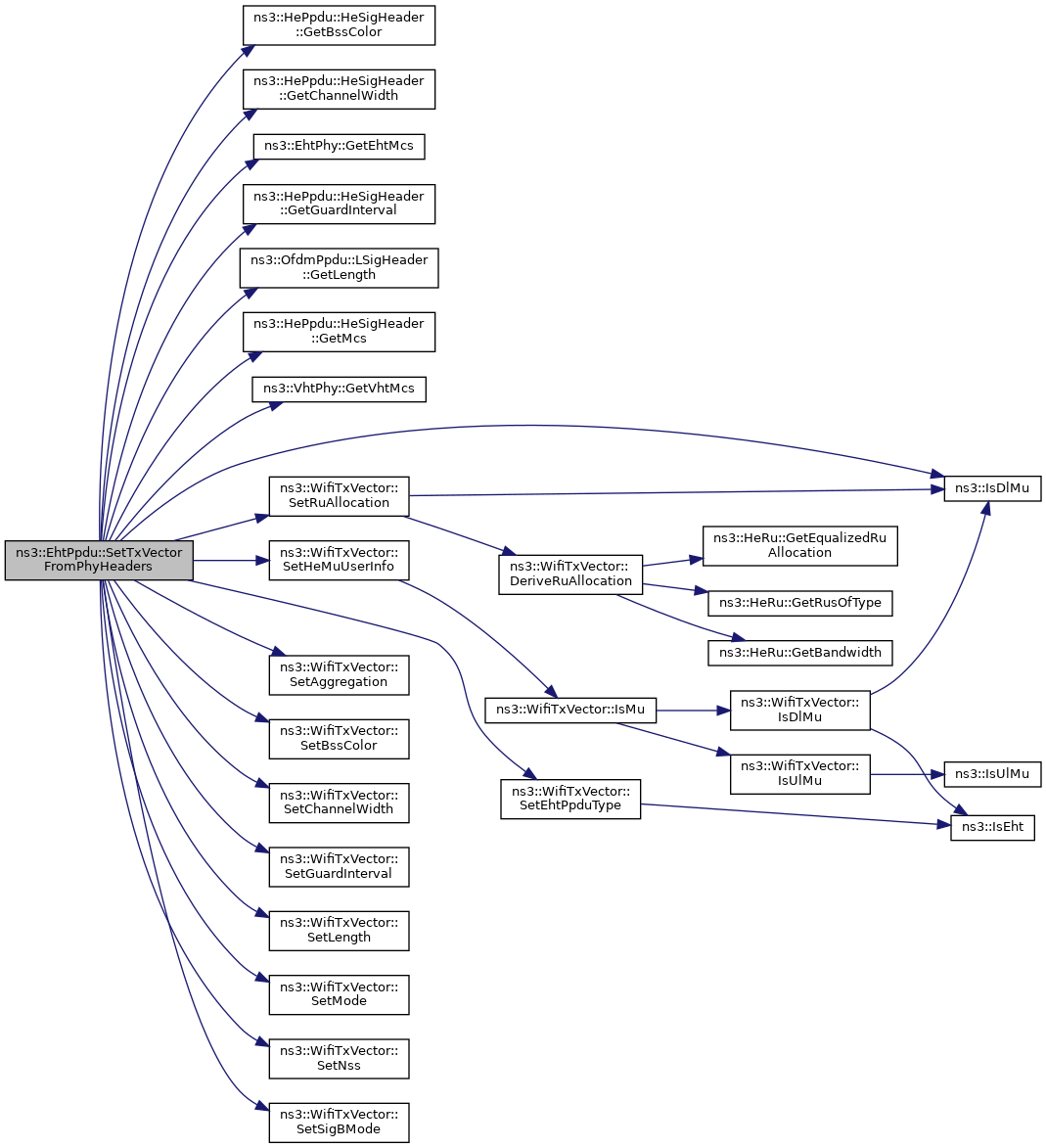

Here is the call graph for this function:

Member Data Documentation

◆ m_ehtSuMcs

uint8_t ns3::EhtPpdu::m_ehtSuMcs {0}

private

EHT-MCS for EHT SU transmissions.

Definition at line 74 of file eht-ppdu.h.

Referenced by EhtPpdu(), and SetTxVectorFromPhyHeaders().

◆ m_ehtSuNStreams

uint8_t ns3::EhtPpdu::m_ehtSuNStreams {1}

private

Number of streams for EHT SU transmissions.

Definition at line 75 of file eht-ppdu.h.

Referenced by EhtPpdu(), and SetTxVectorFromPhyHeaders().

The documentation for this class was generated from the following files:

src/wifi/model/eht/eht-ppdu.h
src/wifi/model/eht/eht-ppdu.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EhtPpdu()

Member Function Documentation

◆ Copy()

◆ GetType()

◆ IsDlMu()

◆ IsUlMu()

◆ SetTxVectorFromPhyHeaders()

Member Data Documentation

◆ m_ehtSuMcs

◆ m_ehtSuNStreams
