helps to create WaveNetDevice objects More...

#include "wave-helper.h"

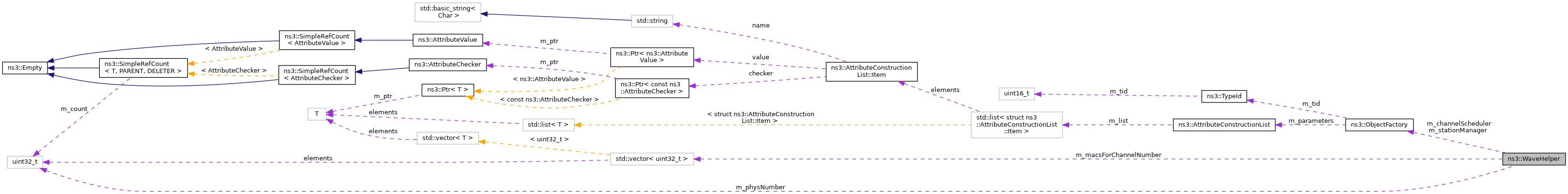

Collaboration diagram for ns3::WaveHelper:

Public Member Functions
	WaveHelper ()

virtual	~WaveHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the Phy and Mac aspects of the WAVE models. More...

void	CreateMacForChannel (std::vector< uint32_t > channelNumbers)

void	CreatePhys (uint32_t phys)

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer c) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const

template<typename... Ts>
void	SetChannelScheduler (std::string type, Ts &&... args)

template<typename... Ts>
void	SetRemoteStationManager (std::string type, Ts &&... args)

Static Public Member Functions
static WaveHelper	Default ()

static void	EnableLogComponents ()
	Helper to enable all WaveNetDevice log components with one statement. More...

Protected Attributes
ObjectFactory	m_channelScheduler
	channel scheduler More...

std::vector< uint32_t >	m_macsForChannelNumber
	MACs for channel number. More...

uint32_t	m_physNumber
	Phy number. More...

ObjectFactory	m_stationManager
	station manager More...

Detailed Description

helps to create WaveNetDevice objects

This class can help to create a large set of similar WaveNetDevice objects and to configure a large set of their attributes during creation.

Generally WaveHelper with default configuration will create devices with 7 MAC entities,1 PHY entity and a multiple-channel scheduler for to deal with these entities.

If users can make sure on which channel this WAVE device will work, they can set specific channel numbers to save resources of unused channels as below: WaveHelper helper = WaveHelper::Default (); uint32_t channels[] = {CCH, SCH1}; std::vector<uint32_t> channelsVector (channels, channels + 2); helper.helper.CreateMacForChannel (channelsVector);

If users can create other channel scheduler such as "AnotherScheduler" which can assign channel access in the context of more PHY entities, they can use this helper to create WAVE devices as below: WaveHelper helper = WaveHelper::Default (); helper.helper.CreateMacForChannel (ChannelManager::GetWaveChannels ()); helper.CreatePhys (2); // or other number which should be less than 7 helper.SetChannelScheduler ("ns3::AnotherScheduler"); helper.SetRemoteStationManager ("ns3::ConstantRateWifiManager"); // or other rate control algorithms

Definition at line 115 of file wave-helper.h.

Constructor & Destructor Documentation

◆ WaveHelper()

ns3::WaveHelper::WaveHelper ( )

Definition at line 276 of file wave-helper.cc.

◆ ~WaveHelper()

ns3::WaveHelper::~WaveHelper ( )

virtual

Definition at line 280 of file wave-helper.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::WaveHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by the Phy and Mac aspects of the WAVE models.

Each device in container c has fixed stream numbers assigned to its random variables. The Wifi channel (e.g. propagation loss model) is excluded. Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the WaveNetDevice should be modified to use fixed streams
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 421 of file wave-helper.cc.

References ns3::Txop::AssignStreams(), ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::PointerValue::Get(), ns3::WaveNetDevice::GetMacs(), ns3::WaveNetDevice::GetPhys(), and two-ray-to-three-gpp-ch-calibration::k.

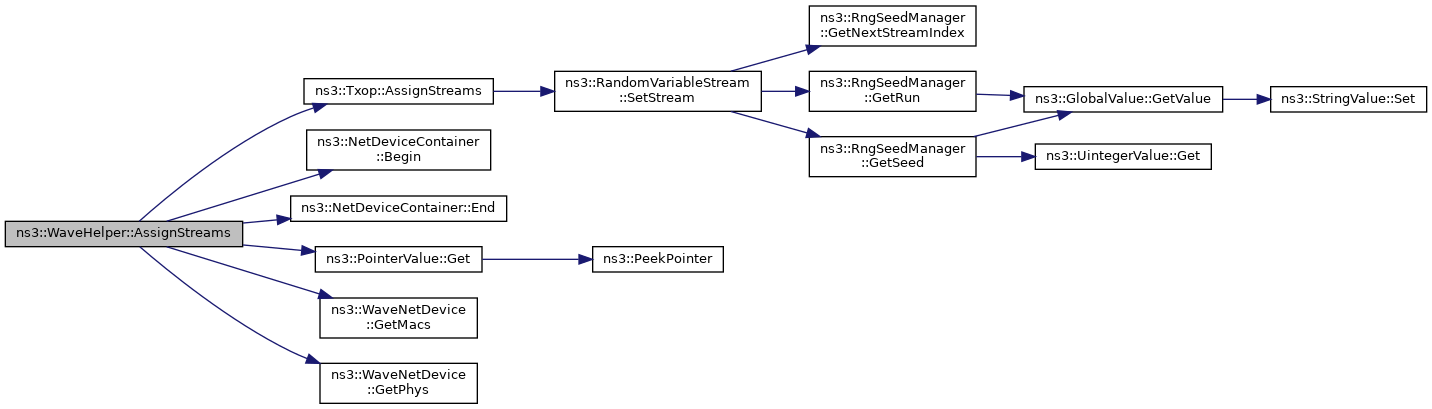

Here is the call graph for this function:

◆ CreateMacForChannel()

void ns3::WaveHelper::CreateMacForChannel ( std::vector< uint32_t > channelNumbers )

Parameters

channelNumbers the MAC entities will be created to support these channels for multiple channel operation.

Definition at line 303 of file wave-helper.cc.

References ns3::ChannelManager::IsWaveChannel(), m_macsForChannelNumber, and NS_FATAL_ERROR.

Referenced by Default().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreatePhys()

void ns3::WaveHelper::CreatePhys ( uint32_t phys )

Parameters

phys	the number of PHY entity which will be created for multiple channel operation.

Definition at line 320 of file wave-helper.cc.

References ns3::ChannelManager::GetNumberOfWaveChannels(), m_physNumber, and NS_FATAL_ERROR.

Referenced by Default().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Default()

WaveHelper ns3::WaveHelper::Default ( )

static

Returns: a new WaveHelper in a default state

The default state is defined as being seven OcbWifiMac MAC entities with an ConstantRate rate control algorithm, one WifiPhy entity and a default multiple-channel scheduler DefaultChannelScheduler for assigning channel access with these created entities.

Definition at line 285 of file wave-helper.cc.

References CreateMacForChannel(), CreatePhys(), ns3::ChannelManager::GetWaveChannels(), SetChannelScheduler(), and SetRemoteStationManager().

Referenced by WaveNetDeviceExample::CreateWaveNodes().

Here is the call graph for this function:
