ns3::MlmeCommStatusIndicationParams Struct Reference

MLME-COMM-STATUS.indication params. More...

#include "lr-wpan-mac.h"

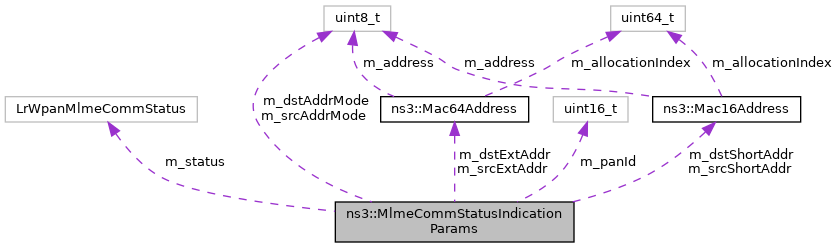

Collaboration diagram for ns3::MlmeCommStatusIndicationParams:

Public Attributes
uint8_t	m_dstAddrMode {SHORT_ADDR}
	The destination addressing mode for this primitive. More...
Mac64Address	m_dstExtAddr
	The extended address of the device for which the frame was intended. More...
Mac16Address	m_dstShortAddr
	The short address of the device for which the frame was intended. More...
uint16_t	m_panId {0}
	The PAN identifier of the device from which the frame was received or to which the frame was being sent. More...
uint8_t	m_srcAddrMode {SHORT_ADDR}
	The source addressing mode for this primitive. More...
Mac64Address	m_srcExtAddr
	The extended address of the entity from which the frame causing the error originated. More...
Mac16Address	m_srcShortAddr
	The short address of the entity from which the frame causing the error originated. More...
LrWpanMlmeCommStatus	m_status {MLMECOMMSTATUS_INVALID_PARAMETER}
	The communication status. More...

Detailed Description

MLME-COMM-STATUS.indication params.

See 802.15.4-2011 Section 6.2.4.2 Table 18

Definition at line 613 of file lr-wpan-mac.h.

Member Data Documentation

m_dstAddrMode

uint8_t ns3::MlmeCommStatusIndicationParams::m_dstAddrMode {SHORT_ADDR}

The destination addressing mode for this primitive.

Definition at line 622 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

m_dstExtAddr

Mac64Address ns3::MlmeCommStatusIndicationParams::m_dstExtAddr

The extended address of the device for which the frame was intended.

Definition at line 626 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

m_dstShortAddr

Mac16Address ns3::MlmeCommStatusIndicationParams::m_dstShortAddr

The short address of the device for which the frame was intended.

Definition at line 624 of file lr-wpan-mac.h.

m_panId

uint16_t ns3::MlmeCommStatusIndicationParams::m_panId {0}

The PAN identifier of the device from which the frame was received or to which the frame was being sent.

Definition at line 615 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

m_srcAddrMode

uint8_t ns3::MlmeCommStatusIndicationParams::m_srcAddrMode {SHORT_ADDR}

The source addressing mode for this primitive.

Definition at line 617 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

m_srcExtAddr

Mac64Address ns3::MlmeCommStatusIndicationParams::m_srcExtAddr

The extended address of the entity from which the frame causing the error originated.

Definition at line 620 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

m_srcShortAddr

Mac16Address ns3::MlmeCommStatusIndicationParams::m_srcShortAddr

The short address of the entity from which the frame causing the error originated.

Definition at line 618 of file lr-wpan-mac.h.

m_status

LrWpanMlmeCommStatus ns3::MlmeCommStatusIndicationParams::m_status {MLMECOMMSTATUS_INVALID_PARAMETER}

The communication status.

Definition at line 627 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::EnqueueInd(), ns3::LrWpanMac::PdDataIndication(), ns3::LrWpanMac::PrepareRetransmission(), ns3::LrWpanMac::PurgeInd(), and ns3::LrWpanMac::SetLrWpanMacState().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
