Implements the SCHED SAP and CSCHED SAP for a Priority Set scheduler. More...

#include "pss-ff-mac-scheduler.h"

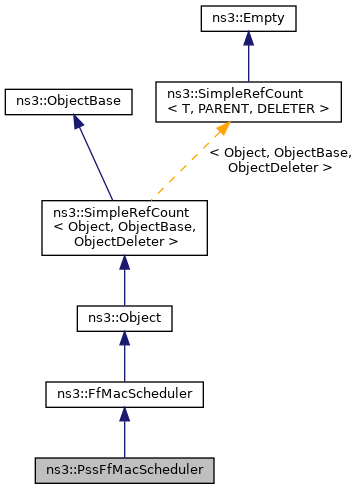

Inheritance diagram for ns3::PssFfMacScheduler:

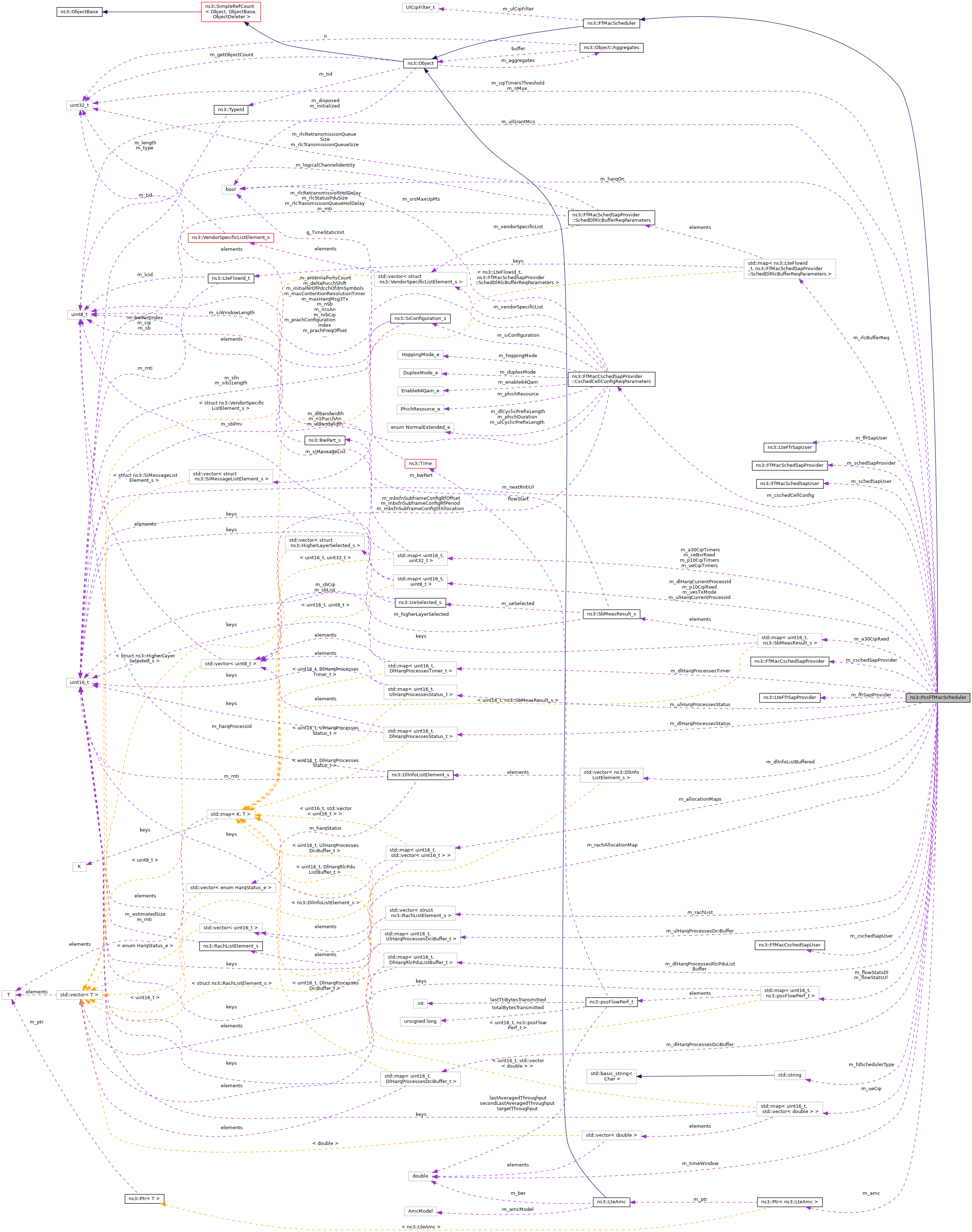

Collaboration diagram for ns3::PssFfMacScheduler:

Public Member Functions
	PssFfMacScheduler ()
	Constructor. More...

	~PssFfMacScheduler () override
	Destructor. More...

void	DoDispose () override
	Destructor implementation. More...

FfMacCschedSapProvider *	GetFfMacCschedSapProvider () override

FfMacSchedSapProvider *	GetFfMacSchedSapProvider () override

LteFfrSapUser *	GetLteFfrSapUser () override

void	SetFfMacCschedSapUser (FfMacCschedSapUser *s) override
	set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

void	SetFfMacSchedSapUser (FfMacSchedSapUser *s) override
	set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

void	SetLteFfrSapProvider (LteFfrSapProvider *s) override
	Set the Provider part of the LteFfrSap that this Scheduler will interact with. More...

void	TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)
	Transmission mode configuration update function. More...

Public Member Functions inherited from ns3::FfMacScheduler
	FfMacScheduler ()
	constructor More...

	~FfMacScheduler () override
	destructor More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

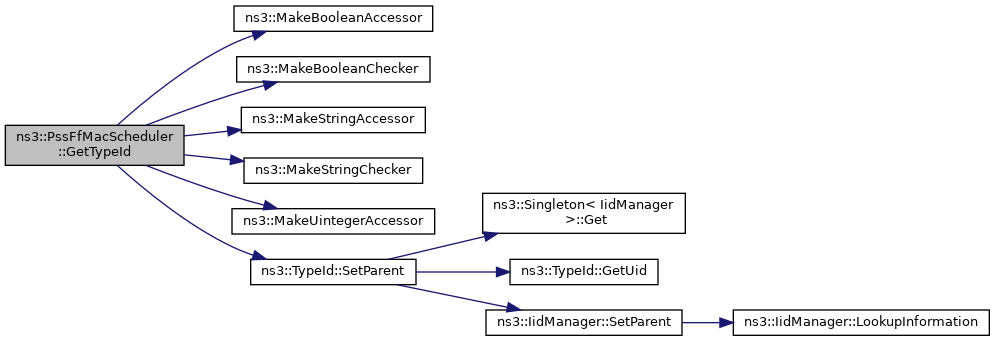

static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)
	CSched cell config request function. More...

void	DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)
	CSched LC config request function. More...

void	DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)
	CSched LC release request function. More...

void	DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)
	CSched UE config request function. More...

void	DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)
	CSched UE release request function. More...

void	DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
	Sched DL CQI info request function. More...

void	DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)
	Sched DL MAC buffer request function. More...

void	DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)
	Sched DL paging buffer request function. More...

void	DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)
	Sched DL RACH info request function. More...

void	DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)
	Sched DL RLC buffer request function. More...

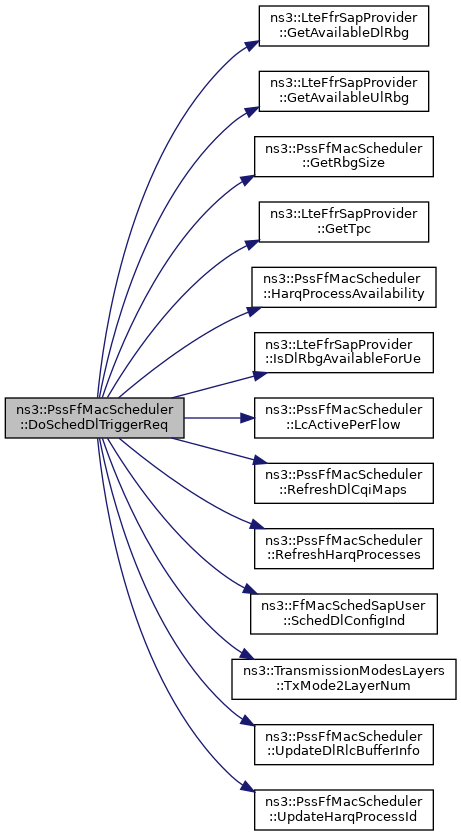

void	DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)
	Sched DL trigger request function. More...

void	DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
	Sched UL CQI info request function. More...

void	DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)
	Sched UL MAC control info request function. More...

void	DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)
	Sched UL noise interference request function. More...

void	DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)
	Sched UL SR info request function. More...

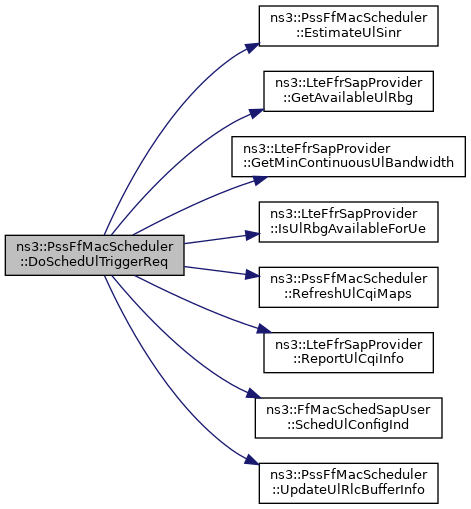

void	DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)
	Sched UL trigger request function. More...

double	EstimateUlSinr (uint16_t rnti, uint16_t rb)
	Estimate UL SINR function. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size function. More...

bool	HarqProcessAvailability (uint16_t rnti)
	Return the availability of free process for the RNTI specified. More...

unsigned int	LcActivePerFlow (uint16_t rnti)
	Get LC active flow function. More...

void	RefreshDlCqiMaps ()
	Refresh DL CQI maps function. More...

void	RefreshHarqProcesses ()
	Refresh HARQ processes according to the timers. More...

void	RefreshUlCqiMaps ()
	Refresh UL CQI maps function. More...

void	UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)
	Update DL RLC buffer info function. More...

uint8_t	UpdateHarqProcessId (uint16_t rnti)
	Update and return a new process Id for the RNTI specified. More...

void	UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)
	Update UL RLC buffer info function. More...

Private Attributes
std::map< uint16_t, SbMeasResult_s >	m_a30CqiRxed
	Map of UE's DL CQI A30 received. More...

std::map< uint16_t, uint32_t >	m_a30CqiTimers
	Map of UE's timers on DL CQI A30 received. More...

std::map< uint16_t, std::vector< uint16_t > >	m_allocationMaps
	Map of previous allocated UE per RBG (used to retrieve info from UL-CQI) More...

Ptr< LteAmc >	m_amc
	AMC. More...

std::map< uint16_t, uint32_t >	m_ceBsrRxed
	Map of UE's buffer status reports received. More...

uint32_t	m_cqiTimersThreshold

FfMacCschedSapProvider::CschedCellConfigReqParameters	m_cschedCellConfig
	CSched cell config. More...

FfMacCschedSapProvider *	m_cschedSapProvider
	CSched SAP provider. More...

FfMacCschedSapUser *	m_cschedSapUser
	CSched SAP user. More...

std::map< uint16_t, uint8_t >	m_dlHarqCurrentProcessId
	DL HARQ current proess ID. More...

std::map< uint16_t, DlHarqProcessesDciBuffer_t >	m_dlHarqProcessesDciBuffer
	DL HARQ process DCI buffer. More...

std::map< uint16_t, DlHarqRlcPduListBuffer_t >	m_dlHarqProcessesRlcPduListBuffer
	DL HARQ ELC PDU list buffer. More...

std::map< uint16_t, DlHarqProcessesStatus_t >	m_dlHarqProcessesStatus
	DL HARQ process status. More...

std::map< uint16_t, DlHarqProcessesTimer_t >	m_dlHarqProcessesTimer
	DL HARQ process timer. More...

std::vector< DlInfoListElement_s >	m_dlInfoListBuffered
	HARQ retx buffered. More...

std::string	m_fdSchedulerType
	FD scheduler type. More...

LteFfrSapProvider *	m_ffrSapProvider
	FFR SAP provider. More...

LteFfrSapUser *	m_ffrSapUser
	FFR SAP user. More...

std::map< uint16_t, pssFlowPerf_t >	m_flowStatsDl
	Map of UE statistics (per RNTI basis) in downlink. More...

std::map< uint16_t, pssFlowPerf_t >	m_flowStatsUl
	Map of UE statistics (per RNTI basis) More...

bool	m_harqOn
	m_harqOn when false inhibit the HARQ mechanisms (by default active) More...

uint16_t	m_nextRntiUl
	RNTI of the next user to be served next scheduling in UL. More...

uint32_t	m_nMux
	TD scheduler selects nMux UEs and transfer them to FD scheduler. More...

std::map< uint16_t, uint8_t >	m_p10CqiRxed
	Map of UE's DL CQI P01 received. More...

std::map< uint16_t, uint32_t >	m_p10CqiTimers
	Map of UE's timers on DL CQI P01 received. More...

std::vector< uint16_t >	m_rachAllocationMap
	RACH allocation map. More...

std::vector< struct RachListElement_s >	m_rachList
	RACH list. More...

std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters >	m_rlcBufferReq
	Vectors of UE's LC info. More...

FfMacSchedSapProvider *	m_schedSapProvider
	Sched SAP provider. More...

FfMacSchedSapUser *	m_schedSapUser
	Sched SAP user. More...

double	m_timeWindow
	time window More...

std::map< uint16_t, std::vector< double > >	m_ueCqi
	Map of UEs' UL-CQI per RBG. More...

std::map< uint16_t, uint32_t >	m_ueCqiTimers
	Map of UEs' timers on UL-CQI per RBG. More...

std::map< uint16_t, uint8_t >	m_uesTxMode
	txMode of the UEs More...

uint8_t	m_ulGrantMcs
	MCS for UL grant (default 0) More...

std::map< uint16_t, uint8_t >	m_ulHarqCurrentProcessId
	UL HARQ process ID. More...

std::map< uint16_t, UlHarqProcessesDciBuffer_t >	m_ulHarqProcessesDciBuffer
	UL HARQ process DCI buffer. More...

std::map< uint16_t, UlHarqProcessesStatus_t >	m_ulHarqProcessesStatus
	UL HARQ process status. More...

Friends
class	MemberCschedSapProvider< PssFfMacScheduler >
	allow MemberCschedSapProvider<PssFfMacScheduler> class friend access More...

class	MemberSchedSapProvider< PssFfMacScheduler >
	allow MemberSchedSapProvider<PssFfMacScheduler> class friend access More...

Additional Inherited Members
Public Types inherited from ns3::FfMacScheduler
enum	UlCqiFilter_t { SRS_UL_CQI , PUSCH_UL_CQI }
	The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t	m_ulCqiFilter
	UL CQI filter. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Priority Set scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::PssFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::PssFfMacScheduler"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::PssFfMacScheduler"

Attributes

CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: constructwriteread
HarqEnabled: Activate/Deactivate the HARQ [by default is active].
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: constructwriteread
PssFdSchedulerType: FD scheduler in PSS (default value is PFsch)
- Set with class: ns3::StringValue
- Underlying type: std::string
- Initial value: PFsch
- Flags: constructwriteread
UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: constructwriteread
nMux: The number of UE selected by TD scheduler (default value is 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: constructwriteread

Attributes defined in parent class ns3::FfMacScheduler

UlCqiFilter: The filter to apply on UL CQIs received
- Set with class: ns3::EnumValue
- Underlying type: SRS_UL_CQI|PUSCH_UL_CQI
- Initial value: SRS_UL_CQI
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 1384 bytes (on a 64-bit architecture).

Definition at line 75 of file pss-ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ PssFfMacScheduler()

ns3::PssFfMacScheduler::PssFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 50 of file pss-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_ffrSapProvider, m_ffrSapUser, m_schedSapProvider, MemberCschedSapProvider< PssFfMacScheduler >, and MemberSchedSapProvider< PssFfMacScheduler >.

◆ ~PssFfMacScheduler()

ns3::PssFfMacScheduler::~PssFfMacScheduler ( )

override

Destructor.

Definition at line 63 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoCschedCellConfigReq()

void ns3::PssFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters & params )

private

CSched cell config request function.

Parameters

params FfMacCschedSapProvider::CschedCellConfigReqParameters

Definition at line 157 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, and ns3::SUCCESS.

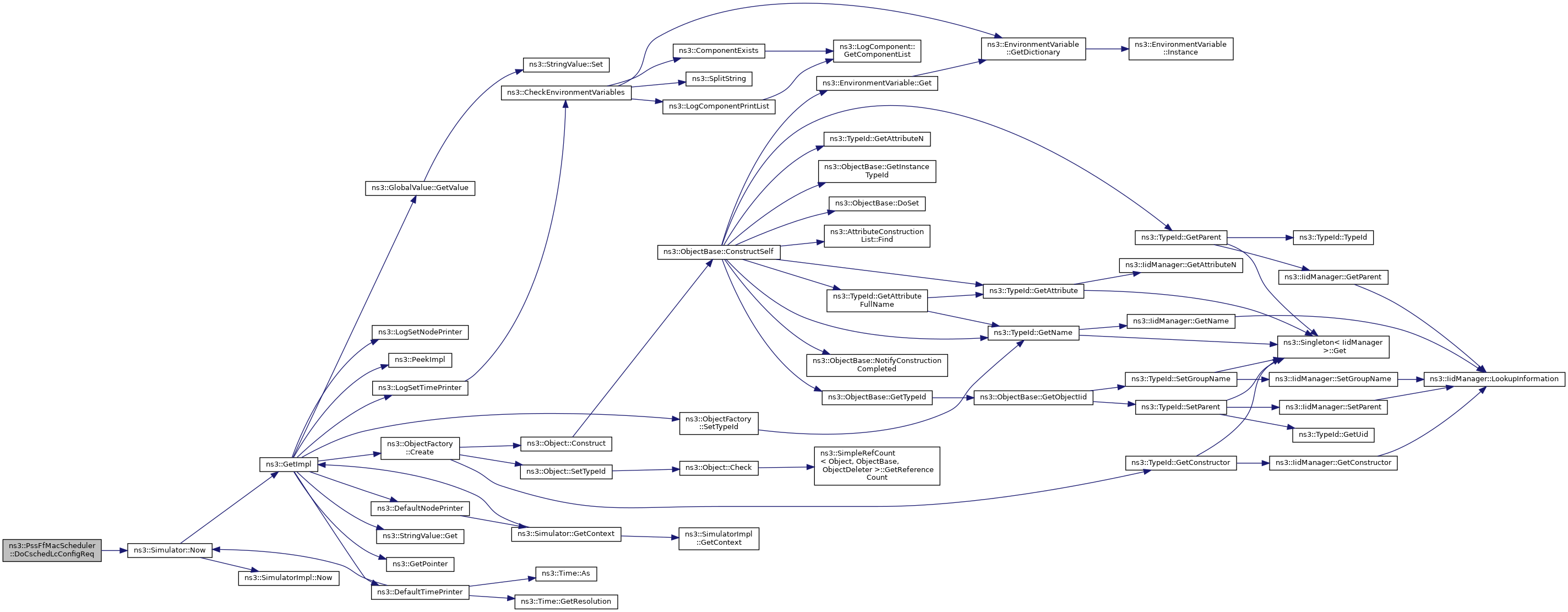

Here is the call graph for this function:

◆ DoCschedLcConfigReq()

void ns3::PssFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters & params )

private

CSched LC config request function.

Parameters

params FfMacCschedSapProvider::CschedLcConfigReqParameters

Definition at line 216 of file pss-ff-mac-scheduler.cc.

References ns3::pssFlowPerf_t::flowStart, ns3::pssFlowPerf_t::lastAveragedThroughput, ns3::pssFlowPerf_t::lastTtiBytesTransmitted, m_flowStatsDl, m_flowStatsUl, ns3::Simulator::Now(), NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::pssFlowPerf_t::secondLastAveragedThroughput, ns3::pssFlowPerf_t::targetThroughput, and ns3::pssFlowPerf_t::totalBytesTransmitted.

Here is the call graph for this function:

◆ DoCschedLcReleaseReq()

void ns3::PssFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters & params )

private

CSched LC release request function.

Parameters

params FfMacCschedSapProvider::CschedLcReleaseReqParameters

Definition at line 264 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoCschedUeConfigReq()

void ns3::PssFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters & params )

private

CSched UE config request function.

Parameters

params FfMacCschedSapProvider::CschedUeConfigReqParameters

Definition at line 170 of file pss-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoCschedUeReleaseReq()

void ns3::PssFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters & params )

private

CSched UE release request function.

Parameters

params FfMacCschedSapProvider::CschedUeReleaseReqParameters

Definition at line 291 of file pss-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoDispose()

void ns3::PssFfMacScheduler::DoDispose ( )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 69 of file pss-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_ffrSapUser, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

◆ DoSchedDlCqiInfoReq()

void ns3::PssFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

private

Sched DL CQI info request function.

Parameters

params FfMacSchedSapProvider::SchedDlCqiInfoReqParameters

Definition at line 1670 of file pss-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_ffrSapProvider, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::CqiListElement_s::P10, two-ray-to-three-gpp-ch-calibration::params, and ns3::LteFfrSapProvider::ReportDlCqiInfo().

Here is the call graph for this function:

◆ DoSchedDlMacBufferReq()

void ns3::PssFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters & params )

private

Sched DL MAC buffer request function.

Parameters

params FfMacSchedSapProvider::SchedDlMacBufferReqParameters

Definition at line 364 of file pss-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ DoSchedDlPagingBufferReq()

void ns3::PssFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters & params )

private

Sched DL paging buffer request function.

Parameters

params FfMacSchedSapProvider::SchedDlPagingBufferReqParameters

Definition at line 356 of file pss-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ DoSchedDlRachInfoReq()

void ns3::PssFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters & params )

private

Sched DL RACH info request function.

Parameters

params FfMacSchedSapProvider::SchedDlRachInfoReqParameters

Definition at line 1661 of file pss-ff-mac-scheduler.cc.

References m_rachList, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoSchedDlRlcBufferReq()

void ns3::PssFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters & params )

private

Sched DL RLC buffer request function.

Parameters

params FfMacSchedSapProvider::SchedDlRlcBufferReqParameters

Definition at line 331 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

◆ DoSchedDlTriggerReq()

void ns3::PssFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters & params )

private

Sched DL trigger request function.

Parameters

params FfMacSchedSapProvider::SchedDlTriggerReqParameters

Todo:: check correct value according the DCIs txed

Definition at line 512 of file pss-ff-mac-scheduler.cc.

Here is the call graph for this function:

◆ DoSchedUlCqiInfoReq()

void ns3::PssFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

private

Sched UL CQI info request function.

Parameters

params FfMacSchedSapProvider::SchedUlCqiInfoReqParameters

Definition at line 2225 of file pss-ff-mac-scheduler.cc.

References ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacScheduler::m_ulCqiFilter, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, two-ray-to-three-gpp-ch-calibration::params, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Here is the call graph for this function:

◆ DoSchedUlMacCtrlInfoReq()

void ns3::PssFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters & params )

private

Sched UL MAC control info request function.

Parameters

params FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters

Definition at line 2182 of file pss-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, NS_LOG_FUNCTION, NS_LOG_LOGIC, and two-ray-to-three-gpp-ch-calibration::params.

Here is the call graph for this function:

◆ DoSchedUlNoiseInterferenceReq()

void ns3::PssFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters & params )

private

Sched UL noise interference request function.

Parameters

params FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters

Definition at line 2168 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ DoSchedUlSrInfoReq()

void ns3::PssFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters & params )

private

Sched UL SR info request function.

Parameters

params FfMacSchedSapProvider::SchedUlSrInfoReqParameters

Definition at line 2175 of file pss-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ DoSchedUlTriggerReq()

void ns3::PssFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters & params )

private

Sched UL trigger request function.

Parameters

params FfMacSchedSapProvider::SchedUlTriggerReqParameters

Definition at line 1765 of file pss-ff-mac-scheduler.cc.

Here is the call graph for this function:

◆ EstimateUlSinr()

double ns3::PssFfMacScheduler::EstimateUlSinr	(	uint16_t	rnti,
		uint16_t	rb
	)

private

Estimate UL SINR function.

Parameters

rnti	the RNTI
rb	the RB

Returns: UL SINR

Definition at line 1735 of file pss-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

◆ GetFfMacCschedSapProvider()

FfMacCschedSapProvider * ns3::PssFfMacScheduler::GetFfMacCschedSapProvider ( )

overridevirtual

Returns: the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 133 of file pss-ff-mac-scheduler.cc.

References m_cschedSapProvider.

◆ GetFfMacSchedSapProvider()

FfMacSchedSapProvider * ns3::PssFfMacScheduler::GetFfMacSchedSapProvider ( )

overridevirtual

Returns: the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 139 of file pss-ff-mac-scheduler.cc.

References m_schedSapProvider.

◆ GetLteFfrSapUser()

LteFfrSapUser * ns3::PssFfMacScheduler::GetLteFfrSapUser ( )

overridevirtual

Returns: the User part of the LteFfrSap provided by the FfrAlgorithm

Implements ns3::FfMacScheduler.

Definition at line 151 of file pss-ff-mac-scheduler.cc.

References m_ffrSapUser.

◆ GetRbgSize()

int ns3::PssFfMacScheduler::GetRbgSize ( int dlbandwidth )

private

Get RBG size function.

Parameters

dlbandwidth DL bandwidth

Returns: RBG size

Definition at line 372 of file pss-ff-mac-scheduler.cc.

References ns3::PssType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PssFfMacScheduler::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 85 of file pss-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_fdSchedulerType, m_harqOn, m_nMux, m_ulGrantMcs, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HarqProcessAvailability()

bool ns3::PssFfMacScheduler::HarqProcessAvailability ( uint16_t rnti )

private

Return the availability of free process for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the availability

Definition at line 407 of file pss-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ LcActivePerFlow()

unsigned int ns3::PssFfMacScheduler::LcActivePerFlow ( uint16_t rnti )

private

Get LC active flow function.

Parameters

rnti the RNTI

Returns: LC active flow

Definition at line 386 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshDlCqiMaps()

void ns3::PssFfMacScheduler::RefreshDlCqiMaps ( )

private

Refresh DL CQI maps function.

Definition at line 2366 of file pss-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshHarqProcesses()

void ns3::PssFfMacScheduler::RefreshHarqProcesses ( )

private

Refresh HARQ processes according to the timers.

Definition at line 478 of file pss-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshUlCqiMaps()

void ns3::PssFfMacScheduler::RefreshUlCqiMaps ( )

private

Refresh UL CQI maps function.

Definition at line 2420 of file pss-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

◆ SetFfMacCschedSapUser()

void ns3::PssFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser * s )

overridevirtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 121 of file pss-ff-mac-scheduler.cc.

References m_cschedSapUser.

◆ SetFfMacSchedSapUser()

void ns3::PssFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser * s )

overridevirtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 127 of file pss-ff-mac-scheduler.cc.

References m_schedSapUser.

◆ SetLteFfrSapProvider()

void ns3::PssFfMacScheduler::SetLteFfrSapProvider ( LteFfrSapProvider * s )

overridevirtual

Set the Provider part of the LteFfrSap that this Scheduler will interact with.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 145 of file pss-ff-mac-scheduler.cc.

References m_ffrSapProvider.

◆ TransmissionModeConfigurationUpdate()

void ns3::PssFfMacScheduler::TransmissionModeConfigurationUpdate	(	uint16_t	rnti,
		uint8_t	txMode
	)

Transmission mode configuration update function.

Parameters

rnti	the RNTI
txMode	the transmit mode

Definition at line 2529 of file pss-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, NS_LOG_FUNCTION, and two-ray-to-three-gpp-ch-calibration::params.

Here is the call graph for this function:

◆ UpdateDlRlcBufferInfo()

void ns3::PssFfMacScheduler::UpdateDlRlcBufferInfo	(	uint16_t	rnti,
		uint8_t	lcid,
		uint16_t	size
	)

private

Update DL RLC buffer info function.

Parameters

rnti	the RNTI
lcid	the LCID
size	the size

Definition at line 2450 of file pss-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ UpdateHarqProcessId()

uint8_t ns3::PssFfMacScheduler::UpdateHarqProcessId ( uint16_t rnti )

private

Update and return a new process Id for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 438 of file pss-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ UpdateUlRlcBufferInfo()

void ns3::PssFfMacScheduler::UpdateUlRlcBufferInfo	(	uint16_t	rnti,
		uint16_t	size
	)

private

Update UL RLC buffer info function.

Parameters

rnti	the RNTI
size	the size

Definition at line 2506 of file pss-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ MemberCschedSapProvider< PssFfMacScheduler >

friend class MemberCschedSapProvider< PssFfMacScheduler >

friend

allow MemberCschedSapProvider<PssFfMacScheduler> class friend access

Definition at line 106 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler().

◆ MemberSchedSapProvider< PssFfMacScheduler >

friend class MemberSchedSapProvider< PssFfMacScheduler >

friend

allow MemberSchedSapProvider<PssFfMacScheduler> class friend access

Definition at line 106 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler().

Member Data Documentation

◆ m_a30CqiRxed

std::map<uint16_t, SbMeasResult_s> ns3::PssFfMacScheduler::m_a30CqiRxed

private

Map of UE's DL CQI A30 received.

Definition at line 356 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

◆ m_a30CqiTimers

std::map<uint16_t, uint32_t> ns3::PssFfMacScheduler::m_a30CqiTimers

private

Map of UE's timers on DL CQI A30 received.

Definition at line 360 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

◆ m_allocationMaps

std::map<uint16_t, std::vector<uint16_t> > ns3::PssFfMacScheduler::m_allocationMaps

private

Map of previous allocated UE per RBG (used to retrieve info from UL-CQI)

Definition at line 366 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

◆ m_amc

Ptr<LteAmc> ns3::PssFfMacScheduler::m_amc

private

AMC.

Definition at line 327 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ceBsrRxed

std::map<uint16_t, uint32_t> ns3::PssFfMacScheduler::m_ceBsrRxed

private

Map of UE's buffer status reports received.

Definition at line 380 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

◆ m_cqiTimersThreshold

uint32_t ns3::PssFfMacScheduler::m_cqiTimersThreshold

private

of TTIs for which a CQI can be considered valid

Definition at line 400 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

◆ m_cschedCellConfig

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::PssFfMacScheduler::m_cschedCellConfig

private

CSched cell config.

Definition at line 394 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

◆ m_cschedSapProvider

FfMacCschedSapProvider* ns3::PssFfMacScheduler::m_cschedSapProvider

private

CSched SAP provider.

Definition at line 385 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler(), DoDispose(), and GetFfMacCschedSapProvider().

◆ m_cschedSapUser

FfMacCschedSapUser* ns3::PssFfMacScheduler::m_cschedSapUser

private

CSched SAP user.

Definition at line 383 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

◆ m_dlHarqCurrentProcessId

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_dlHarqCurrentProcessId

private

DL HARQ current proess ID.

Definition at line 413 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

◆ m_dlHarqProcessesDciBuffer

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesDciBuffer

private

DL HARQ process DCI buffer.

Definition at line 420 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

◆ m_dlHarqProcessesRlcPduListBuffer

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer

private

DL HARQ ELC PDU list buffer.

Definition at line 422 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

◆ m_dlHarqProcessesStatus

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::PssFfMacScheduler::m_dlHarqProcessesStatus

private

DL HARQ process status.

Definition at line 417 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

◆ m_dlHarqProcessesTimer

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::PssFfMacScheduler::m_dlHarqProcessesTimer

private

DL HARQ process timer.

Definition at line 418 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

◆ m_dlInfoListBuffered

std::vector<DlInfoListElement_s> ns3::PssFfMacScheduler::m_dlInfoListBuffered

private

HARQ retx buffered.

Definition at line 423 of file pss-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

◆ m_fdSchedulerType

std::string ns3::PssFfMacScheduler::m_fdSchedulerType

private

FD scheduler type.

Definition at line 404 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

◆ m_ffrSapProvider

LteFfrSapProvider* ns3::PssFfMacScheduler::m_ffrSapProvider

private

FFR SAP provider.

Definition at line 390 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler(), DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetLteFfrSapProvider().

◆ m_ffrSapUser

LteFfrSapUser* ns3::PssFfMacScheduler::m_ffrSapUser

private

FFR SAP user.

Definition at line 389 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler(), DoDispose(), and GetLteFfrSapUser().

◆ m_flowStatsDl

std::map<uint16_t, pssFlowPerf_t> ns3::PssFfMacScheduler::m_flowStatsDl

private

Map of UE statistics (per RNTI basis) in downlink.

Definition at line 337 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

◆ m_flowStatsUl

std::map<uint16_t, pssFlowPerf_t> ns3::PssFfMacScheduler::m_flowStatsUl

private

Map of UE statistics (per RNTI basis)

Definition at line 342 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

◆ m_harqOn

bool ns3::PssFfMacScheduler::m_harqOn

private

m_harqOn when false inhibit the HARQ mechanisms (by default active)

Definition at line 412 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

◆ m_nextRntiUl

uint16_t ns3::PssFfMacScheduler::m_nextRntiUl

private

RNTI of the next user to be served next scheduling in UL.

Definition at line 398 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

◆ m_nMux

uint32_t ns3::PssFfMacScheduler::m_nMux

private

TD scheduler selects nMux UEs and transfer them to FD scheduler.

Definition at line 406 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

◆ m_p10CqiRxed

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_p10CqiRxed

private

Map of UE's DL CQI P01 received.

Definition at line 347 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

◆ m_p10CqiTimers

std::map<uint16_t, uint32_t> ns3::PssFfMacScheduler::m_p10CqiTimers

private

Map of UE's timers on DL CQI P01 received.

Definition at line 351 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

◆ m_rachAllocationMap

std::vector<uint16_t> ns3::PssFfMacScheduler::m_rachAllocationMap

private

RACH allocation map.

Definition at line 435 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_rachList

std::vector<struct RachListElement_s> ns3::PssFfMacScheduler::m_rachList

private

RACH list.

Definition at line 434 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

◆ m_rlcBufferReq

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::PssFfMacScheduler::m_rlcBufferReq

private

Vectors of UE's LC info.

Definition at line 332 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

◆ m_schedSapProvider

FfMacSchedSapProvider* ns3::PssFfMacScheduler::m_schedSapProvider

private

Sched SAP provider.

Definition at line 386 of file pss-ff-mac-scheduler.h.

Referenced by PssFfMacScheduler(), DoDispose(), and GetFfMacSchedSapProvider().

◆ m_schedSapUser

FfMacSchedSapUser* ns3::PssFfMacScheduler::m_schedSapUser

private

Sched SAP user.

Definition at line 384 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

◆ m_timeWindow

double ns3::PssFfMacScheduler::m_timeWindow

private

time window

Definition at line 396 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq().

◆ m_ueCqi

std::map<uint16_t, std::vector<double> > ns3::PssFfMacScheduler::m_ueCqi

private

Map of UEs' UL-CQI per RBG.

Definition at line 371 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

◆ m_ueCqiTimers

std::map<uint16_t, uint32_t> ns3::PssFfMacScheduler::m_ueCqiTimers

private

Map of UEs' timers on UL-CQI per RBG.

Definition at line 375 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

◆ m_uesTxMode

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_uesTxMode

private

txMode of the UEs

Definition at line 402 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

◆ m_ulGrantMcs

uint8_t ns3::PssFfMacScheduler::m_ulGrantMcs

private

MCS for UL grant (default 0)

Definition at line 436 of file pss-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

◆ m_ulHarqCurrentProcessId

std::map<uint16_t, uint8_t> ns3::PssFfMacScheduler::m_ulHarqCurrentProcessId

private

UL HARQ process ID.

Definition at line 425 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ulHarqProcessesDciBuffer

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::PssFfMacScheduler::m_ulHarqProcessesDciBuffer

private

UL HARQ process DCI buffer.

Definition at line 431 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ulHarqProcessesStatus

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::PssFfMacScheduler::m_ulHarqProcessesStatus

private

UL HARQ process status.

Definition at line 429 of file pss-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:

src/lte/model/pss-ff-mac-scheduler.h
src/lte/model/pss-ff-mac-scheduler.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::FfMacScheduler

Constructor & Destructor Documentation

◆ PssFfMacScheduler()

◆ ~PssFfMacScheduler()

Member Function Documentation

◆ DoCschedCellConfigReq()

◆ DoCschedLcConfigReq()

◆ DoCschedLcReleaseReq()

◆ DoCschedUeConfigReq()

◆ DoCschedUeReleaseReq()

◆ DoDispose()

◆ DoSchedDlCqiInfoReq()

◆ DoSchedDlMacBufferReq()

◆ DoSchedDlPagingBufferReq()

◆ DoSchedDlRachInfoReq()

◆ DoSchedDlRlcBufferReq()

◆ DoSchedDlTriggerReq()

◆ DoSchedUlCqiInfoReq()

◆ DoSchedUlMacCtrlInfoReq()

◆ DoSchedUlNoiseInterferenceReq()

◆ DoSchedUlSrInfoReq()

◆ DoSchedUlTriggerReq()

◆ EstimateUlSinr()

◆ GetFfMacCschedSapProvider()

◆ GetFfMacSchedSapProvider()

◆ GetLteFfrSapUser()

◆ GetRbgSize()

◆ GetTypeId()

◆ HarqProcessAvailability()

◆ LcActivePerFlow()

◆ RefreshDlCqiMaps()

◆ RefreshHarqProcesses()

◆ RefreshUlCqiMaps()

◆ SetFfMacCschedSapUser()

◆ SetFfMacSchedSapUser()

◆ SetLteFfrSapProvider()

◆ TransmissionModeConfigurationUpdate()

◆ UpdateDlRlcBufferInfo()

◆ UpdateHarqProcessId()

◆ UpdateUlRlcBufferInfo()

Friends And Related Function Documentation

◆ MemberCschedSapProvider< PssFfMacScheduler >

◆ MemberSchedSapProvider< PssFfMacScheduler >

Member Data Documentation

◆ m_a30CqiRxed

◆ m_a30CqiTimers

◆ m_allocationMaps

◆ m_amc

◆ m_ceBsrRxed

◆ m_cqiTimersThreshold

of TTIs for which a CQI can be considered valid

◆ m_cschedCellConfig

◆ m_cschedSapProvider

◆ m_cschedSapUser

◆ m_dlHarqCurrentProcessId

◆ m_dlHarqProcessesDciBuffer

◆ m_dlHarqProcessesRlcPduListBuffer

◆ m_dlHarqProcessesStatus

◆ m_dlHarqProcessesTimer

◆ m_dlInfoListBuffered

◆ m_fdSchedulerType

◆ m_ffrSapProvider

◆ m_ffrSapUser

◆ m_flowStatsDl

◆ m_flowStatsUl

◆ m_harqOn

◆ m_nextRntiUl

◆ m_nMux

◆ m_p10CqiRxed

◆ m_p10CqiTimers

◆ m_rachAllocationMap
