Implement the header for management frames of type association and reassociation response. More...

#include "mgt-headers.h"

Inheritance diagram for ns3::MgtAssocResponseHeader:

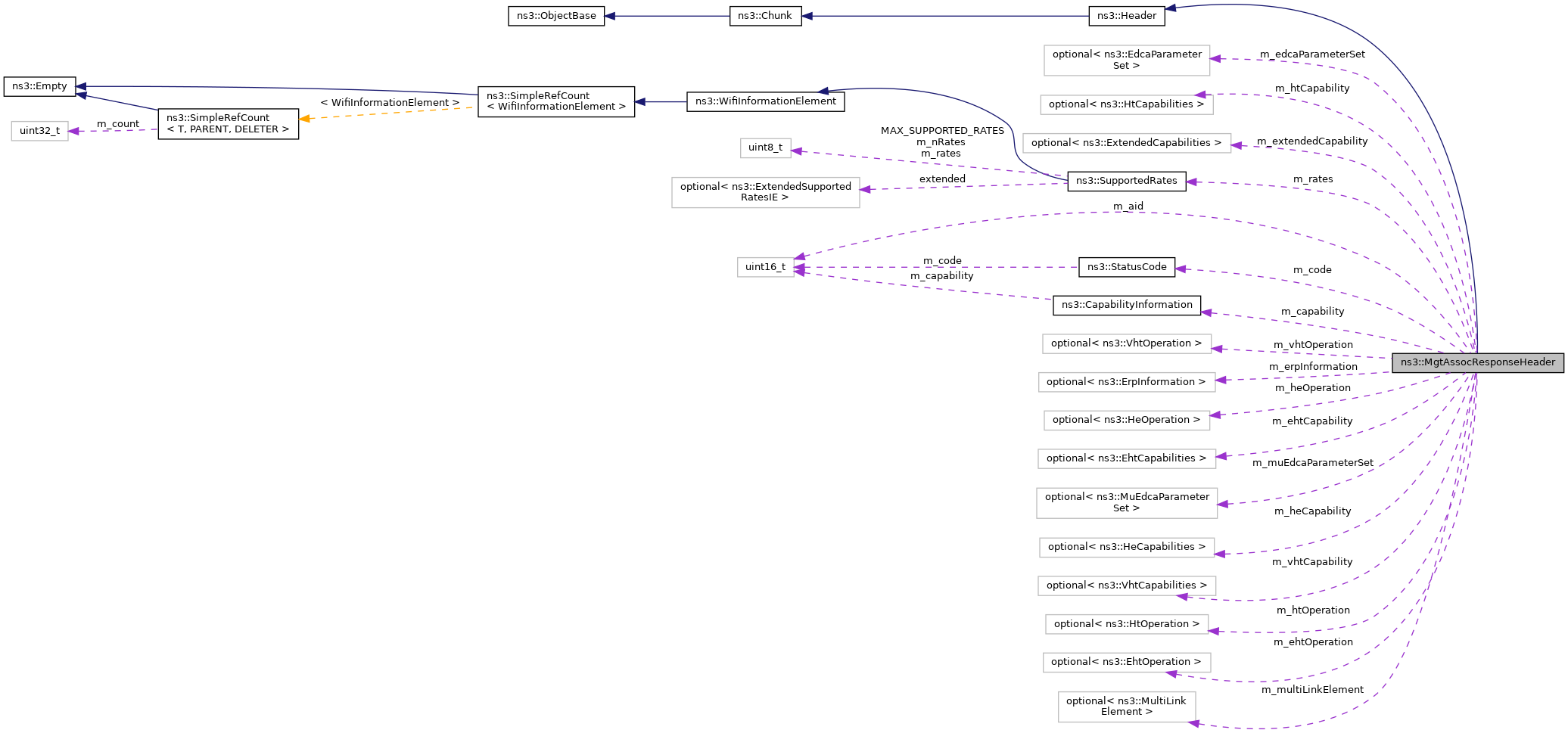

Collaboration diagram for ns3::MgtAssocResponseHeader:

Public Member Functions
	MgtAssocResponseHeader ()

	~MgtAssocResponseHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

uint16_t	GetAssociationId () const
	Return the association ID. More...

const CapabilityInformation &	GetCapabilities () const
	Return the Capability information. More...

const std::optional< EdcaParameterSet > &	GetEdcaParameterSet () const
	Return the EDCA Parameter Set, if present. More...

const std::optional< EhtCapabilities > &	GetEhtCapabilities () const
	Return the EHT capabilities, if present. More...

const std::optional< EhtOperation > &	GetEhtOperation () const
	Return the EHT operation, if present. More...

const std::optional< ErpInformation > &	GetErpInformation () const
	Return the ERP information, if present. More...

const std::optional< ExtendedCapabilities > &	GetExtendedCapabilities () const
	Return the extended capabilities, if present. More...

const std::optional< HeCapabilities > &	GetHeCapabilities () const
	Return the HE capabilities, if present. More...

const std::optional< HeOperation > &	GetHeOperation () const
	Return the HE operation, if present. More...

const std::optional< HtCapabilities > &	GetHtCapabilities () const
	Return the HT capabilities, if present. More...

const std::optional< HtOperation > &	GetHtOperation () const
	Return the HT operation, if present. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

const std::optional< MuEdcaParameterSet > &	GetMuEdcaParameterSet () const
	Return the MU EDCA Parameter Set, if present. More...

const std::optional< MultiLinkElement > &	GetMultiLinkElement () const
	Return the Multi-Link Element information element, if present. More...

uint32_t	GetSerializedSize () const override

StatusCode	GetStatusCode ()
	Return the status code. More...

const SupportedRates &	GetSupportedRates () const
	Return the supported rates. More...

const std::optional< VhtCapabilities > &	GetVhtCapabilities () const
	Return the VHT capabilities, if present. More...

const std::optional< VhtOperation > &	GetVhtOperation () const
	Return the VHT operation, if present. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetAssociationId (uint16_t aid)
	Set the association ID. More...

void	SetCapabilities (CapabilityInformation &&capabilities)
	Set the Capability information. More...

void	SetCapabilities (const CapabilityInformation &capabilities)
	Set the Capability information. More...

void	SetEdcaParameterSet (const EdcaParameterSet &edcaParameterSet)
	Set the EDCA Parameter Set. More...

void	SetEdcaParameterSet (EdcaParameterSet &&edcaParameterSet)
	Set the EDCA Parameter Set. More...

void	SetEhtCapabilities (const EhtCapabilities &ehtCapabilities)
	Set the EHT capabilities. More...

void	SetEhtCapabilities (EhtCapabilities &&ehtCapabilities)
	Set the EHT capabilities. More...

void	SetEhtOperation (const EhtOperation &ehtOperation)
	Set the EHT operation. More...

void	SetEhtOperation (EhtOperation &&ehtOperation)
	Set the EHT operation. More...

void	SetErpInformation (const ErpInformation &erpInformation)
	Set the ERP information. More...

void	SetErpInformation (ErpInformation &&erpInformation)
	Set the ERP information. More...

void	SetExtendedCapabilities (const ExtendedCapabilities &extendedCapabilities)
	Set the extended capabilities. More...

void	SetExtendedCapabilities (ExtendedCapabilities &&extendedCapabilities)
	Set the extended capabilities. More...

void	SetHeCapabilities (const HeCapabilities &heCapabilities)
	Set the HE capabilities. More...

void	SetHeCapabilities (HeCapabilities &&heCapabilities)
	Set the HE capabilities. More...

void	SetHeOperation (const HeOperation &heOperation)
	Set the HE operation. More...

void	SetHeOperation (HeOperation &&heOperation)
	Set the HE operation. More...

void	SetHtCapabilities (const HtCapabilities &htCapabilities)
	Set the HT capabilities. More...

void	SetHtCapabilities (HtCapabilities &&htCapabilities)
	Set the HT capabilities. More...

void	SetHtOperation (const HtOperation &htOperation)
	Set the HT operation. More...

void	SetHtOperation (HtOperation &&htOperation)
	Set the HT operation. More...

void	SetMuEdcaParameterSet (const MuEdcaParameterSet &muEdcaParameterSet)
	Set the MU EDCA Parameter Set. More...

void	SetMuEdcaParameterSet (MuEdcaParameterSet &&muEdcaParameterSet)
	Set the MU EDCA Parameter Set. More...

void	SetMultiLinkElement (const MultiLinkElement &multiLinkElement)
	Set the Multi-Link Element information element. More...

void	SetMultiLinkElement (MultiLinkElement &&multiLinkElement)
	Set the Multi-Link Element information element. More...

void	SetStatusCode (StatusCode code)
	Set the status code. More...

void	SetSupportedRates (const SupportedRates &rates)
	Set the supported rates. More...

void	SetSupportedRates (SupportedRates &&rates)
	Set the supported rates. More...

void	SetVhtCapabilities (const VhtCapabilities &vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtCapabilities (VhtCapabilities &&vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtOperation (const VhtOperation &vhtOperation)
	Set the VHT operation. More...

void	SetVhtOperation (VhtOperation &&vhtOperation)
	Set the VHT operation. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint16_t	m_aid
	AID. More...

CapabilityInformation	m_capability
	Capability information. More...

StatusCode	m_code
	Status code. More...

std::optional< EdcaParameterSet >	m_edcaParameterSet
	EDCA Parameter Set. More...

std::optional< EhtCapabilities >	m_ehtCapability
	EHT capabilities. More...

std::optional< EhtOperation >	m_ehtOperation
	EHT Operation. More...

std::optional< ErpInformation >	m_erpInformation
	ERP information. More...

std::optional< ExtendedCapabilities >	m_extendedCapability
	extended capabilities More...

std::optional< HeCapabilities >	m_heCapability
	HE capabilities. More...

std::optional< HeOperation >	m_heOperation
	HE operation. More...

std::optional< HtCapabilities >	m_htCapability
	HT capabilities. More...

std::optional< HtOperation >	m_htOperation
	HT operation. More...

std::optional< MuEdcaParameterSet >	m_muEdcaParameterSet
	MU EDCA Parameter Set. More...

std::optional< MultiLinkElement >	m_multiLinkElement
	Multi-Link Element. More...

SupportedRates	m_rates
	List of supported rates. More...

std::optional< VhtCapabilities >	m_vhtCapability
	VHT capabilities. More...

std::optional< VhtOperation >	m_vhtOperation
	VHT operation. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type association and reassociation response.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 1392 bytes (on a 64-bit architecture).

Definition at line 446 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtAssocResponseHeader()

ns3::MgtAssocResponseHeader::MgtAssocResponseHeader ( )

Definition at line 1595 of file mgt-headers.cc.

◆ ~MgtAssocResponseHeader()

ns3::MgtAssocResponseHeader::~MgtAssocResponseHeader ( )

override

Definition at line 1600 of file mgt-headers.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::MgtAssocResponseHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 2096 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::StatusCode::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::SupportedRates::IsSupportedRate(), m_aid, m_capability, m_code, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_vhtCapability, m_vhtOperation, ns3::Buffer::Iterator::ReadLsbtohU16(), two-ray-to-three-gpp-ch-calibration::start, and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

Referenced by ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField().

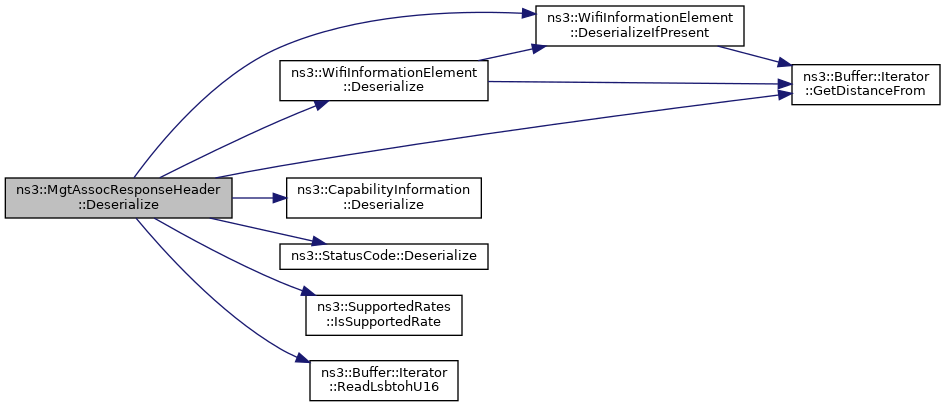

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAssociationId()

uint16_t ns3::MgtAssocResponseHeader::GetAssociationId ( ) const

Return the association ID.

Returns: the association ID

Definition at line 1839 of file mgt-headers.cc.

References m_aid.

Referenced by ns3::StaWifiMac::ReceiveAssocResp().

Here is the caller graph for this function:

◆ GetCapabilities()

const CapabilityInformation & ns3::MgtAssocResponseHeader::GetCapabilities ( ) const

Return the Capability information.

Returns: Capability information

Definition at line 1647 of file mgt-headers.cc.

References m_capability.

◆ GetEdcaParameterSet()

const std::optional< EdcaParameterSet > & ns3::MgtAssocResponseHeader::GetEdcaParameterSet ( ) const

Return the EDCA Parameter Set, if present.

Returns: the EDCA Parameter Set, if present

Definition at line 1887 of file mgt-headers.cc.

References m_edcaParameterSet.

◆ GetEhtCapabilities()

const std::optional< EhtCapabilities > & ns3::MgtAssocResponseHeader::GetEhtCapabilities ( ) const

Return the EHT capabilities, if present.

Returns: EHT capabilities, if present

Definition at line 1791 of file mgt-headers.cc.

References m_ehtCapability.

◆ GetEhtOperation()

const std::optional< EhtOperation > & ns3::MgtAssocResponseHeader::GetEhtOperation ( ) const

Return the EHT operation, if present.

Returns: EHT operation, if present

Definition at line 1809 of file mgt-headers.cc.

References m_ehtOperation.

◆ GetErpInformation()

const std::optional< ErpInformation > & ns3::MgtAssocResponseHeader::GetErpInformation ( ) const

Return the ERP information, if present.

Returns: the ERP information, if present

Definition at line 1857 of file mgt-headers.cc.

References m_erpInformation.

◆ GetExtendedCapabilities()

const std::optional< ExtendedCapabilities > & ns3::MgtAssocResponseHeader::GetExtendedCapabilities ( ) const

Return the extended capabilities, if present.

Returns: the extended capabilities, if present

Definition at line 1665 of file mgt-headers.cc.

References m_extendedCapability.

◆ GetHeCapabilities()

const std::optional< HeCapabilities > & ns3::MgtAssocResponseHeader::GetHeCapabilities ( ) const

Return the HE capabilities, if present.

Returns: HE capabilities, if present

Definition at line 1755 of file mgt-headers.cc.

References m_heCapability.

◆ GetHeOperation()

const std::optional< HeOperation > & ns3::MgtAssocResponseHeader::GetHeOperation ( ) const

Return the HE operation, if present.

Returns: HE operation, if present

Definition at line 1773 of file mgt-headers.cc.

References m_heOperation.

◆ GetHtCapabilities()

const std::optional< HtCapabilities > & ns3::MgtAssocResponseHeader::GetHtCapabilities ( ) const

Return the HT capabilities, if present.

Returns: HT capabilities, if present

Definition at line 1683 of file mgt-headers.cc.

References m_htCapability.

◆ GetHtOperation()

const std::optional< HtOperation > & ns3::MgtAssocResponseHeader::GetHtOperation ( ) const

Return the HT operation, if present.

Returns: HT operation, if present

Definition at line 1701 of file mgt-headers.cc.

References m_htOperation.

◆ GetInstanceTypeId()

TypeId ns3::MgtAssocResponseHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1909 of file mgt-headers.cc.

References GetTypeId().

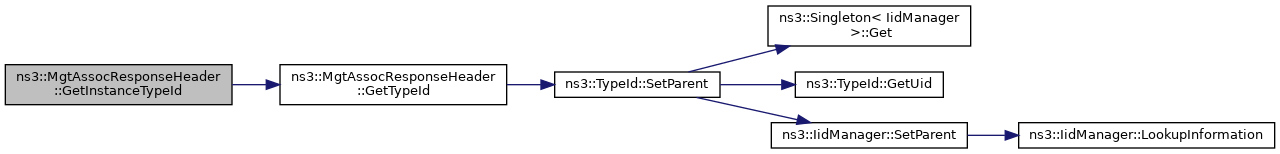

Here is the call graph for this function:

◆ GetMuEdcaParameterSet()

const std::optional< MuEdcaParameterSet > & ns3::MgtAssocResponseHeader::GetMuEdcaParameterSet ( ) const

Return the MU EDCA Parameter Set, if present.

Returns: the MU EDCA Parameter Set, if present

Definition at line 1893 of file mgt-headers.cc.

References m_muEdcaParameterSet.

◆ GetMultiLinkElement()

const std::optional< MultiLinkElement > & ns3::MgtAssocResponseHeader::GetMultiLinkElement ( ) const

Return the Multi-Link Element information element, if present.

Returns: the Multi-Link Element information element, if present

Definition at line 1827 of file mgt-headers.cc.

References m_multiLinkElement.

Referenced by MultiLinkSetupTest::CheckAssocResponse(), ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::StaWifiMac::ReceiveAssocResp(), and ns3::ApWifiMac::SetAid().

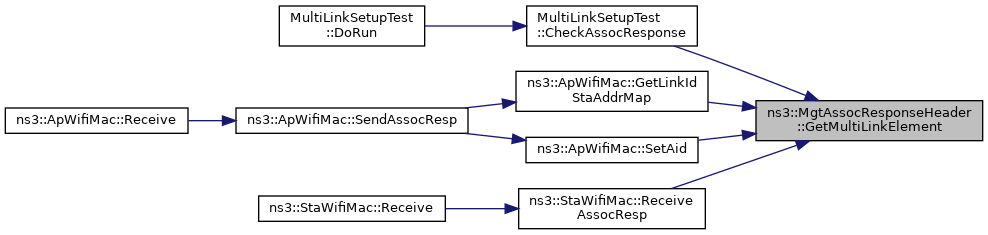

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtAssocResponseHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1915 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), ns3::CapabilityInformation::GetSerializedSize(), ns3::StatusCode::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_code, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_vhtCapability, and m_vhtOperation.

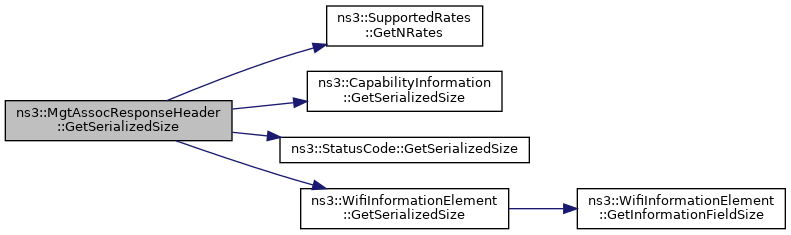

Here is the call graph for this function:

◆ GetStatusCode()

StatusCode ns3::MgtAssocResponseHeader::GetStatusCode ( )

Return the status code.

Returns: the status code

Definition at line 1605 of file mgt-headers.cc.

References m_code.

Referenced by ns3::ApWifiMac::GetLinkIdStaAddrMap(), ns3::StaWifiMac::ReceiveAssocResp(), and ns3::ApWifiMac::SetAid().

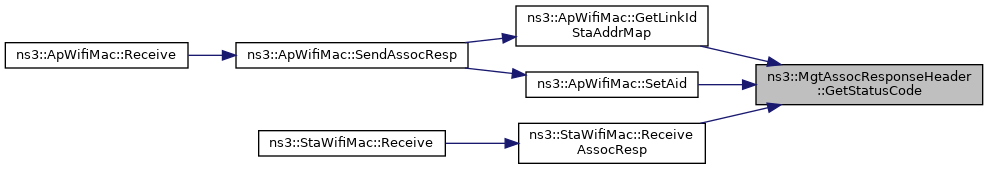

Here is the caller graph for this function:

◆ GetSupportedRates()

const SupportedRates & ns3::MgtAssocResponseHeader::GetSupportedRates ( ) const

Return the supported rates.

Returns: the supported rates

Definition at line 1611 of file mgt-headers.cc.

References m_rates.

◆ GetTypeId()

TypeId ns3::MgtAssocResponseHeader::GetTypeId ( )

static

Register this type.

Returns: The TypeId.

Definition at line 1899 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

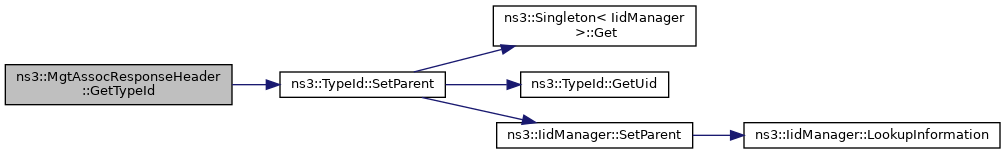

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtCapabilities()

const std::optional< VhtCapabilities > & ns3::MgtAssocResponseHeader::GetVhtCapabilities ( ) const

Return the VHT capabilities, if present.

Returns: VHT capabilities, if present

Definition at line 1719 of file mgt-headers.cc.

References m_vhtCapability.

◆ GetVhtOperation()

const std::optional< VhtOperation > & ns3::MgtAssocResponseHeader::GetVhtOperation ( ) const

Return the VHT operation, if present.

Returns: VHT operation, if present

Definition at line 1737 of file mgt-headers.cc.

References m_vhtOperation.

◆ Print()

void ns3::MgtAssocResponseHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1982 of file mgt-headers.cc.

References m_aid, m_code, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_rates, m_vhtCapability, and m_vhtOperation.

◆ Serialize()

void ns3::MgtAssocResponseHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 2030 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), m_aid, m_capability, m_code, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_vhtCapability, m_vhtOperation, ns3::WifiInformationElement::Serialize(), ns3::CapabilityInformation::Serialize(), ns3::StatusCode::Serialize(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteHtolsbU16().

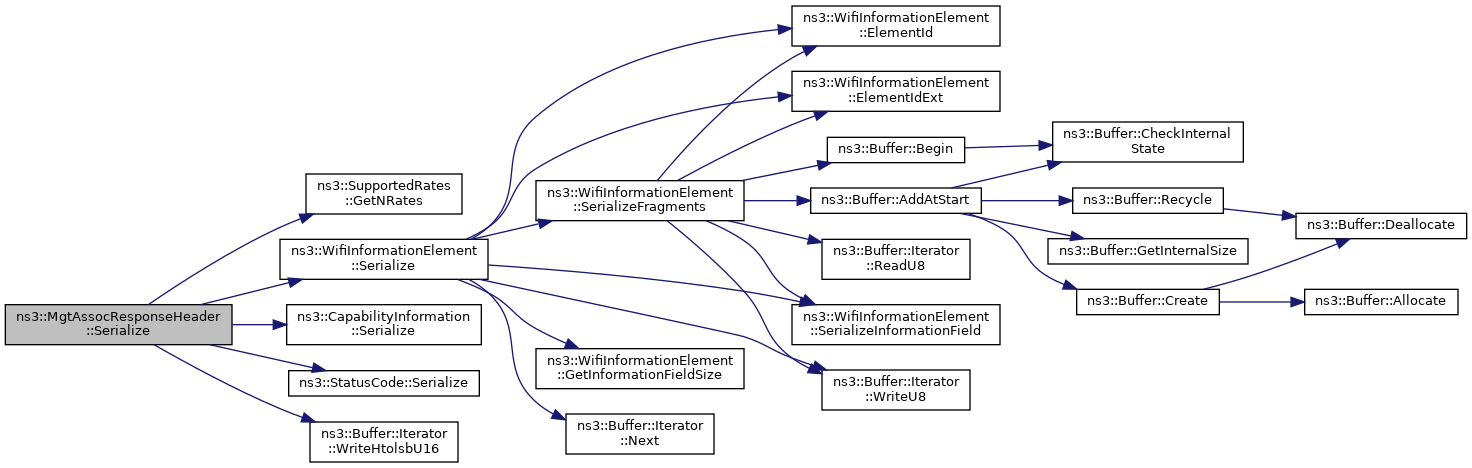

Here is the call graph for this function:

◆ SetAssociationId()

void ns3::MgtAssocResponseHeader::SetAssociationId ( uint16_t aid )

Set the association ID.

Parameters

aid	the association ID

Definition at line 1833 of file mgt-headers.cc.

References m_aid.

Referenced by ns3::ApWifiMac::SetAid().

Here is the caller graph for this function:

◆ SetCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetCapabilities ( CapabilityInformation && capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 1641 of file mgt-headers.cc.

References m_capability.

◆ SetCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetCapabilities ( const CapabilityInformation & capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 1635 of file mgt-headers.cc.

References m_capability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetEdcaParameterSet() [1/2]

void ns3::MgtAssocResponseHeader::SetEdcaParameterSet ( const EdcaParameterSet & edcaParameterSet )

Set the EDCA Parameter Set.

Parameters

edcaParameterSet the EDCA Parameter Set

Definition at line 1863 of file mgt-headers.cc.

References m_edcaParameterSet.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetEdcaParameterSet() [2/2]

void ns3::MgtAssocResponseHeader::SetEdcaParameterSet ( EdcaParameterSet && edcaParameterSet )

Set the EDCA Parameter Set.

Parameters

edcaParameterSet the EDCA Parameter Set

Definition at line 1869 of file mgt-headers.cc.

References m_edcaParameterSet.

◆ SetEhtCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetEhtCapabilities ( const EhtCapabilities & ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 1779 of file mgt-headers.cc.

References m_ehtCapability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetEhtCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetEhtCapabilities ( EhtCapabilities && ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 1785 of file mgt-headers.cc.

References m_ehtCapability.

◆ SetEhtOperation() [1/2]

void ns3::MgtAssocResponseHeader::SetEhtOperation ( const EhtOperation & ehtOperation )

Set the EHT operation.

Parameters

ehtOperation HE operation

Definition at line 1797 of file mgt-headers.cc.

References m_ehtOperation.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetEhtOperation() [2/2]

void ns3::MgtAssocResponseHeader::SetEhtOperation ( EhtOperation && ehtOperation )

Set the EHT operation.

Parameters

ehtOperation HE operation

Definition at line 1803 of file mgt-headers.cc.

References m_ehtOperation.

◆ SetErpInformation() [1/2]

void ns3::MgtAssocResponseHeader::SetErpInformation ( const ErpInformation & erpInformation )

Set the ERP information.

Parameters

erpInformation the ERP information

Definition at line 1845 of file mgt-headers.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetErpInformation() [2/2]

void ns3::MgtAssocResponseHeader::SetErpInformation ( ErpInformation && erpInformation )

Set the ERP information.

Parameters

erpInformation the ERP information

Definition at line 1851 of file mgt-headers.cc.

References m_erpInformation.

◆ SetExtendedCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetExtendedCapabilities ( const ExtendedCapabilities & extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 1653 of file mgt-headers.cc.

References m_extendedCapability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetExtendedCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetExtendedCapabilities ( ExtendedCapabilities && extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 1659 of file mgt-headers.cc.

References m_extendedCapability.

◆ SetHeCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetHeCapabilities ( const HeCapabilities & heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 1743 of file mgt-headers.cc.

References m_heCapability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetHeCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetHeCapabilities ( HeCapabilities && heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 1749 of file mgt-headers.cc.

References m_heCapability.

◆ SetHeOperation() [1/2]

void ns3::MgtAssocResponseHeader::SetHeOperation ( const HeOperation & heOperation )

Set the HE operation.

Parameters

heOperation HE operation

Definition at line 1761 of file mgt-headers.cc.

References m_heOperation.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetHeOperation() [2/2]

void ns3::MgtAssocResponseHeader::SetHeOperation ( HeOperation && heOperation )

Set the HE operation.

Parameters

heOperation HE operation

Definition at line 1767 of file mgt-headers.cc.

References m_heOperation.

◆ SetHtCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetHtCapabilities ( const HtCapabilities & htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 1671 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetHtCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetHtCapabilities ( HtCapabilities && htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 1677 of file mgt-headers.cc.

References m_htCapability.

◆ SetHtOperation() [1/2]

void ns3::MgtAssocResponseHeader::SetHtOperation ( const HtOperation & htOperation )

Set the HT operation.

Parameters

htOperation HT operation

Definition at line 1689 of file mgt-headers.cc.

References m_htOperation.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetHtOperation() [2/2]

void ns3::MgtAssocResponseHeader::SetHtOperation ( HtOperation && htOperation )

Set the HT operation.

Parameters

htOperation HT operation

Definition at line 1695 of file mgt-headers.cc.

References m_htOperation.

◆ SetMuEdcaParameterSet() [1/2]

void ns3::MgtAssocResponseHeader::SetMuEdcaParameterSet ( const MuEdcaParameterSet & muEdcaParameterSet )

Set the MU EDCA Parameter Set.

Parameters

muEdcaParameterSet the MU EDCA Parameter Set

Definition at line 1875 of file mgt-headers.cc.

References m_muEdcaParameterSet.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetMuEdcaParameterSet() [2/2]

void ns3::MgtAssocResponseHeader::SetMuEdcaParameterSet ( MuEdcaParameterSet && muEdcaParameterSet )

Set the MU EDCA Parameter Set.

Parameters

muEdcaParameterSet the MU EDCA Parameter Set

Definition at line 1881 of file mgt-headers.cc.

References m_muEdcaParameterSet.

◆ SetMultiLinkElement() [1/2]

void ns3::MgtAssocResponseHeader::SetMultiLinkElement ( const MultiLinkElement & multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 1815 of file mgt-headers.cc.

References m_multiLinkElement.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

◆ SetMultiLinkElement() [2/2]

void ns3::MgtAssocResponseHeader::SetMultiLinkElement ( MultiLinkElement && multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 1821 of file mgt-headers.cc.

References m_multiLinkElement.

◆ SetStatusCode()

void ns3::MgtAssocResponseHeader::SetStatusCode ( StatusCode code )

Set the status code.

Parameters

code	the status code

Definition at line 1617 of file mgt-headers.cc.

References m_code.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetSupportedRates() [1/2]

void ns3::MgtAssocResponseHeader::SetSupportedRates ( const SupportedRates & rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 1623 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetSupportedRates() [2/2]

void ns3::MgtAssocResponseHeader::SetSupportedRates ( SupportedRates && rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 1629 of file mgt-headers.cc.

References m_rates.

◆ SetVhtCapabilities() [1/2]

void ns3::MgtAssocResponseHeader::SetVhtCapabilities ( const VhtCapabilities & vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 1707 of file mgt-headers.cc.

References m_vhtCapability.

Referenced by ns3::ApWifiMac::GetAssocResp().

Here is the caller graph for this function:

◆ SetVhtCapabilities() [2/2]

void ns3::MgtAssocResponseHeader::SetVhtCapabilities ( VhtCapabilities && vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 1713 of file mgt-headers.cc.

References m_vhtCapability.

◆ SetVhtOperation() [1/2]

void ns3::MgtAssocResponseHeader::SetVhtOperation ( const VhtOperation & vhtOperation )

Set the VHT operation.

Parameters

vhtOperation VHT operation

Definition at line 1725 of file mgt-headers.cc.

References m_vhtOperation.

Referenced by ns3::ApWifiMac::GetAssocResp().

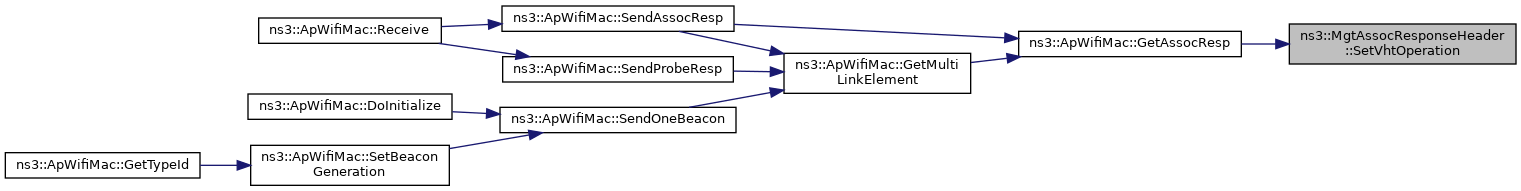

Here is the caller graph for this function:

◆ SetVhtOperation() [2/2]

void ns3::MgtAssocResponseHeader::SetVhtOperation ( VhtOperation && vhtOperation )

Set the VHT operation.

Parameters

vhtOperation VHT operation

Definition at line 1731 of file mgt-headers.cc.

References m_vhtOperation.

Member Data Documentation

◆ m_aid

uint16_t ns3::MgtAssocResponseHeader::m_aid

private

AID.

Definition at line 733 of file mgt-headers.h.

Referenced by Deserialize(), GetAssociationId(), Print(), Serialize(), and SetAssociationId().

◆ m_capability

CapabilityInformation ns3::MgtAssocResponseHeader::m_capability

private

Capability information.

Definition at line 731 of file mgt-headers.h.

Referenced by Deserialize(), GetCapabilities(), GetSerializedSize(), Serialize(), and SetCapabilities().

◆ m_code

StatusCode ns3::MgtAssocResponseHeader::m_code

private

Status code.

Definition at line 732 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetStatusCode(), Print(), Serialize(), and SetStatusCode().

◆ m_edcaParameterSet

std::optional<EdcaParameterSet> ns3::MgtAssocResponseHeader::m_edcaParameterSet

private

EDCA Parameter Set.

Definition at line 740 of file mgt-headers.h.

Referenced by Deserialize(), GetEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetEdcaParameterSet().

◆ m_ehtCapability

std::optional<EhtCapabilities> ns3::MgtAssocResponseHeader::m_ehtCapability

private

EHT capabilities.

Definition at line 744 of file mgt-headers.h.

Referenced by Deserialize(), GetEhtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetEhtCapabilities().

◆ m_ehtOperation

std::optional<EhtOperation> ns3::MgtAssocResponseHeader::m_ehtOperation

private

EHT Operation.

Definition at line 745 of file mgt-headers.h.

Referenced by Deserialize(), GetEhtOperation(), GetSerializedSize(), Print(), Serialize(), and SetEhtOperation().

◆ m_erpInformation

std::optional<ErpInformation> ns3::MgtAssocResponseHeader::m_erpInformation

private

ERP information.

Definition at line 739 of file mgt-headers.h.

Referenced by Deserialize(), GetErpInformation(), GetSerializedSize(), Print(), Serialize(), and SetErpInformation().

◆ m_extendedCapability

std::optional<ExtendedCapabilities> ns3::MgtAssocResponseHeader::m_extendedCapability

private

extended capabilities

Definition at line 734 of file mgt-headers.h.

Referenced by Deserialize(), GetExtendedCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetExtendedCapabilities().

◆ m_heCapability

std::optional<HeCapabilities> ns3::MgtAssocResponseHeader::m_heCapability

private

HE capabilities.

Definition at line 741 of file mgt-headers.h.

Referenced by Deserialize(), GetHeCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHeCapabilities().

◆ m_heOperation

std::optional<HeOperation> ns3::MgtAssocResponseHeader::m_heOperation

private

HE operation.

Definition at line 742 of file mgt-headers.h.

Referenced by Deserialize(), GetHeOperation(), GetSerializedSize(), Print(), Serialize(), and SetHeOperation().

◆ m_htCapability

std::optional<HtCapabilities> ns3::MgtAssocResponseHeader::m_htCapability

private

HT capabilities.

Definition at line 735 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

◆ m_htOperation

std::optional<HtOperation> ns3::MgtAssocResponseHeader::m_htOperation

private

HT operation.

Definition at line 736 of file mgt-headers.h.

Referenced by Deserialize(), GetHtOperation(), GetSerializedSize(), Print(), Serialize(), and SetHtOperation().

◆ m_muEdcaParameterSet

std::optional<MuEdcaParameterSet> ns3::MgtAssocResponseHeader::m_muEdcaParameterSet

private

MU EDCA Parameter Set.

Definition at line 743 of file mgt-headers.h.

Referenced by Deserialize(), GetMuEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetMuEdcaParameterSet().

◆ m_multiLinkElement

std::optional<MultiLinkElement> ns3::MgtAssocResponseHeader::m_multiLinkElement

private

Multi-Link Element.

Definition at line 746 of file mgt-headers.h.

Referenced by Deserialize(), GetMultiLinkElement(), GetSerializedSize(), Serialize(), and SetMultiLinkElement().

◆ m_rates

SupportedRates ns3::MgtAssocResponseHeader::m_rates

private

List of supported rates.

Definition at line 730 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

◆ m_vhtCapability

std::optional<VhtCapabilities> ns3::MgtAssocResponseHeader::m_vhtCapability

private

VHT capabilities.

Definition at line 737 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtCapabilities(), Print(), Serialize(), and SetVhtCapabilities().

◆ m_vhtOperation

std::optional<VhtOperation> ns3::MgtAssocResponseHeader::m_vhtOperation

private

VHT operation.

Definition at line 738 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtOperation(), Print(), Serialize(), and SetVhtOperation().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MgtAssocResponseHeader()

◆ ~MgtAssocResponseHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAssociationId()

◆ GetCapabilities()

◆ GetEdcaParameterSet()

◆ GetEhtCapabilities()

◆ GetEhtOperation()

◆ GetErpInformation()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHeOperation()

◆ GetHtCapabilities()

◆ GetHtOperation()

◆ GetInstanceTypeId()

◆ GetMuEdcaParameterSet()

◆ GetMultiLinkElement()

◆ GetSerializedSize()

◆ GetStatusCode()

◆ GetSupportedRates()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ GetVhtOperation()

◆ Print()

◆ Serialize()

◆ SetAssociationId()

◆ SetCapabilities() [1/2]

◆ SetCapabilities() [2/2]

◆ SetEdcaParameterSet() [1/2]

◆ SetEdcaParameterSet() [2/2]

◆ SetEhtCapabilities() [1/2]

◆ SetEhtCapabilities() [2/2]

◆ SetEhtOperation() [1/2]

◆ SetEhtOperation() [2/2]

◆ SetErpInformation() [1/2]

◆ SetErpInformation() [2/2]

◆ SetExtendedCapabilities() [1/2]

◆ SetExtendedCapabilities() [2/2]

◆ SetHeCapabilities() [1/2]

◆ SetHeCapabilities() [2/2]

◆ SetHeOperation() [1/2]

◆ SetHeOperation() [2/2]

◆ SetHtCapabilities() [1/2]

◆ SetHtCapabilities() [2/2]

◆ SetHtOperation() [1/2]

◆ SetHtOperation() [2/2]

◆ SetMuEdcaParameterSet() [1/2]

◆ SetMuEdcaParameterSet() [2/2]

◆ SetMultiLinkElement() [1/2]

◆ SetMultiLinkElement() [2/2]

◆ SetStatusCode()

◆ SetSupportedRates() [1/2]

◆ SetSupportedRates() [2/2]

◆ SetVhtCapabilities() [1/2]

◆ SetVhtCapabilities() [2/2]

◆ SetVhtOperation() [1/2]

◆ SetVhtOperation() [2/2]

Member Data Documentation

◆ m_aid

◆ m_capability

◆ m_code

◆ m_edcaParameterSet

◆ m_ehtCapability

◆ m_ehtOperation

◆ m_erpInformation

◆ m_extendedCapability

◆ m_heCapability

◆ m_heOperation

◆ m_htCapability

◆ m_htOperation

◆ m_muEdcaParameterSet

◆ m_multiLinkElement

◆ m_rates
