The VanetRoutingExperiment class implements a wifi app that allows VANET routing experiments to be simulated. More...

Inheritance diagram for VanetRoutingExperiment:

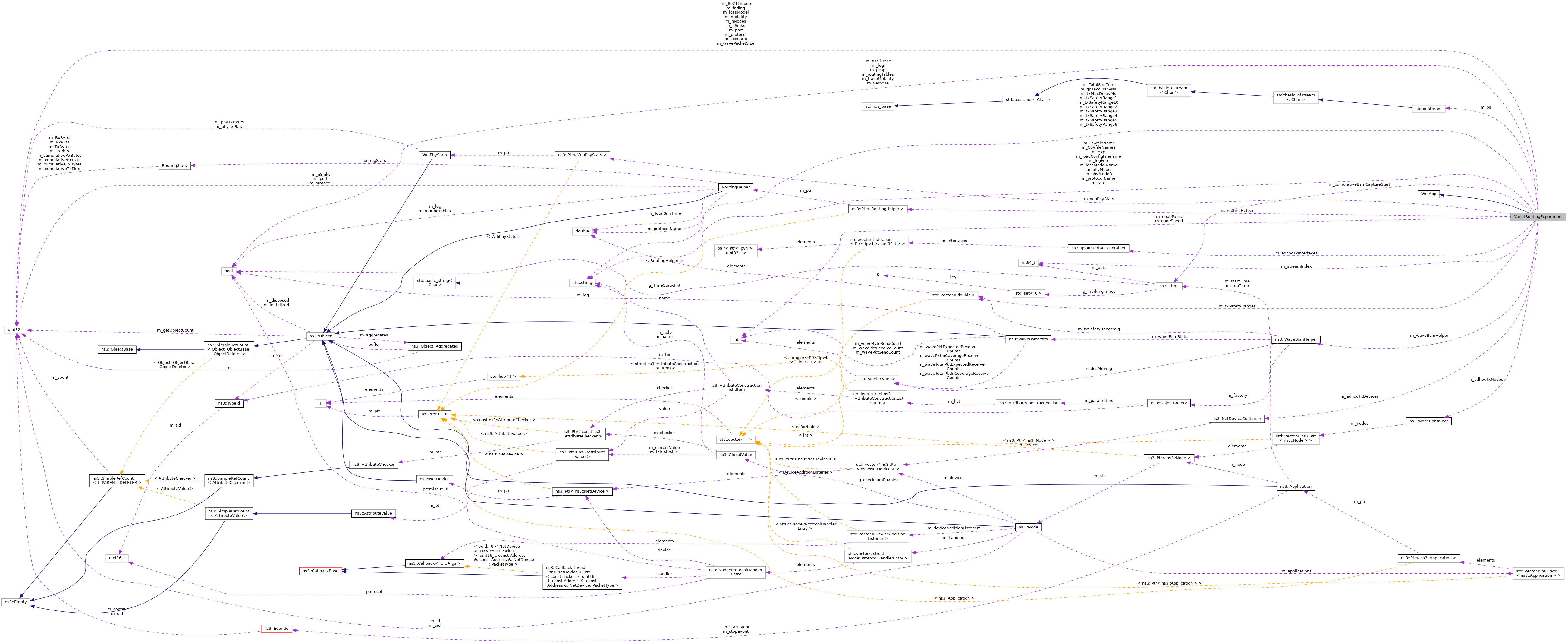

Collaboration diagram for VanetRoutingExperiment:

Public Member Functions
	VanetRoutingExperiment ()
	Constructor. More...

Public Member Functions inherited from WifiApp
	WifiApp ()
	Constructor. More...

virtual	~WifiApp ()
	Destructor. More...

void	Simulate (int argc, char **argv)
	Enacts simulation of an ns-3 wifi application. More...

Protected Member Functions
void	ConfigureApplications () override
	Configure applications. More...

void	ConfigureChannels () override
	Configure channels. More...

void	ConfigureDevices () override
	Configure devices. More...

void	ConfigureMobility () override
	Configure mobility. More...

void	ConfigureNodes () override
	Configure nodes. More...

void	ConfigureTracing () override
	Configure tracing. More...

void	ParseCommandLineArguments (int argc, char **argv) override
	Process command line arguments. More...

void	ProcessOutputs () override
	Process outputs. More...

void	RunSimulation () override
	Run the simulation. More...

void	SetDefaultAttributeValues () override
	Sets default attribute values. More...

Private Member Functions
void	CheckThroughput ()
	Checks the throughput and outputs summary to CSV file1. More...

void	CommandSetup (int argc, char **argv)
	Run the simulation. More...

void	ConfigureDefaults ()
	Configure default attributes. More...

void	Run ()
	Run the simulation. More...

void	SetConfigFromGlobals ()
	Set up configuration parameter from the global variables. More...

void	SetGlobalsFromConfig ()
	Set up the global variables from the configuration parameters. More...

void	SetupAdhocDevices ()
	Set up the adhoc devices. More...

void	SetupAdhocMobilityNodes ()
	Set up the adhoc mobility nodes. More...

void	SetupLogFile ()
	Set up log file. More...

void	SetupLogging ()
	Set up logging. More...

void	SetupRoutingMessages ()
	Set up generation of packets to be routed through the vehicular network. More...

void	SetupScenario ()
	Set up a prescribed scenario. More...

void	SetupWaveMessages ()
	Set up generation of IEEE 1609 WAVE messages, as a Basic Safety Message (BSM). More...

void	WriteCsvHeader ()
	Write the header line to the CSV file1. More...

Static Private Member Functions
static void	CourseChange (std::ostream *os, std::string context, Ptr< const MobilityModel > mobility)
	Course change function. More...

Private Attributes
uint32_t	m_80211mode
	80211 mode More...

NetDeviceContainer	m_adhocTxDevices
	adhoc transmit devices More...

Ipv4InterfaceContainer	m_adhocTxInterfaces
	adhoc transmit interfaces More...

NodeContainer	m_adhocTxNodes
	adhoc transmit nodes More...

bool	m_asciiTrace
	ascii trace More...

std::string	m_CSVfileName
	CSV file name. More...

std::string	m_CSVfileName2
	CSV file name. More...

Time	m_cumulativeBsmCaptureStart
	capture start More...

std::string	m_exp
	exp More...

uint32_t	m_fading
	fading More...

double	m_gpsAccuracyNs
	GPS accuracy. More...

std::string	m_loadConfigFilename
	load config file name More...

bool	m_log
	log More...

std::string	m_logFile
	log file More...

uint32_t	m_lossModel
	loss model More...

std::string	m_lossModelName
	loss model name More...

uint32_t	m_mobility
	mobility More...

uint32_t	m_nNodes
	number of nodes More...

int	m_nodePause
	in s More...

int	m_nodeSpeed
	in m/s More...

uint32_t	m_nSinks
	number of sinks More...

std::ofstream	m_os
	output stream More...

bool	m_pcap
	PCAP. More...

std::string	m_phyMode
	phy mode More...

std::string	m_phyModeB
	phy mode More...

uint32_t	m_port
	port More...

uint32_t	m_protocol
	protocol More...

std::string	m_protocolName
	protocol name More...

std::string	m_rate
	rate More...

Ptr< RoutingHelper >	m_routingHelper
	routing helper More...

bool	m_routingTables
	routing tables More...

std::string	m_saveConfigFilename
	save config file name More...

uint32_t	m_scenario
	scenario More...

int64_t	m_streamIndex
	used to get consistent random numbers across scenarios More...

double	m_TotalSimTime
	total sim time More...

std::string	m_traceFile
	trace file More...

bool	m_traceMobility
	trace mobility More...

std::string	m_trName
	trace file name More...

double	m_txMaxDelayMs
	transmit maximum delay More...

double	m_txp
	distance More...

double	m_txSafetyRange1
	range 1 More...

double	m_txSafetyRange10
	range 10 More...

double	m_txSafetyRange2
	range 2 More...

double	m_txSafetyRange3
	range 3 More...

double	m_txSafetyRange4
	range 4 More...

double	m_txSafetyRange5
	range 5 More...

double	m_txSafetyRange6
	range 6 More...

double	m_txSafetyRange7
	range 7 More...

double	m_txSafetyRange8
	range 8 More...

double	m_txSafetyRange9
	range 9 More...

std::vector< double >	m_txSafetyRanges
	list of ranges More...

bool	m_verbose
	verbose More...

WaveBsmHelper	m_waveBsmHelper
	helper More...

double	m_waveInterval
	seconds More...

uint32_t	m_wavePacketSize
	bytes More...

Ptr< WifiPhyStats >	m_wifiPhyStats
	wifi phy statistics More...

Detailed Description

The VanetRoutingExperiment class implements a wifi app that allows VANET routing experiments to be simulated.

Definition at line 1053 of file vanet-routing-compare.cc.

Constructor & Destructor Documentation

◆ VanetRoutingExperiment()

VanetRoutingExperiment::VanetRoutingExperiment ( )

Constructor.

Definition at line 1264 of file vanet-routing-compare.cc.

References m_log, m_routingHelper, and m_wifiPhyStats.

Member Function Documentation

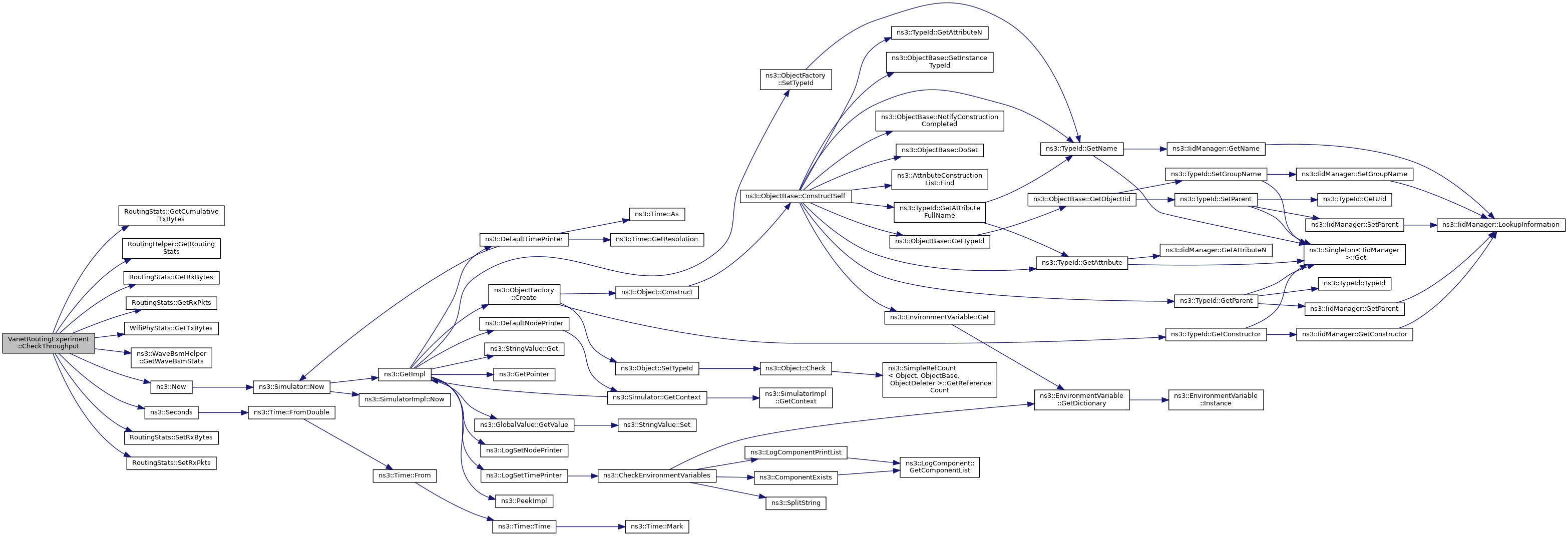

◆ CheckThroughput()

void VanetRoutingExperiment::CheckThroughput ( )

private

Checks the throughput and outputs summary to CSV file1.

This is scheduled and called once per second

Definition at line 1793 of file vanet-routing-compare.cc.

References RoutingStats::GetCumulativeTxBytes(), RoutingHelper::GetRoutingStats(), RoutingStats::GetRxBytes(), RoutingStats::GetRxPkts(), WifiPhyStats::GetTxBytes(), ns3::WaveBsmHelper::GetWaveBsmStats(), m_CSVfileName, m_cumulativeBsmCaptureStart, m_log, m_nSinks, m_protocolName, m_routingHelper, m_txp, m_waveBsmHelper, m_wifiPhyStats, ns3::Now(), NS_LOG_UNCOND, packetsReceived, ns3::Seconds(), RoutingStats::SetRxBytes(), and RoutingStats::SetRxPkts().

Referenced by Run().

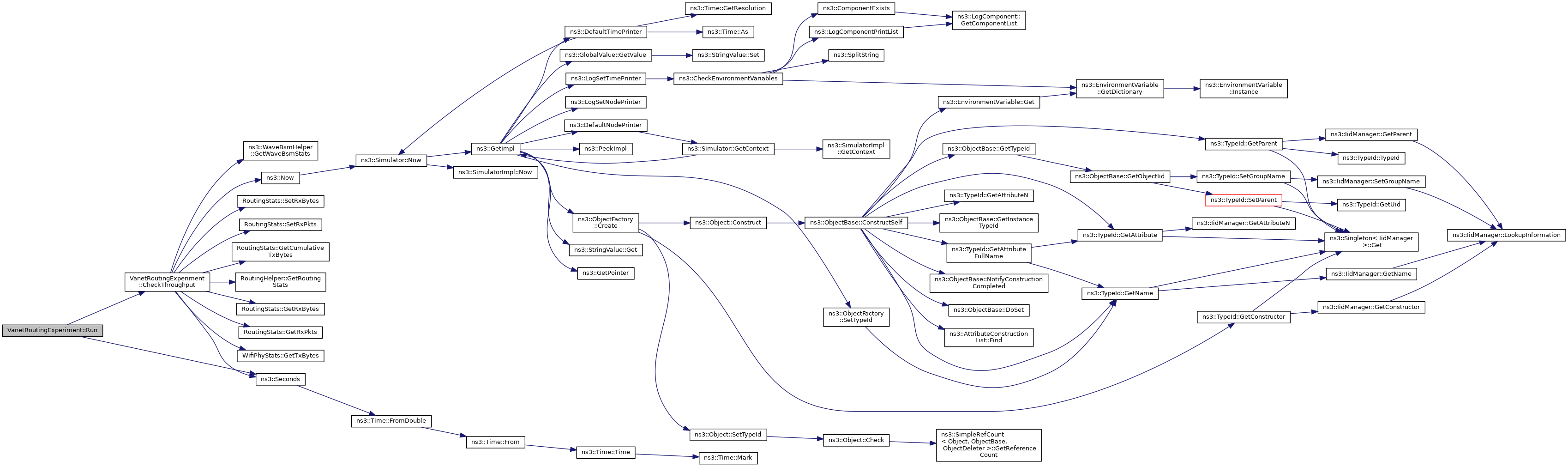

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CommandSetup()

void VanetRoutingExperiment::CommandSetup	(	int	argc,
		char **	argv
	)

private

Run the simulation.

Parameters

argc	command line argument count
argv	command line parameters

Definition at line 2035 of file vanet-routing-compare.cc.

References second::cmd, ConfigStoreHelper::LoadConfig(), m_80211mode, m_asciiTrace, m_CSVfileName, m_CSVfileName2, m_cumulativeBsmCaptureStart, m_exp, m_fading, m_gpsAccuracyNs, m_loadConfigFilename, m_logFile, m_lossModel, m_mobility, m_nNodes, m_nodePause, m_nodeSpeed, m_nSinks, m_pcap, m_phyMode, m_phyModeB, m_protocol, m_rate, m_routingTables, m_saveConfigFilename, m_scenario, m_TotalSimTime, m_traceFile, m_traceMobility, m_txMaxDelayMs, m_txp, m_txSafetyRange1, m_txSafetyRange10, m_txSafetyRange2, m_txSafetyRange3, m_txSafetyRange4, m_txSafetyRange5, m_txSafetyRange6, m_txSafetyRange7, m_txSafetyRange8, m_txSafetyRange9, m_verbose, m_waveInterval, m_wavePacketSize, and SetConfigFromGlobals().

Referenced by ParseCommandLineArguments().

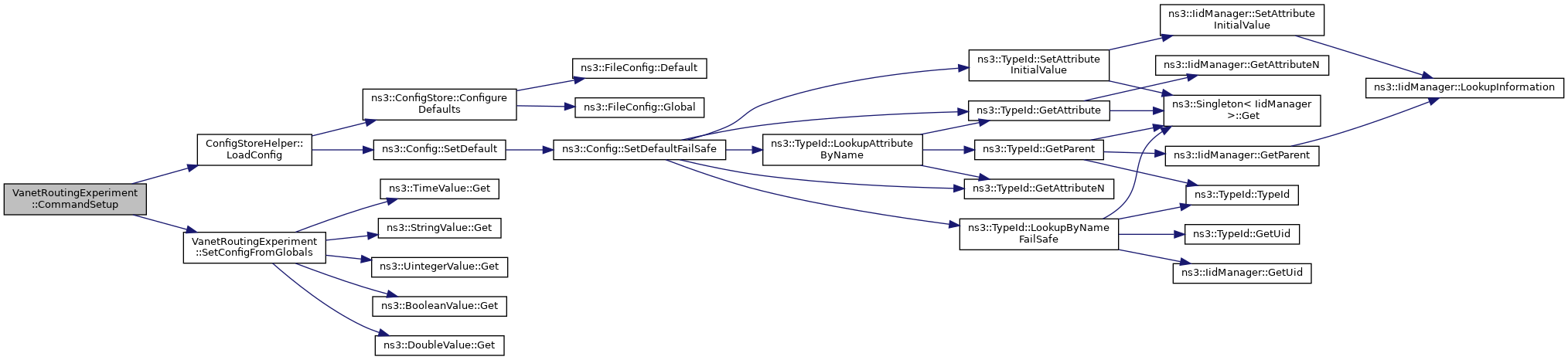

Here is the call graph for this function:

Here is the caller graph for this function:

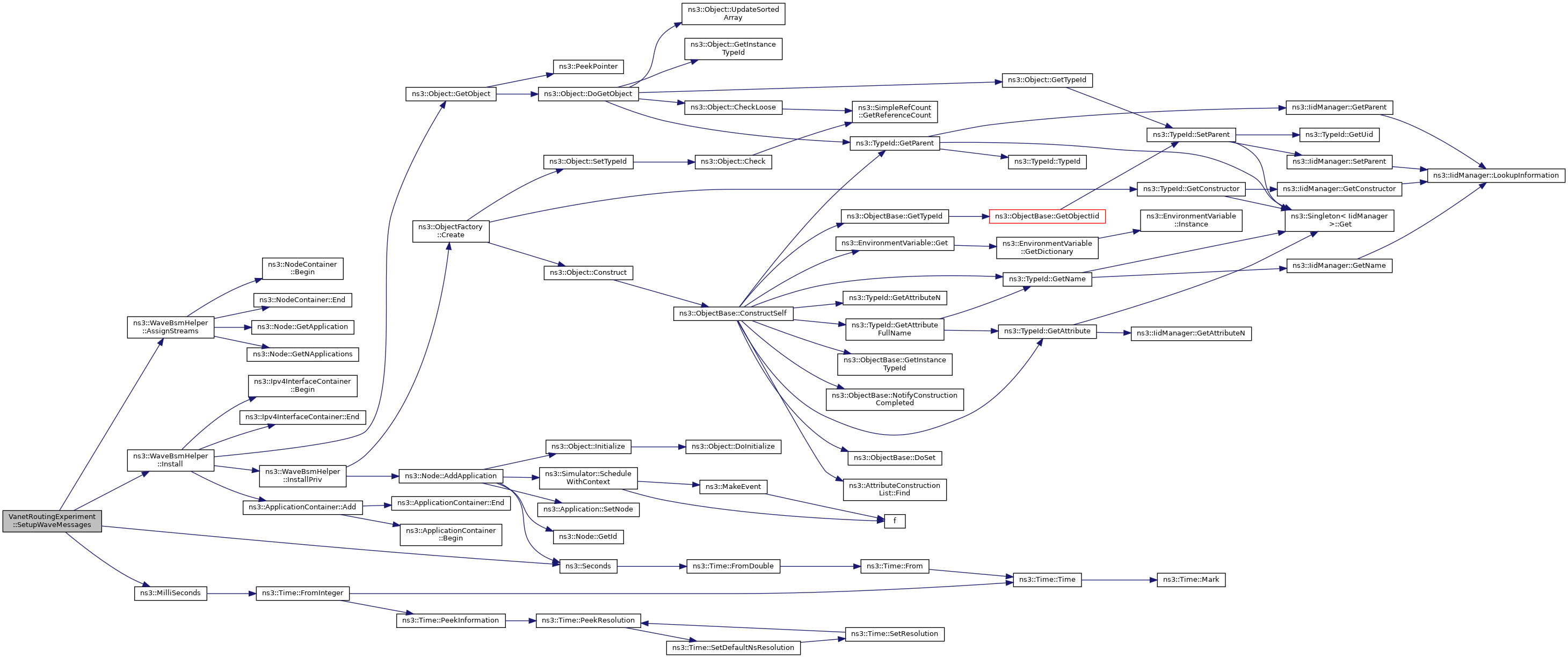

◆ ConfigureApplications()

void VanetRoutingExperiment::ConfigureApplications ( )

overrideprotectedvirtual

Configure applications.

Reimplemented from WifiApp.

Definition at line 1667 of file vanet-routing-compare.cc.

References ns3::Config::Connect(), m_routingHelper, ns3::MakeCallback(), RoutingHelper::OnOffTrace(), SetupRoutingMessages(), and SetupWaveMessages().

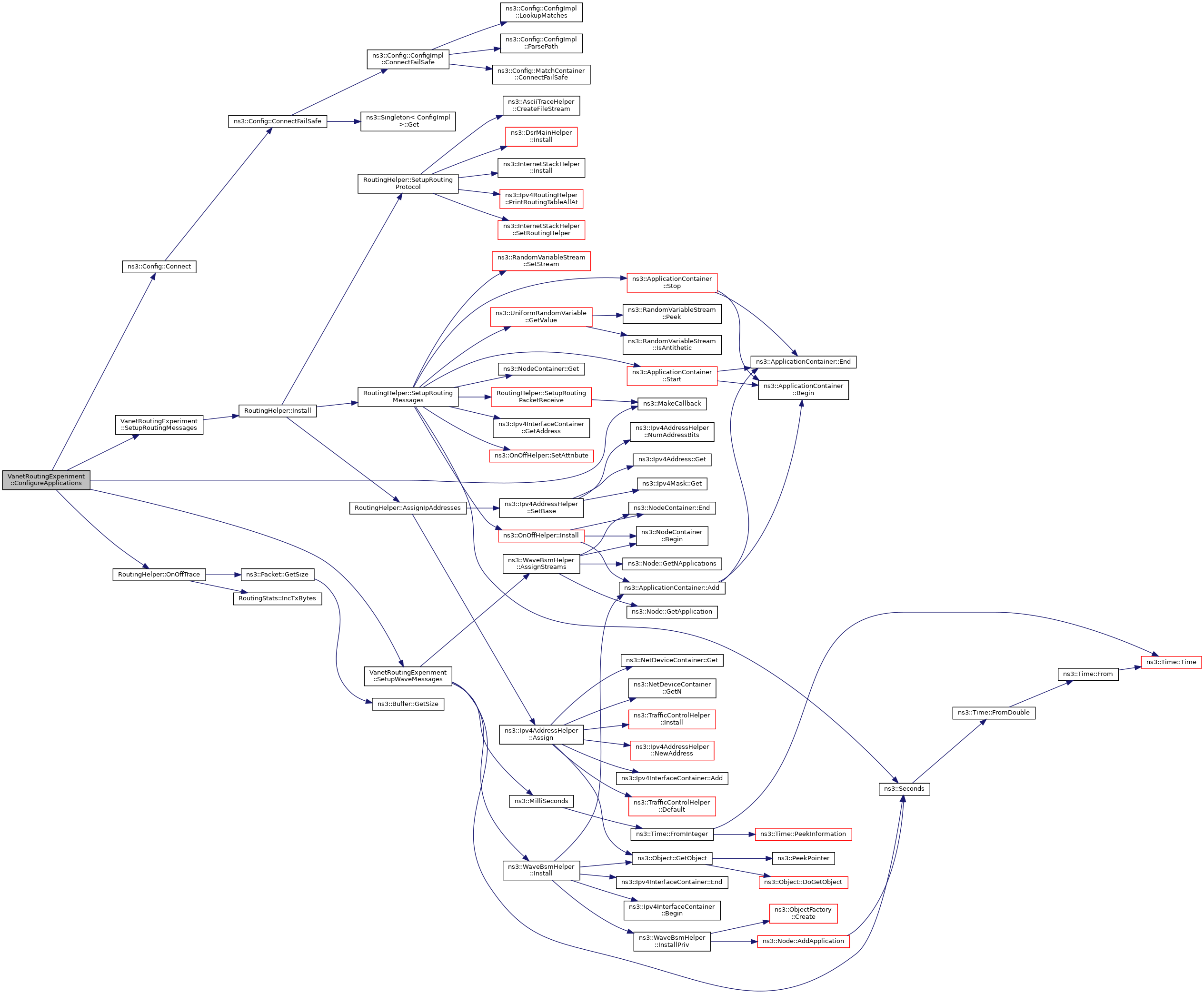

Here is the call graph for this function:

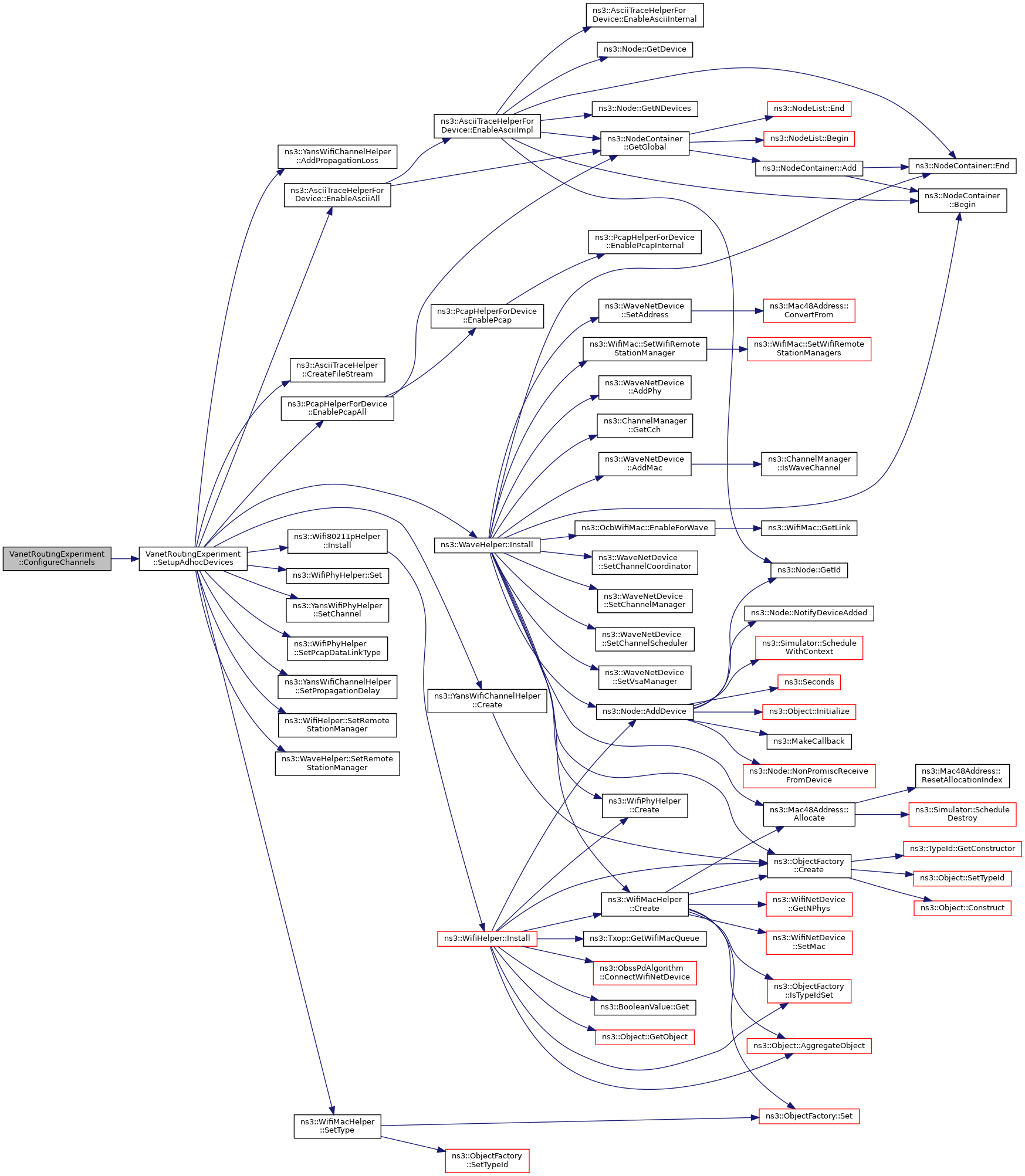

◆ ConfigureChannels()

void VanetRoutingExperiment::ConfigureChannels ( )

overrideprotectedvirtual

Configure channels.

Reimplemented from WifiApp.

Definition at line 1623 of file vanet-routing-compare.cc.

References SetupAdhocDevices().

Here is the call graph for this function:

◆ ConfigureDefaults()

void VanetRoutingExperiment::ConfigureDefaults ( )

private

Configure default attributes.

Definition at line 2147 of file vanet-routing-compare.cc.

References m_80211mode, m_phyMode, m_phyModeB, m_rate, and ns3::Config::SetDefault().

Referenced by ParseCommandLineArguments().

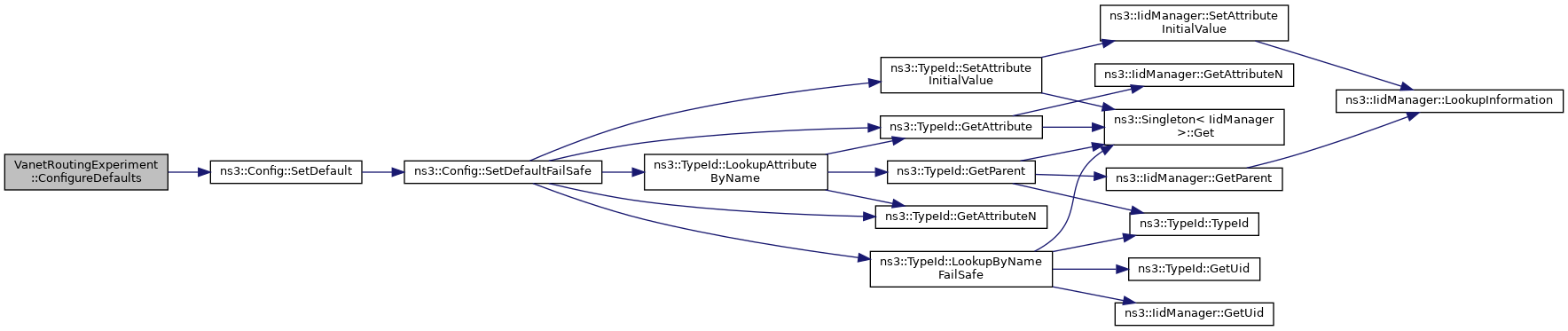

Here is the call graph for this function:

Here is the caller graph for this function:

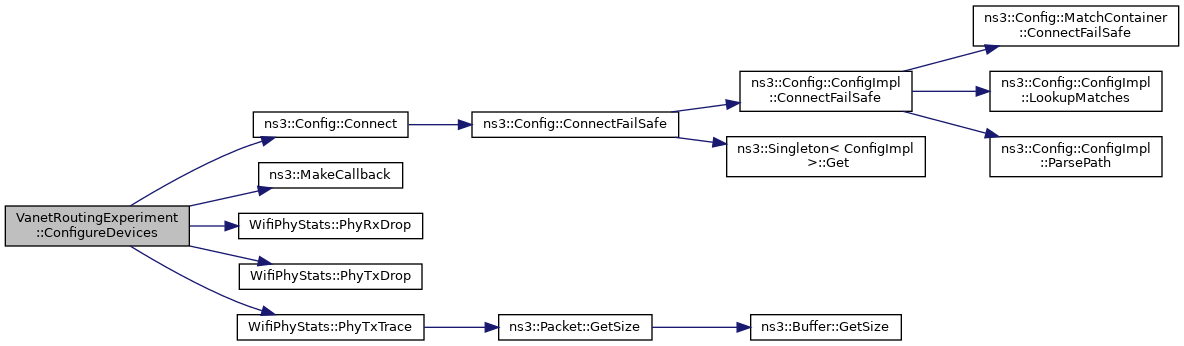

◆ ConfigureDevices()

void VanetRoutingExperiment::ConfigureDevices ( )

overrideprotectedvirtual

Configure devices.

Reimplemented from WifiApp.

Definition at line 1630 of file vanet-routing-compare.cc.

References ns3::Config::Connect(), m_80211mode, m_wifiPhyStats, ns3::MakeCallback(), WifiPhyStats::PhyRxDrop(), WifiPhyStats::PhyTxDrop(), and WifiPhyStats::PhyTxTrace().

Here is the call graph for this function:

◆ ConfigureMobility()

void VanetRoutingExperiment::ConfigureMobility ( )

overrideprotectedvirtual

Configure mobility.

Reimplemented from WifiApp.

Definition at line 1661 of file vanet-routing-compare.cc.

References SetupAdhocMobilityNodes().

Here is the call graph for this function:

◆ ConfigureNodes()

void VanetRoutingExperiment::ConfigureNodes ( )

overrideprotectedvirtual

Configure nodes.

Reimplemented from WifiApp.

Definition at line 1617 of file vanet-routing-compare.cc.

References ns3::NodeContainer::Create(), m_adhocTxNodes, and m_nNodes.

Here is the call graph for this function:

◆ ConfigureTracing()

void VanetRoutingExperiment::ConfigureTracing ( )

overrideprotectedvirtual

Configure tracing.

Reimplemented from WifiApp.

Definition at line 1685 of file vanet-routing-compare.cc.

References ns3::AsciiTraceHelper::CreateFileStream(), m_trName, SetupLogFile(), SetupLogging(), and WriteCsvHeader().

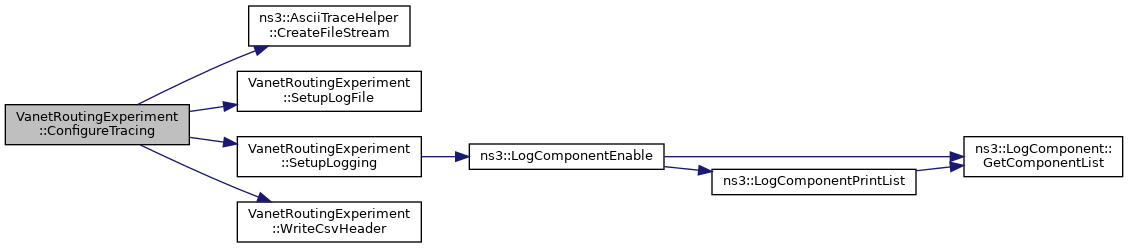

Here is the call graph for this function:

◆ CourseChange()

void VanetRoutingExperiment::CourseChange	(	std::ostream *	os,
		std::string	context,
		Ptr< const MobilityModel >	mobility
	)

staticprivate

Course change function.

Parameters

os	the output stream
context	trace source context (unused)
mobility	the mobility model

Definition at line 1769 of file vanet-routing-compare.cc.

References third::mobility, and ns3::Now().

Referenced by SetupAdhocMobilityNodes().

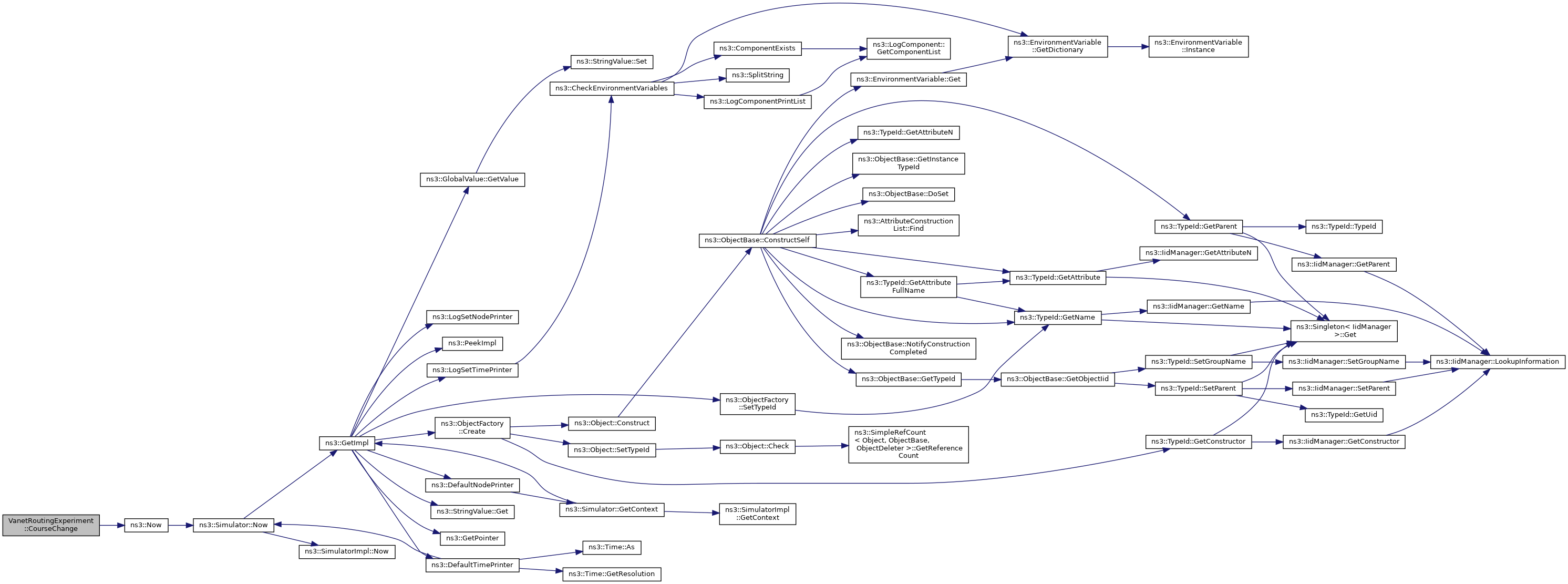

Here is the call graph for this function:

Here is the caller graph for this function:

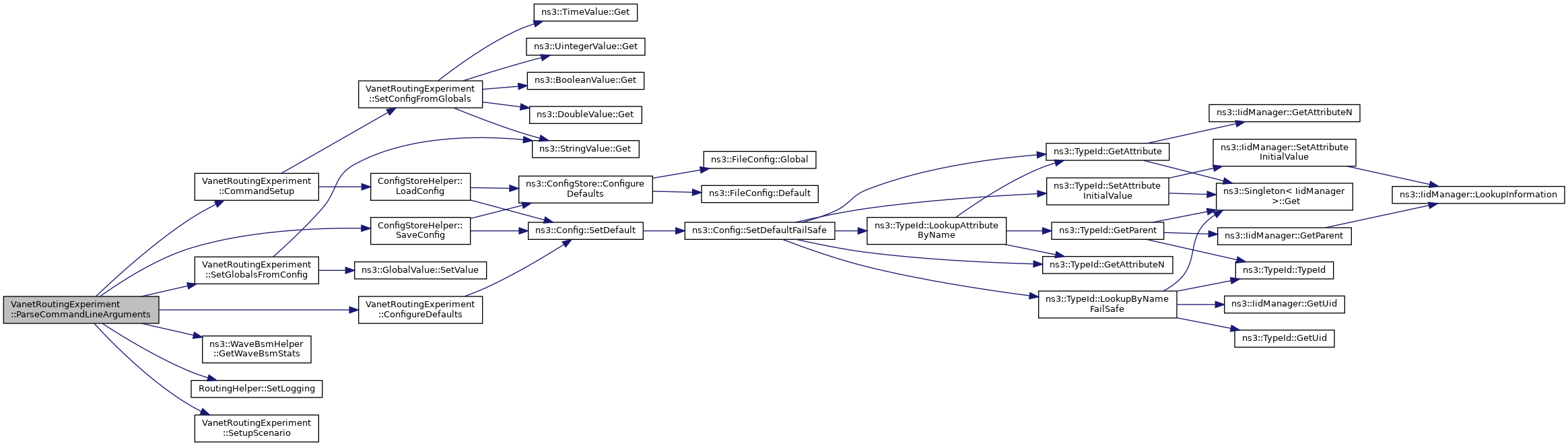

◆ ParseCommandLineArguments()

void VanetRoutingExperiment::ParseCommandLineArguments	(	int	argc,
		char **	argv
	)

overrideprotectedvirtual

Process command line arguments.

Parameters

argc	program arguments count
argv	program arguments

Reimplemented from WifiApp.

Definition at line 1583 of file vanet-routing-compare.cc.

References CommandSetup(), ConfigureDefaults(), ns3::WaveBsmHelper::GetWaveBsmStats(), m_log, m_routingHelper, m_saveConfigFilename, m_txSafetyRange1, m_txSafetyRange10, m_txSafetyRange2, m_txSafetyRange3, m_txSafetyRange4, m_txSafetyRange5, m_txSafetyRange6, m_txSafetyRange7, m_txSafetyRange8, m_txSafetyRange9, m_txSafetyRanges, m_waveBsmHelper, ConfigStoreHelper::SaveConfig(), SetGlobalsFromConfig(), RoutingHelper::SetLogging(), and SetupScenario().

Here is the call graph for this function:

◆ ProcessOutputs()

void VanetRoutingExperiment::ProcessOutputs ( )

overrideprotectedvirtual

Process outputs.

Reimplemented from WifiApp.

Definition at line 1702 of file vanet-routing-compare.cc.

References RoutingStats::GetCumulativeRxBytes(), RoutingStats::GetCumulativeTxBytes(), RoutingHelper::GetRoutingStats(), WifiPhyStats::GetTxBytes(), ns3::WaveBsmHelper::GetWaveBsmStats(), m_CSVfileName2, m_log, m_os, m_routingHelper, m_TotalSimTime, m_waveBsmHelper, m_wifiPhyStats, and NS_LOG_UNCOND.

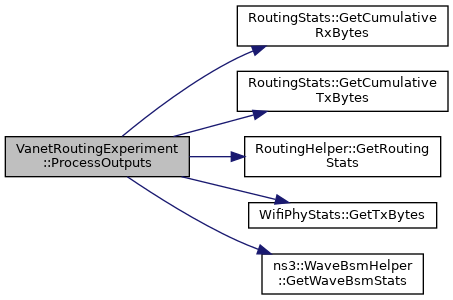

Here is the call graph for this function:

◆ Run()

void VanetRoutingExperiment::Run ( )

private

Run the simulation.

Definition at line 1756 of file vanet-routing-compare.cc.

References CheckThroughput(), m_TotalSimTime, NS_LOG_INFO, and ns3::Seconds().

Referenced by RunSimulation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunSimulation()

void VanetRoutingExperiment::RunSimulation ( )

overrideprotectedvirtual

Run the simulation.

Reimplemented from WifiApp.

Definition at line 1696 of file vanet-routing-compare.cc.

References Run().

Here is the call graph for this function:

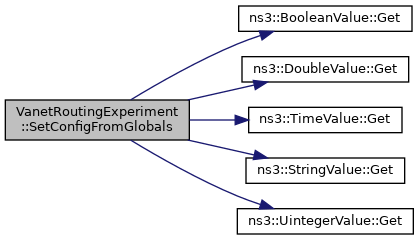

◆ SetConfigFromGlobals()

void VanetRoutingExperiment::SetConfigFromGlobals ( )

private

Set up configuration parameter from the global variables.

Definition at line 1879 of file vanet-routing-compare.cc.

References ns3::BooleanValue::Get(), ns3::DoubleValue::Get(), ns3::TimeValue::Get(), ns3::StringValue::Get(), ns3::UintegerValue::Get(), m_80211mode, m_asciiTrace, m_CSVfileName, m_CSVfileName2, m_cumulativeBsmCaptureStart, m_fading, m_gpsAccuracyNs, m_logFile, m_lossModel, m_mobility, m_nNodes, m_nodePause, m_nodeSpeed, m_nSinks, m_pcap, m_phyMode, m_phyModeB, m_port, m_protocol, m_rate, m_routingTables, m_scenario, m_TotalSimTime, m_traceFile, m_traceMobility, m_trName, m_txMaxDelayMs, m_txp, m_txSafetyRange1, m_txSafetyRange10, m_txSafetyRange2, m_txSafetyRange3, m_txSafetyRange4, m_txSafetyRange5, m_txSafetyRange6, m_txSafetyRange7, m_txSafetyRange8, m_txSafetyRange9, m_verbose, m_waveInterval, and m_wavePacketSize.

Referenced by CommandSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDefaultAttributeValues()

void VanetRoutingExperiment::SetDefaultAttributeValues ( )

overrideprotectedvirtual

Sets default attribute values.

Reimplemented from WifiApp.

Definition at line 1327 of file vanet-routing-compare.cc.

◆ SetGlobalsFromConfig()

void VanetRoutingExperiment::SetGlobalsFromConfig ( )

private

Set up the global variables from the configuration parameters.

Definition at line 1980 of file vanet-routing-compare.cc.

References g_80211mode, g_asciiTrace, g_CSVfileName, g_CSVfileName2, g_cumulativeBsmCaptureStart, g_fading, g_gpsAccuracyNs, g_logFile, g_lossModel, g_mobility, g_nNodes, g_nodePause, g_nodeSpeed, g_nSinks, g_pcap, g_phyMode, g_phyModeB, g_port, g_protocol, g_rate, g_routingTables, g_scenario, g_totalTime, g_traceFile, g_traceMobility, g_trName, g_txMaxDelayMs, g_txp, g_txSafetyRange1, g_txSafetyRange10, g_txSafetyRange2, g_txSafetyRange3, g_txSafetyRange4, g_txSafetyRange5, g_txSafetyRange6, g_txSafetyRange7, g_txSafetyRange8, g_txSafetyRange9, g_verbose, g_waveInterval, g_wavePacketSize, ns3::StringValue::Get(), m_80211mode, m_asciiTrace, m_CSVfileName, m_CSVfileName2, m_cumulativeBsmCaptureStart, m_fading, m_gpsAccuracyNs, m_logFile, m_lossModel, m_mobility, m_nNodes, m_nodePause, m_nodeSpeed, m_nSinks, m_pcap, m_phyMode, m_phyModeB, m_port, m_protocol, m_rate, m_routingTables, m_scenario, m_TotalSimTime, m_traceFile, m_traceMobility, m_trName, m_txMaxDelayMs, m_txp, m_txSafetyRange1, m_txSafetyRange10, m_txSafetyRange2, m_txSafetyRange3, m_txSafetyRange4, m_txSafetyRange5, m_txSafetyRange6, m_txSafetyRange7, m_txSafetyRange8, m_txSafetyRange9, m_verbose, m_waveInterval, m_wavePacketSize, and ns3::GlobalValue::SetValue().

Referenced by ParseCommandLineArguments().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupAdhocDevices()

void VanetRoutingExperiment::SetupAdhocDevices ( )

private

Set up the adhoc devices.

Definition at line 2214 of file vanet-routing-compare.cc.

References ns3::YansWifiChannelHelper::AddPropagationLoss(), third::channel, ns3::YansWifiChannelHelper::Create(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::AsciiTraceHelperForDevice::EnableAsciiAll(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::WaveHelper::Install(), ns3::Wifi80211pHelper::Install(), m_80211mode, m_adhocTxDevices, m_adhocTxNodes, m_asciiTrace, m_fading, m_lossModel, m_lossModelName, m_pcap, m_phyMode, m_phyModeB, m_trName, m_txp, m_verbose, NS_LOG_ERROR, ns3::WifiPhyHelper::Set(), ns3::YansWifiPhyHelper::SetChannel(), ns3::WifiPhyHelper::SetPcapDataLinkType(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::WifiHelper::SetRemoteStationManager(), ns3::WaveHelper::SetRemoteStationManager(), ns3::WifiMacHelper::SetType(), third::wifi, and ns3::WIFI_STANDARD_80211b.

Referenced by ConfigureChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupAdhocMobilityNodes()

void VanetRoutingExperiment::SetupAdhocMobilityNodes ( )

private

Set up the adhoc mobility nodes.

Definition at line 2165 of file vanet-routing-compare.cc.

References ns3::MobilityHelper::AssignStreams(), ns3::Config::Connect(), CourseChange(), ns3::ObjectFactory::Create(), ns3::Object::GetObject(), ns3::Ns2MobilityHelper::Install(), ns3::MobilityHelper::Install(), m_adhocTxNodes, m_mobility, m_nNodes, m_nodePause, m_nodeSpeed, m_os, m_streamIndex, m_traceFile, ns3::MakeBoundCallback(), ns3::ObjectFactory::Set(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), and ns3::ObjectFactory::SetTypeId().

Referenced by ConfigureMobility().

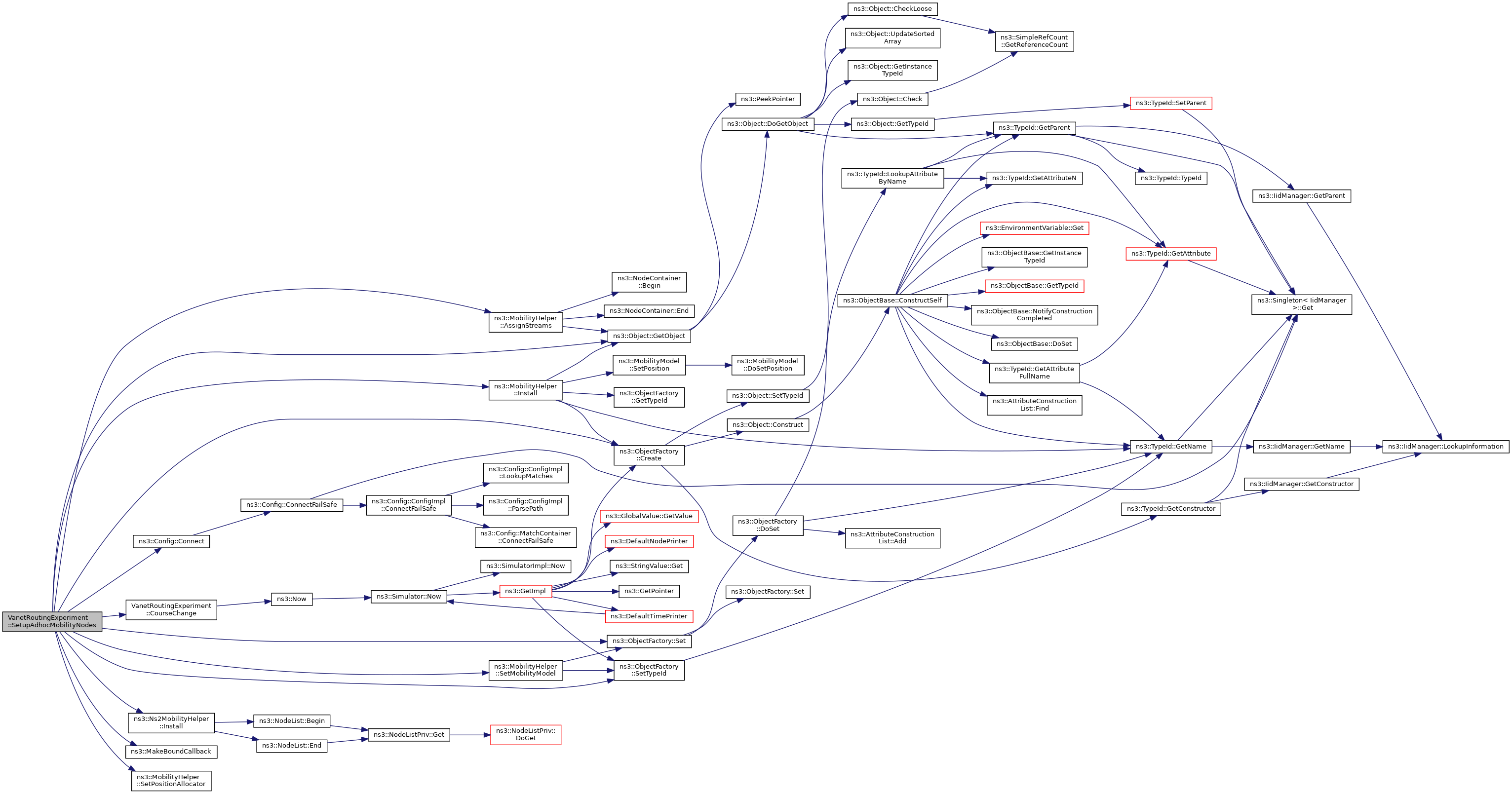

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupLogFile()

void VanetRoutingExperiment::SetupLogFile ( )

private

Set up log file.

Definition at line 2131 of file vanet-routing-compare.cc.

References m_logFile, and m_os.

Referenced by ConfigureTracing().

Here is the caller graph for this function:

◆ SetupLogging()

void VanetRoutingExperiment::SetupLogging ( )

private

Set up logging.

Definition at line 2138 of file vanet-routing-compare.cc.

References ns3::LOG_LEVEL_DEBUG, and ns3::LogComponentEnable().

Referenced by ConfigureTracing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupRoutingMessages()

void VanetRoutingExperiment::SetupRoutingMessages ( )

private

Set up generation of packets to be routed through the vehicular network.

Definition at line 2393 of file vanet-routing-compare.cc.

References RoutingHelper::Install(), m_adhocTxDevices, m_adhocTxInterfaces, m_adhocTxNodes, m_nSinks, m_protocol, m_routingHelper, m_routingTables, and m_TotalSimTime.

Referenced by ConfigureApplications().

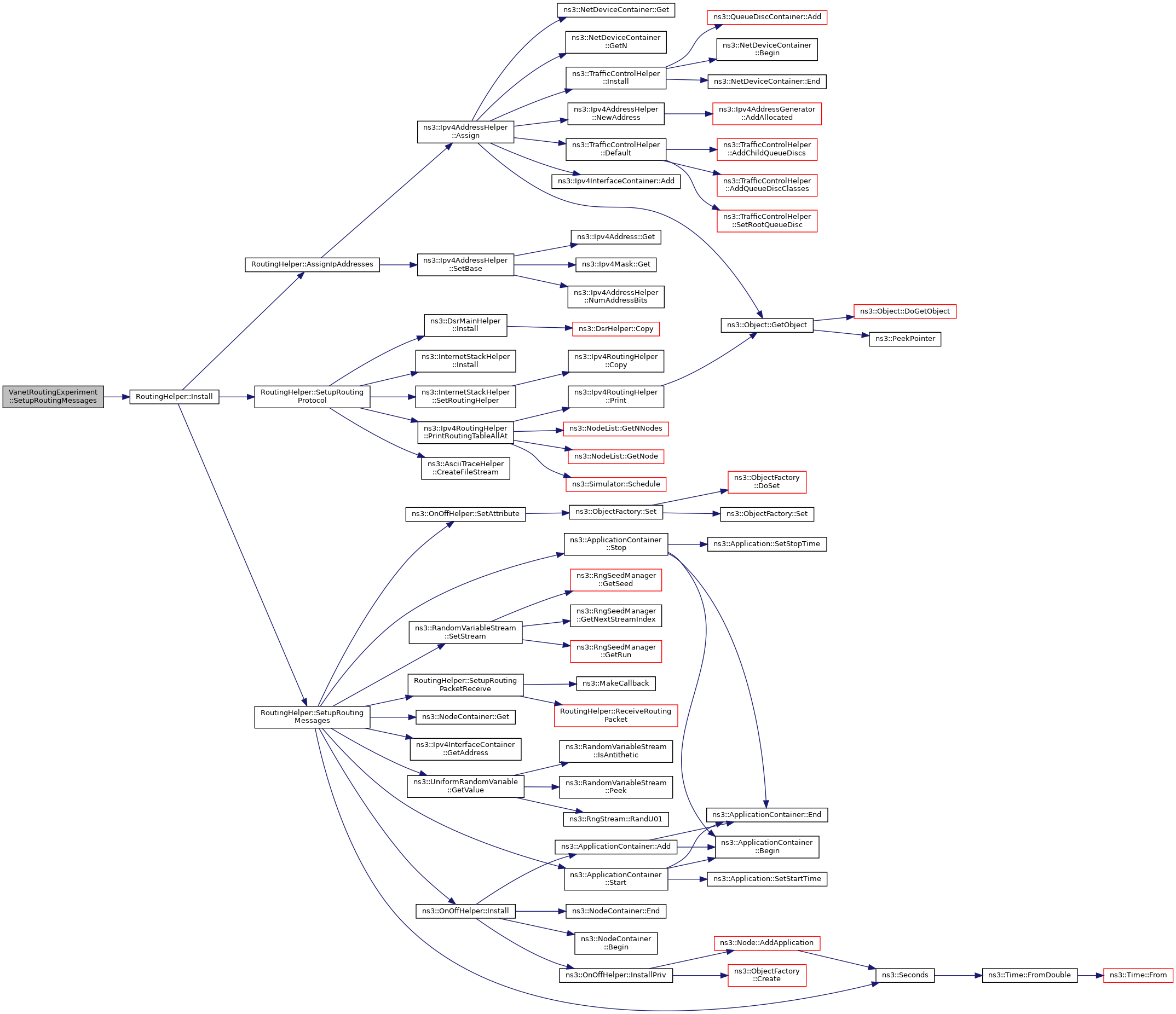

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupScenario()

void VanetRoutingExperiment::SetupScenario ( )

private

Set up a prescribed scenario.

Definition at line 2405 of file vanet-routing-compare.cc.

References m_CSVfileName, m_logFile, m_mobility, m_nNodes, m_nodePause, m_nodeSpeed, m_scenario, m_TotalSimTime, and m_traceFile.

Referenced by ParseCommandLineArguments().

Here is the caller graph for this function:

◆ SetupWaveMessages()

void VanetRoutingExperiment::SetupWaveMessages ( )

private

Set up generation of IEEE 1609 WAVE messages, as a Basic Safety Message (BSM).

The BSM is typically a ~200-byte packets broadcast by all vehicles at a nominal rate of 10 Hz

Definition at line 2367 of file vanet-routing-compare.cc.

References ns3::WaveBsmHelper::AssignStreams(), ns3::WaveBsmHelper::Install(), m_80211mode, m_adhocTxInterfaces, m_adhocTxNodes, m_gpsAccuracyNs, m_streamIndex, m_TotalSimTime, m_txMaxDelayMs, m_txSafetyRanges, m_waveBsmHelper, m_waveInterval, m_wavePacketSize, ns3::MilliSeconds(), and ns3::Seconds().

Referenced by ConfigureApplications().

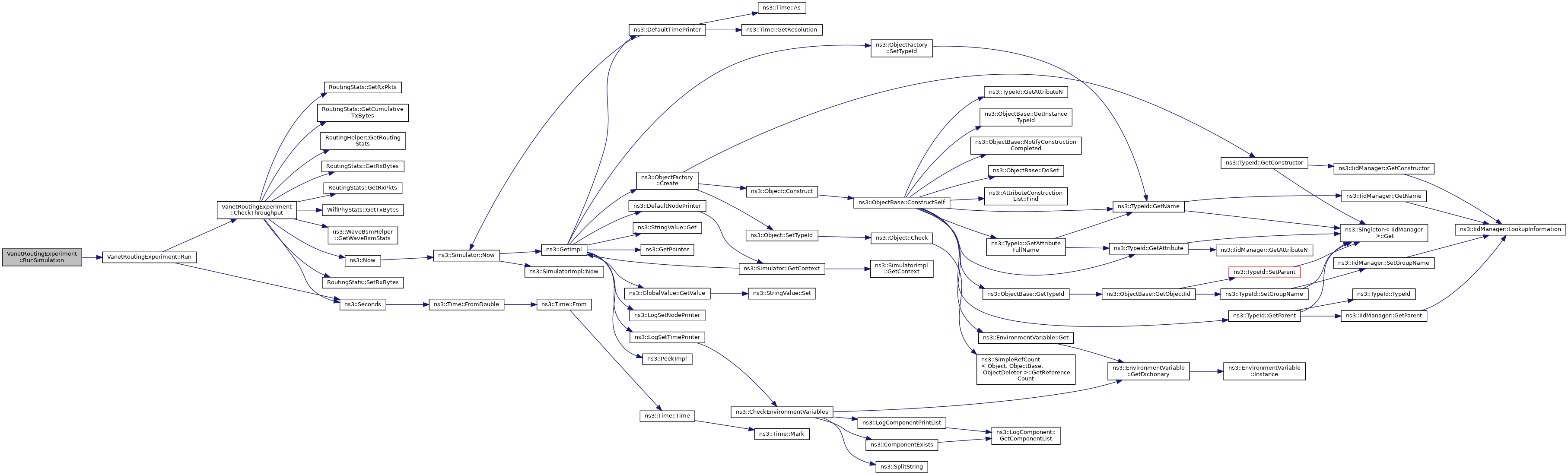

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteCsvHeader()

void VanetRoutingExperiment::WriteCsvHeader ( )

private

Write the header line to the CSV file1.

Definition at line 2449 of file vanet-routing-compare.cc.

References m_CSVfileName, and m_CSVfileName2.

Referenced by ConfigureTracing().

Here is the caller graph for this function:

Member Data Documentation

◆ m_80211mode

uint32_t VanetRoutingExperiment::m_80211mode

private

80211 mode

Definition at line 1216 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ConfigureDefaults(), ConfigureDevices(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocDevices(), and SetupWaveMessages().

◆ m_adhocTxDevices

NetDeviceContainer VanetRoutingExperiment::m_adhocTxDevices

private

adhoc transmit devices

Definition at line 1232 of file vanet-routing-compare.cc.

Referenced by SetupAdhocDevices(), and SetupRoutingMessages().

◆ m_adhocTxInterfaces

Ipv4InterfaceContainer VanetRoutingExperiment::m_adhocTxInterfaces

private

adhoc transmit interfaces

Definition at line 1233 of file vanet-routing-compare.cc.

Referenced by SetupRoutingMessages(), and SetupWaveMessages().

◆ m_adhocTxNodes

NodeContainer VanetRoutingExperiment::m_adhocTxNodes

private

adhoc transmit nodes

Definition at line 1248 of file vanet-routing-compare.cc.

Referenced by ConfigureNodes(), SetupAdhocDevices(), SetupAdhocMobilityNodes(), SetupRoutingMessages(), and SetupWaveMessages().

◆ m_asciiTrace

bool VanetRoutingExperiment::m_asciiTrace

private

ascii trace

Definition at line 1238 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_CSVfileName

std::string VanetRoutingExperiment::m_CSVfileName

private

CSV file name.

Definition at line 1203 of file vanet-routing-compare.cc.

Referenced by CheckThroughput(), CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupScenario(), and WriteCsvHeader().

◆ m_CSVfileName2

std::string VanetRoutingExperiment::m_CSVfileName2

private

CSV file name.

Definition at line 1204 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ProcessOutputs(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and WriteCsvHeader().

◆ m_cumulativeBsmCaptureStart

Time VanetRoutingExperiment::m_cumulativeBsmCaptureStart

private

capture start

Definition at line 1261 of file vanet-routing-compare.cc.

Referenced by CheckThroughput(), CommandSetup(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_exp

std::string VanetRoutingExperiment::m_exp

private

exp

Definition at line 1260 of file vanet-routing-compare.cc.

Referenced by CommandSetup().

◆ m_fading

uint32_t VanetRoutingExperiment::m_fading

private

fading

Definition at line 1212 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_gpsAccuracyNs

double VanetRoutingExperiment::m_gpsAccuracyNs

private

GPS accuracy.

Definition at line 1235 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupWaveMessages().

◆ m_loadConfigFilename

std::string VanetRoutingExperiment::m_loadConfigFilename

private

load config file name

Definition at line 1240 of file vanet-routing-compare.cc.

Referenced by CommandSetup().

◆ m_log

bool VanetRoutingExperiment::m_log

private

log

Definition at line 1246 of file vanet-routing-compare.cc.

Referenced by VanetRoutingExperiment(), CheckThroughput(), ParseCommandLineArguments(), and ProcessOutputs().

◆ m_logFile

std::string VanetRoutingExperiment::m_logFile

private

log file

Definition at line 1219 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupLogFile(), and SetupScenario().

◆ m_lossModel

uint32_t VanetRoutingExperiment::m_lossModel

private

loss model

Definition at line 1211 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_lossModelName

std::string VanetRoutingExperiment::m_lossModelName

private

loss model name

Definition at line 1213 of file vanet-routing-compare.cc.

Referenced by SetupAdhocDevices().

◆ m_mobility

uint32_t VanetRoutingExperiment::m_mobility

private

mobility

Definition at line 1220 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocMobilityNodes(), and SetupScenario().

◆ m_nNodes

uint32_t VanetRoutingExperiment::m_nNodes

private

number of nodes

Definition at line 1221 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ConfigureNodes(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocMobilityNodes(), and SetupScenario().

◆ m_nodePause

int VanetRoutingExperiment::m_nodePause

private

in s

Definition at line 1227 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocMobilityNodes(), and SetupScenario().

◆ m_nodeSpeed

int VanetRoutingExperiment::m_nodeSpeed

private

in m/s

Definition at line 1226 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocMobilityNodes(), and SetupScenario().

◆ m_nSinks

uint32_t VanetRoutingExperiment::m_nSinks

private

number of sinks

Definition at line 1205 of file vanet-routing-compare.cc.

Referenced by CheckThroughput(), CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupRoutingMessages().

◆ m_os

std::ofstream VanetRoutingExperiment::m_os

private

output stream

Definition at line 1231 of file vanet-routing-compare.cc.

Referenced by ProcessOutputs(), SetupAdhocMobilityNodes(), and SetupLogFile().

◆ m_pcap

bool VanetRoutingExperiment::m_pcap

private

PCAP.

Definition at line 1239 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_phyMode

std::string VanetRoutingExperiment::m_phyMode

private

phy mode

Definition at line 1215 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ConfigureDefaults(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_phyModeB

std::string VanetRoutingExperiment::m_phyModeB

private

phy mode

Definition at line 1224 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ConfigureDefaults(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_port

uint32_t VanetRoutingExperiment::m_port

private

port

Definition at line 1202 of file vanet-routing-compare.cc.

Referenced by SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_protocol

uint32_t VanetRoutingExperiment::m_protocol

private

protocol

Definition at line 1209 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupRoutingMessages().

◆ m_protocolName

std::string VanetRoutingExperiment::m_protocolName

private

protocol name

Definition at line 1206 of file vanet-routing-compare.cc.

Referenced by CheckThroughput().

◆ m_rate

std::string VanetRoutingExperiment::m_rate

private

rate

Definition at line 1223 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ConfigureDefaults(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_routingHelper

Ptr<RoutingHelper> VanetRoutingExperiment::m_routingHelper

private

routing helper

Definition at line 1244 of file vanet-routing-compare.cc.

Referenced by VanetRoutingExperiment(), CheckThroughput(), ConfigureApplications(), ParseCommandLineArguments(), ProcessOutputs(), and SetupRoutingMessages().

◆ m_routingTables

bool VanetRoutingExperiment::m_routingTables

private

routing tables

Definition at line 1237 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupRoutingMessages().

◆ m_saveConfigFilename

std::string VanetRoutingExperiment::m_saveConfigFilename

private

save config file name

Definition at line 1241 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), and ParseCommandLineArguments().

◆ m_scenario

uint32_t VanetRoutingExperiment::m_scenario

private

scenario

Definition at line 1234 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupScenario().

◆ m_streamIndex

int64_t VanetRoutingExperiment::m_streamIndex

private

used to get consistent random numbers across scenarios

Definition at line 1247 of file vanet-routing-compare.cc.

Referenced by SetupAdhocMobilityNodes(), and SetupWaveMessages().

◆ m_TotalSimTime

double VanetRoutingExperiment::m_TotalSimTime

private

total sim time

Definition at line 1222 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ProcessOutputs(), Run(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupRoutingMessages(), SetupScenario(), and SetupWaveMessages().

◆ m_traceFile

std::string VanetRoutingExperiment::m_traceFile

private

trace file

Definition at line 1218 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), SetupAdhocMobilityNodes(), and SetupScenario().

◆ m_traceMobility

bool VanetRoutingExperiment::m_traceMobility

private

trace mobility

Definition at line 1208 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_trName

std::string VanetRoutingExperiment::m_trName

private

trace file name

Definition at line 1225 of file vanet-routing-compare.cc.

Referenced by ConfigureTracing(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_txMaxDelayMs

double VanetRoutingExperiment::m_txMaxDelayMs

private

transmit maximum delay

Definition at line 1236 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupWaveMessages().

◆ m_txp

double VanetRoutingExperiment::m_txp

private

distance

Definition at line 1207 of file vanet-routing-compare.cc.

Referenced by CheckThroughput(), CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_txSafetyRange1

double VanetRoutingExperiment::m_txSafetyRange1

private

range 1

Definition at line 1249 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange10

double VanetRoutingExperiment::m_txSafetyRange10

private

range 10

Definition at line 1258 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange2

double VanetRoutingExperiment::m_txSafetyRange2

private

range 2

Definition at line 1250 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange3

double VanetRoutingExperiment::m_txSafetyRange3

private

range 3

Definition at line 1251 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange4

double VanetRoutingExperiment::m_txSafetyRange4

private

range 4

Definition at line 1252 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange5

double VanetRoutingExperiment::m_txSafetyRange5

private

range 5

Definition at line 1253 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange6

double VanetRoutingExperiment::m_txSafetyRange6

private

range 6

Definition at line 1254 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange7

double VanetRoutingExperiment::m_txSafetyRange7

private

range 7

Definition at line 1255 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange8

double VanetRoutingExperiment::m_txSafetyRange8

private

range 8

Definition at line 1256 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRange9

double VanetRoutingExperiment::m_txSafetyRange9

private

range 9

Definition at line 1257 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), ParseCommandLineArguments(), SetConfigFromGlobals(), and SetGlobalsFromConfig().

◆ m_txSafetyRanges

std::vector<double> VanetRoutingExperiment::m_txSafetyRanges

private

list of ranges

Definition at line 1259 of file vanet-routing-compare.cc.

Referenced by ParseCommandLineArguments(), and SetupWaveMessages().

◆ m_verbose

bool VanetRoutingExperiment::m_verbose

private

verbose

Definition at line 1230 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupAdhocDevices().

◆ m_waveBsmHelper

WaveBsmHelper VanetRoutingExperiment::m_waveBsmHelper

private

helper

Definition at line 1243 of file vanet-routing-compare.cc.

Referenced by CheckThroughput(), ParseCommandLineArguments(), ProcessOutputs(), and SetupWaveMessages().

◆ m_waveInterval

double VanetRoutingExperiment::m_waveInterval

private

seconds

Definition at line 1229 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupWaveMessages().

◆ m_wavePacketSize

uint32_t VanetRoutingExperiment::m_wavePacketSize

private

bytes

Definition at line 1228 of file vanet-routing-compare.cc.

Referenced by CommandSetup(), SetConfigFromGlobals(), SetGlobalsFromConfig(), and SetupWaveMessages().

◆ m_wifiPhyStats

Ptr<WifiPhyStats> VanetRoutingExperiment::m_wifiPhyStats

private

wifi phy statistics

Definition at line 1245 of file vanet-routing-compare.cc.

Referenced by VanetRoutingExperiment(), CheckThroughput(), ConfigureDevices(), and ProcessOutputs().

The documentation for this class was generated from the following file:

src/wave/examples/vanet-routing-compare.cc

Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VanetRoutingExperiment()

Member Function Documentation

◆ CheckThroughput()

◆ CommandSetup()

◆ ConfigureApplications()

◆ ConfigureChannels()

◆ ConfigureDefaults()

◆ ConfigureDevices()

◆ ConfigureMobility()

◆ ConfigureNodes()

◆ ConfigureTracing()

◆ CourseChange()

◆ ParseCommandLineArguments()

◆ ProcessOutputs()

◆ Run()

◆ RunSimulation()

◆ SetConfigFromGlobals()

◆ SetDefaultAttributeValues()

◆ SetGlobalsFromConfig()

◆ SetupAdhocDevices()

◆ SetupAdhocMobilityNodes()

◆ SetupLogFile()

◆ SetupLogging()

◆ SetupRoutingMessages()

◆ SetupScenario()

◆ SetupWaveMessages()

◆ WriteCsvHeader()

Member Data Documentation

◆ m_80211mode

◆ m_adhocTxDevices

◆ m_adhocTxInterfaces

◆ m_adhocTxNodes

◆ m_asciiTrace

◆ m_CSVfileName

◆ m_CSVfileName2

◆ m_cumulativeBsmCaptureStart

◆ m_exp

◆ m_fading

◆ m_gpsAccuracyNs

◆ m_loadConfigFilename

◆ m_log

◆ m_logFile

◆ m_lossModel

◆ m_lossModelName

◆ m_mobility

◆ m_nNodes

◆ m_nodePause

◆ m_nodeSpeed

◆ m_nSinks

◆ m_os

◆ m_pcap

◆ m_phyMode

◆ m_phyModeB

◆ m_port

◆ m_protocol

◆ m_protocolName

◆ m_rate

◆ m_routingHelper

◆ m_routingTables

◆ m_saveConfigFilename

◆ m_scenario

◆ m_streamIndex

◆ m_TotalSimTime

◆ m_traceFile

◆ m_traceMobility

◆ m_trName

◆ m_txMaxDelayMs

◆ m_txp

◆ m_txSafetyRange1

◆ m_txSafetyRange10

◆ m_txSafetyRange2

◆ m_txSafetyRange3

◆ m_txSafetyRange4
