Implement the header for management frames of type probe response. More...

#include "mgt-headers.h"

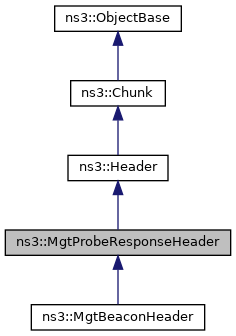

Inheritance diagram for ns3::MgtProbeResponseHeader:

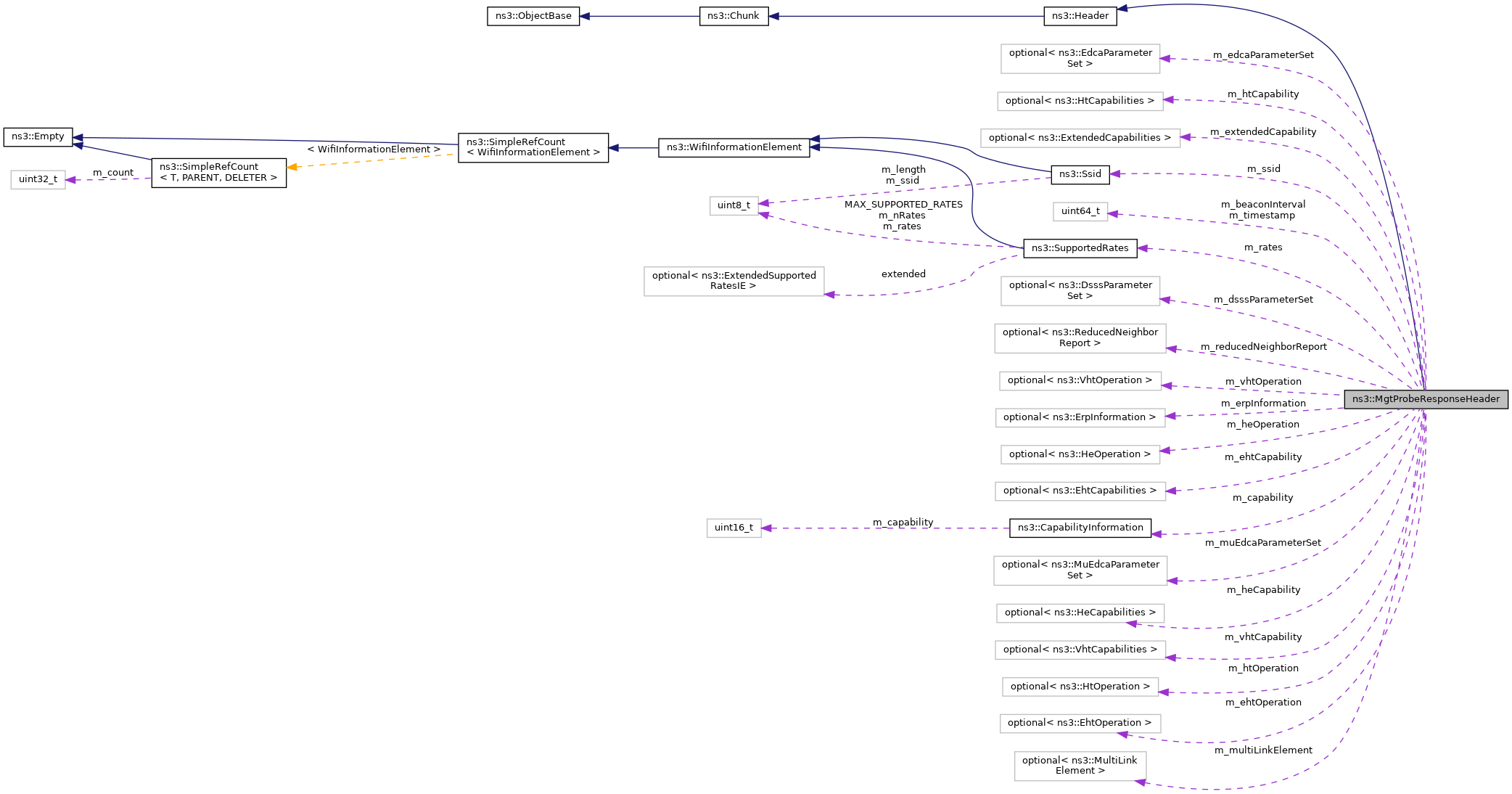

Collaboration diagram for ns3::MgtProbeResponseHeader:

Public Member Functions
	MgtProbeResponseHeader ()

	~MgtProbeResponseHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

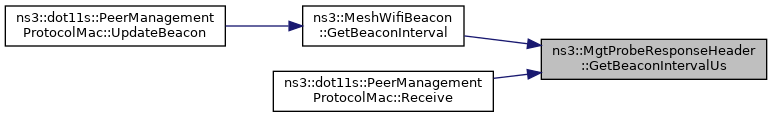

uint64_t	GetBeaconIntervalUs () const
	Return the beacon interval in microseconds unit. More...

const CapabilityInformation &	GetCapabilities () const
	Return the Capability information. More...

const std::optional< DsssParameterSet > &	GetDsssParameterSet () const
	Return the DSSS Parameter Set, if present. More...

const std::optional< EdcaParameterSet > &	GetEdcaParameterSet () const
	Return the EDCA Parameter Set, if present. More...

const std::optional< EhtCapabilities > &	GetEhtCapabilities () const
	Return the EHT capabilities, if present. More...

const std::optional< EhtOperation > &	GetEhtOperation () const
	Return the EHT operation, if present. More...

const std::optional< ErpInformation > &	GetErpInformation () const
	Return the ERP information, if present. More...

const std::optional< ExtendedCapabilities > &	GetExtendedCapabilities () const
	Return the extended capabilities, if present. More...

const std::optional< HeCapabilities > &	GetHeCapabilities () const
	Return the HE capabilities, if present. More...

const std::optional< HeOperation > &	GetHeOperation () const
	Return the HE operation, if present. More...

const std::optional< HtCapabilities > &	GetHtCapabilities () const
	Return the HT capabilities, if present. More...

const std::optional< HtOperation > &	GetHtOperation () const
	Return the HT operation, if present. More...

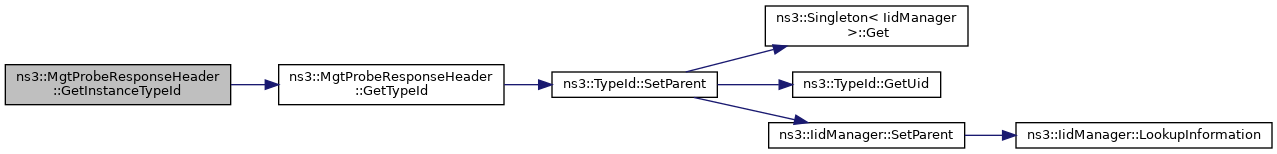

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

const std::optional< MuEdcaParameterSet > &	GetMuEdcaParameterSet () const
	Return the MU EDCA Parameter Set, if present. More...

const std::optional< MultiLinkElement > &	GetMultiLinkElement () const
	Return the Multi-Link Element information element, if present. More...

const std::optional< ReducedNeighborReport > &	GetReducedNeighborReport () const
	Return the Reduced Neighbor Report information element, if present. More...

uint32_t	GetSerializedSize () const override

const Ssid &	GetSsid () const
	Return the Service Set Identifier (SSID). More...

const SupportedRates &	GetSupportedRates () const
	Return the supported rates. More...

uint64_t	GetTimestamp () const
	Return the time stamp. More...

const std::optional< VhtCapabilities > &	GetVhtCapabilities () const
	Return the VHT capabilities, if present. More...

const std::optional< VhtOperation > &	GetVhtOperation () const
	Return the VHT operation, if present. More...

void	Print (std::ostream &os) const override

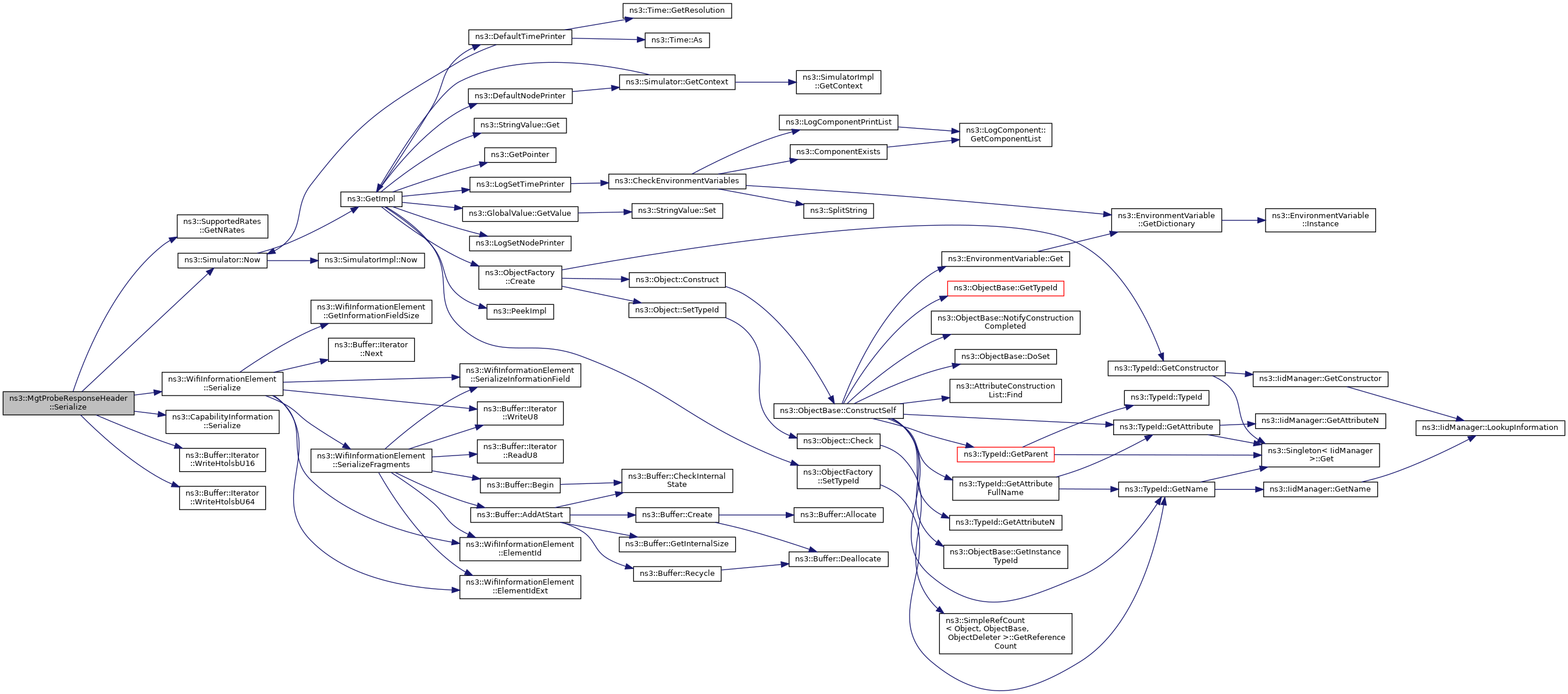

void	Serialize (Buffer::Iterator start) const override

void	SetBeaconIntervalUs (uint64_t us)
	Set the beacon interval in microseconds unit. More...

void	SetCapabilities (CapabilityInformation &&capabilities)
	Set the Capability information. More...

void	SetCapabilities (const CapabilityInformation &capabilities)
	Set the Capability information. More...

void	SetDsssParameterSet (const DsssParameterSet &dsssParameterSet)
	Set the DSSS Parameter Set. More...

void	SetDsssParameterSet (DsssParameterSet &&dsssParameterSet)
	Set the DSSS Parameter Set. More...

void	SetEdcaParameterSet (const EdcaParameterSet &edcaParameterSet)
	Set the EDCA Parameter Set. More...

void	SetEdcaParameterSet (EdcaParameterSet &&edcaParameterSet)
	Set the EDCA Parameter Set. More...

void	SetEhtCapabilities (const EhtCapabilities &ehtCapabilities)
	Set the EHT capabilities. More...

void	SetEhtCapabilities (EhtCapabilities &&ehtCapabilities)
	Set the EHT capabilities. More...

void	SetEhtOperation (const EhtOperation &ehtOperation)
	Set the EHT operation. More...

void	SetEhtOperation (EhtOperation &&ehtOperation)
	Set the EHT operation. More...

void	SetErpInformation (const ErpInformation &erpInformation)
	Set the ERP information. More...

void	SetErpInformation (ErpInformation &&erpInformation)
	Set the ERP information. More...

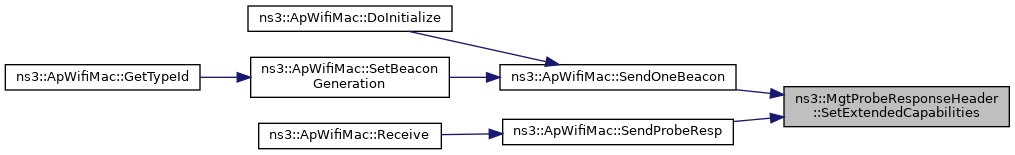

void	SetExtendedCapabilities (const ExtendedCapabilities &extendedCapabilities)
	Set the extended capabilities. More...

void	SetExtendedCapabilities (ExtendedCapabilities &&extendedCapabilities)
	Set the extended capabilities. More...

void	SetHeCapabilities (const HeCapabilities &heCapabilities)
	Set the HE capabilities. More...

void	SetHeCapabilities (HeCapabilities &&heCapabilities)
	Set the HE capabilities. More...

void	SetHeOperation (const HeOperation &heOperation)
	Set the HE operation. More...

void	SetHeOperation (HeOperation &&heOperation)
	Set the HE operation. More...

void	SetHtCapabilities (const HtCapabilities &htCapabilities)
	Set the HT capabilities. More...

void	SetHtCapabilities (HtCapabilities &&htCapabilities)
	Set the HT capabilities. More...

void	SetHtOperation (const HtOperation &htOperation)
	Set the HT operation. More...

void	SetHtOperation (HtOperation &&htOperation)
	Set the HT operation. More...

void	SetMuEdcaParameterSet (const MuEdcaParameterSet &muEdcaParameterSet)
	Set the MU EDCA Parameter Set. More...

void	SetMuEdcaParameterSet (MuEdcaParameterSet &&muEdcaParameterSet)
	Set the MU EDCA Parameter Set. More...

void	SetMultiLinkElement (const MultiLinkElement &multiLinkElement)
	Set the Multi-Link Element information element. More...

void	SetMultiLinkElement (MultiLinkElement &&multiLinkElement)
	Set the Multi-Link Element information element. More...

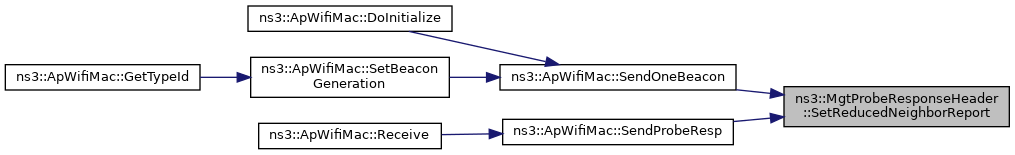

void	SetReducedNeighborReport (const ReducedNeighborReport &reducedNeighborReport)
	Set the Reduced Neighbor Report information element. More...

void	SetReducedNeighborReport (ReducedNeighborReport &&reducedNeighborReport)
	Set the Reduced Neighbor Report information element. More...

void	SetSsid (const Ssid &ssid)
	Set the Service Set Identifier (SSID). More...

void	SetSsid (Ssid &&ssid)
	Set the Service Set Identifier (SSID). More...

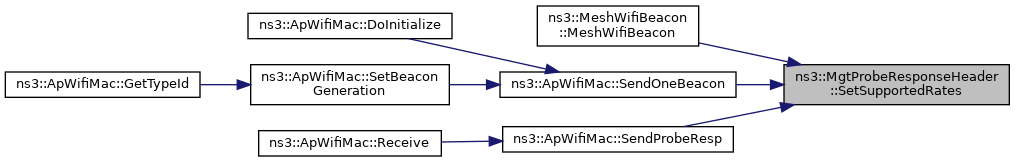

void	SetSupportedRates (const SupportedRates &rates)
	Set the supported rates. More...

void	SetSupportedRates (SupportedRates &&rates)
	Set the supported rates. More...

void	SetVhtCapabilities (const VhtCapabilities &vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtCapabilities (VhtCapabilities &&vhtCapabilities)
	Set the VHT capabilities. More...

void	SetVhtOperation (const VhtOperation &vhtOperation)
	Set the VHT operation. More...

void	SetVhtOperation (VhtOperation &&vhtOperation)
	Set the VHT operation. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

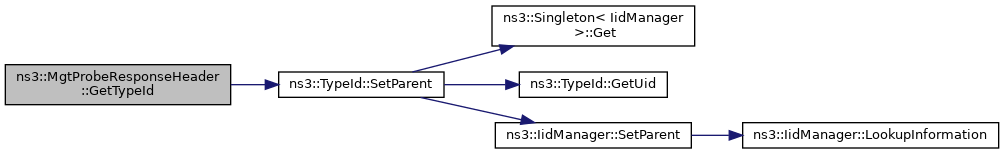

static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint64_t	m_beaconInterval
	Beacon interval. More...

CapabilityInformation	m_capability
	Capability information. More...

std::optional< DsssParameterSet >	m_dsssParameterSet
	DSSS Parameter Set. More...

std::optional< EdcaParameterSet >	m_edcaParameterSet
	EDCA Parameter Set. More...

std::optional< EhtCapabilities >	m_ehtCapability
	EHT capabilities. More...

std::optional< EhtOperation >	m_ehtOperation
	EHT Operation. More...

std::optional< ErpInformation >	m_erpInformation
	ERP information. More...

std::optional< ExtendedCapabilities >	m_extendedCapability
	extended capabilities More...

std::optional< HeCapabilities >	m_heCapability
	HE capabilities. More...

std::optional< HeOperation >	m_heOperation
	HE operation. More...

std::optional< HtCapabilities >	m_htCapability
	HT capabilities. More...

std::optional< HtOperation >	m_htOperation
	HT operation. More...

std::optional< MuEdcaParameterSet >	m_muEdcaParameterSet
	MU EDCA Parameter Set. More...

std::optional< MultiLinkElement >	m_multiLinkElement
	Multi-Link Element. More...

SupportedRates	m_rates
	List of supported rates. More...

std::optional< ReducedNeighborReport >	m_reducedNeighborReport
	Reduced Neighbor Report information. More...

Ssid	m_ssid
	Service set ID (SSID) More...

uint64_t	m_timestamp
	Timestamp. More...

std::optional< VhtCapabilities >	m_vhtCapability
	VHT capabilities. More...

std::optional< VhtOperation >	m_vhtOperation
	VHT operation. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type probe response.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 1528 bytes (on a 64-bit architecture).

Definition at line 902 of file mgt-headers.h.

Constructor & Destructor Documentation

◆ MgtProbeResponseHeader()

ns3::MgtProbeResponseHeader::MgtProbeResponseHeader ( )

Definition at line 298 of file mgt-headers.cc.

◆ ~MgtProbeResponseHeader()

ns3::MgtProbeResponseHeader::~MgtProbeResponseHeader ( )

override

Definition at line 302 of file mgt-headers.cc.

Member Function Documentation

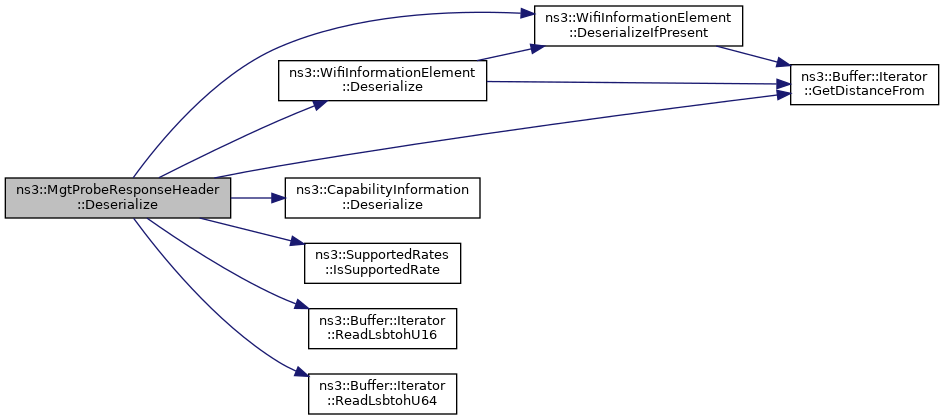

◆ Deserialize()

uint32_t ns3::MgtProbeResponseHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 863 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::SupportedRates::IsSupportedRate(), m_beaconInterval, m_capability, m_dsssParameterSet, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_reducedNeighborReport, m_ssid, m_timestamp, m_vhtCapability, m_vhtOperation, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), two-ray-to-three-gpp-ch-calibration::start, and ns3::WIFI_MAC_MGT_BEACON.

Here is the call graph for this function:

◆ GetBeaconIntervalUs()

uint64_t ns3::MgtProbeResponseHeader::GetBeaconIntervalUs ( ) const

Return the beacon interval in microseconds unit.

Returns: beacon interval in microseconds unit

Definition at line 319 of file mgt-headers.cc.

References m_beaconInterval.

Referenced by ns3::MeshWifiBeacon::GetBeaconInterval(), and ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

◆ GetCapabilities()

const CapabilityInformation & ns3::MgtProbeResponseHeader::GetCapabilities ( ) const

Return the Capability information.

Returns: Capability information

Definition at line 343 of file mgt-headers.cc.

References m_capability.

Referenced by ns3::StaWifiMac::ReceiveBeacon().

Here is the caller graph for this function:

◆ GetDsssParameterSet()

const std::optional< DsssParameterSet > & ns3::MgtProbeResponseHeader::GetDsssParameterSet ( ) const

Return the DSSS Parameter Set, if present.

Returns: the DSSS Parameter Set, if present

Definition at line 553 of file mgt-headers.cc.

References m_dsssParameterSet.

◆ GetEdcaParameterSet()

const std::optional< EdcaParameterSet > & ns3::MgtProbeResponseHeader::GetEdcaParameterSet ( ) const

Return the EDCA Parameter Set, if present.

Returns: the EDCA Parameter Set, if present

Definition at line 625 of file mgt-headers.cc.

References m_edcaParameterSet.

◆ GetEhtCapabilities()

const std::optional< EhtCapabilities > & ns3::MgtProbeResponseHeader::GetEhtCapabilities ( ) const

Return the EHT capabilities, if present.

Returns: EHT capabilities, if present

Definition at line 487 of file mgt-headers.cc.

References m_ehtCapability.

◆ GetEhtOperation()

const std::optional< EhtOperation > & ns3::MgtProbeResponseHeader::GetEhtOperation ( ) const

Return the EHT operation, if present.

Returns: EHT operation, if present

Definition at line 505 of file mgt-headers.cc.

References m_ehtOperation.

◆ GetErpInformation()

const std::optional< ErpInformation > & ns3::MgtProbeResponseHeader::GetErpInformation ( ) const

Return the ERP information, if present.

Returns: the ERP information, if present

Definition at line 571 of file mgt-headers.cc.

References m_erpInformation.

◆ GetExtendedCapabilities()

const std::optional< ExtendedCapabilities > & ns3::MgtProbeResponseHeader::GetExtendedCapabilities ( ) const

Return the extended capabilities, if present.

Returns: the extended capabilities, if present

Definition at line 361 of file mgt-headers.cc.

References m_extendedCapability.

◆ GetHeCapabilities()

const std::optional< HeCapabilities > & ns3::MgtProbeResponseHeader::GetHeCapabilities ( ) const

Return the HE capabilities, if present.

Returns: HE capabilities, if present

Definition at line 451 of file mgt-headers.cc.

References m_heCapability.

◆ GetHeOperation()

const std::optional< HeOperation > & ns3::MgtProbeResponseHeader::GetHeOperation ( ) const

Return the HE operation, if present.

Returns: HE operation, if present

Definition at line 469 of file mgt-headers.cc.

References m_heOperation.

◆ GetHtCapabilities()

const std::optional< HtCapabilities > & ns3::MgtProbeResponseHeader::GetHtCapabilities ( ) const

Return the HT capabilities, if present.

Returns: HT capabilities, if present

Definition at line 379 of file mgt-headers.cc.

References m_htCapability.

◆ GetHtOperation()

const std::optional< HtOperation > & ns3::MgtProbeResponseHeader::GetHtOperation ( ) const

Return the HT operation, if present.

Returns: HT operation, if present

Definition at line 397 of file mgt-headers.cc.

References m_htOperation.

Referenced by Bug2831TestCase::RxCallback().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::MgtProbeResponseHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 659 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetMuEdcaParameterSet()

const std::optional< MuEdcaParameterSet > & ns3::MgtProbeResponseHeader::GetMuEdcaParameterSet ( ) const

Return the MU EDCA Parameter Set, if present.

Returns: the MU EDCA Parameter Set, if present

Definition at line 631 of file mgt-headers.cc.

References m_muEdcaParameterSet.

◆ GetMultiLinkElement()

const std::optional< MultiLinkElement > & ns3::MgtProbeResponseHeader::GetMultiLinkElement ( ) const

Return the Multi-Link Element information element, if present.

Returns: the Multi-Link Element information element, if present

Definition at line 643 of file mgt-headers.cc.

References m_multiLinkElement.

Referenced by MultiLinkSetupTest::CheckBeacon().

Here is the caller graph for this function:

◆ GetReducedNeighborReport()

const std::optional< ReducedNeighborReport > & ns3::MgtProbeResponseHeader::GetReducedNeighborReport ( ) const

Return the Reduced Neighbor Report information element, if present.

Returns: the Reduced Neighbor Report information element, if present

Definition at line 637 of file mgt-headers.cc.

References m_reducedNeighborReport.

Referenced by MultiLinkSetupTest::CheckBeacon().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::MgtProbeResponseHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 665 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), ns3::CapabilityInformation::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_dsssParameterSet, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_reducedNeighborReport, m_ssid, m_vhtCapability, and m_vhtOperation.

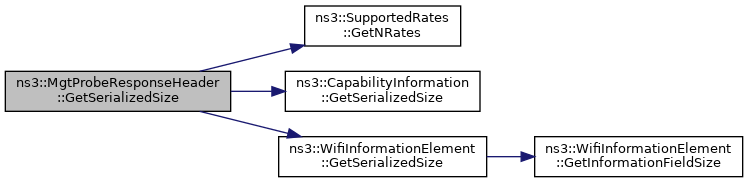

Here is the call graph for this function:

◆ GetSsid()

const Ssid & ns3::MgtProbeResponseHeader::GetSsid ( ) const

Return the Service Set Identifier (SSID).

Returns: SSID

Definition at line 313 of file mgt-headers.cc.

References m_ssid.

Referenced by ns3::MeshWifiInterfaceMac::Receive().

Here is the caller graph for this function:

◆ GetSupportedRates()

const SupportedRates & ns3::MgtProbeResponseHeader::GetSupportedRates ( ) const

Return the supported rates.

Returns: the supported rates

Definition at line 325 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::MeshWifiInterfaceMac::Receive().

Here is the caller graph for this function:

◆ GetTimestamp()

uint64_t ns3::MgtProbeResponseHeader::GetTimestamp ( ) const

Return the time stamp.

Returns: time stamp

Definition at line 307 of file mgt-headers.cc.

References m_timestamp.

◆ GetTypeId()

TypeId ns3::MgtProbeResponseHeader::GetTypeId ( )

static

Register this type.

Returns: The TypeId.

Definition at line 649 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetVhtCapabilities()

const std::optional< VhtCapabilities > & ns3::MgtProbeResponseHeader::GetVhtCapabilities ( ) const

Return the VHT capabilities, if present.

Returns: VHT capabilities, if present

Definition at line 415 of file mgt-headers.cc.

References m_vhtCapability.

◆ GetVhtOperation()

const std::optional< VhtOperation > & ns3::MgtProbeResponseHeader::GetVhtOperation ( ) const

Return the VHT operation, if present.

Returns: VHT operation, if present

Definition at line 433 of file mgt-headers.cc.

References m_vhtOperation.

◆ Print()

void ns3::MgtProbeResponseHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 741 of file mgt-headers.cc.

References m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_rates, m_ssid, m_vhtCapability, and m_vhtOperation.

◆ Serialize()

void ns3::MgtProbeResponseHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 788 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::SupportedRates::GetNRates(), m_beaconInterval, m_capability, m_dsssParameterSet, m_edcaParameterSet, m_ehtCapability, m_ehtOperation, m_erpInformation, m_extendedCapability, m_heCapability, m_heOperation, m_htCapability, m_htOperation, m_muEdcaParameterSet, m_multiLinkElement, m_rates, m_reducedNeighborReport, m_ssid, m_vhtCapability, m_vhtOperation, ns3::Simulator::Now(), ns3::WifiInformationElement::Serialize(), ns3::CapabilityInformation::Serialize(), two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::Buffer::Iterator::WriteHtolsbU64().

Here is the call graph for this function:

◆ SetBeaconIntervalUs()

void ns3::MgtProbeResponseHeader::SetBeaconIntervalUs ( uint64_t us )

Set the beacon interval in microseconds unit.

Parameters

us	beacon interval in microseconds unit

Definition at line 523 of file mgt-headers.cc.

References m_beaconInterval.

Referenced by ns3::MeshWifiBeacon::MeshWifiBeacon(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetCapabilities ( CapabilityInformation && capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 337 of file mgt-headers.cc.

References m_capability.

◆ SetCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetCapabilities ( const CapabilityInformation & capabilities )

Set the Capability information.

Parameters

capabilities Capability information

Definition at line 331 of file mgt-headers.cc.

References m_capability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetDsssParameterSet() [1/2]

void ns3::MgtProbeResponseHeader::SetDsssParameterSet ( const DsssParameterSet & dsssParameterSet )

Set the DSSS Parameter Set.

Parameters

dsssParameterSet the DSSS Parameter Set

Definition at line 541 of file mgt-headers.cc.

References m_dsssParameterSet.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetDsssParameterSet() [2/2]

void ns3::MgtProbeResponseHeader::SetDsssParameterSet ( DsssParameterSet && dsssParameterSet )

Set the DSSS Parameter Set.

Parameters

dsssParameterSet the DSSS Parameter Set

Definition at line 547 of file mgt-headers.cc.

References m_dsssParameterSet.

◆ SetEdcaParameterSet() [1/2]

void ns3::MgtProbeResponseHeader::SetEdcaParameterSet ( const EdcaParameterSet & edcaParameterSet )

Set the EDCA Parameter Set.

Parameters

edcaParameterSet the EDCA Parameter Set

Definition at line 577 of file mgt-headers.cc.

References m_edcaParameterSet.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetEdcaParameterSet() [2/2]

void ns3::MgtProbeResponseHeader::SetEdcaParameterSet ( EdcaParameterSet && edcaParameterSet )

Set the EDCA Parameter Set.

Parameters

edcaParameterSet the EDCA Parameter Set

Definition at line 583 of file mgt-headers.cc.

References m_edcaParameterSet.

◆ SetEhtCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetEhtCapabilities ( const EhtCapabilities & ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 475 of file mgt-headers.cc.

References m_ehtCapability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetEhtCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetEhtCapabilities ( EhtCapabilities && ehtCapabilities )

Set the EHT capabilities.

Parameters

ehtCapabilities EHT capabilities

Definition at line 481 of file mgt-headers.cc.

References m_ehtCapability.

◆ SetEhtOperation() [1/2]

void ns3::MgtProbeResponseHeader::SetEhtOperation ( const EhtOperation & ehtOperation )

Set the EHT operation.

Parameters

ehtOperation HE operation

Definition at line 493 of file mgt-headers.cc.

References m_ehtOperation.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetEhtOperation() [2/2]

void ns3::MgtProbeResponseHeader::SetEhtOperation ( EhtOperation && ehtOperation )

Set the EHT operation.

Parameters

ehtOperation HE operation

Definition at line 499 of file mgt-headers.cc.

References m_ehtOperation.

◆ SetErpInformation() [1/2]

void ns3::MgtProbeResponseHeader::SetErpInformation ( const ErpInformation & erpInformation )

Set the ERP information.

Parameters

erpInformation the ERP information

Definition at line 559 of file mgt-headers.cc.

References m_erpInformation.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetErpInformation() [2/2]

void ns3::MgtProbeResponseHeader::SetErpInformation ( ErpInformation && erpInformation )

Set the ERP information.

Parameters

erpInformation the ERP information

Definition at line 565 of file mgt-headers.cc.

References m_erpInformation.

◆ SetExtendedCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetExtendedCapabilities ( const ExtendedCapabilities & extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 349 of file mgt-headers.cc.

References m_extendedCapability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetExtendedCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetExtendedCapabilities ( ExtendedCapabilities && extendedCapabilities )

Set the extended capabilities.

Parameters

extendedCapabilities the extended capabilities

Definition at line 355 of file mgt-headers.cc.

References m_extendedCapability.

◆ SetHeCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetHeCapabilities ( const HeCapabilities & heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 439 of file mgt-headers.cc.

References m_heCapability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetHeCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetHeCapabilities ( HeCapabilities && heCapabilities )

Set the HE capabilities.

Parameters

heCapabilities HE capabilities

Definition at line 445 of file mgt-headers.cc.

References m_heCapability.

◆ SetHeOperation() [1/2]

void ns3::MgtProbeResponseHeader::SetHeOperation ( const HeOperation & heOperation )

Set the HE operation.

Parameters

heOperation HE operation

Definition at line 457 of file mgt-headers.cc.

References m_heOperation.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetHeOperation() [2/2]

void ns3::MgtProbeResponseHeader::SetHeOperation ( HeOperation && heOperation )

Set the HE operation.

Parameters

heOperation HE operation

Definition at line 463 of file mgt-headers.cc.

References m_heOperation.

◆ SetHtCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetHtCapabilities ( const HtCapabilities & htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 367 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetHtCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetHtCapabilities ( HtCapabilities && htCapabilities )

Set the HT capabilities.

Parameters

htCapabilities HT capabilities

Definition at line 373 of file mgt-headers.cc.

References m_htCapability.

◆ SetHtOperation() [1/2]

void ns3::MgtProbeResponseHeader::SetHtOperation ( const HtOperation & htOperation )

Set the HT operation.

Parameters

htOperation HT operation

Definition at line 385 of file mgt-headers.cc.

References m_htOperation.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetHtOperation() [2/2]

void ns3::MgtProbeResponseHeader::SetHtOperation ( HtOperation && htOperation )

Set the HT operation.

Parameters

htOperation HT operation

Definition at line 391 of file mgt-headers.cc.

References m_htOperation.

◆ SetMuEdcaParameterSet() [1/2]

void ns3::MgtProbeResponseHeader::SetMuEdcaParameterSet ( const MuEdcaParameterSet & muEdcaParameterSet )

Set the MU EDCA Parameter Set.

Parameters

muEdcaParameterSet the MU EDCA Parameter Set

Definition at line 589 of file mgt-headers.cc.

References m_muEdcaParameterSet.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetMuEdcaParameterSet() [2/2]

void ns3::MgtProbeResponseHeader::SetMuEdcaParameterSet ( MuEdcaParameterSet && muEdcaParameterSet )

Set the MU EDCA Parameter Set.

Parameters

muEdcaParameterSet the MU EDCA Parameter Set

Definition at line 595 of file mgt-headers.cc.

References m_muEdcaParameterSet.

◆ SetMultiLinkElement() [1/2]

void ns3::MgtProbeResponseHeader::SetMultiLinkElement ( const MultiLinkElement & multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 613 of file mgt-headers.cc.

References m_multiLinkElement.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetMultiLinkElement() [2/2]

void ns3::MgtProbeResponseHeader::SetMultiLinkElement ( MultiLinkElement && multiLinkElement )

Set the Multi-Link Element information element.

Parameters

multiLinkElement the Multi-Link Element information element

Definition at line 619 of file mgt-headers.cc.

References m_multiLinkElement.

◆ SetReducedNeighborReport() [1/2]

void ns3::MgtProbeResponseHeader::SetReducedNeighborReport ( const ReducedNeighborReport & reducedNeighborReport )

Set the Reduced Neighbor Report information element.

Parameters

reducedNeighborReport the Reduced Neighbor Report information element

Definition at line 601 of file mgt-headers.cc.

References m_reducedNeighborReport.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetReducedNeighborReport() [2/2]

void ns3::MgtProbeResponseHeader::SetReducedNeighborReport ( ReducedNeighborReport && reducedNeighborReport )

Set the Reduced Neighbor Report information element.

Parameters

reducedNeighborReport the Reduced Neighbor Report information element

Definition at line 607 of file mgt-headers.cc.

References m_reducedNeighborReport.

◆ SetSsid() [1/2]

void ns3::MgtProbeResponseHeader::SetSsid ( const Ssid & ssid )

Set the Service Set Identifier (SSID).

Parameters

ssid SSID

Definition at line 511 of file mgt-headers.cc.

References m_ssid, and third::ssid.

Referenced by ns3::MeshWifiBeacon::MeshWifiBeacon(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

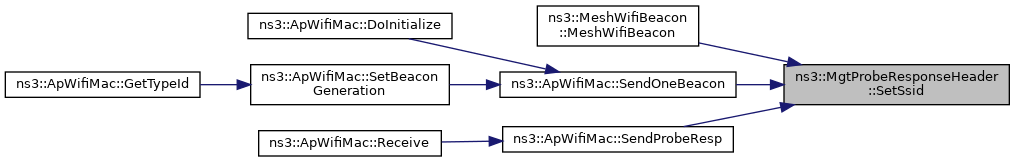

Here is the caller graph for this function:

◆ SetSsid() [2/2]

void ns3::MgtProbeResponseHeader::SetSsid ( Ssid && ssid )

Set the Service Set Identifier (SSID).

Parameters

ssid SSID

Definition at line 517 of file mgt-headers.cc.

References m_ssid, and third::ssid.

◆ SetSupportedRates() [1/2]

void ns3::MgtProbeResponseHeader::SetSupportedRates ( const SupportedRates & rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 529 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::MeshWifiBeacon::MeshWifiBeacon(), ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetSupportedRates() [2/2]

void ns3::MgtProbeResponseHeader::SetSupportedRates ( SupportedRates && rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 535 of file mgt-headers.cc.

References m_rates.

◆ SetVhtCapabilities() [1/2]

void ns3::MgtProbeResponseHeader::SetVhtCapabilities ( const VhtCapabilities & vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 403 of file mgt-headers.cc.

References m_vhtCapability.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetVhtCapabilities() [2/2]

void ns3::MgtProbeResponseHeader::SetVhtCapabilities ( VhtCapabilities && vhtCapabilities )

Set the VHT capabilities.

Parameters

vhtCapabilities VHT capabilities

Definition at line 409 of file mgt-headers.cc.

References m_vhtCapability.

◆ SetVhtOperation() [1/2]

void ns3::MgtProbeResponseHeader::SetVhtOperation ( const VhtOperation & vhtOperation )

Set the VHT operation.

Parameters

vhtOperation VHT operation

Definition at line 421 of file mgt-headers.cc.

References m_vhtOperation.

Referenced by ns3::ApWifiMac::SendOneBeacon(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

◆ SetVhtOperation() [2/2]

void ns3::MgtProbeResponseHeader::SetVhtOperation ( VhtOperation && vhtOperation )

Set the VHT operation.

Parameters

vhtOperation VHT operation

Definition at line 427 of file mgt-headers.cc.

References m_vhtOperation.

Member Data Documentation

◆ m_beaconInterval

uint64_t ns3::MgtProbeResponseHeader::m_beaconInterval

private

Beacon interval.

Definition at line 1231 of file mgt-headers.h.

Referenced by Deserialize(), GetBeaconIntervalUs(), Serialize(), and SetBeaconIntervalUs().

◆ m_capability

CapabilityInformation ns3::MgtProbeResponseHeader::m_capability

private

Capability information.

Definition at line 1233 of file mgt-headers.h.

Referenced by Deserialize(), GetCapabilities(), GetSerializedSize(), Serialize(), and SetCapabilities().

◆ m_dsssParameterSet

std::optional<DsssParameterSet> ns3::MgtProbeResponseHeader::m_dsssParameterSet

private

DSSS Parameter Set.

Definition at line 1234 of file mgt-headers.h.

Referenced by Deserialize(), GetDsssParameterSet(), GetSerializedSize(), Serialize(), and SetDsssParameterSet().

◆ m_edcaParameterSet

std::optional<EdcaParameterSet> ns3::MgtProbeResponseHeader::m_edcaParameterSet

private

EDCA Parameter Set.

Definition at line 1243 of file mgt-headers.h.

Referenced by Deserialize(), GetEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetEdcaParameterSet().

◆ m_ehtCapability

std::optional<EhtCapabilities> ns3::MgtProbeResponseHeader::m_ehtCapability

private

EHT capabilities.

Definition at line 1245 of file mgt-headers.h.

Referenced by Deserialize(), GetEhtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetEhtCapabilities().

◆ m_ehtOperation

std::optional<EhtOperation> ns3::MgtProbeResponseHeader::m_ehtOperation

private

EHT Operation.

Definition at line 1246 of file mgt-headers.h.

Referenced by Deserialize(), GetEhtOperation(), GetSerializedSize(), Print(), Serialize(), and SetEhtOperation().

◆ m_erpInformation

std::optional<ErpInformation> ns3::MgtProbeResponseHeader::m_erpInformation

private

ERP information.

Definition at line 1242 of file mgt-headers.h.

Referenced by Deserialize(), GetErpInformation(), GetSerializedSize(), Print(), Serialize(), and SetErpInformation().

◆ m_extendedCapability

std::optional<ExtendedCapabilities> ns3::MgtProbeResponseHeader::m_extendedCapability

private

extended capabilities

Definition at line 1235 of file mgt-headers.h.

Referenced by Deserialize(), GetExtendedCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetExtendedCapabilities().

◆ m_heCapability

std::optional<HeCapabilities> ns3::MgtProbeResponseHeader::m_heCapability

private

HE capabilities.

Definition at line 1240 of file mgt-headers.h.

Referenced by Deserialize(), GetHeCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHeCapabilities().

◆ m_heOperation

std::optional<HeOperation> ns3::MgtProbeResponseHeader::m_heOperation

private

HE operation.

Definition at line 1241 of file mgt-headers.h.

Referenced by Deserialize(), GetHeOperation(), GetSerializedSize(), Print(), Serialize(), and SetHeOperation().

◆ m_htCapability

std::optional<HtCapabilities> ns3::MgtProbeResponseHeader::m_htCapability

private

HT capabilities.

Definition at line 1236 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

◆ m_htOperation

std::optional<HtOperation> ns3::MgtProbeResponseHeader::m_htOperation

private

HT operation.

Definition at line 1237 of file mgt-headers.h.

Referenced by Deserialize(), GetHtOperation(), GetSerializedSize(), Print(), Serialize(), and SetHtOperation().

◆ m_muEdcaParameterSet

std::optional<MuEdcaParameterSet> ns3::MgtProbeResponseHeader::m_muEdcaParameterSet

private

MU EDCA Parameter Set.

Definition at line 1244 of file mgt-headers.h.

Referenced by Deserialize(), GetMuEdcaParameterSet(), GetSerializedSize(), Serialize(), and SetMuEdcaParameterSet().

◆ m_multiLinkElement

std::optional<MultiLinkElement> ns3::MgtProbeResponseHeader::m_multiLinkElement

private

Multi-Link Element.

Definition at line 1249 of file mgt-headers.h.

Referenced by Deserialize(), GetMultiLinkElement(), GetSerializedSize(), Serialize(), and SetMultiLinkElement().

◆ m_rates

SupportedRates ns3::MgtProbeResponseHeader::m_rates

private

List of supported rates.

Definition at line 1232 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

◆ m_reducedNeighborReport

std::optional<ReducedNeighborReport> ns3::MgtProbeResponseHeader::m_reducedNeighborReport

private

Reduced Neighbor Report information.

Definition at line 1248 of file mgt-headers.h.

Referenced by Deserialize(), GetReducedNeighborReport(), GetSerializedSize(), Serialize(), and SetReducedNeighborReport().

◆ m_ssid

Ssid ns3::MgtProbeResponseHeader::m_ssid

private

Service set ID (SSID)

Definition at line 1230 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSsid(), Print(), Serialize(), and SetSsid().

◆ m_timestamp

uint64_t ns3::MgtProbeResponseHeader::m_timestamp

private

Timestamp.

Definition at line 1229 of file mgt-headers.h.

Referenced by Deserialize(), and GetTimestamp().

◆ m_vhtCapability

std::optional<VhtCapabilities> ns3::MgtProbeResponseHeader::m_vhtCapability

private

VHT capabilities.

Definition at line 1238 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtCapabilities(), Print(), Serialize(), and SetVhtCapabilities().

◆ m_vhtOperation

std::optional<VhtOperation> ns3::MgtProbeResponseHeader::m_vhtOperation

private

VHT operation.

Definition at line 1239 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetVhtOperation(), Print(), Serialize(), and SetVhtOperation().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MgtProbeResponseHeader()

◆ ~MgtProbeResponseHeader()

Member Function Documentation

◆ Deserialize()

◆ GetBeaconIntervalUs()

◆ GetCapabilities()

◆ GetDsssParameterSet()

◆ GetEdcaParameterSet()

◆ GetEhtCapabilities()

◆ GetEhtOperation()

◆ GetErpInformation()

◆ GetExtendedCapabilities()

◆ GetHeCapabilities()

◆ GetHeOperation()

◆ GetHtCapabilities()

◆ GetHtOperation()

◆ GetInstanceTypeId()

◆ GetMuEdcaParameterSet()

◆ GetMultiLinkElement()

◆ GetReducedNeighborReport()

◆ GetSerializedSize()

◆ GetSsid()

◆ GetSupportedRates()

◆ GetTimestamp()

◆ GetTypeId()

◆ GetVhtCapabilities()

◆ GetVhtOperation()

◆ Print()

◆ Serialize()

◆ SetBeaconIntervalUs()

◆ SetCapabilities() [1/2]

◆ SetCapabilities() [2/2]

◆ SetDsssParameterSet() [1/2]

◆ SetDsssParameterSet() [2/2]

◆ SetEdcaParameterSet() [1/2]

◆ SetEdcaParameterSet() [2/2]

◆ SetEhtCapabilities() [1/2]

◆ SetEhtCapabilities() [2/2]

◆ SetEhtOperation() [1/2]

◆ SetEhtOperation() [2/2]

◆ SetErpInformation() [1/2]

◆ SetErpInformation() [2/2]

◆ SetExtendedCapabilities() [1/2]

◆ SetExtendedCapabilities() [2/2]

◆ SetHeCapabilities() [1/2]

◆ SetHeCapabilities() [2/2]

◆ SetHeOperation() [1/2]

◆ SetHeOperation() [2/2]

◆ SetHtCapabilities() [1/2]

◆ SetHtCapabilities() [2/2]

◆ SetHtOperation() [1/2]

◆ SetHtOperation() [2/2]

◆ SetMuEdcaParameterSet() [1/2]

◆ SetMuEdcaParameterSet() [2/2]

◆ SetMultiLinkElement() [1/2]

◆ SetMultiLinkElement() [2/2]

◆ SetReducedNeighborReport() [1/2]

◆ SetReducedNeighborReport() [2/2]

◆ SetSsid() [1/2]

◆ SetSsid() [2/2]

◆ SetSupportedRates() [1/2]

◆ SetSupportedRates() [2/2]

◆ SetVhtCapabilities() [1/2]

◆ SetVhtCapabilities() [2/2]

◆ SetVhtOperation() [1/2]

◆ SetVhtOperation() [2/2]

Member Data Documentation

◆ m_beaconInterval

◆ m_capability

◆ m_dsssParameterSet

◆ m_edcaParameterSet

◆ m_ehtCapability

◆ m_ehtOperation

◆ m_erpInformation
