The OpenFlow 1.3 queue interface. More...

#include "ofswitch13-queue.h"

Inheritance diagram for ns3::OFSwitch13Queue:

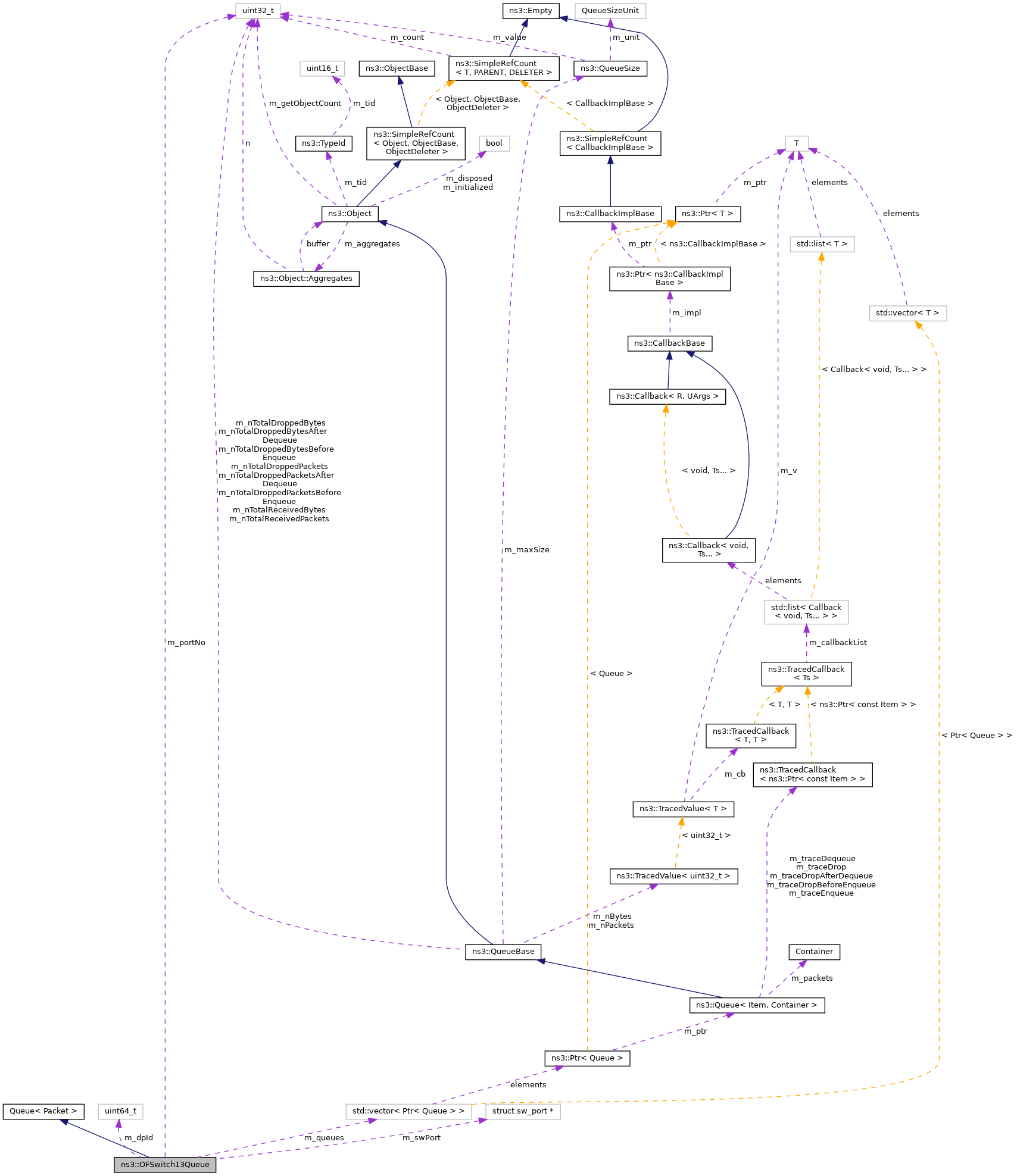

Collaboration diagram for ns3::OFSwitch13Queue:

Public Member Functions
	OFSwitch13Queue ()
	Default constructor. More...

	~OFSwitch13Queue () override
	Dummy destructor, see DoDispose. More...

bool	Enqueue (Ptr< Packet > packet) override

int	GetNQueues () const
	Get the number of internal queues. More...

Ptr< Queue< Packet > >	GetQueue (int queueId) const
	Get a pointer to internal queue with specific id. More...

void	SetPortStruct (struct sw_port *port)
	Set the pointer to the internal BOFUSS port structure. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Protected Member Functions
uint32_t	AddQueue (Ptr< Queue< Packet >> queue)
	Add a new internal queue to this OpenFlow queue interface. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override

void	NotifyDequeue (Ptr< Packet > packet)
	Notify the parent class of a packet dequeued from any internal queue. More...

void	NotifyRemove (Ptr< Packet > packet)
	Notify the parent class of a packet removed from any internal queue. More...

Protected Attributes
uint64_t	m_dpId
	OpenFlow datapath ID. More...

uint32_t	m_portNo
	OpenFlow port number. More...

Private Types
typedef std::vector< Ptr< Queue > >	QueueList_t
	Structure to save the list of internal queues in this queue interface. More...

Private Attributes
QueueList_t	m_queues
	List of internal queues. More...

struct sw_port *	m_swPort
	BOFUSS port structure. More...

	NS_LOG_TEMPLATE_DECLARE
	Redefinition of the log component. More...

Detailed Description

The OpenFlow 1.3 queue interface.

An OpenFlow switch provides limited Quality-of-Service support (QoS) through a simple queuing mechanism. One (or more) queues can attach to a port and be used to map flow entries on it. Flow entries mapped to a specific queue will be treated according to that queue's configuration. Queue configuration takes place outside the OpenFlow protocol.

This class implements the queue interface, extending the ns3::Queue<Packet> class to allow compatibility with the CsmaNetDevice used by OFSwitch13Port. Internally, it holds a collection of N (possibly different) queues, identified by IDs ranging from 0 to N-1. The Enqueue () method uses the ns3::QueueTag to identify which internal queue will hold the packet. Subclasses can perform different output scheduling algorithms by implementing the Dequeue (), Remove () and Peek () methods, always calling the NotifyDequeue () and NotifyRemoved () methods from this base class to keep consistency.

Config Paths

ns3::OFSwitch13Queue is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/TxQueue/$ns3::OFSwitch13Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/TxQueue/$ns3::OFSwitch13Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/TxQueue/$ns3::OFSwitch13Queue"
"/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Queue/$ns3::OFSwitch13Queue"

Attributes

QueueList: The list of internal queues.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Queue<Packet>>
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::Queue<Packet>

Dequeue: Dequeue a packet from the queue.
Callback signature: ns3::Packet::TracedCallback
Drop: Drop a packet (for whatever reason).
Callback signature: ns3::Packet::TracedCallback
DropAfterDequeue: Drop a packet after dequeue.
Callback signature: ns3::Packet::TracedCallback
DropBeforeEnqueue: Drop a packet before enqueue.
Callback signature: ns3::Packet::TracedCallback
Enqueue: Enqueue a packet in the queue.
Callback signature: ns3::Packet::TracedCallback

TraceSources defined in parent class ns3::QueueBase

BytesInQueue: Number of bytes currently stored in the queue
Callback signature: ns3::TracedValueCallback::Uint32
PacketsInQueue: Number of packets currently stored in the queue
Callback signature: ns3::TracedValueCallback::Uint32

Size of this type is 352 bytes (on a 64-bit architecture).

Definition at line 54 of file ofswitch13-queue.h.

Member Typedef Documentation

◆ QueueList_t

typedef std::vector<Ptr<Queue> > ns3::OFSwitch13Queue::QueueList_t

private

Structure to save the list of internal queues in this queue interface.

Definition at line 123 of file ofswitch13-queue.h.

Constructor & Destructor Documentation

◆ OFSwitch13Queue()

ns3::OFSwitch13Queue::OFSwitch13Queue ( )

Default constructor.

Definition at line 53 of file ofswitch13-queue.cc.

References NS_LOG_FUNCTION.

◆ ~OFSwitch13Queue()

ns3::OFSwitch13Queue::~OFSwitch13Queue ( )

override

Dummy destructor, see DoDispose.

Definition at line 63 of file ofswitch13-queue.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddQueue()

uint32_t ns3::OFSwitch13Queue::AddQueue ( Ptr< Queue< Packet >> queue )

protected

Add a new internal queue to this OpenFlow queue interface.

Parameters

queue The queue pointer.

Returns: The ID for this new internal queue.

Definition at line 162 of file ofswitch13-queue.cc.

References m_queues, m_swPort, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and time_msec().

Referenced by ns3::OFSwitch13PriorityQueue::DoInitialize().

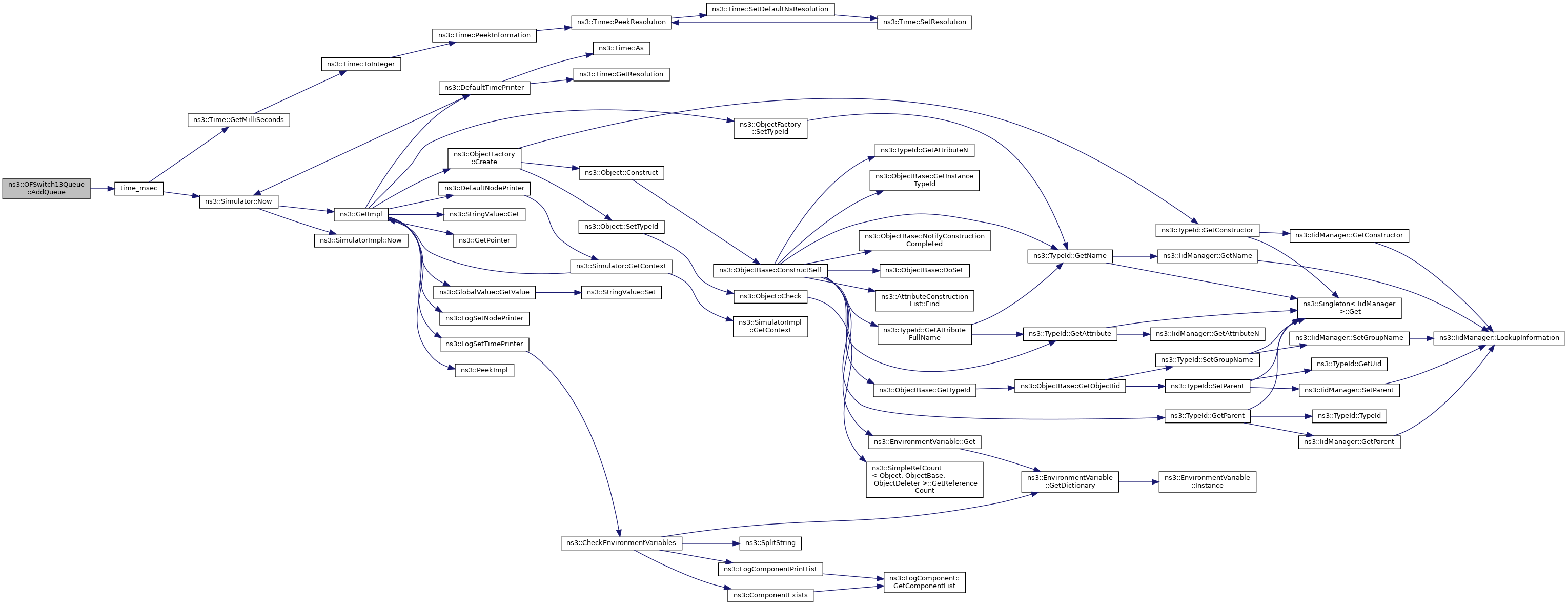

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::OFSwitch13Queue::DoDispose ( )

overrideprotected

Destructor implementation.

Definition at line 129 of file ofswitch13-queue.cc.

References ns3::Queue< Item, Container >::DoDispose(), GetNQueues(), m_queues, m_swPort, and NS_LOG_FUNCTION.

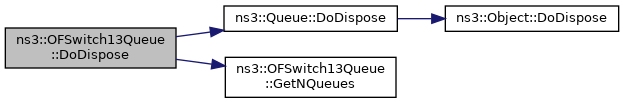

Here is the call graph for this function:

◆ DoInitialize()

void ns3::OFSwitch13Queue::DoInitialize ( )

overrideprotected

Definition at line 153 of file ofswitch13-queue.cc.

References ns3::Object::DoInitialize(), and NS_LOG_FUNCTION.

Referenced by ns3::OFSwitch13PriorityQueue::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::OFSwitch13Queue::Enqueue ( Ptr< Packet > packet )

override

Definition at line 69 of file ofswitch13-queue.cc.

References GetNQueues(), GetQueue(), ns3::QueueTag::GetQueueId(), ns3::Packet::GetSize(), m_swPort, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Packet::PeekPacketTag().

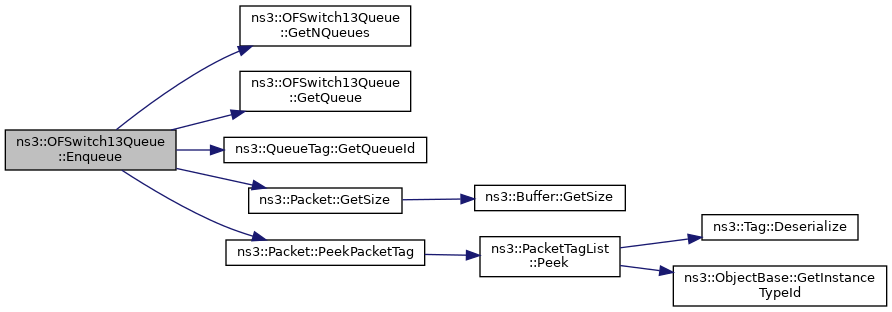

Here is the call graph for this function:

◆ GetNQueues()

int ns3::OFSwitch13Queue::GetNQueues ( ) const

Get the number of internal queues.

Returns: The number of internal queues.

Definition at line 107 of file ofswitch13-queue.cc.

References m_queues.

Referenced by DoDispose(), Enqueue(), and ns3::OFSwitch13PriorityQueue::GetNonEmptyQueue().

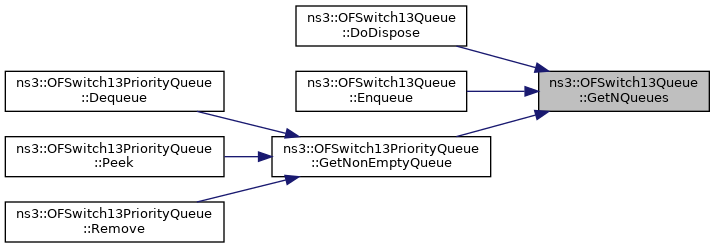

Here is the caller graph for this function:

◆ GetQueue()

Ptr< Queue< Packet > > ns3::OFSwitch13Queue::GetQueue ( int queueId ) const

Get a pointer to internal queue with specific id.

Parameters

queueId The queue id.

Returns: The queue pointer.

Internal: This function is marked as const to allow its usage inside: DoPeek () member function.

Definition at line 113 of file ofswitch13-queue.cc.

References m_queues.

Referenced by ns3::OFSwitch13PriorityQueue::Dequeue(), Enqueue(), ns3::OFSwitch13PriorityQueue::GetNonEmptyQueue(), ns3::OFSwitch13PriorityQueue::Peek(), and ns3::OFSwitch13PriorityQueue::Remove().

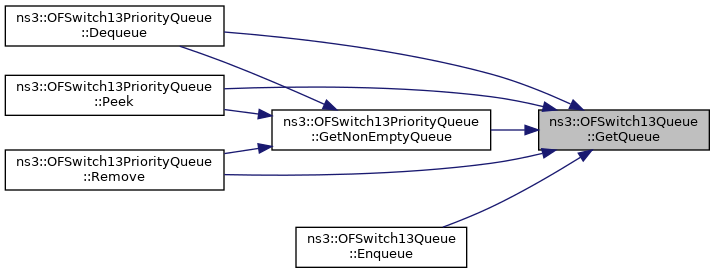

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::OFSwitch13Queue::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

Definition at line 39 of file ofswitch13-queue.cc.

References m_queues, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

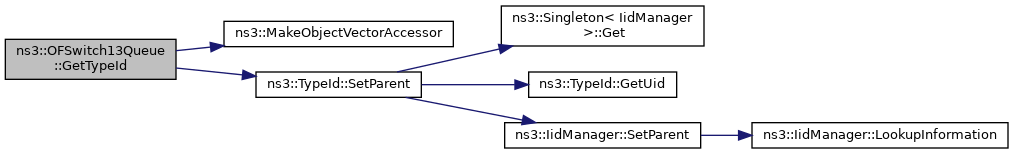

Here is the call graph for this function:

◆ NotifyDequeue()

void ns3::OFSwitch13Queue::NotifyDequeue ( Ptr< Packet > packet )

protected

Notify the parent class of a packet dequeued from any internal queue.

Parameters

packet The packet.

Definition at line 196 of file ofswitch13-queue.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::OFSwitch13PriorityQueue::Dequeue().

Here is the caller graph for this function:

◆ NotifyRemove()

void ns3::OFSwitch13Queue::NotifyRemove ( Ptr< Packet > packet )

protected

Notify the parent class of a packet removed from any internal queue.

Parameters

packet The packet.

Definition at line 214 of file ofswitch13-queue.cc.

References NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::OFSwitch13PriorityQueue::Remove().

Here is the caller graph for this function:

◆ SetPortStruct()

void ns3::OFSwitch13Queue::SetPortStruct ( struct sw_port * port )

Set the pointer to the internal BOFUSS port structure.

Parameters

port	The port structure pointer.

Definition at line 119 of file ofswitch13-queue.cc.

References m_dpId, m_portNo, m_swPort, NS_LOG_FUNCTION, and port.

Member Data Documentation

◆ m_dpId

uint64_t ns3::OFSwitch13Queue::m_dpId

protected

OpenFlow datapath ID.

Definition at line 117 of file ofswitch13-queue.h.

Referenced by SetPortStruct().

◆ m_portNo

uint32_t ns3::OFSwitch13Queue::m_portNo

protected

OpenFlow port number.

Definition at line 118 of file ofswitch13-queue.h.

Referenced by SetPortStruct().

◆ m_queues

QueueList_t ns3::OFSwitch13Queue::m_queues

private

List of internal queues.

Definition at line 126 of file ofswitch13-queue.h.

Referenced by AddQueue(), DoDispose(), GetNQueues(), GetQueue(), and GetTypeId().

◆ m_swPort

struct sw_port* ns3::OFSwitch13Queue::m_swPort

private

BOFUSS port structure.

Definition at line 125 of file ofswitch13-queue.h.

Referenced by AddQueue(), DoDispose(), Enqueue(), and SetPortStruct().

◆ NS_LOG_TEMPLATE_DECLARE

ns3::OFSwitch13Queue::NS_LOG_TEMPLATE_DECLARE

private

Redefinition of the log component.

Definition at line 128 of file ofswitch13-queue.h.

The documentation for this class was generated from the following files:

contrib/ofswitch13/model/ofswitch13-queue.h
contrib/ofswitch13/model/ofswitch13-queue.cc
