This section documents the API of the ns-3 OpenFlow 1.3 compatible switch and controller interface. More...

Classes
struct	ns3::OFSwitch13Controller::BarrierInfo
	Structure to save barrier metadata used by the controller interface. More...

struct	ns3::OFSwitch13Controller::EchoInfo
	Structure to save echo request metadata used by the controller interface. More...

class	ns3::OFSwitch13Controller
	OpenFlow 1.3 controller base class that can handle a collection of OpenFlow switches and provides the basic functionalities for controller implementation. More...

class	ns3::OFSwitch13Device
	An OpenFlow 1.3 device that switches multiple CSMA segments via OpenFlow protocol. More...

class	ns3::OFSwitch13DeviceContainer
	Holds a vector of ns3::OFSwitch13Device pointers. More...

class	ns3::OFSwitch13ExternalHelper
	This helper extends the base class and can be instantiated to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to a single external real OpenFlow controller. More...

class	ns3::OFSwitch13Helper
	This is a base class that must be extended to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to single or multiple OpenFlow controllers. More...

class	ns3::OFSwitch13InternalHelper
	This helper extends the base class and can be instantiated to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to a single or multiple internal simulated OpenFlow controllers. More...

class	ns3::OFSwitch13LearningController
	An Learning OpenFlow 1.3 controller (works as L2 switch) More...

class	ns3::OFSwitch13Port
	A OpenFlow switch port, interconnecting the underlying NetDevice to the OpenFlow device through the OpenFlow receive callback. More...

class	ns3::OFSwitch13PriorityQueue
	This class implements the priority queuing discipline for OpenFlow queue. More...

class	ns3::OFSwitch13Queue
	The OpenFlow 1.3 queue interface. More...

class	ns3::OFSwitch13SocketHandler
	Class used to read/send single OpenFlow message from/to an open socket. More...

class	ns3::OFSwitch13StatsCalculator
	This class monitors a single OpenFlow switch device to collect statistics and periodically write them to an output file. More...

class	ns3::OFSwitch13Controller::PendingCommands
	Inner class to save pending commands waiting for handshake procedure. More...

struct	ns3::OFSwitch13Device::PipelinePacket
	Structure to save packet metadata while it is under OpenFlow pipeline. More...

class	ns3::QueueTag
	Tag used to hold the queue id before enqueueing a packet into OFSwitch13Queue. More...

class	ns3::OFSwitch13Device::RemoteController
	Inner class to save information of a remote active controller connected to this OpenFlow switch. More...

class	ns3::OFSwitch13Controller::RemoteSwitch
	Inner class to save information of a remote active OpenFlow switch connected to this controller. More...

class	ns3::TunnelIdTag
	Tag used to hold the tunnel metadata information (tunnel ID) when sending/receiving a packet to/from a logical port device. More...

Functions
struct ofpbuf *	ns3::BufferFromPacket (Ptr< const Packet > packet, size_t bodyRoom, size_t headRoom=0)
	Create an internal BOFUSS buffer from ns3::Packet. More...

void	ns3::EnableBofussLog (bool printToFile=false, std::string prefix="", bool explicitFilename=false, std::string customLevels="")
	Enable the logging system of the BOFUSS library. More...

Ptr< Packet >	ns3::PacketFromBuffer (struct ofpbuf *buffer)
	Create a new ns3::Packet from internal BOFUSS buffer. More...

Ptr< Packet >	ns3::PacketFromMsg (struct ofl_msg_header *msg, uint32_t xid=0)
	Create a new ns3::Packet from internal OFLib message. More...

Detailed Description

This section documents the API of the ns-3 OpenFlow 1.3 compatible switch and controller interface.

It follows the OpenFlow 1.3 switch specification https://www.opennetworking.org/sdn-resources/technical-library. It depends on the CPqD BOFUSS software switch available at https://github.com/ljerezchaves/ofsoftswitch13, compiled as a library. Check the manual for tutorials on how to compile and use this module.

Function Documentation

◆ BufferFromPacket()

struct ofpbuf * ns3::BufferFromPacket	(	Ptr< const Packet >	packet,
		size_t	bodyRoom,
		size_t	headRoom = `0`
	)

Create an internal BOFUSS buffer from ns3::Packet.

Takes a Ptr<Packet> and generates a buffer (struct ofpbuf*) from it, loading the packet data as well as its headers into the buffer.

Parameters

packet	The ns-3 packet.
bodyRoom	The size to allocate for data.
headRoom	The size to allocate for headers (left unitialized).

Returns: The OpenFlow Buffer created from the packet.

Definition at line 65 of file ofswitch13-interface.cc.

References ns3::Packet::CopyData(), ns3::Packet::GetSize(), NS_ASSERT, NS_LOG_FUNCTION_NOARGS, and pktSize.

Referenced by ns3::OFSwitch13Device::ReceiveFromController(), ns3::OFSwitch13Controller::ReceiveFromSwitch(), and ns3::OFSwitch13Device::SendToPipeline().

Here is the call graph for this function:

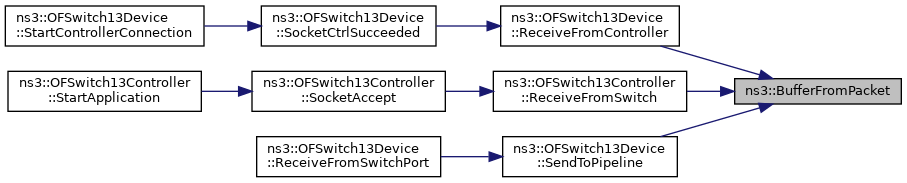

Here is the caller graph for this function:

◆ EnableBofussLog()

void ns3::EnableBofussLog	(	bool	printToFile = `false`,
		std::string	prefix = `""`,
		bool	explicitFilename = `false`,
		std::string	customLevels = `""`
	)

Enable the logging system of the BOFUSS library.

By default, it will configure de logging system for maximum verbose dump on console. You can set the printToFile parameter to dump messages to file instead.

Parameters

printToFile	Dump log messages to file instead of console.
prefix	Filename prefix to use for log files.
explicitFilename	Treat the prefix as an explicit filename if true.
customLevels	Custom vlog levels mod1[:facility[:level]] mod2[...

Definition at line 31 of file ofswitch13-interface.cc.
