This is a base class that must be extended to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to single or multiple OpenFlow controllers. More...

#include "ofswitch13-helper.h"

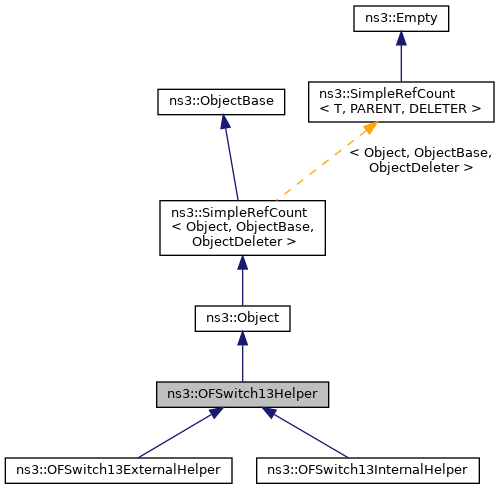

Inheritance diagram for ns3::OFSwitch13Helper:

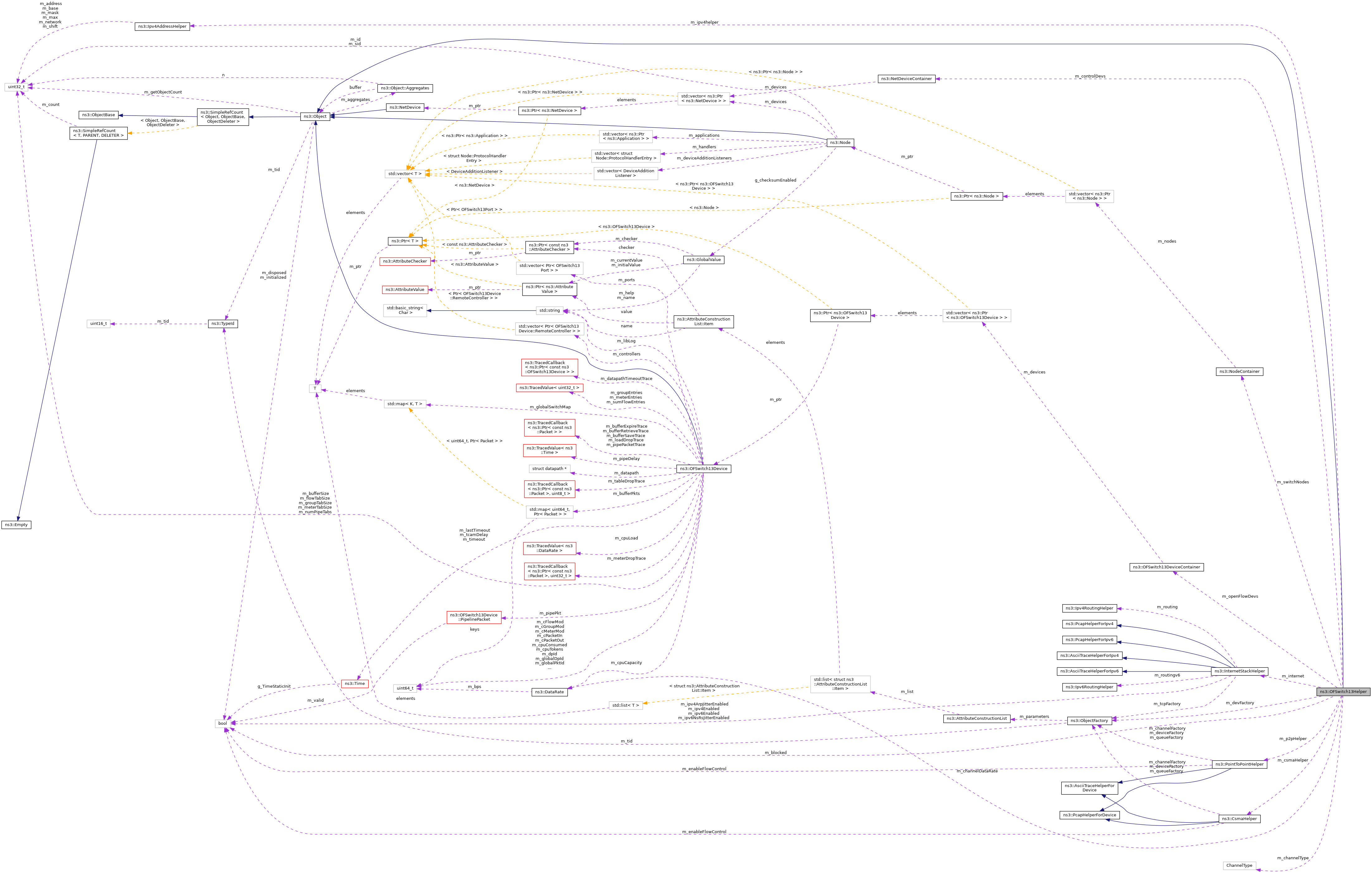

Collaboration diagram for ns3::OFSwitch13Helper:

Public Types
enum	ChannelType { SINGLECSMA = 0 , DEDICATEDCSMA = 1 , DEDICATEDP2P = 2 }
	OpenFlow channel type, used to create the connections. More...

Public Member Functions
	OFSwitch13Helper ()
	Default constructor. More...

	~OFSwitch13Helper () override
	Dummy destructor, see DoDispose. More...

virtual void	CreateOpenFlowChannels ()=0
	This virtual method must interconnect all switches to all controllers installed by this helper and starts the individual OpenFlow channel connections. More...

void	EnableDatapathStats (std::string prefix="datapath", bool useNodeNames=false)
	Enable OpenFlow datapath statistics at OpenFlow switch devices configured by this helper. More...

void	EnableOpenFlowAscii (std::string prefix="ofchannel")
	Enable ASCII traces at OpenFlow channel between controller and switches. More...

void	EnableOpenFlowPcap (std::string prefix="ofchannel", bool promiscuous=true)
	Enable pacp traces at OpenFlow channel between controller and switches. More...

OFSwitch13DeviceContainer	InstallSwitch (NodeContainer &swNodes)
	This method creates and aggregates an OpenFlow device to each switch node in the container. More...

Ptr< OFSwitch13Device >	InstallSwitch (Ptr< Node > swNode)
	This method creates an OpenFlow device and aggregates it to the switch node. More...

Ptr< OFSwitch13Device >	InstallSwitch (Ptr< Node > swNode, NetDeviceContainer &swPorts)
	This method creates an OpenFlow device and aggregates it to the switch node. More...

virtual void	SetChannelDataRate (DataRate rate)
	Set the OpenFlow channel data rate used to create the connections between switches and controllers. More...

virtual void	SetChannelType (ChannelType type)
	Set the OpenFlow channel type used to create the connections between switches and controllers. More...

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute on each OpenFlow device created by this helper. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static void	EnableDatapathLogs (std::string prefix="", bool explicitFilename=false)
	Enable OpenFlow datapath logs at all OpenFlow switch devices on the simulation. More...

static TypeId	GetTypeId ()
	Register this type. More...

static void	SetAddressBase (Ipv4Address network, Ipv4Mask mask, Ipv4Address base="0.0.0.1")
	Set the IP network base address, used to assign IP addresses to switches and controllers during the CreateOpenFlowChannels () procedure. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
bool	m_blocked
	Block this helper. More...

DataRate	m_channelDataRate
	OF channel data rate. More...

ChannelType	m_channelType
	OF channel type. More...

NetDeviceContainer	m_controlDevs
	OF channel ctrl devices. More...

CsmaHelper	m_csmaHelper
	Helper for CSMA links. More...

ObjectFactory	m_devFactory
	OF device factory. More...

InternetStackHelper	m_internet
	Helper for TCP/IP stack. More...

OFSwitch13DeviceContainer	m_openFlowDevs
	OF switch devices. More...

PointToPointHelper	m_p2pHelper
	Helper for P2P links. More...

NodeContainer	m_switchNodes
	OF switch nodes. More...

Static Protected Attributes
static Ipv4AddressHelper	m_ipv4helper
	Helper for IP address. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This is a base class that must be extended to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to single or multiple OpenFlow controllers.

Introspection did not find any typical Config paths.

By default, the connections between switches and controllers are created using a single shared out-of-band CSMA channel, with IP addresses assigned using a /24 network mask. Users can modify this configuration by changing the ChannelType attribute at instantiation time. Dedicated out-of-band connections over CSMA or Point-to-Point channels are also available, using a /30 network mask for IP allocation.

Please note that this base helper class was designed to configure a single OpenFlow network domain. All switches will be connected to all controllers on the same domain. If you want to configure separated OpenFlow domains on your network topology (with their individual switches and controllers) so you may need to use a different instance of the derived helper class for each domain. In this case, don't forget to use the SetAddressBase () method to change the IP network address of the other helper instances, in order to avoid IP conflicts.

Attributes

ChannelDataRate: The data rate to be used for the OpenFlow channel.
- Set with class: ns3::DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: constructwrite
ChannelType: The configuration used to create the OpenFlow channel
- Set with class: ns3::EnumValue
- Underlying type: SingleCsma|DedicatedCsma|DedicatedP2p
- Initial value: SingleCsma
- Flags: construct

No TraceSources are defined for this type.
Size of this type is 480 bytes (on a 64-bit architecture).

Definition at line 72 of file ofswitch13-helper.h.

Member Enumeration Documentation

◆ ChannelType

enum ns3::OFSwitch13Helper::ChannelType

OpenFlow channel type, used to create the connections.

between controllers and switches.

Enumerator
SINGLECSMA	Uses a single shared CSMA channel.
DEDICATEDCSMA	Uses individual CSMA channels.
DEDICATEDP2P	Uses individual P2P channels.

Definition at line 79 of file ofswitch13-helper.h.

Constructor & Destructor Documentation

◆ OFSwitch13Helper()

ns3::OFSwitch13Helper::OFSwitch13Helper ( )

Default constructor.

◆ ~OFSwitch13Helper()

ns3::OFSwitch13Helper::~OFSwitch13Helper ( )

override

Dummy destructor, see DoDispose.

Member Function Documentation

◆ CreateOpenFlowChannels()

virtual void ns3::OFSwitch13Helper::CreateOpenFlowChannels ( )

pure virtual

This virtual method must interconnect all switches to all controllers installed by this helper and starts the individual OpenFlow channel connections.

Attention: After calling this method, it will not be allowed to install more switches or controller using this helper.

Implemented in ns3::OFSwitch13InternalHelper, and ns3::OFSwitch13ExternalHelper.

◆ DoDispose()

void ns3::OFSwitch13Helper::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

Reimplemented from ns3::Object.

Reimplemented in ns3::OFSwitch13InternalHelper.

◆ EnableDatapathLogs()

static void ns3::OFSwitch13Helper::EnableDatapathLogs	(	std::string	prefix = `""`,
		bool	explicitFilename = `false`
	)

static

Enable OpenFlow datapath logs at all OpenFlow switch devices on the simulation.

This method will enable vlog system at debug level on the BOFUSS library, dumping messages to output file.

Parameters

prefix	Filename prefix to use for log file.
explicitFilename	Treat the prefix as an explicit filename if true.

◆ EnableDatapathStats()

void ns3::OFSwitch13Helper::EnableDatapathStats	(	std::string	prefix = `"datapath"`,
		bool	useNodeNames = `false`
	)

Enable OpenFlow datapath statistics at OpenFlow switch devices configured by this helper.

This method will create an OFSwitch13StatsCalculator for each switch device, dumping statistcs to output files.

Attention: Call this method only after configuring the OpenFlow channels.

Parameters

prefix	Filename prefix to use for stats files.
useNodeNames	Use node names instead of datapath id.

◆ EnableOpenFlowAscii()

void ns3::OFSwitch13Helper::EnableOpenFlowAscii ( std::string prefix = "ofchannel" )

Enable ASCII traces at OpenFlow channel between controller and switches.

Attention: Call this method only after configuring the OpenFlow channels.

Parameters

prefix Filename prefix to use for ascii files.

◆ EnableOpenFlowPcap()

void ns3::OFSwitch13Helper::EnableOpenFlowPcap	(	std::string	prefix = `"ofchannel"`,
		bool	promiscuous = `true`
	)

Enable pacp traces at OpenFlow channel between controller and switches.

Attention: Call this method only after configuring the OpenFlow channels.

Parameters

prefix	Filename prefix to use for pcap files.
promiscuous	If true, enable promisc trace.

◆ GetTypeId()

static TypeId ns3::OFSwitch13Helper::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

◆ InstallSwitch() [1/3]

OFSwitch13DeviceContainer ns3::OFSwitch13Helper::InstallSwitch ( NodeContainer & swNodes )

This method creates and aggregates an OpenFlow device to each switch node in the container.

Switches configured by this method will have no switch ports. Don't forget to add ports do them later, or they will do nothing.

Parameters

swNodes The switch nodes where to install the OpenFlow devices.

Returns: A container holding all the OpenFlow devices created.

◆ InstallSwitch() [2/3]

Ptr<OFSwitch13Device> ns3::OFSwitch13Helper::InstallSwitch ( Ptr< Node > swNode )

This method creates an OpenFlow device and aggregates it to the switch node.

The switch configured by this method will have no switch ports. Don't forget to add ports do it later, or it will do nothing.

Parameters

swNode The switch node where to install the OpenFlow device.

Returns: The OpenFlow device created.

◆ InstallSwitch() [3/3]

Ptr<OFSwitch13Device> ns3::OFSwitch13Helper::InstallSwitch	(	Ptr< Node >	swNode,
		NetDeviceContainer &	swPorts
	)

This method creates an OpenFlow device and aggregates it to the switch node.

It also attaches the given devices as physical ports on the switch. If no devices are given, the switch will be configured without ports. In this case, don't forget to add ports to it later, or it will do nothing.

Parameters

swNode	The switch node where to install the OpenFlow device.
ports	Container of devices to be added as physical switch ports.

Returns: The OpenFlow device created.

◆ SetAddressBase()

static void ns3::OFSwitch13Helper::SetAddressBase	(	Ipv4Address	network,
		Ipv4Mask	mask,
		Ipv4Address	base = `"0.0.0.1"`
	)

static

Set the IP network base address, used to assign IP addresses to switches and controllers during the CreateOpenFlowChannels () procedure.

Parameters

network	The Ipv4Address containing the initial network number to use during allocation.
mask	The Ipv4Mask containing one bits in each bit position of the network number.
base	An optional Ipv4Address containing the initial address used for IP address allocation.

◆ SetChannelDataRate()

virtual void ns3::OFSwitch13Helper::SetChannelDataRate ( DataRate rate )

virtual

Set the OpenFlow channel data rate used to create the connections between switches and controllers.

Parameters

rate	The channel data rate to use.

Reimplemented in ns3::OFSwitch13ExternalHelper.

◆ SetChannelType()

virtual void ns3::OFSwitch13Helper::SetChannelType ( ChannelType type )

virtual

Set the OpenFlow channel type used to create the connections between switches and controllers.

Parameters

type	The ChannelType to use.

Reimplemented in ns3::OFSwitch13ExternalHelper.

◆ SetDeviceAttribute()

void ns3::OFSwitch13Helper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Set an attribute on each OpenFlow device created by this helper.

Parameters

n1	the name of the attribute to set.
v1	the value of the attribute to set.

Member Data Documentation

◆ m_blocked

bool ns3::OFSwitch13Helper::m_blocked

protected

Block this helper.

Definition at line 227 of file ofswitch13-helper.h.

◆ m_channelDataRate

DataRate ns3::OFSwitch13Helper::m_channelDataRate

protected

OF channel data rate.

Definition at line 225 of file ofswitch13-helper.h.

◆ m_channelType

ChannelType ns3::OFSwitch13Helper::m_channelType

protected

OF channel type.

Definition at line 224 of file ofswitch13-helper.h.

◆ m_controlDevs

NetDeviceContainer ns3::OFSwitch13Helper::m_controlDevs

protected

OF channel ctrl devices.

Definition at line 229 of file ofswitch13-helper.h.

◆ m_csmaHelper

CsmaHelper ns3::OFSwitch13Helper::m_csmaHelper

protected

Helper for CSMA links.

Definition at line 234 of file ofswitch13-helper.h.

◆ m_devFactory

ObjectFactory ns3::OFSwitch13Helper::m_devFactory

protected

OF device factory.

Definition at line 226 of file ofswitch13-helper.h.

◆ m_internet

InternetStackHelper ns3::OFSwitch13Helper::m_internet

protected

Helper for TCP/IP stack.

Definition at line 233 of file ofswitch13-helper.h.

◆ m_ipv4helper

Ipv4AddressHelper ns3::OFSwitch13Helper::m_ipv4helper

staticprotected

Helper for IP address.

Definition at line 237 of file ofswitch13-helper.h.

◆ m_openFlowDevs

OFSwitch13DeviceContainer ns3::OFSwitch13Helper::m_openFlowDevs

protected

OF switch devices.

Definition at line 230 of file ofswitch13-helper.h.

◆ m_p2pHelper

PointToPointHelper ns3::OFSwitch13Helper::m_p2pHelper

protected

Helper for P2P links.

Definition at line 235 of file ofswitch13-helper.h.

◆ m_switchNodes

NodeContainer ns3::OFSwitch13Helper::m_switchNodes

protected

OF switch nodes.

Definition at line 231 of file ofswitch13-helper.h.

The documentation for this class was generated from the following file:

contrib/ofswitch13/helper/ofswitch13-helper.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Enumeration Documentation

◆ ChannelType

Constructor & Destructor Documentation

◆ OFSwitch13Helper()

◆ ~OFSwitch13Helper()

Member Function Documentation

◆ CreateOpenFlowChannels()

◆ DoDispose()

◆ EnableDatapathLogs()

◆ EnableDatapathStats()

◆ EnableOpenFlowAscii()

◆ EnableOpenFlowPcap()

◆ GetTypeId()

◆ InstallSwitch() [1/3]

◆ InstallSwitch() [2/3]

◆ InstallSwitch() [3/3]

◆ SetAddressBase()

◆ SetChannelDataRate()

◆ SetChannelType()

◆ SetDeviceAttribute()

Member Data Documentation

◆ m_blocked

◆ m_channelDataRate

◆ m_channelType

◆ m_controlDevs

◆ m_csmaHelper

◆ m_devFactory

◆ m_internet

◆ m_ipv4helper

◆ m_openFlowDevs

◆ m_p2pHelper

◆ m_switchNodes
