This helper extends the base class and can be instantiated to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to a single or multiple internal simulated OpenFlow controllers. More...

#include "ofswitch13-internal-helper.h"

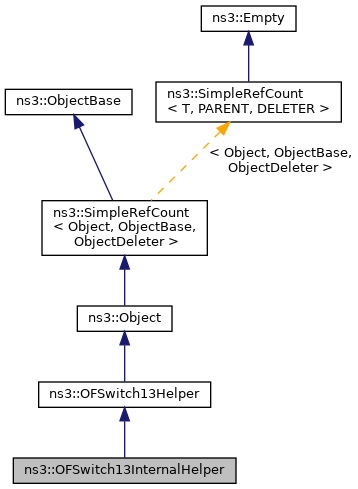

Inheritance diagram for ns3::OFSwitch13InternalHelper:

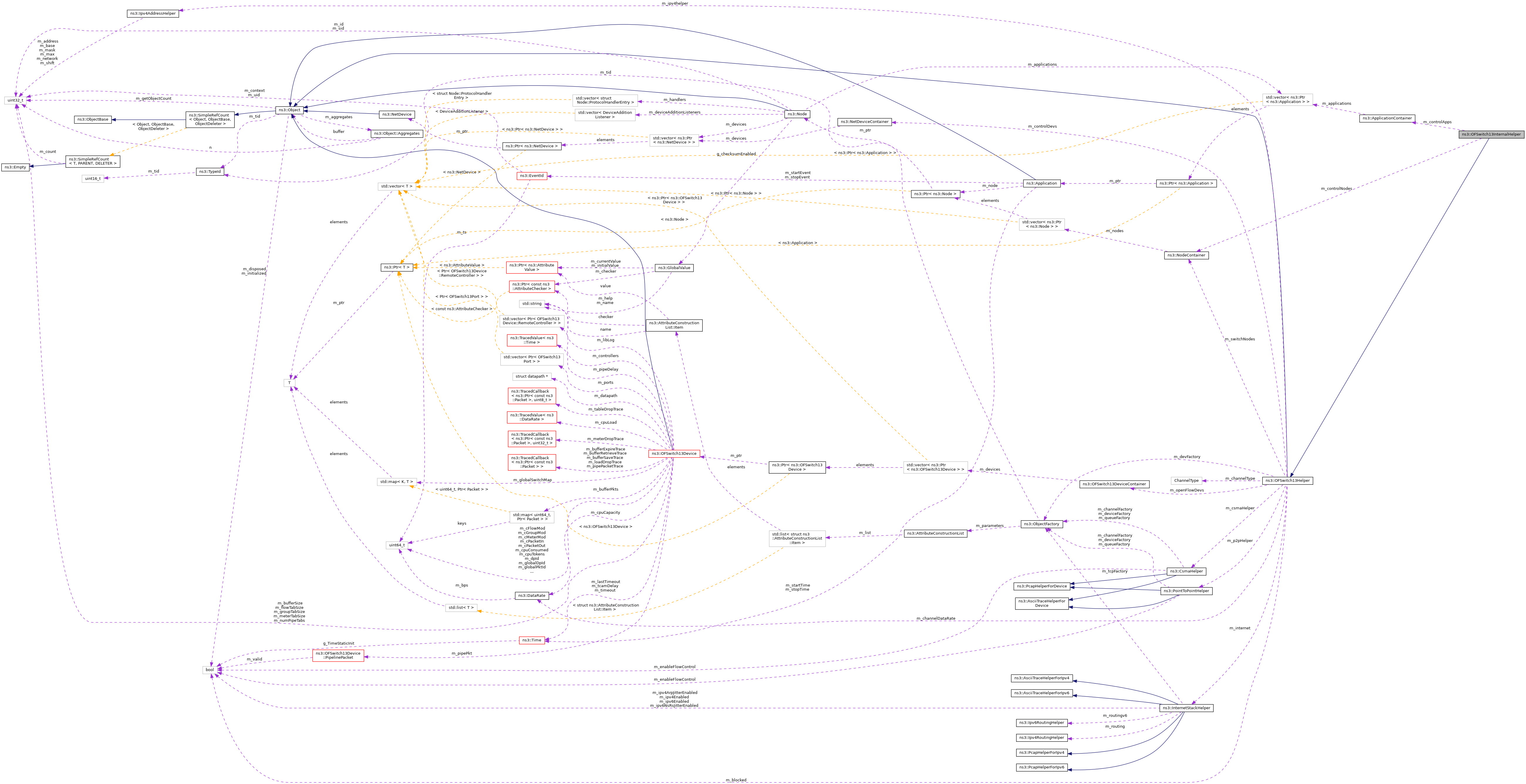

Collaboration diagram for ns3::OFSwitch13InternalHelper:

Public Member Functions
	OFSwitch13InternalHelper ()
	Default constructor. More...

	~OFSwitch13InternalHelper () override
	Dummy destructor, see DoDispose. More...

void	CreateOpenFlowChannels () override
	This virtual method must interconnect all switches to all controllers installed by this helper and starts the individual OpenFlow channel connections. More...

Ptr< OFSwitch13Controller >	InstallController (Ptr< Node > cNode, Ptr< OFSwitch13Controller > controller=CreateObject< OFSwitch13LearningController >())
	This method installs the given controller application into the given controller node. More...

Public Member Functions inherited from ns3::OFSwitch13Helper
	OFSwitch13Helper ()
	Default constructor. More...

	~OFSwitch13Helper () override
	Dummy destructor, see DoDispose. More...

void	EnableDatapathStats (std::string prefix="datapath", bool useNodeNames=false)
	Enable OpenFlow datapath statistics at OpenFlow switch devices configured by this helper. More...

void	EnableOpenFlowAscii (std::string prefix="ofchannel")
	Enable ASCII traces at OpenFlow channel between controller and switches. More...

void	EnableOpenFlowPcap (std::string prefix="ofchannel", bool promiscuous=true)
	Enable pacp traces at OpenFlow channel between controller and switches. More...

OFSwitch13DeviceContainer	InstallSwitch (NodeContainer &swNodes)
	This method creates and aggregates an OpenFlow device to each switch node in the container. More...

Ptr< OFSwitch13Device >	InstallSwitch (Ptr< Node > swNode)
	This method creates an OpenFlow device and aggregates it to the switch node. More...

Ptr< OFSwitch13Device >	InstallSwitch (Ptr< Node > swNode, NetDeviceContainer &swPorts)
	This method creates an OpenFlow device and aggregates it to the switch node. More...

virtual void	SetChannelDataRate (DataRate rate)
	Set the OpenFlow channel data rate used to create the connections between switches and controllers. More...

virtual void	SetChannelType (ChannelType type)
	Set the OpenFlow channel type used to create the connections between switches and controllers. More...

void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute on each OpenFlow device created by this helper. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::OFSwitch13Helper
static void	EnableDatapathLogs (std::string prefix="", bool explicitFilename=false)
	Enable OpenFlow datapath logs at all OpenFlow switch devices on the simulation. More...

static TypeId	GetTypeId ()
	Register this type. More...

static void	SetAddressBase (Ipv4Address network, Ipv4Mask mask, Ipv4Address base="0.0.0.1")
	Set the IP network base address, used to assign IP addresses to switches and controllers during the CreateOpenFlowChannels () procedure. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
NetDeviceContainer	Connect (Ptr< Node > ctrl, Ptr< Node > swtch)
	Create an individual connection between the switch and the controller node, using the already configured channel type. More...

void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
ApplicationContainer	m_controlApps
	OF controller apps. More...

NodeContainer	m_controlNodes
	OF controller nodes. More...

Protected Attributes inherited from ns3::OFSwitch13Helper
bool	m_blocked
	Block this helper. More...

DataRate	m_channelDataRate
	OF channel data rate. More...

ChannelType	m_channelType
	OF channel type. More...

NetDeviceContainer	m_controlDevs
	OF channel ctrl devices. More...

CsmaHelper	m_csmaHelper
	Helper for CSMA links. More...

ObjectFactory	m_devFactory
	OF device factory. More...

InternetStackHelper	m_internet
	Helper for TCP/IP stack. More...

OFSwitch13DeviceContainer	m_openFlowDevs
	OF switch devices. More...

PointToPointHelper	m_p2pHelper
	Helper for P2P links. More...

NodeContainer	m_switchNodes
	OF switch nodes. More...

Additional Inherited Members
Public Types inherited from ns3::OFSwitch13Helper
enum	ChannelType { SINGLECSMA = 0 , DEDICATEDCSMA = 1 , DEDICATEDP2P = 2 }
	OpenFlow channel type, used to create the connections. More...

Static Protected Attributes inherited from ns3::OFSwitch13Helper
static Ipv4AddressHelper	m_ipv4helper
	Helper for IP address. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This helper extends the base class and can be instantiated to create and configure an OpenFlow 1.3 network domain composed of one or more OpenFlow switches connected to a single or multiple internal simulated OpenFlow controllers.

Introspection did not find any typical Config paths.

It brings methods for installing the controller and creating the OpenFlow channels.

No Attributes are defined for this type.

Attributes defined in parent class ns3::OFSwitch13Helper

ChannelDataRate: The data rate to be used for the OpenFlow channel.
- Set with class: ns3::DataRateValue
- Underlying type: DataRate
- Initial value: 10000000000bps
- Flags: constructwrite
ChannelType: The configuration used to create the OpenFlow channel
- Set with class: ns3::EnumValue
- Underlying type: SingleCsma|DedicatedCsma|DedicatedP2p
- Initial value: SingleCsma
- Flags: construct

No TraceSources are defined for this type.
Size of this type is 528 bytes (on a 64-bit architecture).

Definition at line 42 of file ofswitch13-internal-helper.h.

Constructor & Destructor Documentation

◆ OFSwitch13InternalHelper()

ns3::OFSwitch13InternalHelper::OFSwitch13InternalHelper ( )

Default constructor.

◆ ~OFSwitch13InternalHelper()

ns3::OFSwitch13InternalHelper::~OFSwitch13InternalHelper ( )

override

Dummy destructor, see DoDispose.

Member Function Documentation

◆ Connect()

NetDeviceContainer ns3::OFSwitch13InternalHelper::Connect	(	Ptr< Node >	ctrl,
		Ptr< Node >	swtch
	)

protected

Create an individual connection between the switch and the controller node, using the already configured channel type.

Parameters

ctrl	The controller node.
swtch	The switch node.

Returns: The devices created on both nodes.

◆ CreateOpenFlowChannels()

void ns3::OFSwitch13InternalHelper::CreateOpenFlowChannels ( )

overridevirtual

This virtual method must interconnect all switches to all controllers installed by this helper and starts the individual OpenFlow channel connections.

Attention: After calling this method, it will not be allowed to install more switches or controller using this helper.

Implements ns3::OFSwitch13Helper.

◆ DoDispose()

void ns3::OFSwitch13InternalHelper::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

Reimplemented from ns3::OFSwitch13Helper.

◆ GetTypeId()

static TypeId ns3::OFSwitch13InternalHelper::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

◆ InstallController()

Ptr<OFSwitch13Controller> ns3::OFSwitch13InternalHelper::InstallController	(	Ptr< Node >	cNode,
		Ptr< OFSwitch13Controller >	controller = `CreateObject< OFSwitch13LearningController >()`
	)

This method installs the given controller application into the given controller node.

If no application is given, a new (default) learning controller application is created and installed into controller node.

Parameters

cNode	The node to configure as controller.
controller	The controller application to install into cNode

Returns: The installed controller application.

Member Data Documentation

◆ m_controlApps

ApplicationContainer ns3::OFSwitch13InternalHelper::m_controlApps

protected

OF controller apps.

Definition at line 85 of file ofswitch13-internal-helper.h.

◆ m_controlNodes

NodeContainer ns3::OFSwitch13InternalHelper::m_controlNodes

protected

OF controller nodes.

Definition at line 86 of file ofswitch13-internal-helper.h.

The documentation for this class was generated from the following file:

contrib/ofswitch13/helper/ofswitch13-internal-helper.h
