OpenFlow 1.3 controller base class that can handle a collection of OpenFlow switches and provides the basic functionalities for controller implementation. More...

#include "ofswitch13-controller.h"

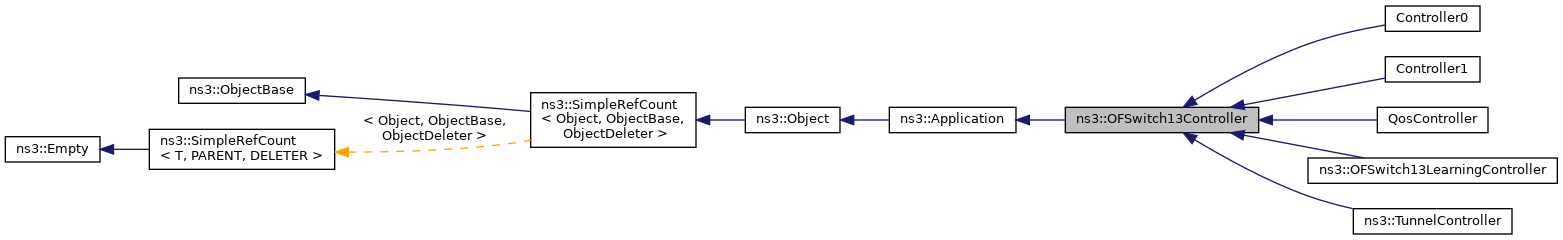

Inheritance diagram for ns3::OFSwitch13Controller:

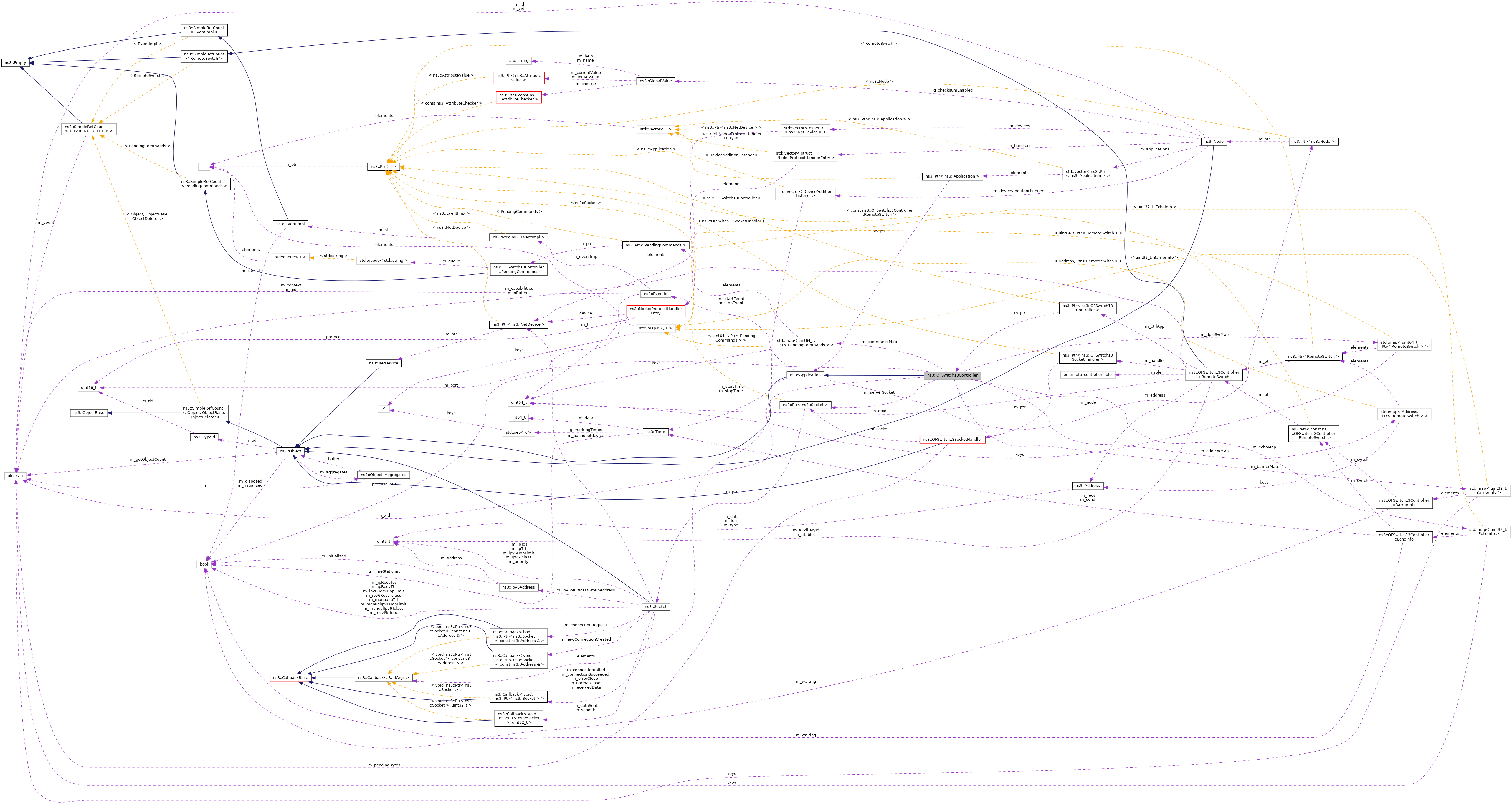

Collaboration diagram for ns3::OFSwitch13Controller:

Classes
struct	BarrierInfo
	Structure to save barrier metadata used by the controller interface. More...

struct	EchoInfo
	Structure to save echo request metadata used by the controller interface. More...

class	PendingCommands
	Inner class to save pending commands waiting for handshake procedure. More...

class	RemoteSwitch
	Inner class to save information of a remote active OpenFlow switch connected to this controller. More...

Public Member Functions
	OFSwitch13Controller ()
	Default constructor. More...

	~OFSwitch13Controller () override
	Dummy destructor, see DoDispose. More...

void	DoDispose () override
	Destructor implementation. More...

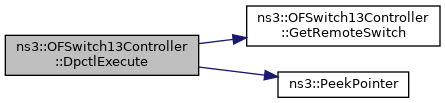

int	DpctlExecute (uint64_t dpId, const std::string textCmd)
	Execute a dpctl command to interact with the remote switch. More...

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static void	DpctlSendAndPrint (struct vconn vconn, struct ofl_msg_header msg)
	Overriding BOFUSS dpctl_send_and_print and dpctl_transact_and_print weak functions from utilities/dpctl.c. More...

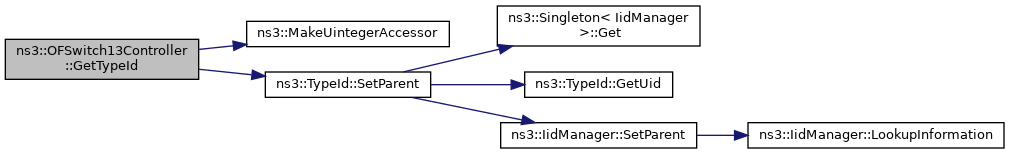

static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions

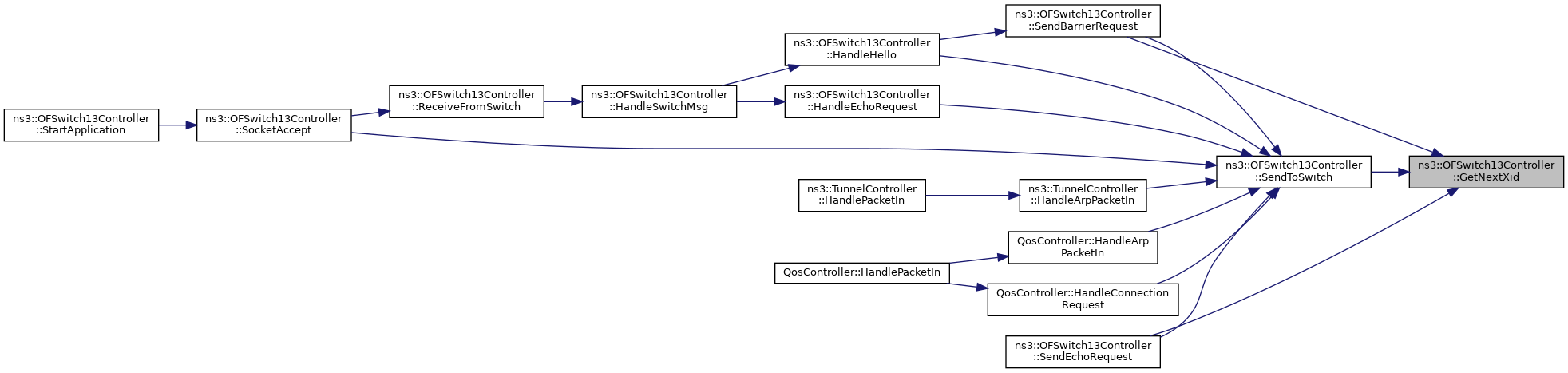

uint32_t	GetNextXid ()

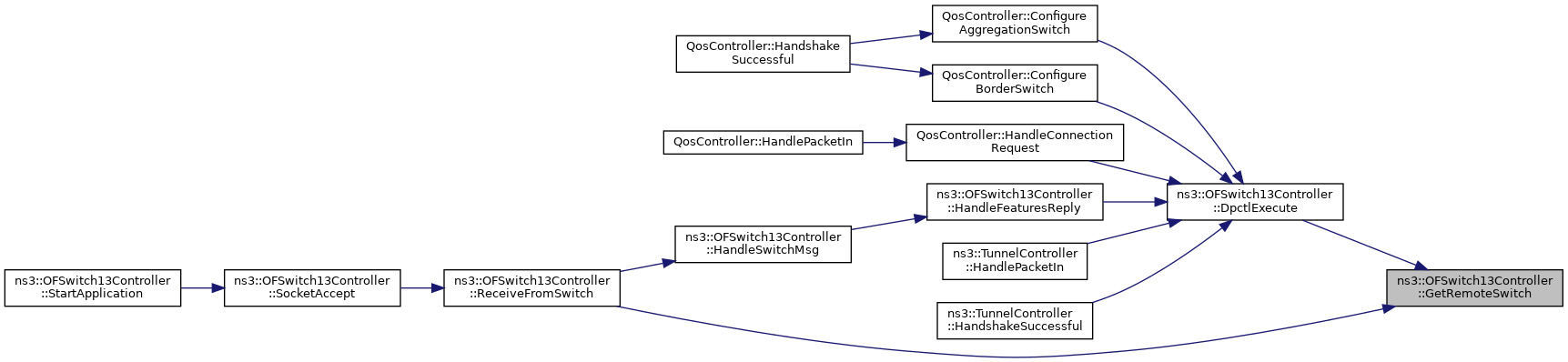

Ptr< const RemoteSwitch >	GetRemoteSwitch (uint64_t dpId) const
	Get the remote switch for this OpenFlow datapath ID. More...

virtual void	HandshakeSuccessful (Ptr< const RemoteSwitch > swtch)
	Function invoked after a successfully handshake procedure between this controller and a remote switch. More...

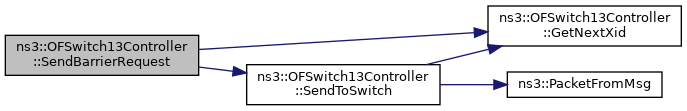

void	SendBarrierRequest (Ptr< const RemoteSwitch > swtch)
	Send a barrier request message to switch, and wait for a non-blocking reply. More...

void	SendEchoRequest (Ptr< const RemoteSwitch > swtch, size_t payloadSize=0)
	Send an echo request message to switch, and wait for a non-blocking reply. More...

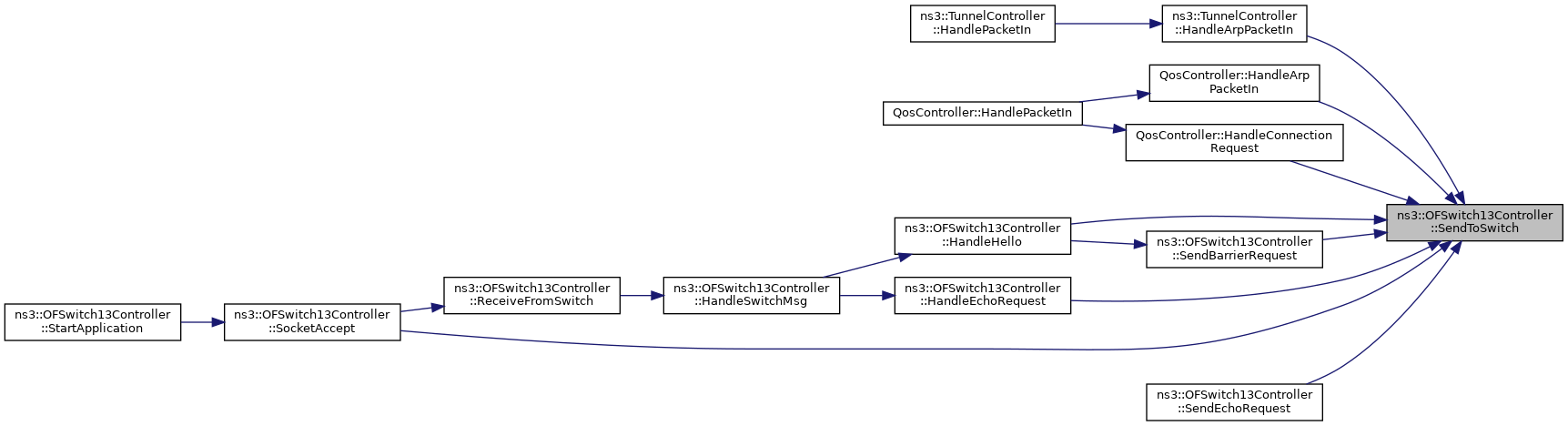

int	SendToSwitch (Ptr< const RemoteSwitch > swtch, struct ofl_msg_header *msg, uint32_t xid=0)
	Send a OFLib message to a registered switch. More...

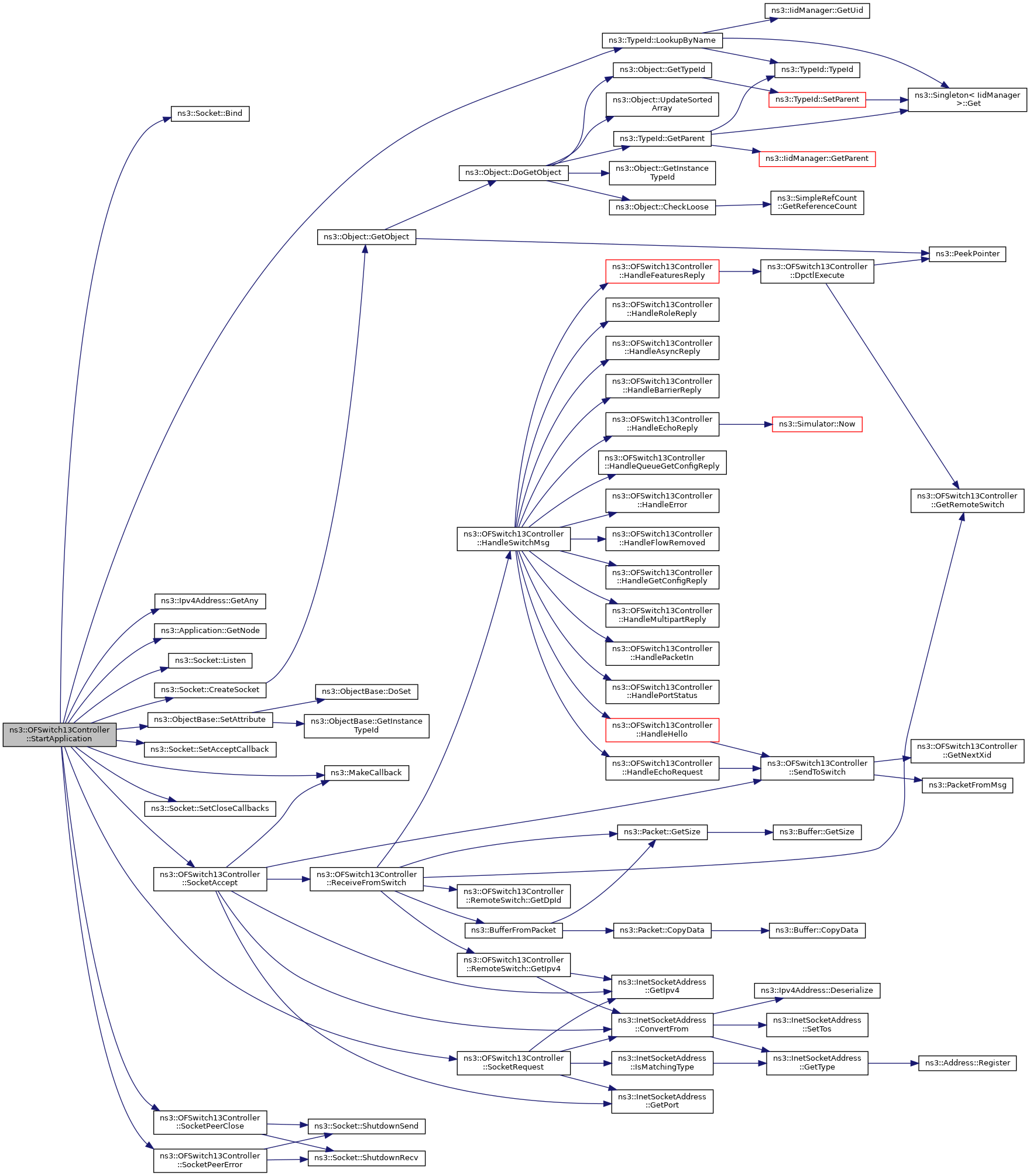

void	StartApplication () override
	Application specific startup code. More...

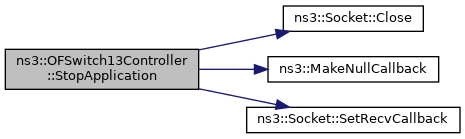

void	StopApplication () override
	Application specific shutdown code. More...

Protected Member Functions inherited from ns3::Application
void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Socket callbacks

Handlers used as socket callbacks to TCP communication between this switch and the controller.

Parameters

socket	The TCP socket.
from	The source Address

typedef std::map< uint32_t, EchoInfo > EchoMsgMap_t

Map to store echo information by transaction id. More...

typedef std::map< uint32_t, BarrierInfo > BarrierMsgMap_t

Map to store barrier information by transaction id. More...

typedef std::map< uint64_t, Ptr< PendingCommands > > DpIdCmdMap_t

Map saving pair <datapath id / pending commands> More...

typedef std::map< Address, Ptr< RemoteSwitch > > AddrSwMap_t

Map to store switch info by ip address. More...

typedef std::map< uint64_t, Ptr< RemoteSwitch > > DpIdSwMap_t

Map to store switch info by datapath id. More...

uint32_t m_xid

Global transaction idx. More...

uint16_t m_port

Local controller tcp port. More...

Ptr< Socket > m_serverSocket

Listening server socket. More...

EchoMsgMap_t

m_echoMap

Metadata for echo requests. More...

BarrierMsgMap_t

m_barrierMap

Metadata for barrier requests. More...

DpIdCmdMap_t

m_commandsMap

Commands scheduled for execution. More...

AddrSwMap_t

m_addrSwMap

Registered switches by address. More...

DpIdSwMap_t

m_dpIdSwMap

Registered switches by datapath id. More...

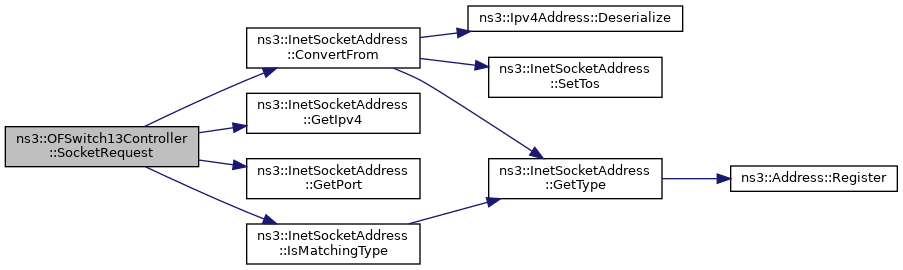

bool SocketRequest (Ptr< Socket > socket, const Address &from)

TCP request from switch. More...

void SocketAccept (Ptr< Socket > socket, const Address &from)

TCP handshake succeeded. More...

void SocketPeerClose (Ptr< Socket > socket)

TCP connection closed. More...

void SocketPeerError (Ptr< Socket > socket)

TCP connection error. More...

OpenFlow message handlers

Handlers used by HandleSwitchMsg to process each type of OpenFlow message received from the switch.

Some (non virtual) handlers can not be overwritten by derived class, as they must behave as already implemented. The current implementation of other virtual handler methods does nothing: just free the received message and returns 0. Derived controllers can override them as they wish to implement the desired control logic.

Note that for HandleMultipartReply there are several types of multipart messages. Derived controllers can filter by the type they wish.

Attention: Handlers MUST free received msg when everything is ok.

Parameters

msg	The OpenFlow received message.
swtch	The remote switch metadata.
xid	The transaction id from the request message.

Returns: 0 if everything's ok, otherwise an error number.

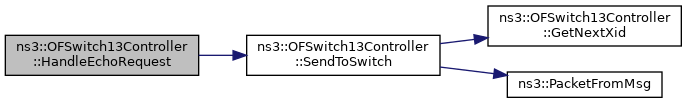

ofl_err HandleEchoRequest (struct ofl_msg_echo *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

ofl_err HandleEchoReply (struct ofl_msg_echo *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

ofl_err HandleBarrierReply (struct ofl_msg_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

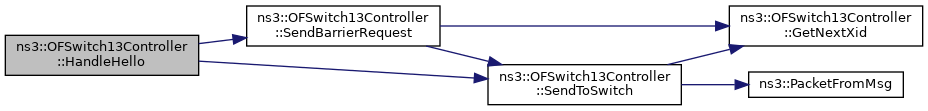

ofl_err HandleHello (struct ofl_msg_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

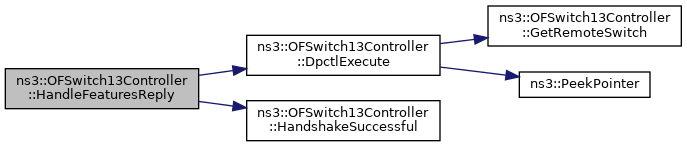

ofl_err HandleFeaturesReply (struct ofl_msg_features_reply *msg, Ptr< RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandlePacketIn (struct ofl_msg_packet_in *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleError (struct ofl_msg_error *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleGetConfigReply (struct ofl_msg_get_config_reply *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleFlowRemoved (struct ofl_msg_flow_removed *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandlePortStatus (struct ofl_msg_port_status *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleAsyncReply (struct ofl_msg_async_config *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleMultipartReply (struct ofl_msg_multipart_reply_header *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleRoleReply (struct ofl_msg_role_request *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

virtual ofl_err HandleQueueGetConfigReply (struct ofl_msg_queue_get_config_reply *msg, Ptr< const RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

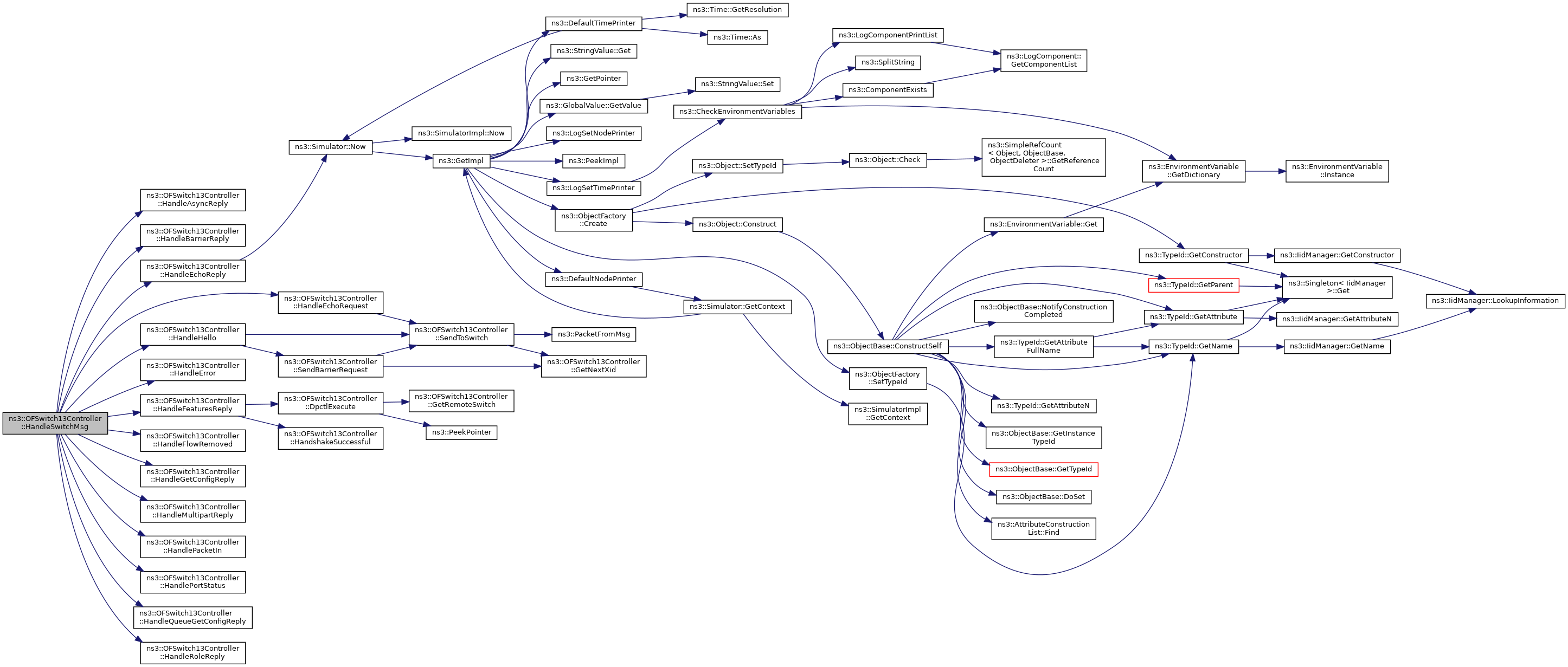

ofl_err HandleSwitchMsg (struct ofl_msg_header *msg, Ptr< RemoteSwitch > swtch, uint32_t xid)

Called when an OpenFlow message is received from a switch. More...

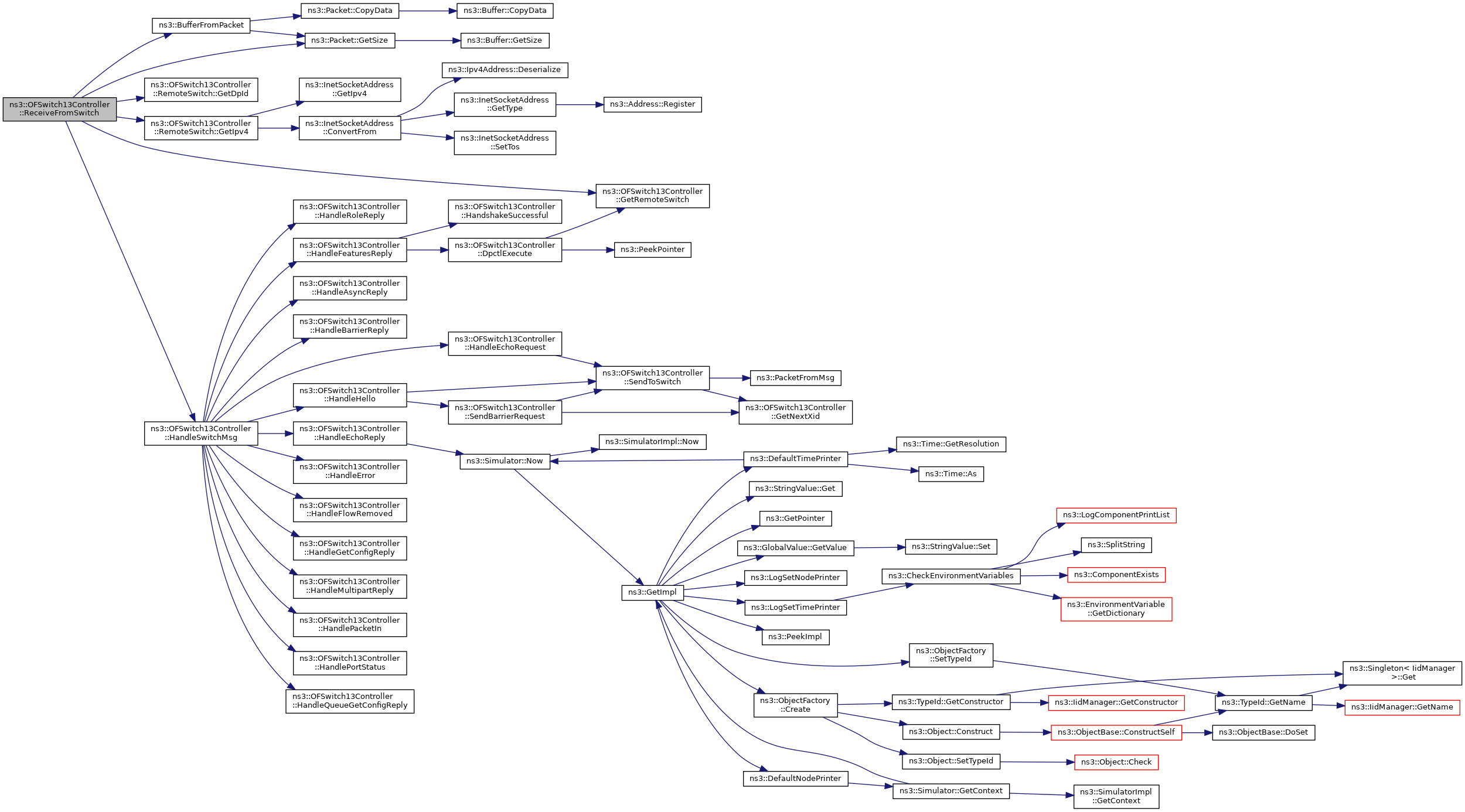

void ReceiveFromSwitch (Ptr< Packet > packet, Address from)

Receive an OpenFlow packet from switch. More...

Ptr< RemoteSwitch > GetRemoteSwitch (Address address)

Get the remote switch for this address. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

OpenFlow 1.3 controller base class that can handle a collection of OpenFlow switches and provides the basic functionalities for controller implementation.

Introspection did not find any typical Config paths.

For constructing OpenFlow configuration messages and sending them to the switches, this class uses the DpctlCommand function, which relies on command-line syntax from the dpctl utility. For OpenFlow messages coming from the switches, this class provides a collection of internal handlers to deal with the different types of messages.

Attributes

Port: Port number to listen for incoming packets.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 6653
- Flags: constructwriteread

No TraceSources are defined for this type.
Size of this type is 360 bytes (on a 64-bit architecture).

Definition at line 44 of file ofswitch13-controller.h.

Member Typedef Documentation

◆ AddrSwMap_t

typedef std::map<Address, Ptr<RemoteSwitch> > ns3::OFSwitch13Controller::AddrSwMap_t

private

Map to store switch info by ip address.

Definition at line 386 of file ofswitch13-controller.h.

◆ BarrierMsgMap_t

typedef std::map<uint32_t, BarrierInfo> ns3::OFSwitch13Controller::BarrierMsgMap_t

private

Map to store barrier information by transaction id.

Definition at line 380 of file ofswitch13-controller.h.

◆ DpIdCmdMap_t

typedef std::map<uint64_t, Ptr<PendingCommands> > ns3::OFSwitch13Controller::DpIdCmdMap_t

private

Map saving pair <datapath id / pending commands>

Definition at line 383 of file ofswitch13-controller.h.

◆ DpIdSwMap_t

typedef std::map<uint64_t, Ptr<RemoteSwitch> > ns3::OFSwitch13Controller::DpIdSwMap_t

private

Map to store switch info by datapath id.

Definition at line 389 of file ofswitch13-controller.h.

◆ EchoMsgMap_t

typedef std::map<uint32_t, EchoInfo> ns3::OFSwitch13Controller::EchoMsgMap_t

private

Map to store echo information by transaction id.

Definition at line 377 of file ofswitch13-controller.h.

Constructor & Destructor Documentation

◆ OFSwitch13Controller()

ns3::OFSwitch13Controller::OFSwitch13Controller ( )

Default constructor.

Definition at line 34 of file ofswitch13-controller.cc.

References m_xid, and NS_LOG_FUNCTION.

◆ ~OFSwitch13Controller()

ns3::OFSwitch13Controller::~OFSwitch13Controller ( )

override

Dummy destructor, see DoDispose.

Definition at line 42 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::OFSwitch13Controller::DoDispose ( )

overridevirtual

Destructor implementation.

Reimplemented from ns3::Application.

Reimplemented in ns3::OFSwitch13LearningController.

Definition at line 63 of file ofswitch13-controller.cc.

References ns3::Application::DoDispose(), m_addrSwMap, m_barrierMap, m_commandsMap, m_dpIdSwMap, m_echoMap, m_serverSocket, and NS_LOG_FUNCTION.

Referenced by ns3::TunnelController::DoDispose().

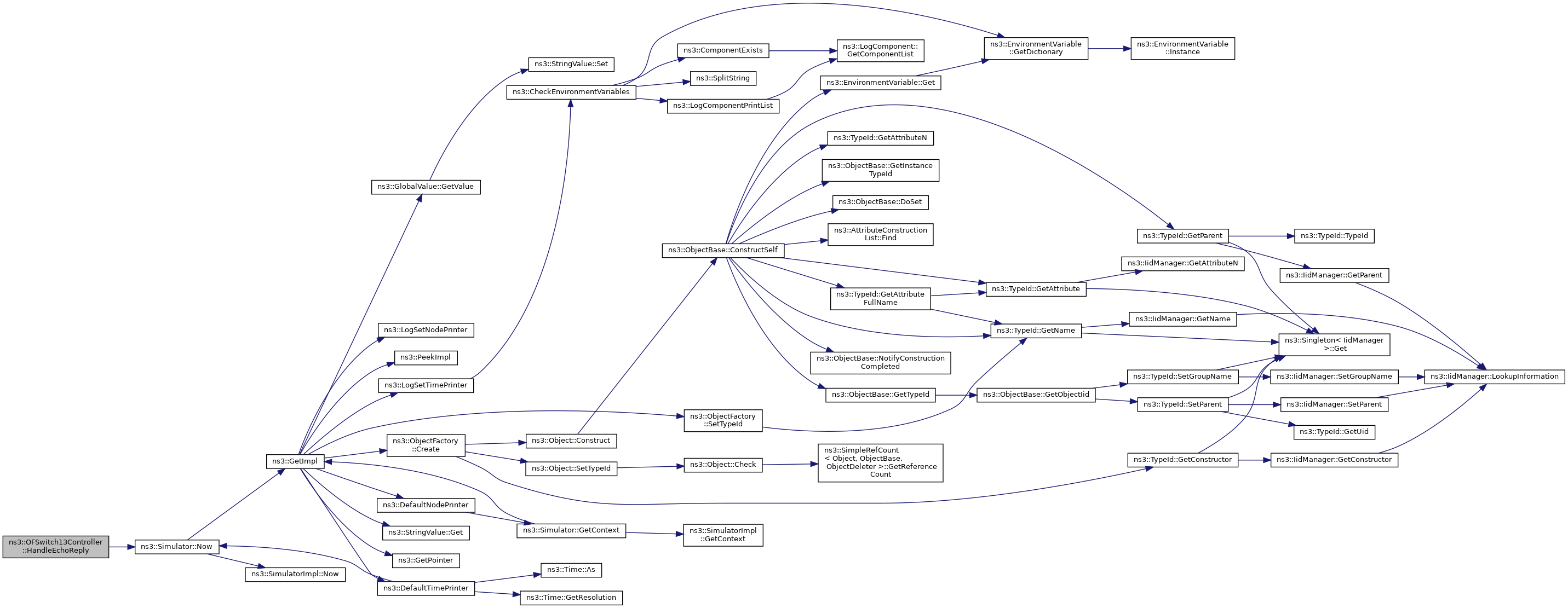

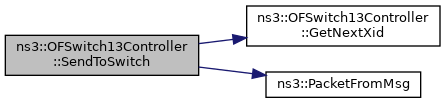

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DpctlExecute()

int ns3::OFSwitch13Controller::DpctlExecute	(	uint64_t	dpId,
		const std::string	textCmd
	)

Execute a dpctl command to interact with the remote switch.

Parameters

dpId	The OpenFlow datapath ID.
textCmd	The dpctl command to execute.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 78 of file ofswitch13-controller.cc.

References second::cmd, GetRemoteSwitch(), m_commandsMap, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by QosController::ConfigureAggregationSwitch(), QosController::ConfigureBorderSwitch(), QosController::HandleConnectionRequest(), HandleFeaturesReply(), ns3::TunnelController::HandlePacketIn(), and ns3::TunnelController::HandshakeSuccessful().

Here is the call graph for this function:

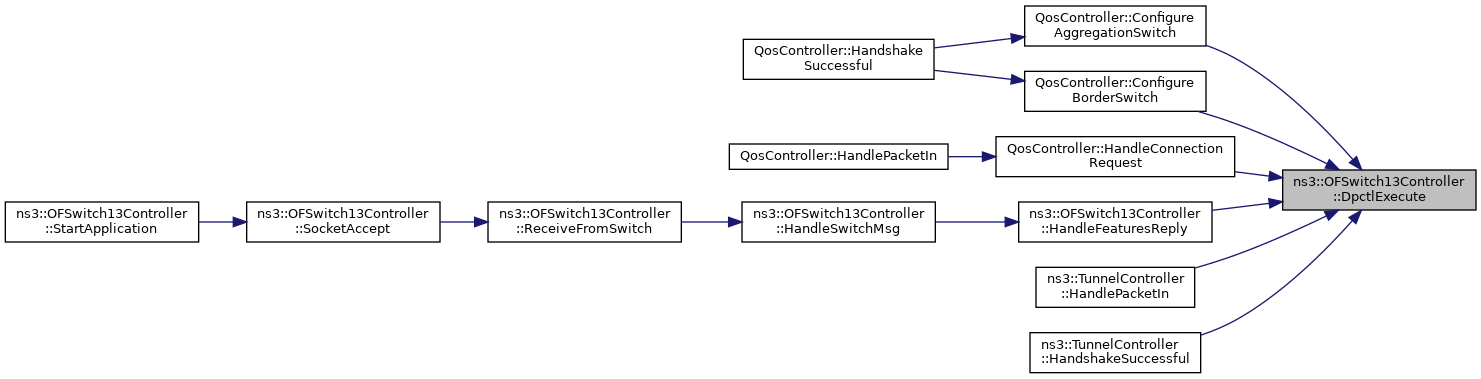

Here is the caller graph for this function:

◆ DpctlSendAndPrint()

void ns3::OFSwitch13Controller::DpctlSendAndPrint	(	struct vconn *	vconn,
		struct ofl_msg_header *	msg
	)

static

Overriding BOFUSS dpctl_send_and_print and dpctl_transact_and_print weak functions from utilities/dpctl.c.

Send a message from controller to switch.

Parameters

vconn	The RemoteSwitch pointer, sent from controller to dpctl_exec_ns3_command function and get back here to proper identify the controller object.
msg	The OFLib message to send.

Definition at line 119 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by dpctl_send_and_print(), and dpctl_transact_and_print().

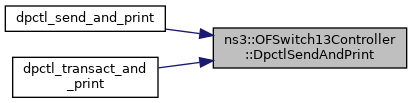

Here is the caller graph for this function:

◆ GetNextXid()

uint32_t ns3::OFSwitch13Controller::GetNextXid ( )

protected

Returns: The next (in sequence) transaction ID for this controller.

Definition at line 175 of file ofswitch13-controller.cc.

References m_xid.

Referenced by SendBarrierRequest(), SendEchoRequest(), and SendToSwitch().

Here is the caller graph for this function:

◆ GetRemoteSwitch() [1/2]

Ptr< OFSwitch13Controller::RemoteSwitch > ns3::OFSwitch13Controller::GetRemoteSwitch ( Address address )

private

Get the remote switch for this address.

Parameters

address The socket address.

Returns: The remote switch.

Definition at line 625 of file ofswitch13-controller.cc.

References first::address, m_addrSwMap, NS_ABORT_MSG, and NS_LOG_FUNCTION.

◆ GetRemoteSwitch() [2/2]

Ptr< const OFSwitch13Controller::RemoteSwitch > ns3::OFSwitch13Controller::GetRemoteSwitch ( uint64_t dpId ) const

protected

Get the remote switch for this OpenFlow datapath ID.

Parameters

dpId	The OpenFlow datapath ID.

Returns: The remote switch.

Definition at line 187 of file ofswitch13-controller.cc.

References m_dpIdSwMap, and NS_LOG_FUNCTION.

Referenced by DpctlExecute(), and ReceiveFromSwitch().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::OFSwitch13Controller::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

Definition at line 48 of file ofswitch13-controller.cc.

References m_port, ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

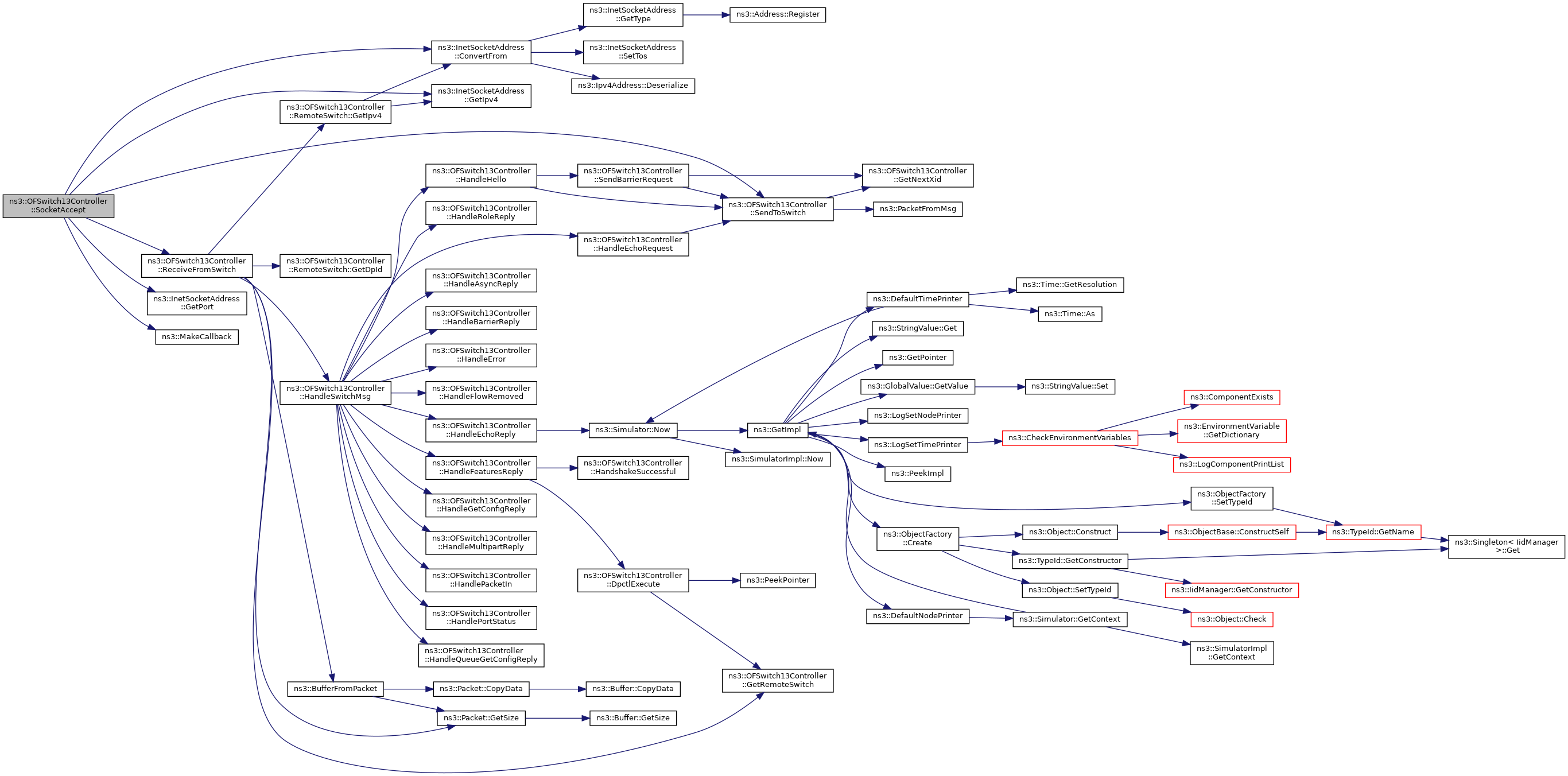

Here is the call graph for this function:

◆ HandleAsyncReply()

ofl_err ns3::OFSwitch13Controller::HandleAsyncReply	(	struct ofl_msg_async_config *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 467 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleBarrierReply()

ofl_err ns3::OFSwitch13Controller::HandleBarrierReply	(	struct ofl_msg_header *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protected

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 326 of file ofswitch13-controller.cc.

References m_barrierMap, NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_WARN.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleEchoReply()

ofl_err ns3::OFSwitch13Controller::HandleEchoReply	(	struct ofl_msg_echo *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protected

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 300 of file ofswitch13-controller.cc.

References m_echoMap, ns3::Time::MS, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_WARN.

Referenced by HandleSwitchMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleEchoRequest()

ofl_err ns3::OFSwitch13Controller::HandleEchoRequest	(	struct ofl_msg_echo *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protected

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 283 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION, and SendToSwitch().

Referenced by HandleSwitchMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleError()

ofl_err ns3::OFSwitch13Controller::HandleError	(	struct ofl_msg_error *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 419 of file ofswitch13-controller.cc.

References NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleFeaturesReply()

ofl_err ns3::OFSwitch13Controller::HandleFeaturesReply	(	struct ofl_msg_features_reply *	msg,
		Ptr< RemoteSwitch >	swtch,
		uint32_t	xid
	)

protected

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 367 of file ofswitch13-controller.cc.

References DpctlExecute(), HandshakeSuccessful(), ns3::OFSwitch13Controller::RemoteSwitch::m_auxiliaryId, ns3::OFSwitch13Controller::RemoteSwitch::m_capabilities, m_commandsMap, ns3::OFSwitch13Controller::RemoteSwitch::m_dpId, m_dpIdSwMap, ns3::OFSwitch13Controller::RemoteSwitch::m_nBuffers, ns3::OFSwitch13Controller::RemoteSwitch::m_nTables, ns3::OFSwitch13Controller::PendingCommands::m_queue, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleFlowRemoved()

ofl_err ns3::OFSwitch13Controller::HandleFlowRemoved	(	struct ofl_msg_flow_removed *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Reimplemented in ns3::OFSwitch13LearningController.

Definition at line 445 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleGetConfigReply()

ofl_err ns3::OFSwitch13Controller::HandleGetConfigReply	(	struct ofl_msg_get_config_reply *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 434 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleHello()

ofl_err ns3::OFSwitch13Controller::HandleHello	(	struct ofl_msg_header *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protected

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 348 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION, SendBarrierRequest(), and SendToSwitch().

Referenced by HandleSwitchMsg().

Here is the call graph for this function:

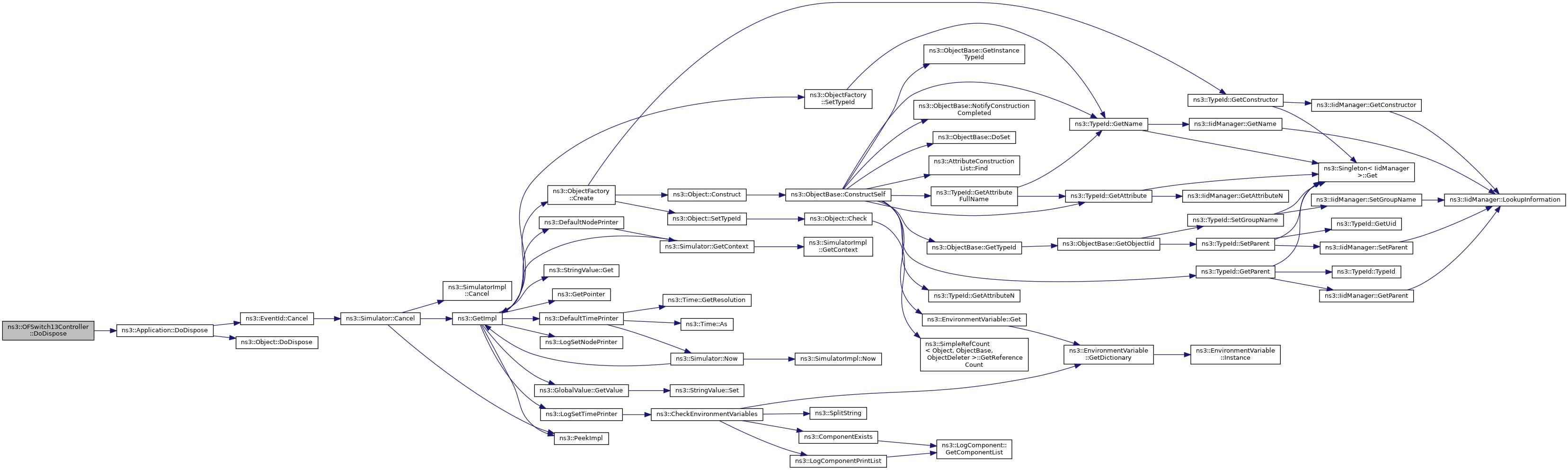

Here is the caller graph for this function:

◆ HandleMultipartReply()

ofl_err ns3::OFSwitch13Controller::HandleMultipartReply	(	struct ofl_msg_multipart_reply_header *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 478 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandlePacketIn()

ofl_err ns3::OFSwitch13Controller::HandlePacketIn	(	struct ofl_msg_packet_in *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Reimplemented in ns3::OFSwitch13LearningController, QosController, and ns3::TunnelController.

Definition at line 408 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandlePortStatus()

ofl_err ns3::OFSwitch13Controller::HandlePortStatus	(	struct ofl_msg_port_status *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 456 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleQueueGetConfigReply()

ofl_err ns3::OFSwitch13Controller::HandleQueueGetConfigReply	(	struct ofl_msg_queue_get_config_reply *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 501 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleRoleReply()

ofl_err ns3::OFSwitch13Controller::HandleRoleReply	(	struct ofl_msg_role_request *	msg,
		Ptr< const RemoteSwitch >	swtch,
		uint32_t	xid
	)

protectedvirtual

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 490 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleSwitchMsg().

Here is the caller graph for this function:

◆ HandleSwitchMsg()

ofl_err ns3::OFSwitch13Controller::HandleSwitchMsg	(	struct ofl_msg_header *	msg,
		Ptr< RemoteSwitch >	swtch,
		uint32_t	xid
	)

private

Called when an OpenFlow message is received from a switch.

Dispatches control messages to appropriate handler functions.

Parameters

msg	The OFLib message received.
swtch	The remote switch the message was received from.
xid	The transaction id.

Returns: 0 if everything's ok, otherwise an error number.

Definition at line 516 of file ofswitch13-controller.cc.

References HandleAsyncReply(), HandleBarrierReply(), HandleEchoReply(), HandleEchoRequest(), HandleError(), HandleFeaturesReply(), HandleFlowRemoved(), HandleGetConfigReply(), HandleHello(), HandleMultipartReply(), HandlePacketIn(), HandlePortStatus(), HandleQueueGetConfigReply(), HandleRoleReply(), and NS_LOG_FUNCTION.

Referenced by ReceiveFromSwitch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandshakeSuccessful()

void ns3::OFSwitch13Controller::HandshakeSuccessful ( Ptr< const RemoteSwitch > swtch )

protectedvirtual

Function invoked after a successfully handshake procedure between this controller and a remote switch.

Derived classes can override this function to implement any relevant logic, as sending initial configuration messages to the switch.

Parameters

swtch The remote switch.

Reimplemented in ns3::OFSwitch13LearningController, QosController, Controller1, Controller0, and ns3::TunnelController.

Definition at line 181 of file ofswitch13-controller.cc.

References NS_LOG_FUNCTION.

Referenced by HandleFeaturesReply().

Here is the caller graph for this function:

◆ ReceiveFromSwitch()

void ns3::OFSwitch13Controller::ReceiveFromSwitch	(	Ptr< Packet >	packet,
		Address	from
	)

private

Receive an OpenFlow packet from switch.

Parameters

packet	The packet with the OpenFlow message.
from	The packet sender address.

Definition at line 583 of file ofswitch13-controller.cc.

References ns3::BufferFromPacket(), ns3::OFSwitch13Controller::RemoteSwitch::GetDpId(), ns3::OFSwitch13Controller::RemoteSwitch::GetIpv4(), GetRemoteSwitch(), ns3::Packet::GetSize(), HandleSwitchMsg(), NS_LOG_DEBUG, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by SocketAccept().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBarrierRequest()

void ns3::OFSwitch13Controller::SendBarrierRequest ( Ptr< const RemoteSwitch > swtch )

protected

Send a barrier request message to switch, and wait for a non-blocking reply.

Note that current OpenFlow device implementation is single-threaded and messages are processed in the same order that are received from the controller, so a barrier request will simply be replied by the switch.

Parameters

swtch The remote switch to receive the message.

Definition at line 260 of file ofswitch13-controller.cc.

References GetNextXid(), m_barrierMap, NS_LOG_ERROR, NS_LOG_FUNCTION, and SendToSwitch().

Referenced by HandleHello().

Here is the call graph for this function:
