A OpenFlow switch port, interconnecting the underlying NetDevice to the OpenFlow device through the OpenFlow receive callback. More...

#include "ofswitch13-port.h"

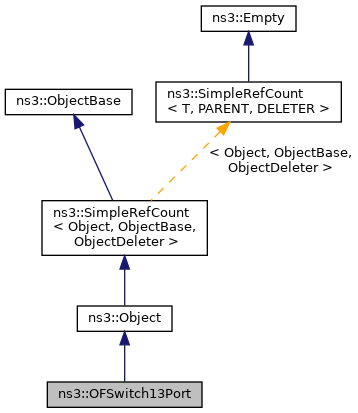

Inheritance diagram for ns3::OFSwitch13Port:

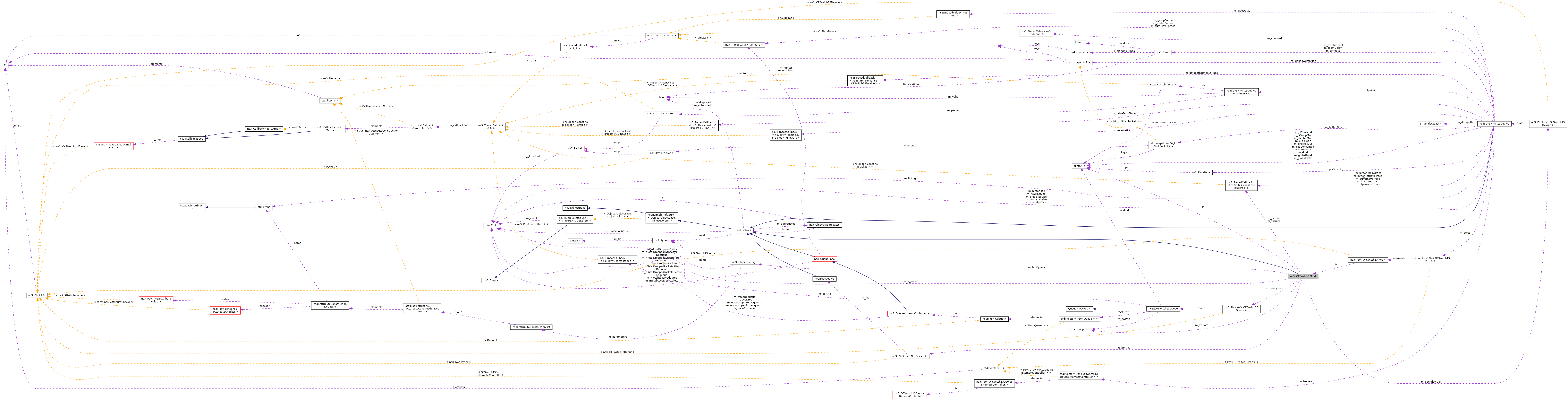

Collaboration diagram for ns3::OFSwitch13Port:

Public Member Functions
	OFSwitch13Port ()
	Default constructor. More...

	OFSwitch13Port (struct datapath *dp, Ptr< NetDevice > netDev, Ptr< OFSwitch13Device > openflowDev)
	Complete Constructor. More...

	~OFSwitch13Port () override
	Dummy destructor, see DoDispose. More...

Ptr< NetDevice >	GetPortDevice () const
	Get the NetDevice pointer from the underlying port. More...

uint32_t	GetPortNo () const
	Get the OpenFlow port number for this port. More...

Ptr< OFSwitch13Queue >	GetPortQueue () const
	Get the OpenFlow queue for this port. More...

struct sw_port *	GetPortStruct ()
	Get a pointer to the internal BOFUSS port structure. More...

Ptr< OFSwitch13Device >	GetSwitchDevice () const
	Get the OFSwitch13Device pointer from this port. More...

bool	PortUpdateState ()
	Update the port state field based on NetDevice status, and notify the controller when changes occurs. More...

bool	Send (Ptr< const Packet > packet, uint32_t queueNo=0, uint64_t tunnelId=0)
	Send a packet over this OpenFlow switch port. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	NotifyConstructionCompleted () override
	Notifier called once the ObjectBase is fully constructed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

Private Member Functions
uint32_t	GetPortFeatures ()
	Create the bitmaps of OFPPF_* describing port features. More...

bool	Receive (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Called when a packet is received on this OpenFlow switch port by the underlying NetDevice. More...

Private Attributes
uint64_t	m_dpId
	OpenFlow datapath ID. More...

ObjectFactory	m_factQueue
	Factory for port queue. More...

Ptr< NetDevice >	m_netDev
	Underlying NetDevice. More...

Ptr< OFSwitch13Device >	m_openflowDev
	OpenFlow device. More...

uint32_t	m_portNo
	Port number. More...

Ptr< OFSwitch13Queue >	m_portQueue
	OpenFlow port Queue. More...

TracedCallback< Ptr< const Packet > >	m_rxTrace
	Trace source fired when a packet arrives at this switch port. More...

struct sw_port *	m_swPort
	BOFUSS port structure. More...

TracedCallback< Ptr< const Packet > >	m_txTrace
	Trace source fired when a packet will be sent over this switch port. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A OpenFlow switch port, interconnecting the underlying NetDevice to the OpenFlow device through the OpenFlow receive callback.

Introspection did not find any typical Config paths.

This class handles the BOFUSS internal sw_port structure.

See also: BOFUSS udatapath/dp_ports.h

Attention: Each underlying NetDevice used as port must only be assigned a MAC Address. Adding an Ipv4/IPv6 layer to it may cause error.

Attributes

PortQueue: The OpenFlow queue to use as the TX queue in this port.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::OFSwitch13Queue>
- Initial value: 0
- Flags: constructwriteread
QueueFactory: The object factory for the OpenFlow queue.
- Set with class: ns3::ObjectFactoryValue
- Underlying type: ObjectFactory
- Initial value: ns3::OFSwitch13PriorityQueue[]
- Flags: constructread

TraceSources

SwitchPortRx: Trace source indicating a packet received at this port.
Callback signature: ns3::Packet::TracedCallback
SwitchPortTx: Trace source indicating a packet sent at this port.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 160 bytes (on a 64-bit architecture).

Definition at line 50 of file ofswitch13-port.h.

Constructor & Destructor Documentation

◆ OFSwitch13Port() [1/2]

ns3::OFSwitch13Port::OFSwitch13Port ( )

Default constructor.

Definition at line 51 of file ofswitch13-port.cc.

References NS_LOG_FUNCTION.

◆ ~OFSwitch13Port()

ns3::OFSwitch13Port::~OFSwitch13Port ( )

override

Dummy destructor, see DoDispose.

Definition at line 61 of file ofswitch13-port.cc.

References NS_LOG_FUNCTION.

◆ OFSwitch13Port() [2/2]

ns3::OFSwitch13Port::OFSwitch13Port	(	struct datapath *	dp,
		Ptr< NetDevice >	netDev,
		Ptr< OFSwitch13Device >	openflowDev
	)

Complete Constructor.

Create and populate a new datapath port, notifying the controller of this new port.

See also: ofsoftswitch new_port () at udatapath/dp_ports.c

Parameters

dp	The datapath.
netDev	The underlying NetDevice.
openflowDev	The OpenFlow device.

Definition at line 118 of file ofswitch13-port.cc.

References m_dpId, m_portNo, m_swPort, and NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::OFSwitch13Port::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

Reimplemented from ns3::Object.

Definition at line 67 of file ofswitch13-port.cc.

References m_netDev, m_openflowDev, m_portQueue, m_swPort, and NS_LOG_FUNCTION.

◆ GetPortDevice()

Ptr< NetDevice > ns3::OFSwitch13Port::GetPortDevice ( ) const

Get the NetDevice pointer from the underlying port.

Returns: A pointer to the corresponding underlying NetDevice.

Definition at line 218 of file ofswitch13-port.cc.

References m_netDev.

◆ GetPortFeatures()

uint32_t ns3::OFSwitch13Port::GetPortFeatures ( )

private

Create the bitmaps of OFPPF_* describing port features.

See also: ofsoftswitch netdev_get_features () at lib/netdev.c

Returns: Port features bitmap.

Definition at line 269 of file ofswitch13-port.cc.

References third::channel, m_netDev, and NS_LOG_FUNCTION.

Referenced by NotifyConstructionCompleted().

Here is the caller graph for this function:

◆ GetPortNo()

uint32_t ns3::OFSwitch13Port::GetPortNo ( ) const

Get the OpenFlow port number for this port.

Returns: The port number.

Definition at line 224 of file ofswitch13-port.cc.

References m_portNo.

Referenced by ns3::OFSwitch13Device::AddSwitchPort().

Here is the caller graph for this function:

◆ GetPortQueue()

Ptr< OFSwitch13Queue > ns3::OFSwitch13Port::GetPortQueue ( ) const

Get the OpenFlow queue for this port.

Returns: The port queue.

Definition at line 230 of file ofswitch13-port.cc.

References m_portQueue.

◆ GetPortStruct()

struct sw_port * ns3::OFSwitch13Port::GetPortStruct ( )

Get a pointer to the internal BOFUSS port structure.

Returns: The requested pointer.

Definition at line 418 of file ofswitch13-port.cc.

References m_swPort.

◆ GetSwitchDevice()

Ptr< OFSwitch13Device > ns3::OFSwitch13Port::GetSwitchDevice ( ) const

Get the OFSwitch13Device pointer from this port.

Returns: A pointer to the corresponding OFSwitch13Device.

Definition at line 236 of file ofswitch13-port.cc.

References m_openflowDev.

◆ GetTypeId()

TypeId ns3::OFSwitch13Port::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

Definition at line 84 of file ofswitch13-port.cc.

References ns3::TypeId::ATTR_CONSTRUCT, ns3::TypeId::ATTR_GET, ns3::GetDefaultQueueFactory(), m_factQueue, m_portQueue, m_rxTrace, m_txTrace, ns3::MakeObjectFactoryAccessor(), ns3::MakeObjectFactoryChecker(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

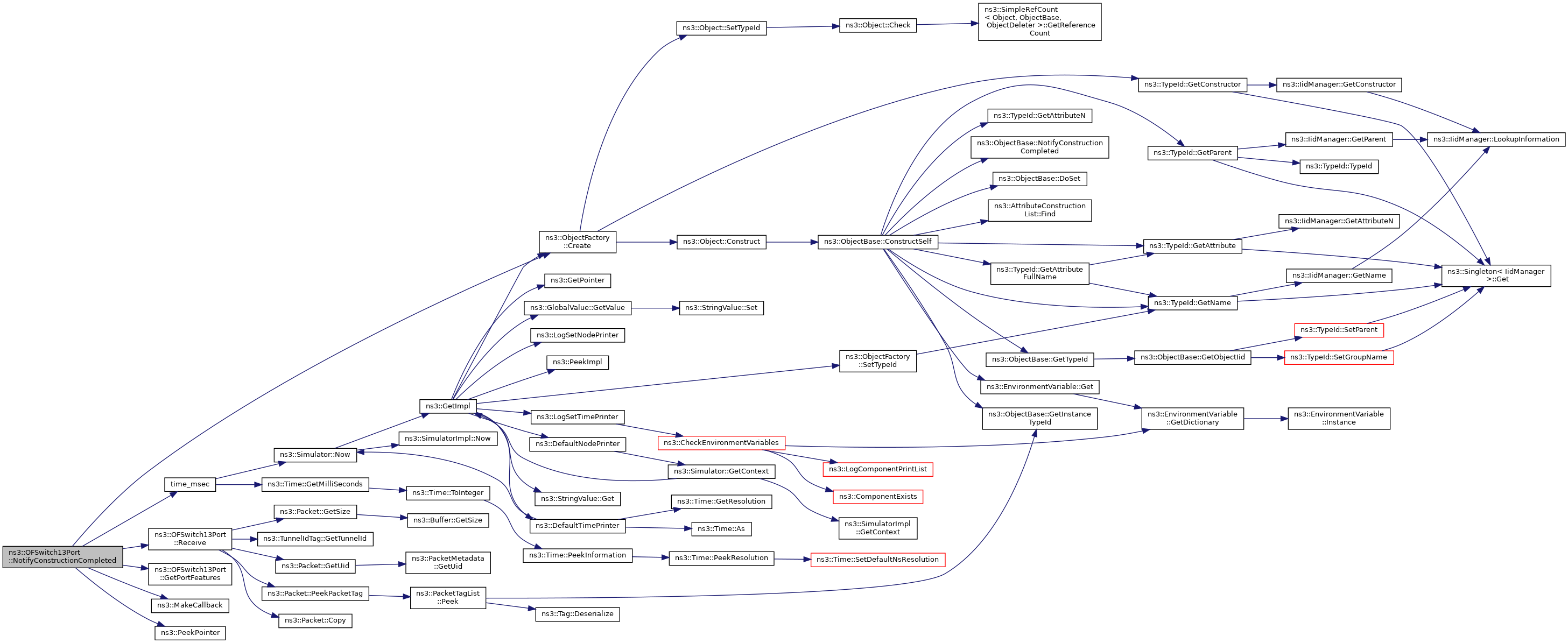

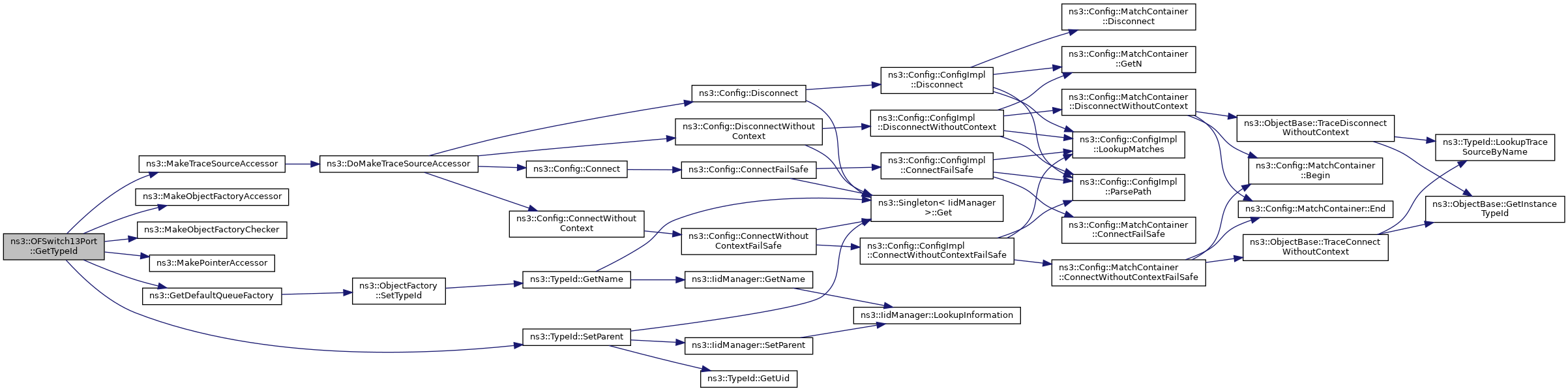

Here is the call graph for this function:

◆ NotifyConstructionCompleted()

void ns3::OFSwitch13Port::NotifyConstructionCompleted ( )

overrideprotectedvirtual

Notifier called once the ObjectBase is fully constructed.

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 139 of file ofswitch13-port.cc.

References ns3::ObjectFactory::Create(), GetPortFeatures(), m_factQueue, m_netDev, m_portNo, m_portQueue, m_swPort, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::PeekPointer(), Receive(), and time_msec().

Here is the call graph for this function:

◆ PortUpdateState()

bool ns3::OFSwitch13Port::PortUpdateState ( )

Update the port state field based on NetDevice status, and notify the controller when changes occurs.

Returns: true if the state of the port has changed, false otherwise.

Definition at line 242 of file ofswitch13-port.cc.

References m_netDev, m_swPort, and NS_LOG_INFO.

◆ Receive()

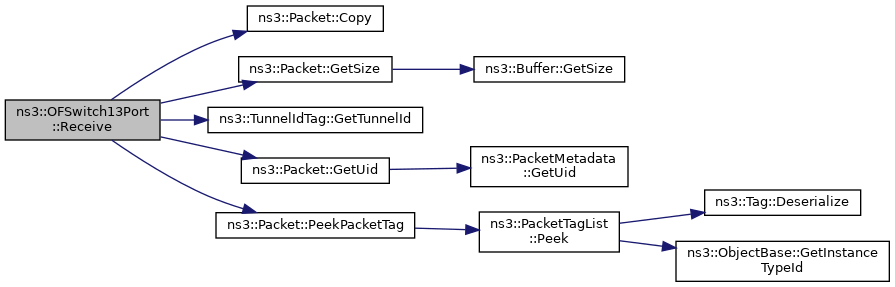

bool ns3::OFSwitch13Port::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

private

Called when a packet is received on this OpenFlow switch port by the underlying NetDevice.

It will check port configuration, update counter and send the packet to the OpenFlow pipeline.

See also: BOFUSS function dp_ports_run () at udatapath/dp_ports.c

Parameters

device	Underlying ns-3 network device.
packet	The received packet.
protocol	Next protocol header value.
from	Address of the correspondant.
to	Address of the destination.
packetType	Type of the packet.

Returns: true.

Definition at line 326 of file ofswitch13-port.cc.

References ns3::Packet::Copy(), ns3::Packet::GetSize(), ns3::TunnelIdTag::GetTunnelId(), ns3::Packet::GetUid(), m_openflowDev, m_portNo, m_rxTrace, m_swPort, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and ns3::Packet::PeekPacketTag().

Referenced by NotifyConstructionCompleted().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send()

bool ns3::OFSwitch13Port::Send	(	Ptr< const Packet >	packet,
		uint32_t	queueNo = `0`,
		uint64_t	tunnelId = `0`
	)

Send a packet over this OpenFlow switch port.

It will check port configuration, update counters and send the packet to the underlying device.

See also: BOFUSS function dp_ports_run () at udatapath/dp_ports.c

Parameters

packet	The Packet to send.
queueNo	The queue to use.
tunnelId	The metadata associated with a logical port.

Returns: true if the packet was sent successfully, false otherwise.

Definition at line 364 of file ofswitch13-port.cc.

References ns3::Packet::Copy(), ns3::EthernetHeader::GetDestination(), ns3::EthernetHeader::GetLengthType(), ns3::Packet::GetSize(), ns3::EthernetHeader::GetSource(), ns3::Packet::GetUid(), m_netDev, m_swPort, m_txTrace, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::Packet::RemoveHeader(), ns3::Packet::RemoveTrailer(), and ns3::Packet::ReplacePacketTag().

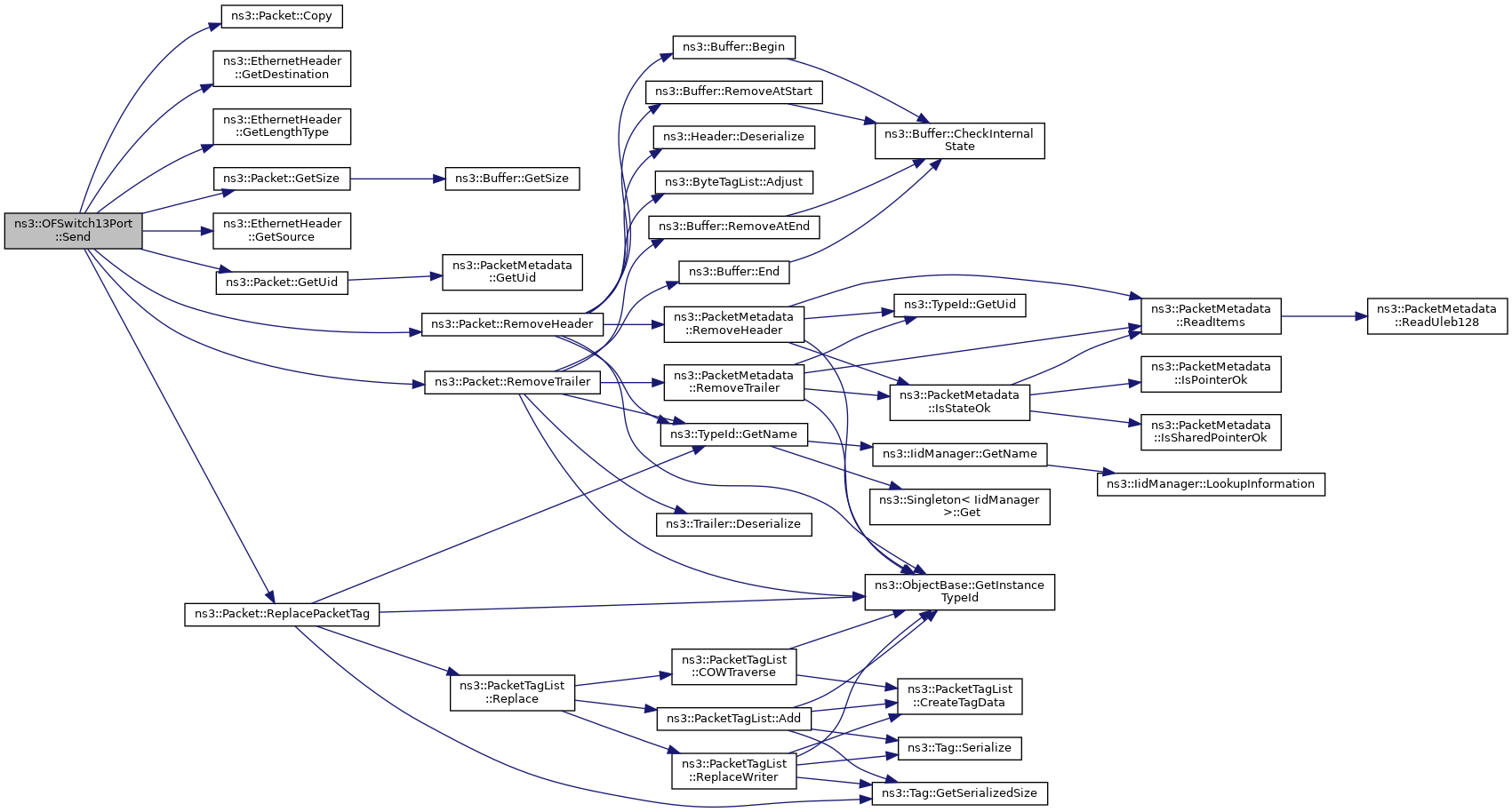

Here is the call graph for this function:

Member Data Documentation

◆ m_dpId

uint64_t ns3::OFSwitch13Port::m_dpId

private

OpenFlow datapath ID.

Definition at line 166 of file ofswitch13-port.h.

Referenced by OFSwitch13Port().

◆ m_factQueue

ObjectFactory ns3::OFSwitch13Port::m_factQueue

private

Factory for port queue.

Definition at line 171 of file ofswitch13-port.h.

Referenced by GetTypeId(), and NotifyConstructionCompleted().

◆ m_netDev

Ptr<NetDevice> ns3::OFSwitch13Port::m_netDev

private

Underlying NetDevice.

Definition at line 169 of file ofswitch13-port.h.

Referenced by DoDispose(), GetPortDevice(), GetPortFeatures(), NotifyConstructionCompleted(), PortUpdateState(), and Send().

◆ m_openflowDev

Ptr<OFSwitch13Device> ns3::OFSwitch13Port::m_openflowDev

private

OpenFlow device.

Definition at line 172 of file ofswitch13-port.h.

Referenced by DoDispose(), GetSwitchDevice(), and Receive().

◆ m_portNo

uint32_t ns3::OFSwitch13Port::m_portNo

private

Port number.

Definition at line 167 of file ofswitch13-port.h.

Referenced by OFSwitch13Port(), GetPortNo(), NotifyConstructionCompleted(), and Receive().

◆ m_portQueue

Ptr<OFSwitch13Queue> ns3::OFSwitch13Port::m_portQueue

private

OpenFlow port Queue.

Definition at line 170 of file ofswitch13-port.h.

Referenced by DoDispose(), GetPortQueue(), GetTypeId(), and NotifyConstructionCompleted().

◆ m_rxTrace

TracedCallback<Ptr<const Packet> > ns3::OFSwitch13Port::m_rxTrace

private

Trace source fired when a packet arrives at this switch port.

Definition at line 161 of file ofswitch13-port.h.

Referenced by GetTypeId(), and Receive().

◆ m_swPort

struct sw_port* ns3::OFSwitch13Port::m_swPort

private

BOFUSS port structure.

Definition at line 168 of file ofswitch13-port.h.

Referenced by OFSwitch13Port(), DoDispose(), GetPortStruct(), NotifyConstructionCompleted(), PortUpdateState(), Receive(), and Send().

◆ m_txTrace

TracedCallback<Ptr<const Packet> > ns3::OFSwitch13Port::m_txTrace

private

Trace source fired when a packet will be sent over this switch port.

Definition at line 164 of file ofswitch13-port.h.

Referenced by GetTypeId(), and Send().

The documentation for this class was generated from the following files:

contrib/ofswitch13/model/ofswitch13-port.h
contrib/ofswitch13/model/ofswitch13-port.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Constructor & Destructor Documentation

◆ OFSwitch13Port() [1/2]

◆ ~OFSwitch13Port()

◆ OFSwitch13Port() [2/2]

Member Function Documentation

◆ DoDispose()

◆ GetPortDevice()

◆ GetPortFeatures()

◆ GetPortNo()

◆ GetPortQueue()

◆ GetPortStruct()

◆ GetSwitchDevice()

◆ GetTypeId()

◆ NotifyConstructionCompleted()

◆ PortUpdateState()

◆ Receive()

◆ Send()

Member Data Documentation

◆ m_dpId

◆ m_factQueue

◆ m_netDev

◆ m_openflowDev

◆ m_portNo

◆ m_portQueue

◆ m_rxTrace

◆ m_swPort

◆ m_txTrace
