This GTP tunnel application is responsible for implementing the logical port operations to encapsulate and de-encapsulated packets withing GTP tunnel. More...

#include "gtp-tunnel-app.h"

Inheritance diagram for ns3::GtpTunnelApp:

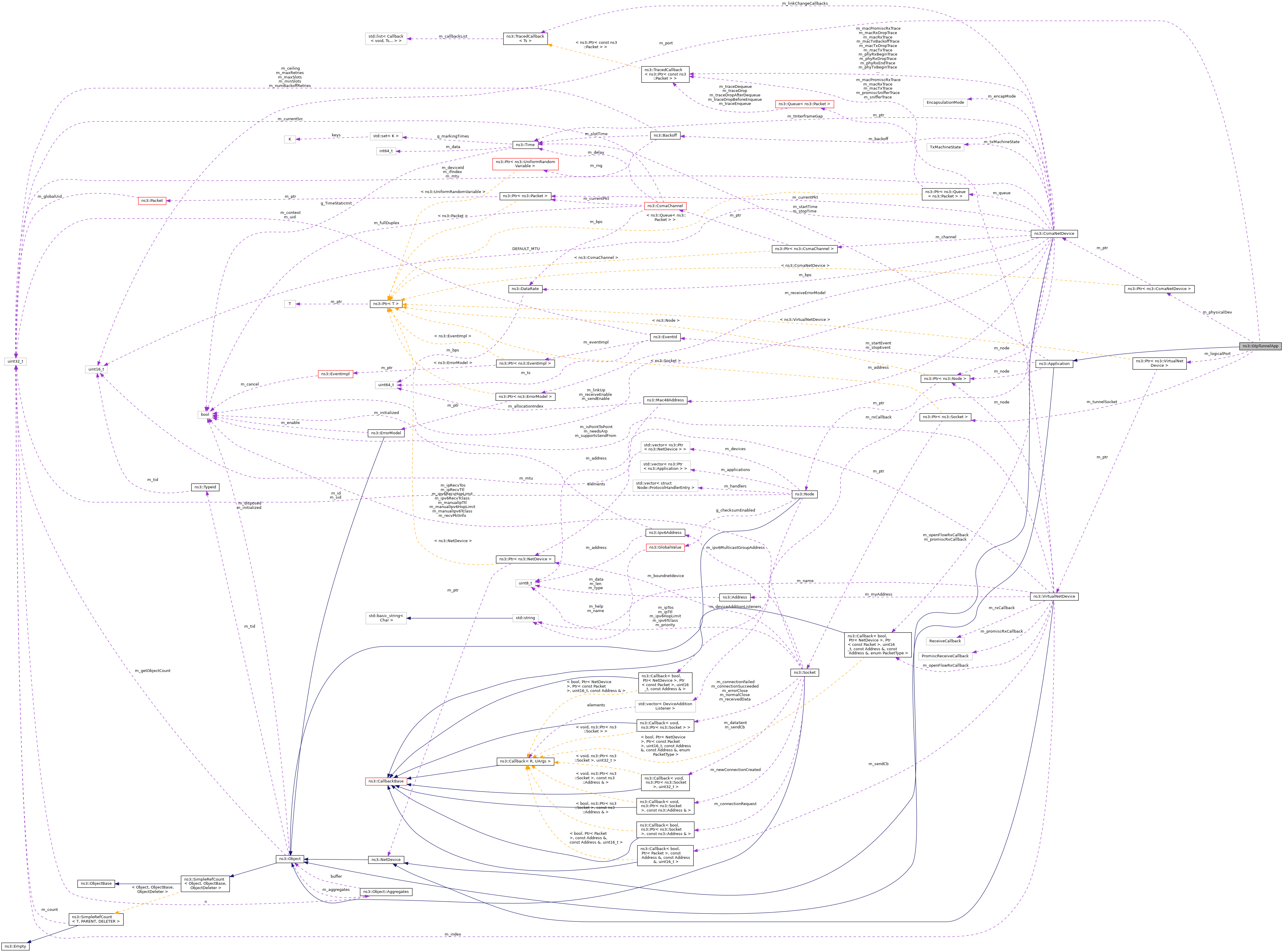

Collaboration diagram for ns3::GtpTunnelApp:

Public Member Functions
	GtpTunnelApp (Ptr< VirtualNetDevice > logicalPort, Ptr< CsmaNetDevice > physicalDev)
	Complete constructor. More...

	~GtpTunnelApp () override
	Dummy destructor, see DoDispose. More...

bool	RecvFromLogicalPort (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNo)
	Method to be assigned to the send callback of the VirtualNetDevice implementing the OpenFlow logical port. More...

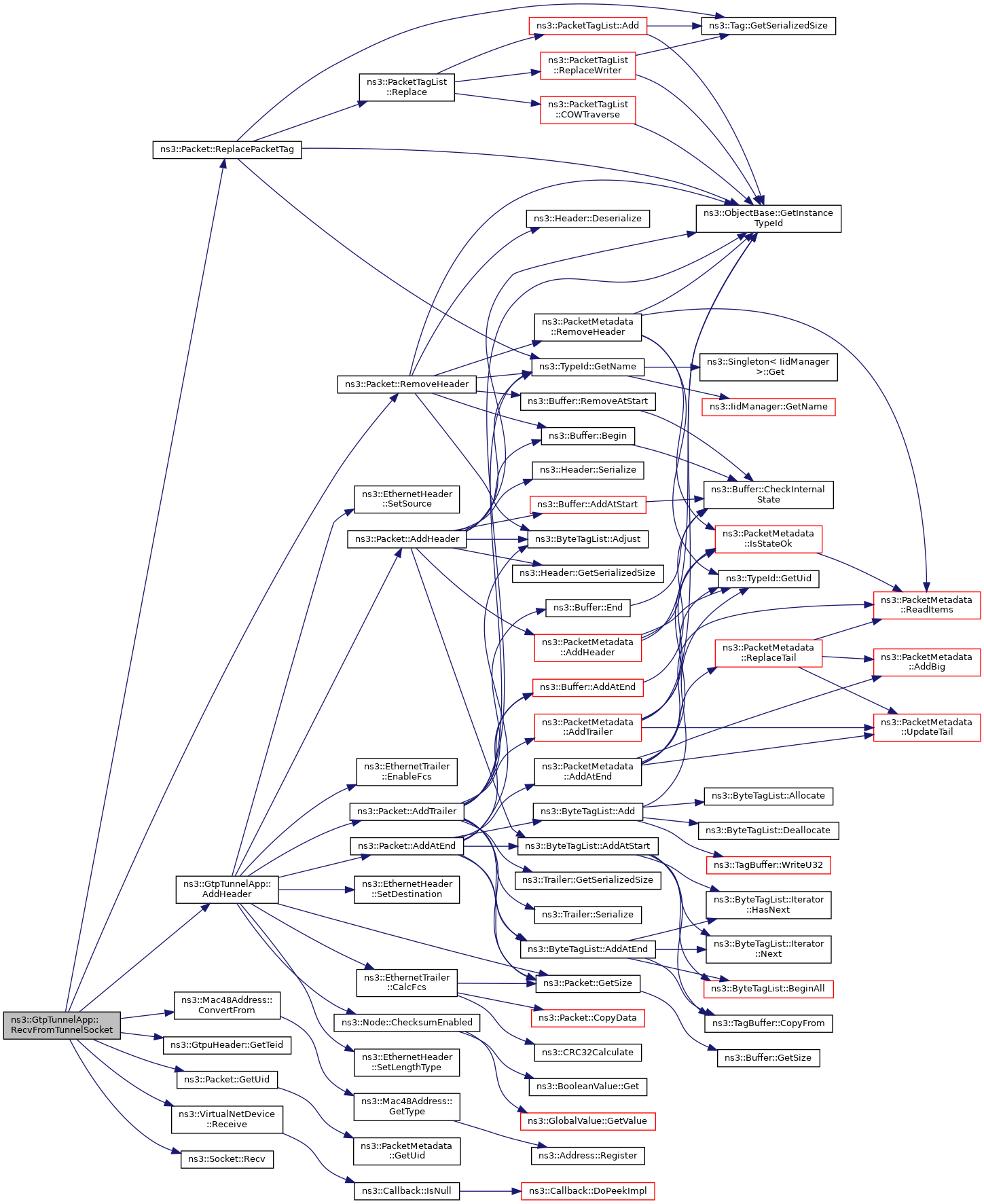

void	RecvFromTunnelSocket (Ptr< Socket > socket)
	Method to be assigned to the receive callback of the UDP tunnel socket. More...

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

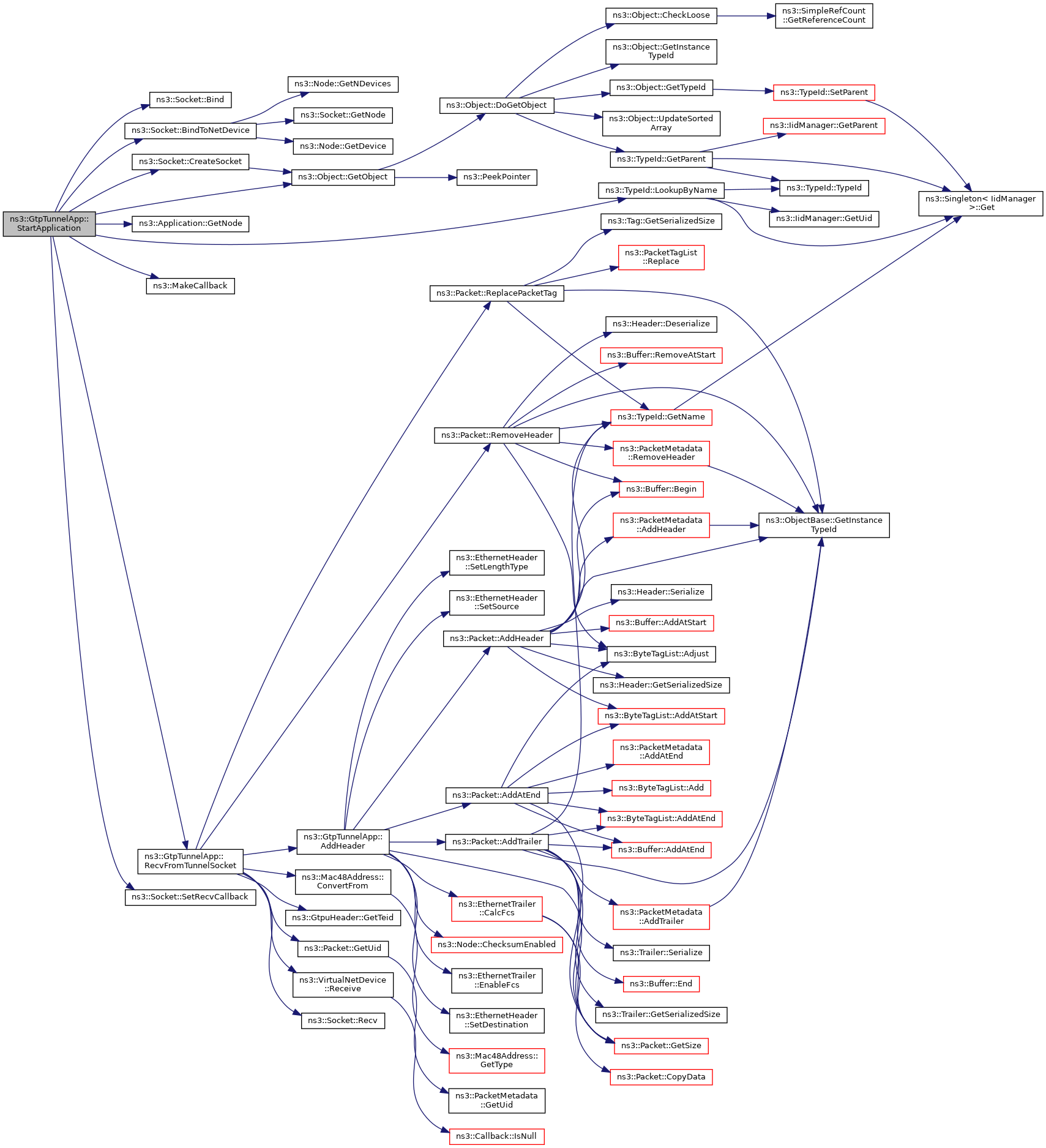

void	StartApplication () override
	Application specific startup code. More...

Protected Member Functions inherited from ns3::Application
void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	AddHeader (Ptr< Packet > packet, Mac48Address source=Mac48Address(), Mac48Address dest=Mac48Address(), uint16_t protocolNo=Ipv4L3Protocol::PROT_NUMBER)
	Adds the necessary Ethernet headers and trailers to a packet of data. More...

Private Attributes
Ptr< VirtualNetDevice >	m_logicalPort
	OpenFlow logical port device. More...

Ptr< CsmaNetDevice >	m_physicalDev
	Node physical network device. More...

const uint16_t	m_port = 2152
	GTP tunnel port. More...

Ptr< Socket >	m_tunnelSocket
	UDP tunnel socket. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This GTP tunnel application is responsible for implementing the logical port operations to encapsulate and de-encapsulated packets withing GTP tunnel.

It provides the callback implementations that are used by the logical switch port and UDP socket. This application is stateless: it only adds/removes protocols headers over packets leaving/entering the OpenFlow switch based on information that is carried by packet tags.

When sending a packet to the GTP tunnel, this application expects that the packet carries the TunnelId tag set with the destination address in the 32 MSB and the TEID in the 32 LSB of packet tag. When a packet is received from the GTP tunnel, this application attachs the TunnelId tag only with the GTP TEID value.

Definition at line 47 of file gtp-tunnel-app.h.

Constructor & Destructor Documentation

◆ GtpTunnelApp()

ns3::GtpTunnelApp::GtpTunnelApp	(	Ptr< VirtualNetDevice >	logicalPort,
		Ptr< CsmaNetDevice >	physicalDev
	)

Complete constructor.

Parameters

logicalPort	The OpenFlow logical port device.
physicalDev	The physical network device on node.

Definition at line 31 of file gtp-tunnel-app.cc.

References m_logicalPort, m_physicalDev, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromLogicalPort(), and ns3::VirtualNetDevice::SetSendCallback().

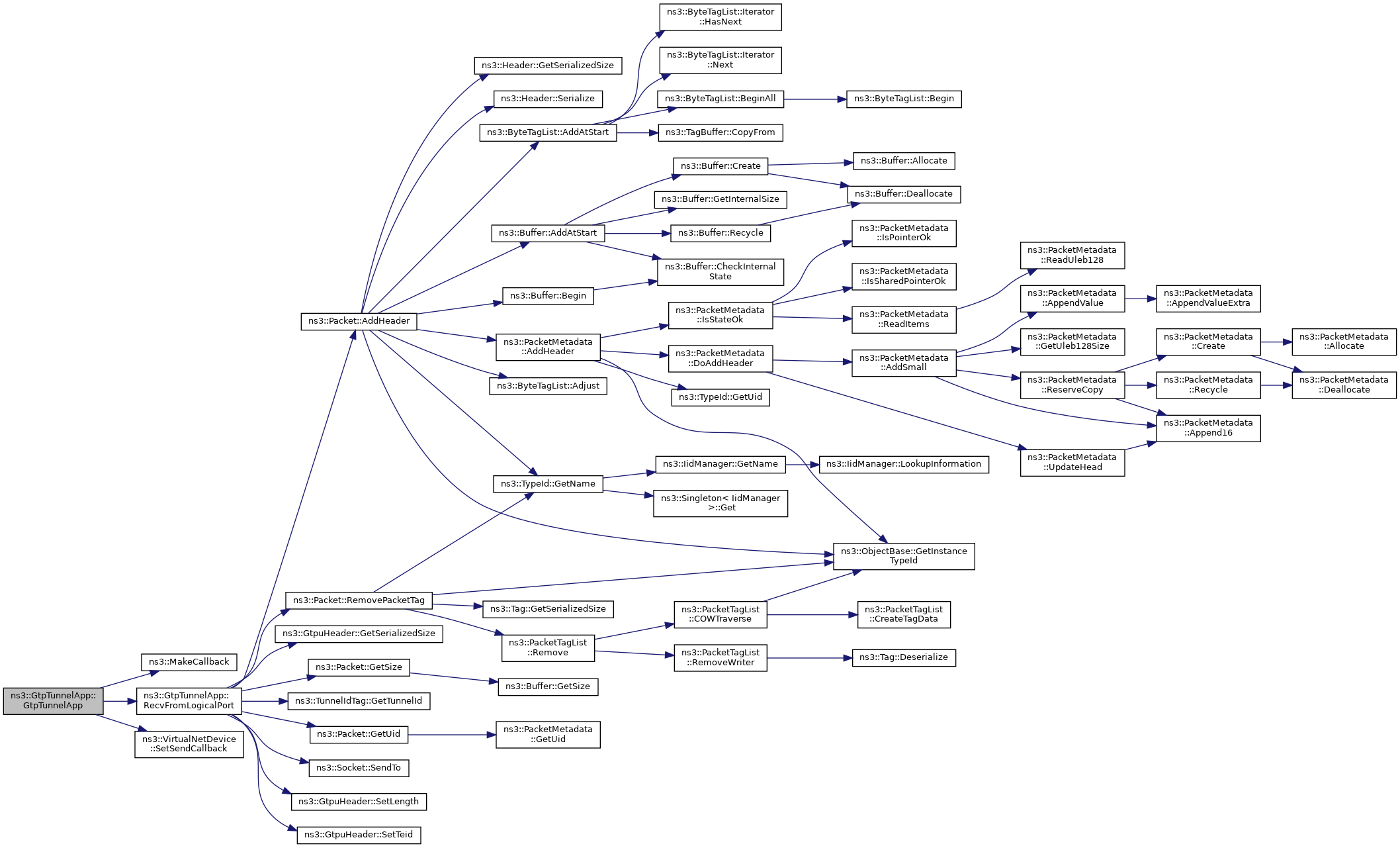

Here is the call graph for this function:

◆ ~GtpTunnelApp()

ns3::GtpTunnelApp::~GtpTunnelApp ( )

override

Dummy destructor, see DoDispose.

Definition at line 41 of file gtp-tunnel-app.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddHeader()

void ns3::GtpTunnelApp::AddHeader	(	Ptr< Packet >	packet,
		Mac48Address	source = `Mac48Address()`,
		Mac48Address	dest = `Mac48Address()`,
		uint16_t	protocolNo = `Ipv4L3Protocol::PROT_NUMBER`
	)

private

Adds the necessary Ethernet headers and trailers to a packet of data.

Parameters

packet	Packet to which header should be added.
source	MAC source address from which packet should be sent.
dest	MAC destination address to which packet should be sent.
protocolNo	The type of payload contained in this packet.

Definition at line 158 of file gtp-tunnel-app.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::EthernetTrailer::CalcFcs(), ns3::Node::ChecksumEnabled(), ns3::EthernetTrailer::EnableFcs(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, ns3::EthernetHeader::SetDestination(), ns3::EthernetHeader::SetLengthType(), and ns3::EthernetHeader::SetSource().

Referenced by RecvFromTunnelSocket().

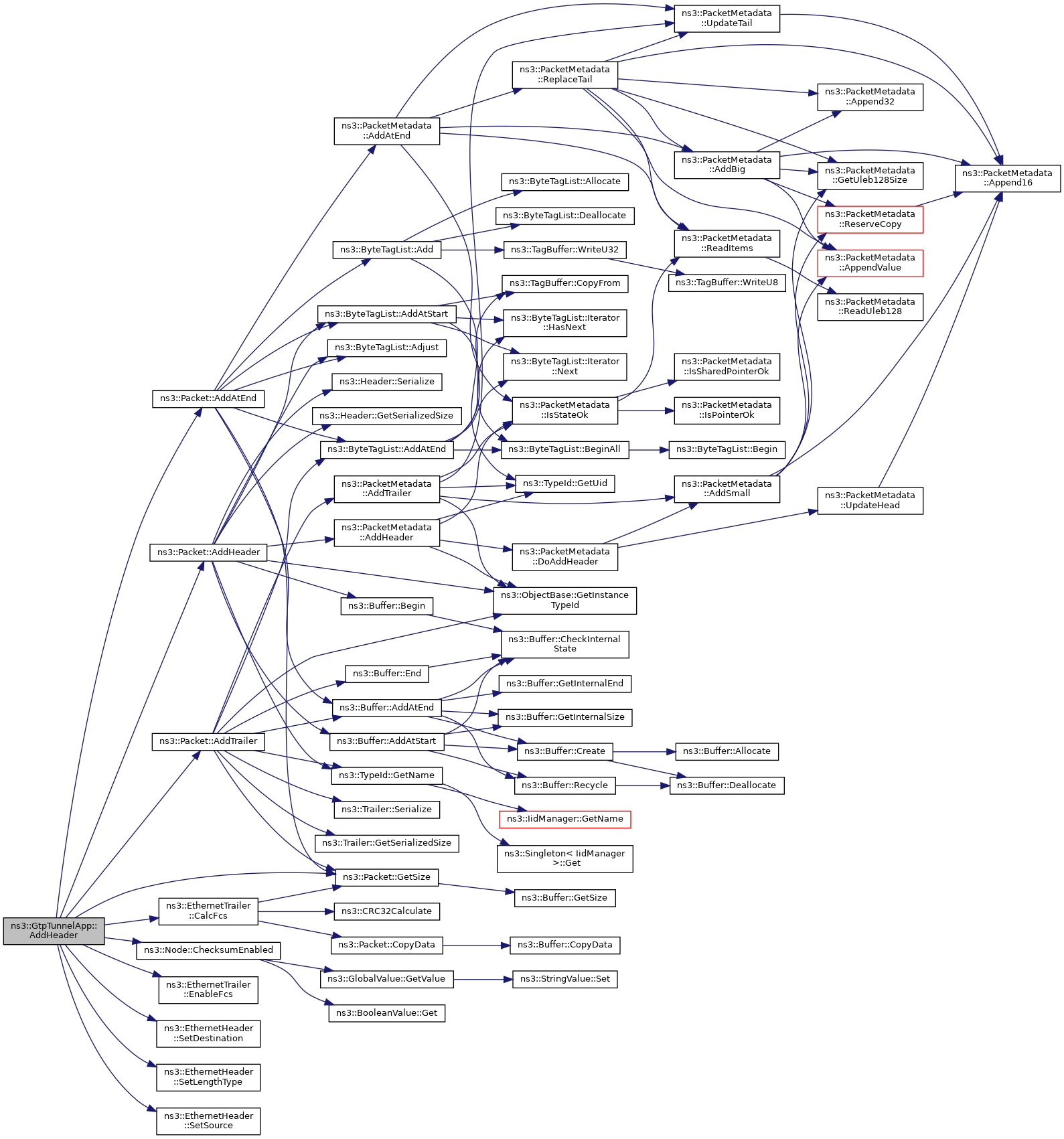

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::GtpTunnelApp::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

Reimplemented from ns3::Application.

Definition at line 130 of file gtp-tunnel-app.cc.

References m_logicalPort, m_physicalDev, m_tunnelSocket, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::GtpTunnelApp::GetTypeId ( )

static

Register this type.

Returns: The object TypeId.

Definition at line 47 of file gtp-tunnel-app.cc.

References ns3::TypeId::SetParent().

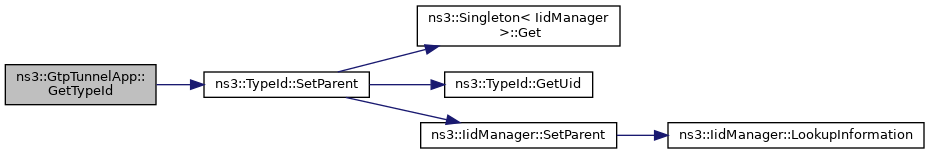

Here is the call graph for this function:

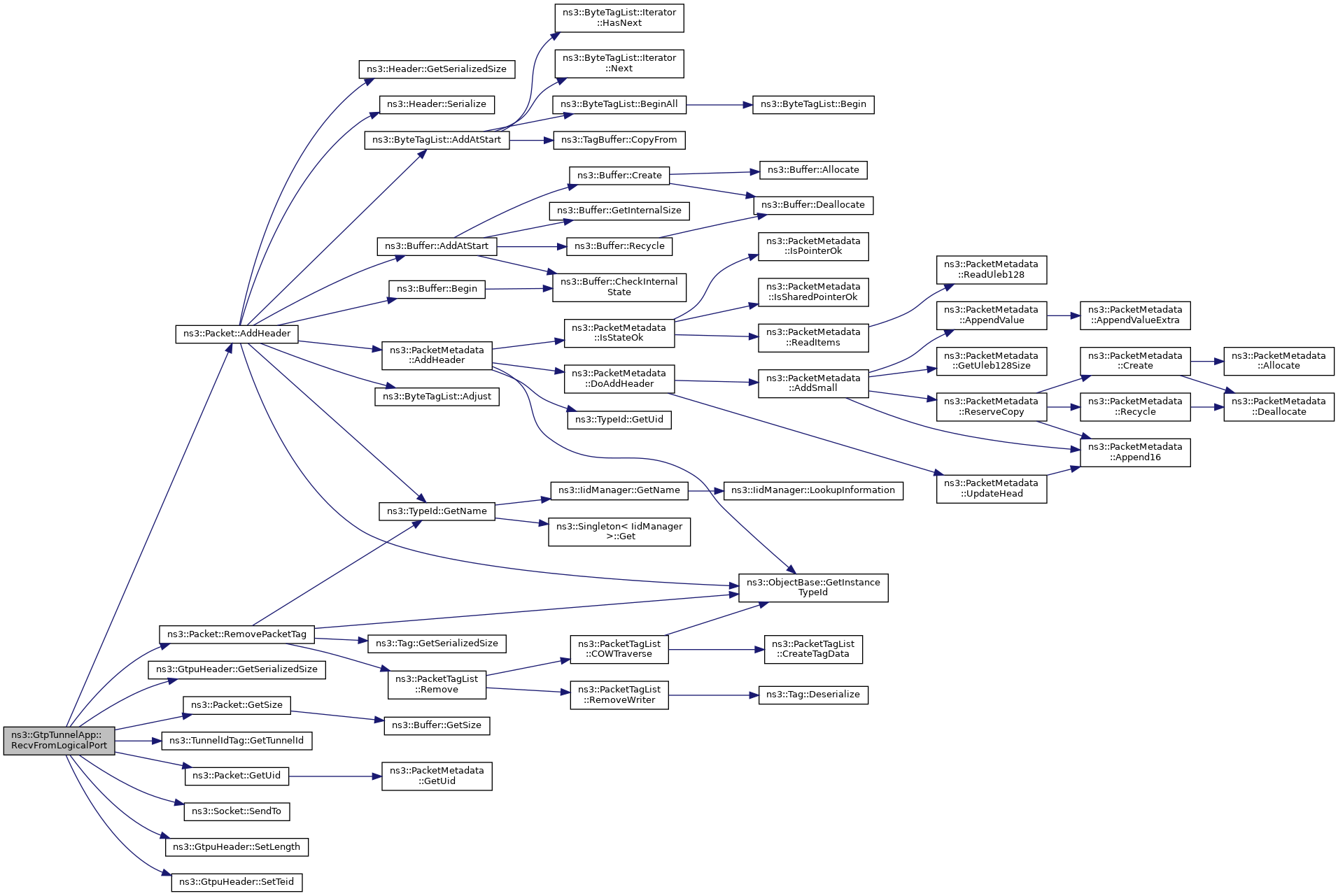

◆ RecvFromLogicalPort()

bool ns3::GtpTunnelApp::RecvFromLogicalPort	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNo
	)

Method to be assigned to the send callback of the VirtualNetDevice implementing the OpenFlow logical port.

It is called when the OpenFlow switch sends a packet out over the logical port. The logical port callbacks here, and we must encapsulate the packet withing GTP and forward it to the UDP tunnel socket.

Parameters

packet	The packet received from the logical port.
source	Ethernet source address.
dest	Ethernet destination address.
protocolNo	The type of payload contained in this packet.
